2007 FORD SUPER DUTY Owners Manual

Page 41 of 312

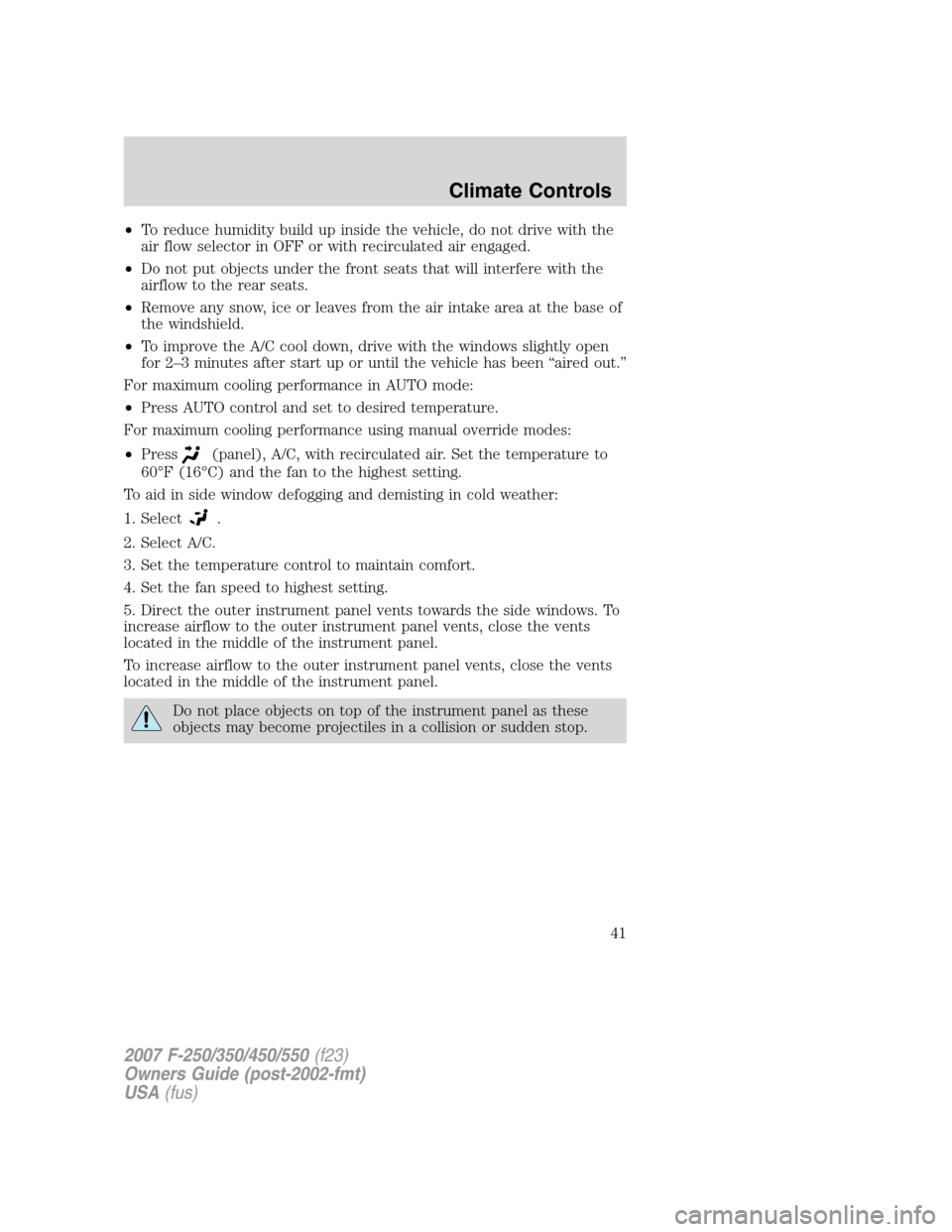

FORD SUPER DUTY 2007 1.G Owners Manual •To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in OFF or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with

Page 42 of 312

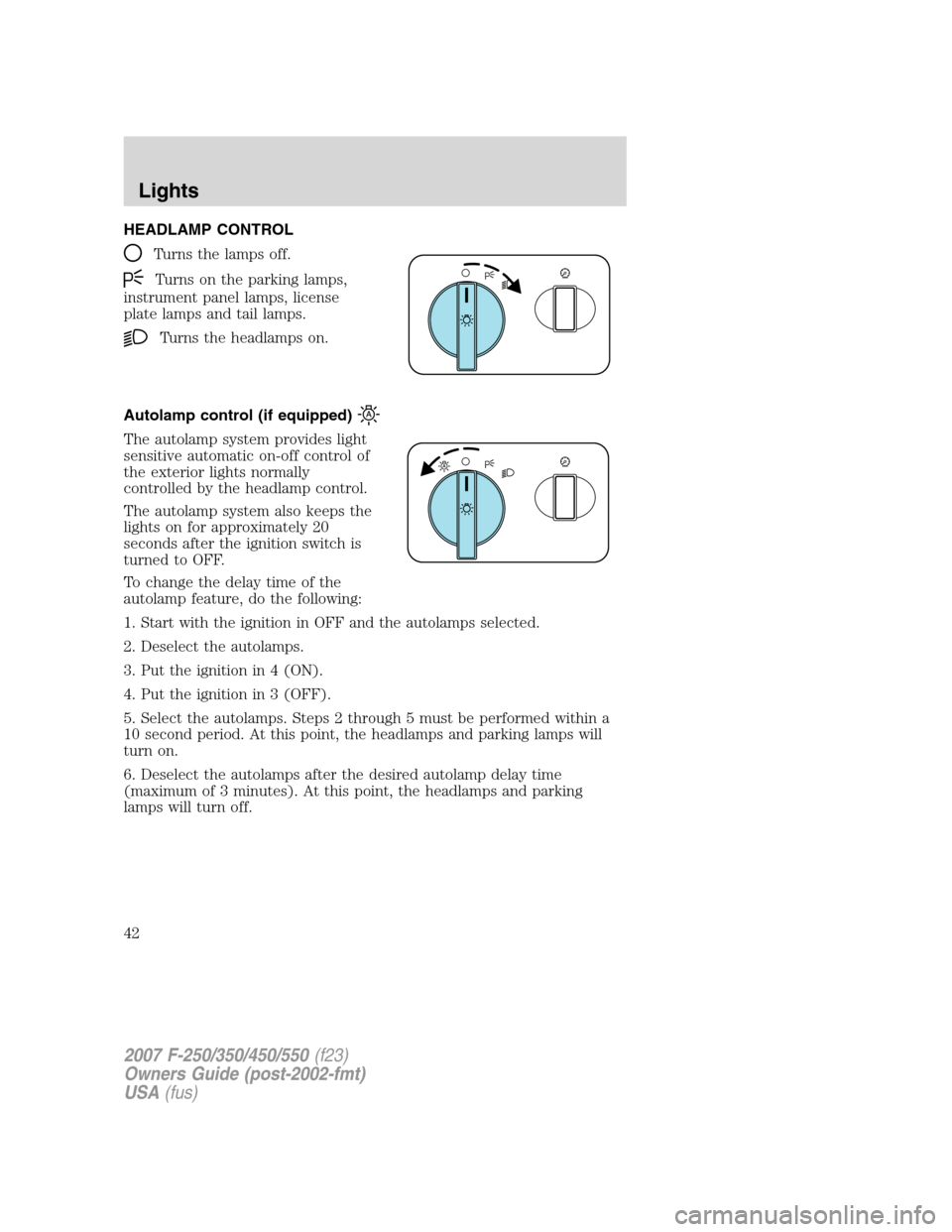

FORD SUPER DUTY 2007 1.G Owners Manual HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped)
The autolamp system

Page 43 of 312

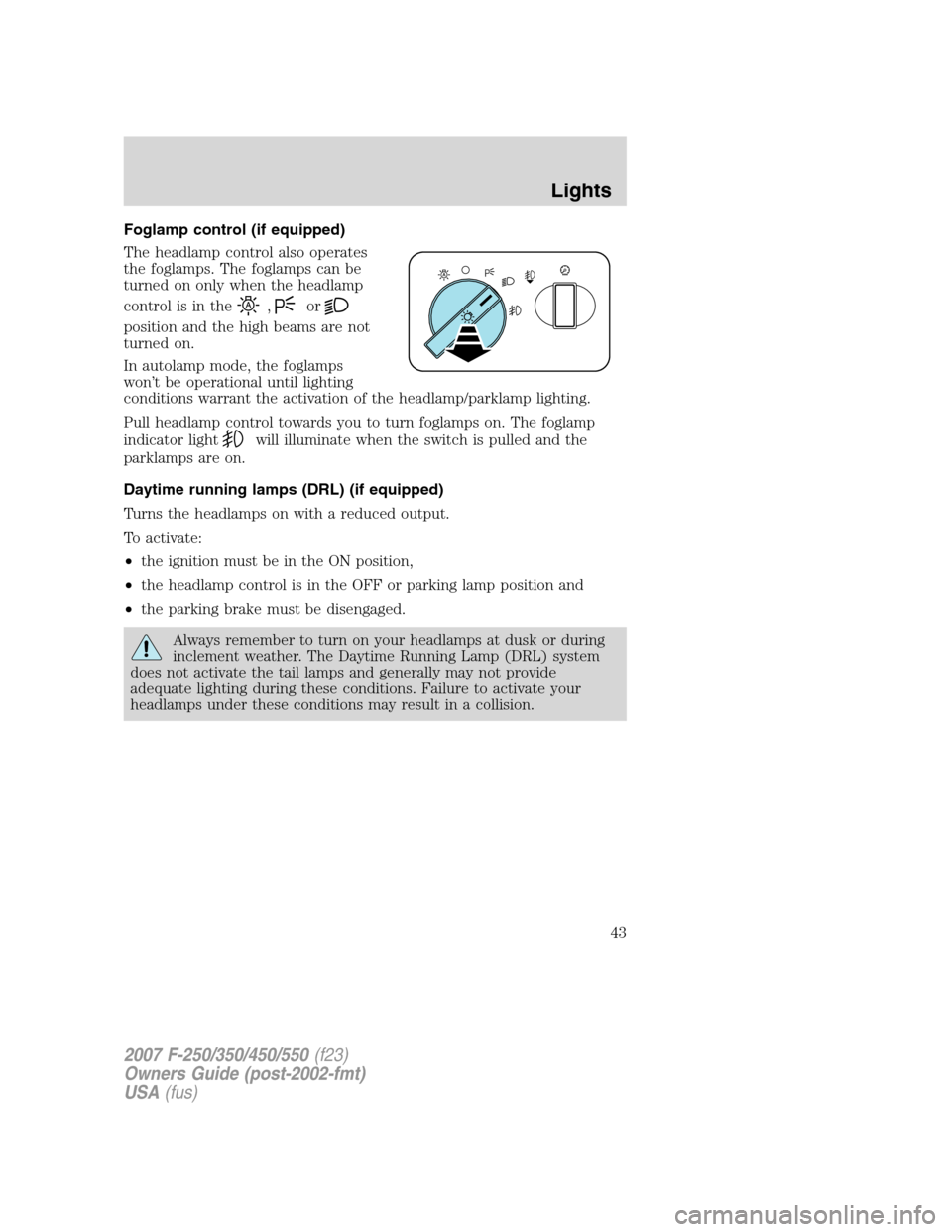

FORD SUPER DUTY 2007 1.G Owners Manual Foglamp control (if equipped)
The headlamp control also operates
the foglamps. The foglamps can be
turned on only when the headlamp
control is in the
,or
position and the high beams are not
turned on.

Page 44 of 312

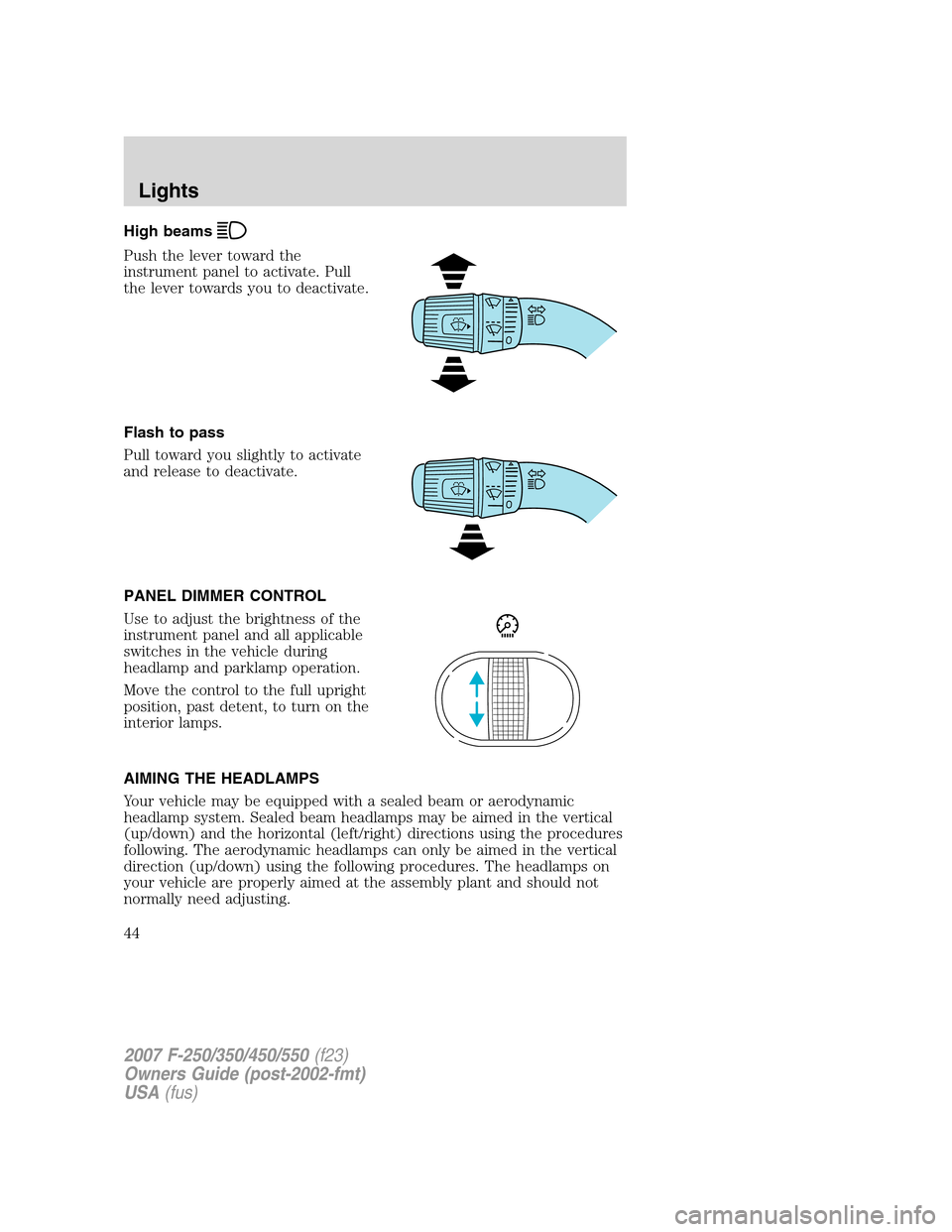

FORD SUPER DUTY 2007 1.G Owners Manual High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER

Page 45 of 312

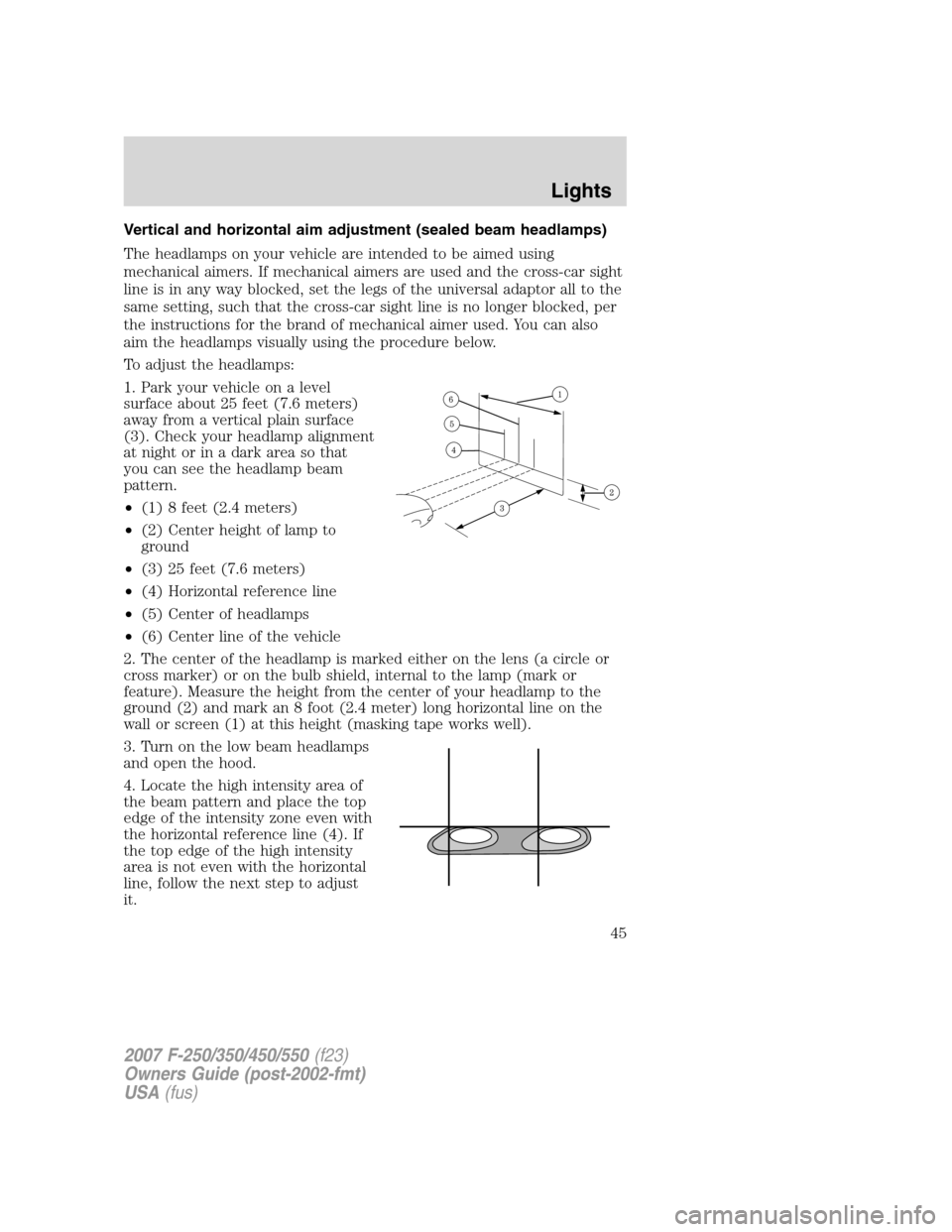

FORD SUPER DUTY 2007 1.G Owners Manual Vertical and horizontal aim adjustment (sealed beam headlamps)
The headlamps on your vehicle are intended to be aimed using
mechanical aimers. If mechanical aimers are used and the cross-car sight
lin

Page 46 of 312

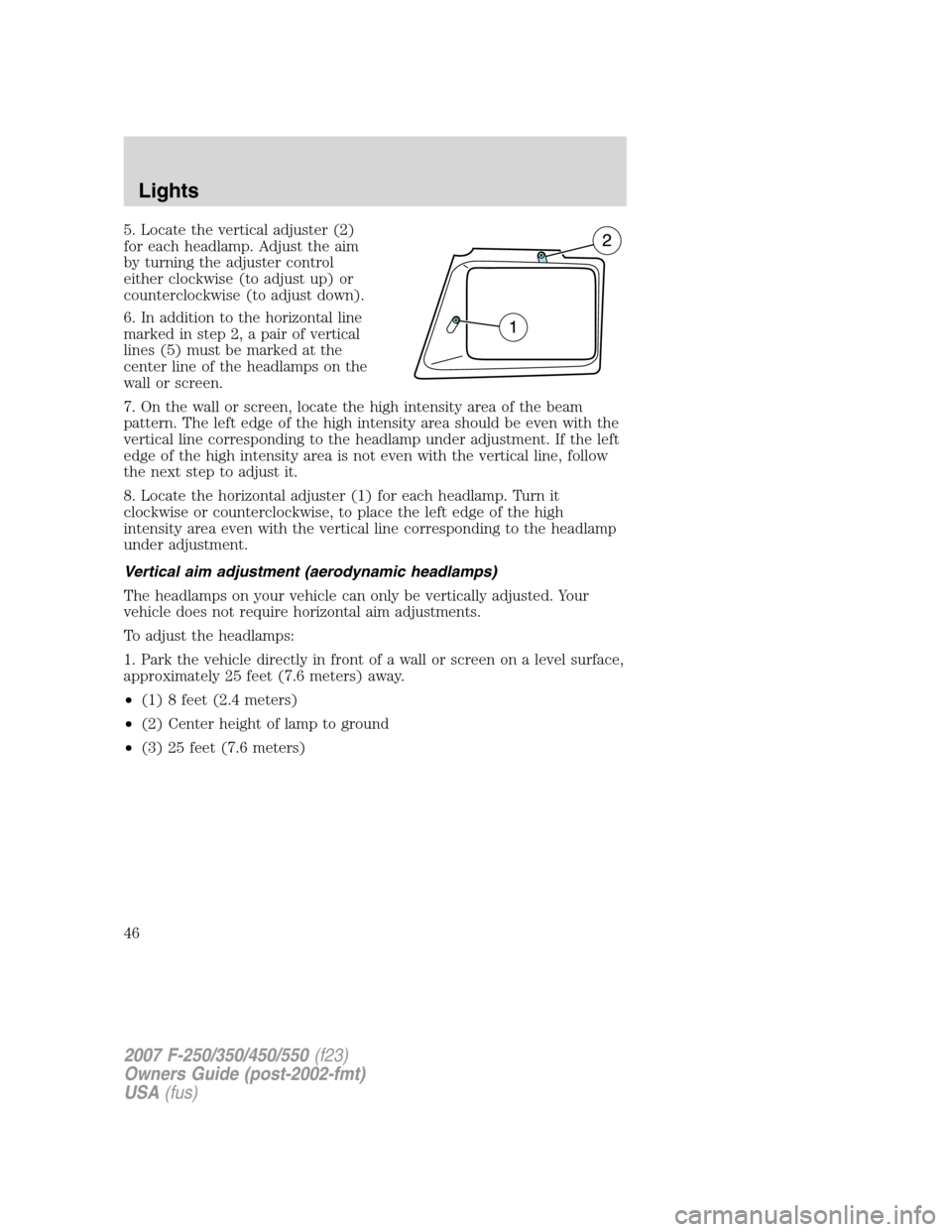

FORD SUPER DUTY 2007 1.G Owners Manual 5. Locate the vertical adjuster (2)
for each headlamp. Adjust the aim
by turning the adjuster control
either clockwise (to adjust up) or
counterclockwise (to adjust down).
6. In addition to the horizo

Page 47 of 312

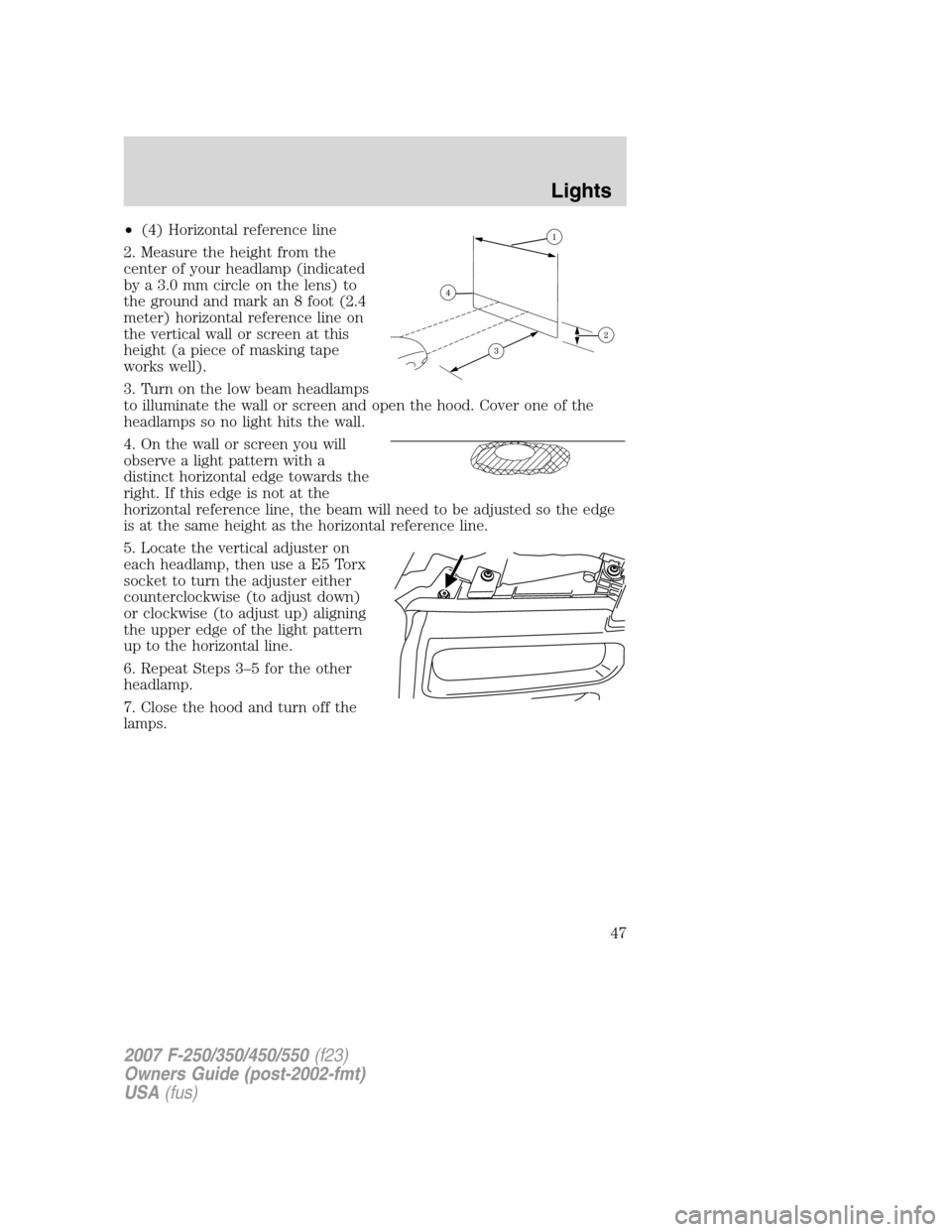

FORD SUPER DUTY 2007 1.G Owners Manual •(4) Horizontal reference line
2. Measure the height from the
center of your headlamp (indicated
by a 3.0 mm circle on the lens) to
the ground and mark an 8 foot (2.4
meter) horizontal reference lin

Page 48 of 312

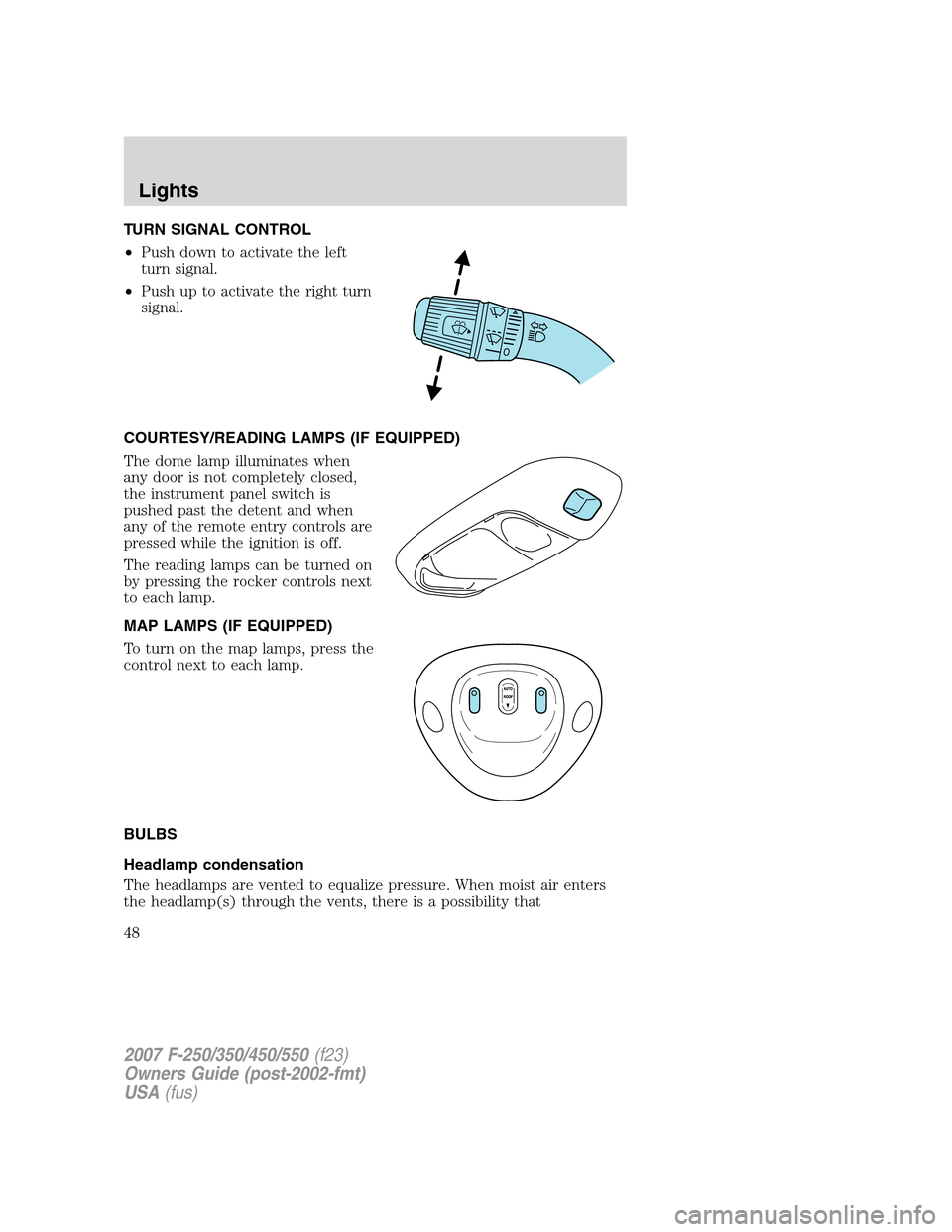

FORD SUPER DUTY 2007 1.G Owners Manual TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
COURTESY/READING LAMPS (IF EQUIPPED)
The dome lamp illuminates when
any door is not com
