2007 FORD SUPER DUTY Owners Manual

Page 185 of 312

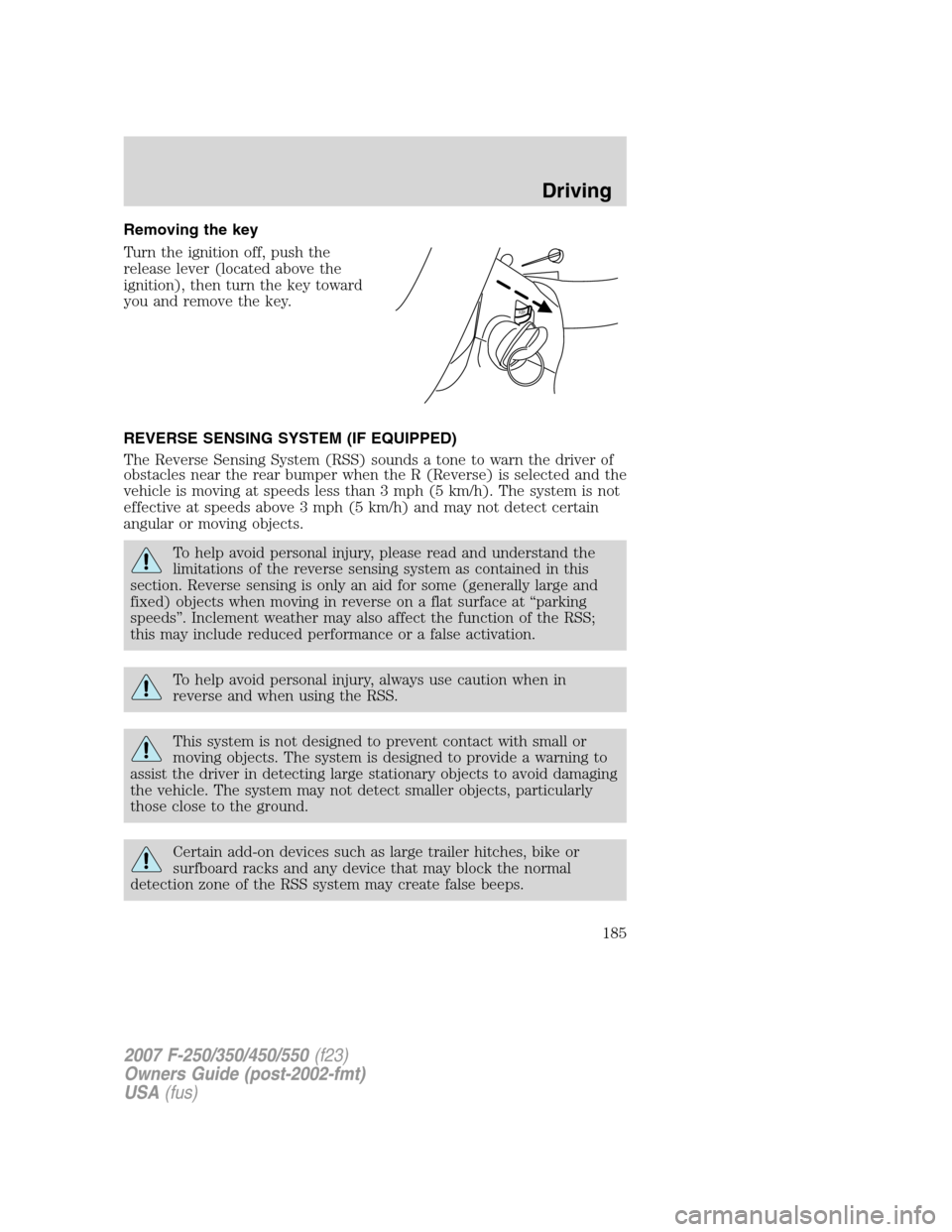

FORD SUPER DUTY 2007 1.G Owners Manual Removing the key
Turn the ignition off, push the
release lever (located above the
ignition), then turn the key toward
you and remove the key.
REVERSE SENSING SYSTEM (IF EQUIPPED)
The Reverse Sensing S

Page 186 of 312

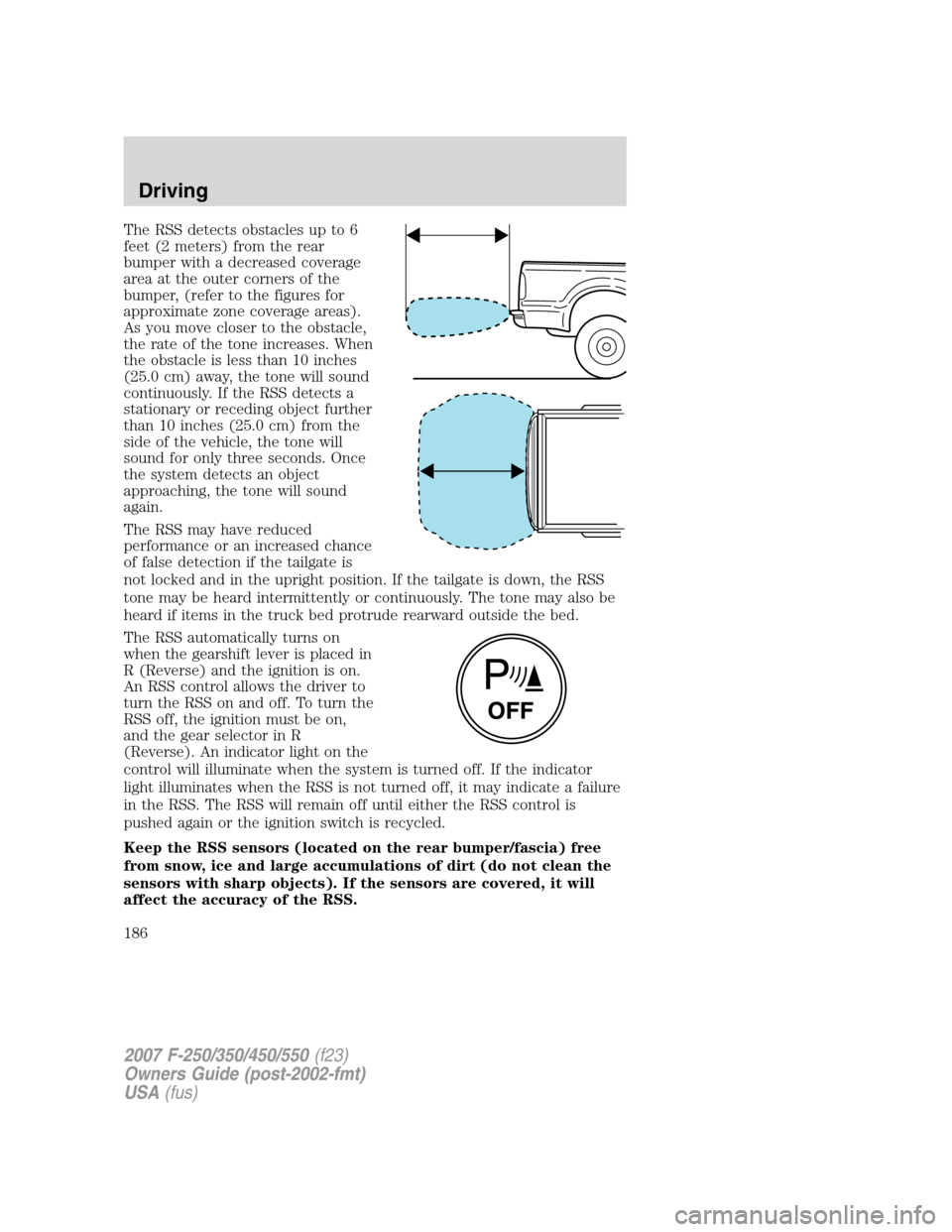

FORD SUPER DUTY 2007 1.G Owners Manual The RSS detects obstacles up to 6
feet (2 meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As

Page 187 of 312

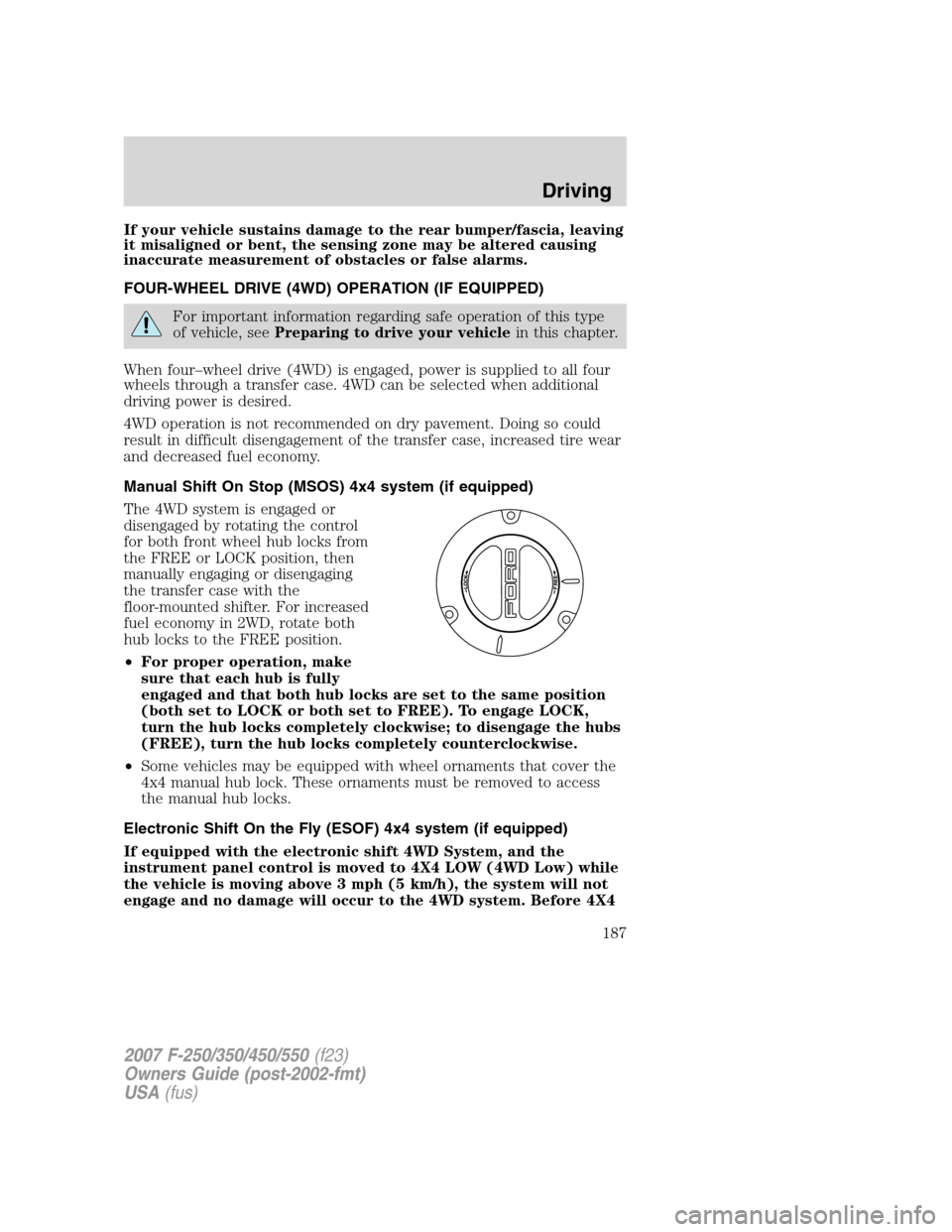

FORD SUPER DUTY 2007 1.G Owners Manual If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
FOUR-WHEEL DRIVE

Page 188 of 312

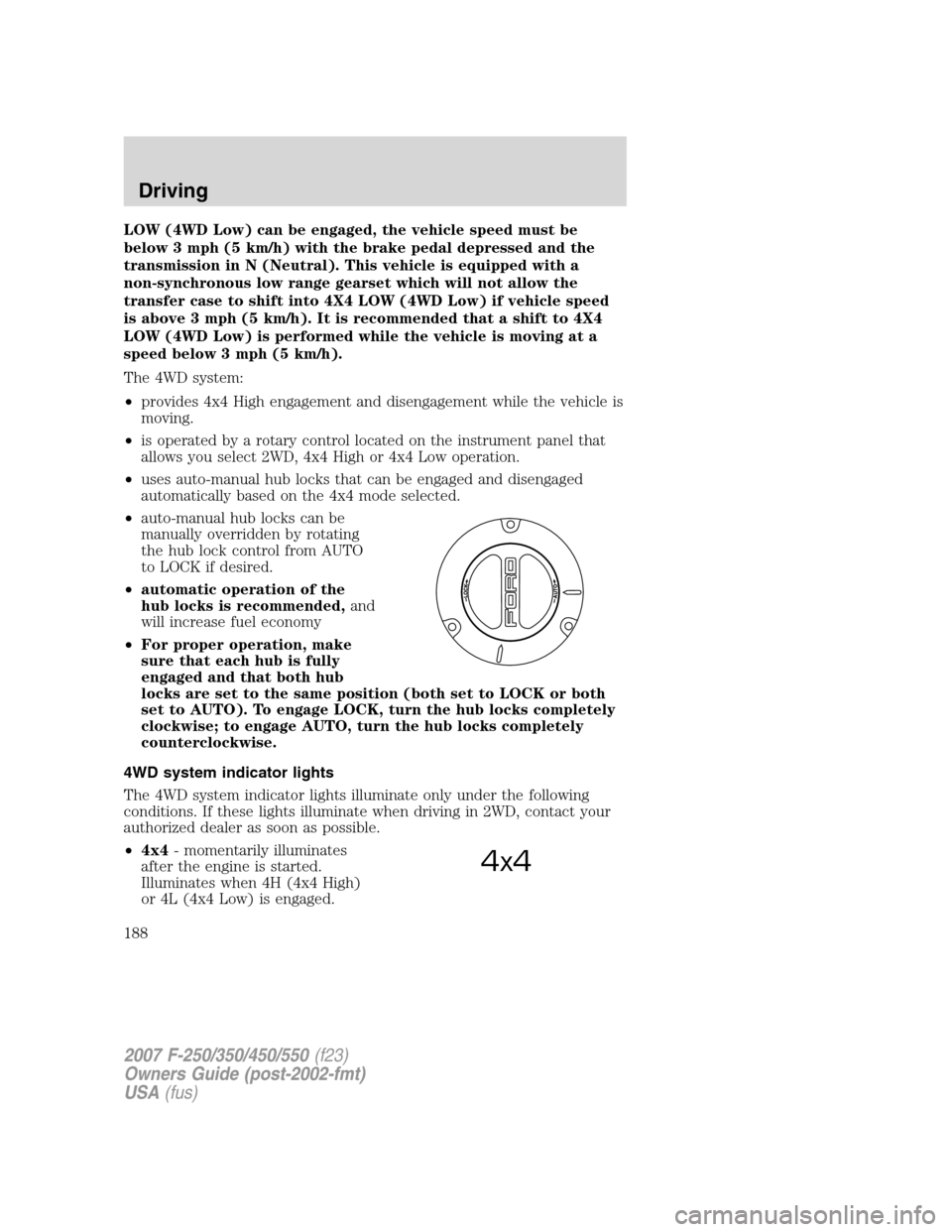

FORD SUPER DUTY 2007 1.G Owners Manual LOW (4WD Low) can be engaged, the vehicle speed must be
below 3 mph (5 km/h) with the brake pedal depressed and the
transmission in N (Neutral). This vehicle is equipped with a
non-synchronous low ran

Page 189 of 312

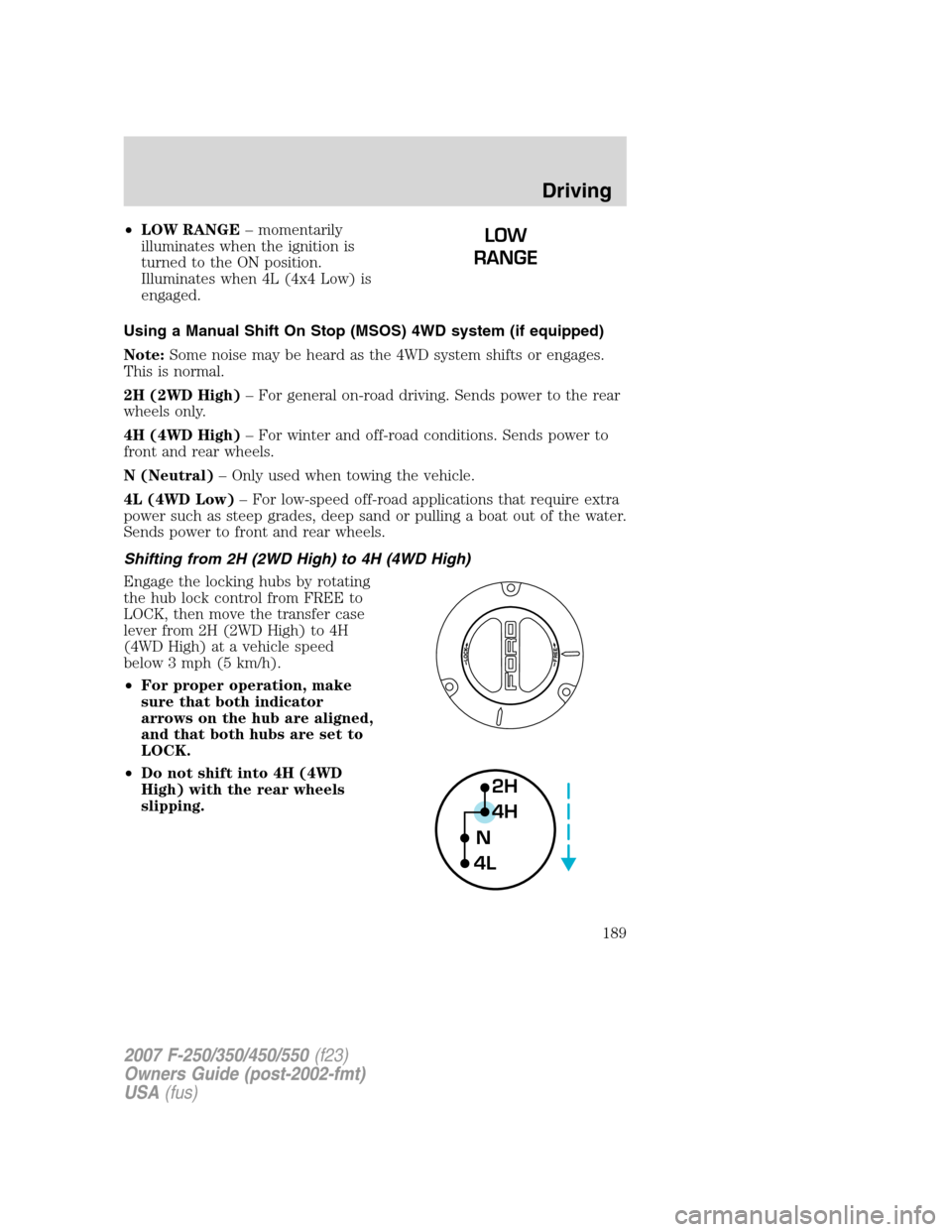

FORD SUPER DUTY 2007 1.G Owners Manual •LOW RANGE– momentarily
illuminates when the ignition is
turned to the ON position.
Illuminates when 4L (4x4 Low) is
engaged.
Using a Manual Shift On Stop (MSOS) 4WD system (if equipped)
Note:Some

Page 190 of 312

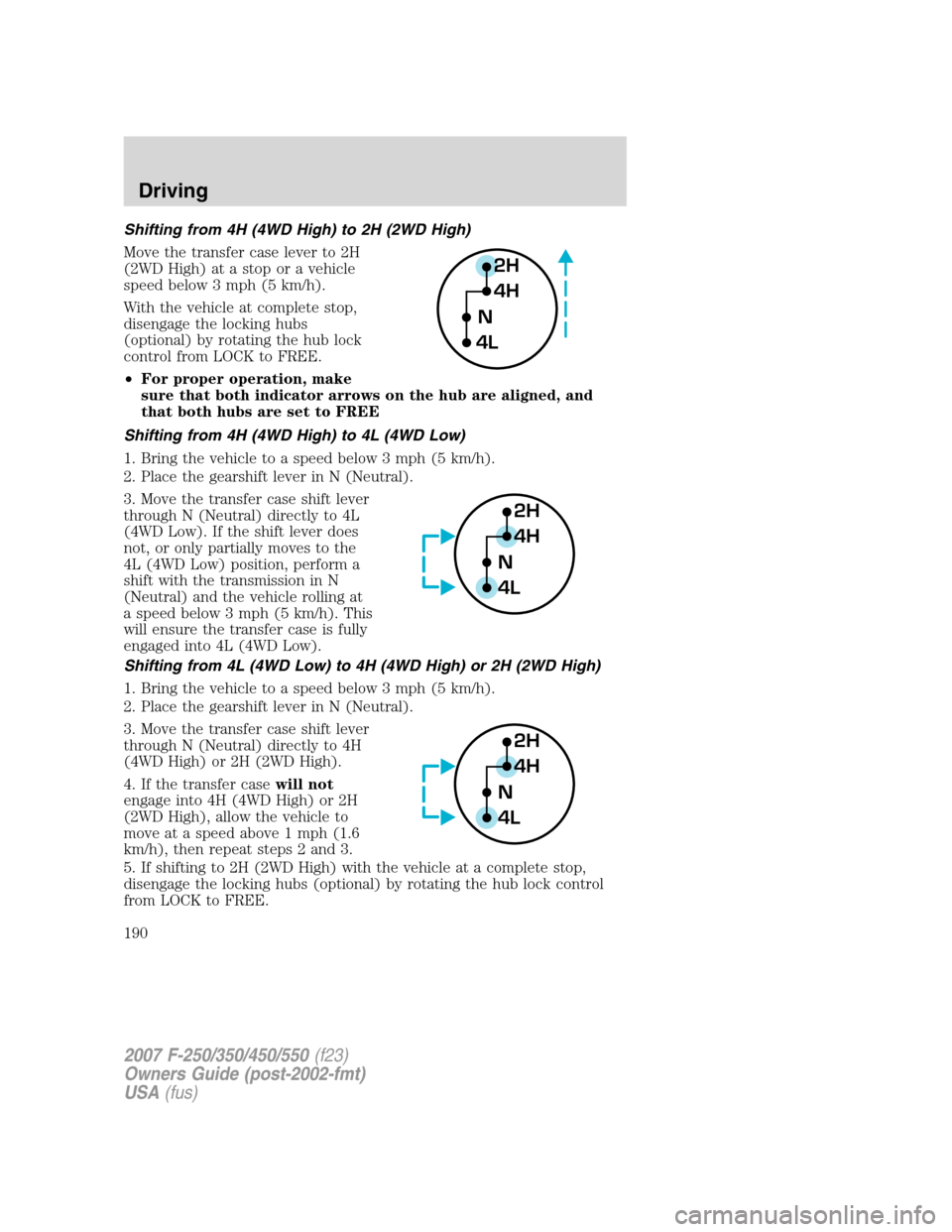

FORD SUPER DUTY 2007 1.G Owners Manual Shifting from 4H (4WD High) to 2H (2WD High)
Move the transfer case lever to 2H
(2WD High) at a stop or a vehicle
speed below 3 mph (5 km/h).
With the vehicle at complete stop,
disengage the locking h

Page 191 of 312

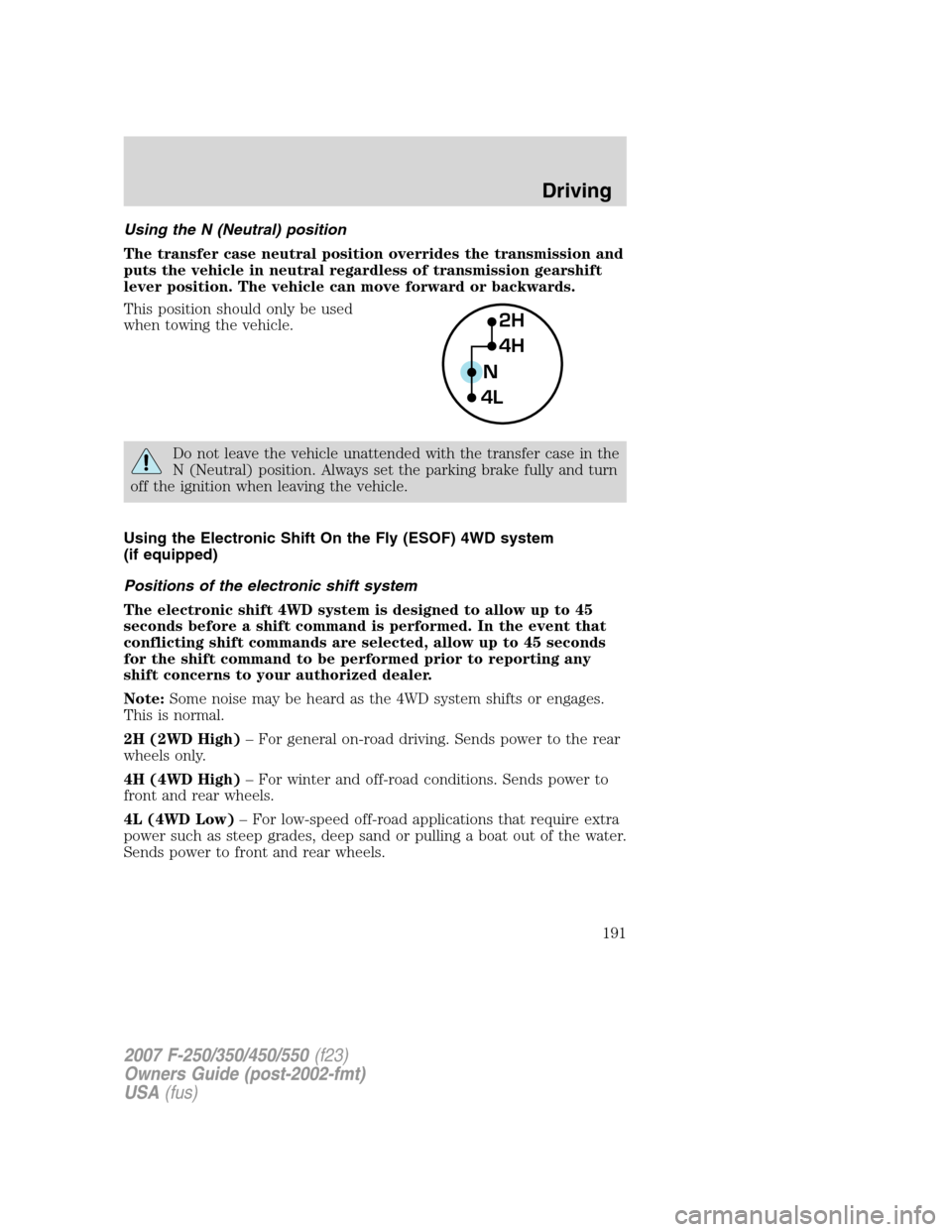

FORD SUPER DUTY 2007 1.G Owners Manual Using the N (Neutral) position
The transfer case neutral position overrides the transmission and
puts the vehicle in neutral regardless of transmission gearshift
lever position. The vehicle can move f

Page 192 of 312

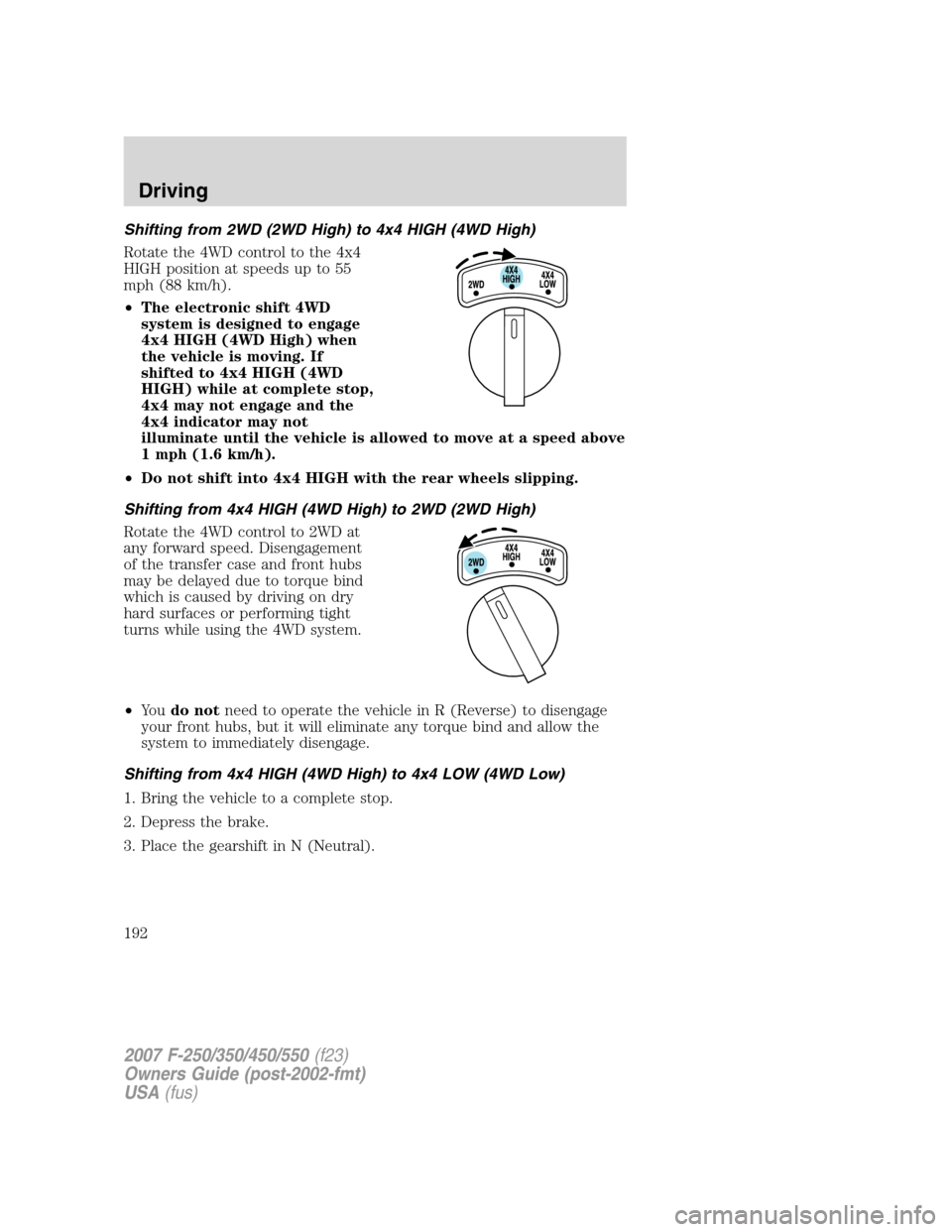

FORD SUPER DUTY 2007 1.G Owners Manual Shifting from 2WD (2WD High) to 4x4 HIGH (4WD High)
Rotate the 4WD control to the 4x4
HIGH position at speeds up to 55
mph (88 km/h).
•The electronic shift 4WD
system is designed to engage
4x4 HIGH
