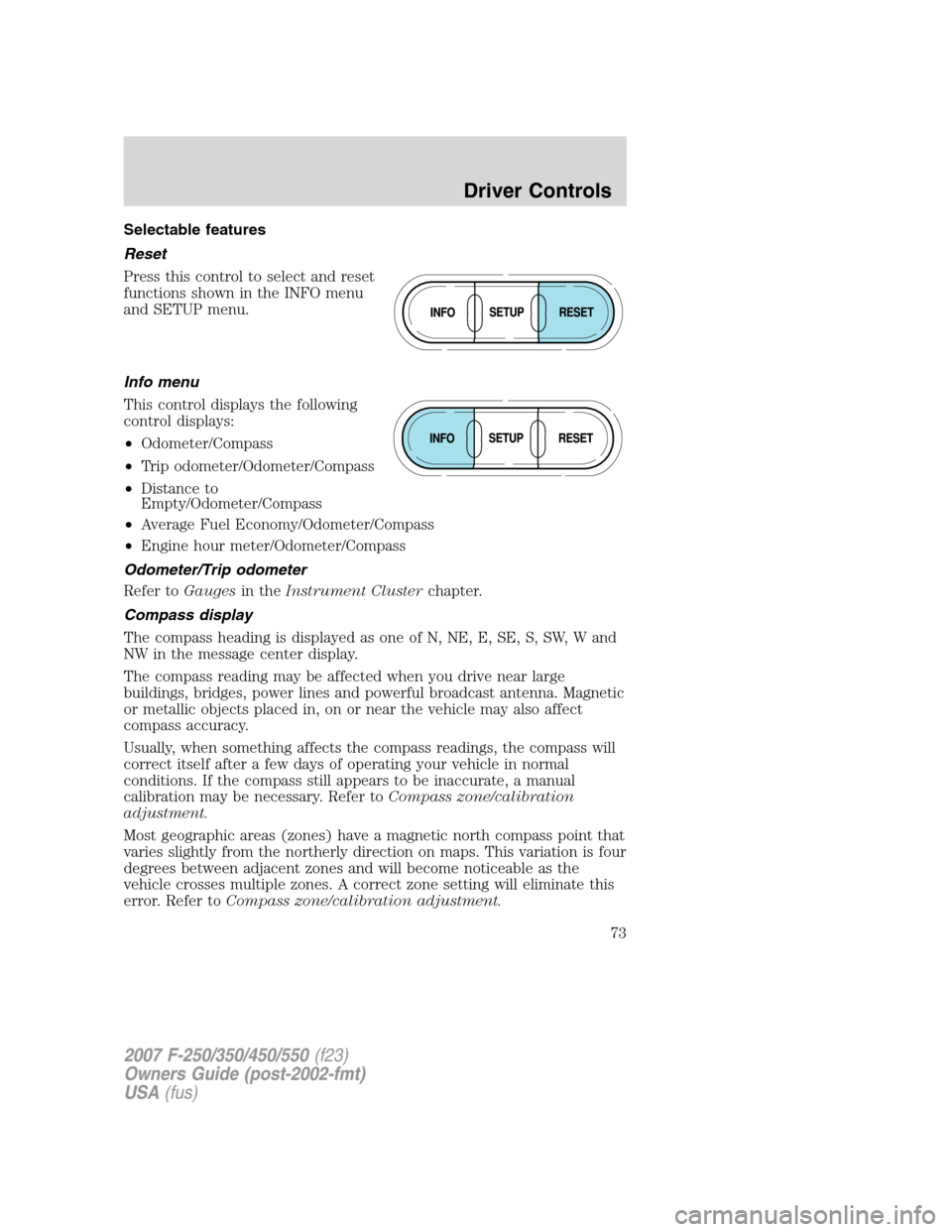

2007 FORD SUPER DUTY Owners Manual

Page 73 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Selectable features
Reset
Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.
Info menu
This control displays the following
control displays:
•Odometer/Compass

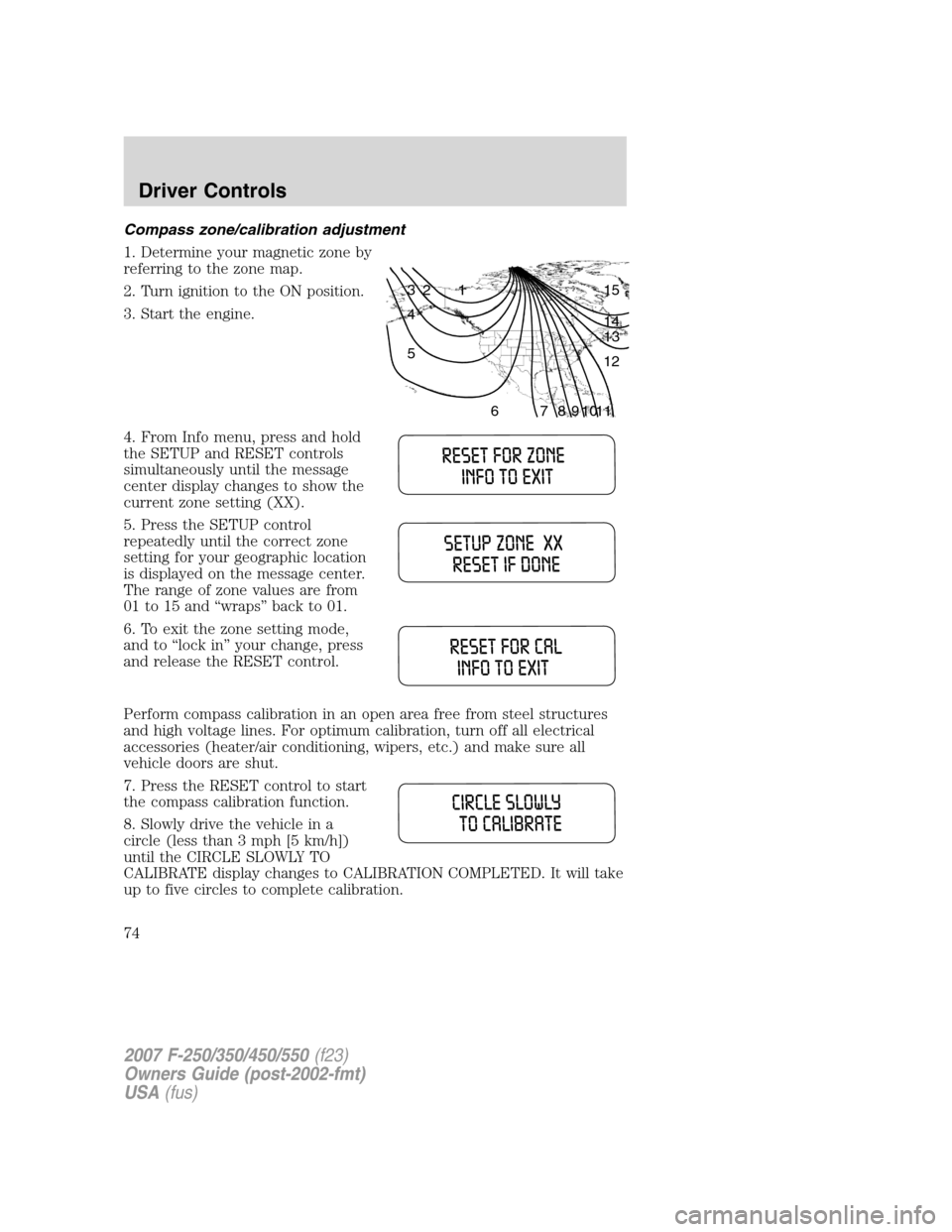

Page 74 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Compass zone/calibration adjustment
1. Determine your magnetic zone by
referring to the zone map.
2. Turn ignition to the ON position.
3. Start the engine.
4. From Info menu, press and hold
the SETUP

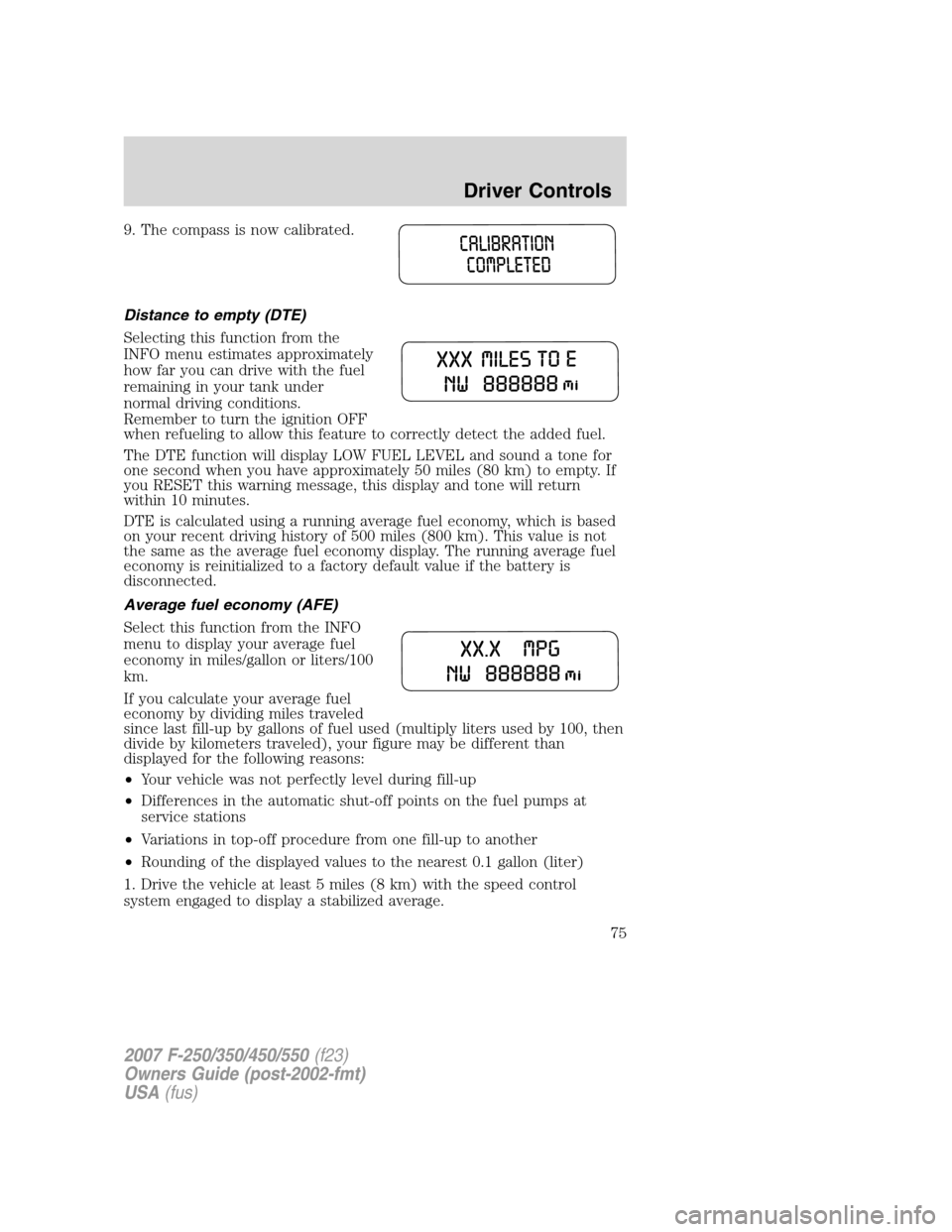

Page 75 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 9. The compass is now calibrated.
Distance to empty (DTE)
Selecting this function from the
INFO menu estimates approximately
how far you can drive with the fuel
remaining in your tank under
normal dri

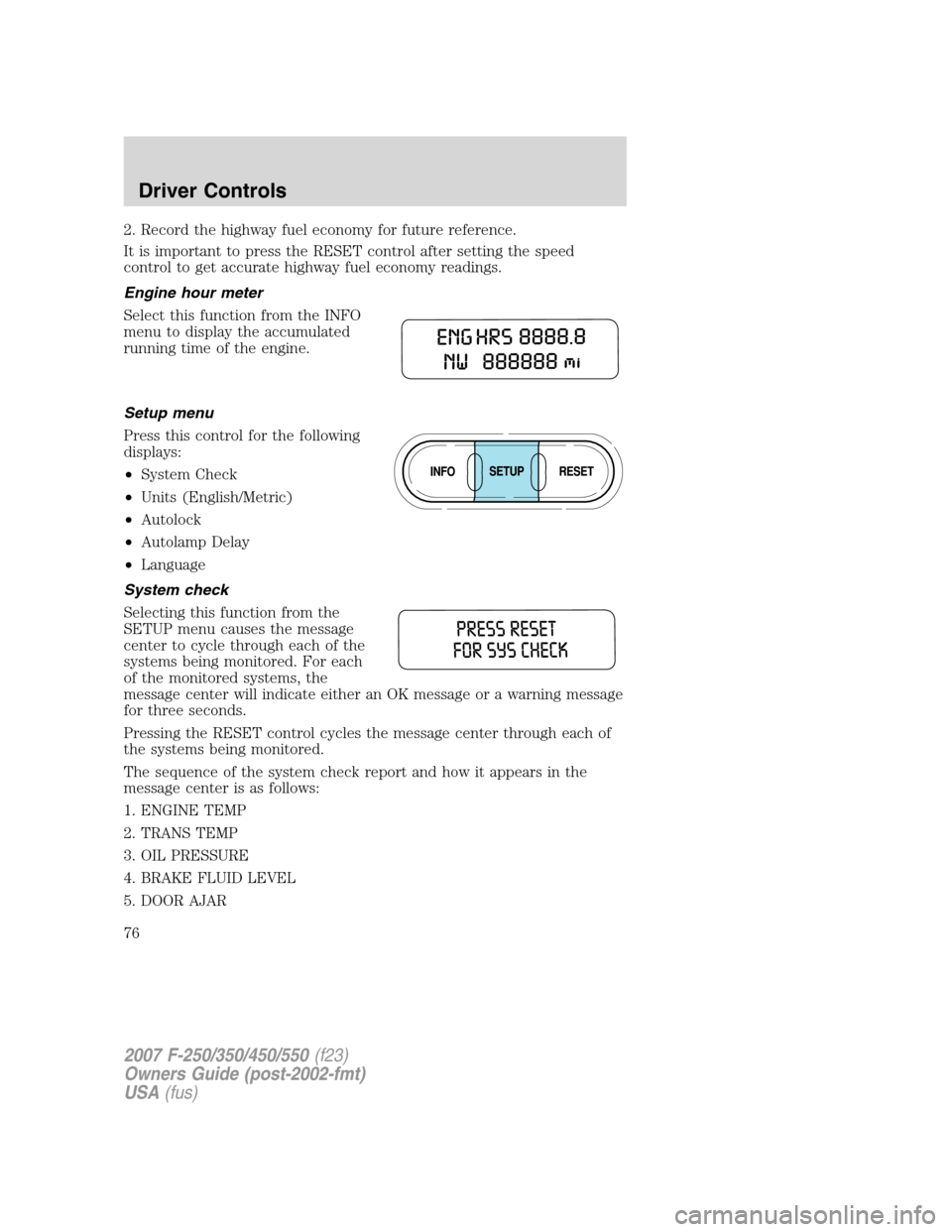

Page 76 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 2. Record the highway fuel economy for future reference.
It is important to press the RESET control after setting the speed
control to get accurate highway fuel economy readings.
Engine hour meter
Sel

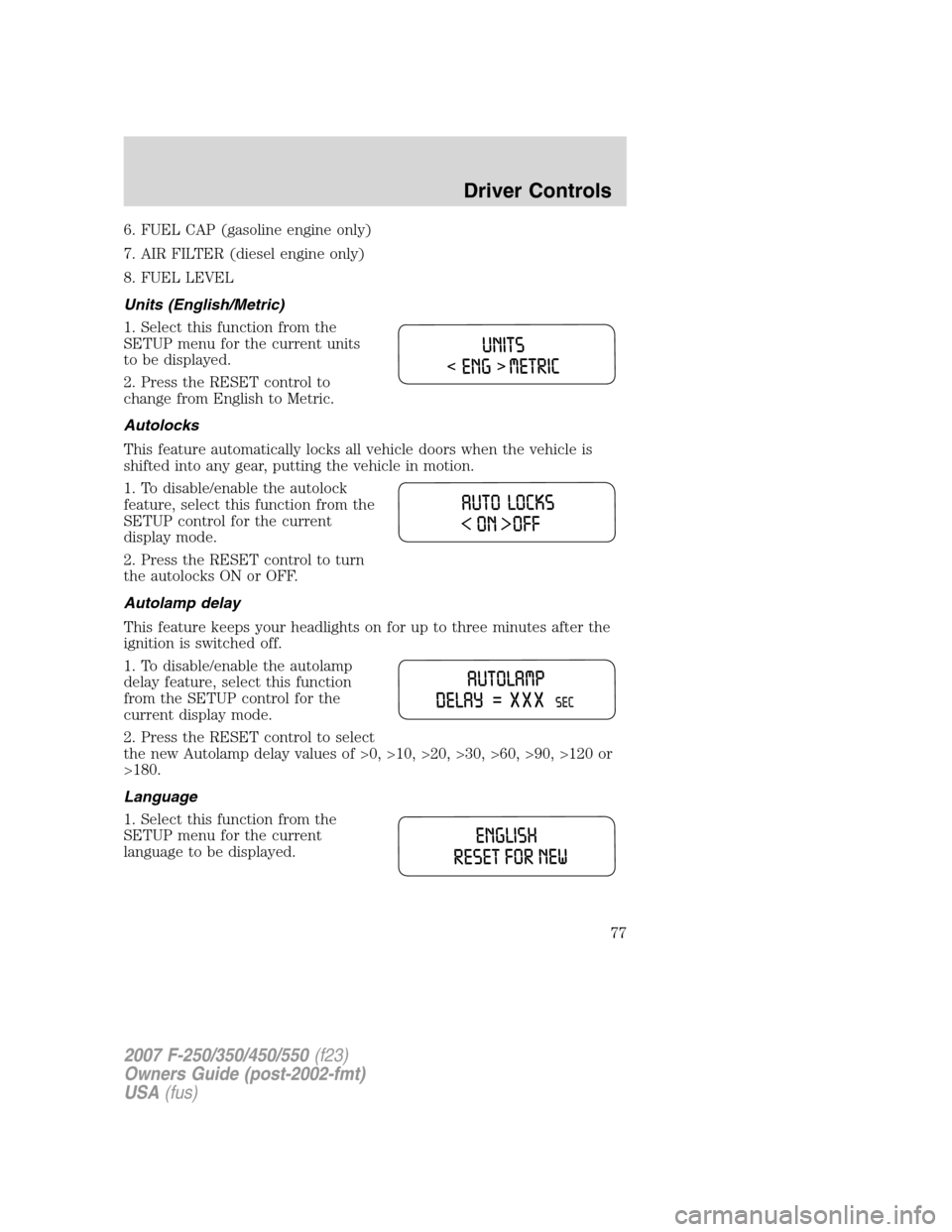

Page 77 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 6. FUEL CAP (gasoline engine only)
7. AIR FILTER (diesel engine only)
8. FUEL LEVEL
Units (English/Metric)
1. Select this function from the
SETUP menu for the current units
to be displayed.
2. Press t

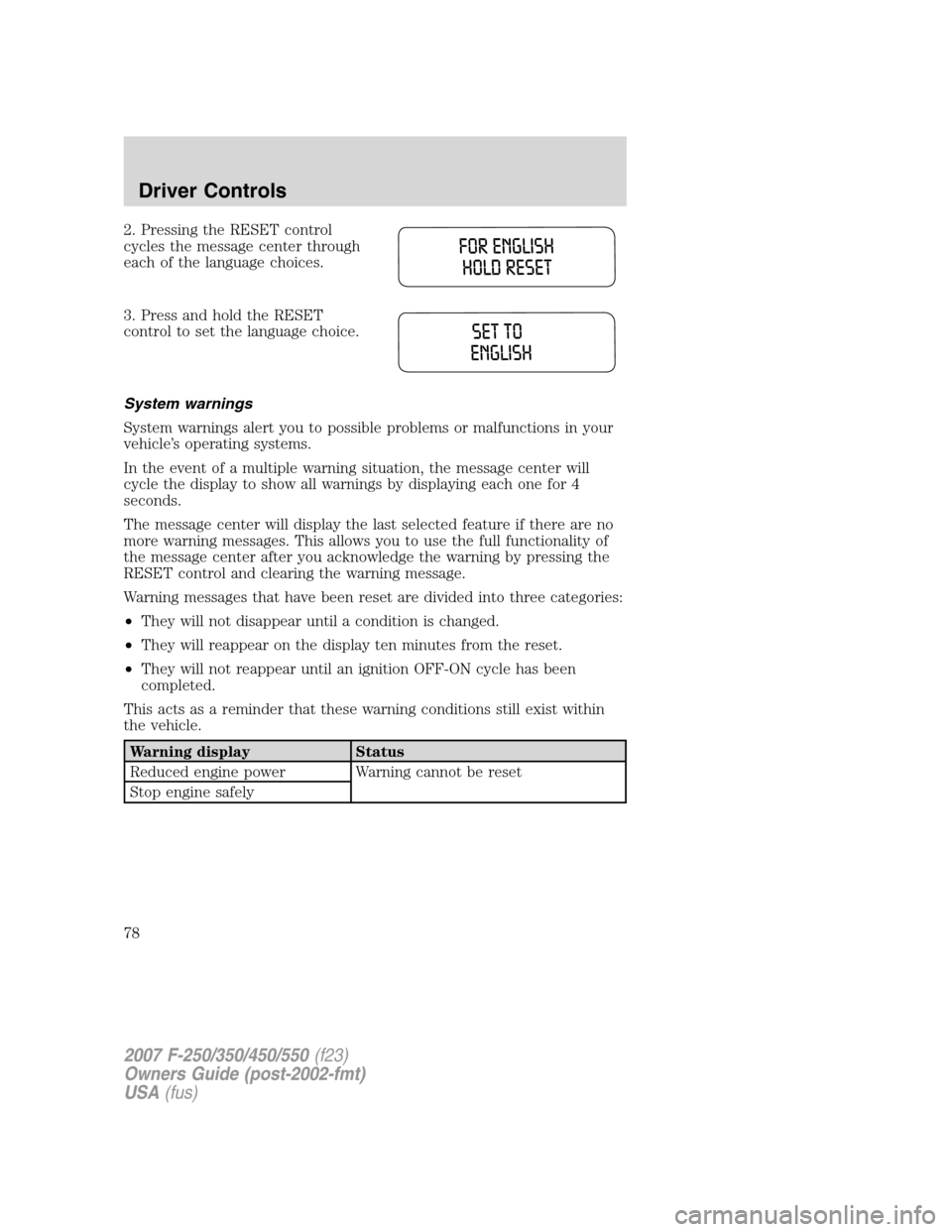

Page 78 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 2. Pressing the RESET control
cycles the message center through
each of the language choices.
3. Press and hold the RESET
control to set the language choice.
System warnings
System warnings alert you

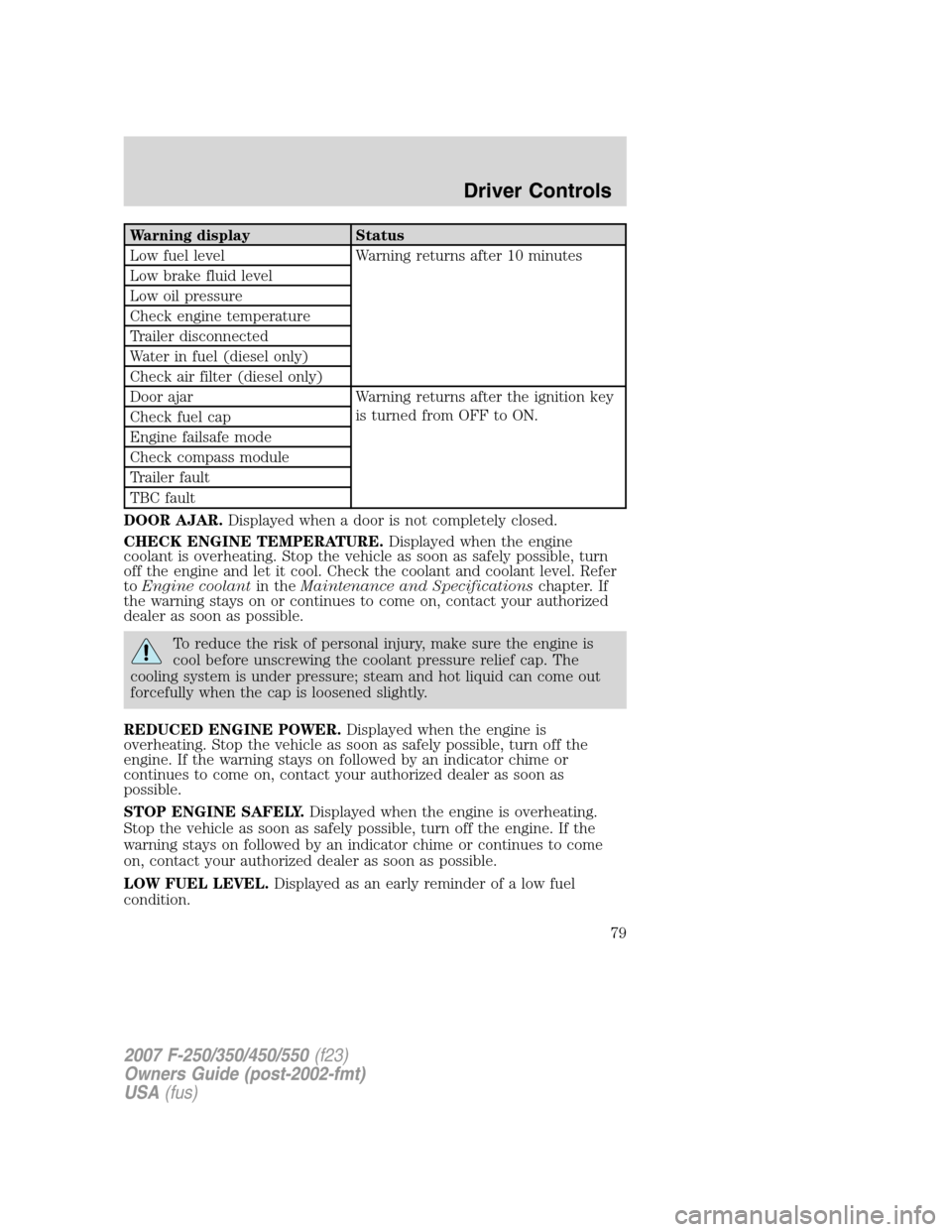

Page 79 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Warning display Status
Low fuel level Warning returns after 10 minutes
Low brake fluid level
Low oil pressure
Check engine temperature
Trailer disconnected
Water in fuel (diesel only)
Check air filter

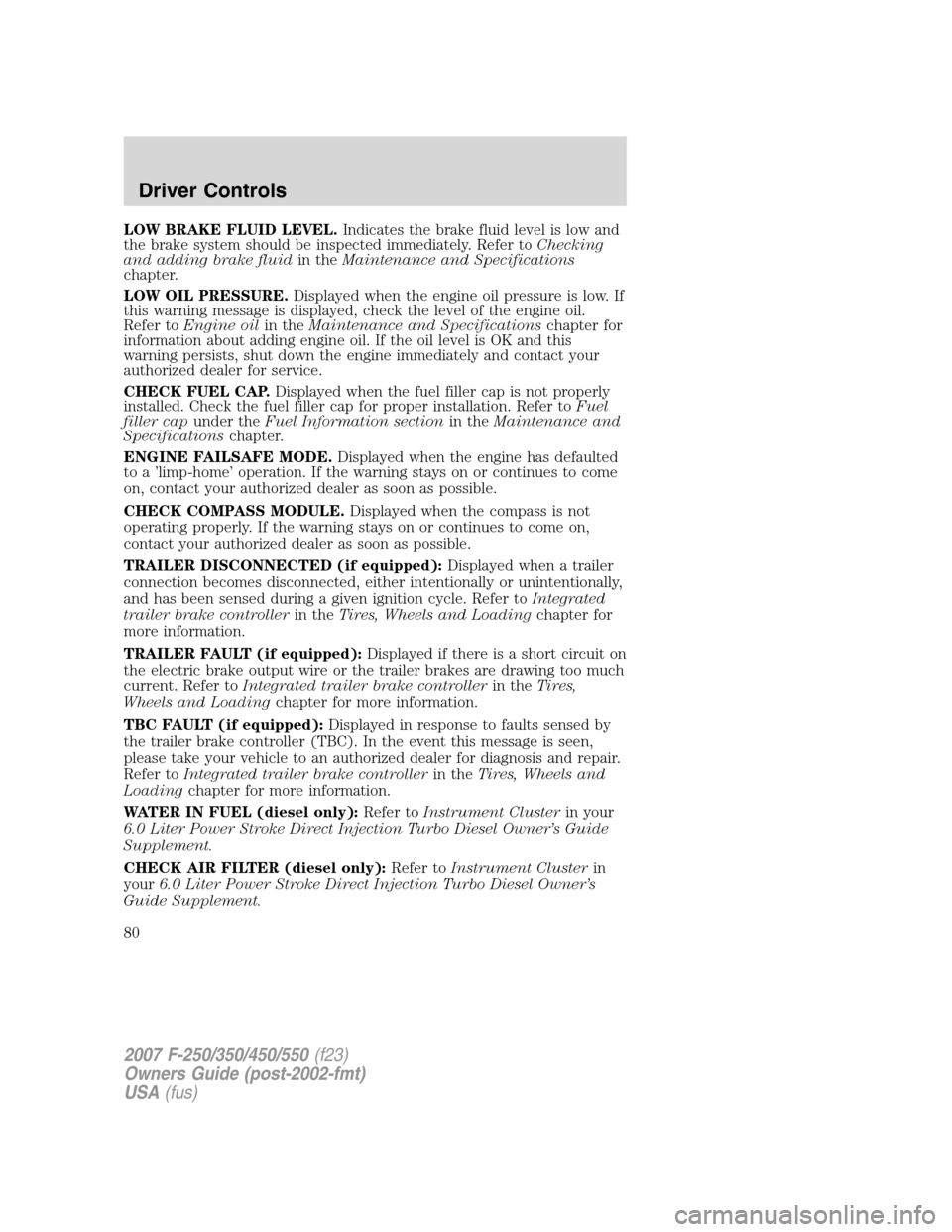

Page 80 of 312

FORD SUPER DUTY 2007 1.G Owners Manual LOW BRAKE FLUID LEVEL.Indicates the brake fluid level is low and
the brake system should be inspected immediately. Refer toChecking
and adding brake fluidin theMaintenance and Specifications
chapter.
