2007 FORD SUPER DUTY Owners Manual

Page 81 of 312

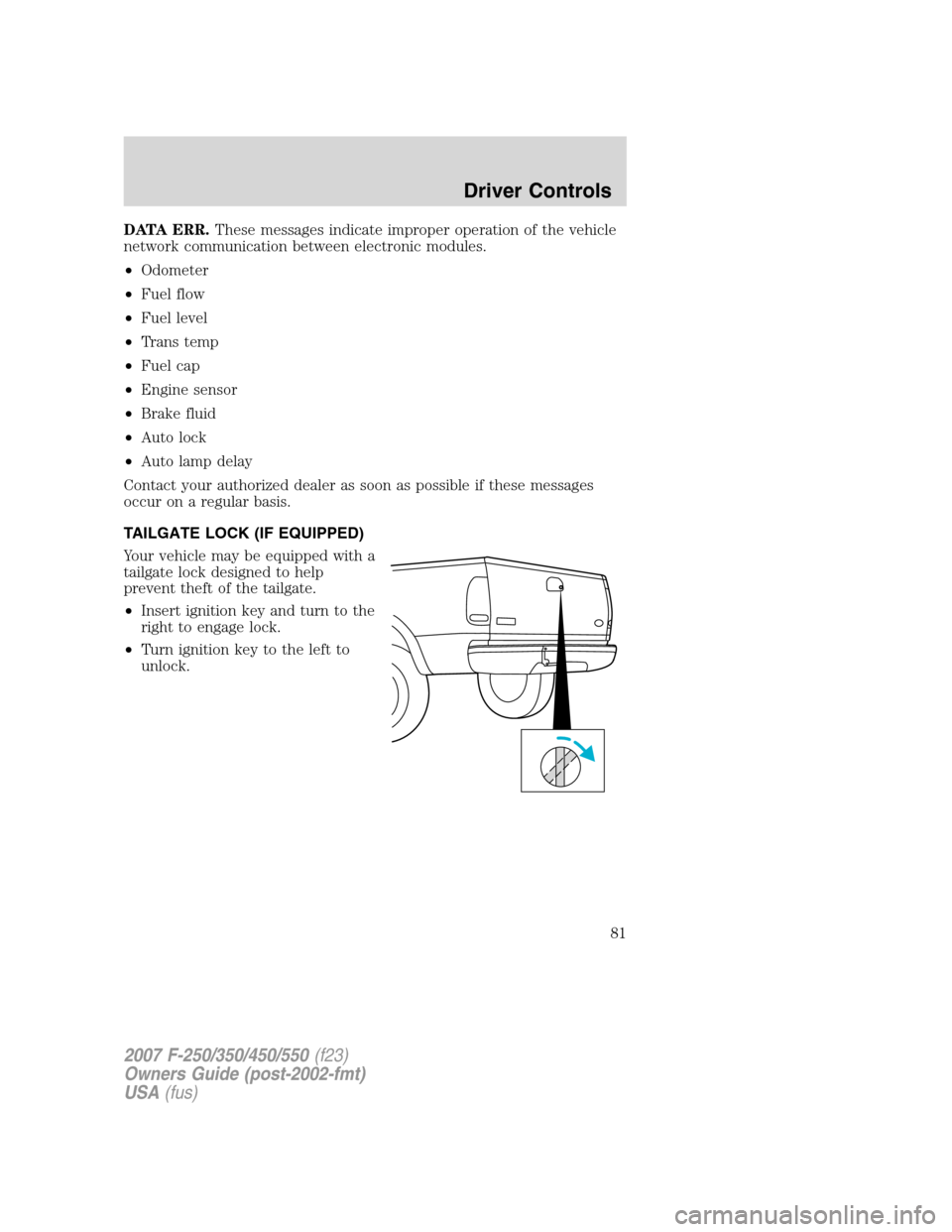

FORD SUPER DUTY 2007 1.G Owners Manual DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Odometer
•Fuel flow
•Fuel level
•Trans temp
•Fuel cap
•Engine sensor

Page 82 of 312

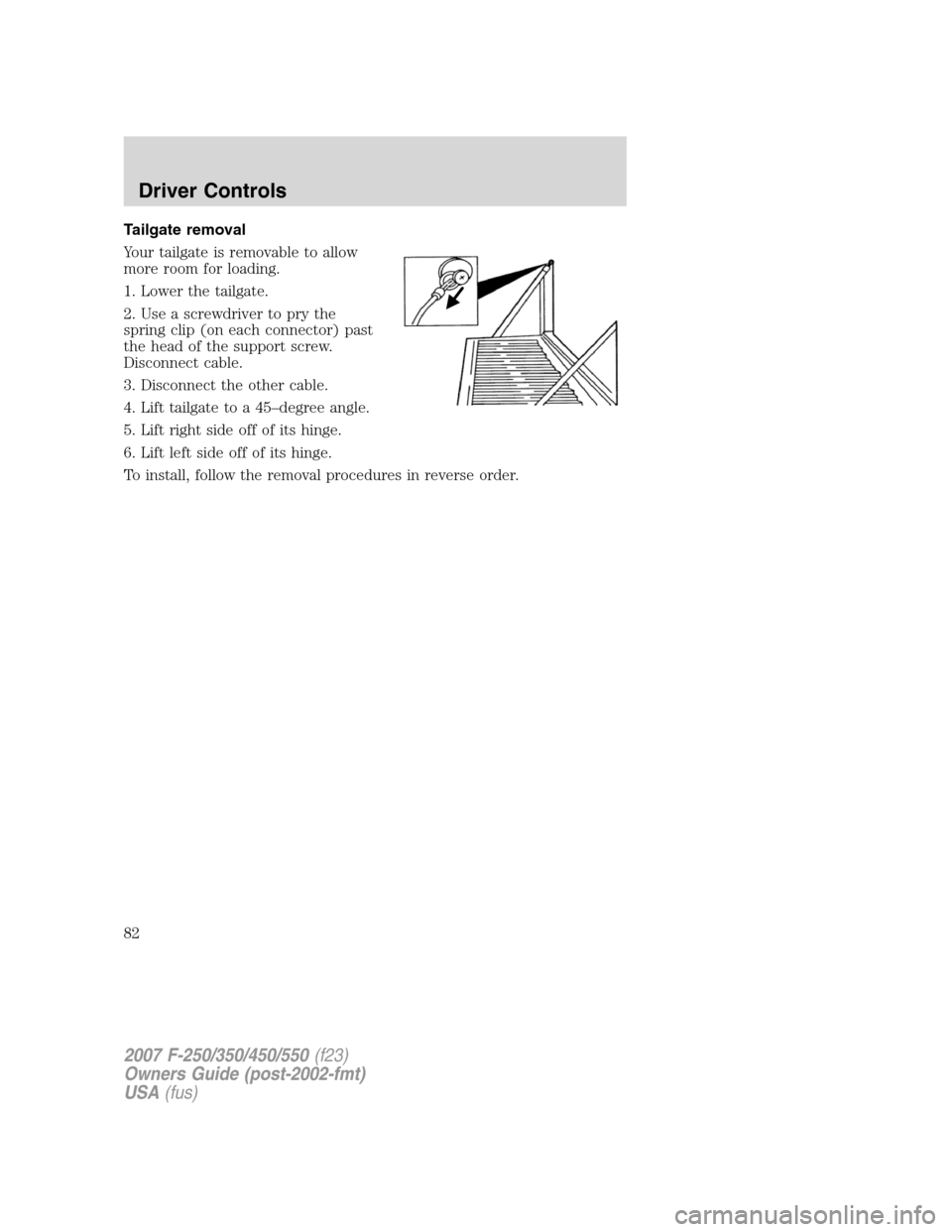

FORD SUPER DUTY 2007 1.G Owners Manual Tailgate removal
Your tailgate is removable to allow
more room for loading.
1. Lower the tailgate.
2. Use a screwdriver to pry the
spring clip (on each connector) past
the head of the support screw.
D

Page 83 of 312

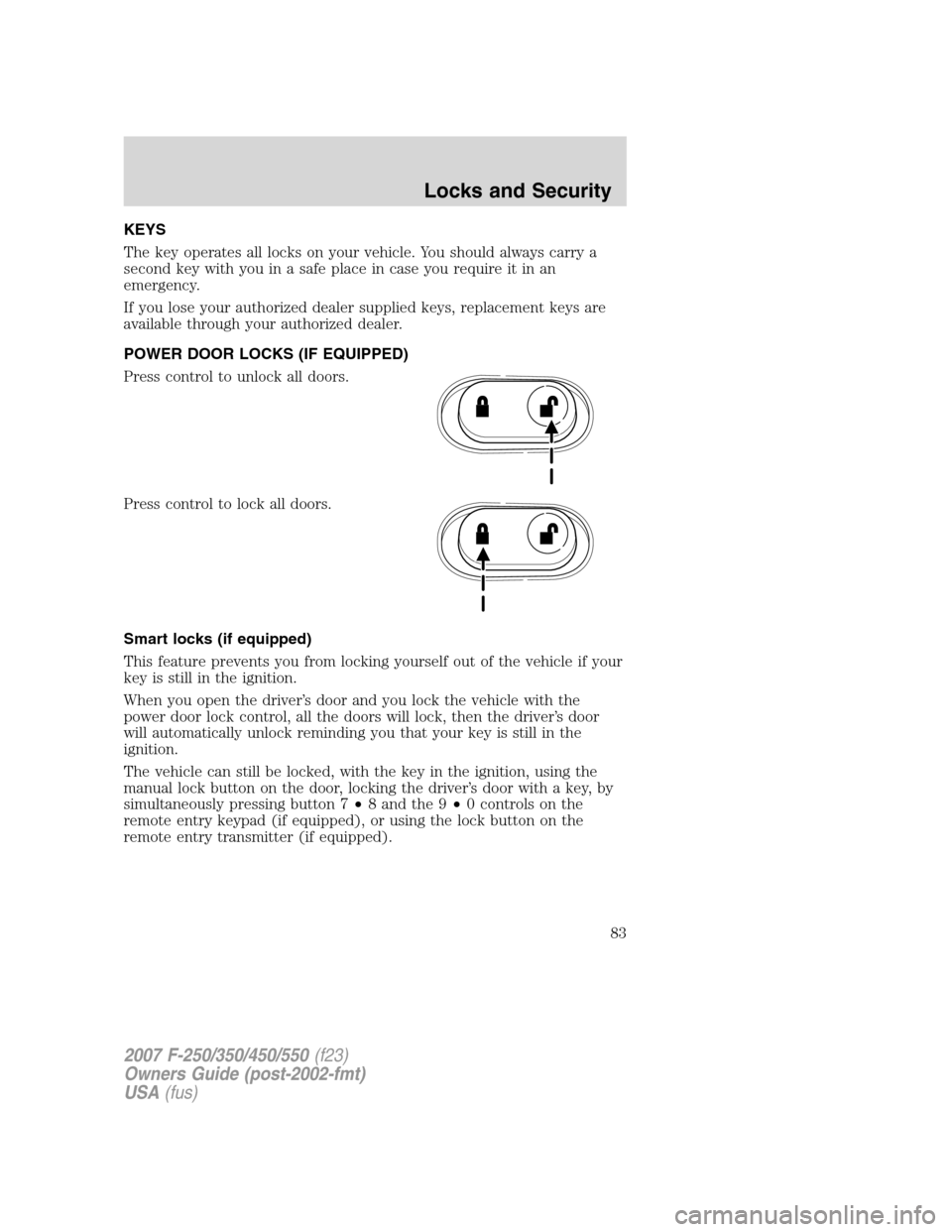

FORD SUPER DUTY 2007 1.G Owners Manual KEYS
The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.
If you lose your authorized dealer supplied keys,

Page 84 of 312

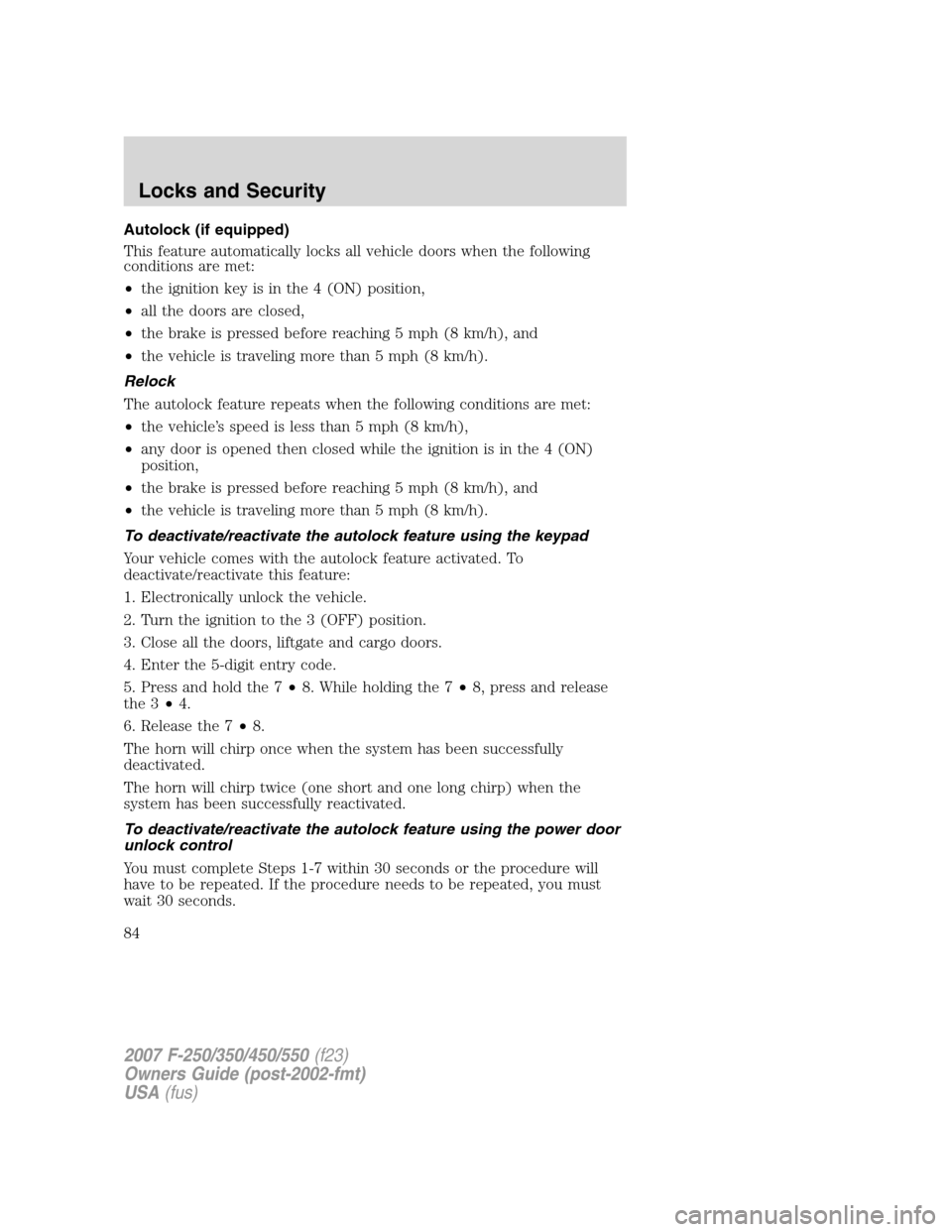

FORD SUPER DUTY 2007 1.G Owners Manual Autolock (if equipped)
This feature automatically locks all vehicle doors when the following
conditions are met:
•the ignition key is in the 4 (ON) position,
•all the doors are closed,
•the brak

Page 85 of 312

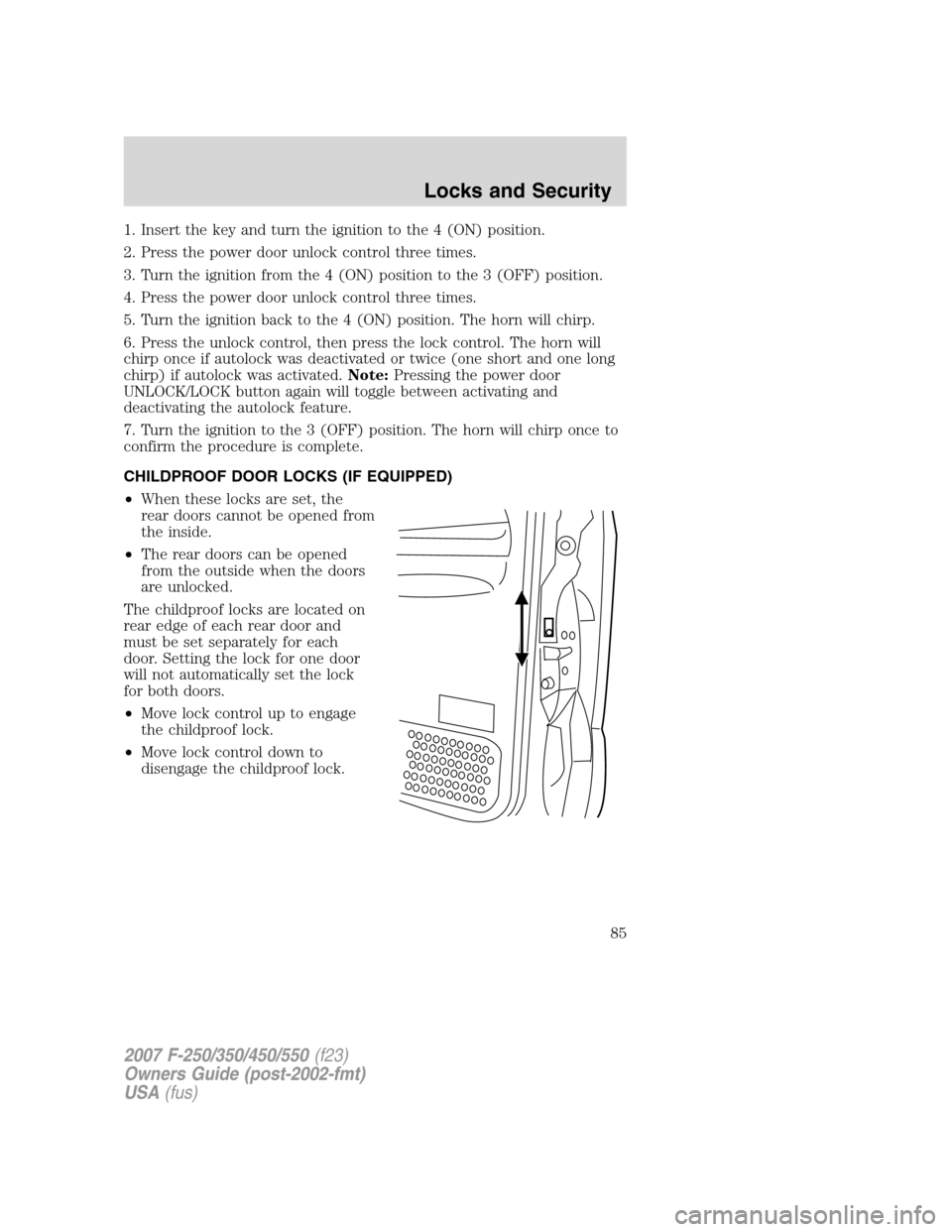

FORD SUPER DUTY 2007 1.G Owners Manual 1. Insert the key and turn the ignition to the 4 (ON) position.
2. Press the power door unlock control three times.
3. Turn the ignition from the 4 (ON) position to the 3 (OFF) position.
4. Press the

Page 86 of 312

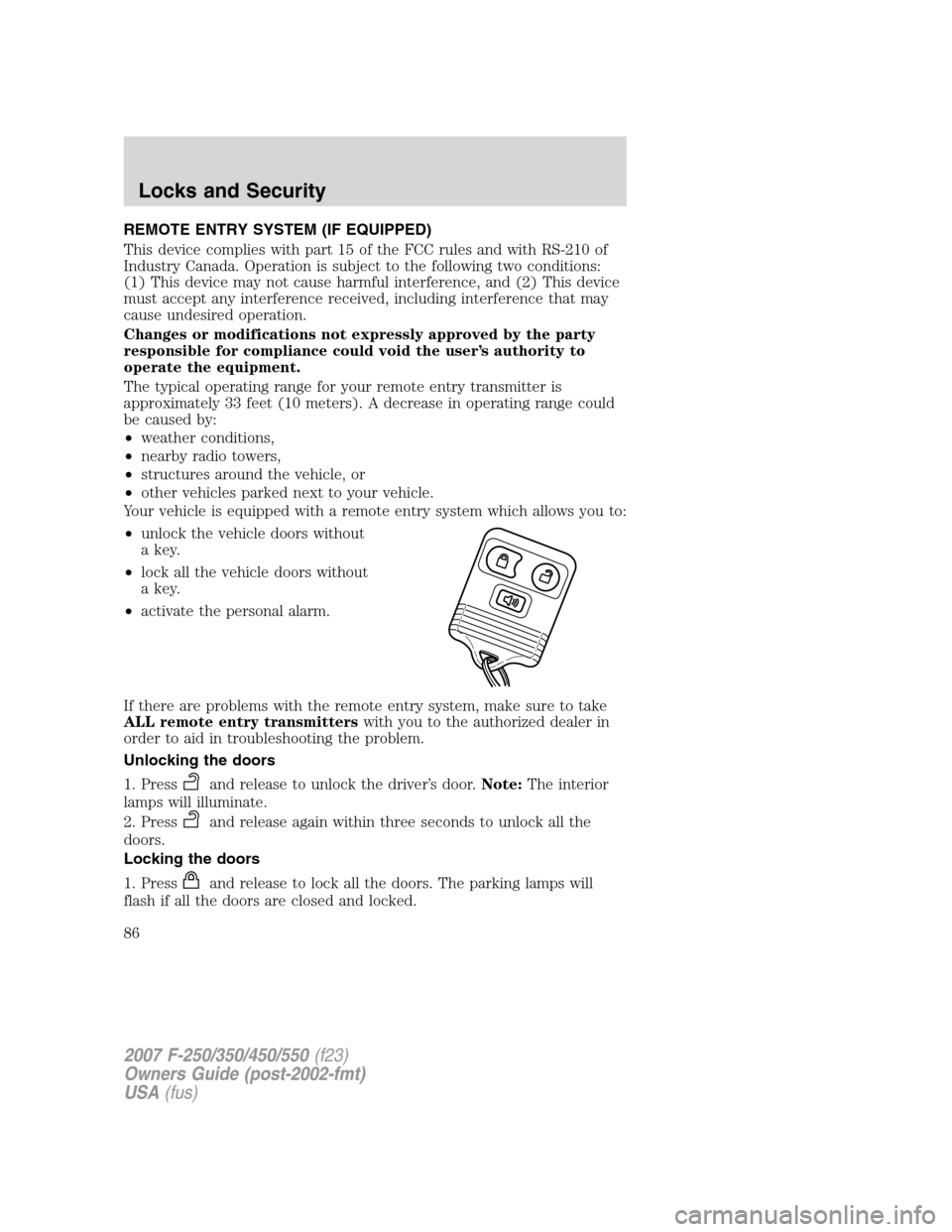

FORD SUPER DUTY 2007 1.G Owners Manual REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not c

Page 87 of 312

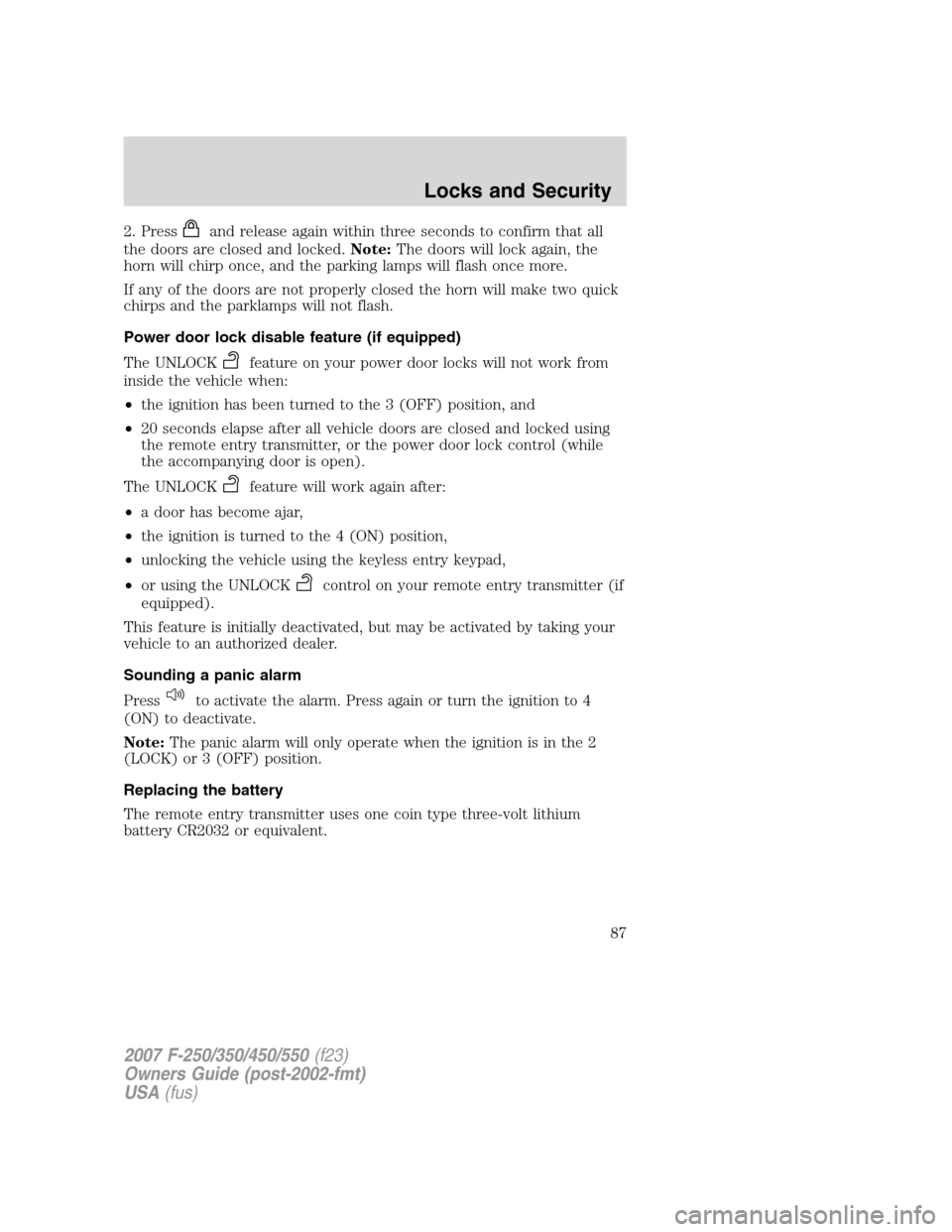

FORD SUPER DUTY 2007 1.G Owners Manual 2. Pressand release again within three seconds to confirm that all
the doors are closed and locked.Note:The doors will lock again, the
horn will chirp once, and the parking lamps will flash once more.

Page 88 of 312

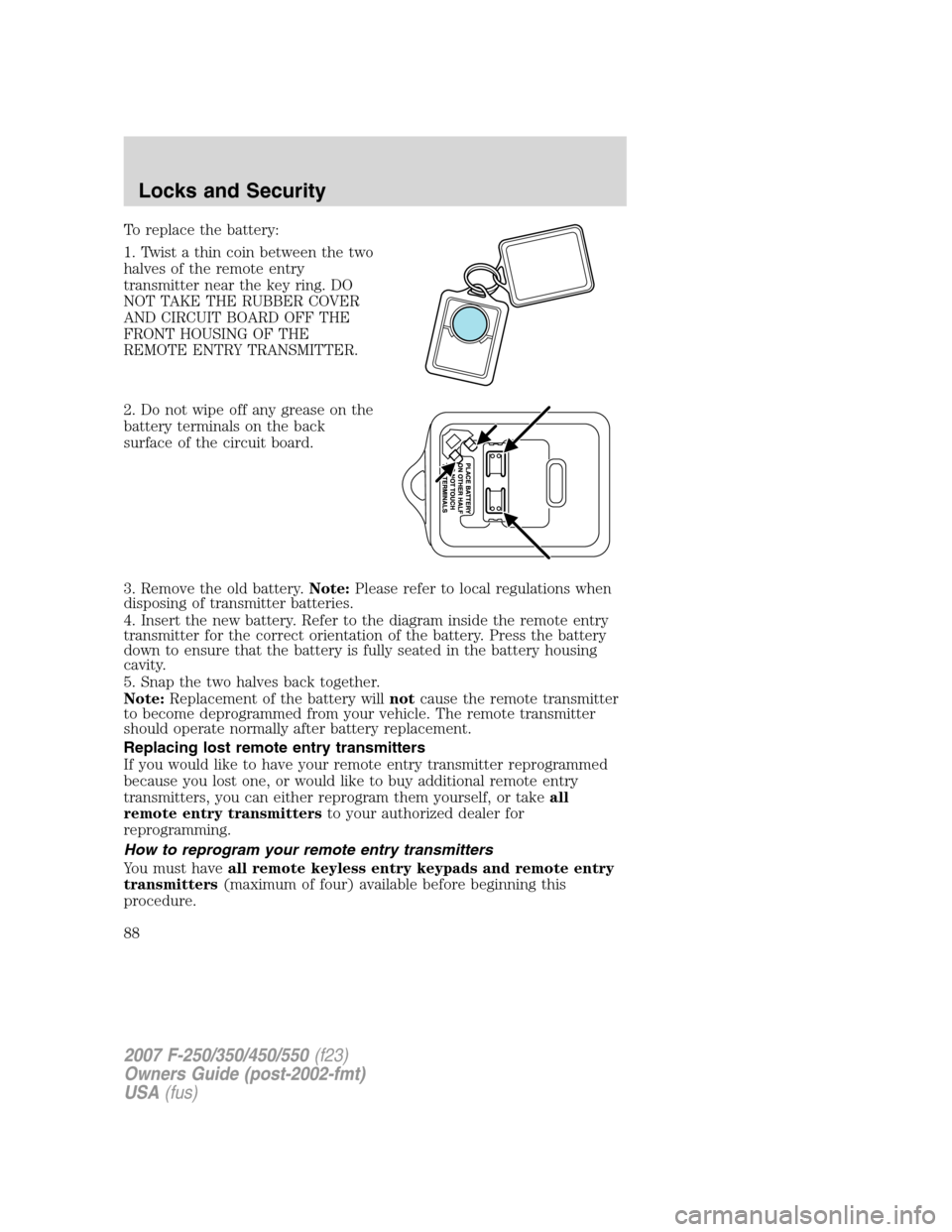

FORD SUPER DUTY 2007 1.G Owners Manual To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOT
