2007 FORD SUPER DUTY Owners Manual

Page 217 of 312

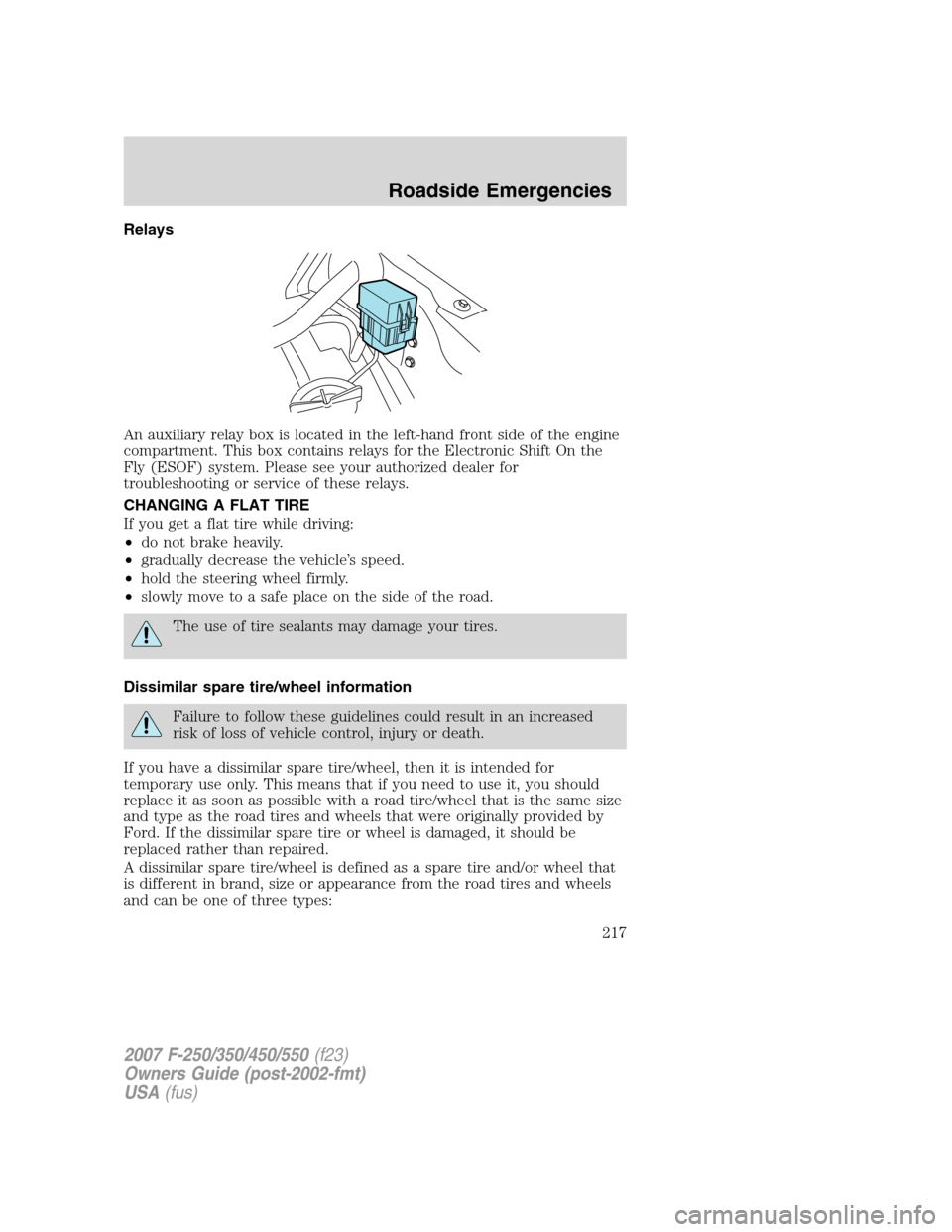

FORD SUPER DUTY 2007 1.G Owners Manual Relays
An auxiliary relay box is located in the left-hand front side of the engine
compartment. This box contains relays for the Electronic Shift On the
Fly (ESOF) system. Please see your authorized d

Page 218 of 312

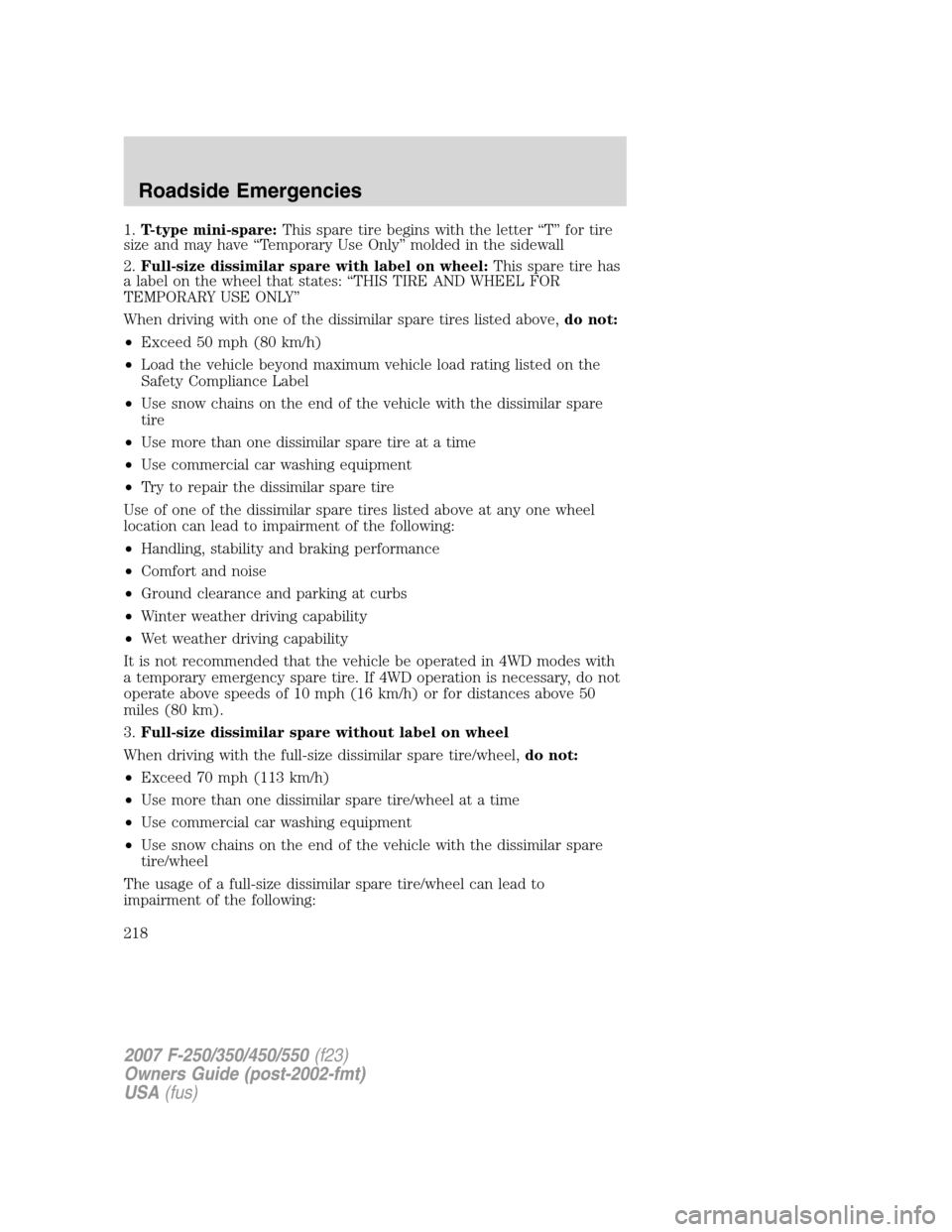

FORD SUPER DUTY 2007 1.G Owners Manual 1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spar

Page 219 of 312

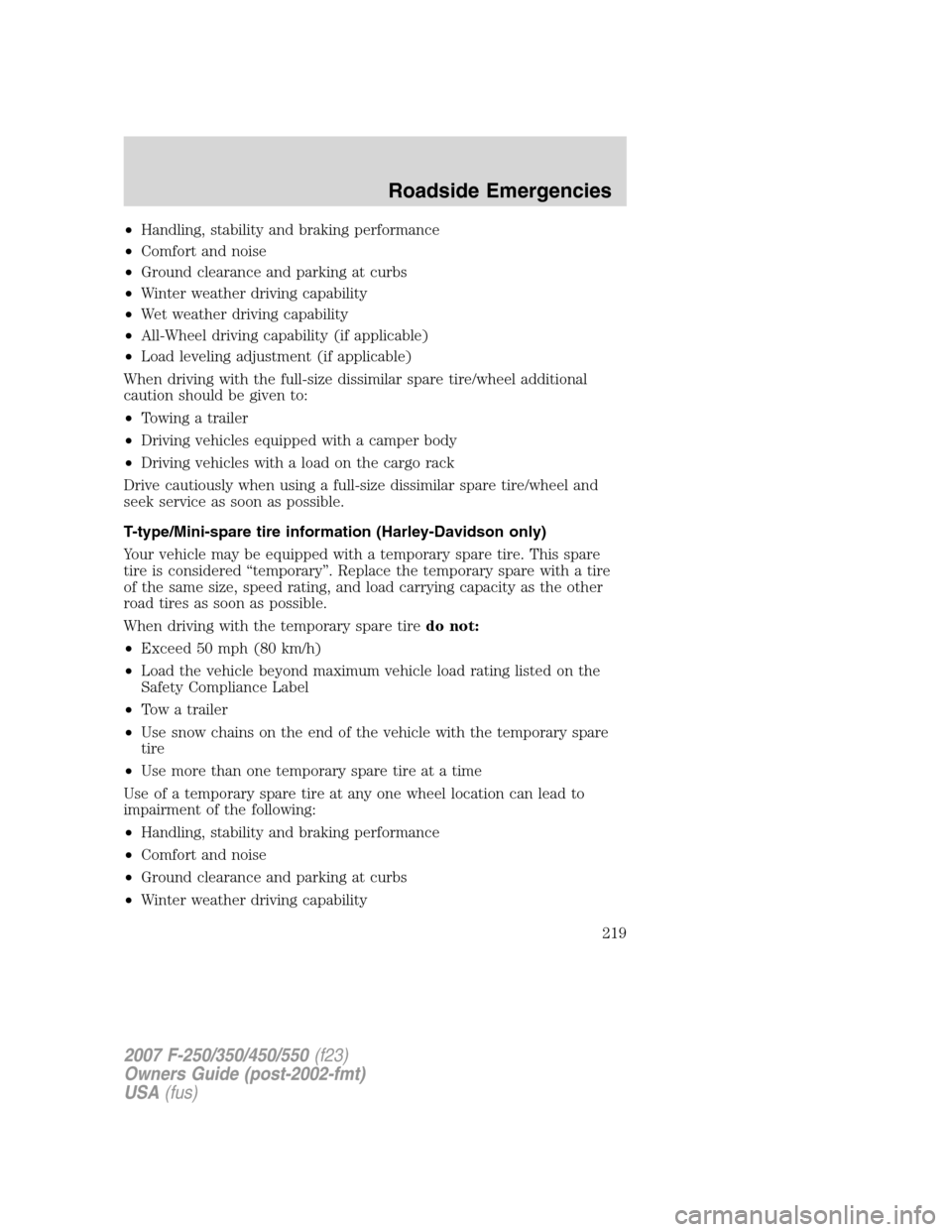

FORD SUPER DUTY 2007 1.G Owners Manual •Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving

Page 220 of 312

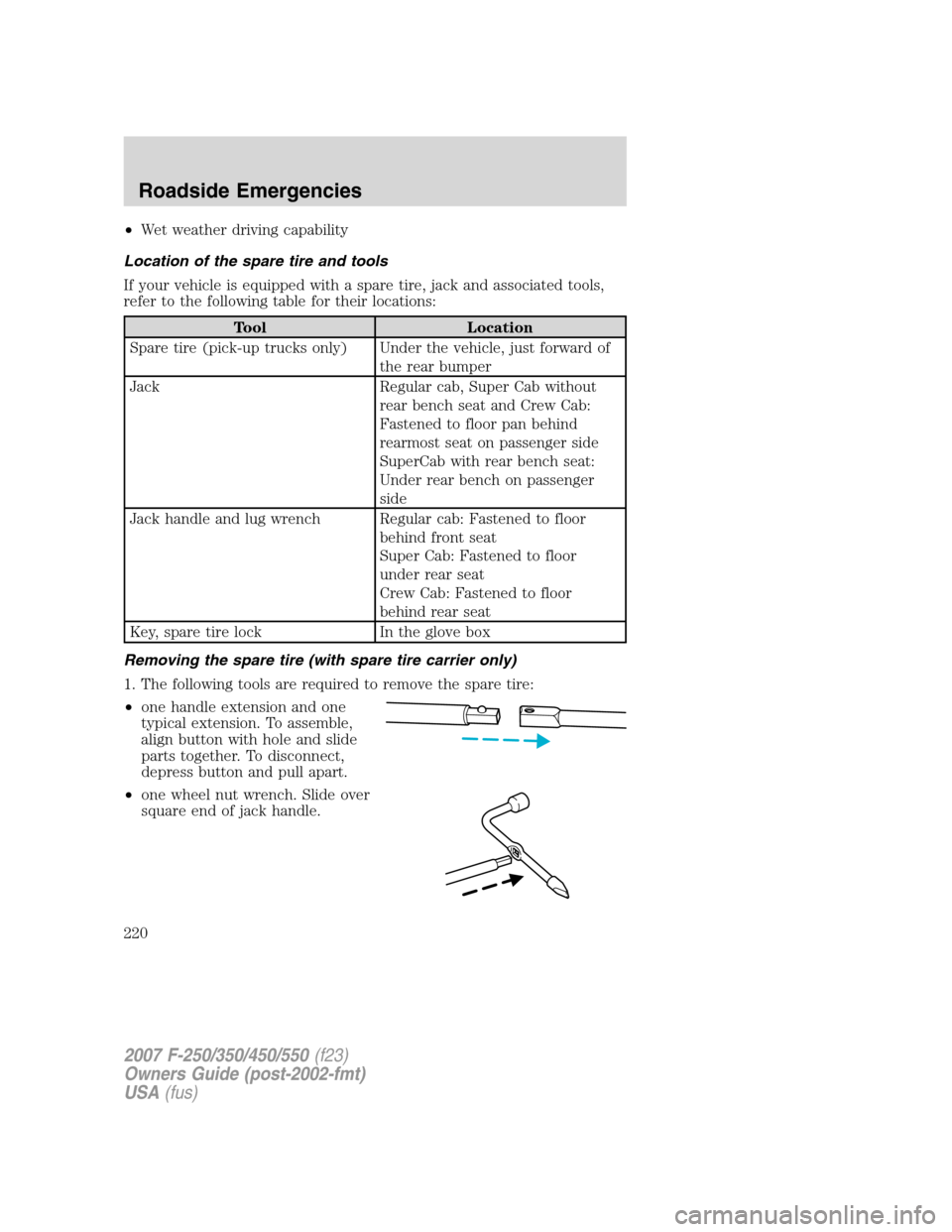

FORD SUPER DUTY 2007 1.G Owners Manual •Wet weather driving capability
Location of the spare tire and tools
If your vehicle is equipped with a spare tire, jack and associated tools,
refer to the following table for their locations:
Tool

Page 221 of 312

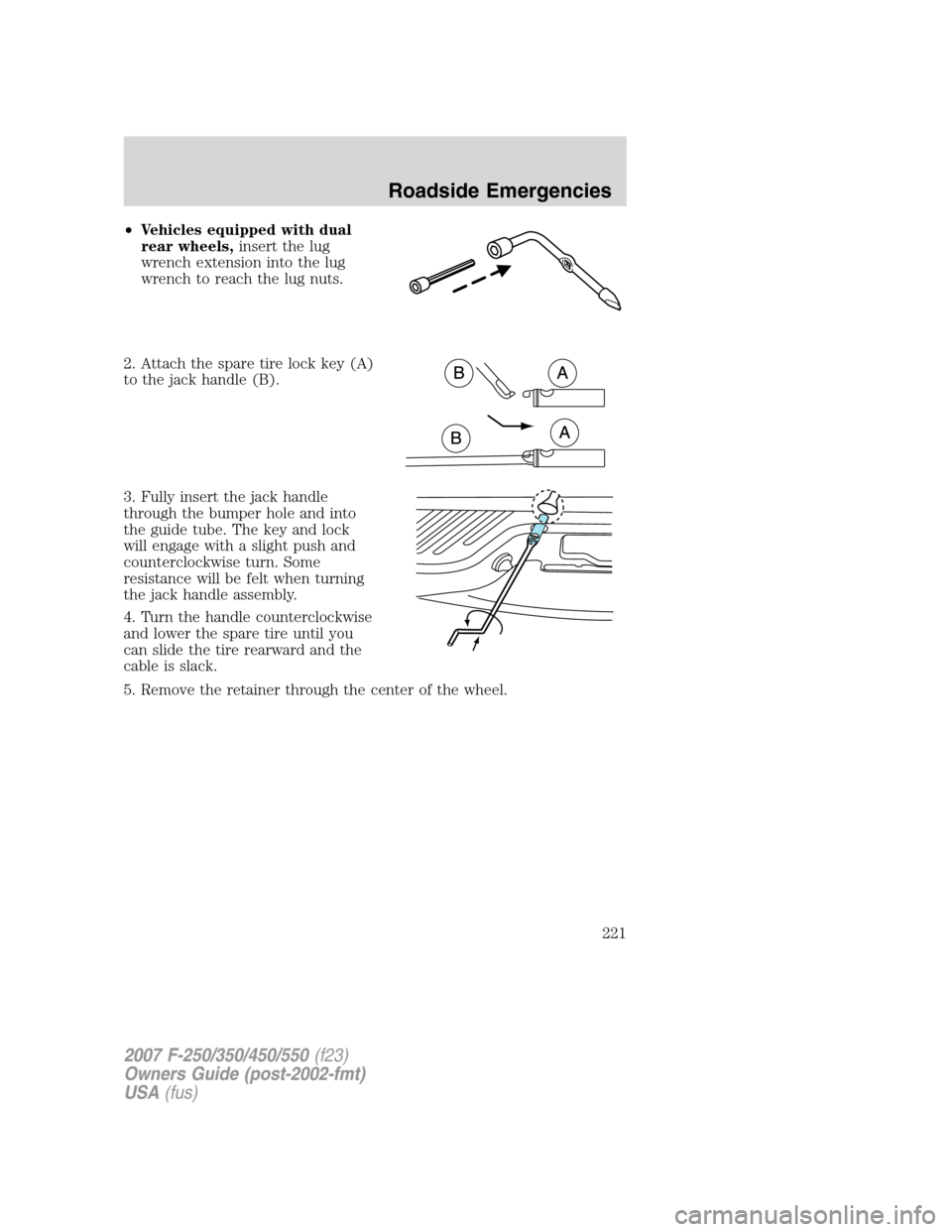

FORD SUPER DUTY 2007 1.G Owners Manual •Vehicles equipped with dual
rear wheels,insert the lug
wrench extension into the lug
wrench to reach the lug nuts.
2. Attach the spare tire lock key (A)
to the jack handle (B).
3. Fully insert the

Page 222 of 312

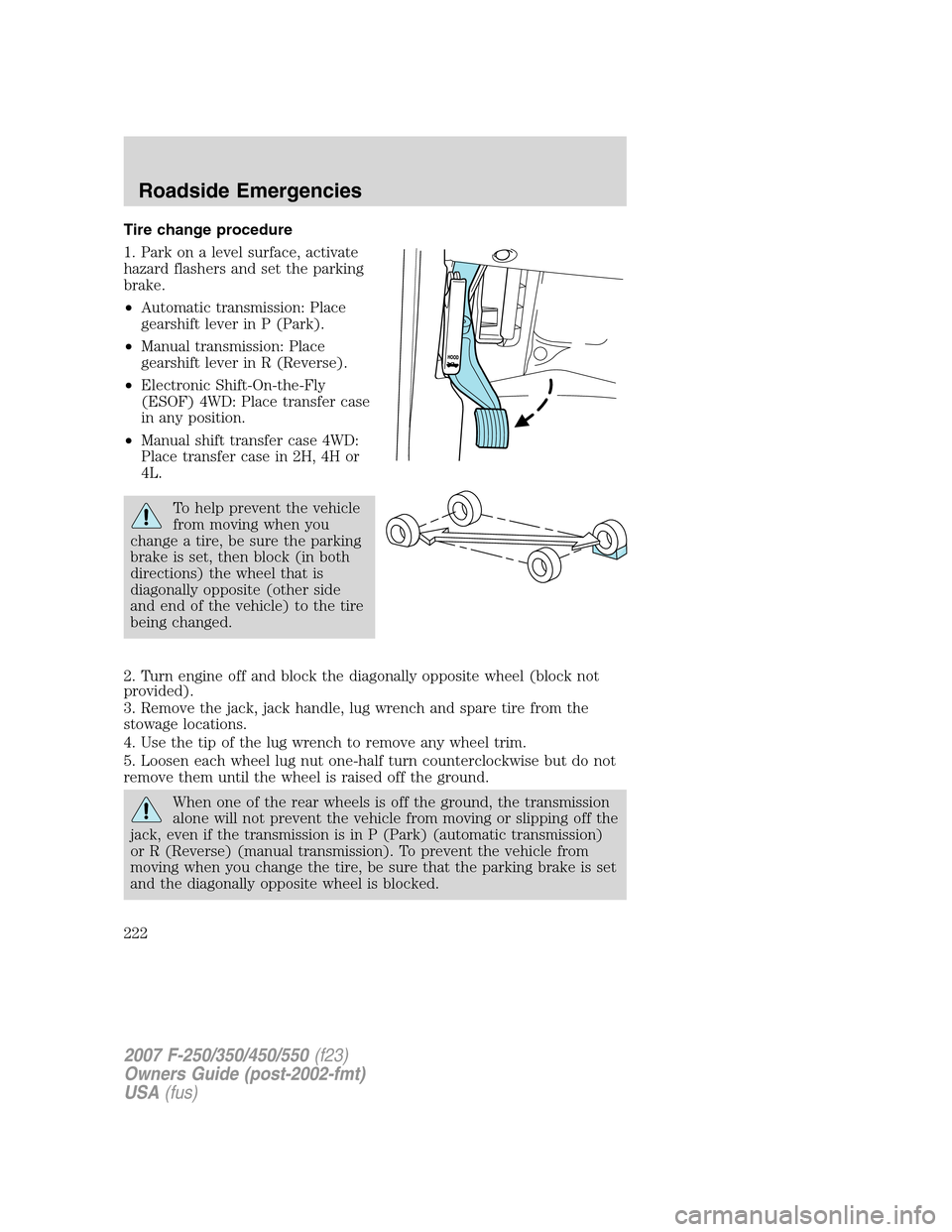

FORD SUPER DUTY 2007 1.G Owners Manual Tire change procedure
1. Park on a level surface, activate
hazard flashers and set the parking
brake.
•Automatic transmission: Place
gearshift lever in P (Park).
•Manual transmission: Place
gearsh

Page 223 of 312

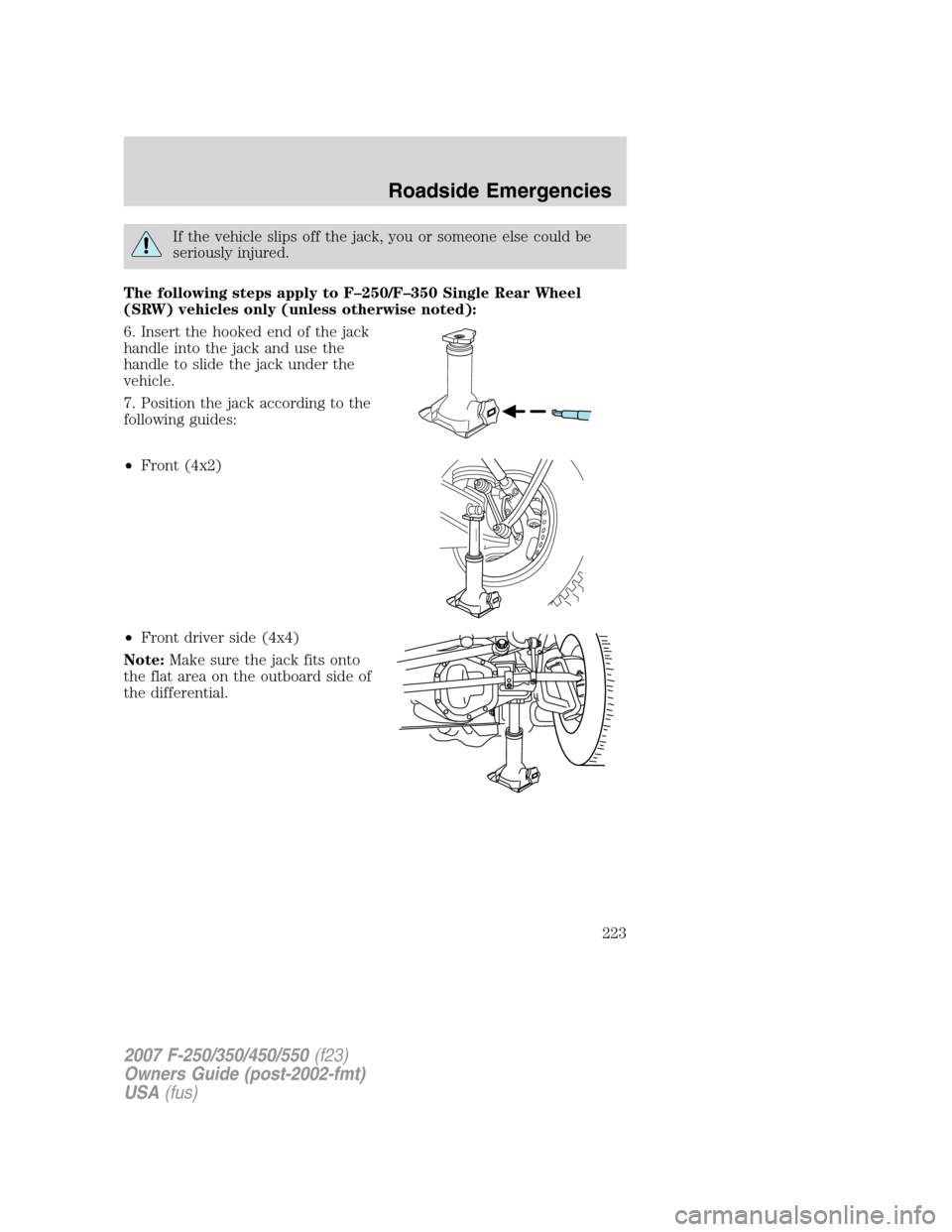

FORD SUPER DUTY 2007 1.G Owners Manual If the vehicle slips off the jack, you or someone else could be
seriously injured.
The following steps apply to F–250/F–350 Single Rear Wheel
(SRW) vehicles only (unless otherwise noted):
6. Inser

Page 224 of 312

FORD SUPER DUTY 2007 1.G Owners Manual •Front passenger side (4x4)
Note:View shown from the rear of
the vehicle to clearly identify the
jack point. Place the jack directly
under the axle.
•Rear (including F-350 Dual Rear
wheel [DRW] ve
