2007 FORD SUPER DUTY Owners Manual

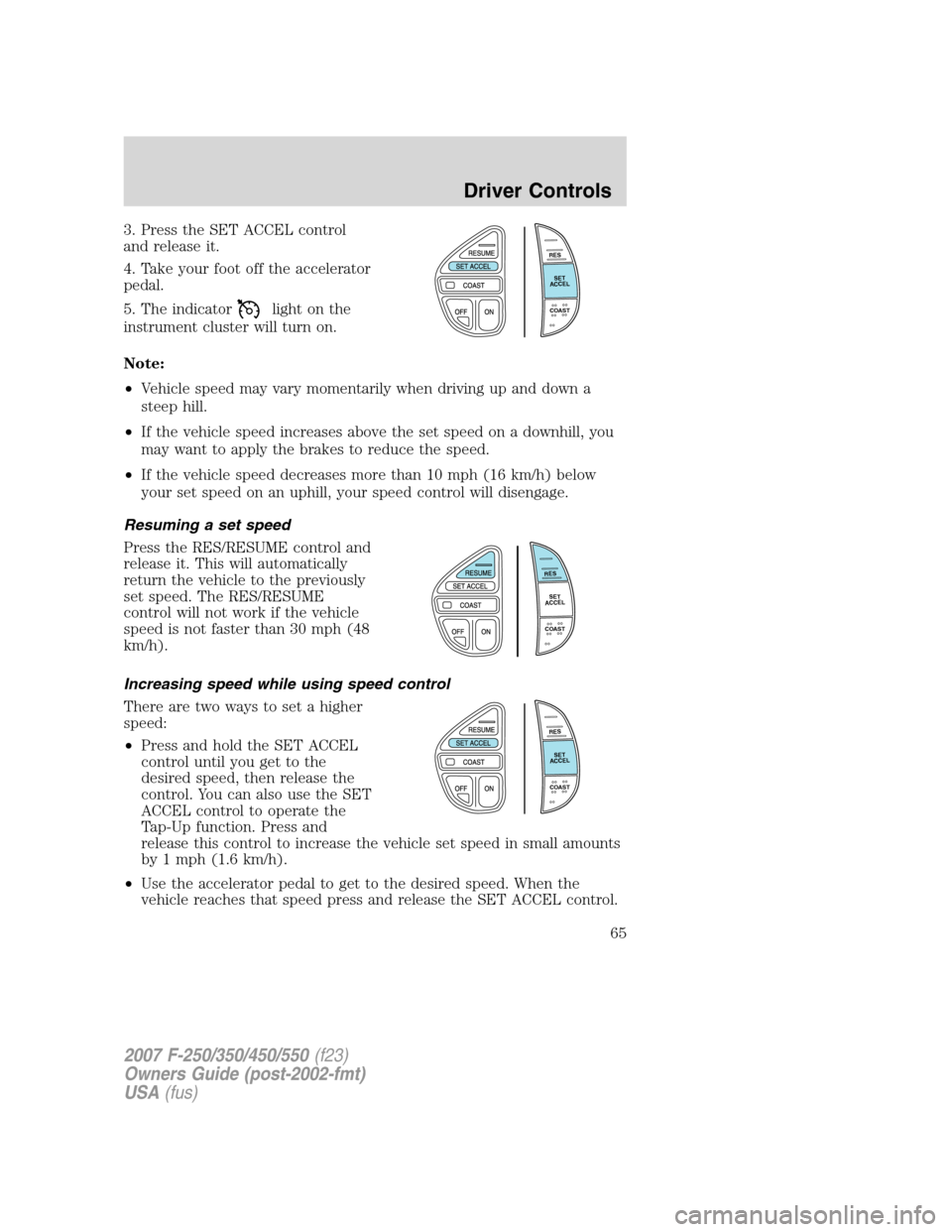

Page 65 of 312

FORD SUPER DUTY 2007 1.G Owners Manual 3. Press the SET ACCEL control
and release it.
4. Take your foot off the accelerator
pedal.
5. The indicator
light on the
instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily w

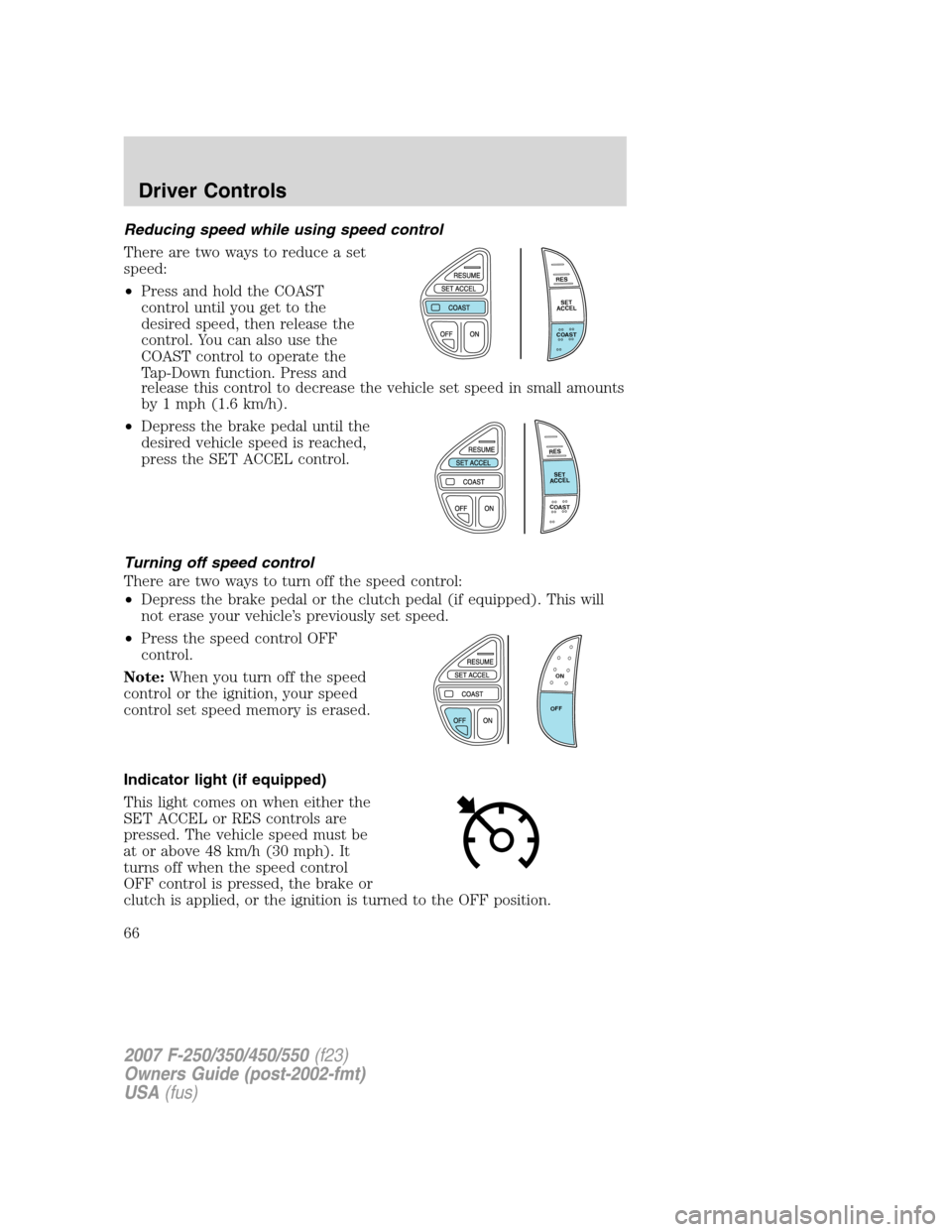

Page 66 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Reducing speed while using speed control
There are two ways to reduce a set
speed:
•Press and hold the COAST
control until you get to the
desired speed, then release the
control. You can also use th

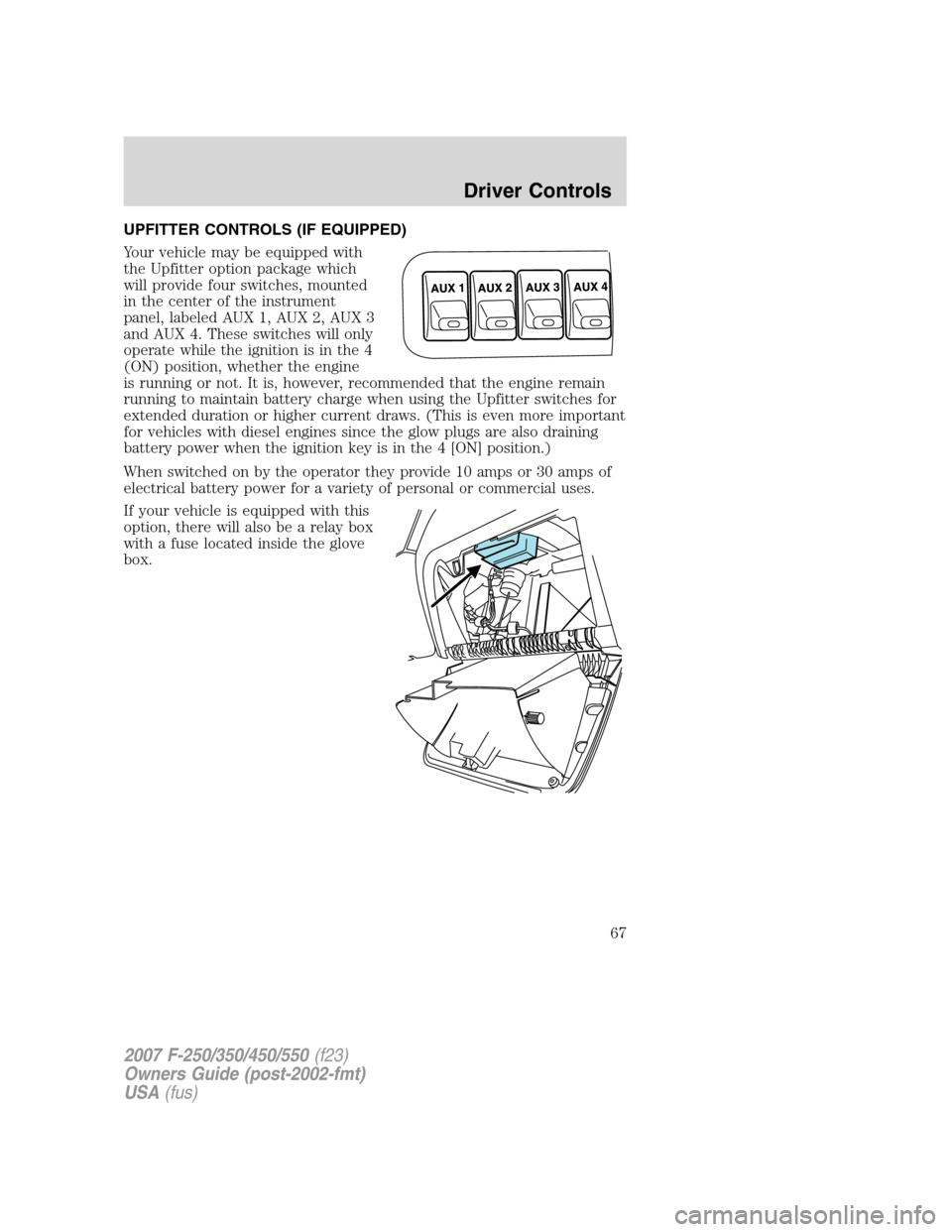

Page 67 of 312

FORD SUPER DUTY 2007 1.G Owners Manual UPFITTER CONTROLS (IF EQUIPPED)
Your vehicle may be equipped with
the Upfitter option package which
will provide four switches, mounted
in the center of the instrument
panel, labeled AUX 1, AUX 2, AUX

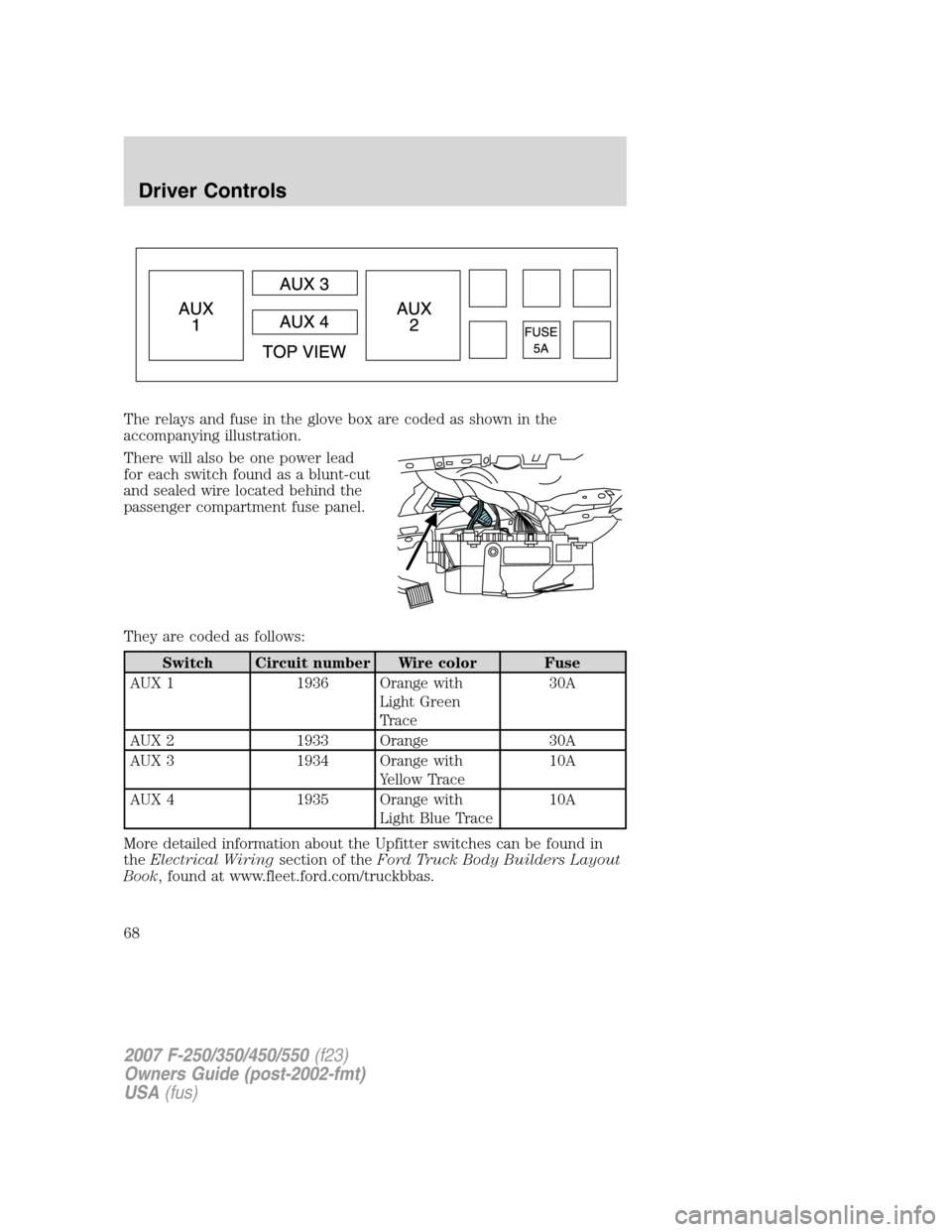

Page 68 of 312

FORD SUPER DUTY 2007 1.G Owners Manual The relays and fuse in the glove box are coded as shown in the
accompanying illustration.
There will also be one power lead
for each switch found as a blunt-cut
and sealed wire located behind the
pass

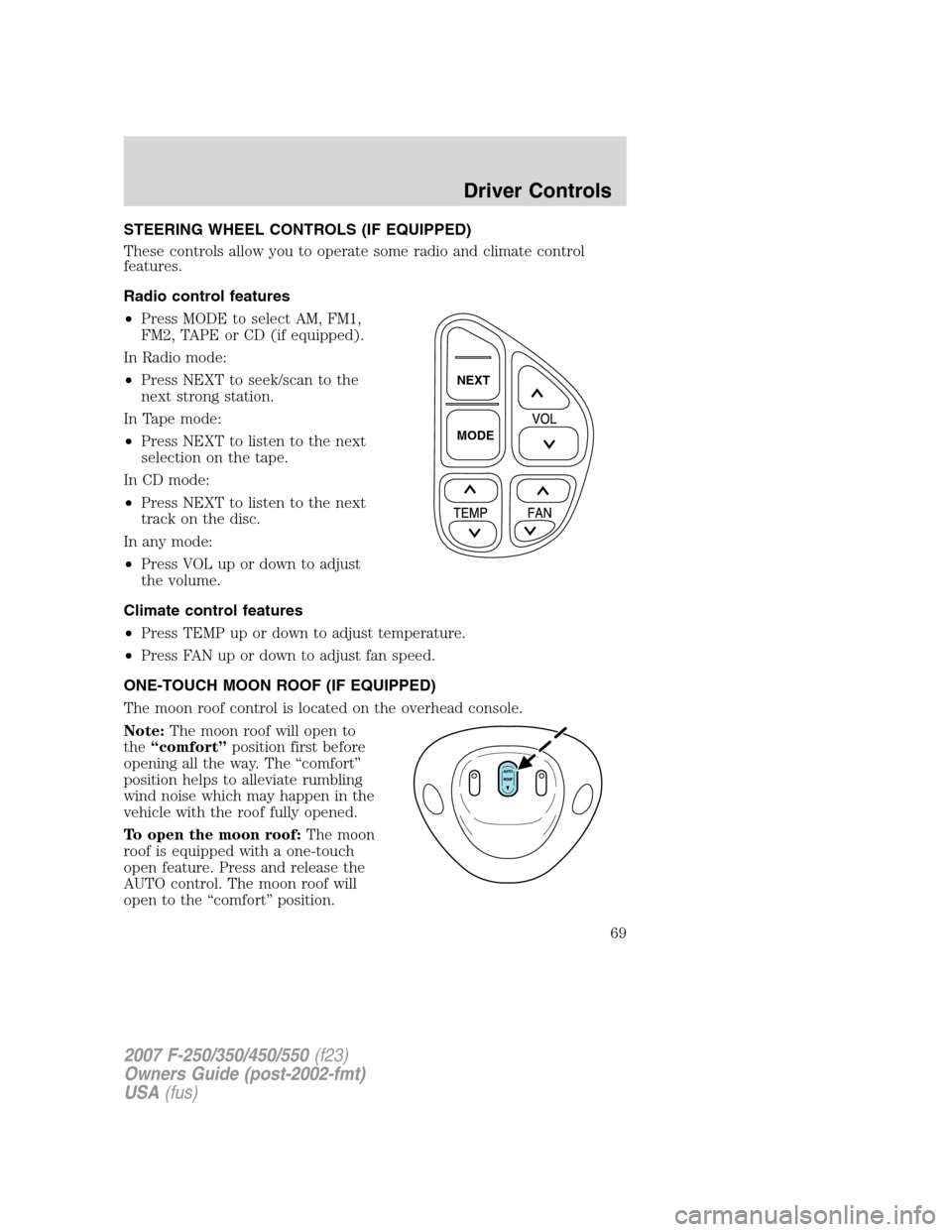

Page 69 of 312

FORD SUPER DUTY 2007 1.G Owners Manual STEERING WHEEL CONTROLS (IF EQUIPPED)
These controls allow you to operate some radio and climate control
features.
Radio control features
•Press MODE to select AM, FM1,
FM2, TAPE or CD (if equipped)

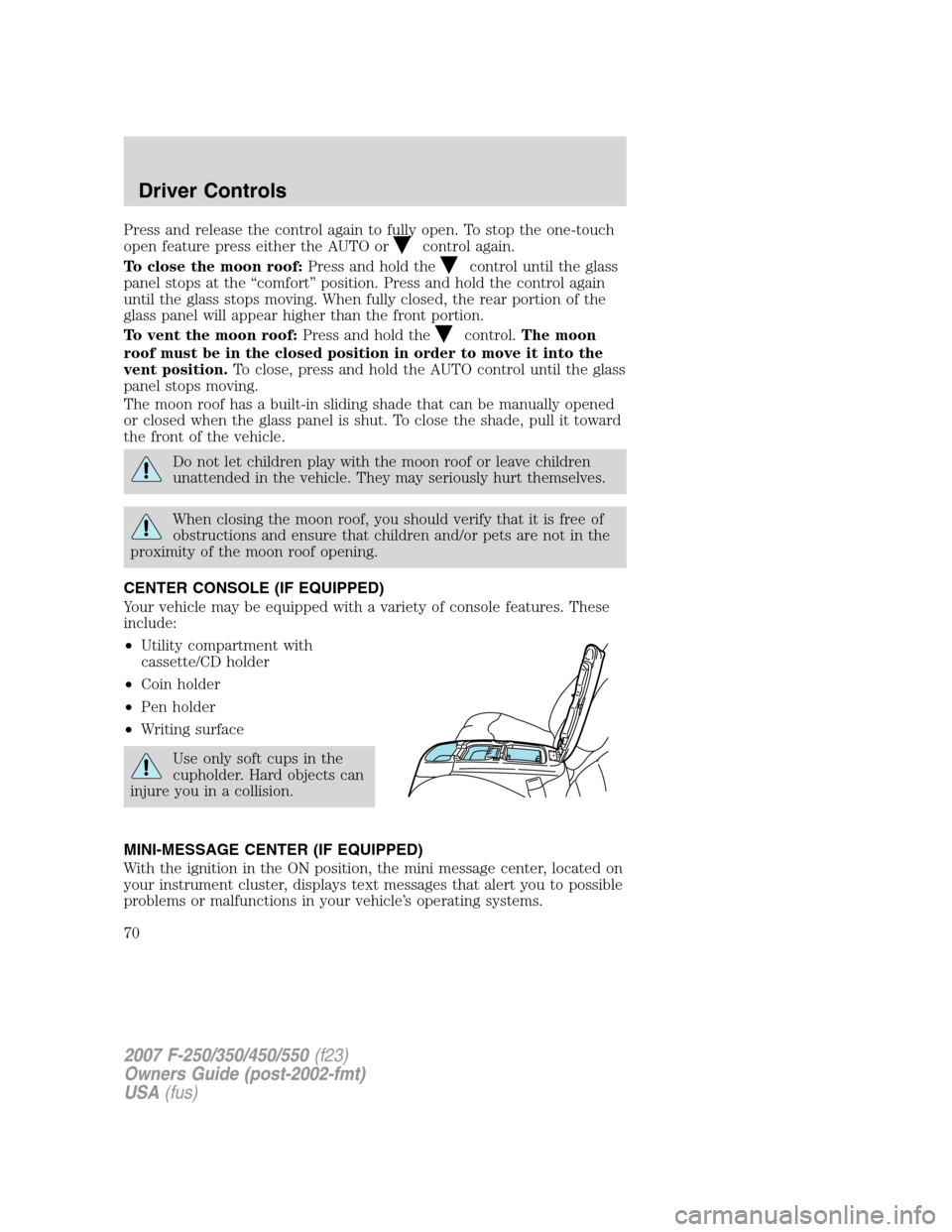

Page 70 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Press and release the control again to fully open. To stop the one-touch
open feature press either the AUTO or
control again.
To close the moon roof:Press and hold the
control until the glass
panel st

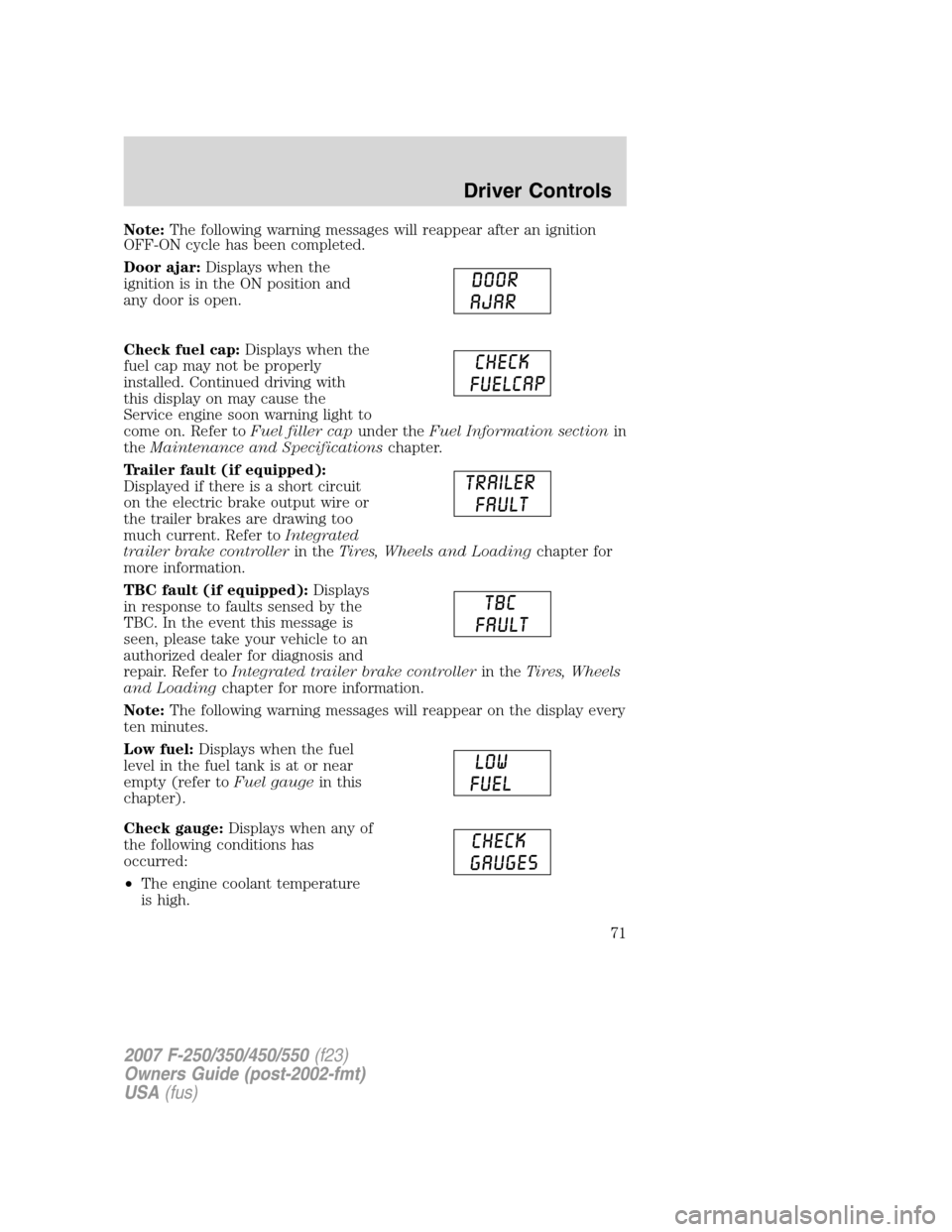

Page 71 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Note:The following warning messages will reappear after an ignition
OFF-ON cycle has been completed.
Door ajar:Displays when the
ignition is in the ON position and
any door is open.
Check fuel cap:Dis

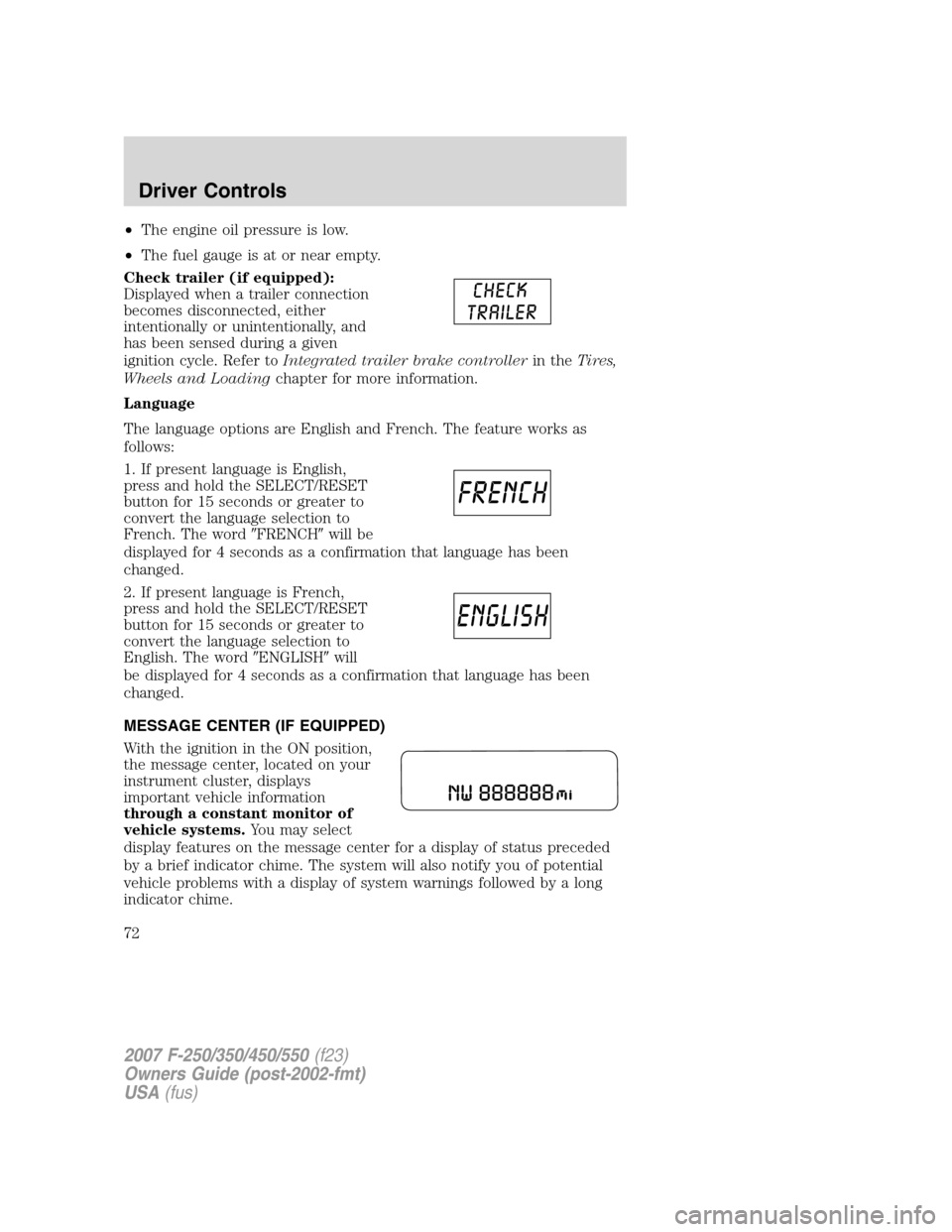

Page 72 of 312

FORD SUPER DUTY 2007 1.G Owners Manual •The engine oil pressure is low.
•The fuel gauge is at or near empty.
Check trailer (if equipped):
Displayed when a trailer connection
becomes disconnected, either
intentionally or unintentionally
