2007 FORD SUPER DUTY Owners Manual

Page 89 of 312

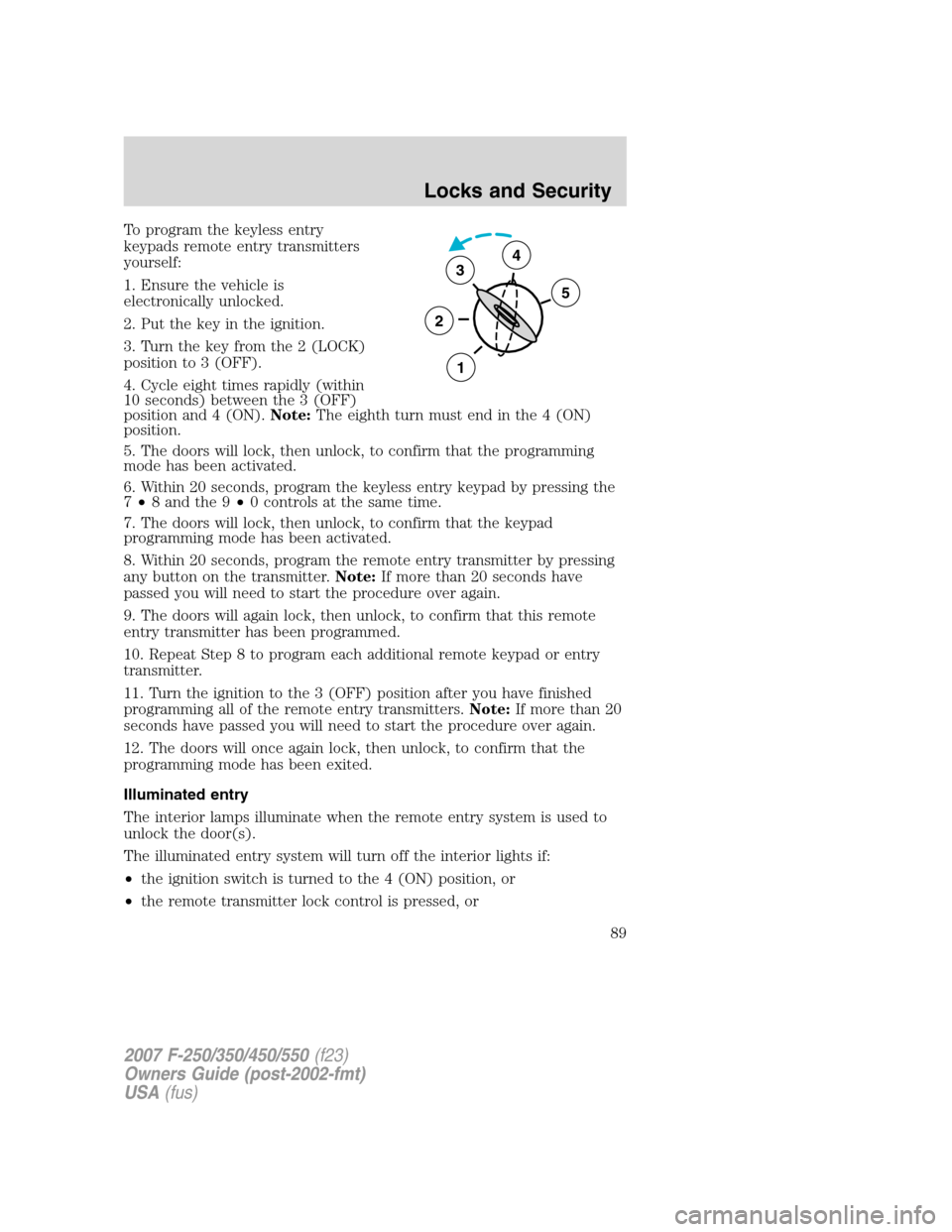

FORD SUPER DUTY 2007 1.G Owners Manual To program the keyless entry
keypads remote entry transmitters
yourself:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 2 (LOCK)
position to

Page 90 of 312

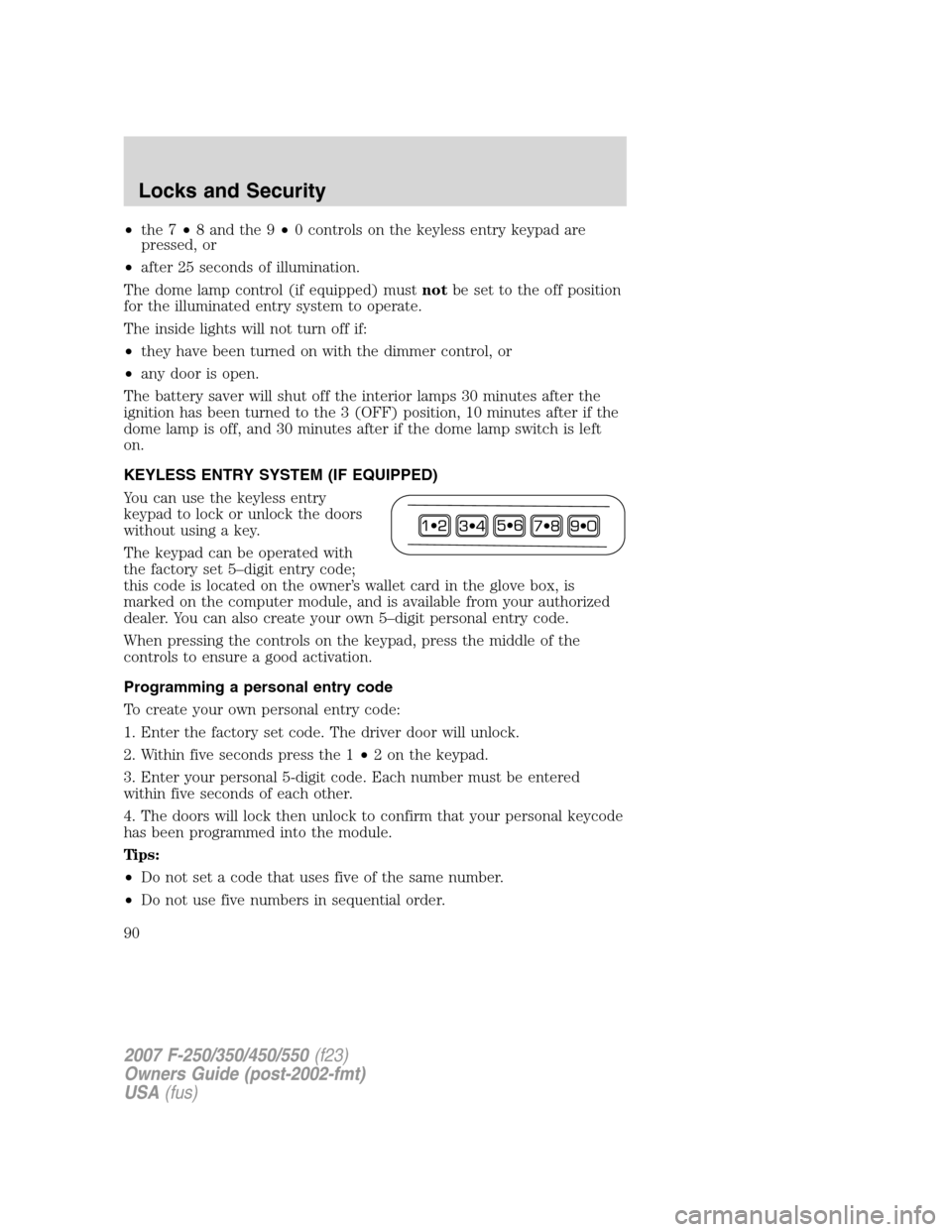

FORD SUPER DUTY 2007 1.G Owners Manual •the 7•8 and the 9•0 controls on the keyless entry keypad are
pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illum

Page 91 of 312

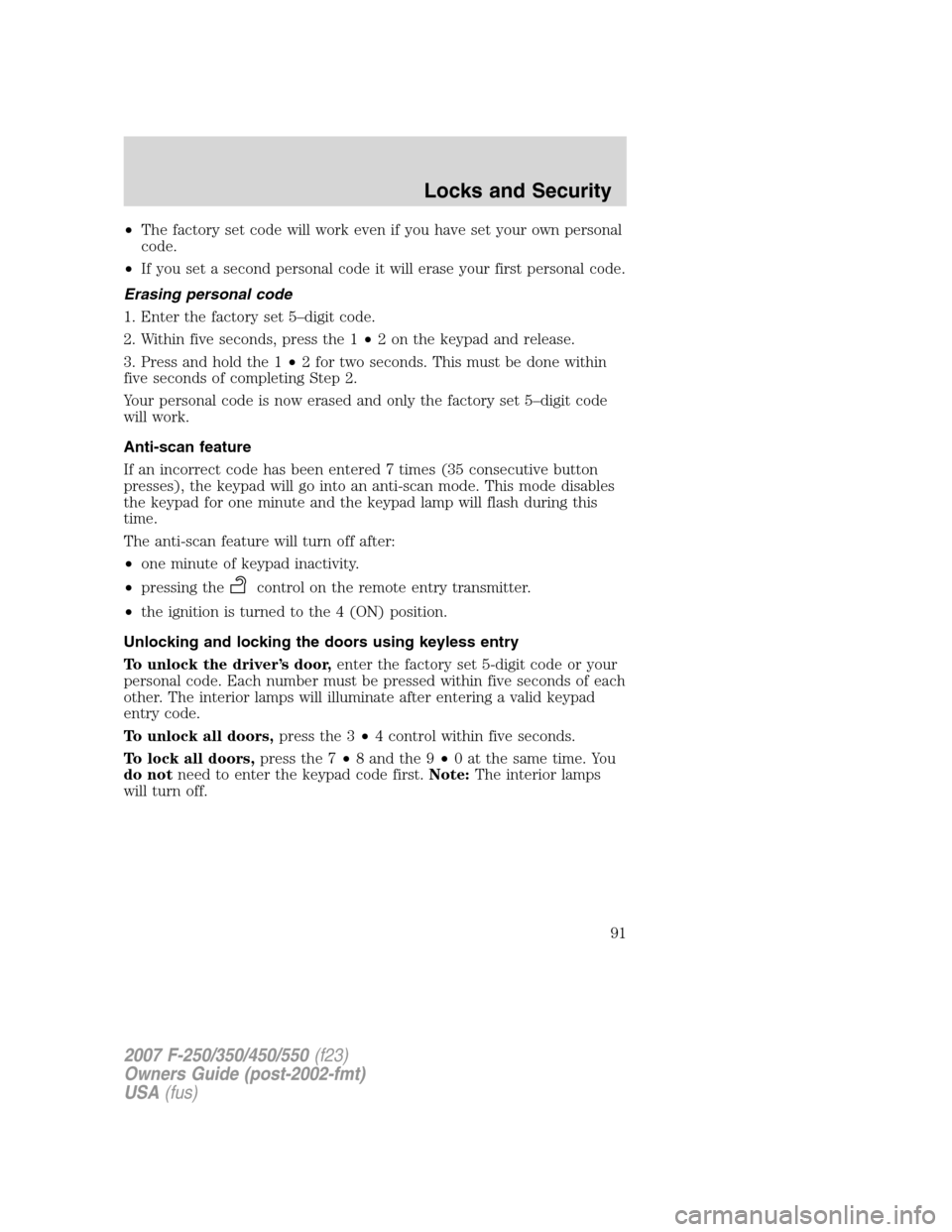

FORD SUPER DUTY 2007 1.G Owners Manual •The factory set code will work even if you have set your own personal
code.
•If you set a second personal code it will erase your first personal code.
Erasing personal code
1. Enter the factory s

Page 92 of 312

FORD SUPER DUTY 2007 1.G Owners Manual SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than th

Page 93 of 312

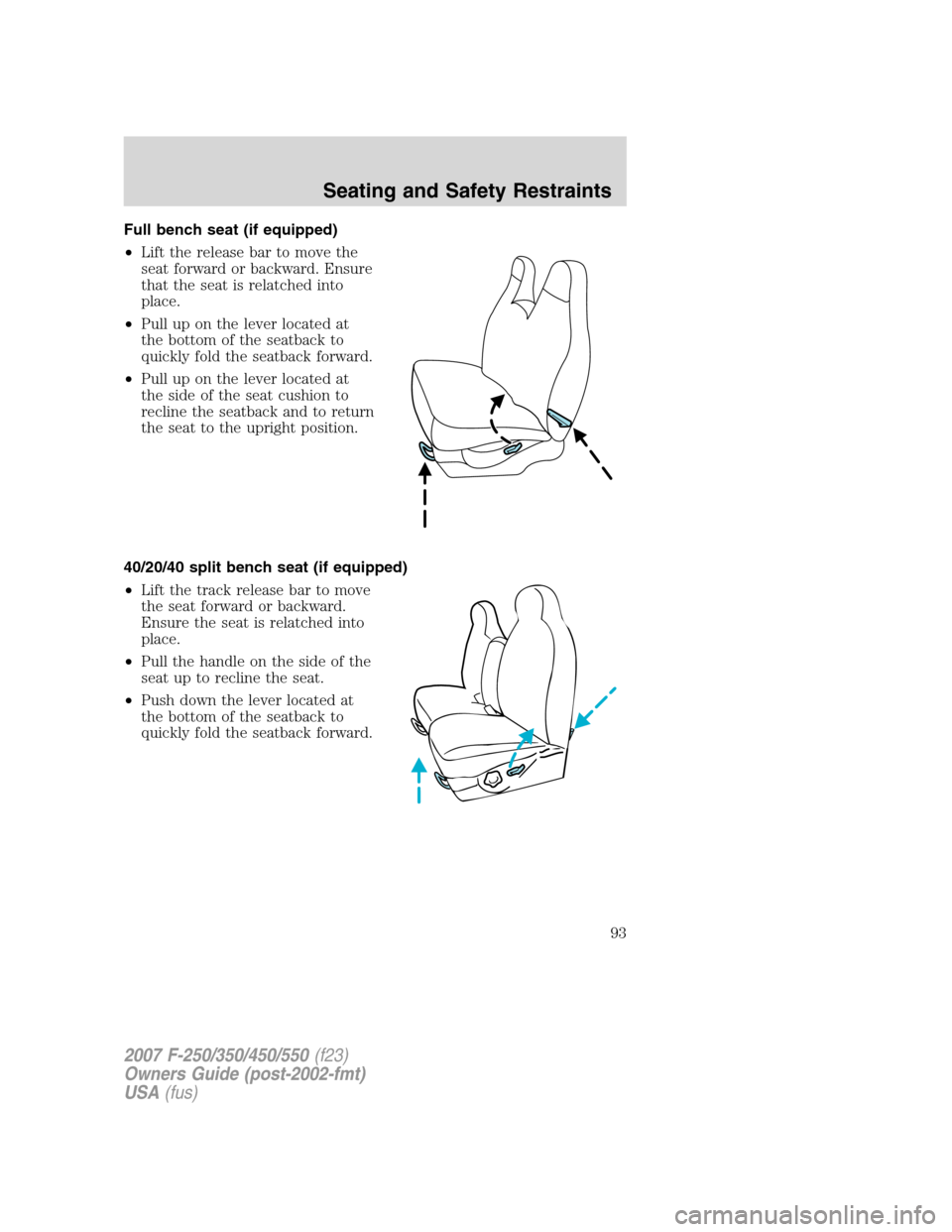

FORD SUPER DUTY 2007 1.G Owners Manual Full bench seat (if equipped)
•Lift the release bar to move the
seat forward or backward. Ensure
that the seat is relatched into
place.
•Pull up on the lever located at
the bottom of the seatback

Page 94 of 312

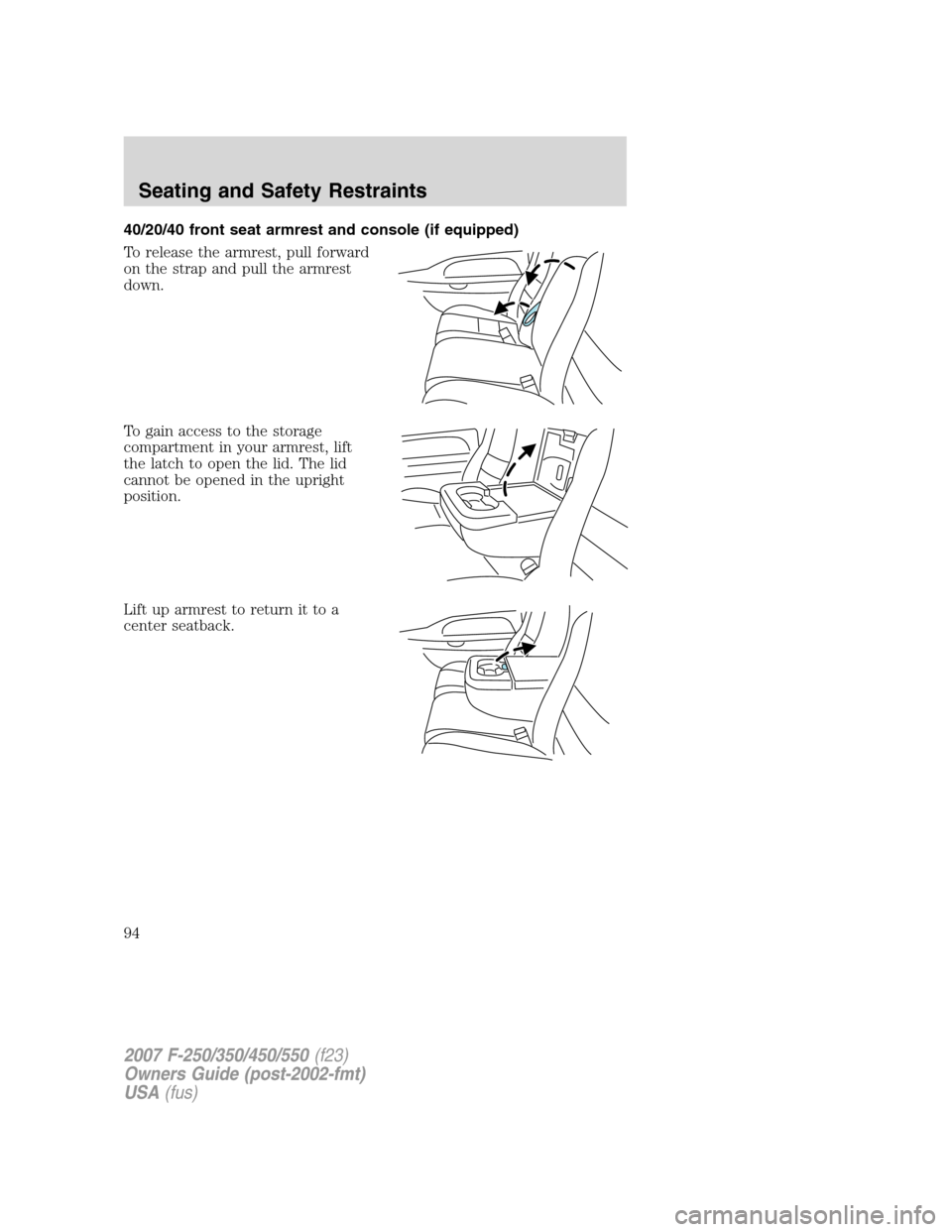

FORD SUPER DUTY 2007 1.G Owners Manual 40/20/40 front seat armrest and console (if equipped)
To release the armrest, pull forward
on the strap and pull the armrest
down.
To gain access to the storage
compartment in your armrest, lift
the l

Page 95 of 312

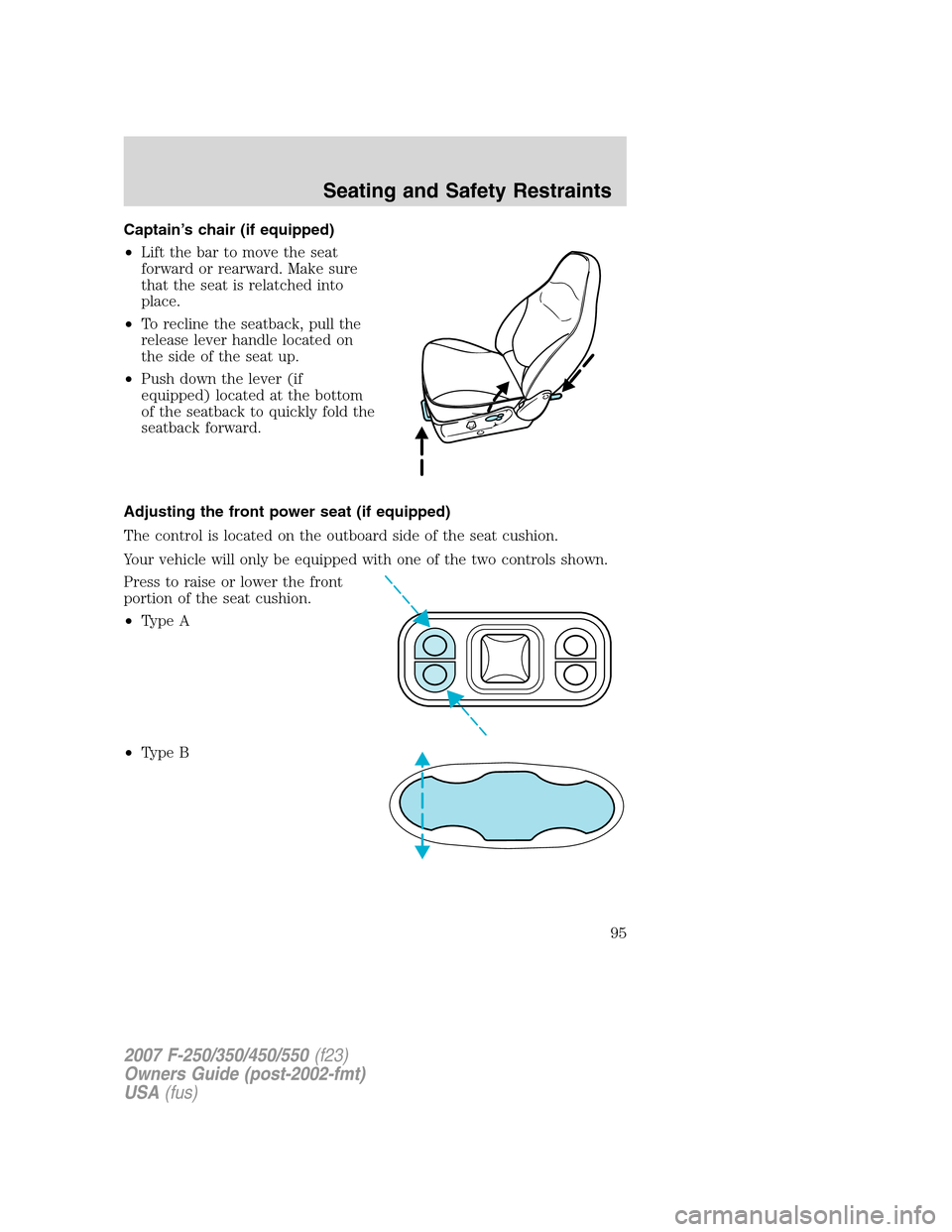

FORD SUPER DUTY 2007 1.G Owners Manual Captain’s chair (if equipped)
•Lift the bar to move the seat
forward or rearward. Make sure
that the seat is relatched into
place.
•To recline the seatback, pull the
release lever handle located

Page 96 of 312

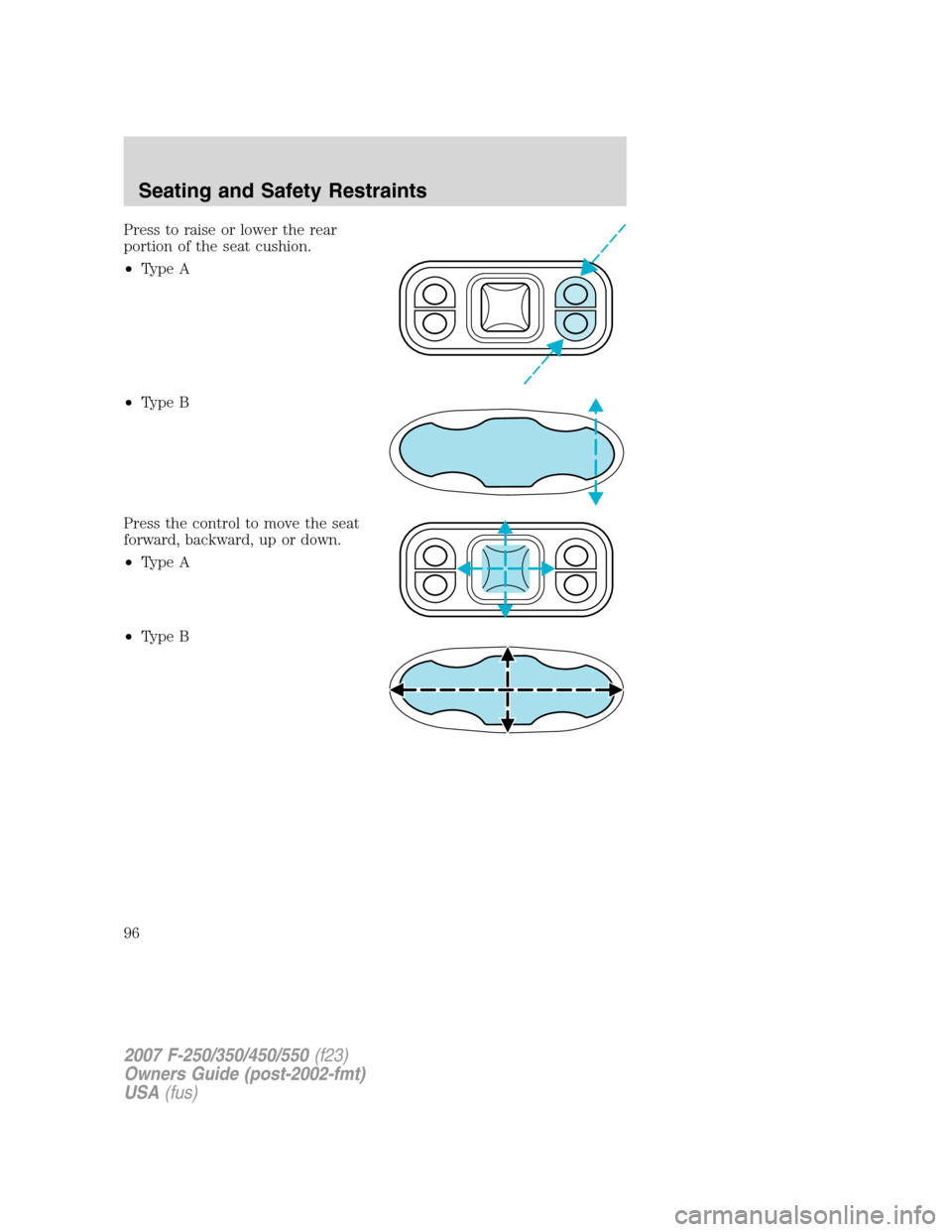

FORD SUPER DUTY 2007 1.G Owners Manual Press to raise or lower the rear
portion of the seat cushion.
•Type A
•Type B
Press the control to move the seat
forward, backward, up or down.
•Type A
•Type B
2007 F-250/350/450/550(f23)
Owne
