2007 FORD SUPER DUTY Owners Manual

Page 257 of 312

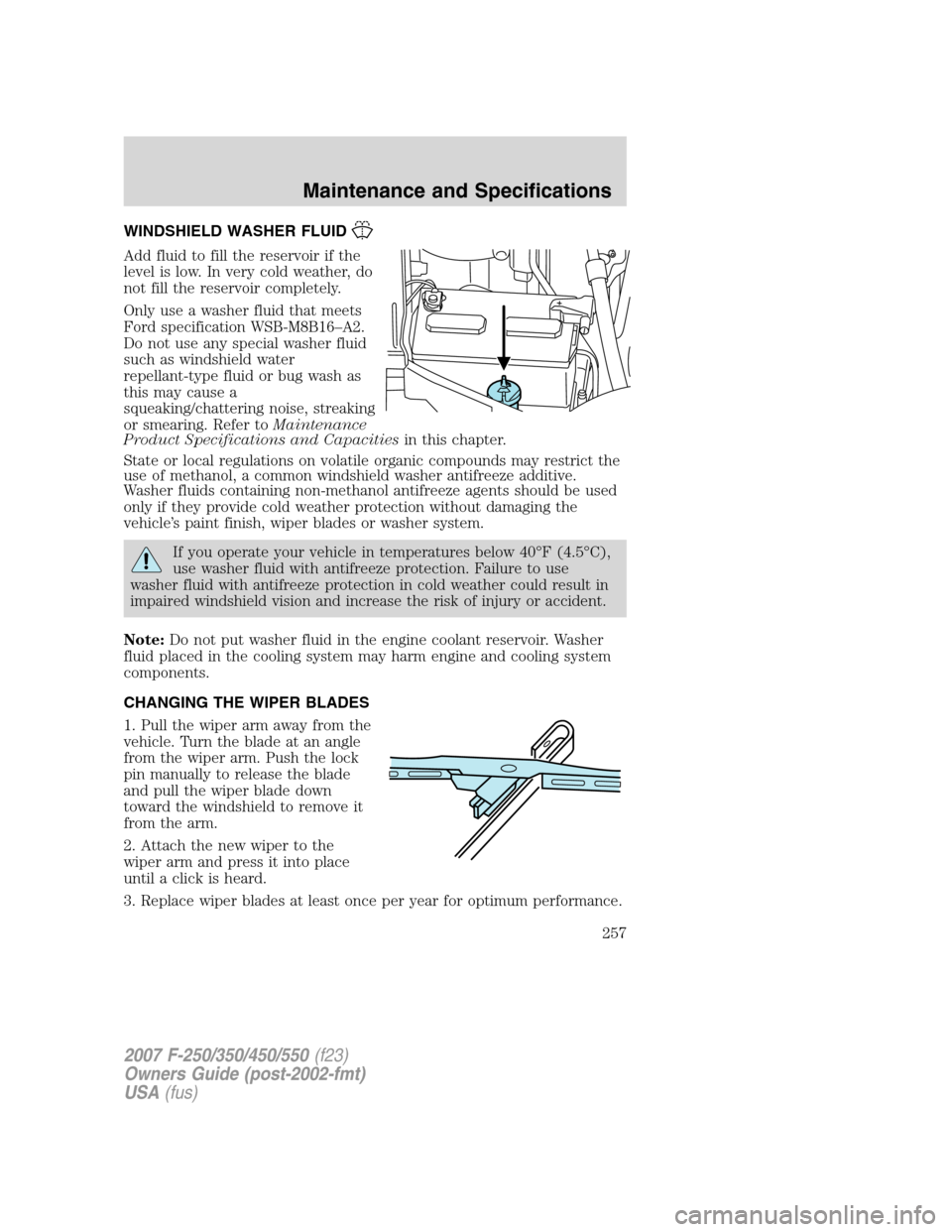

FORD SUPER DUTY 2007 1.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

Page 258 of 312

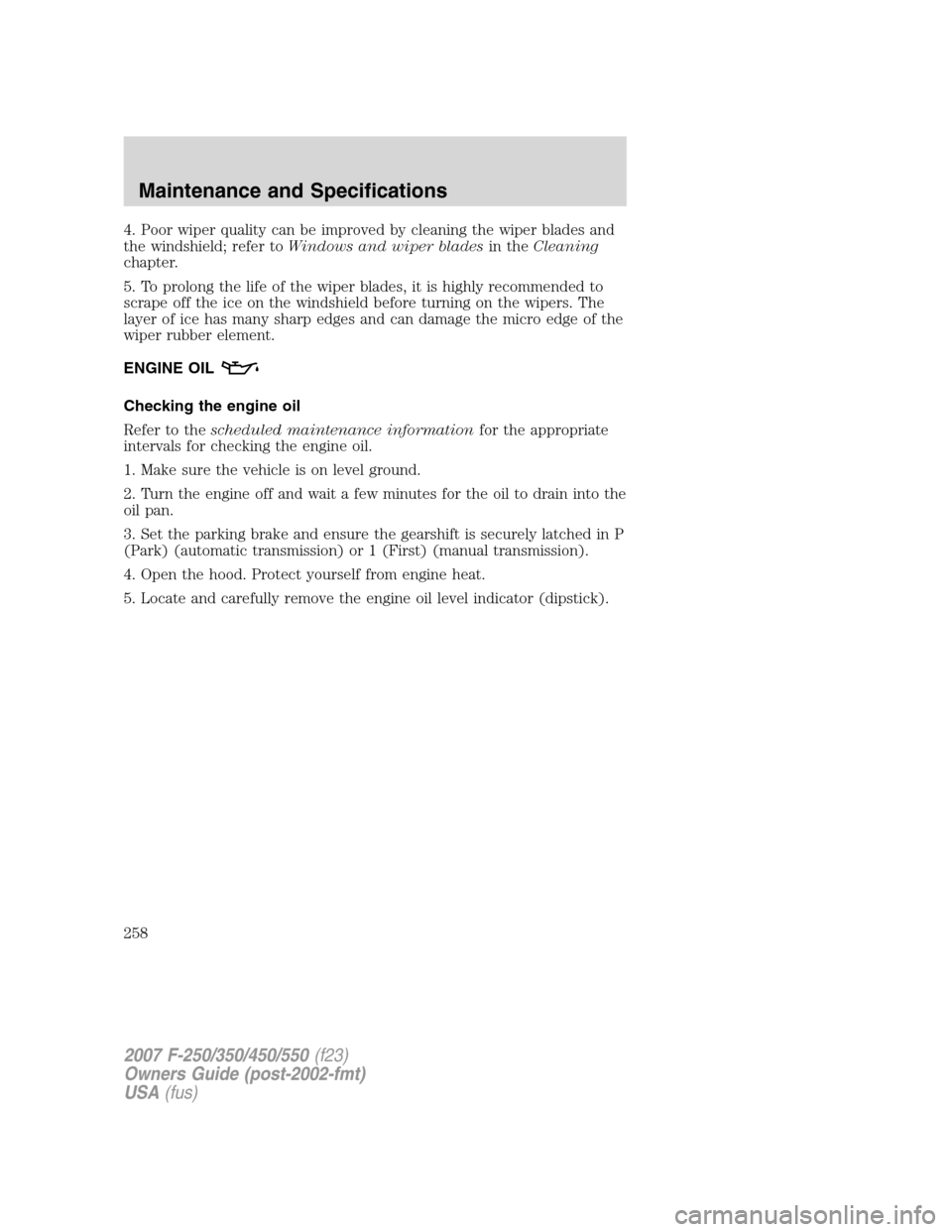

FORD SUPER DUTY 2007 1.G Owners Manual 4. Poor wiper quality can be improved by cleaning the wiper blades and
the windshield; refer toWindows and wiper bladesin theCleaning
chapter.
5. To prolong the life of the wiper blades, it is highly

Page 259 of 312

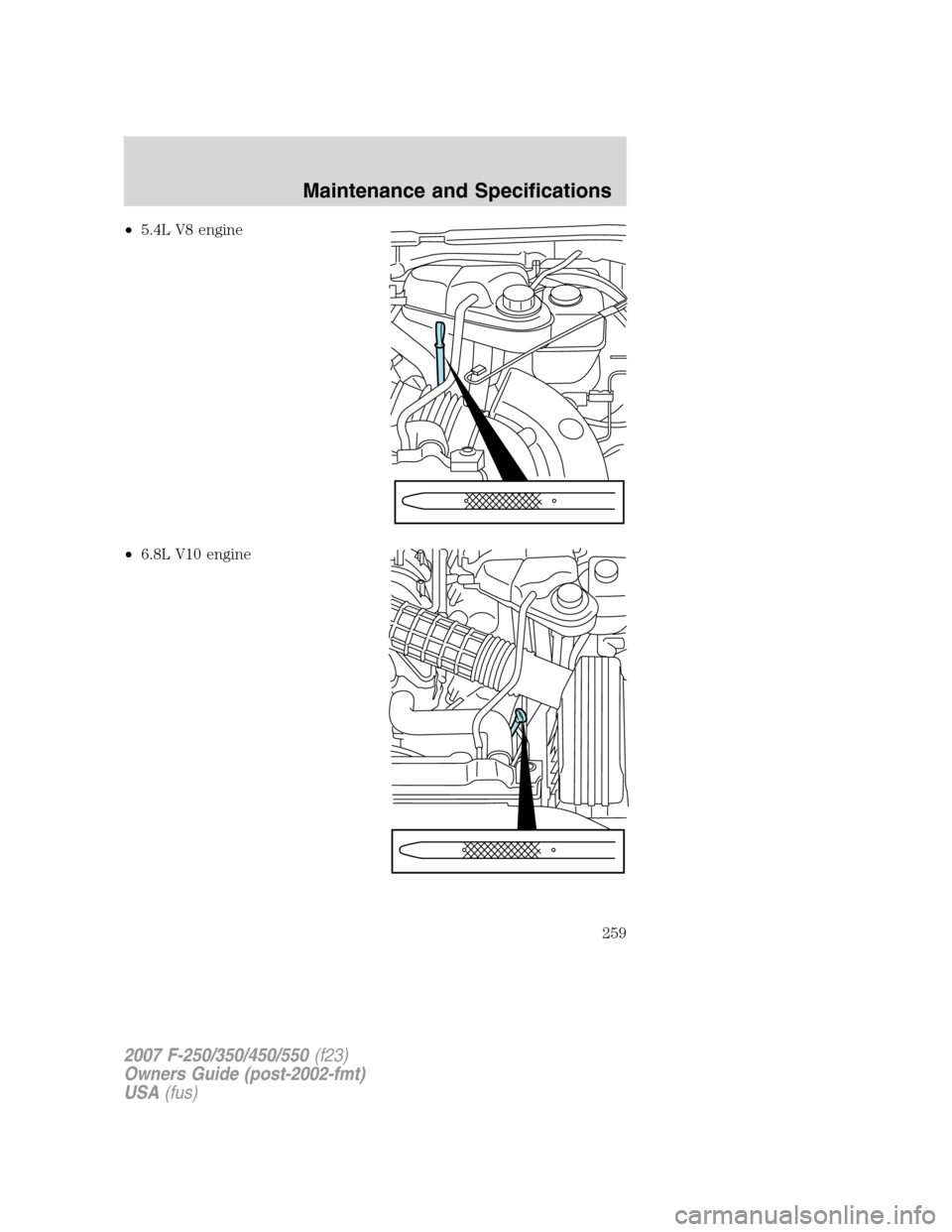

FORD SUPER DUTY 2007 1.G Owners Manual •5.4L V8 engine
•6.8L V10 engine
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
259

Page 260 of 312

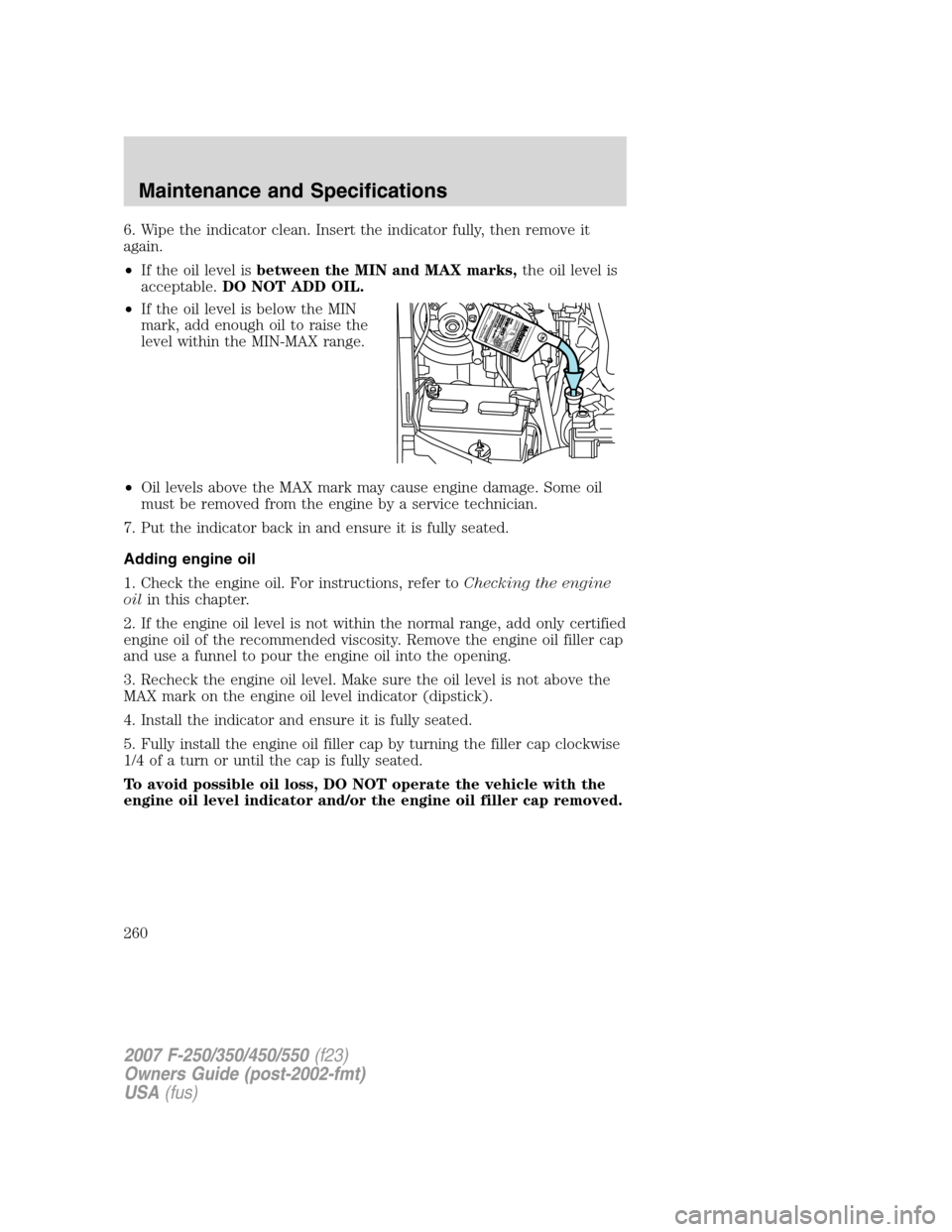

FORD SUPER DUTY 2007 1.G Owners Manual 6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level isbetween the MIN and MAX marks,the oil level is
acceptable.DO NOT ADD OIL.
•If the oil level is be

Page 261 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An

Page 262 of 312

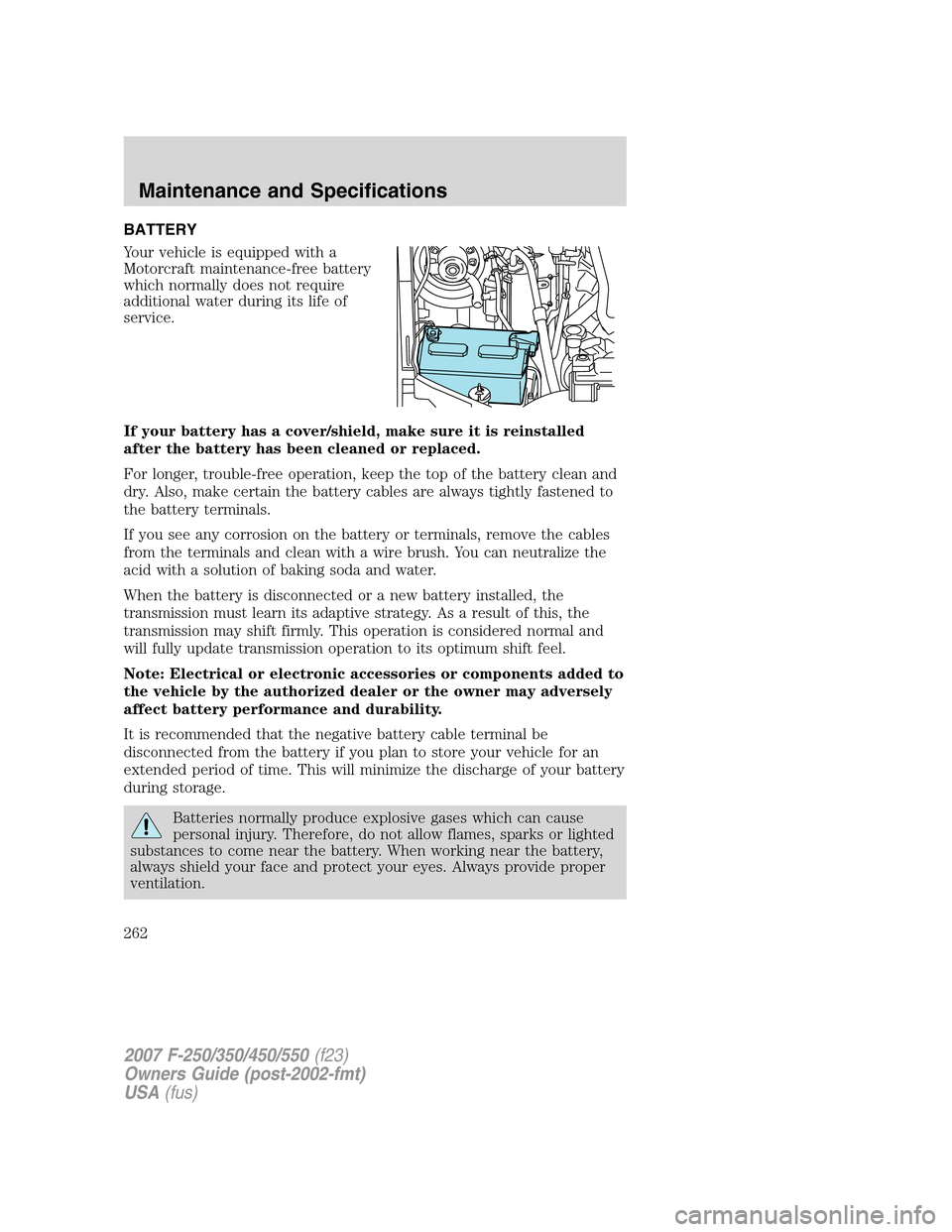

FORD SUPER DUTY 2007 1.G Owners Manual BATTERY
Your vehicle is equipped with a
Motorcraft maintenance-free battery
which normally does not require
additional water during its life of
service.
If your battery has a cover/shield, make sure i

Page 263 of 312

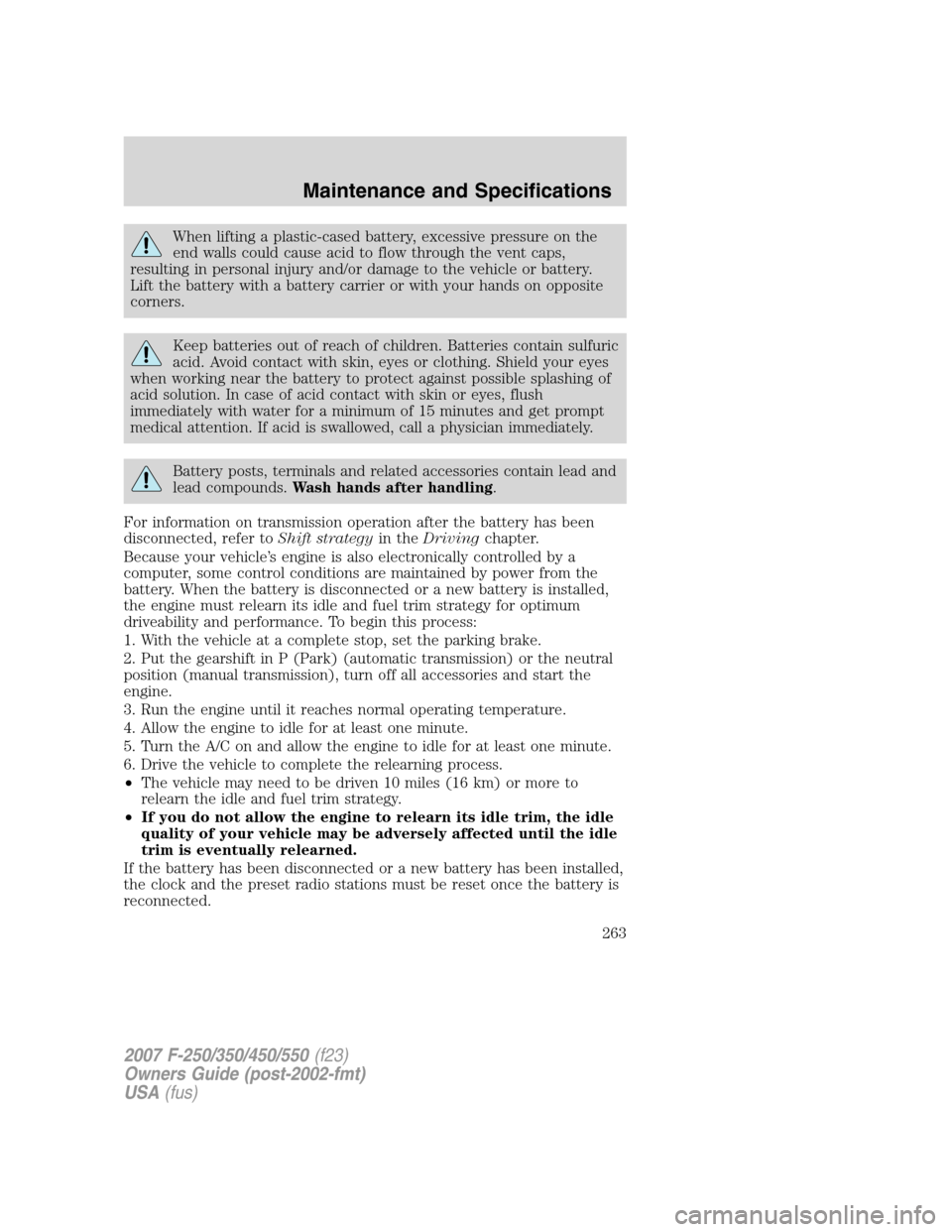

FORD SUPER DUTY 2007 1.G Owners Manual When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the

Page 264 of 312

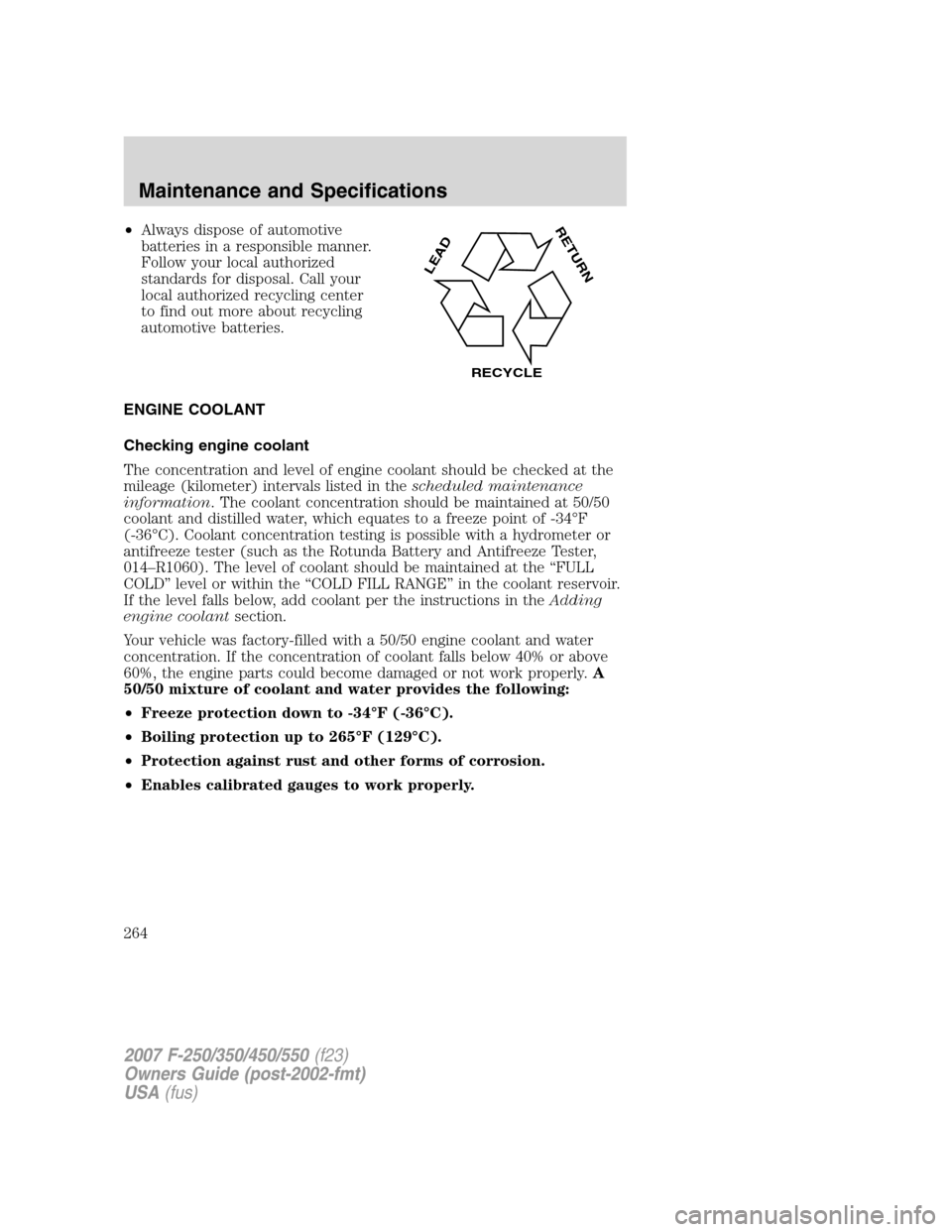

FORD SUPER DUTY 2007 1.G Owners Manual •Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
aut
