2007 FORD SUPER DUTY Owners Manual

Page 97 of 312

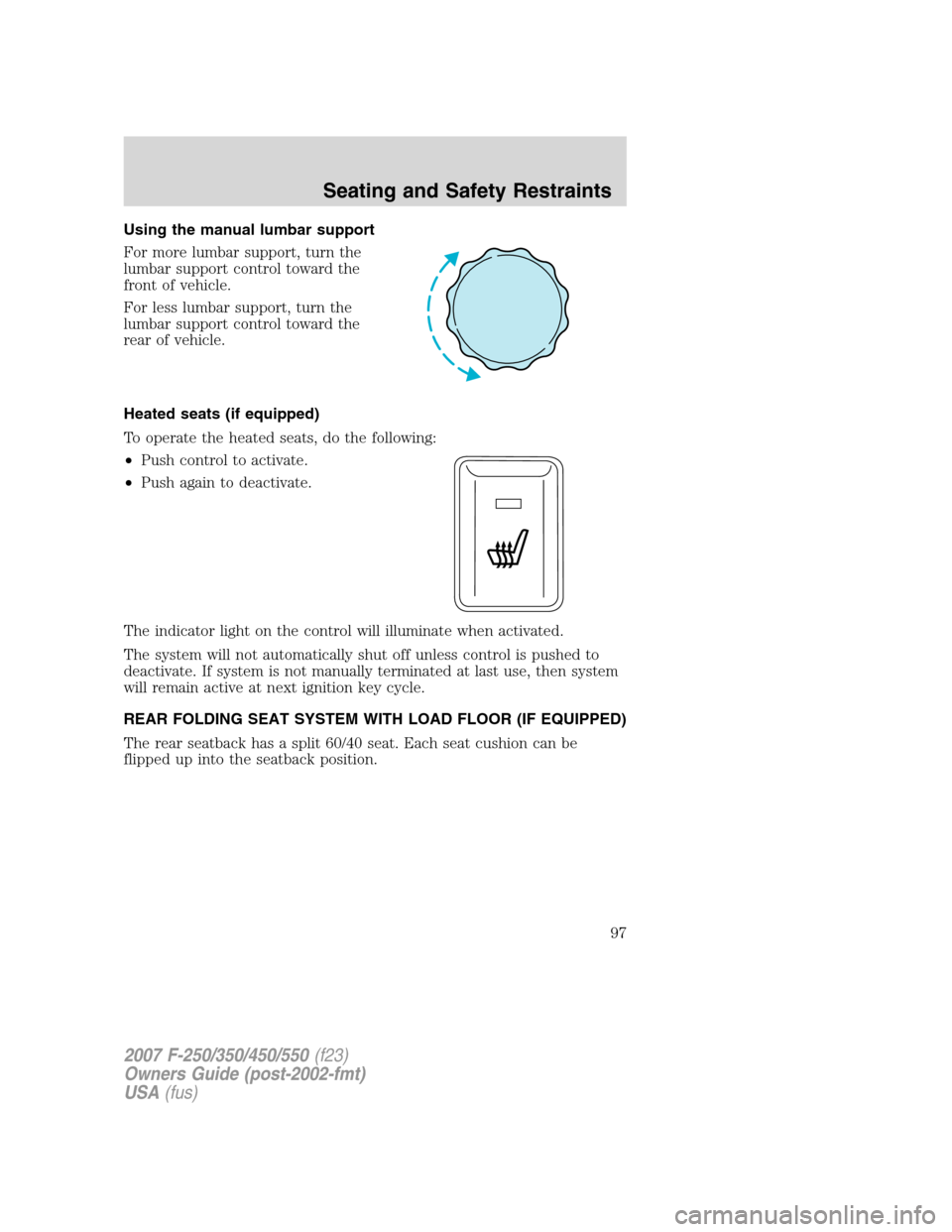

FORD SUPER DUTY 2007 1.G Owners Manual Using the manual lumbar support
For more lumbar support, turn the
lumbar support control toward the
front of vehicle.
For less lumbar support, turn the
lumbar support control toward the
rear of vehicl

Page 98 of 312

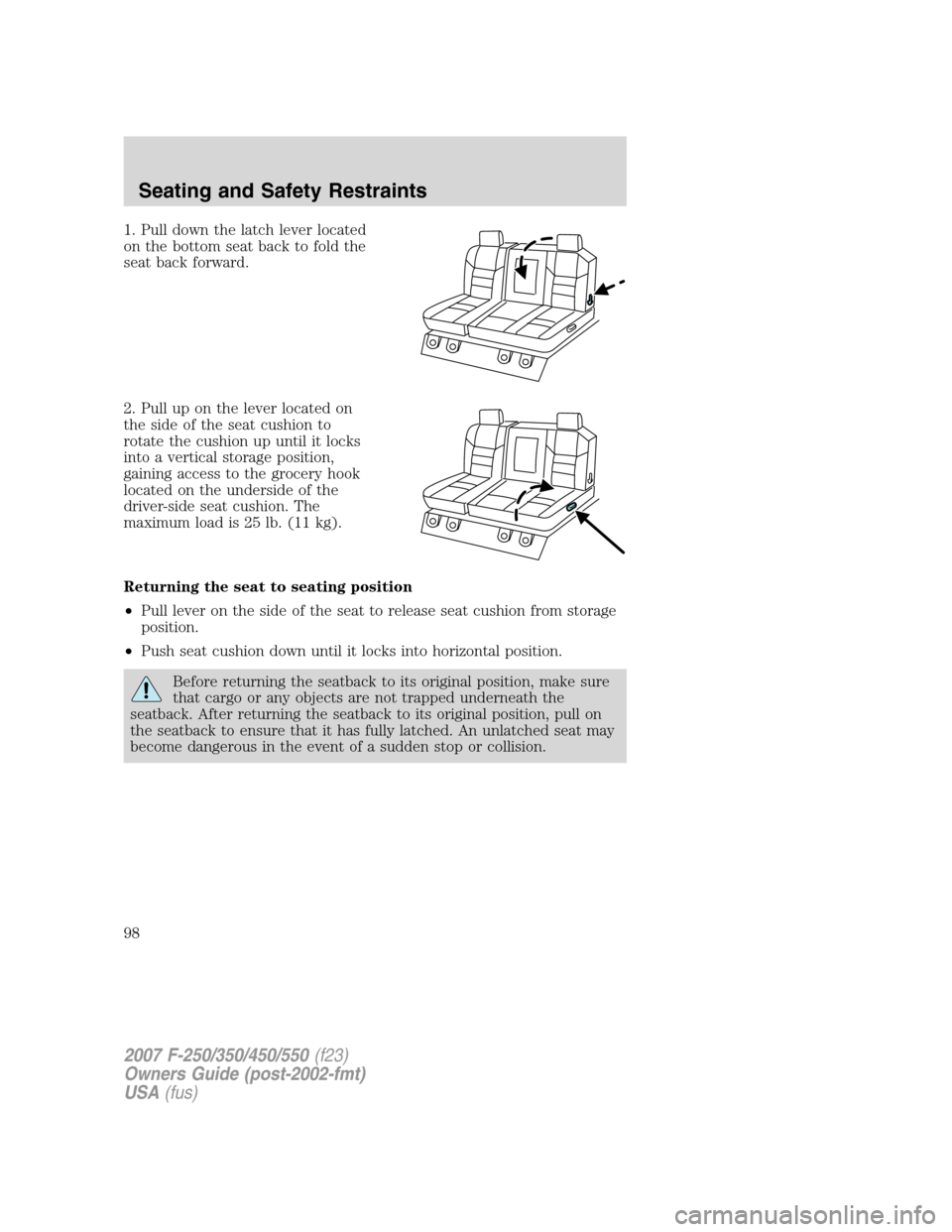

FORD SUPER DUTY 2007 1.G Owners Manual 1. Pull down the latch lever located
on the bottom seat back to fold the
seat back forward.
2. Pull up on the lever located on
the side of the seat cushion to
rotate the cushion up until it locks
into

Page 99 of 312

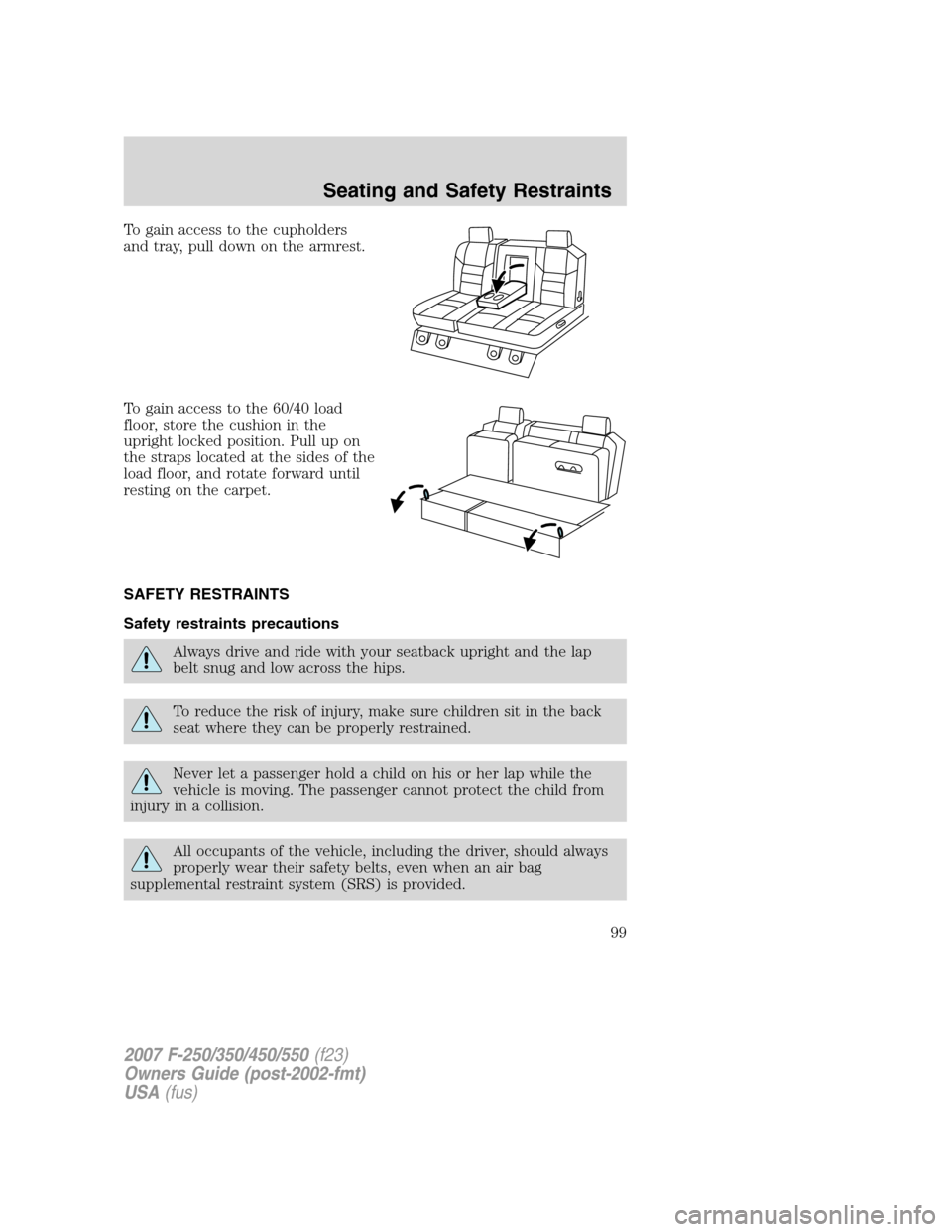

FORD SUPER DUTY 2007 1.G Owners Manual To gain access to the cupholders
and tray, pull down on the armrest.
To gain access to the 60/40 load
floor, store the cushion in the
upright locked position. Pull up on
the straps located at the side

Page 100 of 312

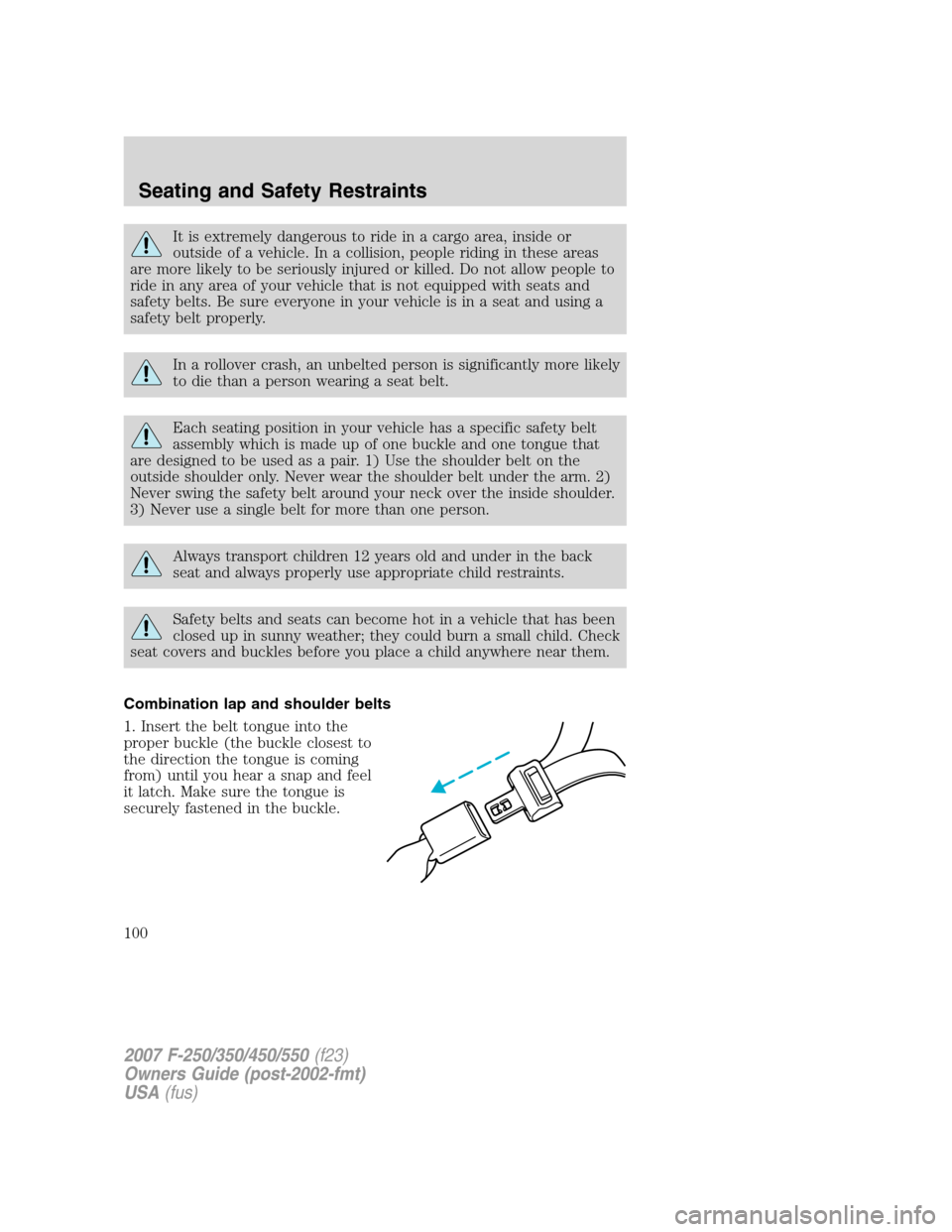

FORD SUPER DUTY 2007 1.G Owners Manual It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these areas
are more likely to be seriously injured or killed. Do not allow people t

Page 101 of 312

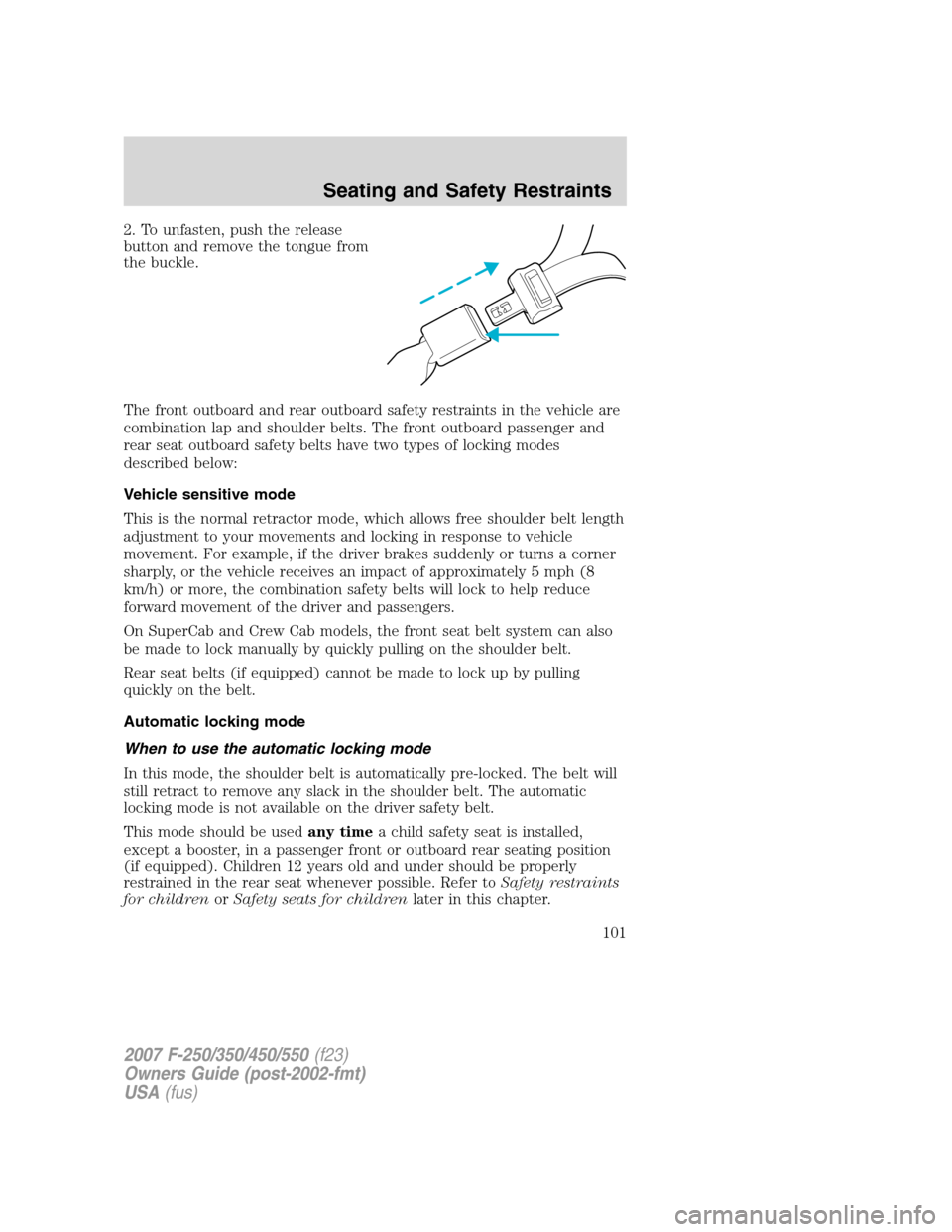

FORD SUPER DUTY 2007 1.G Owners Manual 2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front outboard and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front o

Page 102 of 312

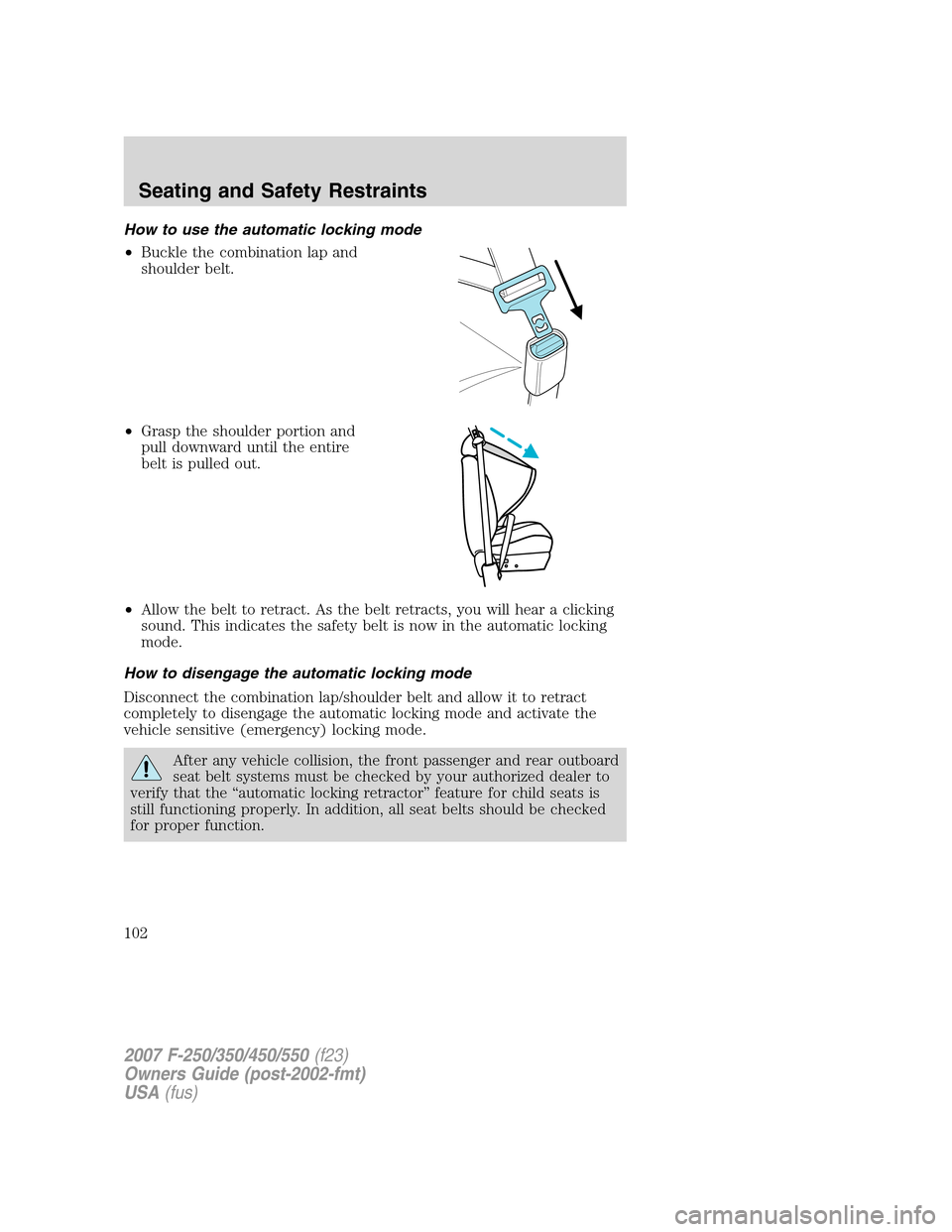

FORD SUPER DUTY 2007 1.G Owners Manual How to use the automatic locking mode
•Buckle the combination lap and
shoulder belt.
•Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
•Allow the belt to retract

Page 103 of 312

FORD SUPER DUTY 2007 1.G Owners Manual BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if
the seat belt assembly “automatic locking retractor” feature or
any other seat belt function is not operating properly when checked
according to the

Page 104 of 312

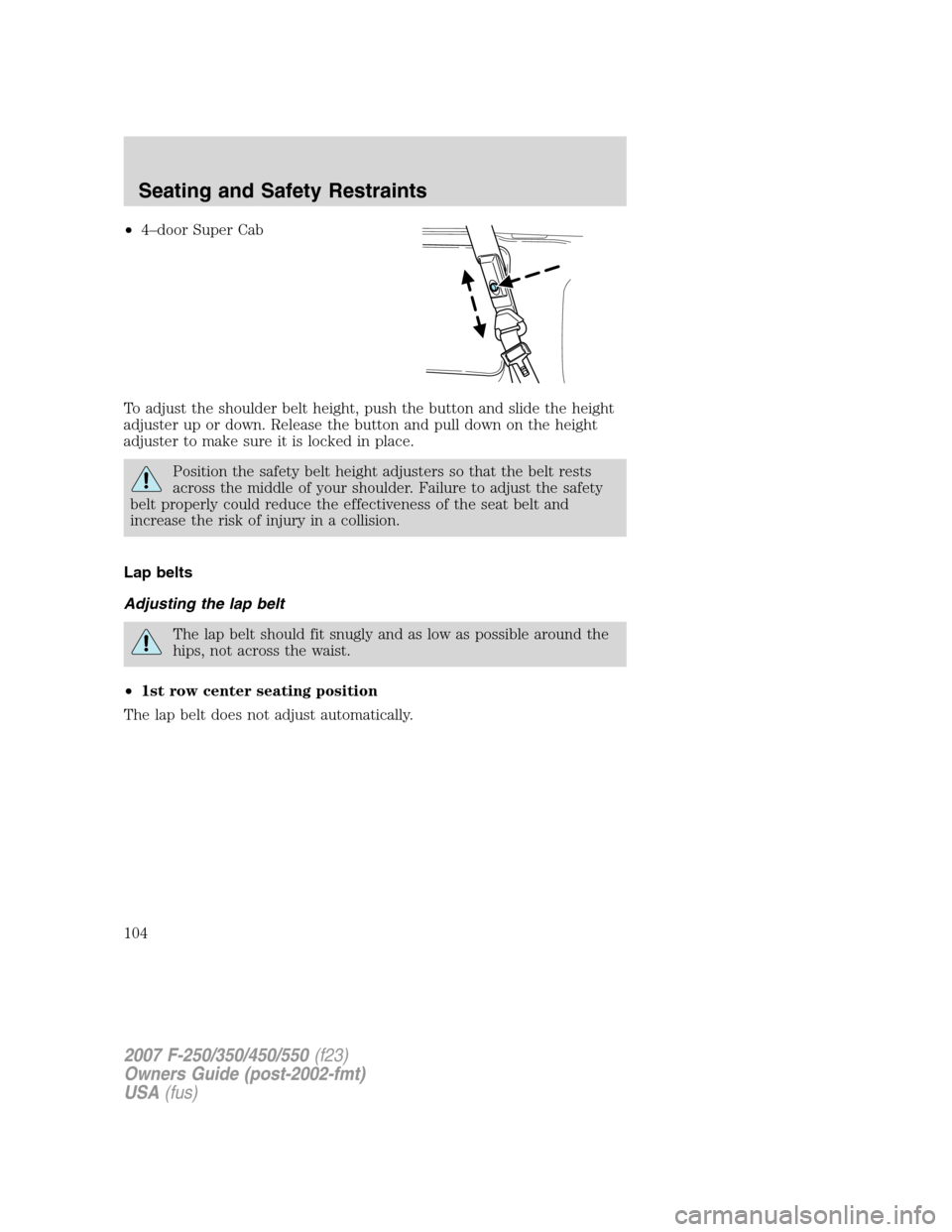

FORD SUPER DUTY 2007 1.G Owners Manual •4–door Super Cab
To adjust the shoulder belt height, push the button and slide the height
adjuster up or down. Release the button and pull down on the height
adjuster to make sure it is locked in
