2007 FORD SUPER DUTY Owners Manual

Page 153 of 312

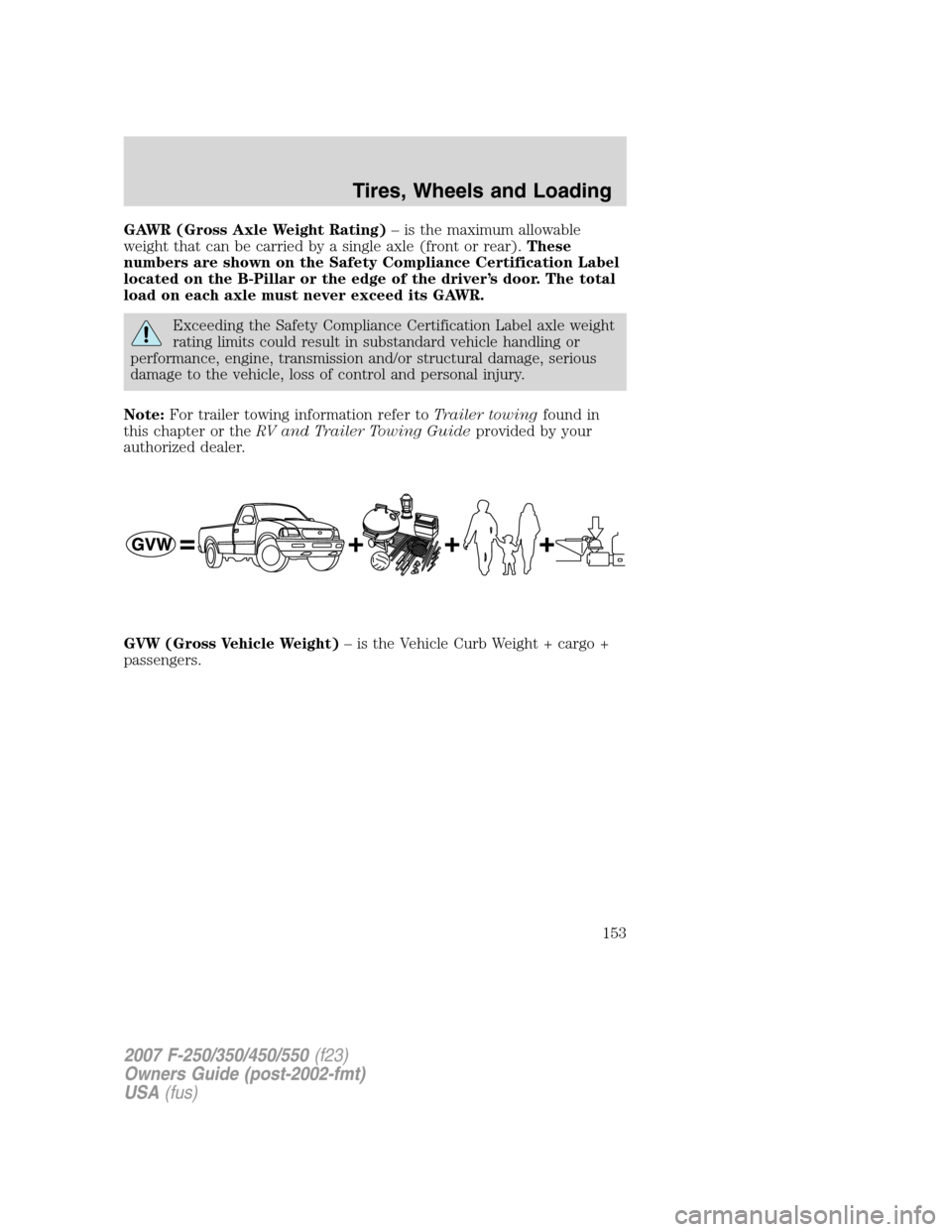

FORD SUPER DUTY 2007 1.G Owners Manual GAWR (Gross Axle Weight Rating)– is the maximum allowable
weight that can be carried by a single axle (front or rear).These
numbers are shown on the Safety Compliance Certification Label
located on

Page 154 of 312

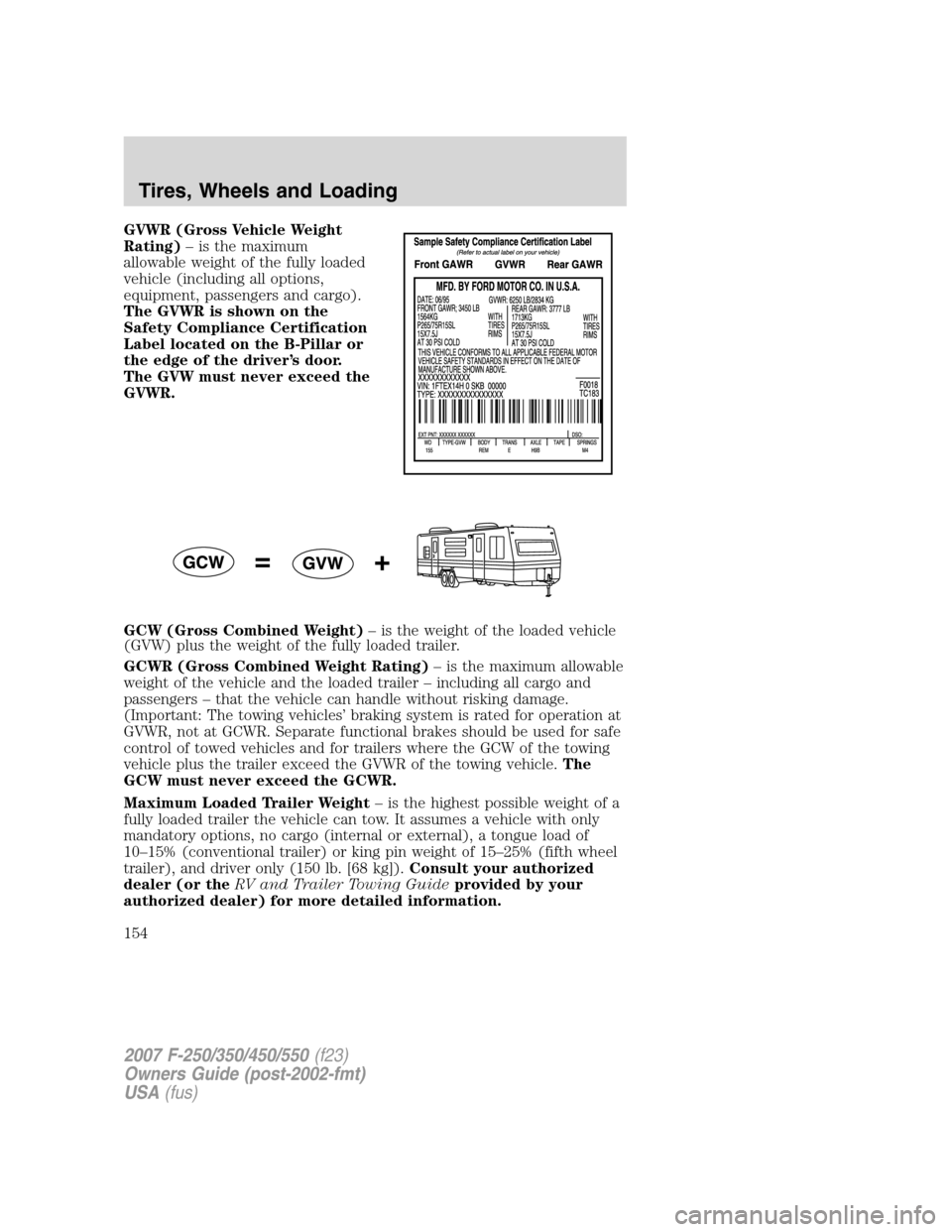

FORD SUPER DUTY 2007 1.G Owners Manual GVWR (Gross Vehicle Weight
Rating)– is the maximum
allowable weight of the fully loaded
vehicle (including all options,
equipment, passengers and cargo).
The GVWR is shown on the
Safety Compliance C

Page 155 of 312

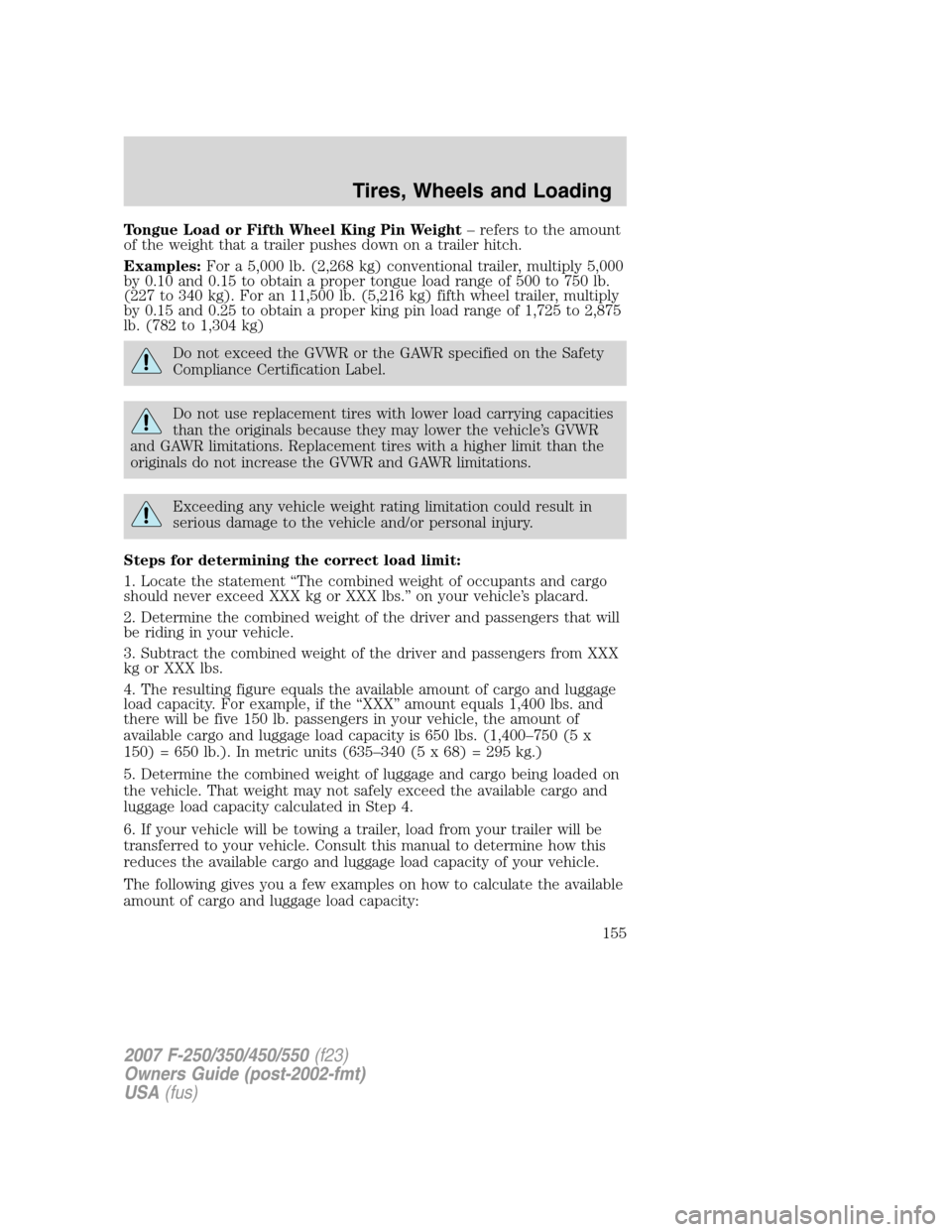

FORD SUPER DUTY 2007 1.G Owners Manual Tongue Load or Fifth Wheel King Pin Weight– refers to the amount
of the weight that a trailer pushes down on a trailer hitch.
Examples:For a 5,000 lb. (2,268 kg) conventional trailer, multiply 5,000

Page 156 of 312

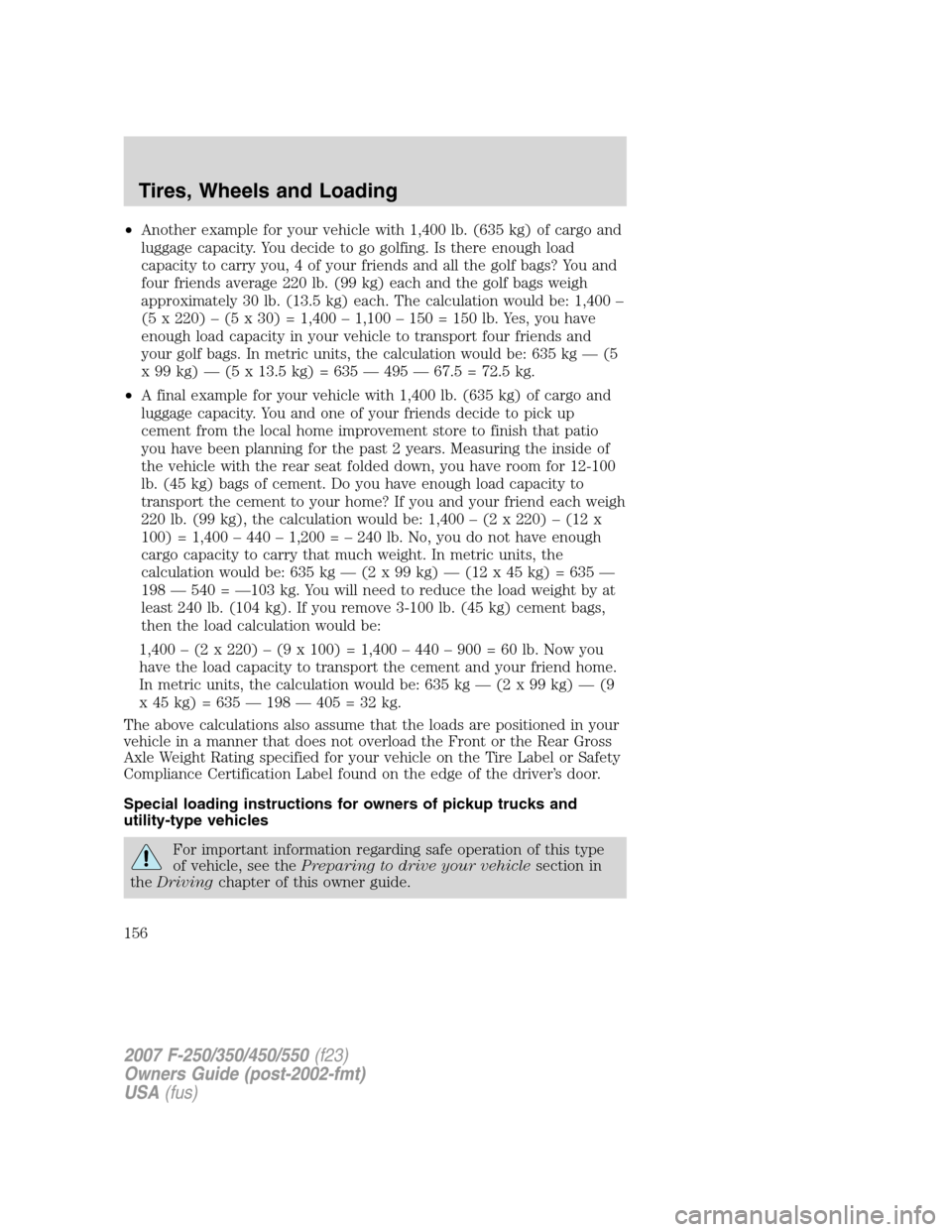

FORD SUPER DUTY 2007 1.G Owners Manual •Another example for your vehicle with 1,400 lb. (635 kg) of cargo and
luggage capacity. You decide to go golfing. Is there enough load
capacity to carry you, 4 of your friends and all the golf bags

Page 157 of 312

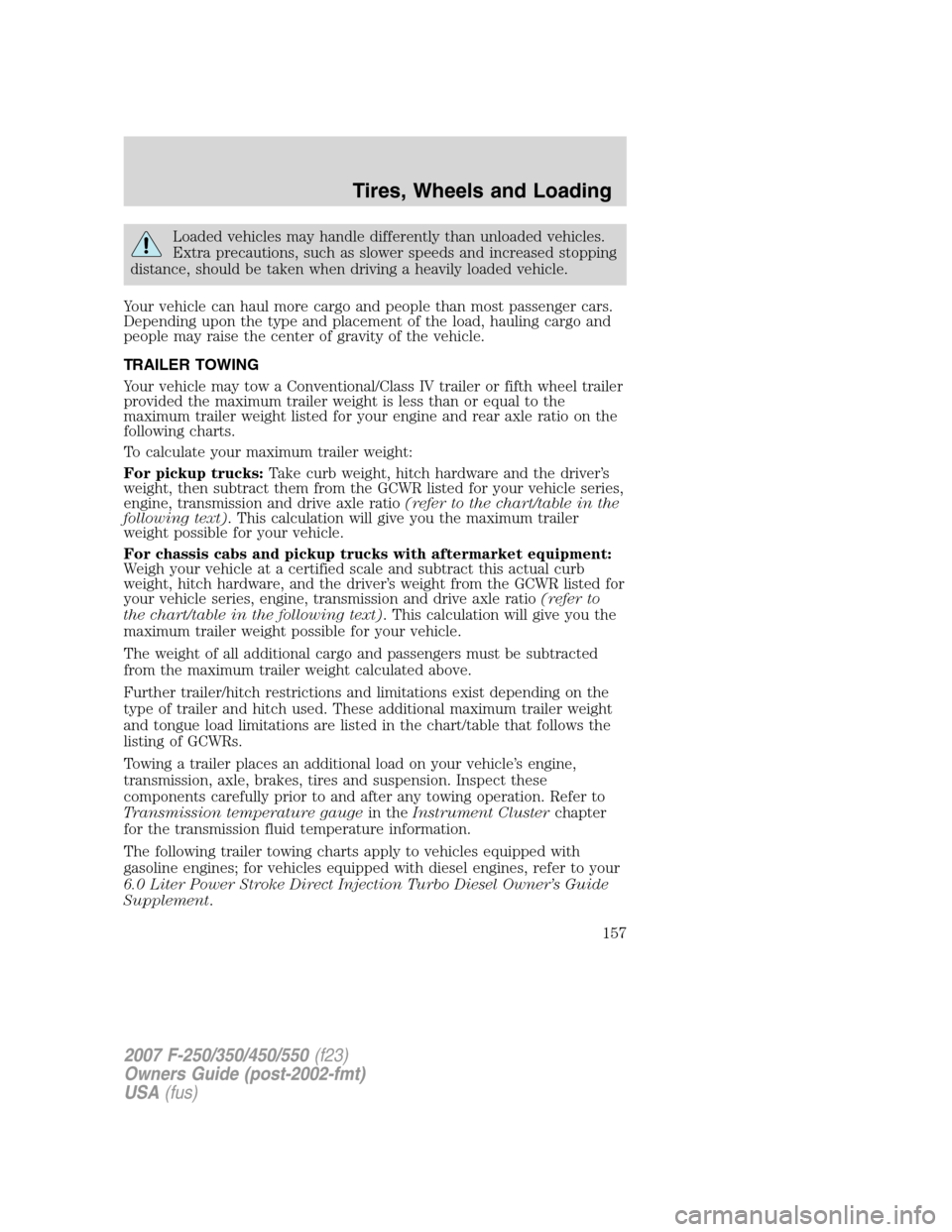

FORD SUPER DUTY 2007 1.G Owners Manual Loaded vehicles may handle differently than unloaded vehicles.
Extra precautions, such as slower speeds and increased stopping
distance, should be taken when driving a heavily loaded vehicle.
Your veh

Page 158 of 312

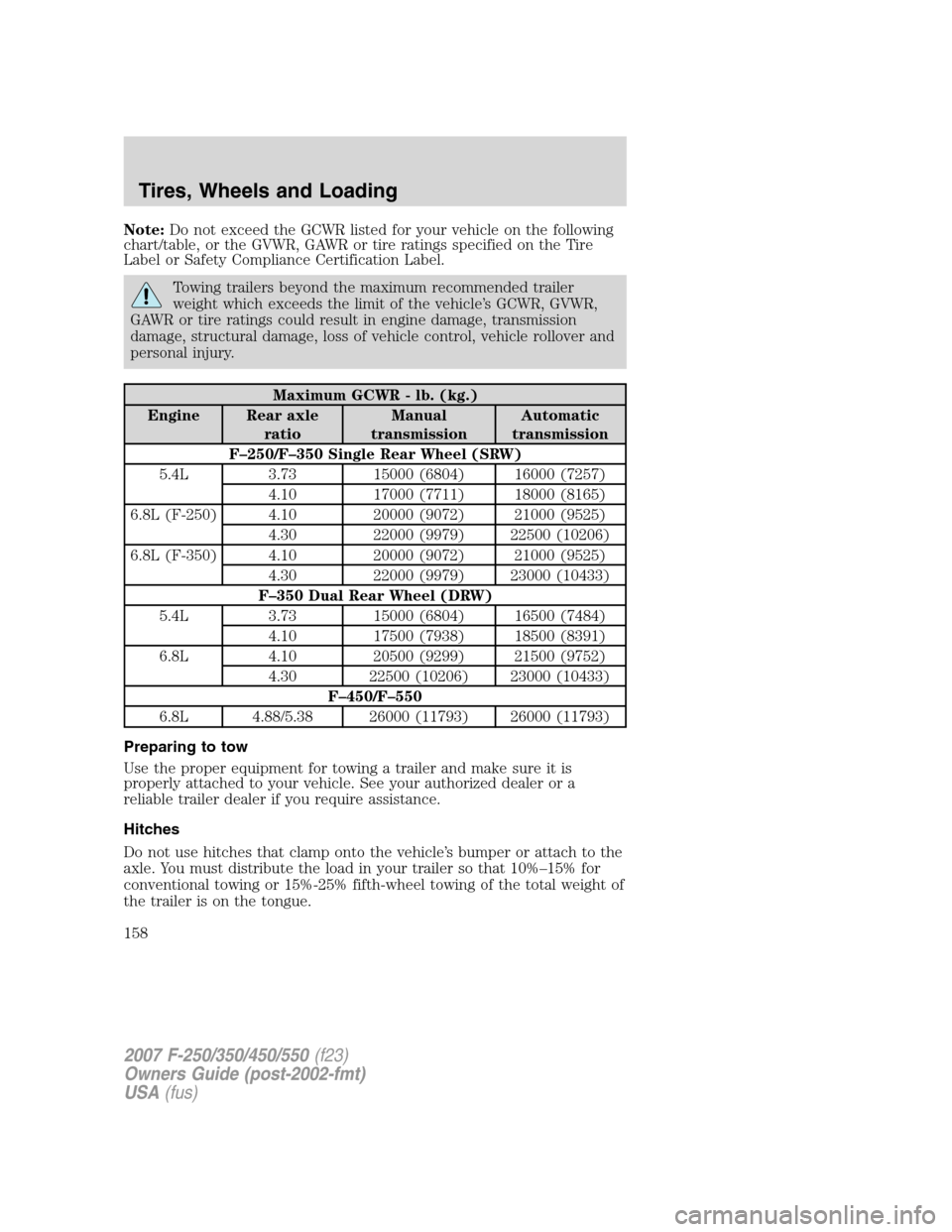

FORD SUPER DUTY 2007 1.G Owners Manual Note:Do not exceed the GCWR listed for your vehicle on the following
chart/table, or the GVWR, GAWR or tire ratings specified on the Tire
Label or Safety Compliance Certification Label.
Towing trailer

Page 159 of 312

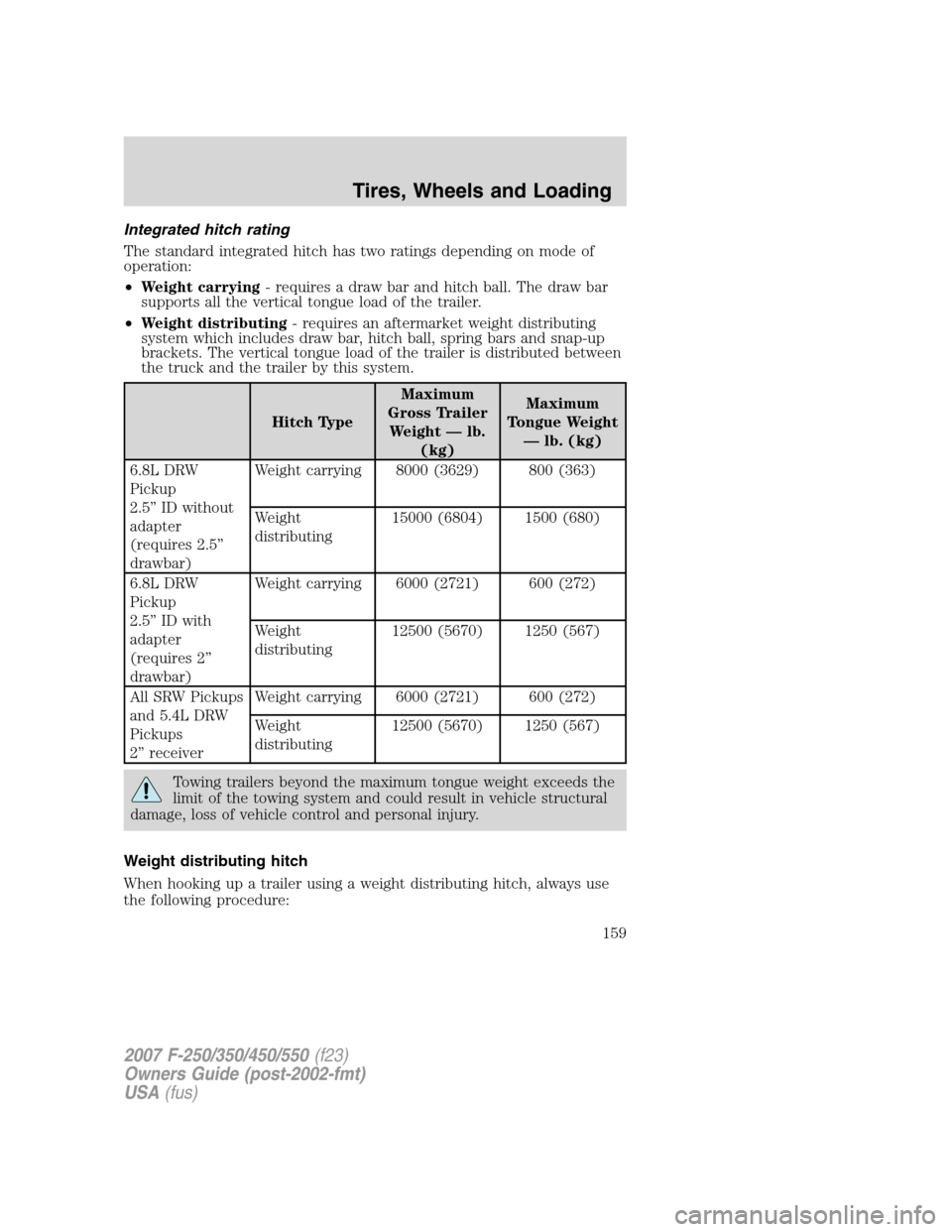

FORD SUPER DUTY 2007 1.G Owners Manual Integrated hitch rating
The standard integrated hitch has two ratings depending on mode of
operation:
•Weight carrying- requires a draw bar and hitch ball. The draw bar
supports all the vertical ton

Page 160 of 312

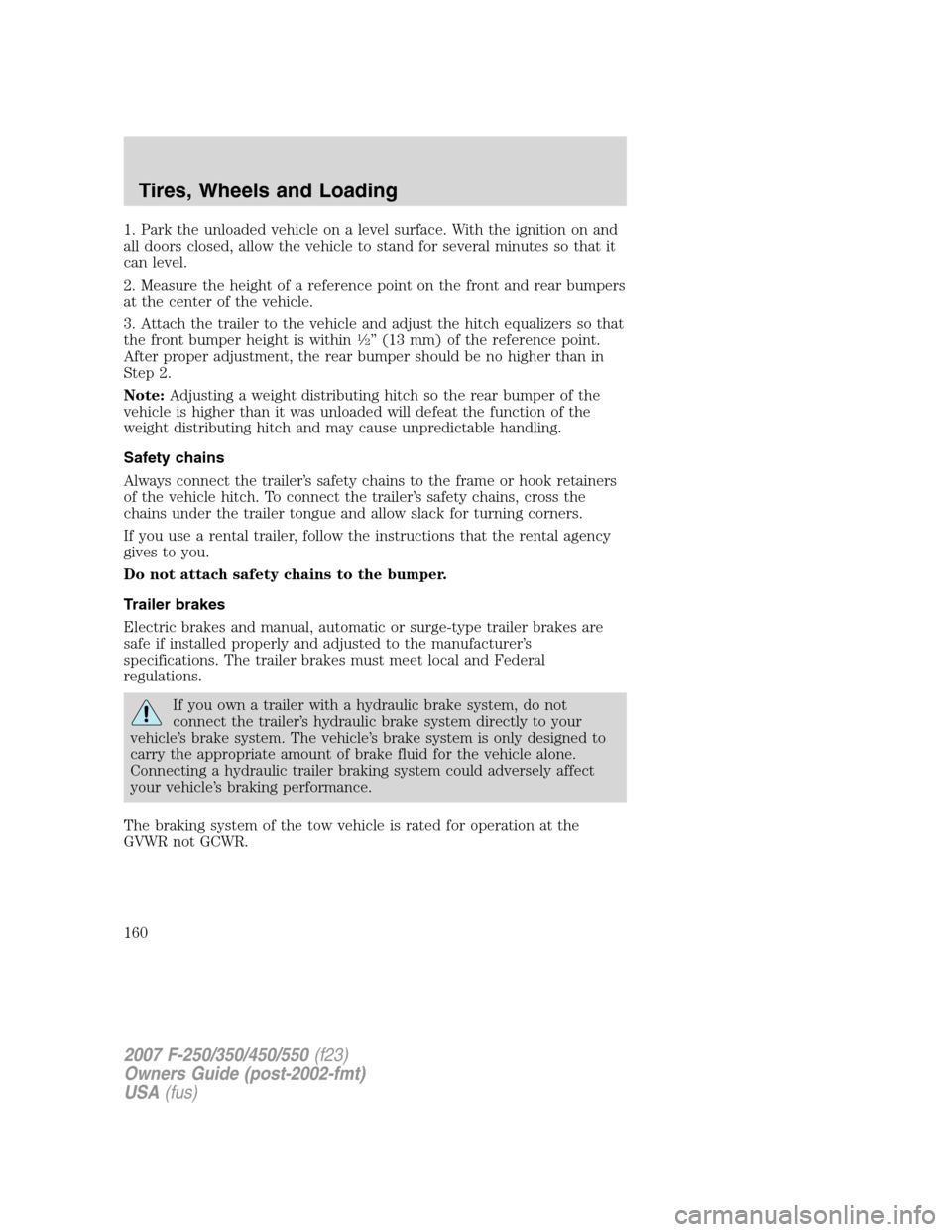

FORD SUPER DUTY 2007 1.G Owners Manual 1. Park the unloaded vehicle on a level surface. With the ignition on and
all doors closed, allow the vehicle to stand for several minutes so that it
can level.
2. Measure the height of a reference po
