2007 FORD SUPER DUTY Owners Manual

Page 225 of 312

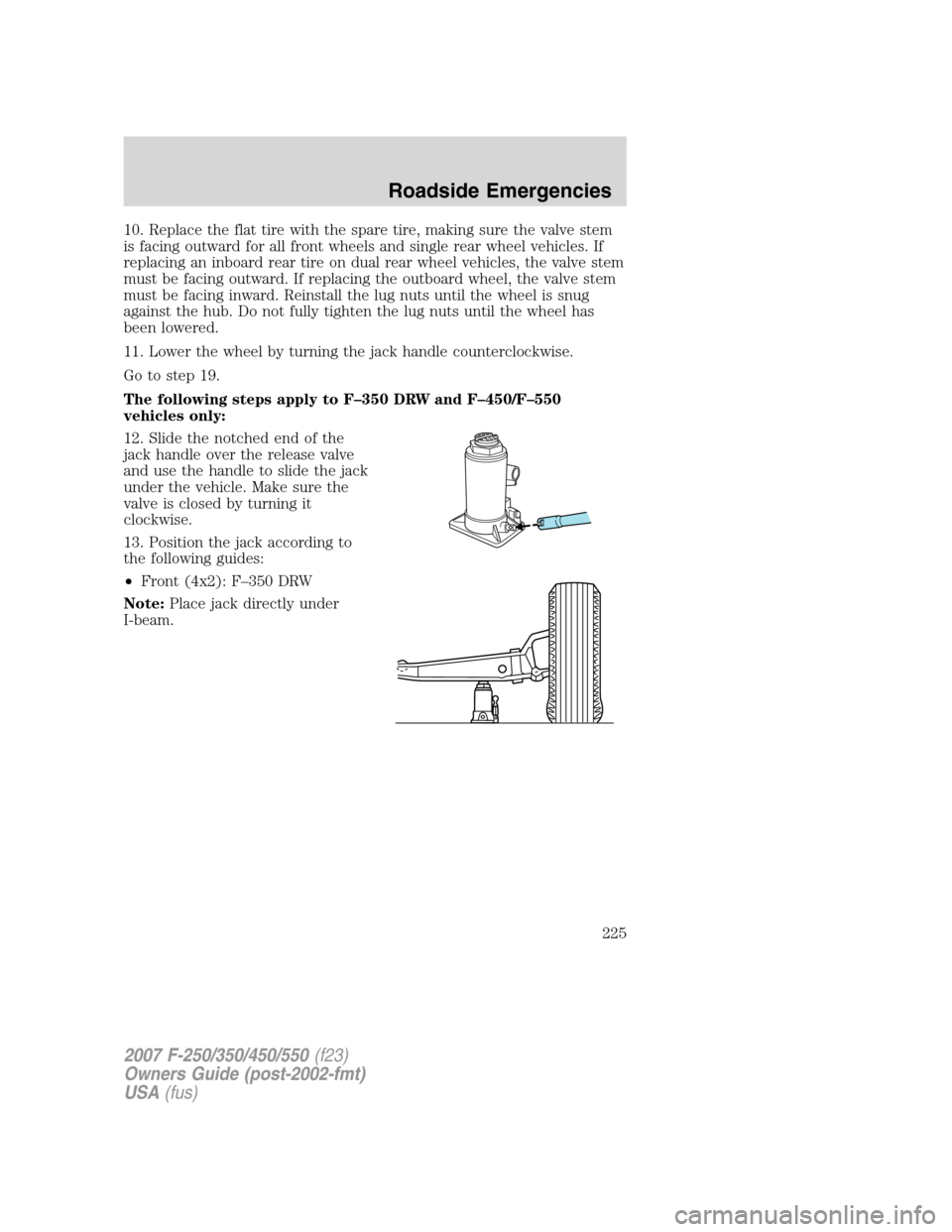

FORD SUPER DUTY 2007 1.G Owners Manual 10. Replace the flat tire with the spare tire, making sure the valve stem
is facing outward for all front wheels and single rear wheel vehicles. If
replacing an inboard rear tire on dual rear wheel ve

Page 226 of 312

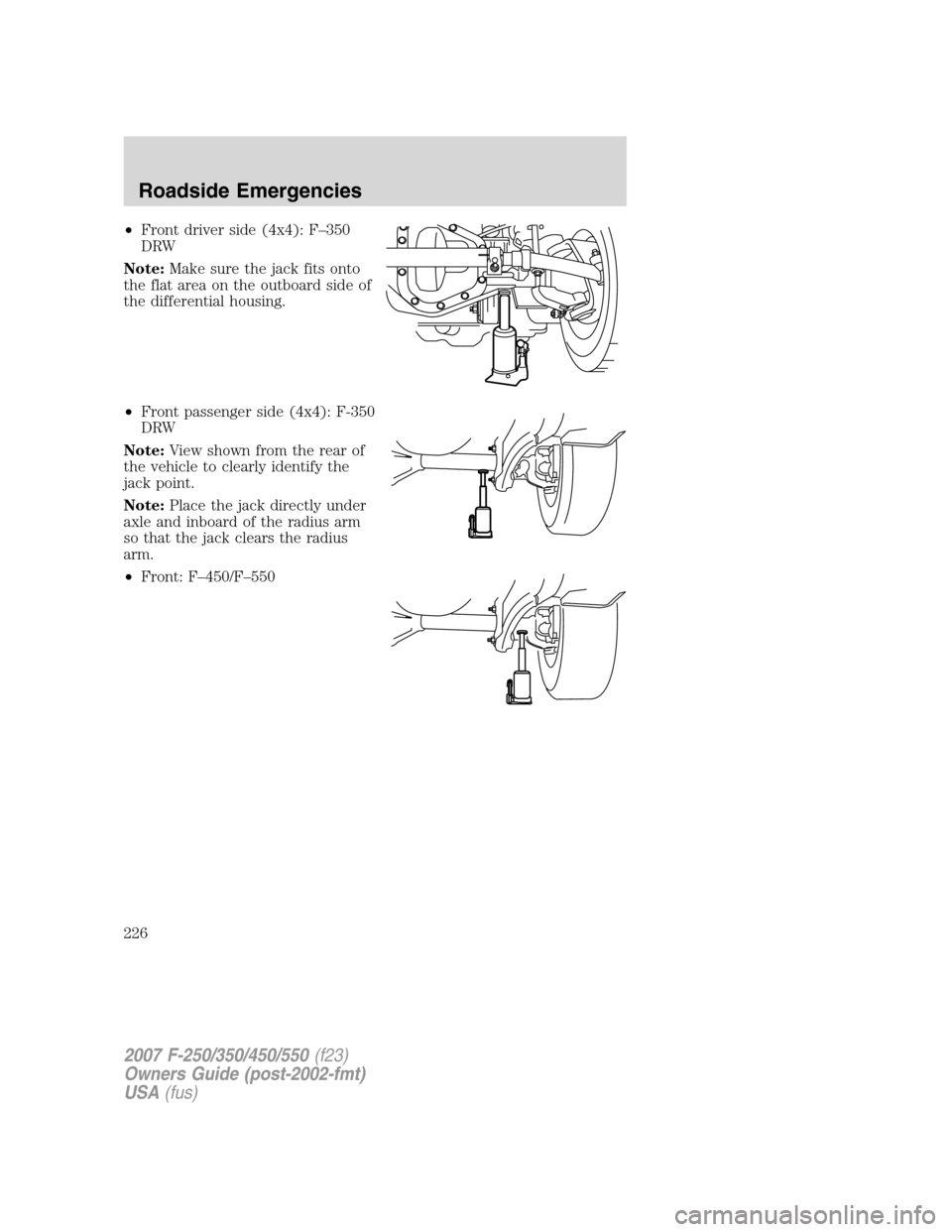

FORD SUPER DUTY 2007 1.G Owners Manual •Front driver side (4x4): F–350
DRW
Note:Make sure the jack fits onto
the flat area on the outboard side of
the differential housing.
•Front passenger side (4x4): F-350
DRW
Note:View shown from

Page 227 of 312

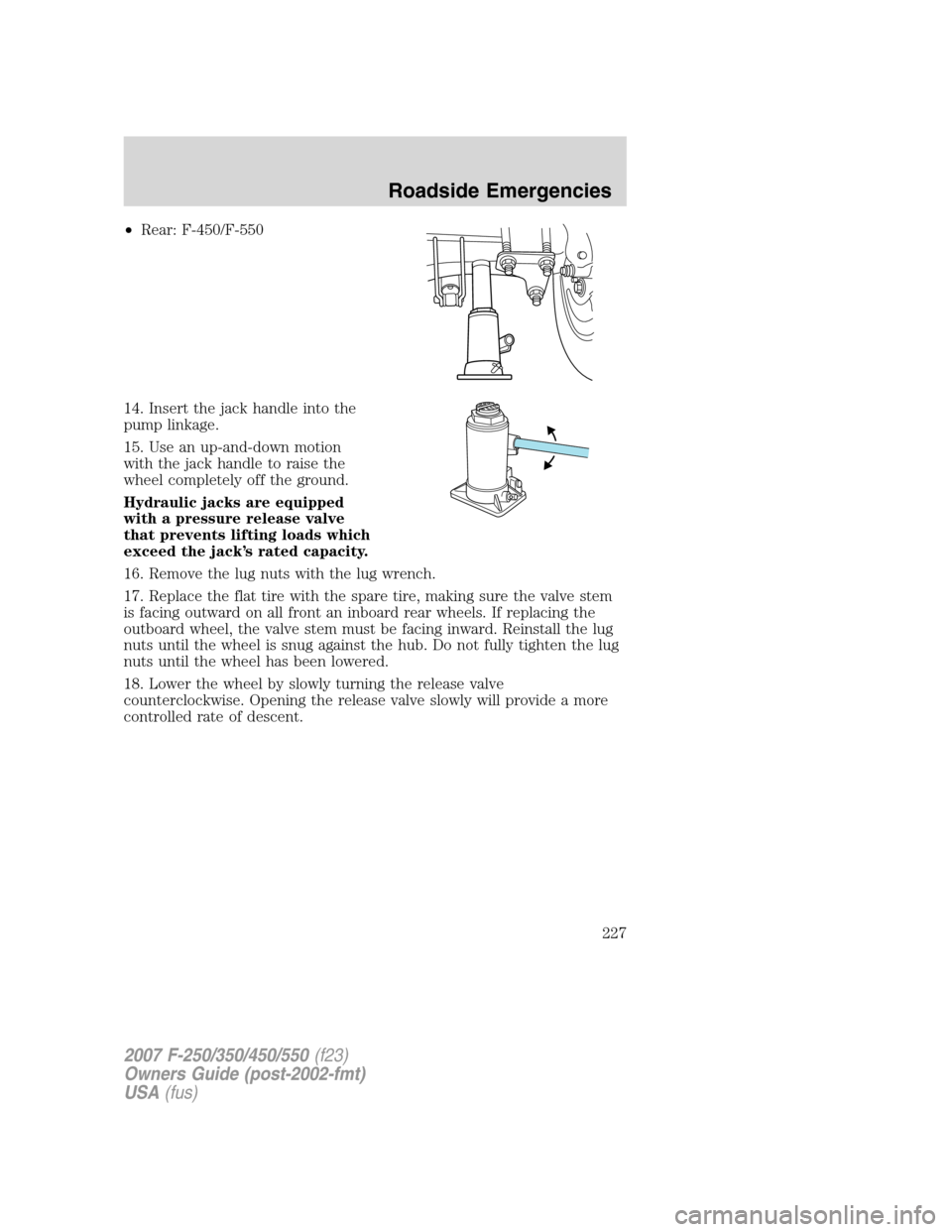

FORD SUPER DUTY 2007 1.G Owners Manual •Rear: F-450/F-550
14. Insert the jack handle into the
pump linkage.
15. Use an up-and-down motion
with the jack handle to raise the
wheel completely off the ground.
Hydraulic jacks are equipped
wit

Page 228 of 312

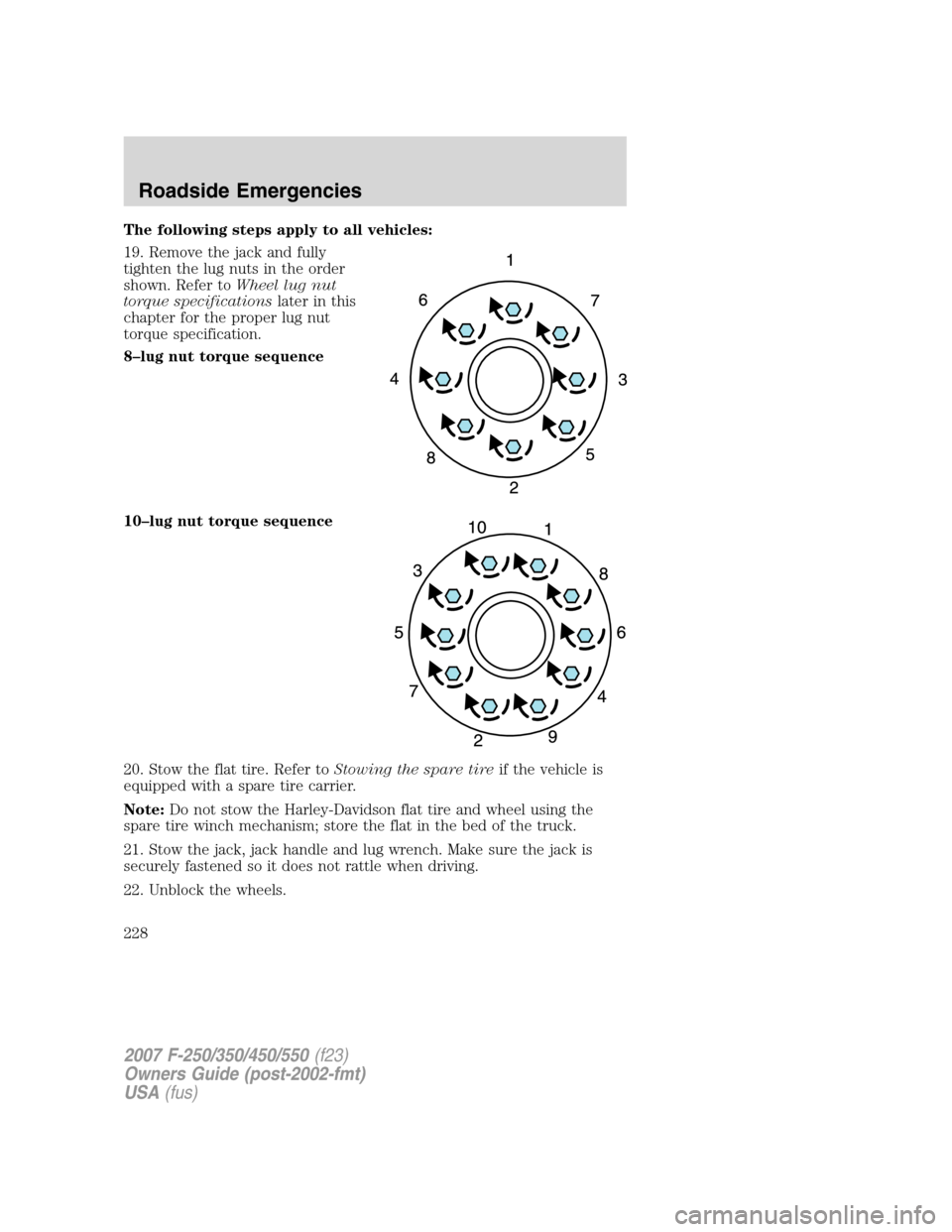

FORD SUPER DUTY 2007 1.G Owners Manual The following steps apply to all vehicles:
19. Remove the jack and fully
tighten the lug nuts in the order
shown. Refer toWheel lug nut
torque specificationslater in this
chapter for the proper lug nu

Page 229 of 312

FORD SUPER DUTY 2007 1.G Owners Manual Stowing the flat/spare tire
Note:Failure to follow spare tire stowage instructions may result in
failure of cable or loss of spare tire.
1. Lay the tire on the ground with the valve stem facing in the

Page 230 of 312

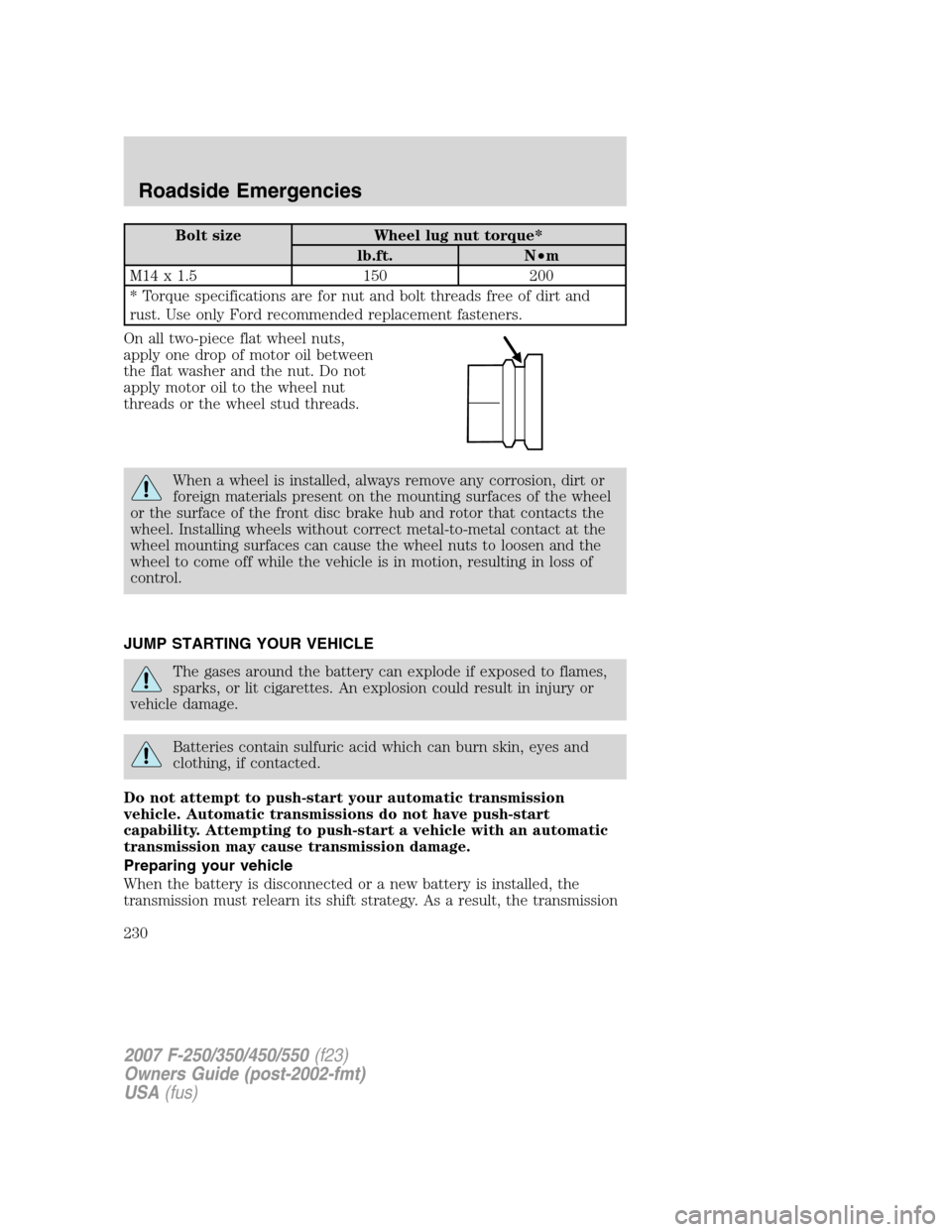

FORD SUPER DUTY 2007 1.G Owners Manual Bolt size Wheel lug nut torque*
lb.ft. N•m
M14 x 1.5 150 200
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
On all two-p

Page 231 of 312

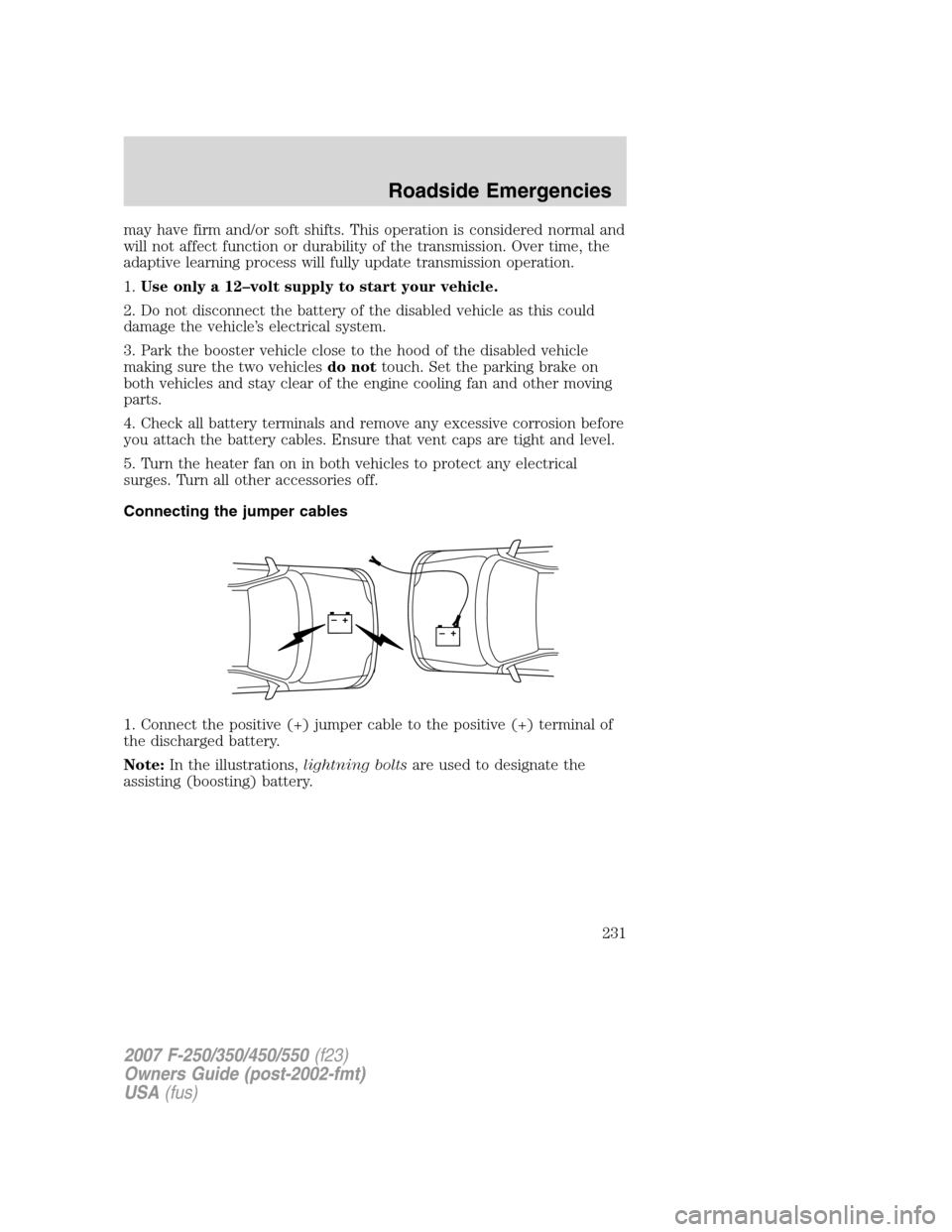

FORD SUPER DUTY 2007 1.G Owners Manual may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmi

Page 232 of 312

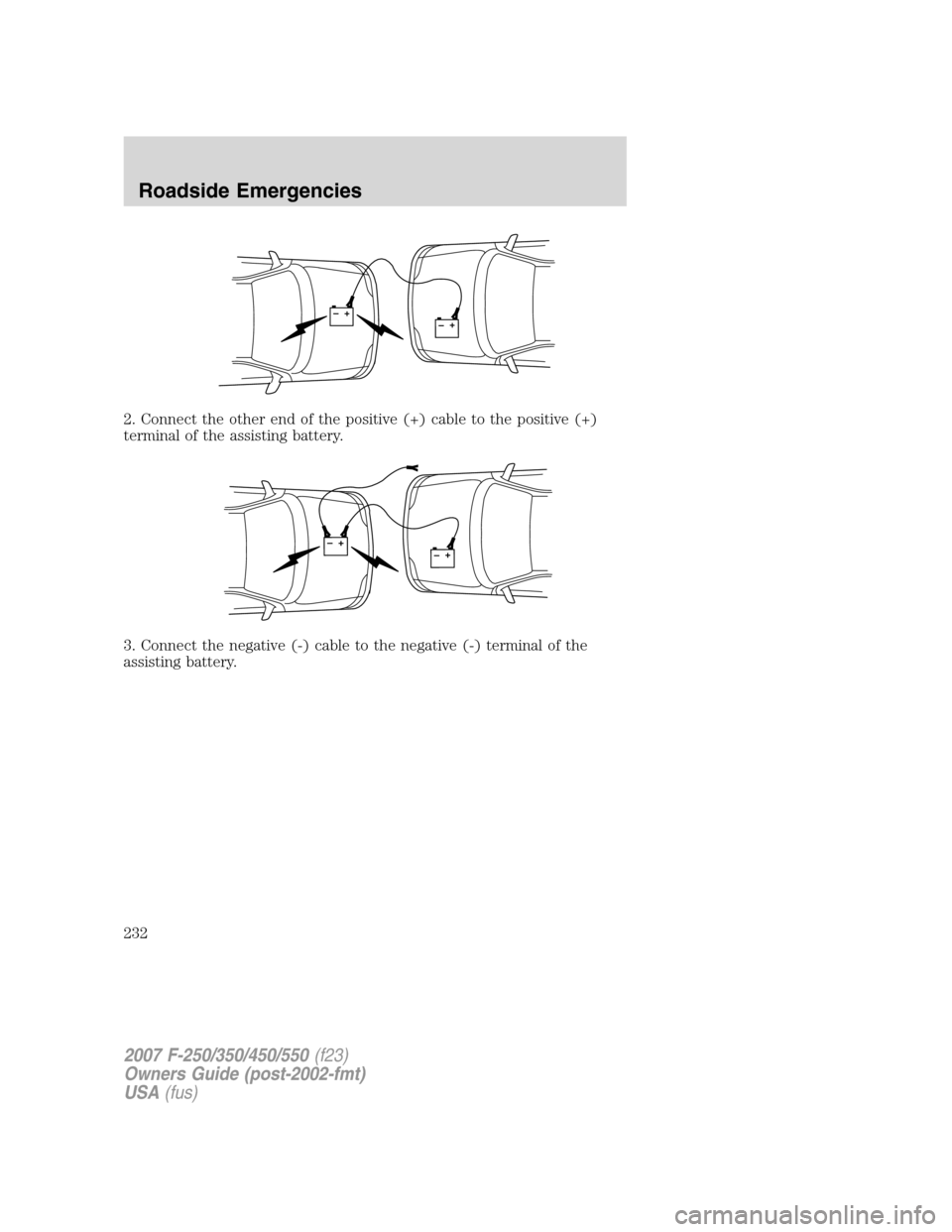

FORD SUPER DUTY 2007 1.G Owners Manual 2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
+–+
