8-15 1. Panel A 2. Panel B
1. Cache A 2. Cache B
1. Panel A 2. Panel B
1. Panel C 2. Panel D
3. Panel E 4. Panel F
1. Cache C 2. Cache D
3. Cache E 4. Cache F
1. Panel C 2. Panel D
3. Panel E 4. Panel F
EBU00614
Panel removal and installation
The panels illustrated need to be removed to per-
form some of the maintenance described in this
chapter.
Refer to this section each time a panel has to be
removed or reinstalled.
U5ND60.book Page 15 Friday, May 10, 2002 12:10 PM

8-16
FBU00614

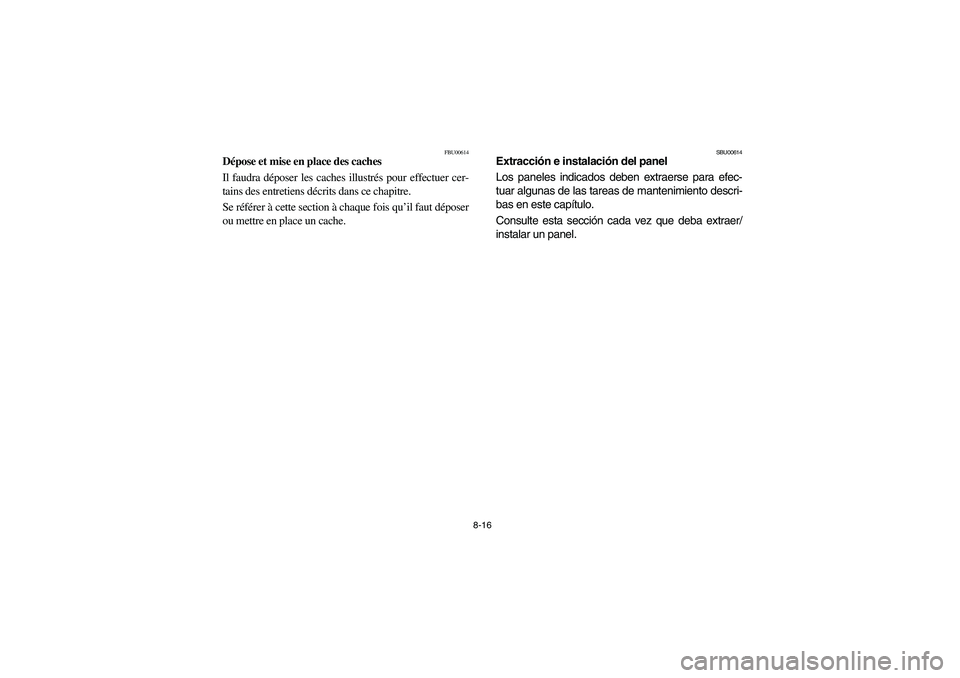

Dépose et mise en place des caches
Il faudra déposer les caches illustrés pour effectuer cer-
tains des entretiens décrits dans ce chapitre.
Se référer à cette section à chaque fois qu’il faut déposer
ou mettre en place un cache.
SBU00614
Extracción e instalación del panel
Los paneles indicados deben extraerse para efec-
tuar algunas de las tareas de mantenimiento descri-
bas en este capítulo.
Consulte esta sección cada vez que deba extraer/
instalar un panel.
U5ND60.book Page 16 Friday, May 10, 2002 12:10 PM

8-17
EBU00700

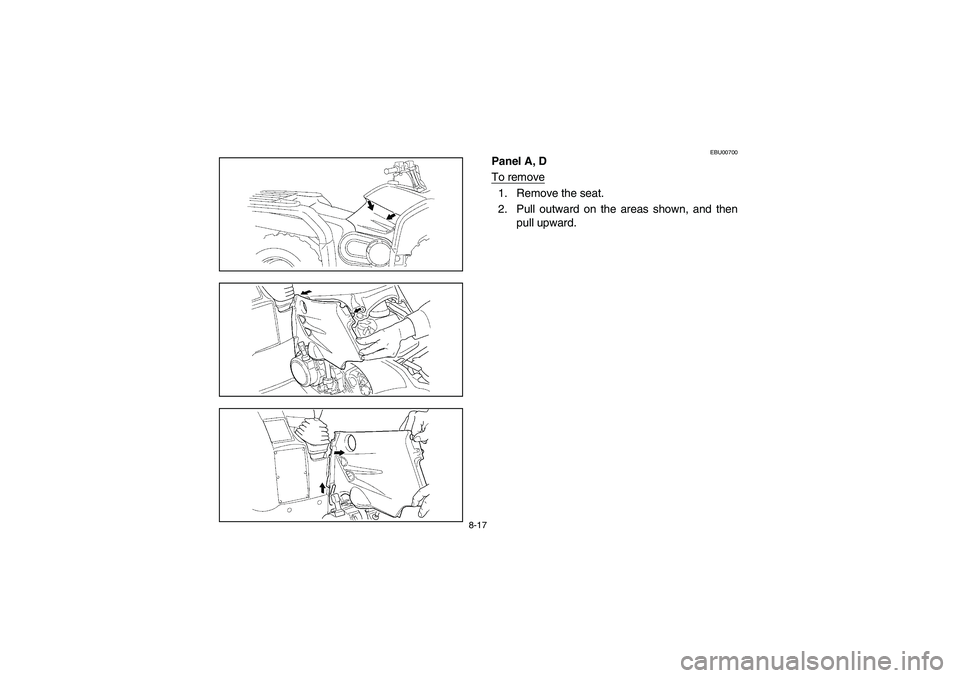

Panel A, D
To remove1. Remove the seat.
2. Pull outward on the areas shown, and then
pull upward.
U5ND60.book Page 17 Friday, May 10, 2002 12:10 PM

8-18
FBU00700
Cache A, D
Dépose1. Déposer la selle.
2. Tirer vers l’arrière aux endroits indiqués, puis tirer
vers le haut.
SBU00700
Panel A, D
Para la extracción1. Extraiga el asiento.
2. Tire hacia fuera por la parte indicada, y enton-
ces tire hacia arriba.
U5ND60.book Page 18 Friday, May 10, 2002 12:10 PM

8-19

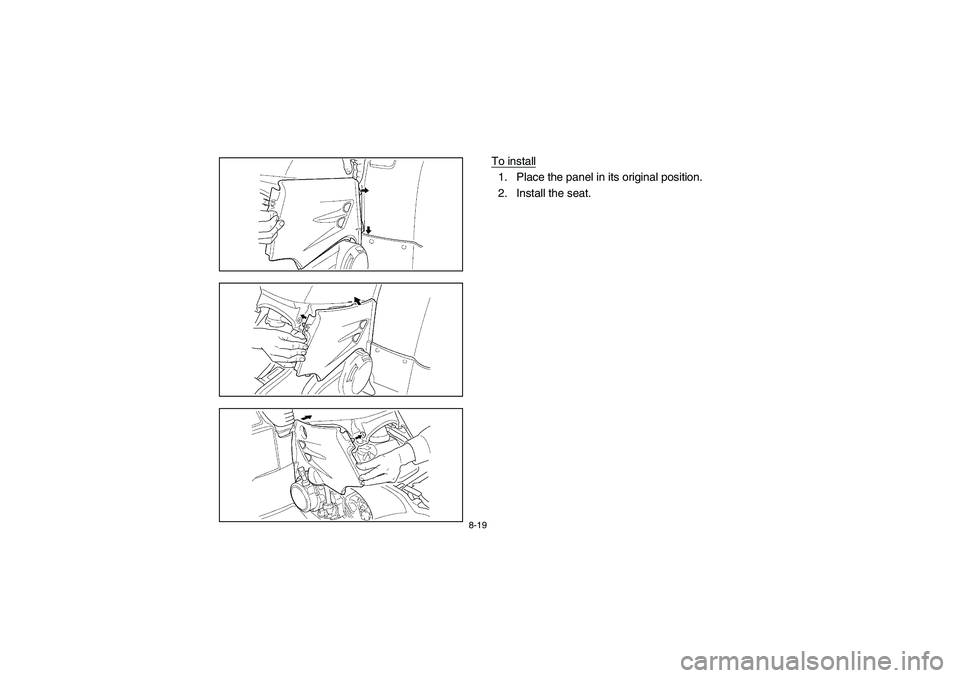

To install1. Place the panel in its original position.
2. Install the seat.
U5ND60.book Page 19 Friday, May 10, 2002 12:10 PM

8-20

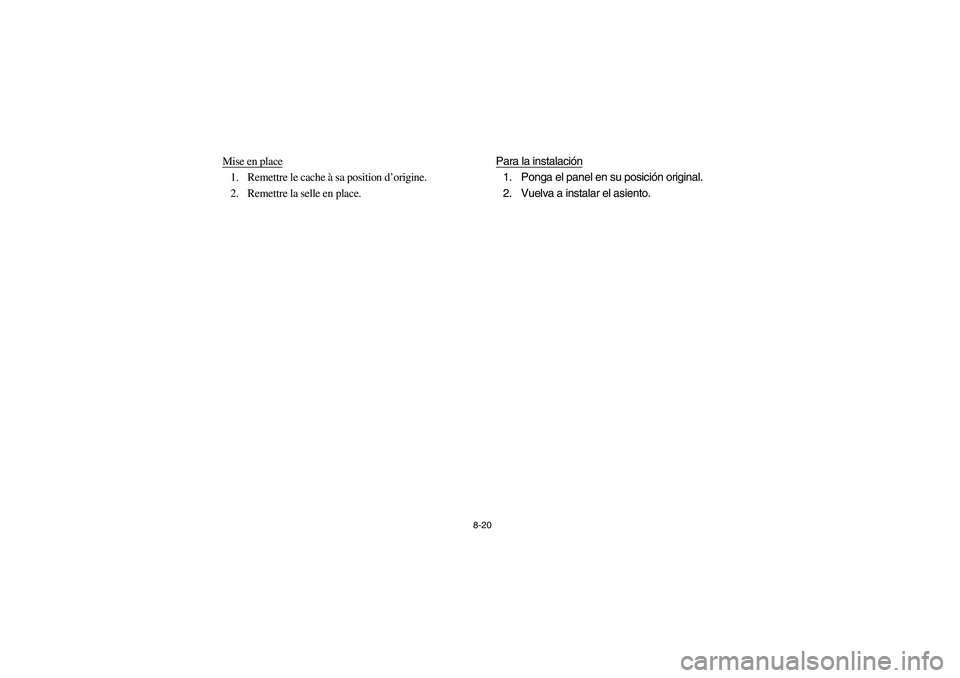

Mise en place1. Remettre le cache à sa position d’origine.
2. Remettre la selle en place. Para la instalación
1. Ponga el panel en su posición original.
2. Vuelva a instalar el asiento.
U5ND60.book Page 20 Friday, May 10, 2002 12:10 PM

8-21

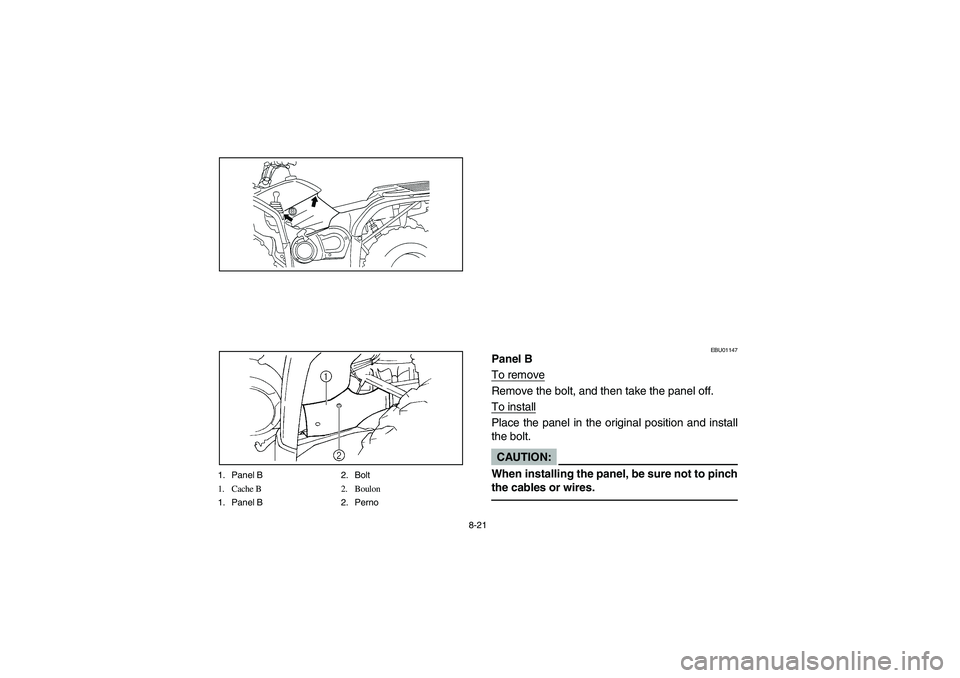

1. Panel B 2. Bolt
1. Cache B 2. Boulon
1. Panel B 2. Perno
EBU01147
Panel B
To removeRemove the bolt, and then take the panel off.
To installPlace the panel in the original position and install
the bolt.CAUTION:_ When installing the panel, be sure not to pinch
the cables or wires. _
