Special features of alloy wheels Bolt coversAlloy wheel bolts are covered by chrome trims. Use tool7to remove the trims before
slackening the bolts. Anti-theft bolts* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed using tool
7, befo-
re unscrewing the bolt using one ofthe two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note : make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-theft sockets from a PEUGEOT
dealer.
* According to model and destination.
PRACTICAL INFORMATION
146
Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is
nor-
mal to notice when tightening the
bolts that the washers do not come
into contact with the rim. The sparewheel is secured by the cone-shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels to your vehicle, it is essential
to use special bolts available from
your PEUGEOT dealer.

02-02-2004
PRACTICAL INFORMATION147

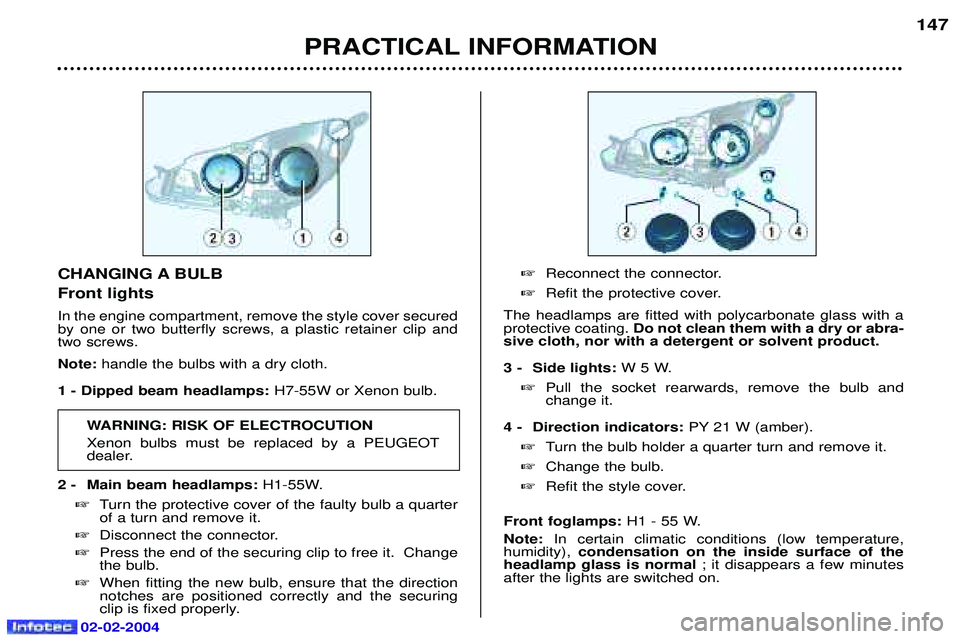

CHANGING A BULB Front lights
In the engine compartment, remove the style cover secured by one or two butterfly screws, a plastic retainer clip andtwo screws. Note:
handle the bulbs with a dry cloth.
1 - Dipped beam headlamps: H7-55W or Xenon bulb.
WARNING: RISK OF ELECTROCUTION Xenon bulbs must be replaced by a PEUGEOT
dealer.
2 - Main beam headlamps: H1-55W.
 Turn the protective cover of the faulty bulb a quarterof a turn and remove it.
 Disconnect the connector.
 Press the end of the securing clip to free it. Changethe bulb.
 When fitting the new bulb, ensure that the directionnotches are positioned correctly and the securing
clip is fixed properly.
Reconnect the connector.
 Refit the protective cover.
The headlamps are fitted with polycarbonate glass with aprotective coating. Do not clean them with a dry or abra-
sive cloth, nor with a detergent or solvent product.
3 - Side lights: W 5 W.
 Pull the socket rearwards, remove the bulb and change it.
4 - Direction indicators: PY 21 W (amber).
 Turn the bulb holder a quarter turn and remove it.
 Change the bulb.
 Refit the style cover.
Front foglamps: H1 - 55 W.
Note: In certain climatic conditions (low temperature,
humidity), condensation on the inside surface of the
headlamp glass is normal ; it disappears a few minutes
after the lights are switched on.

02-02-2004
Rear lights Rear wing lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P21/5 W.
 Detach the luggage net.
 Lift the boot carpet with the lifting hook. Secure this hook behindthe boot seal.
 Unclip the lower part of the silltrim, then dislodge it by pullingupwards.
 Remove the plastic retainer clipsecuring the side trim to the
floor.
Unclip the side trim.
 Remove the two butterfly nutssecuring the light.
 Remove the eyelet.
 Take out the lamp.
 Turn the lamp holder a quarterturn.
 Change the faulty bulb.
 Lock the bulb holder in place.When refitting it, ensure that thelamp is correctly positioned andsecured.
PRACTICAL INFORMATION

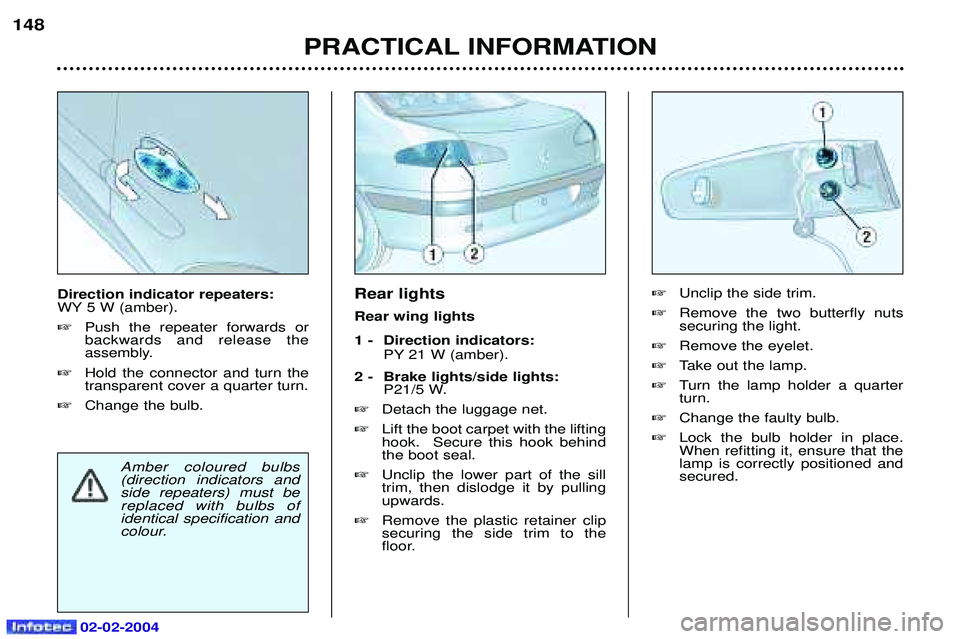

148Direction indicator repeaters:
WY 5 W (amber).
 Push the repeater forwards orbackwards and release the
assembly.
 Hold the connector and turn thetransparent cover a quarter turn.
 Change the bulb.
Amber coloured bulbs
(direction indicators and side repeaters) must bereplaced with bulbs of
identical specification and
colour.

02-02-2004
Rear lights Rear wing lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P21/5 W.
 Detach the luggage net.
 Lift the boot carpet with the lifting hook. Secure this hook behindthe boot seal.
 Unclip the lower part of the silltrim, then dislodge it by pullingupwards.
 Remove the plastic retainer clipsecuring the side trim to the
floor.
Unclip the side trim.
 Remove the two butterfly nutssecuring the light.
 Remove the eyelet.
 Take out the lamp.
 Turn the lamp holder a quarterturn.
 Change the faulty bulb.
 Lock the bulb holder in place.When refitting it, ensure that thelamp is correctly positioned andsecured.
PRACTICAL INFORMATION
148Direction indicator repeaters:
WY 5 W (amber).
 Push the repeater forwards orbackwards and release the
assembly.
 Hold the connector and turn thetransparent cover a quarter turn.
 Change the bulb.
Amber coloured bulbs
(direction indicators and side repeaters) must bereplaced with bulbs of
identical specification and
colour.

02-02-2004
149
PRACTICAL INFORMATION
Boot lid lights 1 - Reversing lights: P 21 W.
2 - Fog lamps: P 21 W.
 Remove the three plastic retain- er clips securing the cover trim(those nearest to the lamp).
 Move aside the trim.
Turn the bulb holder a quarterturn.
 Change the faulty bulb. Number plate lights:
W 5 W.
 Remove the transparent coverusing a screwdriver blade.
 Change the faulty bulb.

PRACTICAL INFORMATION
150
Correct Incorrect
Pliers A
CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
The replacement fuses and pliers A are fixed to the inside of the
fascia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault and
have it put right. The fuse numbersare indicated on the fuse box.  Use pliers A.
Always change a faulty fuse forone of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R- Replacement fuses.
1 30 A
Locking / deadlocking.
2 20 A Radio amplifier.
3 30 A Windscreen wash.
4 30 A Rear window switches on rear doors.
5 15 A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit, audiosystem / telephone.
6 10 A Rear right brake light.
02-02-2004

02-02-2004
Fuse N¡ Rating Functions1* 70 A Built-in systems interface ( heated rear screen - heated exterior mirrors - windscreen wiper -screenwash - headlamp wash).
2* 50 A Fan.
3* 50 / 60 A ESP pump motor / ABS hydraulic unit.
4* 40 A Air conditioning blower.
5 20 A Horn - Horn control relay.
6 20 A Left front and rear heated seats.
7 20 A Right front and rear heated seats.
8* 70 A Built-in systems interface.
9* 30 A Passenger electric seat.
The electrical system of your vehicle is designedto operate with standardor optional equipment. Before installing other
electrical equipment or accesso- ries on your vehicle, contact a
PEUGEOT dealer. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres.
* Maxi fuses provide additional protection for electrical systems. All work must be carried out by
your PEUGEOT dealer.
PRACTICAL INFORMATION
152

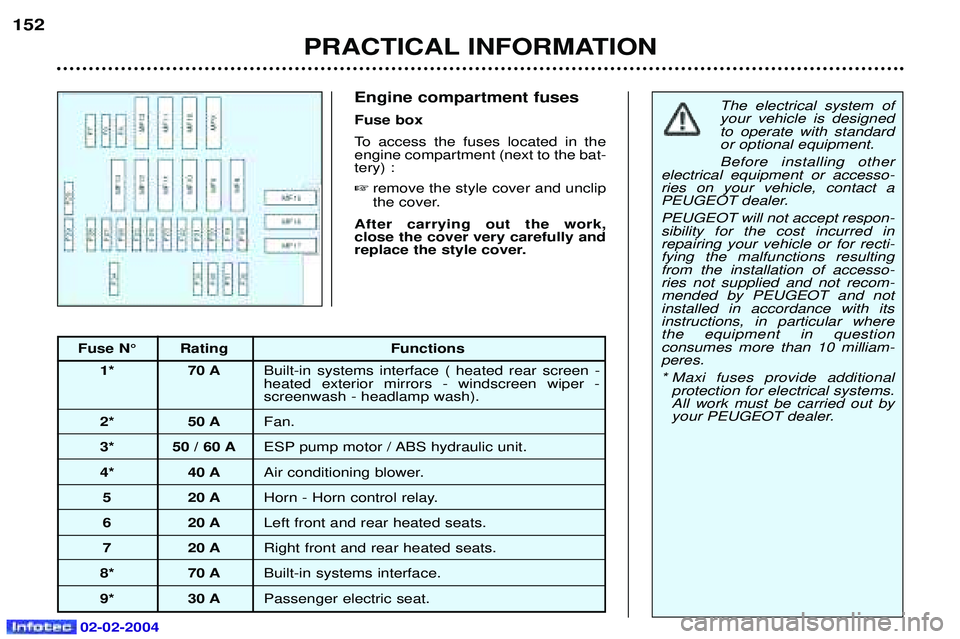

Engine compartment fuses Fuse box
To access the fuses located in the engine compartment (next to the bat-tery) :
 remove the style cover and unclip
the cover.
After carrying out the work, close the cover very carefully and
replace the style cover.

02-02-2004
Fuse N¡ RatingFunctions
10* 20 AAutomatic headlamp lighting control unit.
11* 70 A Built-in systems interface.
12* 70 A Ignition supply (+ve accessories / ignition controlled +ve).
13* 20 A Automatic headlamp lighting control unit.
14 15 A Double injection relay supply.
15* - Not used.
16* - -
17* 30 A ESP hydraulic unit.
18 30 A Ignition supply (+ starter).
19 20 A Variable suspension control unit.
20 10 A Fan unit relay - Cruise control safety switch - Manual gearbox clutch switch - Manual gearbox reversing lights switch or automatic gearbox multi-function switch -
Automatic headlamp lighting control unit - Vehicle speed sensor -
Coolant level sensor - Water in diesel sensor - Power switch control unit relay.
21 5 A Automatic gearbox control unit - Automatic gearbox multi-function switch.
22 25 A ESP control unit.
23 15 A Diesel heating.
24 5 A Engine management control unit - Dual control control unit.
25 10 A Fuel pump.
26 30 A Driver's seat memory control unit.
27 25 A Double injection relay supply.
28 10 A Throttle housing de-icing resistor, Intake pilot solenoid valve - Flow meter - Piston de-activator injection pump -Oil heating.
29 30 A Air pump, diesel additive control unit - Diesel additive injector.
30 - Cannot be used.
31 5 A Automatic gearbox shift lock.
32 10 A ESP or ABS control unit.
33 15 A Automatic gearbox control unit - Automatic gearbox multi-function switch (except reversing lights) - Automatic gearbox sequential control.
34 5 A Oxygen sensors - Exhaust gas recirculation solenoid valve, Exhaust gas recirculation butterfly solenoid valve -
Turbo pressure regulation solenoid valve.
