2004 PEUGEOT 607 Owners Manual

02-02-2004
YOUR 607 IN DETAIL
132
If there is an operating fault, the audible signal willbe a short bleep followedby a long bleep when
changing to reverse gear.
REAR PARKING ASSISTANCE This system consists of four proximi- ty sensors, located in the rear bum-
per, and a special speaker fittedunder the rear parcel shelf. It detects any obstacle (person, vehicle, tree, gate, etc.) behind the
vehicle. However, it cannot detectobstacles located directly under the
bumper. An object, such as a stake, cone or any other similar object may bedetected at the beginning of themanoeuvre but may no longer bedetected when the vehicle comesclose to it. Note:
this function will be disarmed
when the vehicle is towing a trailer (vehicle fitted with towing attachmentrecommended by PEUGEOT). In
bad weather or in winter, ensure thatthe sensors are not covered with
mud, frost or snow. Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. An audible signal indicates the prox-
imity of the obstacle. This signalbecomes more rapid as the vehicleapproaches the obstacle. When the distance between the rear of the vehicle and the obstacle isless than approximately twenty-fivecentimetres, the audible signalbecomes continuous.Deactivation
 Change to neutral, the system
becomes inactive.
Detection zone

02-02-2004

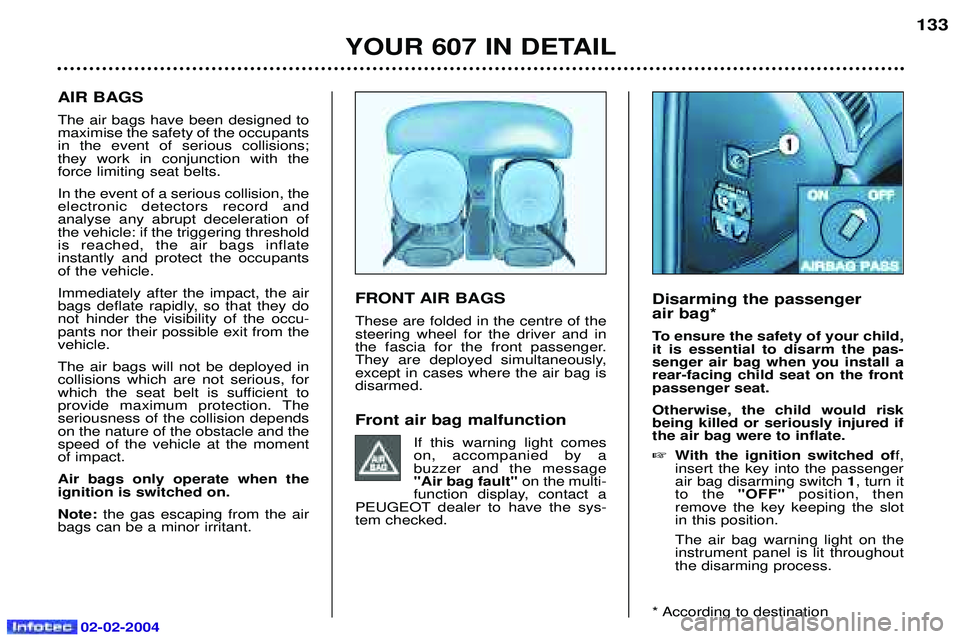

FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed. Front air bag malfunctionIf this warning light comes on, accompanied by abuzzer and the message"Air bag fault" on the multi-
function display, contact a
PEUGEOT dealer to have the sys-tem checked.
YOUR 607 IN DETAIL 133
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions;they work in conjunction with theforce limiting seat belts. In the event of a serious collision, the electronic detectors record andanalyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflateinstantly and protect the occupantsof the vehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags only operate when the ignition is switched on. Note: the gas escaping from the air
bags can be a minor irritant.
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. Otherwise, the child would risk being killed or seriously injured ifthe air bag were to inflate.  With the ignition switched of f,
insert the key into the passenger air bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position. The air bag warning light on the instrument panel is lit throughoutthe disarming process.
* According to destination

02-02-2004

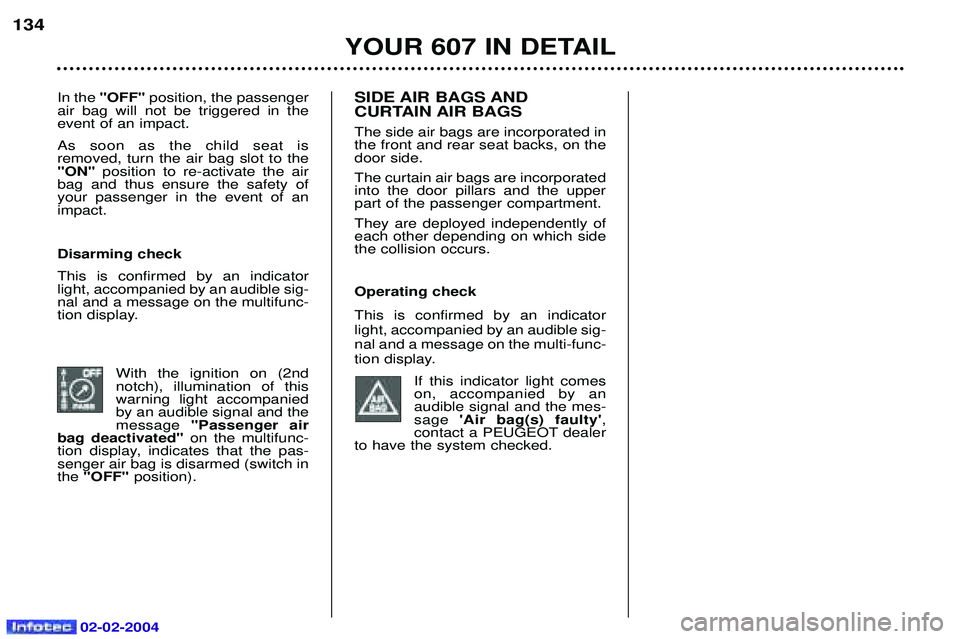

In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag deactivated" on the multifunc-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS The side air bags are incorporated in the front and rear seat backs, on thedoor side. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comes on, accompanied by anaudible signal and the mes-sage 'Air bag(s) faulty' ,
contact a PEUGEOT dealer
to have the system checked.
YOUR 607 IN DETAIL
134

YOUR 607 IN DETAIL135

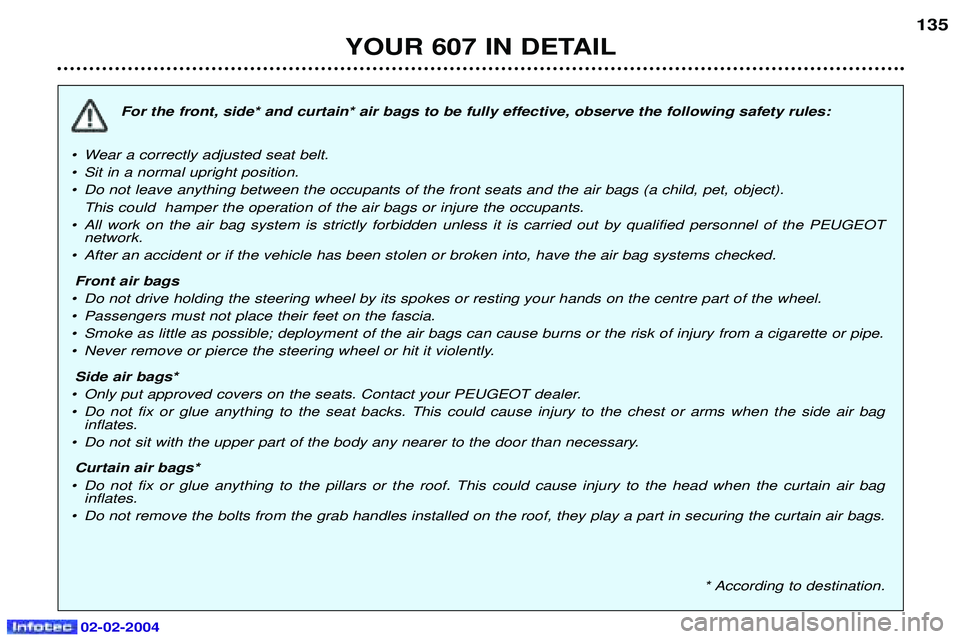

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air bag inflates.
¥ Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
02-02-2004

02-02-2004
In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag deactivated" on the multifunc-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS The side air bags are incorporated in the front and rear seat backs, on thedoor side. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comes on, accompanied by anaudible signal and the mes-sage 'Air bag(s) faulty' ,
contact a PEUGEOT dealer
to have the system checked.
YOUR 607 IN DETAIL
134

YOUR 607 IN DETAIL135
For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air bag inflates.
¥ Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
02-02-2004

02-02-2004
PRACTICAL INFORMATION
136
2 litre 16 V petrol engine 1 -
Windscreen / headlamp wash
reservoir.
2 - Power steering reservoir. 3 -
Coolant reservoir.
4 - Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

02-02-2004
PRACTICAL INFORMATION137
2.2 litre 16 V petrol engine 1 -
Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.
