2004 PEUGEOT 607 Owners Manual

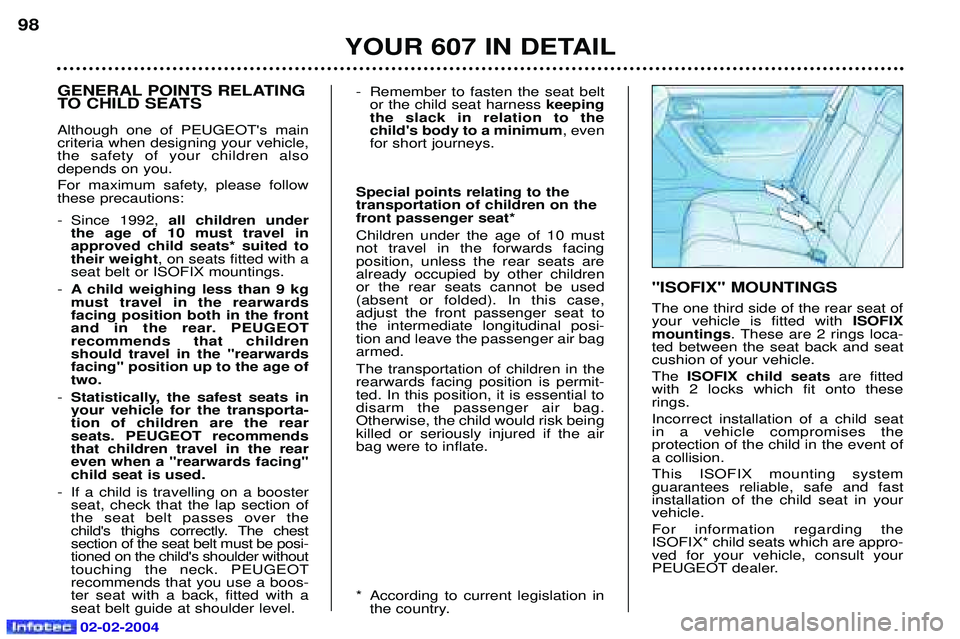

"ISOFIX" MOUNTINGS The one third side of the rear seat of your vehicle is fitted with ISOFIX
mountings . These are 2 rings loca-
ted between the seat back and seatcushion of your vehicle. The ISOFIX child seats are fitted
with 2 locks which fit onto these rings. Incorrect installation of a child seat in a vehicle compromises the protection of the child in the event ofa collision. This ISOFIX mounting system guarantees reliable, safe and fastinstallation of the child seat in yourvehicle. For information regarding the ISOFIX* child seats which are appro-ved for your vehicle, consult your
PEUGEOT dealer.
YOUR 607 IN DETAIL
98
- Remember to fasten the seat beltor the child seat harness keeping
the slack in relation to the child's body to a minimum , even
for short journeys.
Special points relating to thetransportation of children on thefront passenger seat* Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe intermediate longitudinal posi-tion and leave the passenger air bagarmed. The transportation of children in the rearwards facing position is permit-ted. In this position, it is essential todisarm the passenger air bag.Otherwise, the child would risk beingkilled or seriously injured if the airbag were to inflate.
* According to current legislation in the country.
GENERAL POINTS RELATING
TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle,the safety of your children alsodepends on you.
For maximum safety, please follow these precautions:
- Since 1992, all children under
the age of 10 must travel in approved child seats* suited totheir weight , on seats fitted with a
seat belt or ISOFIX mountings.
- A child weighing less than 9 kgmust travel in the rearwardsfacing position both in the front
and in the rear. PEUGEOTrecommends that childrenshould travel in the "rearwardsfacing" position up to the age oftwo.
- Statistically, the safest seats inyour vehicle for the transporta-tion of children are the rearseats. PEUGEOT recommendsthat children travel in the reareven when a "rearwards facing"child seat is used.
- If a child is travelling on a booster seat, check that the lap section ofthe seat belt passes over the
child's thighs correctly. The chestsection of the seat belt must be posi-tioned on the child's shoulder withouttouching the neck. PEUGEOTrecommends that you use a boos-ter seat with a back, fitted with aseat belt guide at shoulder level.
02-02-2004

02-02-2004

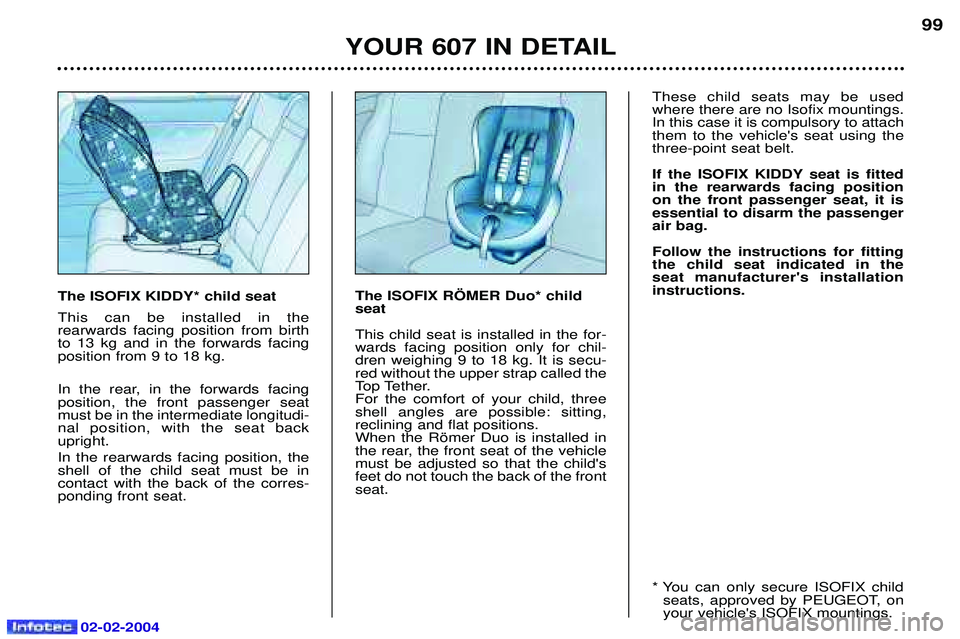

YOUR 607 IN DETAIL99
The ISOFIX KIDDY* child seat This can be installed in the rearwards facing position from birthto 13 kg and in the forwards facingposition from 9 to 18 kg.
In the rear, in the forwards facing position, the front passenger seatmust be in the intermediate longitudi-nal position, with the seat backupright. In the rearwards facing position, the shell of the child seat must be incontact with the back of the corres-ponding front seat. These child seats may be usedwhere there are no Isofix mountings.In this case it is compulsory to attachthem to the vehicle's seat using thethree-point seat belt.
If the ISOFIX KIDDY seat is fitted in the rearwards facing positionon the front passenger seat, it isessential to disarm the passengerair bag. Follow the instructions for fitting the child seat indicated in the seat manufacturer's installationinstructions.
* You can only secure ISOFIX child
seats, approved by PEUGEOT, on your vehicle's ISOFIX mountings.
The ISOFIX R…MER Duo* child seat This child seat is installed in the for- wards facing position only for chil-dren weighing 9 to 18 kg. It is secu-red without the upper strap called the
Top Tether.For the comfort of your child, threeshell angles are possible: sitting,reclining and flat positions.When the Ršmer Duo is installed in
the rear, the front seat of the vehiclemust be adjusted so that the child'sfeet do not touch the back of the frontseat.

02-02-2004
YOUR 607 IN DETAIL
100
CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt:
Group 0+: from birth to 13 kg
L1 - "Britax Babysure": installed in the rear-facing position using a three-point seat belt.
L2 - "Ršmer Baby-Safe": installed in the rear-facing position using a three-point seat belt. The deep and strengthened shell is designed to guarantee the child optimum protection in the event of a side collision.When one of these seats is installed in the front, it is compulsory to disarm the passenger air bag and the vehicle's seat must be adjusted to the intermediate longitudinal position.
Group 1: from 9 to 18 kg
L3 - "Ršmer Prince": installed using a two or three-point seat belt. For the safety of your child, it is imperative that the restraining cushion is used.
Group 2: from 15 to 25 kg
L4 - "Ršmer Vario'': installed using a two or three-point seat belt.

Never leave one or more children alone and unsupervised in avehicle.
Never leave a child or an animal ina vehicle which is exposed to thesun and has the windows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear windows more than a third*.
* According to model.
YOUR 607 IN DETAIL 101
Groups 2 and 3: from 15 to 36 kg
L5 - "Recaro Start'': installed using a three-point seat belt. The height and width at the shoulders and length of the seat cushion must be adjusted according to the age and build of your child.
L6- "Klippan Optima": installed in the rear using a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Groups 1, 2 and 3: from 9 to 36 kg
L7 - "Kiddy Life": installed in the rear using a three-point seat belt. The height and width at the shoulders and the length of the seat cushion must be adjusted according to the age and build of your child.
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Recommendations For optimum installation of a forwards facing child seat, check that the back of the child seat is resting against the back of the vehicle's seat correctly and thatthe head restraint does not cause any discomfort. If it is necessary to remove the head restraint, as in the case of the "RECARO
Start", "KLIPPAN Optima" and "KIDDY Life" child seats (over 6 years of age),ensure that the head restraint is securely stored or attached so that it cannot actas a projectile in the event of sharp braking. Disarm the passenger air bag when installing a "rearwards facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed were the air bag to inflate.
02-02-2004

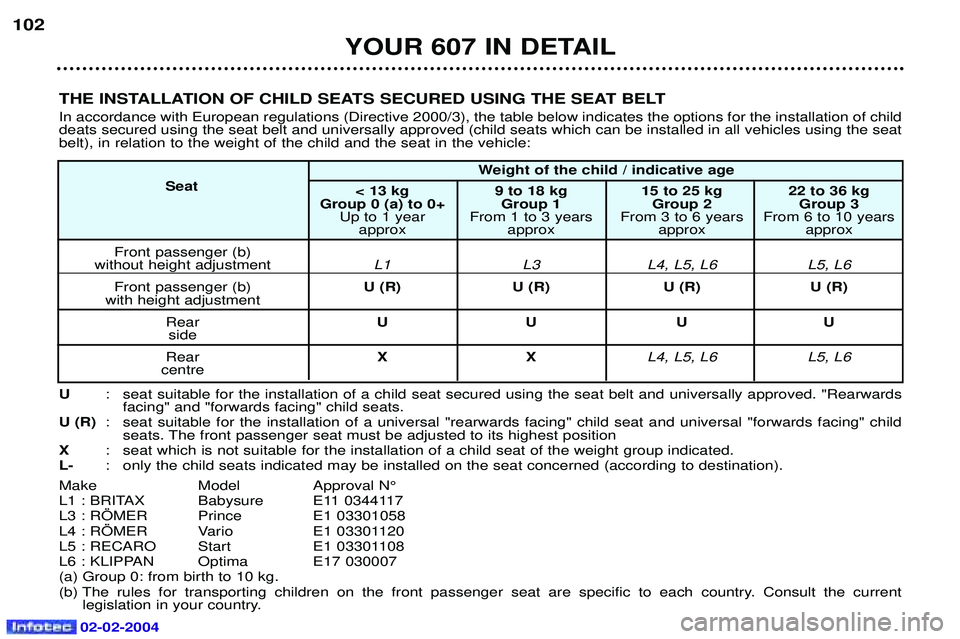

THE INSTALLATION OF CHILD SEATS SECURED USING THE SEAT BELT In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child deats secured using the seat belt and universally approved (child seats which can be installed in all vehicles using the seatbelt), in relation to the weight of the child and the seat in the vehicle:
YOUR 607 IN DETAIL
102
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved. "Rearwards
facing" and "forwards facing" child seats.
U (R) : seat suitable for the installation of a universal "rearwards facing" child seat and universal "forwards facing" child
seats. The front passenger seat must be adjusted to its highest position
X : seat which is not suitable for the installation of a child seat of the weight group indicated.
L- : only the child seats indicated may be installed on the seat concerned (according to destination).
Make Model Approval N¡
L1 : BRITAX Babysure E11 0344117
L3 : R…MER Prince E1 03301058
L4 : R…MER Vario E1 03301120
L5 : RECARO Start E1 03301108
L6 : KLIPPAN Optima E17 030007(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children on the front passenger seat are specific to each country. Consult the current legislation in your country. Weight of the child / indicative age
Seat < 13 kg 9 to 18 kg 15 to 25 kg 22 to 36 kg
Group 0 (a) to 0+ Group 1 Group 2 Group 3 Up to 1 year From 1 to 3 years From 3 to 6 years From 6 to 10 years approx approx approx approx
Front passenger (b)
without height adjustment L1 L3 L4, L5, L6 L5, L6
Front passenger (b) U (R) U (R) U (R) U (R)
with height adjustment
Rear UU UU
side
Rear XX L4, L5, L6 L5, L6
centre
02-02-2004

02-02-2004

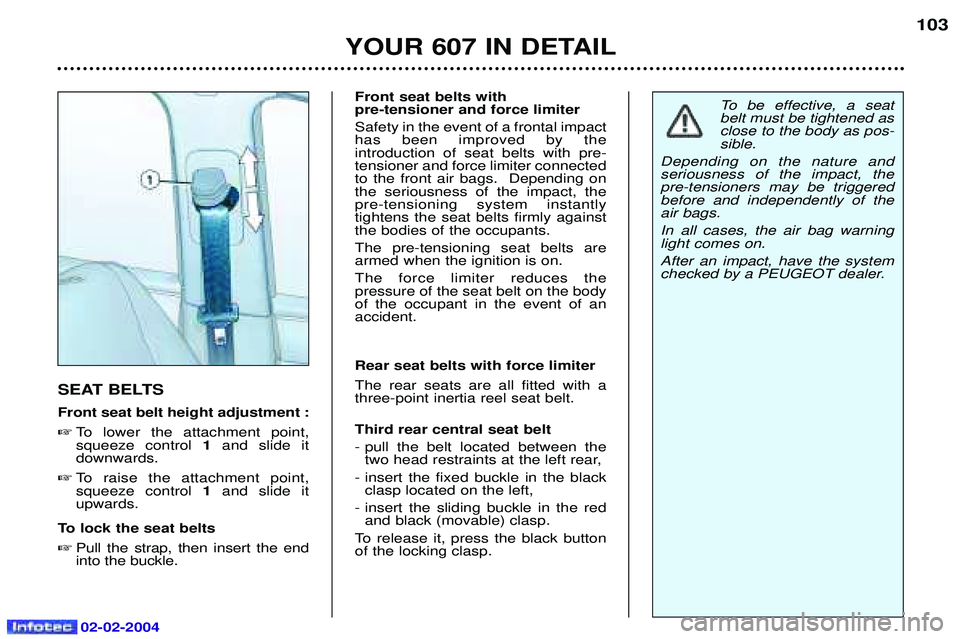

YOUR 607 IN DETAIL103
SEAT BELTS Front seat belt height adjustment :  To lower the attachment point, squeeze control 1and slide it
downwards.
 To raise the attachment point,squeeze control 1and slide it
upwards.
To lock the seat belts  Pull the strap, then insert the endinto the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of a frontal impact has been improved by theintroduction of seat belts with pre-tensioner and force limiter connectedto the front air bags. Depending onthe seriousness of the impact, thepre-tensioning system instantlytightens the seat belts firmly againstthe bodies of the occupants. The pre-tensioning seat belts are armed when the ignition is on. The force limiter reduces the pressure of the seat belt on the bodyof the occupant in the event of anaccident. Rear seat belts with force limiter The rear seats are all fitted with a three-point inertia reel seat belt. Third rear central seat belt
- pull the belt located between the
two head restraints at the left rear,
- insert the fixed buckle in the black clasp located on the left,
- insert the sliding buckle in the red and black (movable) clasp.
To release it, press the black button of the locking clasp. To be effective, a seatbelt must be tightened asclose to the body as pos-sible.
Depending on the nature andseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. After an impact, have the system
checked by a PEUGEOT dealer.

YOUR 607 IN DETAIL
104
THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel filler flap,as well as to fold back and unfold theexterior mirrors. The remote control in the key per- forms the same functions at a dis-tance. If one of the front doors or the boot is open, the central locking does notfunction. Selective unlocking with theremote control key This function must be initialised by a
PEUGEOT dealer. Press button Bto unlock the driver's
door as well as to fold out the exteri- or mirrors. Press button Bagain to unlock the
other doors, the boot and the fuel filler flap. Folding/opening out the key
To tuck away the key blade, fold it down into the remote control module.
To open out the key, press button
D.
Deadlocking This renders the internal and exter- nal door controls inoperative, andenables automatic closing of the win-dows and the sunroof.
With the key  Lock the vehicle and keep the key in the locking position for approxi-mately one second.
With the remote control incorpo-rated in the key  Press button Aonce to lock the
vehicle (the direction indicatorscome on for approximately twoseconds).
 Within a maximum of five sec-onds, press button Aa second
time to deadlock the vehicle (thedirection indicators come on forapproximately two seconds).
Unlocking with the remotecontrol key  Press button B.
This is confirmed by rapid flashing ofthe direction indicators.
Locking with the remote control key
 Press button A.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. If one of the doors or the boot is open, the central locking does notfunction. Note: the function that controls fold-
ing back of the exterior mirrors can
be disarmed by a PEUGEOT dealer. Opening the boot with theremote control key
 Press and hold button C.
Note: this also unlocks the doors or
the driver's door only, if selectiveunlocking is initialised.
02-02-2004

02-02-2004

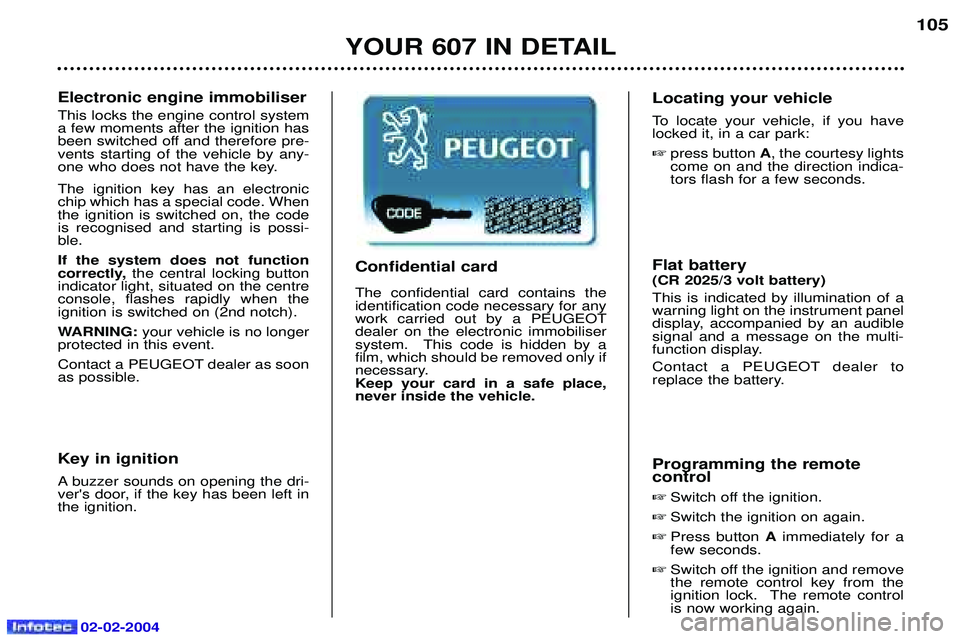

YOUR 607 IN DETAIL105
Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press button A, the courtesy lights
come on and the direction indica-tors flash for a few seconds.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary.Keep your card in a safe place,never inside the vehicle. Programming the remotecontrol  Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately for a
few seconds.
 Switch off the ignition and removethe remote control key from the
ignition lock. The remote controlis now working again.
