2004 PEUGEOT 607 Owners Manual

YOUR AT A GLANCE2
02-02-2004

02-02-2004

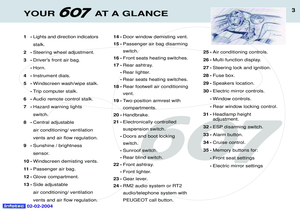

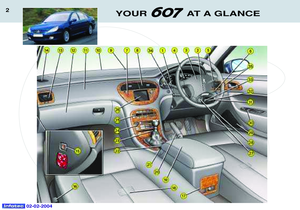

3YOUR AT A GLANCE
1-Lights and direction indicators stalk.
2- Steering wheel adjustment.
3 - Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipe stalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustable air conditioning/ ventilationvents and air flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustable air conditioning/ ventilationvents and air flow regulation. 14 -
Door window demisting vent.
15 - Passenger air bag disarming switch.
16 - Front seats heating switches.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switches.
18 - Rear footwell air conditioningvent.
19 - Two-position armrest with compartments.
20 - Handbrake.

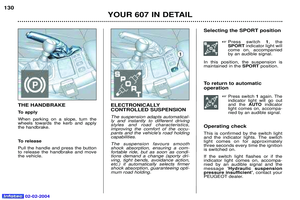

21 - Electronically controlled suspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.

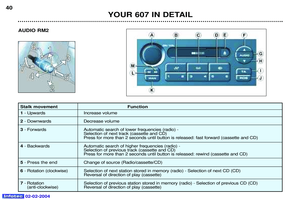

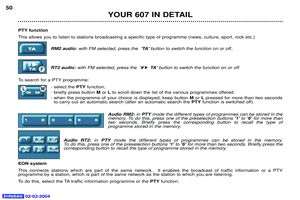

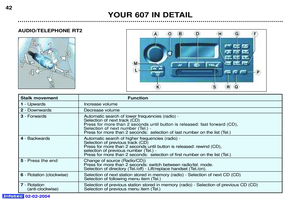

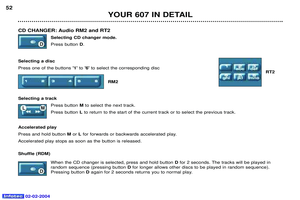

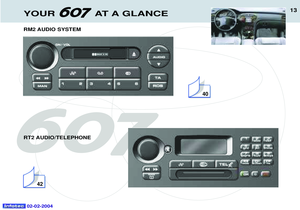

24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Air conditioning controls.

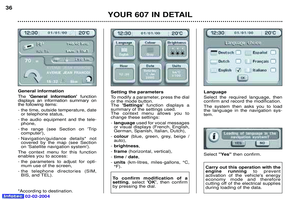

26 - Multi-function display.
27 - Steering lock and ignition.

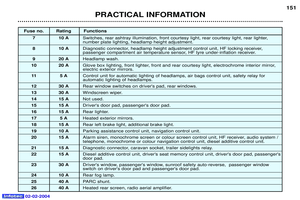

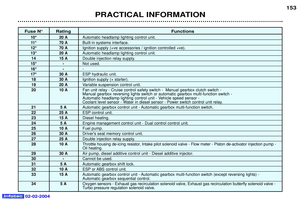

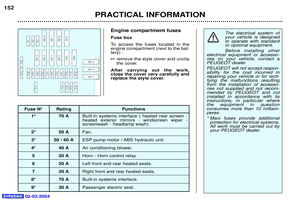

28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjustment.
32 - ESP disarming switch.

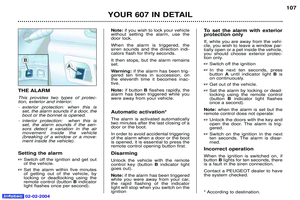

33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings

02-02-2004
YOUR AT A GLANCE4

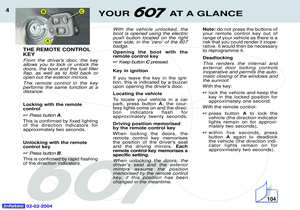

THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel fillerflap, as well as to fold back oropen out the exterior mirrors. The remote control in the key performs the same function at adistance. Locking with the remote control
Press button A.
This is confirmed by fixed lightingof the direction indicators forapproximately two seconds. Unlocking with the remote control key
Press button B.

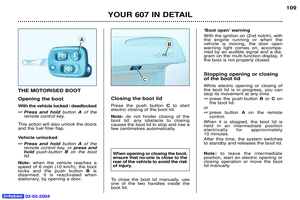

This is confirmed by rapid flashingof the direction indicators. With the vehicle unlocked, theboot is opened using the electricpush button located on the rightrear side, in the 'zero' of the 607badge. Opening the boot with the remote control key
Keep button
Cpressed.
Key in ignition If you leave the key in the igni- tion, this is indicated by a buzzer
upon opening the driver's door. Locating the vehicle
To locate your vehicle in a car park, press button A; the cour-
tesy lights come on and the direc-tion indicators flash forapproximately twenty seconds. Driving position memorised by the remote control key When locking the doors, the remote control key memorisesthe position of the driver's seatand the driving mirrors. Each
remote control key memorises aspecific setting. When unlocking the doors, the driver's seat and the exteriormirrors assume the positionmemorised by the remote control
key, if this position has beenchanged in the meantime. Note:
do not press the buttons of
your remote control key out ofrange of your vehicle as there is arisk that you could render it inope-rative. It would then be necessaryto reprogramme it. Deadlocking This renders the internal and external door locking controlsinoperative and permits the auto-matic closing of the windows andthe sunroof. With the key:
 lock the vehicle and keep the key in the locked position forapproximately one second.
With the remote control:
 press button Ato lock the
vehicle (the direction indicatorlights remain on for approxi-mately two seconds),
 within five seconds, pressbutton Aagain to deadlock
the vehicle (the direction indi-cator lights remain on forapproximately two seconds).
104

02-02-2004
YOUR AT A GLANCE5

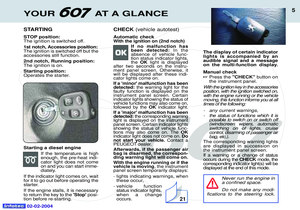

STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:
The ignition is switched off but theaccessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is high enough, the pre-heat indi-cator light does not comeon and you can start imme-
diately.
If the indicator light comes on, waitfor it to go out before operating the
starter. If the engine stalls, it is necessary to return the key to the 'Stop' posi-
tion before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)If no malfunction has been detected: In the
absence of vehicle func-tion status indicator lights,the OK light is displayed
after two seconds on the instru-ment panel screen. Otherwise, itwill be displayed after these indi-cator lights come on. If a 'minor' malfunction has been detected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warning
light is displayed on the instrumentpanel screen. Certain indicator lightsshowing the status of vehicle func-
tions may also come on. The OK
indicator light does not come on. Do
not start your vehicle. Contact a
PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the correspon-ding warning light will come on.
With the engine running or if the vehicle is moving , the instrument
panel screen temporarily displays:
- lights indicating warnings, when
these occur,
- vehicle function status indicator lights, when a changeoccurs. The display of certain indicatorlights is accompanied by anaudible signal and a message

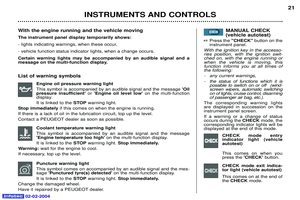

on the multi-function display. Manual check
 Press the "CHECK" button on
the instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
- any current warnings,
- the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruisecontrol, disarming of passenger airbag, etc.).
The corresponding warning lightsare displayed in succession onthe instrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
21
Never run the engine in a confined space. Do not make any modi-
fications to the steering lock.

02-02-2004

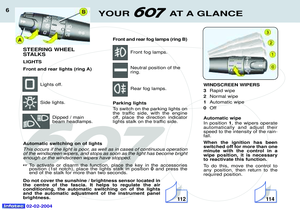

YOUR AT A GLANCE6
STEERING WHEEL

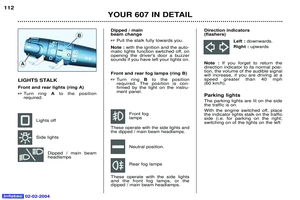

STALKS LIGHTS
Front and rear lights (ring A)
Lights off. Side lights.Dipped / main beam headlamps. Front and rear fog lamps (ring B)
Front fog lamps. Neutral position of the ring. Rear fog lamps.
Parking lights
To switch on the parking lights on
the traffic side, with the engine
off, place the direction indicator
lights stalk on the traffic side.

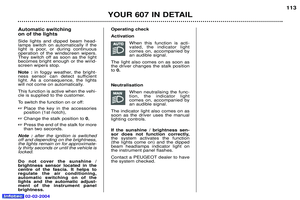

Automatic switching on of lights
This occurs if the light is poor, as well as in cases of continuous operation of the windscreen wipers, and stops as soon as the light has become brightenough or the windscreen wipers have stopped.  To activate or disarm the function, place the key in the accessories position (1st notch), place the lights stalk in position 0 and press the
end of the stalk for more than two seconds.

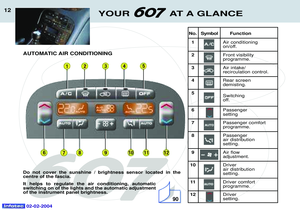

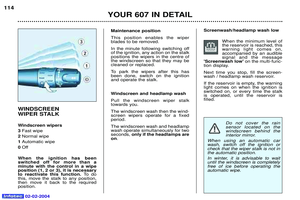

Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air conditioning, the automatic switching on of the lightsand the automatic adjustment of the instrument panelbrightness. WINDSCREEN WIPERS 3
Rapid wipe
2 Normal wipe
1 Automatic wipe
0 Off

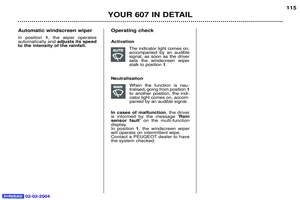

Automatic wipe In position 1, the wipers operate
automatically and adjust their speed to the intensity of the rain-fall. When the ignition has been switched off for more than oneminute with the control in awipe position, it is necessaryto reactivate this function.
To do this, move the control to any position, then return to therequired position.
11 211 4

02-02-2004
YOUR AT A GLANCE8

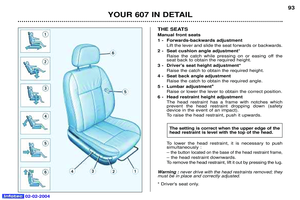

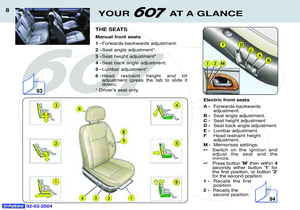

THE SEATS Manual front seats 1 -Forwards-backwards adjustment.
2 - Seat angle adjustment*.
3 - Seat height adjustment*
4 - Seat back angle adjustment.
5 - Lumbar adjustment*.
6 - Head restraint height and tilt adjustment (press the tab to slide itdown).
* Driver's seat only.

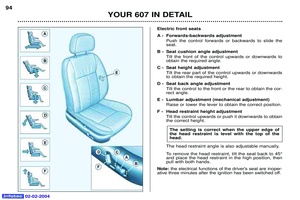

Electric front seats A-Forwards-backwards adjustment.
B - Seat angle adjustment.
C - Seat height adjustment
D - Seat back angle adjustment.
E - Lumbar adjustment.
F Head restraint height adjustment.
M - Memorises settings.
 Switch on the ignition andadjust the seat and themirrors.
 Press button 'M'then within 4
seconds either button '1'for
the first position, or button '2'
for the second position.
1 - Recalls the firstposition.
2 - Recalls thesecond position.
94
93

02-02-2004

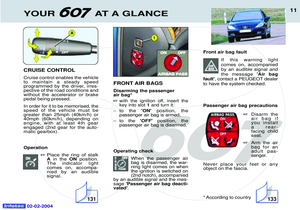

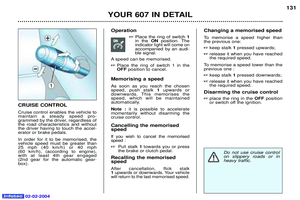

CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed
programmed by the driver, irres-pective of the road conditions andwithout the accelerator or brakepedal being pressed. In order for it to be memorised, the speed of the vehicle must begreater than 25mph (40km/h) or40mph (60km/h), depending onengine, with at least 4th gearengaged (2nd gear for the auto-matic gearbox). OperationPlace the ring of stalk A in the ONposition.

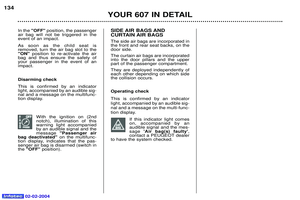

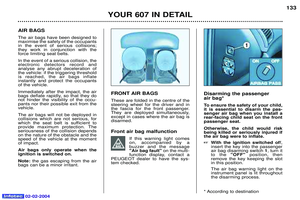

The indicator lightcomes on, accompa-nied by an audiblesignal. FRONT AIR BAGS Disarming the passenger air bag*

with the ignition off, insert thekey into slot 1and turn it:
Ð to the 'ON' position, the
passenger air bag is armed,
Ð to the 'OFF'position, the
passenger air bag is disarmed.
Operating check When the passenger airbag is disarmed, the war-ning light comes on whenthe ignition is switched on(2nd notch), accompanied
by an audible signal and the mes-sage 'Passenger air bag deacti-
vated' . Front air bag fault
If this warning light comes on, accompaniedby an audible signal andthe message 'Air bag
fault' , contact a PEUGEOT dealer
to have the system checked. Passenger air bag precautionsDisarm the air bag ifyou installa rear-facing childseat.
Arm the airbag for anadult pas-
senger.
Never place your feet or anyobject on the fascia.
* According to country
YOUR AT A GLANCE11
131133

02-02-2004
YOUR AT A GLANCE7

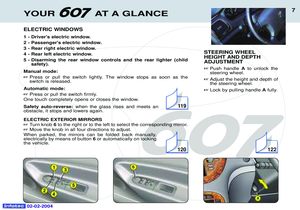

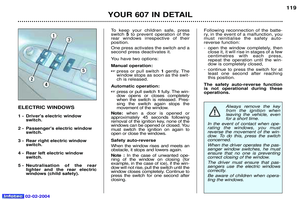

ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window controls and the rear lighter (child
safety).
Manual mode:  Press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode:  Press or pull the switch firmly.
One touch completely opens or closes the window. Safety auto-reverse: when the glass rises and meets an
obstacle, it stops and lowers again. ELECTRIC EXTERIOR MIRRORS
 Turn knob 6to the right or to the left to select the corresponding mirror.
 Move the knob in all four directions to adjust.
When parked, the mirrors can be folded back manually, electrically by means of button 6or automatically on locking
the vehicle. STEERING WHEEL
HEIGHT AND DEPTHADJUSTMENT
 Push handle Ato unlock the
steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock by pulling handle Afully.
11 9
120122
