2004 PEUGEOT 607 Owners Manual

02-02-2004

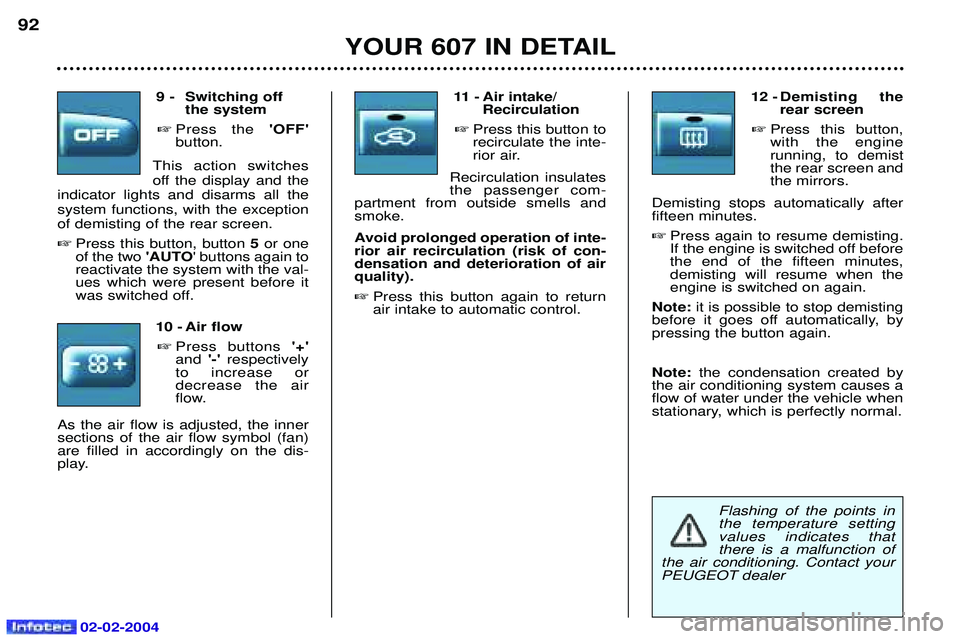

Flashing of the points in the temperature settingvalues indicates thatthere is a malfunction of
the air conditioning. Contact your
PEUGEOT dealer
9 - Switching off the system
 Press the 'OFF'
button.
This action switches
off the display and the
indicator lights and disarms all thesystem functions, with the exceptionof demisting of the rear screen.
 Press this button, button 5or one
of the two 'AUTO' buttons again to
reactivate the system with the val- ues which were present before it
was switched off.
10 - Air flow Press buttons '+'
and '-'respectively
to increase ordecrease the air
flow.
As the air flow is adjusted, the innersections of the air flow symbol (fan)are filled in accordingly on the dis-
play. 11 - Air intake/
Recirculation
 Press this button torecirculate the inte-
rior air.
Recirculation insulatesthe passenger com-
partment from outside smells andsmoke.
Avoid prolonged operation of inte- rior air recirculation (risk of con-densation and deterioration of airquality).
 Press this button again to returnair intake to automatic control. 12 - Demisting the
rear screen
 Press this button,with the enginerunning, to demistthe rear screen andthe mirrors.
Demisting stops automatically afterfifteen minutes.  Press again to resume demisting.
If the engine is switched off beforethe end of the fifteen minutes,demisting will resume when theengine is switched on again.
Note: it is possible to stop demisting
before it goes off automatically, bypressing the button again. Note: the condensation created by
the air conditioning system causes a flow of water under the vehicle when
stationary, which is perfectly normal.
YOUR 607 IN DETAIL
92

02-02-2004

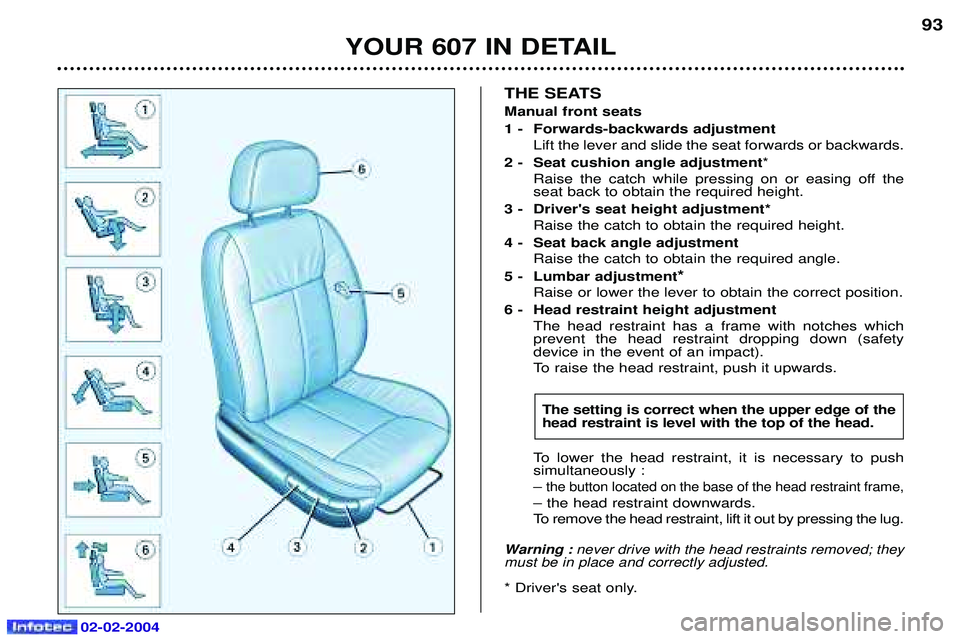

YOUR 607 IN DETAIL93
THE SEATS Manual front seats
1 - Forwards-backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment *
Raise the catch while pressing on or easing off the seat back to obtain the required height.
3 - Driver's seat height adjustment* Raise the catch to obtain the required height.
4 - Seat back angle adjustment Raise the catch to obtain the required angle.
5 - Lumbar adjustment *
Raise or lower the lever to obtain the correct position.
6 - Head restraint height adjustment The head restraint has a frame with notches whichprevent the head restraint dropping down (safety
device in the event of an impact).
To raise the head restraint, push it upwards.
The setting is correct when the upper edge of the head restraint is level with the top of the head.
To lower the head restraint, it is necessary to pushsimultaneously : Ð
the button located on the base of the head restraint frame,
Ð the head restraint downwards.
To remove the head restraint, lift it out by pressing the lug.
Warning : never drive with the head restraints removed; they
must be in place and correctly adjusted.
* Driver's seat only.

02-02-2004
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

02-02-2004
YOUR 607 IN DETAIL
94

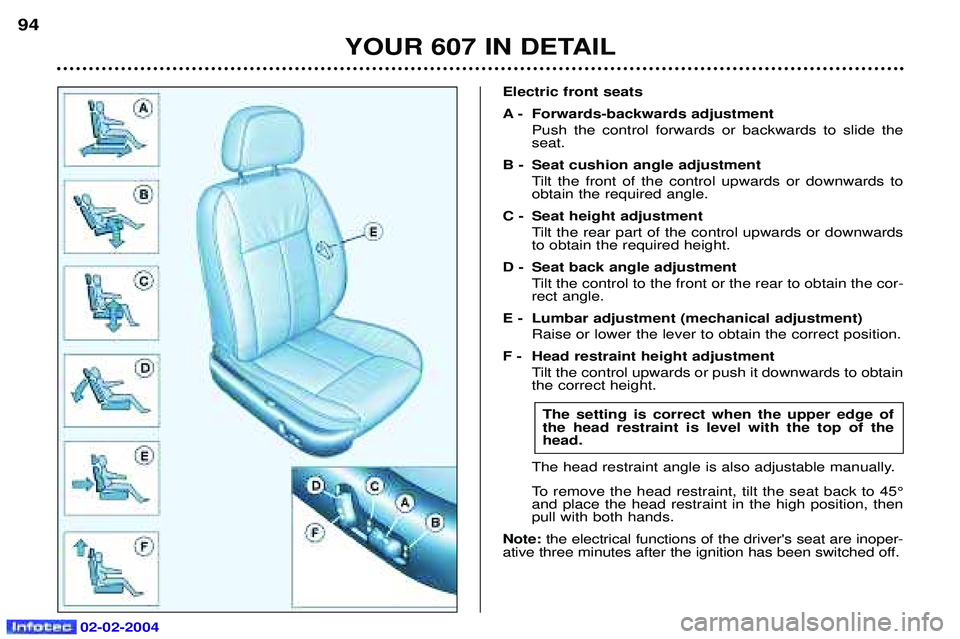

Electric front seats
A - Forwards-backwards adjustment
Push the control forwards or backwards to slide the seat.
B - Seat cushion angle adjustment Tilt the front of the control upwards or downwards toobtain the required angle.
C - Seat height adjustment Tilt the rear part of the control upwards or downwardsto obtain the required height.
D - Seat back angle adjustment Tilt the control to the front or the rear to obtain the cor-rect angle.
E - Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F - Head restraint height adjustment Tilt the control upwards or push it downwards to obtainthe correct height.
The setting is correct when the upper edge ofthe head restraint is level with the top of thehead.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45¡ and place the head restraint in the high position, thenpull with both hands.
Note: the electrical functions of the driver's seat are inoper-
ative three minutes after the ignition has been switched off.

02-02-2004
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

02-02-2004

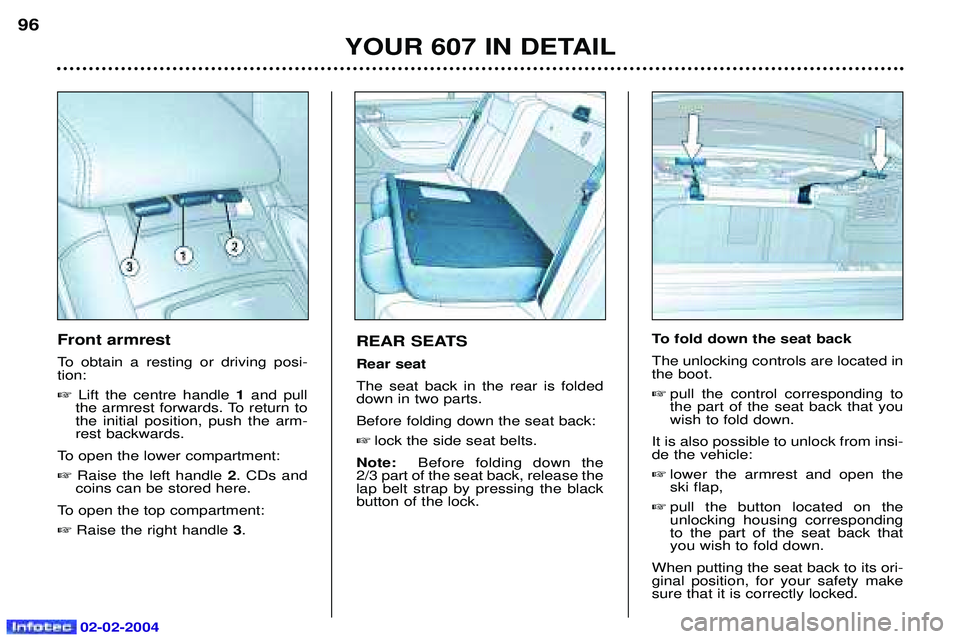

YOUR 607 IN DETAIL
96
REAR SEATS Rear seatThe seat back in the rear is folded down in two parts. Before folding down the seat back:
 lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the lap belt strap by pressing the blackbutton of the lock.
Front armrest
To obtain a resting or driving posi- tion:
 Lift the centre handle 1and pull
the armrest forwards. To return tothe initial position, push the arm-rest backwards.
To open the lower compartment:  Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:  Raise the right handle 3. To fold down the seat back The unlocking controls are located in the boot.
 pull the control corresponding tothe part of the seat back that youwish to fold down.
It is also possible to unlock from insi-de the vehicle:  lower the armrest and open theski flap,
 pull the button located on theunlocking housing correspondingto the part of the seat back thatyou wish to fold down.
When putting the seat back to its ori-ginal position, for your safety makesure that it is correctly locked.

02-02-2004
YOUR 607 IN DETAIL97

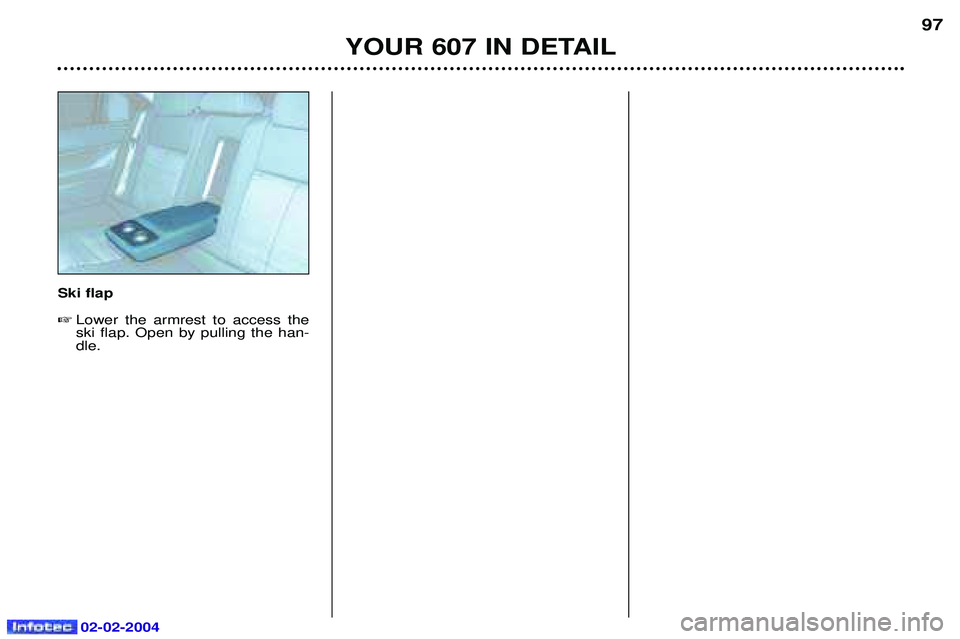

Ski flap
 Lower the armrest to access the ski flap. Open by pulling the han-dle.

"ISOFIX" MOUNTINGS The one third side of the rear seat of your vehicle is fitted with ISOFIX
mountings . These are 2 rings loca-
ted between the seat back and seatcushion of your vehicle. The ISOFIX child seats are fitted
with 2 locks which fit onto these rings. Incorrect installation of a child seat in a vehicle compromises the protection of the child in the event ofa collision. This ISOFIX mounting system guarantees reliable, safe and fastinstallation of the child seat in yourvehicle. For information regarding the ISOFIX* child seats which are appro-ved for your vehicle, consult your
PEUGEOT dealer.

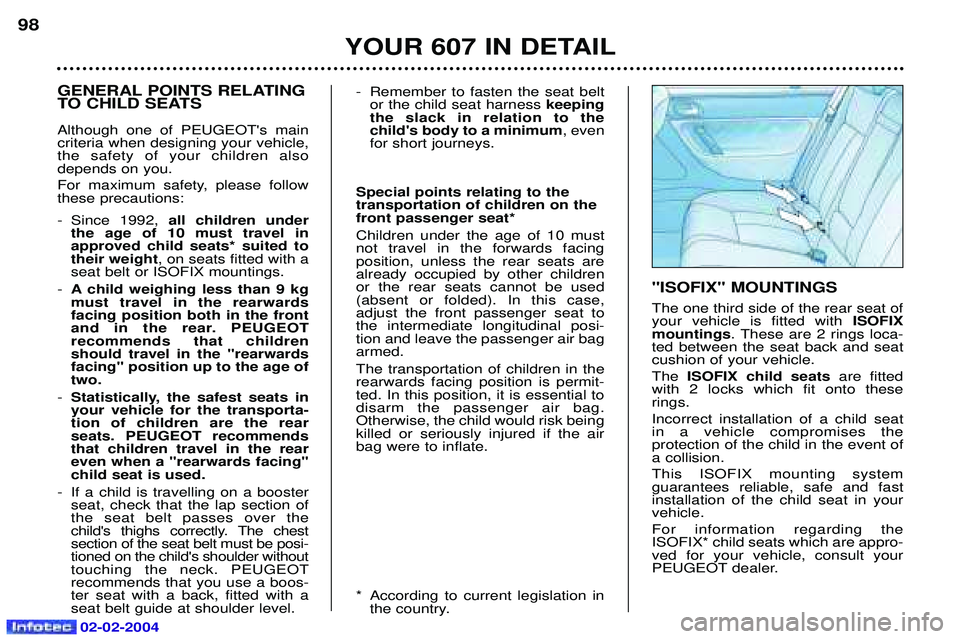

YOUR 607 IN DETAIL
98
- Remember to fasten the seat beltor the child seat harness keeping
the slack in relation to the child's body to a minimum , even
for short journeys.
Special points relating to thetransportation of children on thefront passenger seat* Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe intermediate longitudinal posi-tion and leave the passenger air bagarmed. The transportation of children in the rearwards facing position is permit-ted. In this position, it is essential todisarm the passenger air bag.Otherwise, the child would risk beingkilled or seriously injured if the airbag were to inflate.
* According to current legislation in the country.
GENERAL POINTS RELATING
TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle,the safety of your children alsodepends on you.
For maximum safety, please follow these precautions:
- Since 1992, all children under
the age of 10 must travel in approved child seats* suited totheir weight , on seats fitted with a
seat belt or ISOFIX mountings.
- A child weighing less than 9 kgmust travel in the rearwardsfacing position both in the front
and in the rear. PEUGEOTrecommends that childrenshould travel in the "rearwardsfacing" position up to the age oftwo.
- Statistically, the safest seats inyour vehicle for the transporta-tion of children are the rearseats. PEUGEOT recommendsthat children travel in the reareven when a "rearwards facing"child seat is used.
- If a child is travelling on a booster seat, check that the lap section ofthe seat belt passes over the
child's thighs correctly. The chestsection of the seat belt must be posi-tioned on the child's shoulder withouttouching the neck. PEUGEOTrecommends that you use a boos-ter seat with a back, fitted with aseat belt guide at shoulder level.
02-02-2004
