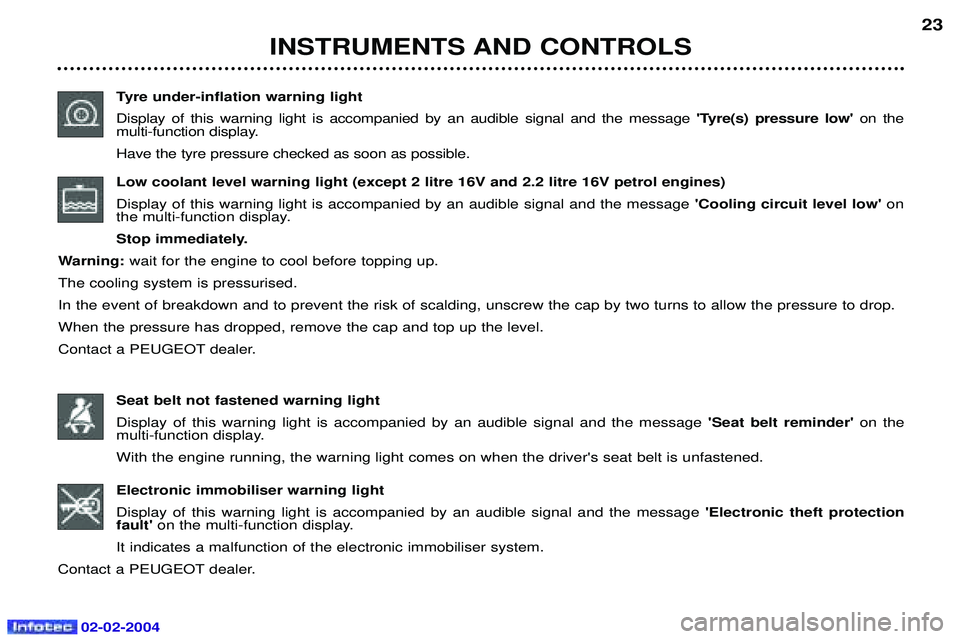

INSTRUMENTS AND CONTROLS23
Tyre under-inflation warning light Display of this warning light is accompanied by an audible signal and the message 'Tyre(s) pressure low' on the
multi-function display.Have the tyre pressure checked as soon as possible.
Low coolant level warning light (except 2 litre 16V and 2.2 litre 16V petrol engines) Display of this warning light is accompanied by an audible signal and the message 'Cooling circuit level low' on
the multi-function display.
Stop immediately.
Warning: wait for the engine to cool before topping up.
The cooling system is pressurised.In the event of breakdown and to prevent the risk of scalding, unscrew the cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light Display of this warning light is accompanied by an audible signal and the message 'Seat belt reminder' on the
multi-function display.With the engine running, the warning light comes on when the driver's seat belt is unfastened. Electronic immobiliser warning light Display of this warning light is accompanied by an audible signal and the message 'Electronic theft protection
fault' on the multi-function display.
It indicates a malfunction of the electronic immobiliser system.
Contact a PEUGEOT dealer.

02-02-2004
INSTRUMENTS AND CONTROLS
26
Anti-lock braking system (ABS) warning light This is linked to the warning light on the instrument panel.Display of this warning light is accompanied by an audible signal and the message 'ABS fault'on the multi-function
display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps fault' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer. Automatic gearbox fault warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox fault' on
the multi-function display. It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer. Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) missing warning light Display of this warning light is accompanied by an audible signal and a message on the multi-function display sho- wing the cause of the warning:
- 'Tyre pressure sensor battery charge low',
- 'Remote control battery charge low', - 'Impact sensor fault',
- 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.

02-02-2004
143
TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warningin the event of malfunction (speedgreater than 15mph [25 km/h]). Flat tyre When this warning light comes on, accompanied byan audible signal and themessage 'Tyre pressure
low' on the multi-function
display, have the tyre pressurechecked as soon as possible. Puncture
This warning light, accom- panied by an audible signaland the message 'Punc-
tured tyre(s) detected' on
the multi-function display, is
followed by illumination of the
'STOP' warning light.
Stop immediately, avoiding any sud-den movement of the steering wheeland the brakes.
Change the damaged (punctured orvery deflated) tyre, and have the tyrepresure checked as soon as possible.
Note: if the damaged tyre is temporari-
ly stored in the boot, it will again emitthis message to remind you of the
necessity of having it repaired. This willprevent another warning of the sametype being displayed.
Sensor(s) not detected
This warning light, accom-panied by an audible signaland the message ' X tyre
pressure sensor(s) miss-ing ' on the multi-function
display, indicates that under-inflationdetection is absent from one (or sev-eral) tyre(s).
Contact a PEUGEOT dealer to replace the faulty sensor(s). Note: this message is also displayed
when one of the tyres is away from the vehicle (being repaired) or whena wheel without a sensor is fitted.
PRACTICAL INFORMATION
All repairs and changing of tyres on a wheel fittedwith this system must becarried out by a
PEUGEOT dealer.
The tyre under-inflation detec-tion system is an aid to drivingwhich does not replace theneed for the driver to be vigilant
or to drive responsibly. This system does not remove the necessity for having the tyre pres-sure (including that of the spare
wheel) checked regularly, toensure optimum dynamic perfor-mance of the vehicle and to pre-vent premature wear of the tyres,particularly in the case of arduousdriving conditions (heavy load,high speed). The system may temporarily be disturbed by radio broadcasts ona frequency close to it.

02-02-2004
PRACTICAL INFORMATION145

Fold the jack by pressing at the ends Aand place it in one of the
four locations Eunderneath the
vehicle (the nearest one to thewheel to be changed).
 Extend the jack, first by hand, pul-ling the ends Athen using wheel-
brace 1and the extension 3.
 Remove a wheel bolt at the topand fit the centralising tool 2 in its
place.
 Unscrew the other bolts andremove the wheel.
Fitting a wheel  Position the wheel using the cen-tralising tool to assist you.
 Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace.
 Fold the jack and remove it.
 Fully tighten the bolts using thewheelbrace.
 Replace the wheel trim.
 Put the tool holder back in posi-
tion. This helps to keep the bootfloor in its correct position, to pre-vent any deformation of the floorwhen loaded.
 Tighten the spare wheel securingstrap to prevent noise and for yoursafety in the event of impact.
For your safety, alwayschange the wheel:
- on level, stable, non-slippery
ground,
- with the handbrake applied,
- with first or reverse gear enga- ged (position Pfor the automatic
gearbox),
- never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel:
- have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
- have the punctured wheel repai- red and refit it to the vehicle assoon as possible.
Tyres fitted with the Tyre Under-Inflation Detection System. These wheels have a pressure
sensor. Have them repaired by a
PEUGEOT dealer.
