2004 PEUGEOT 607 Owners Manual

02-02-2004

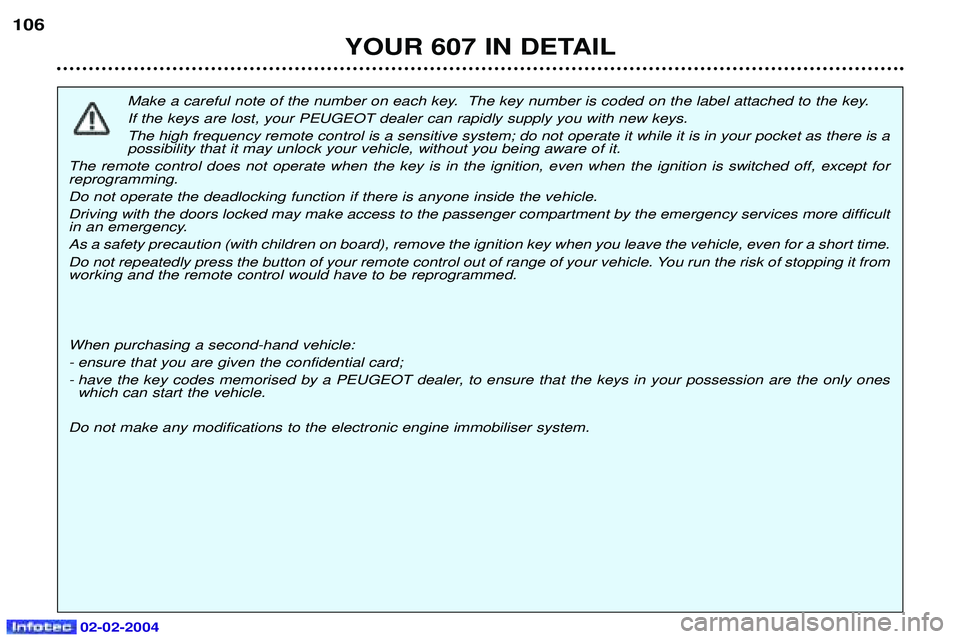

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Do not operate the deadlocking function if there is anyone inside the vehicle.Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
106

02-02-2004
YOUR 607 IN DETAIL105

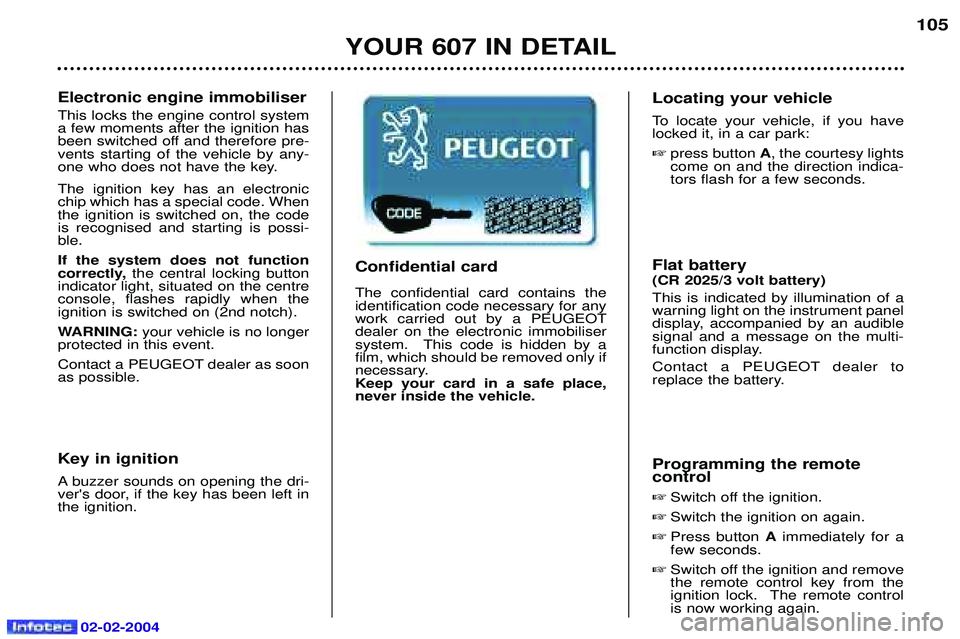

Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press button A, the courtesy lights
come on and the direction indica-tors flash for a few seconds.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOTdealer on the electronic immobiliser
system. This code is hidden by afilm, which should be removed only if
necessary.Keep your card in a safe place,never inside the vehicle. Programming the remotecontrol  Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately for a
few seconds.
 Switch off the ignition and removethe remote control key from the
ignition lock. The remote controlis now working again.

02-02-2004
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except forreprogramming. Do not operate the deadlocking function if there is anyone inside the vehicle.Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult
in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.
Do not repeatedly press the button of your remote control out of range of your vehicle. You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
106

02-02-2004
YOUR 607 IN DETAIL107
THE ALARM This provides two types of protec- tion, exterior and interior:
- exterior protection: when this is
set, the alarm sounds if a door, the boot or the bonnet is opened.
- interior protection: when this is set, the alarm sounds if the sen-sors detect a variation in the airmovement inside the vehicle(breaking of a window or a move-ment inside the vehicle).
Setting the alarm  Switch off the ignition and get outof the vehicle.
 Set the alarm within five minutesof getting out of the vehicle, bylocking or deadlocking using theremote control (button Bindicator
light flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, the siren sounds and the direction indi-cators flash for thirty seconds. It then stops, but the alarm remains set.
Warning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inac-tive. Note: if button Bflashes rapidly, the
alarm has been triggered while you were away from your vehicle. Automatic activation* The alarm is activated automatically two minutes after the last closing of adoor or the boot. In order to avoid accidental triggering of the alarm when a door or the bootis opened, it is essential to press theremote control opening button first. Disarming Unlock the vehicle with the remote control key (button Bindicator light
goes out). Note: if the alarm has been triggered
while you were away from your car, the rapid flashing of the indicatorlight will stop when you switch on theignition To set the alarm with exteriorprotection only If, while you are away from the vehi- cle, you wish to leave a window par-tially open or a pet inside the vehicle,you should choose exterior protec-
tion only.
 Switch off the ignition
 In the next ten seconds, pressbutton Auntil indicator light Bis
on continuously.
 Get out of the vehicle.
 Set the alarm by locking or dead-locking using the remote control(button Bindicator light flashes
once a second).
Note: when the alarm is set but the
remote control does not operate:
 Unlock the doors with the key and
open the door. The alarm is trig-gered.
 Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if button Blights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
* According to destination.

02-02-2004
DOORS Opening the doors from outside Opening the doors from inside
YOUR 607 IN DETAIL
108
Locking / unlocking from the inside
Ð Using button
Aof the centre con-
sole : This allows the doors, the boot and the fuel filler flap to be locked orunlocked.
Ð Using button B on the door :
¥ on the front doors this allows the doors, the boot and the fuel fillerflap to be locked or unlocked.
¥ on the rear doors this allows the door concerned to be locked orunlocked.
Note : button Bis neutralised if the
vehicle is deadlocked.
' Door open' alert
With the ignition on (2nd notch), withthe engine running or when the vehicle is moving, if a door is not properly closed then the dooropen warning light comes on,accompanied by an audible signaland a diagram indicating the relevant
door on the multi-function display. Child safety This prevents either of the rear doors being opened from inside.
 Turn the switch a quarter of a turn
using the ignition key.

02-02-2004
YOUR 607 IN DETAIL109
Closing the boot lid Press the push button
Cto start
electric closing of the boot lid.Note: do not hinder closing of the
boot lid: any obstacle to closing causes the boot lid to stop and rise a
few centimetres automatically.
When opening or closing the boot,ensure that no-one is close to therear of the vehicle to avoid the risk
of injury.
To close the boot lid manually, useone of the two handles inside theboot lid.
'Boot open' warning With the ignition on (2nd notch), with the engine running or when thevehicle is moving, the door openwarning light comes on, accompa-nied by an audible signal and a dia-
gram on the multi-function display, ifthe boot is not properly closed. Stopping opening or closing of the boot lid While electric opening or closing of the boot lid is in progress, you canstop its movement at any time.
press the push-button Bor Con
the boot lid.
or
press button Aon the remote
control.
When it is stopped, the boot lid isheld in an intermediate position electrically for approximately 10 minutes. After this time, the system switches to standby and releases the boot lid. Note: to leave the intermediate
position, start an electric opening or closing operation or move the boot
lid manually.

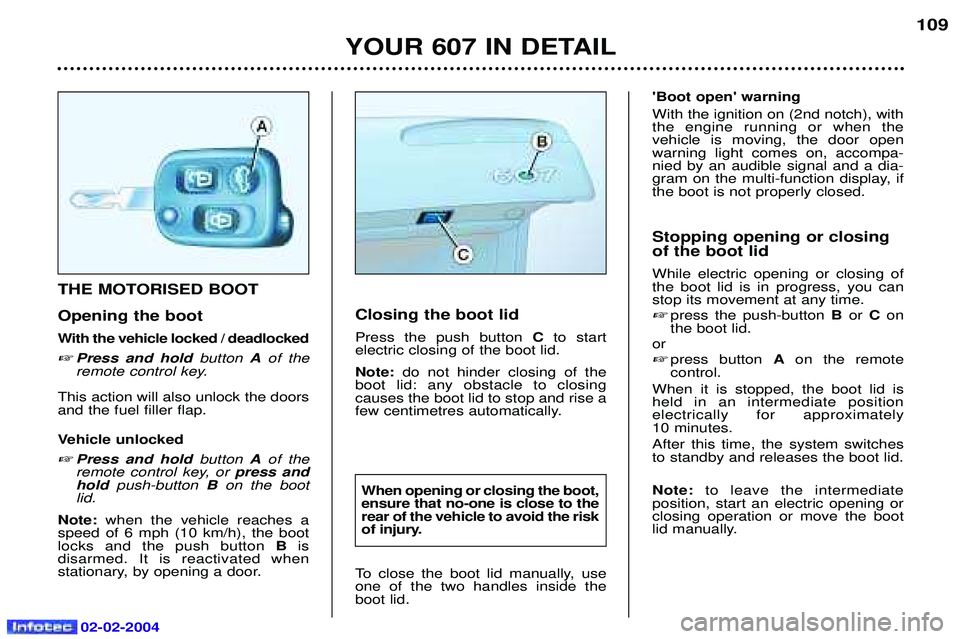

THE MOTORISED BOOT Opening the boot
With the vehicle locked / deadlockedPress and hold
button Aof the
remote control key.
This action will also unlock the doors and the fuel filler flap.
Vehicle unlocked
Press and hold button Aof the
remote control key, or press and
hold push-button Bon the boot
lid.
Note: when the vehicle reaches a
speed of 6 mph (10 km/h), the boot locks and the push button Bis
disarmed. It is reactivated when
stationary, by opening a door.

02-02-2004
YOUR 607 IN DETAIL
110

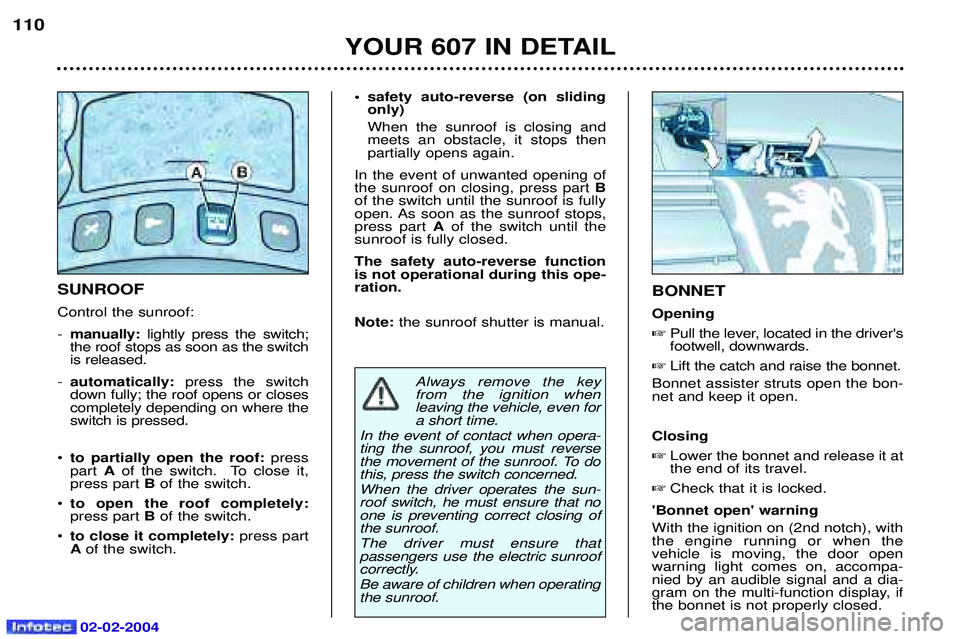

BONNET Opening Pull the lever, located in the driver's footwell, downwards.
 Lift the catch and raise the bonnet.
Bonnet assister struts open the bon-net and keep it open. Closing
 Lower the bonnet and release it at the end of its travel.
 Check that it is locked.
'Bonnet open' warning With the ignition on (2nd notch), with the engine running or when thevehicle is moving, the door openwarning light comes on, accompa-nied by an audible signal and a dia-
gram on the multi-function display, ifthe bonnet is not properly closed.
¥ safety auto-reverse (on sliding only) When the sunroof is closing and meets an obstacle, it stops thenpartially opens again.
In the event of unwanted opening ofthe sunroof on closing, press part B
of the switch until the sunroof is fully
open. As soon as the sunroof stops,press part Aof the switch until the
sunroof is fully closed. The safety auto-reverse function is not operational during this ope-ration. Note: the sunroof shutter is manual.
Always remove the key from the ignition when leaving the vehicle, even fora short time.
In the event of contact when opera-ting the sunroof, you must reverse
the movement of the sunroof. To dothis, press the switch concerned. When the driver operates the sun- roof switch, he must ensure that noone is preventing correct closing ofthe sunroof. The driver must ensure that passengers use the electric sunroof
correctly. Be aware of children when operating the sunroof.
SUNROOF Control the sunroof:- manually: lightly press the switch;
the roof stops as soon as the switch is released.
- automatically: press the switch
down fully; the roof opens or closescompletely depending on where theswitch is pressed.
¥ to partially open the roof: press
part Aof the switch. To close it,
press part B of the switch.
¥ to open the roof completely:press part Bof the switch.
¥ to close it completely: press part
A of the switch.

02-02-2004

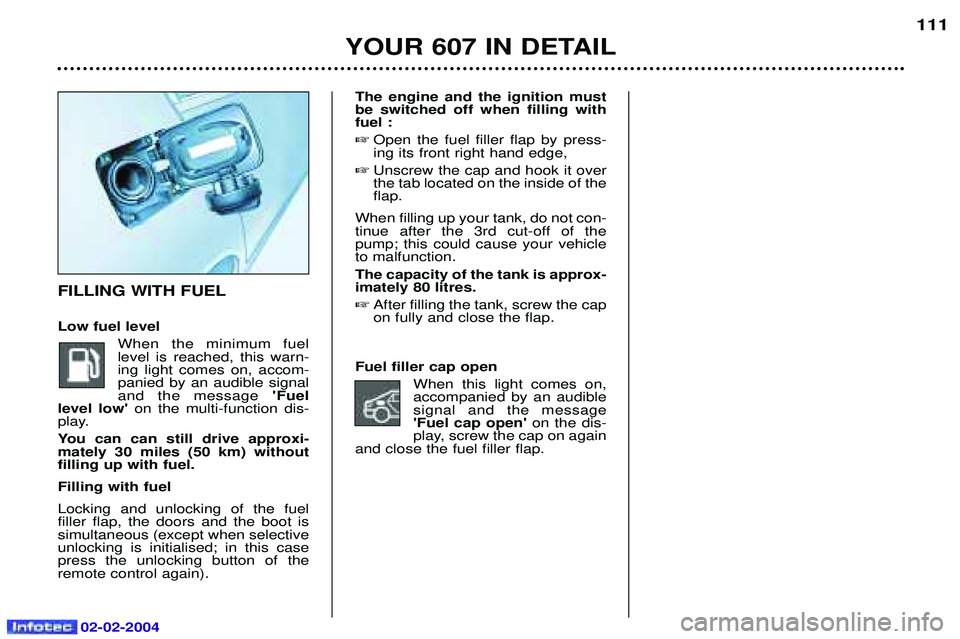

The engine and the ignition must be switched off when filling withfuel : Open the fuel filler flap by press-ing its front right hand edge,
 Unscrew the cap and hook it overthe tab located on the inside of theflap.
When filling up your tank, do not con-
tinue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approx- imately 80 litres.  After filling the tank, screw the capon fully and close the flap.
Fuel filler cap open When this light comes on,accompanied by an audiblesignal and the message'Fuel cap open' on the dis-
play, screw the cap on again
and close the fuel filler flap.
FILLING WITH FUEL Low fuel level
When the minimum fuel level is reached, this warn-ing light comes on, accom-panied by an audible signaland the message 'Fuel
level low' on the multi-function dis-
play.
You can can still drive approxi- mately 30 miles (50 km) withoutfilling up with fuel. Filling with fuelLocking and unlocking of the fuel filler flap, the doors and the boot issimultaneous (except when selectiveunlocking is initialised; in this casepress the unlocking button of theremote control again).
YOUR 607 IN DETAIL 111
