PRACTICAL INFORMATION
150
Correct Incorrect
Pliers A
CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
The replacement fuses and pliers A are fixed to the inside of the
fascia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault and
have it put right. The fuse numbersare indicated on the fuse box.  Use pliers A.
Always change a faulty fuse forone of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R- Replacement fuses.
1 30 A
Locking / deadlocking.
2 20 A Radio amplifier.
3 30 A Windscreen wash.
4 30 A Rear window switches on rear doors.
5 15 A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit, audiosystem / telephone.
6 10 A Rear right brake light.
02-02-2004

02-02-2004
PRACTICAL INFORMATION151
Fuse no. Rating Functions 7 10 A Switches, rear ashtray illumination, front courtesy light, rear courtesy light, rear lighter, number plate lighting, headlamp height adjustment.
8 10 A Diagnostic connector, headlamp height adjustment control unit, HF locking receiver,
passenger compartment air temperature sensor, HF tyre under-inflation receiver.
9 20 A Headlamp wash.
10 20 A Glove box lighting, front lighter, front and rear courtesy light, electrochrome interior mirror,electric exterior mirrors.
11 5 A Control unit for automatic lighting of headlamps, air bags control unit, safety relay for automatic lighting of headlamps.
12 30 A Rear window switches on driver's pad, rear windows.
13 30 A Windscreen wiper.
14 15 A Not used.
15 15 A Driver's door pad, passenger's door pad.
16 15 A Rear lighter.
17 5 A Heated exterior mirrors.
18 15 A Rear left brake light, additional brake light.
19 10 A Parking assistance control unit, navigation control unit.
20 15 A Alarm siren, monochrome screen or colour screen control unit, HF receiver, audio system /telephone, monochrome or colour navigation control unit, diesel additive control unit.
21 15 A Diagnostic connector, caravan socket, trailer sidelights relay.
22 15 A Diesel additive control unit, driver's seat memory control unit, driver's door pad, passenger'sdoor pad.
23 30 A Driver's window, passenger's window, sunroof safety auto-reverse, passenger window switch on driver's door pad and passenger's door pad.
24 10 A Rear fog lamp.
25 40 A PARC shunt.
26 40 A Heated rear screen, radio aerial amplifier.

02-02-2004
PRACTICAL INFORMATION
154

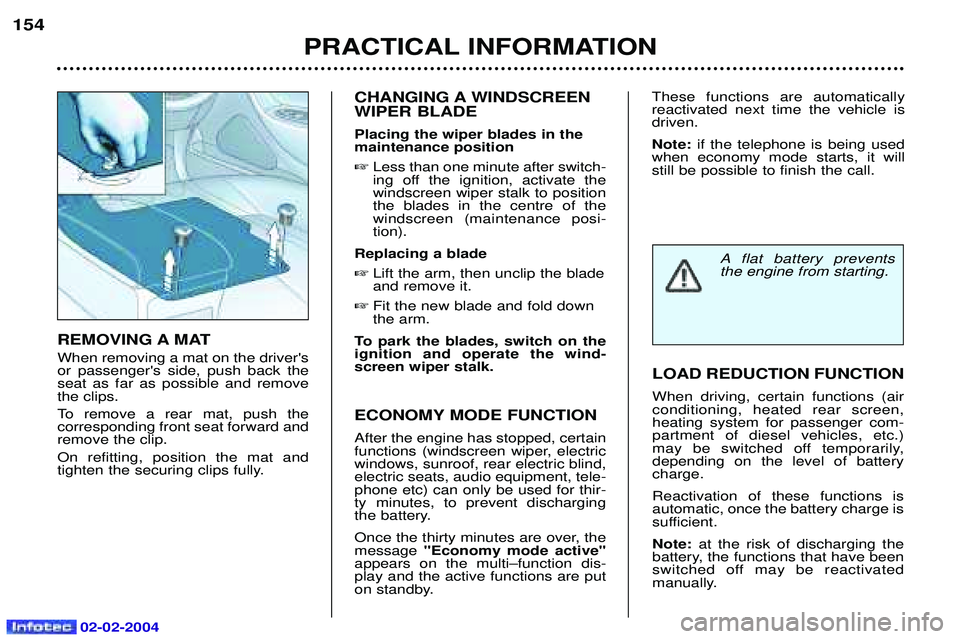

CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Less than one minute after switch-
ing off the ignition, activate thewindscreen wiper stalk to positionthe blades in the centre of thewindscreen (maintenance posi-tion).
Replacing a blade  Lift the arm, then unclip the bladeand remove it.
 Fit the new blade and fold downthe arm.
To park the blades, switch on theignition and operate the wind-screen wiper stalk.
REMOVING A MAT When removing a mat on the driver's or passenger's side, push back theseat as far as possible and removethe clips.
To remove a rear mat, push the corresponding front seat forward andremove the clip. On refitting, position the mat and
tighten the securing clips fully.
LOAD REDUCTION FUNCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
A flat battery prevents the engine from starting.
ECONOMY MODE FUNCTION After the engine has stopped, certain
functions (windscreen wiper, electricwindows, sunroof, rear electric blind,electric seats, audio equipment, tele-phone etc) can only be used for thir-ty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message "Economy mode active"
appears on the multiÐfunction dis-play and the active functions are put
on standby. These functions are automaticallyreactivated next time the vehicle isdriven. Note:
if the telephone is being used
when economy mode starts, it will still be possible to finish the call.

02-02-2004
- Do not disconnect theterminals while the engine is running.
- Do not recharge the batteries without disconnecting the termi-nals first.
- Close the windows and sunroof completely before disconnecting
the battery.
- Following reconnection of the battery, switch on the ignitionand wait 1 minute before star-ting the engine to permit initiali-sation of the electronic systems.
However, if minor problems per-sist after this operation, contact
a PEUGEOT dealer.

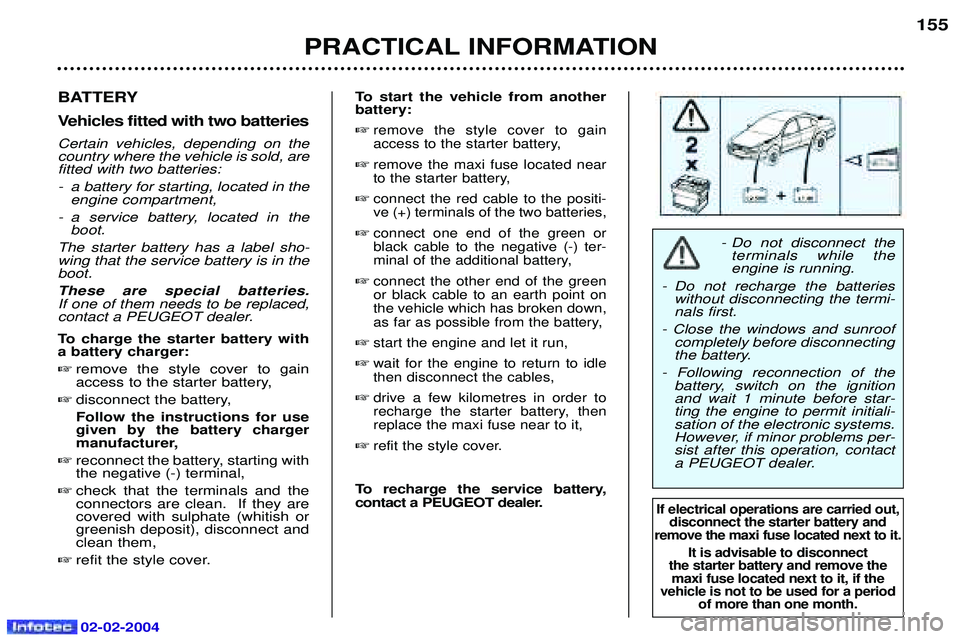

BATTERY
Vehicles fitted with two batteries Certain vehicles, depending on the country where the vehicle is sold, arefitted with two batteries:
- a battery for starting, located in theengine compartment,
- a service battery, located in the boot.
The starter battery has a label sho- wing that the service battery is in theboot. These are special batteries. If one of them needs to be replaced,
contact a PEUGEOT dealer.
To charge the starter battery with a battery charger:  remove the style cover to gain
access to the starter battery,
 disconnect the battery, Follow the instructions for use given by the battery charger
manufacturer,
 reconnect the battery, starting withthe negative (-) terminal,
 check that the terminals and theconnectors are clean. If they arecovered with sulphate (whitish orgreenish deposit), disconnect andclean them,
 refit the style cover. To start the vehicle from anotherbattery:

remove the style cover to gain
access to the starter battery,
remove the maxi fuse located near
to the starter battery,
connect the red cable to the positi-ve (+) terminals of the two batteries,
connect one end of the green orblack cable to the negative (-) ter-
minal of the additional battery,
connect the other end of the greenor black cable to an earth point onthe vehicle which has broken down,
as far as possible from the battery,
start the engine and let it run,
wait for the engine to return to idlethen disconnect the cables,
drive a few kilometres in order to
recharge the starter battery, thenreplace the maxi fuse near to it,
refit the style cover.
To recharge the service battery,
contact a PEUGEOT dealer.
PRACTICAL INFORMATION 155
If electrical operations are carried out,
disconnect the starter battery and
remove the maxi fuse located next to it.
It is advisable to disconnect
the starter battery and remove the maxi fuse located next to it, if the
vehicle is not to be used for a period of more than one month.

02-02-2004
PRACTICAL INFORMATION
156
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar.The towing eye is inside the spare wheel.From the front:
 Unclip the bottom of the cover, using the flat part of the towing eye,
 Screw in the towing eye until it locks.
From the rear:  Unclip the top of the cover using the flat part of the towing eye,
 Screw in the towing eye until it locks.
Lifting (2 wheels only on the road )It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
Ð lever in position
N,
Ð tow the vehicle at less than 30 mph (50 km/h) over a maximum distance of 30 miles (50 km).
Ð do not add oil to the gearbox.
When towing with theengine switched off,there is no brakingassistance

02-02-2004

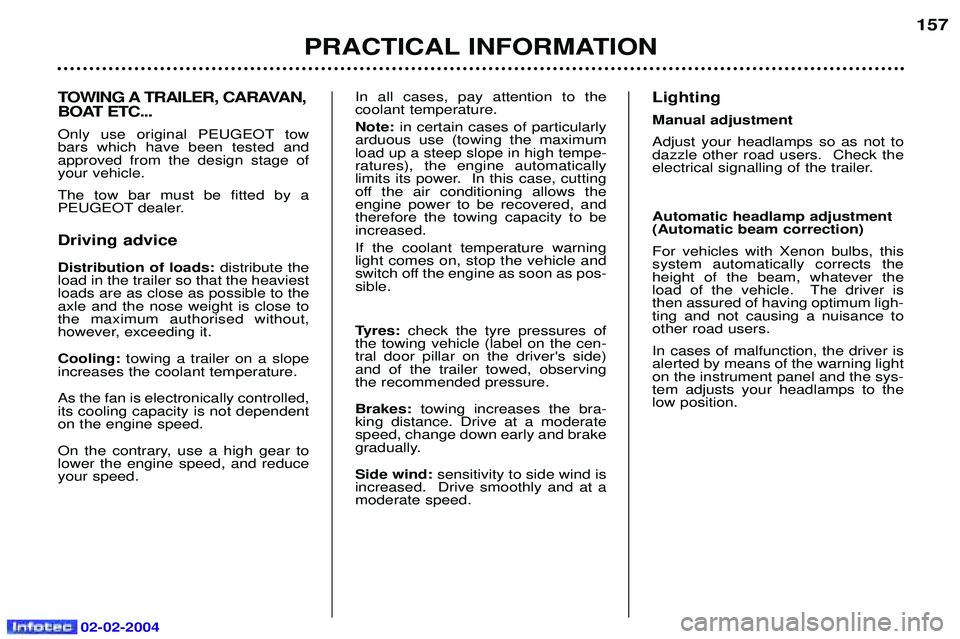

TOWING A TRAILER, CARAVAN,
BOAT ETC...
Only use original PEUGEOT tow bars which have been tested andapproved from the design stage ofyour vehicle. The tow bar must be fitted by a
PEUGEOT dealer. Driving advice Distribution of loads:distribute the
load in the trailer so that the heaviest loads are as close as possible to theaxle and the nose weight is close tothe maximum authorised without,
however, exceeding it. Cooling: towing a trailer on a slope
increases the coolant temperature.As the fan is electronically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. In all cases, pay attention to thecoolant temperature. Note:
in certain cases of particularly
arduous use (towing the maximum load up a steep slope in high tempe-ratures), the engine automatically
limits its power. In this case, cutting
off the air conditioning allows theengine power to be recovered, andtherefore the towing capacity to beincreased. If the coolant temperature warning light comes on, stop the vehicle and
switch off the engine as soon as pos-sible.
Tyres: check the tyre pressures of
the towing vehicle (label on the cen- tral door pillar on the driver's side)and of the trailer towed, observingthe recommended pressure. Brakes: towing increases the bra-
king distance. Drive at a moderate speed, change down early and brake
gradually. Side wind: sensitivity to side wind is
increased. Drive smoothly and at a moderate speed. Lighting Manual adjustmentAdjust your headlamps so as not to dazzle other road users. Check the
electrical signalling of the trailer. Automatic headlamp adjustment (Automatic beam correction) For vehicles with Xenon bulbs, this system automatically corrects theheight of the beam, whatever the
load of the vehicle. The driver isthen assured of having optimum ligh-ting and not causing a nuisance toother road users. In cases of malfunction, the driver is alerted by means of the warning lighton the instrument panel and the sys-tem adjusts your headlamps to thelow position.
PRACTICAL INFORMATION
157

PRACTICAL INFORMATION
158

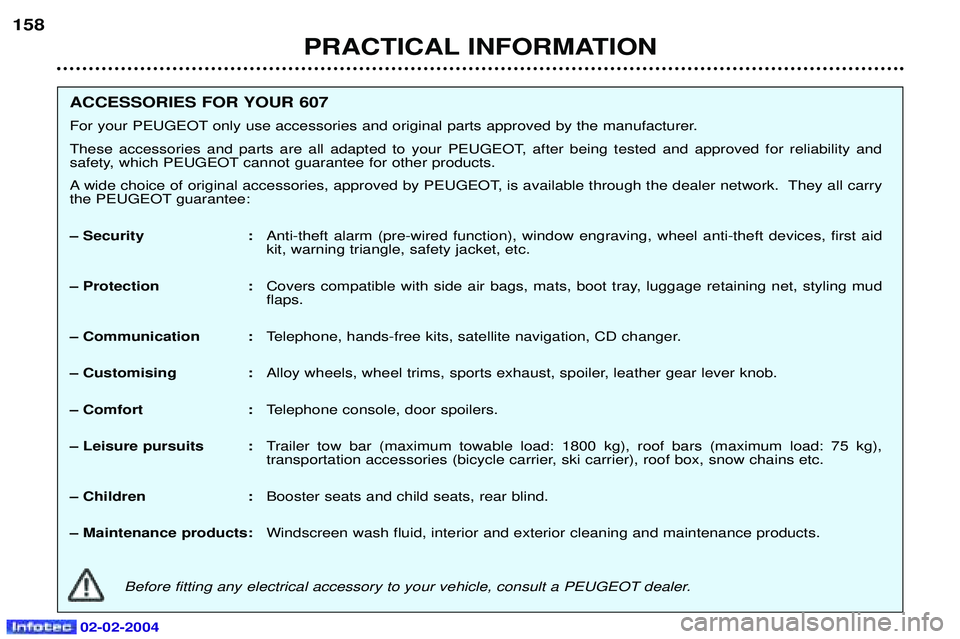

ACCESSORIES FOR YOUR 607
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee:
Ð Security :
Anti-theft alarm (pre-wired function), window engraving, wheel anti-theft devices, first aid kit, warning triangle, safety jacket, etc.
Ð Protection : Covers compatible with side air bags, mats, boot tray, luggage retaining net, styling mudflaps.
Ð Communication : Telephone, hands-free kits, satellite navigation, CD changer.
Ð Customising : Alloy wheels, wheel trims, sports exhaust, spoiler, leather gear lever knob.
Ð Comfort : Telephone console, door spoilers.
Ð Leisure pursuits : Trailer tow bar (maximum towable load: 1800 kg), roof bars (maximum load: 75 kg),
transportation accessories (bicycle carrier, ski carrier), roof box, snow chains etc.
Ð Children : Booster seats and child seats, rear blind.
Ð Maintenance products: Windscreen wash fluid, interior and exterior cleaning and maintenance products.
Before fitting any electrical accessory to your vehicle, consult a PEUGEOT dealer.
02-02-2004

02-02-2004
TECHNICAL DATA159
* According to country.
MODELS: Model codes
PETROL ENGINES
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power: EU standard (KW)Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm) FuelCatalytic converterElectronic injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement) Gearbox - Final drive 2 litre 16V 2.2 litre 16V 24V V6 Injection
1997 2230 2946
85x88 86x96 87x82.6 16 16 24
100 116 152
6000 5650 6000
190 217 285
4100 3900 3750
Unleaded* Unleaded Unleaded Ye s * Ye s Ye sYe s Ye s Ye s
Manual Manual Automatic Manual Automatic
(5-speed) (5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.751.9 1.85 8 1.85 8
