2004 PEUGEOT 607 Owners Manual

YOUR 607 IN DETAIL
60
'CALL SETTINGS' Network search: if automatic mode is active, your telephone will automatically select the cellular network available which
is compatible with your SIM card. In manual mode, you must choose from the list of networks the one which matches the operator who supplied you with your SIM card.
Voice mail: allows you to call your voice mail to listen to the latest messages received.
Call broadcast: activates the receipt of information issued by your network (depending on subscription agreement).
Call waiting: in the case of two simultaneous calls, you can go from one to the other.
Call diverting: allows incoming calls to be diverted to your voice mail or to another telephone number.
My phone number: allows three telephone numbers to be stored.
Barring: allows calls from the telephone to be restricted (it is necessary to use PIN 2 code).
Call ID display: allows your number to be disclosed to or withheld from the person being called (depending on subscription
agreement). 'TELEPHONE SETTINGS' Cumulative time: tells you the total duration of incoming and outgoing calls.
Ring tone: allows you to select a ring tone from the six options.
Ring volume: allows you to adjust the ring volume of the incoming call.
Operating tone: allows you to activate or disarm the sound signal (bleep) emitted each time a button is pressed, and to
adjust the volume.
TEL position: allows you to select the monitor speakers (left side/right side/both).
Automatic answer: allows you to programme the automatic reply (after five seconds) to an incoming call.
Automatic redial: when your call is not successful, automatic redial (ten times maximum) of the same number.
PIN request: protects your SIM card against any unauthorised use.
PIN change: lets you change your pin code.
Language select: lets you select the displayed language (French/English/German/Spanish/Italian/Dutch).
Master reset: lets you restore the initial parameters of your telephone, without erasing the information in the memory.
02-02-2004

02-02-2004
YOUR 607 IN DETAIL61
Using the alphanumeric keypad
To go from inputting in upper case to inputting in lower case, press and hold one of the keypad buttons numbered 0 to 9.Buttons Hand Fof the keypad allow you to move the cursor to the left or right respectively, when you are inputting.
Buttons Upper case Lower case
[1] (space) . , ! ? ¡ ¿ : ; ' " () % & 1 (space) . , ! ? ¡ ¿ : ; ' " ( ) % & 1
[2] A B C Ä Å Æ Ç à 2 a b c ä å æ Ç à 2
[3] D E F É È
F 3 d e f é è F3
[4] G H I ì G 4 g h i ì G 4
[5] J K L L 5 j k l L 5
[6] M N O Ñ Ö Ø ò
6 m n o ñ ö ø ò 6
[7] P Q R S ß
7 p q r s ß 7
[8] T U V Ü ù Q 8 t u v ù Q 8
[9] W X Y Z X Y 9 w x y X Y 9
[10] + - * / = < > # § £ $ ¥ @ 0 + - * / = < > # § £ $ ¥ @ 0
Erasing
To erase the last character input, briefly press this button once.
To erase the whole line of characters, press this button down (more than two seconds).

02-02-2004
YOUR 607 IN DETAIL
62

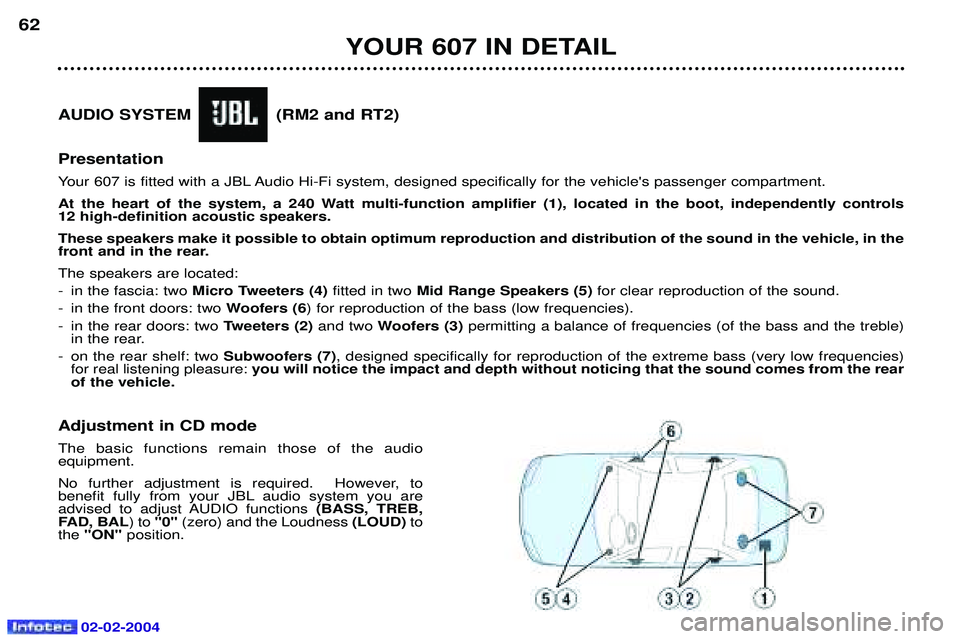

AUDIO SYSTEM (RM2 and RT2) Presentation
Your 607 is fitted with a JBL Audio Hi-Fi system, designed specifically for the vehicle's passenger compartment.
At the heart of the system, a 240 Watt multi-function amplifier (1), located in the boot, independently controls 12 high-definition acoustic speakers. These speakers make it possible to obtain optimum reproduction and distribution of the sound in the vehicle, in the
front and in the rear. The speakers are located:
- in the fascia: two Micro Tweeters (4) fitted in two Mid Range Speakers (5) for clear reproduction of the sound.
- in the front doors: two Woofers (6) for reproduction of the bass (low frequencies).
- in the rear doors: two Tweeters (2) and two Woofers (3) permitting a balance of frequencies (of the bass and the treble)
in the rear.
- on the rear shelf: two Subwoofers (7), designed specifically for reproduction of the extreme bass (very low frequencies)
for real listening pleasure: you will notice the impact and depth without noticing that the sound comes from the rear
of the vehicle.
Adjustment in CD mode The basic functions remain those of the audio equipment.
No further adjustment is required. However, to
benefit fully from your JBL audio system you are
advised to adjust AUDIO functions (BASS, TREB,
FAD, BAL ) to"0" (zero) and the Loudness (LOUD)to
the "ON" position.

This kit enables you to use a Bluetooth mobile telephone, in "hands-free" mode. It consists of:
- a shoe* Alocated in the upper compartment of the front armrest, intended
to accommodate the mobile telephone,
- a microphone Blocated in the front courtesy light.
The shoe* holds the NOKIA 6310(i) telephone and connects its aerial to the roof aerial. The hands-free telephone kit uses the following on-board functions:
- the audio system of the RM2 audio equipment,
- the steering wheel control or the multi-function display control keypad,
- the multi-function display which displays the telephone's main functions.
HANDS-FREE TELEPHONE KIT
Using the steering wheel control
* According to model. Movement of the lever Command carried out
1
- Upwards Increase volume
2- Downwards Decrease volume
3 - Forwards Upwards selection of a previous page of the
directory - Press for more than 2 seconds:
access to the first page of the directory
4 - Rearwards Downw ards selection of a following page of
the directory - Press for more than 2 seconds:
access to the last page of the directory
5 - Pressing the end Confirmation of the current selection -
Press for more than 2 seconds: rapid
access to the directories
6- Rotation (clockwise) Selection of the next element
7 - Rotation (anti-clockwise) Selection of the previous element
YOUR 607 IN DETAIL
63
02-02-2004

02-02-2004

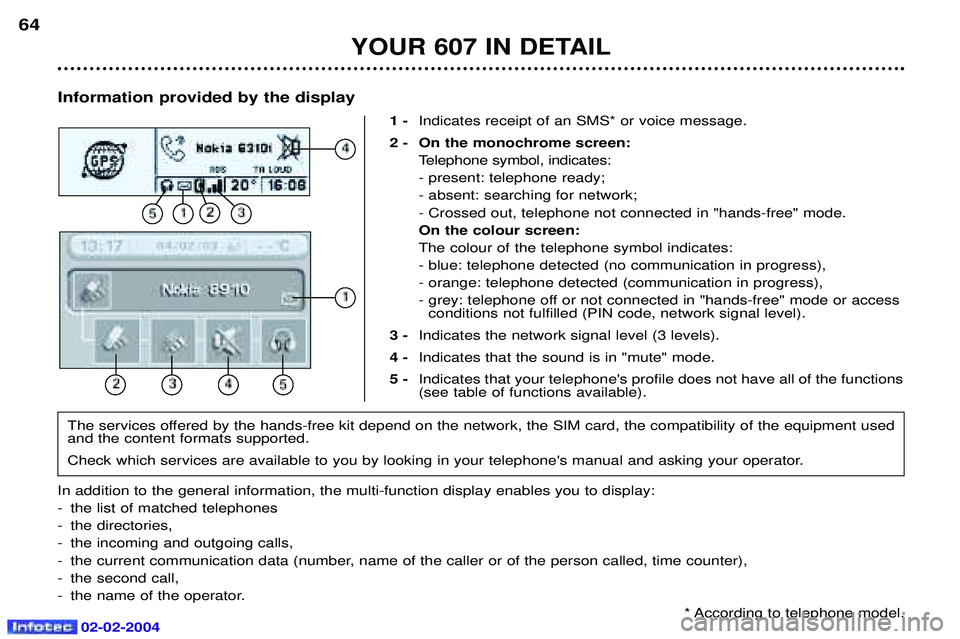

Information provided by the display1 -Indicates receipt of an SMS* or voice message.
2 - On the monochrome screen: Telephone symbol, indicates: - present: telephone ready;- absent: searching for network;- Crossed out, telephone not connected in "hands-free" mode.On the colour screen:The colour of the telephone symbol indicates:- blue: telephone detected (no communication in progress),- orange: telephone detected (communication in progress),
- grey: telephone off or not connected in "hands-free" mode or accessconditions not fulfilled (PIN code, network signal level).
3 - Indicates the network signal level (3 levels).
4 - Indicates that the sound is in "mute" mode.
5 - Indicates that your telephone's profile does not have all of the functions (see table of functions available).
YOUR 607 IN DETAIL
64
The services offered by the hands-free kit depend on the network, the SIM card, the compatibility of the equipment used and the content formats supported.
Check which services are available to you by looking in your telephone's manual and asking your operator.
In addition to the general information, the multi-function display enables you to display:
- the list of matched telephones
- the directories,
- the incoming and outgoing calls,
- the current communication data (number, name of the caller or of the person called, time counter),
- the second call,
- the name of the operator. * According to telephone model.

02-02-2004
When the telephone has been matched, it appears on the list"Select a Bluetooth telephone".
Note: to delete a match, select
"Delete a pairing" from the
"Hands-free operation" menu.
YOUR 607 IN DETAIL
65
Matching the Bluetooth telephone with the hands-free kit When a telephone is used with the hands-free kit for the first time, youmust match your telephone and thehands-free kit.
You can match up to 3 telephones with the hands-free kit. Note: this operation can only be car-
ried out with the engine off, key in the ignition or accessories position andwith no telephone connected to thehands-free kit. - activate the Bluetooth function on your telephone,
- carry out a search for Bluetooth accessories present from your telephone,
- select the accessory which appears with the name of yourvehicle. A superimposed confirmation display appears on the screen.
- accept the match by selecting the
"YES" tab using the ring and by
confirming by pressing the end of the steering wheel control,
- enter the authentication code "1234" on the telephone.
When this procedure has been com-pleted, a superimposed displayinforms you of the success or failureof the matching operation.

02-02-2004
Using the telephone directories Note: the commands sent using the
steering wheel control can also be sent using the multi-function displaycontrol keypad dial (refer to the"satellite navigation system" sec-tion).
You can access the "Telephpone
directories" menu from the
"Hands-free operation" menu or by
means of an extended press on end of the steering wheel control.
YOUR 607 IN DETAIL
66

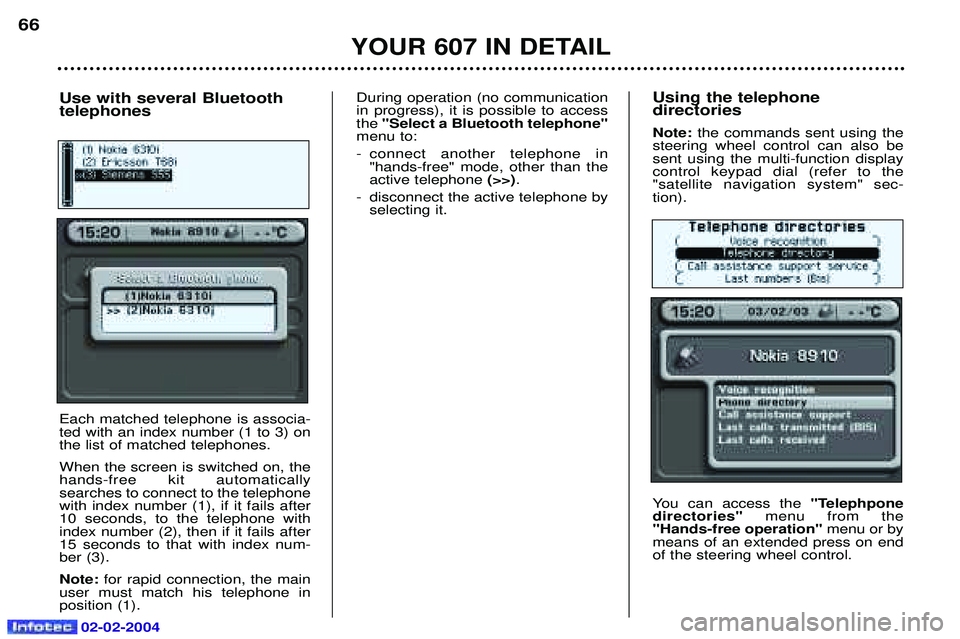

Use with several Bluetooth telephones Each matched telephone is associa- ted with an index number (1 to 3) onthe list of matched telephones. When the screen is switched on, the hands-free kit automaticallysearches to connect to the telephonewith index number (1), if it fails after10 seconds, to the telephone withindex number (2), then if it fails after15 seconds to that with index num-ber (3). Note: for rapid connection, the main
user must match his telephone in position (1). During operation (no communicationin progress), it is possible to accessthe
"Select a Bluetooth telephone"
menu to:
- connect another telephone in "hands-free" mode, other than the active telephone (>>).
- disconnect the active telephone by selecting it.

02-02-2004
YOUR 607 IN DETAIL
67

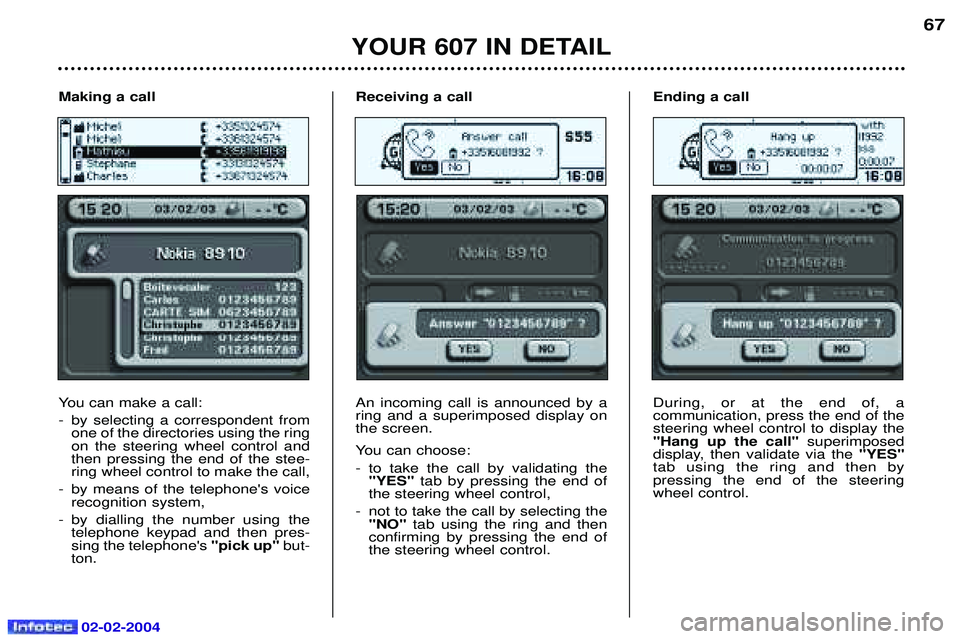

Receiving a call An incoming call is announced by a ring and a superimposed display onthe screen.
You can choose:
- to take the call by validating the "YES" tab by pressing the end of
the steering wheel control,
- not to take the call by selecting the "NO" tab using the ring and then
confirming by pressing the end of the steering wheel control. Ending a call During, or at the end of, a communication, press the end of thesteering wheel control to display the"Hang up the call"
superimposed
display, then validate via the "YES"
tab using the ring and then bypressing the end of the steeringwheel control.
Making a call
You can make a call:
- by selecting a correspondent from
one of the directories using the ring on the steering wheel control andthen pressing the end of the stee-ring wheel control to make the call,
- by means of the telephone's voice recognition system,
- by dialling the number using the telephone keypad and then pres-sing the telephone's "pick up"but-
ton.
