2004 NISSAN MURANO Owners Manual

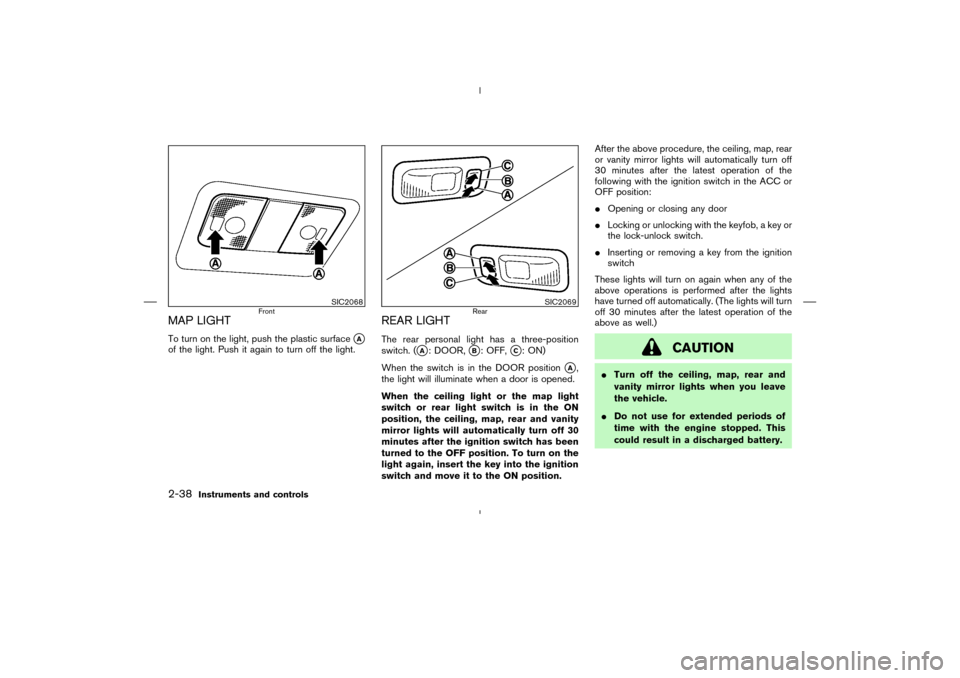

MAP LIGHTTo turn on the light, push the plastic surface
A
of the light. Push it again to turn off the light.
REAR LIGHTThe rear personal light has a three-position
switch. (
A: DOOR,
B: OFF,
C: ON)
When the switch is in the DOOR position
A,
the light will illuminate when a door is opened.
When the ceiling light or the map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, insert the key into the ignition
switch and move it to the ONposition.After the above procedure, the ceiling, map, rear
or vanity mirror lights will automatically turn off
30 minutes after the latest operation of the
following with the ignition switch in the ACC or
OFF position:

Opening or closing any door

Locking or unlocking with the keyfob, a key or
the lock-unlock switch.

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the ceiling, map, rear and
vanity mirror lights when you leave
the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2068
Front
SIC2069
Rear
2-38
Instruments and controls


04.4.5/Z50-D/V5.0

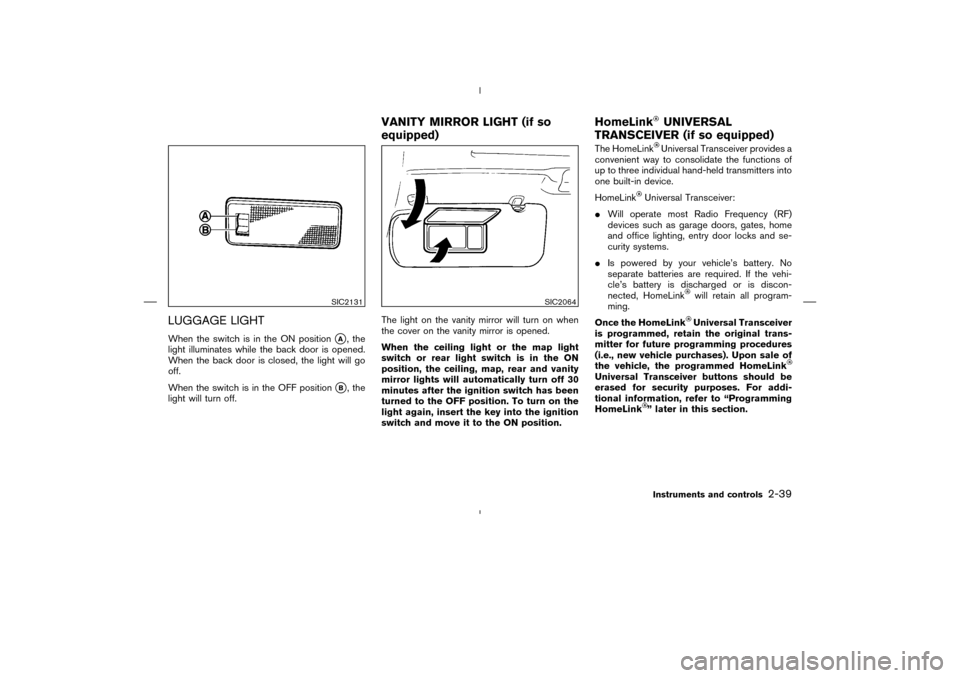

LUGGAGE LIGHTWhen the switch is in the ON position
A, the
light illuminates while the back door is opened.
When the back door is closed, the light will go
off.
When the switch is in the OFF position
B, the
light will turn off.The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the ceiling light or the map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, insert the key into the ignition
switch and move it to the ONposition.The HomeLink
Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
Universal Transceiver:

Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.

Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink
will retain all program-
ming.
Once the HomeLinkUniversal Transceiver
is programmed, retain the original trans-
mitter for future programming procedures
(i.e., new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink
Universal Transceiver buttons should be
erased for security purposes. For addi-
tional information, refer to “Programming
HomeLink
” later in this section.
SIC2131
SIC2064
VANITY MIRROR LIGHT (if so
equipped)HomeLink
UNIVERSAL
TRANSCEIVER (if so equipped)Instruments and controls
2-39


04.4.5/Z50-D/V5.0

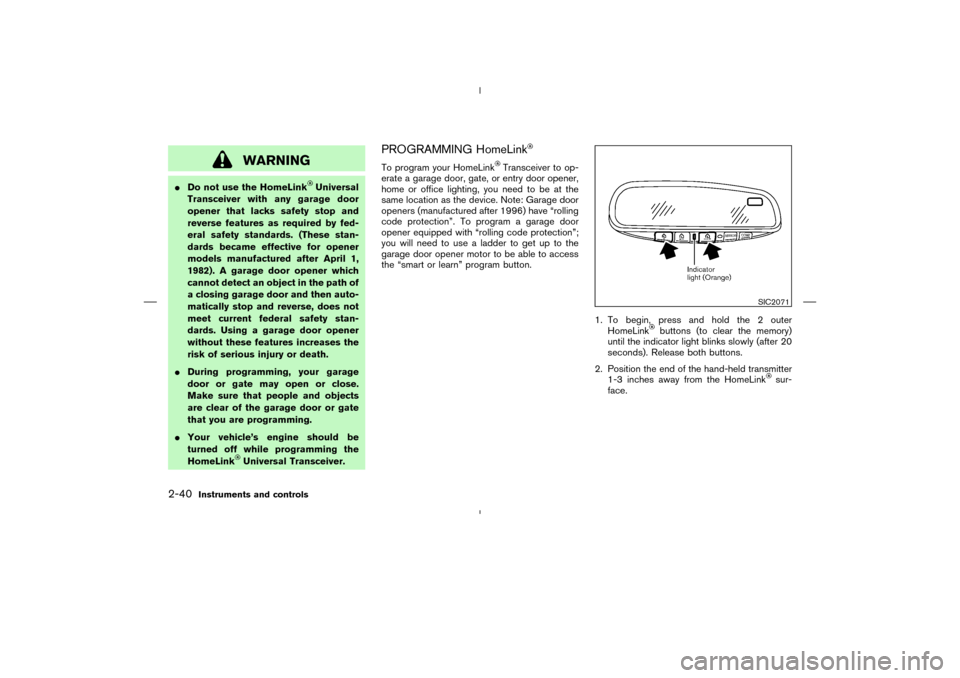

WARNING

Do not use the HomeLink
Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-
dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.

During programming, your garage
door or gate may open or close.
Make sure that people and objects
are clear of the garage door or gate
that you are programming.

Your vehicle’s engine should be
turned off while programming the
HomeLink
Universal Transceiver.
PROGRAMMING HomeLinkTo program your HomeLink
Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.
1. To begin, press and hold the 2 outer
HomeLink
buttons (to clear the memory)
until the indicator light blinks slowly (after 20
seconds). Release both buttons.
2. Position the end of the hand-held transmitter
1-3 inches away from the HomeLink
sur-
face.
SIC2071
2-40
Instruments and controls


04.4.5/Z50-D/V5.0

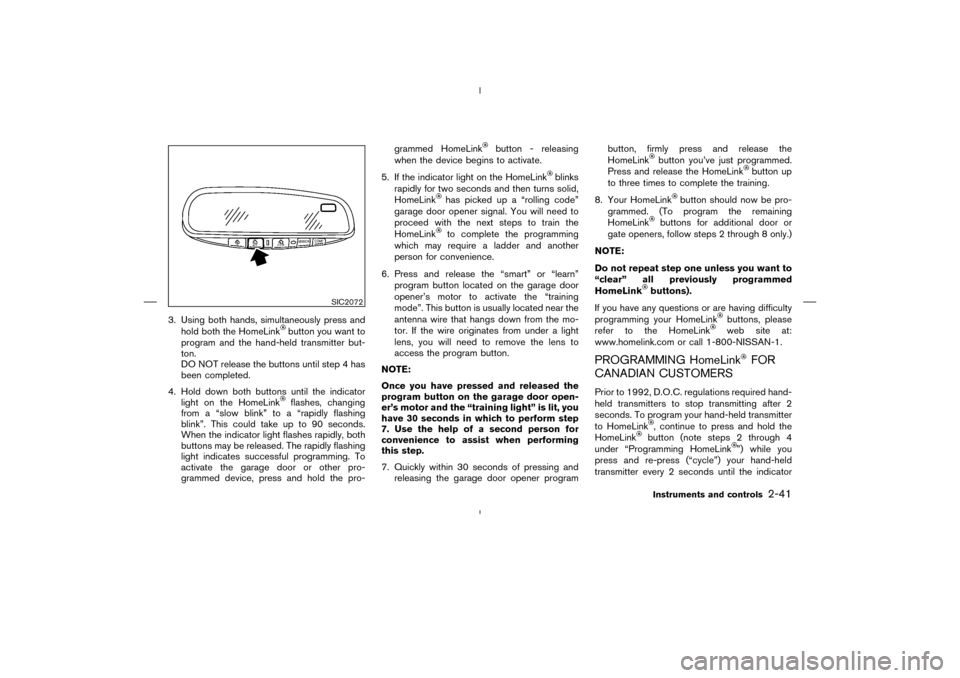

3. Using both hands, simultaneously press and
hold both the HomeLink
button you want to
program and the hand-held transmitter but-
ton.
DO NOT release the buttons until step 4 has
been completed.
4. Hold down both buttons until the indicator
light on the HomeLinkflashes, changing
from a “slow blink” to a “rapidly flashing
blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both
buttons may be released. The rapidly flashing
light indicates successful programming. To
activate the garage door or other pro-
grammed device, press and hold the pro-grammed HomeLink
button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink
blinks
rapidly for two seconds and then turns solid,
HomeLink
has picked up a “rolling code”
garage door opener signal. You will need to
proceed with the next steps to train the
HomeLinkto complete the programming
which may require a ladder and another
person for convenience.
6. Press and release the “smart” or “learn”
program button located on the garage door
opener’s motor to activate the “training
mode”. This button is usually located near the
antenna wire that hangs down from the mo-
tor. If the wire originates from under a light
lens, you will need to remove the lens to
access the program button.
NOTE:
Once you have pressed and released the
program button on the garage door open-
er’s motor and the “training light” is lit, you
have 30 seconds in which to perform step
7. Use the help of a second person for
convenience to assist when performing
this step.
7. Quickly within 30 seconds of pressing and
releasing the garage door opener programbutton, firmly press and release the
HomeLink
button you’ve just programmed.
Press and release the HomeLink
button up
to three times to complete the training.
8. Your HomeLink
button should now be pro-
grammed. (To program the remaining
HomeLink
buttons for additional door or
gate openers, follow steps 2 through 8 only.)
NOTE:
Do not repeat step one unless you want to
“clear” all previously programmed
HomeLinkbuttons).
If you have any questions or are having difficulty
programming your HomeLink
buttons, please
refer to the HomeLinkwebsite at:
www.homelink.com or call 1-800-NISSAN-1.
PROGRAMMING HomeLink
FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmitter
to HomeLink
, continue to press and hold the
HomeLinkbutton (note steps 2 through 4
under “Programming HomeLink
”) while you
press and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
SIC2072
Instruments and controls
2-41


04.4.5/Z50-D/V5.0

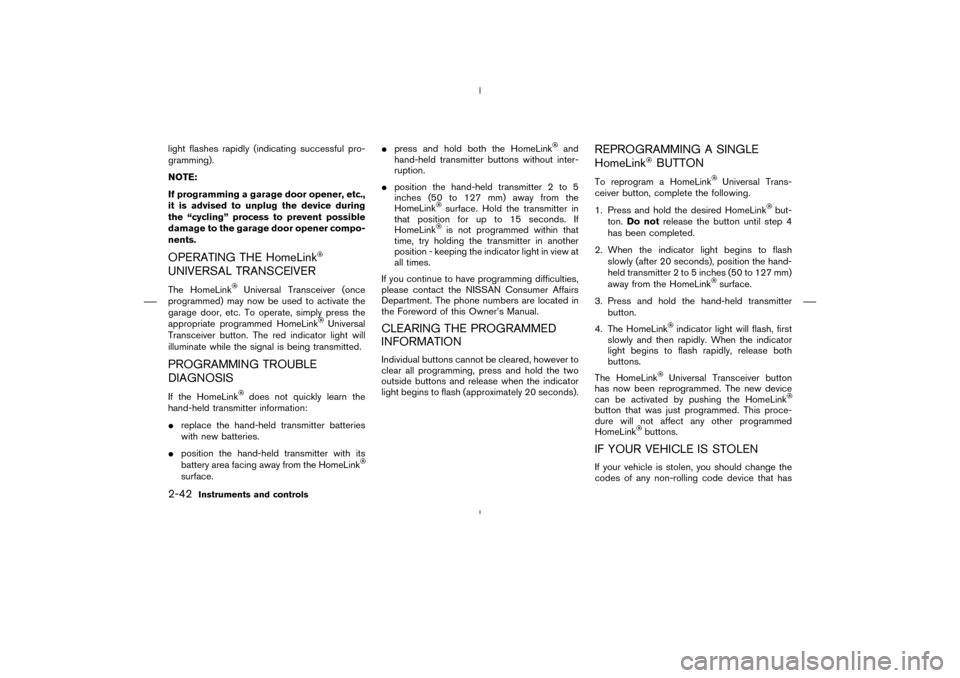

light flashes rapidly (indicating successful pro-
gramming).
NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener compo-
nents.OPERATING THE HomeLinkUNIVERSAL TRANSCEIVERThe HomeLink
Universal Transceiver (once
programmed) may now be used to activate the
garage door, etc. To operate, simply press the
appropriate programmed HomeLink
Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE
DIAGNOSISIf the HomeLink
does not quickly learn the
hand-held transmitter information:

replace the hand-held transmitter batteries
with new batteries.

position the hand-held transmitter with its
battery area facing away from the HomeLink
surface.
press and hold both the HomeLink
and
hand-held transmitter buttons without inter-
ruption.

position the hand-held transmitter 2 to 5
inches (50 to 127 mm) away from the
HomeLink
surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLinkis not programmed within that
time, try holding the transmitter in another
position - keeping the indicator light in view at
all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATIONIndividual buttons cannot be cleared, however to
clear all programming, press and hold the two
outside buttons and release when the indicator
light begins to flash (approximately 20 seconds).
REPROGRAMMING A SINGLE
HomeLink
BUTTON
To reprogram a HomeLink
Universal Trans-
ceiver button, complete the following.
1. Press and hold the desired HomeLink
but-
ton.Do notrelease the button until step 4
has been completed.
2. When the indicator light begins to flash
slowly (after 20 seconds), position the hand-
held transmitter 2 to 5 inches (50 to 127 mm)
away from the HomeLink
surface.
3. Press and hold the hand-held transmitter
button.
4. The HomeLink
indicator light will flash, first
slowly and then rapidly. When the indicator
light begins to flash rapidly, release both
buttons.
The HomeLinkUniversal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
buttons.
IF YOUR VEHICLE IS STOLENIf your vehicle is stolen, you should change the
codes of any non-rolling code device that has
2-42
Instruments and controls


04.4.5/Z50-D/V5.0

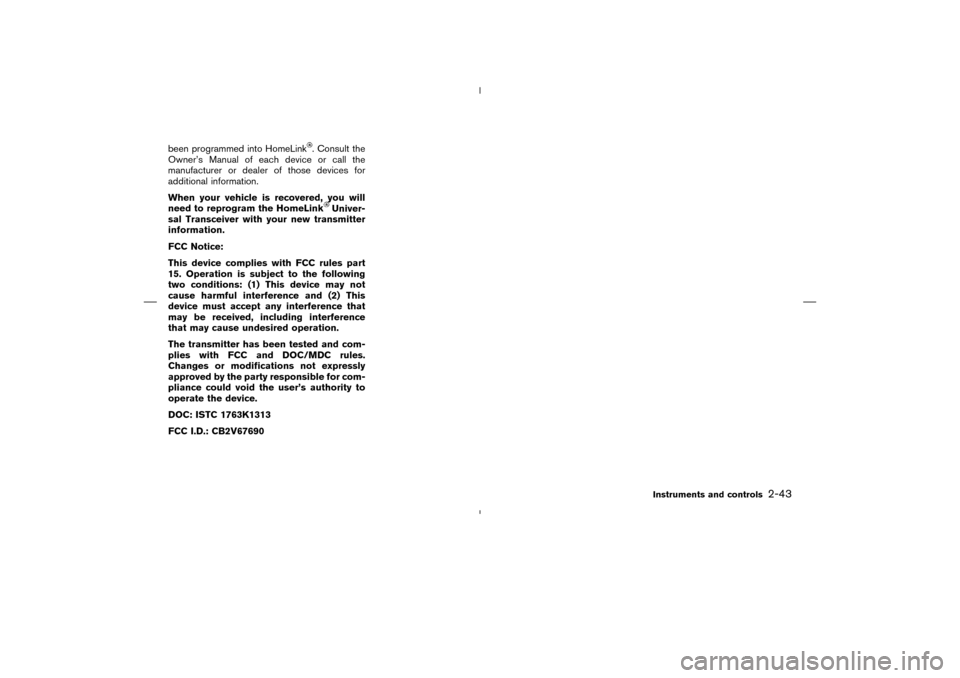

been programmed into HomeLink
. Consult the
Owner’s Manual of each device or call the
manufacturer or dealer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
This device complies with FCC rules part
15. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference and (2) This
device must accept any interference that
may be received, including interference
that may cause undesired operation.
The transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
Instruments and controls
2-43


04.4.5/Z50-D/V5.0

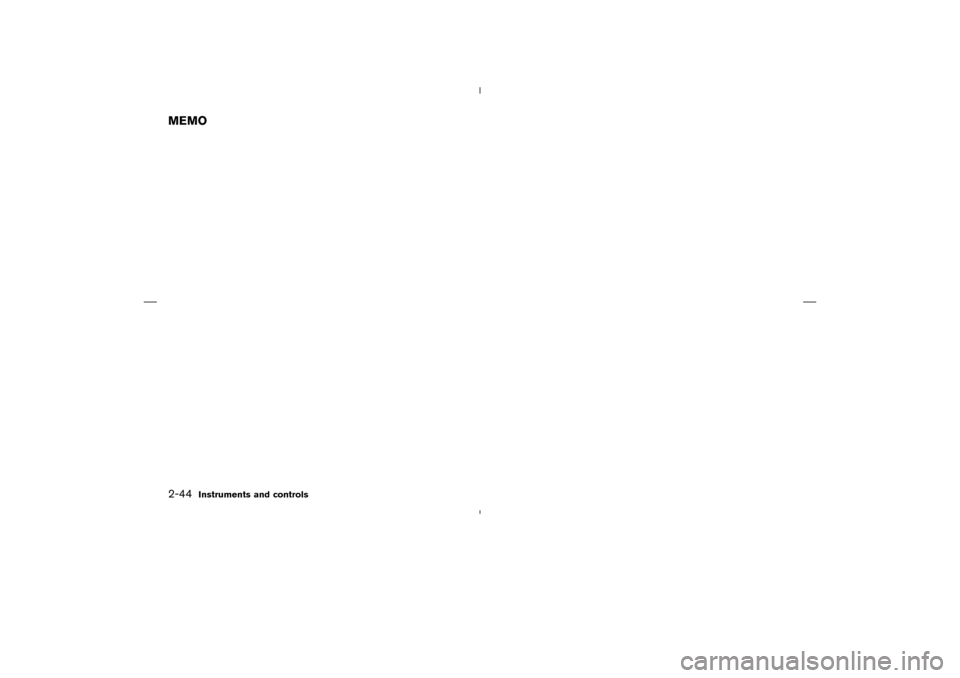

MEMO2-44
Instruments and controls


04.4.5/Z50-D/V5.0

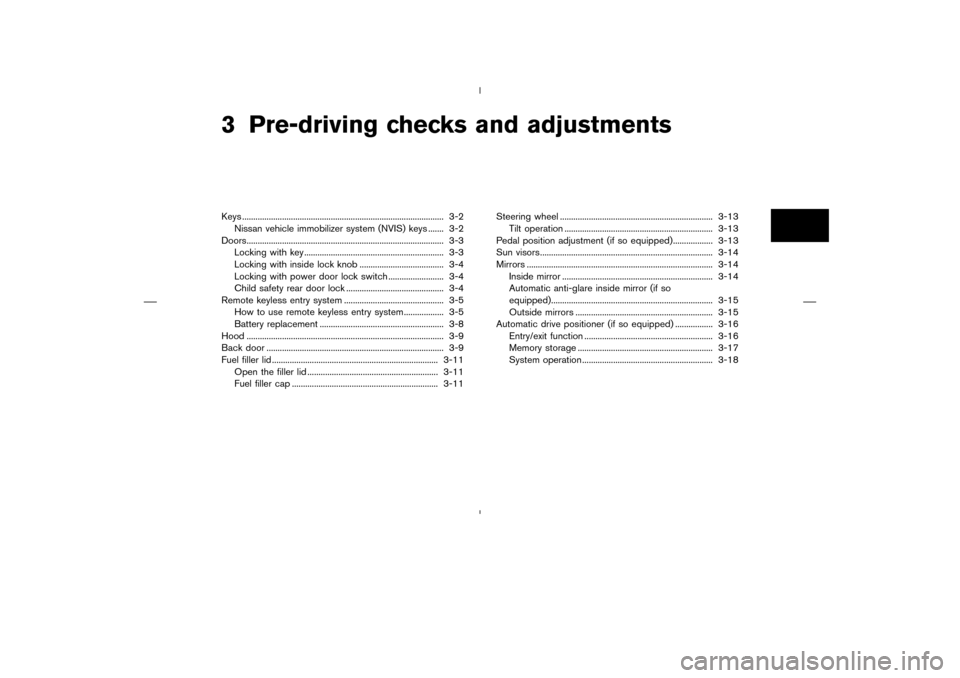

3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
Nissan vehicle immobilizer system (NVIS) keys ....... 3-2
Doors......................................................................................... 3-3
Locking with key ............................................................... 3-3
Locking with inside lock knob...................................... 3-4
Locking with power door lock switch ......................... 3-4
Child safety rear door lock ............................................ 3-4
Remote keyless entry system ............................................. 3-5
How to use remote keyless entry system.................. 3-5
Battery replacement ........................................................ 3-8
Hood ......................................................................................... 3-9
Back door ................................................................................ 3-9
Fuel filler lid ........................................................................... 3-11
Open the filler lid ........................................................... 3-11
Fuel filler cap .................................................................. 3-11Steering wheel ..................................................................... 3-13
Tilt operation ................................................................... 3-13
Pedal position adjustment (if so equipped).................. 3-13
Sun visors.............................................................................. 3-14
Mirrors .................................................................................... 3-14
Inside mirror .................................................................... 3-14
Automatic anti-glare inside mirror (if so
equipped)......................................................................... 3-15
Outside mirrors .............................................................. 3-15
Automatic drive positioner (if so equipped) ................. 3-16
Entry/exit function .......................................................... 3-16
Memory storage ............................................................. 3-17
System operation ........................................................... 3-18


04.4.5/Z50-D/V5.0
