2004 NISSAN MURANO Owners Manual

WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.

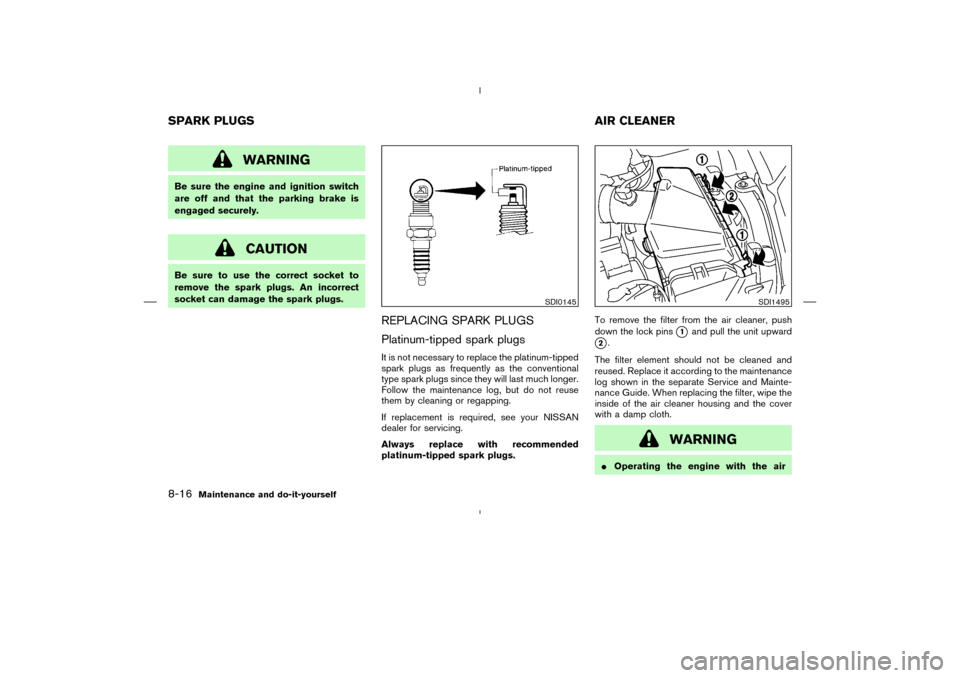

REPLACING SPARK PLUGS
Platinum-tipped spark plugsIt is not necessary to replace the platinum-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance log, but do not reuse
them by cleaning or regapping.
If replacement is required, see your NISSAN
dealer for servicing.
Always replace with recommended
platinum-tipped spark plugs.To remove the filter from the air cleaner, push
down the lock pins
1
and pull the unit upward
2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
log shown in the separate Service and Mainte-
nance Guide. When replacing the filter, wipe the
inside of the air cleaner housing and the cover
with a damp cloth.
WARNING

Operating the engine with the air
SDI0145
SDI1495
SPARK PLUGS AIR CLEANER8-16
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

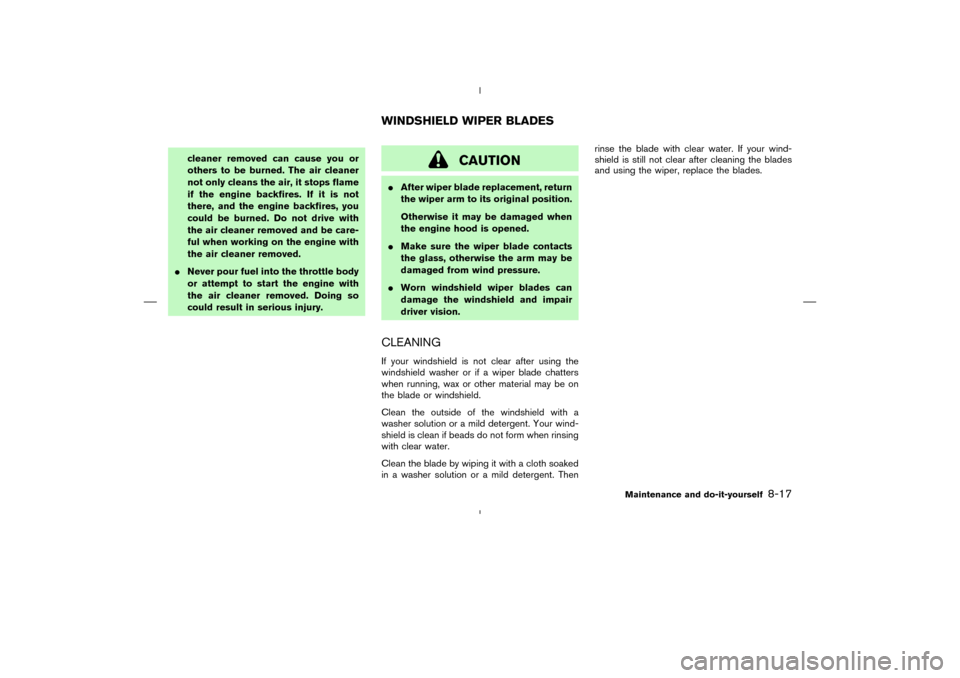

cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it is not
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed and be care-
ful when working on the engine with
the air cleaner removed.

Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
CAUTION

After wiper blade replacement, return
the wiper arm to its original position.
Otherwise it may be damaged when
the engine hood is opened.

Make sure the wiper blade contacts
the glass, otherwise the arm may be
damaged from wind pressure.

Worn windshield wiper blades can
damage the windshield and impair
driver vision.CLEANINGIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when rinsing
with clear water.
Clean the blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Thenrinse the blade with clear water. If your wind-
shield is still not clear after cleaning the blades
and using the wiper, replace the blades.WINDSHIELD WIPER BLADES
Maintenance and do-it-yourself
8-17


04.4.5/Z50-D/V5.0

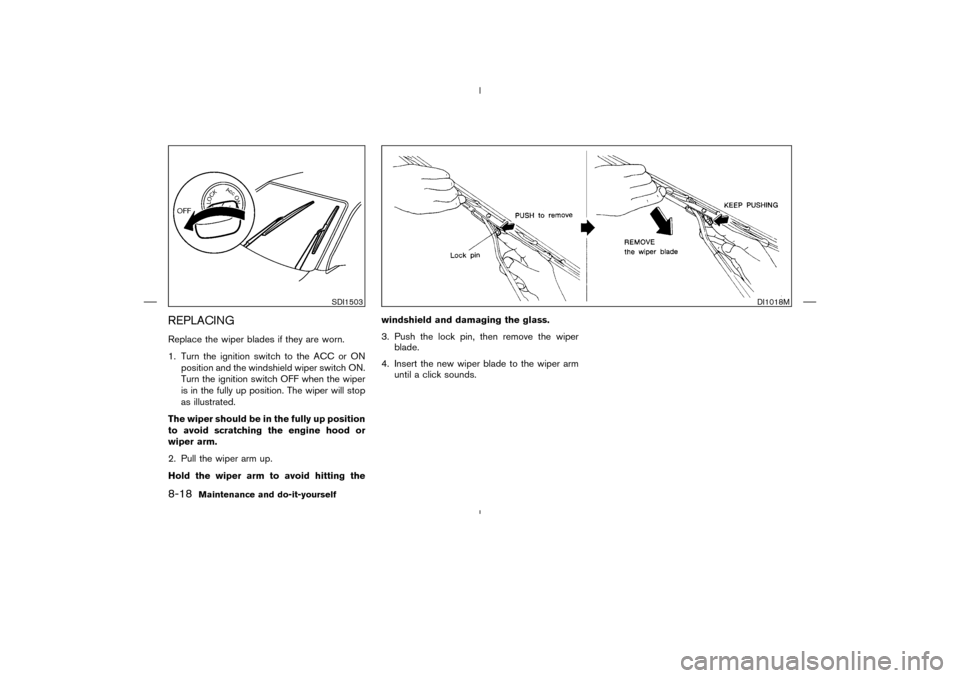

REPLACINGReplace the wiper blades if they are worn.
1. Turn the ignition switch to the ACC or ON
position and the windshield wiper switch ON.
Turn the ignition switch OFF when the wiper
is in the fully up position. The wiper will stop
as illustrated.
The wiper should be in the fully up position
to avoid scratching the engine hood or
wiper arm.
2. Pull the wiper arm up.
Hold the wiper arm to avoid hitting thewindshield and damaging the glass.
3. Push the lock pin, then remove the wiper
blade.
4. Insert the new wiper blade to the wiper arm
until a click sounds.
SDI1503
DI1018M
8-18
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

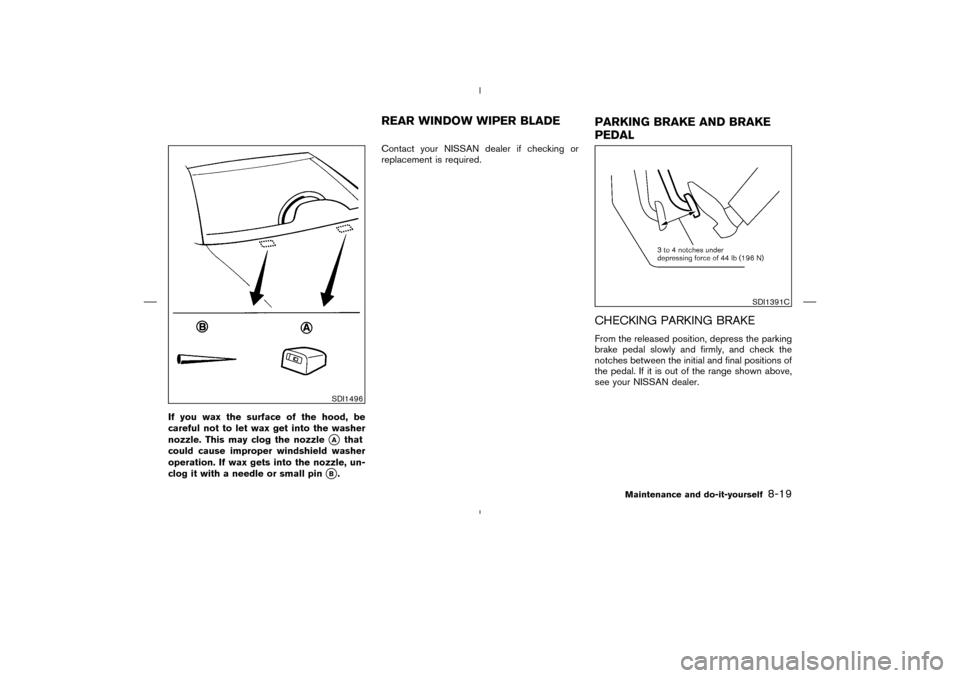

If you wax the surface of the hood, be
careful not to let wax get into the washer
nozzle. This may clog the nozzle
A
that
could cause improper windshield washer
operation. If wax gets into the nozzle, un-
clog it with a needle or small pin
B.Contact your NISSAN dealer if checking or
replacement is required.
CHECKING PARKING BRAKEFrom the released position, depress the parking
brake pedal slowly and firmly, and check the
notches between the initial and final positions of
the pedal. If it is out of the range shown above,
see your NISSAN dealer.
SDI1496
SDI1391C
REAR WINDOW WIPER BLADE
PARKING BRAKE AND BRAKE
PEDAL
Maintenance and do-it-yourself
8-19


04.4.5/Z50-D/V5.0

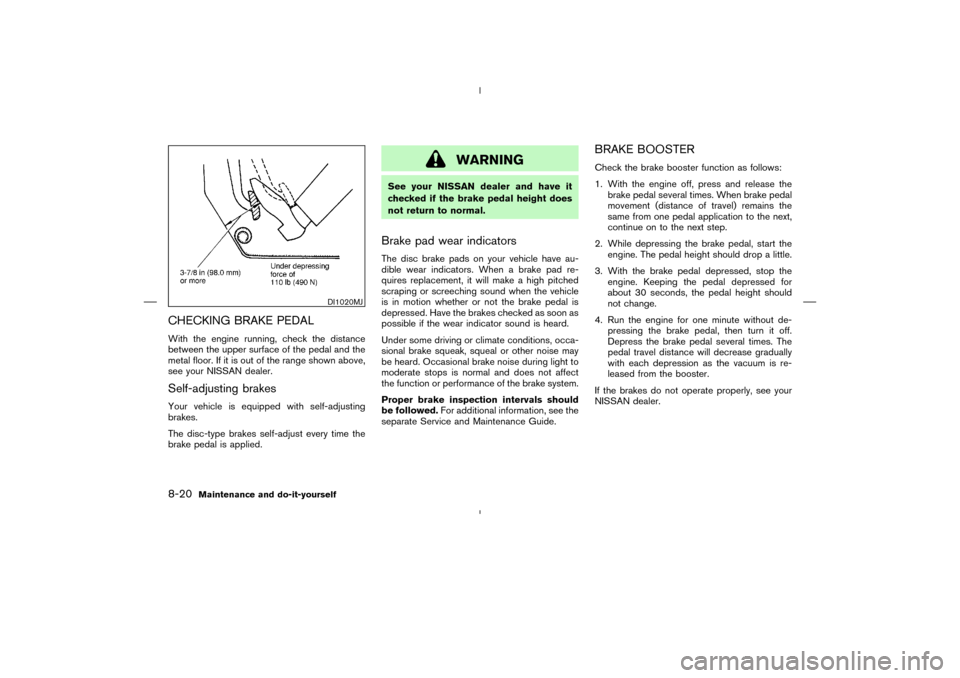

CHECKING BRAKE PEDALWith the engine running, check the distance
between the upper surface of the pedal and the
metal floor. If it is out of the range shown above,
see your NISSAN dealer.Self-adjusting brakesYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See your NISSAN dealer and have it
checked if the brake pedal height does
not return to normal.Brake pad wear indicatorsThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals should
be followed.For additional information, see the
separate Service and Maintenance Guide.
BRAKE BOOSTERCheck the brake booster function as follows:
1. With the engine off, press and release the
brake pedal several times. When brake pedal
movement (distance of travel) remains the
same from one pedal application to the next,
continue on to the next step.
2. While depressing the brake pedal, start the
engine. The pedal height should drop a little.
3. With the brake pedal depressed, stop the
engine. Keeping the pedal depressed for
about 30 seconds, the pedal height should
not change.
4. Run the engine for one minute without de-
pressing the brake pedal, then turn it off.
Depress the brake pedal several times. The
pedal travel distance will decrease gradually
with each depression as the vacuum is re-
leased from the booster.
If the brakes do not operate properly, see your
NISSAN dealer.
DI1020MJ
8-20
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0


CAUTION
Never use a fuse of higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.

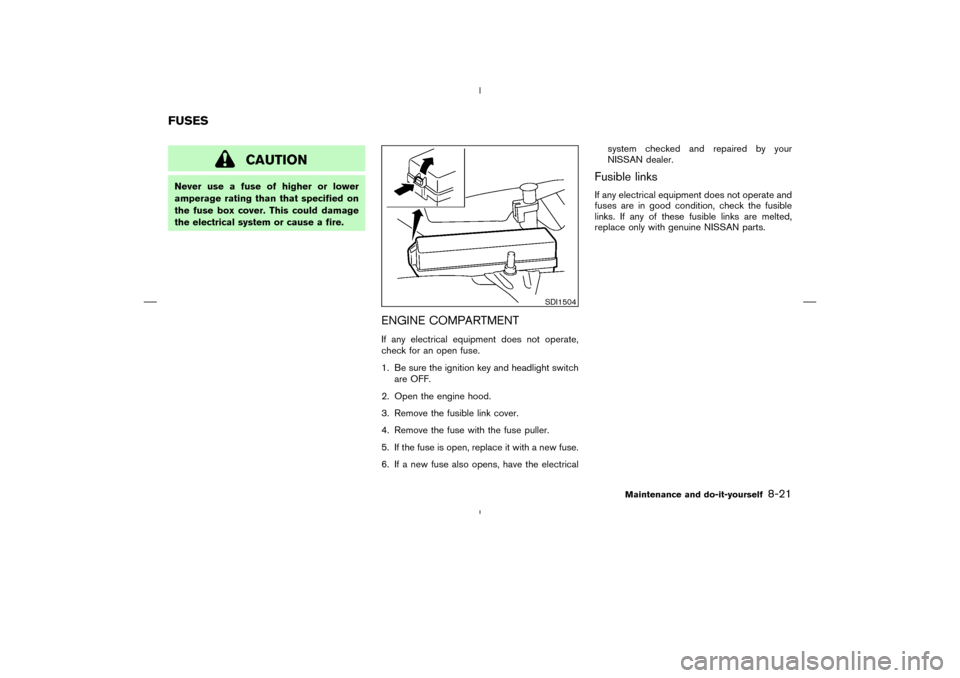

ENGINE COMPARTMENTIf any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and headlight switch
are OFF.
2. Open the engine hood.
3. Remove the fusible link cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open, replace it with a new fuse.
6. If a new fuse also opens, have the electricalsystem checked and repaired by your
NISSAN dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
SDI1504
FUSES
Maintenance and do-it-yourself
8-21


04.4.5/Z50-D/V5.0

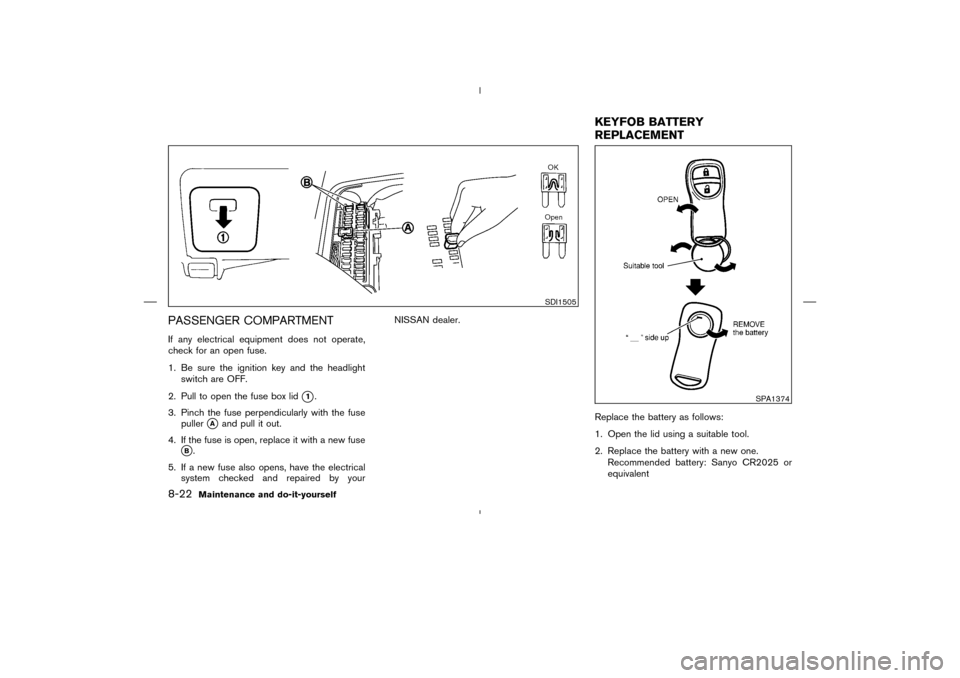

PASSENGER COMPARTMENTIf any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition key and the headlight
switch are OFF.
2. Pull to open the fuse box lid
1.
3. Pinch the fuse perpendicularly with the fuse
puller
A
and pull it out.
4. If the fuse is open, replace it with a new fuse
B.
5. If a new fuse also opens, have the electrical
system checked and repaired by yourNISSAN dealer.
Replace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
Recommended battery: Sanyo CR2025 or
equivalent
SDI1505
SPA1374
KEYFOB BATTERY
REPLACEMENT
8-22
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

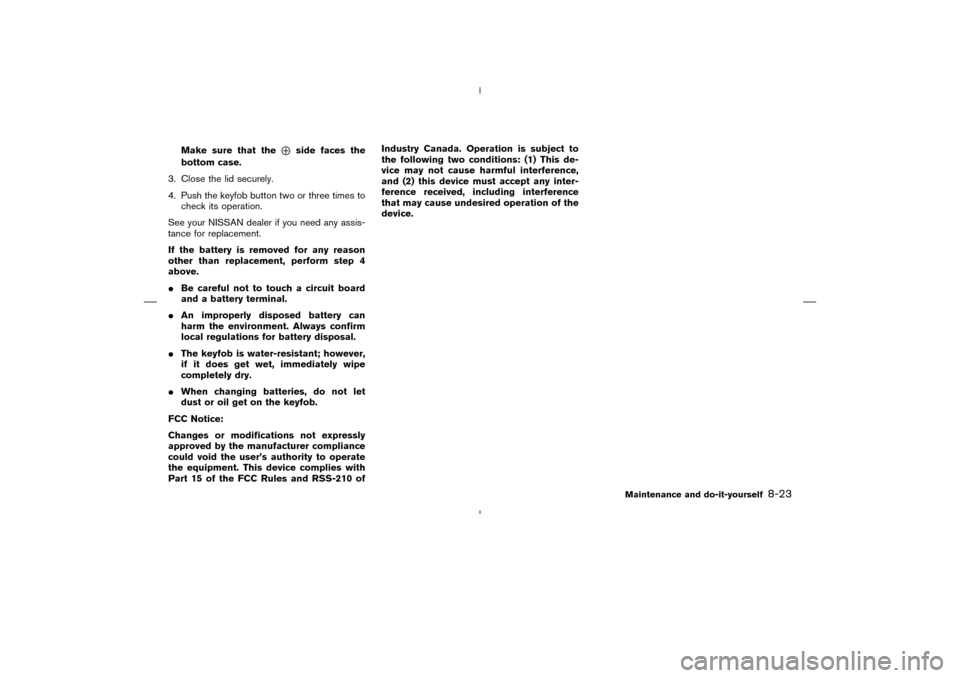

Make sure that the
⊕
side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch a circuit board
and a battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it does get wet, immediately wipe
completely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
could void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 ofIndustry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
