2004 NISSAN MURANO Owners Manual

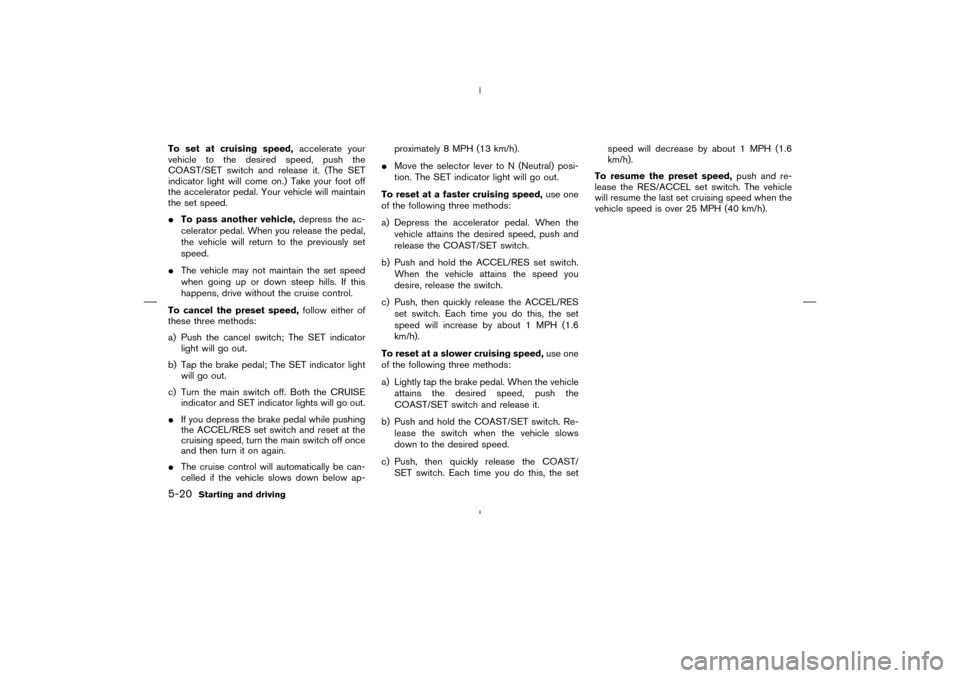

To set at cruising speed,accelerate your
vehicle to the desired speed, push the
COAST/SET switch and release it. (The SET
indicator light will come on.) Take your foot off
the accelerator pedal. Your vehicle will maintain
the set speed.

To pass another vehicle,depress the ac-
celerator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.

The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed,follow either of
these three methods:
a) Push the cancel switch; The SET indicator
light will go out.
b) Tap the brake pedal; The SET indicator light
will go out.
c) Turn the main switch off. Both the CRUISE
indicator and SET indicator lights will go out.

If you depress the brake pedal while pushing
the ACCEL/RES set switch and reset at the
cruising speed, turn the main switch off once
and then turn it on again.

The cruise control will automatically be can-
celled if the vehicle slows down below ap-proximately 8 MPH (13 km/h).

Move the selector lever to N (Neutral) posi-
tion. The SET indicator light will go out.
To reset at a faster cruising speed,use one
of the following three methods:
a) Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
b) Push and hold the ACCEL/RES set switch.
When the vehicle attains the speed you
desire, release the switch.
c) Push, then quickly release the ACCEL/RES
set switch. Each time you do this, the set
speed will increase by about 1 MPH (1.6
km/h).
To reset at a slower cruising speed,use one
of the following three methods:
a) Lightly tap the brake pedal. When the vehicle
attains the desired speed, push the
COAST/SET switch and release it.
b) Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
c) Push, then quickly release the COAST/
SET switch. Each time you do this, the setspeed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed,push and re-
lease the RES/ACCEL set switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).5-20
Starting and driving


04.4.5/Z50-D/V5.0

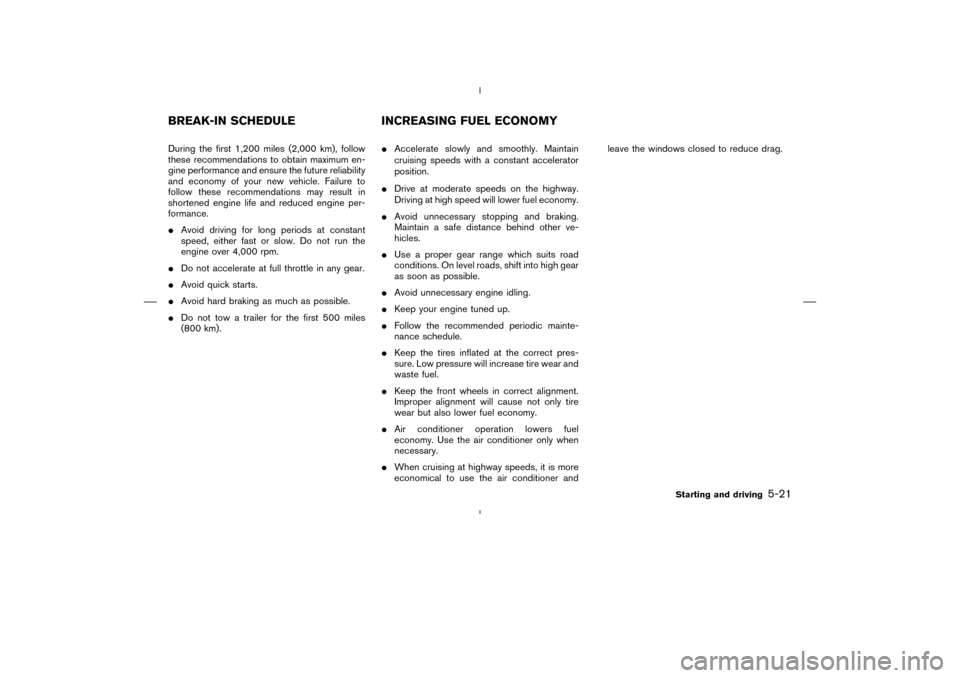

During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum en-
gine performance and ensure the future reliability
and economy of your new vehicle. Failure to
follow these recommendations may result in
shortened engine life and reduced engine per-
formance.

Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.

Do not accelerate at full throttle in any gear.

Avoid quick starts.

Avoid hard braking as much as possible.

Do not tow a trailer for the first 500 miles
(800 km).
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.

Drive at moderate speeds on the highway.
Driving at high speed will lower fuel economy.

Avoid unnecessary stopping and braking.
Maintain a safe distance behind other ve-
hicles.

Use a proper gear range which suits road
conditions. On level roads, shift into high gear
as soon as possible.

Avoid unnecessary engine idling.

Keep your engine tuned up.

Follow the recommended periodic mainte-
nance schedule.

Keep the tires inflated at the correct pres-
sure. Low pressure will increase tire wear and
waste fuel.

Keep the front wheels in correct alignment.
Improper alignment will cause not only tire
wear but also lower fuel economy.

Air conditioner operation lowers fuel
economy. Use the air conditioner only when
necessary.

When cruising at highway speeds, it is more
economical to use the air conditioner andleave the windows closed to reduce drag.BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
Starting and driving
5-21


04.4.5/Z50-D/V5.0

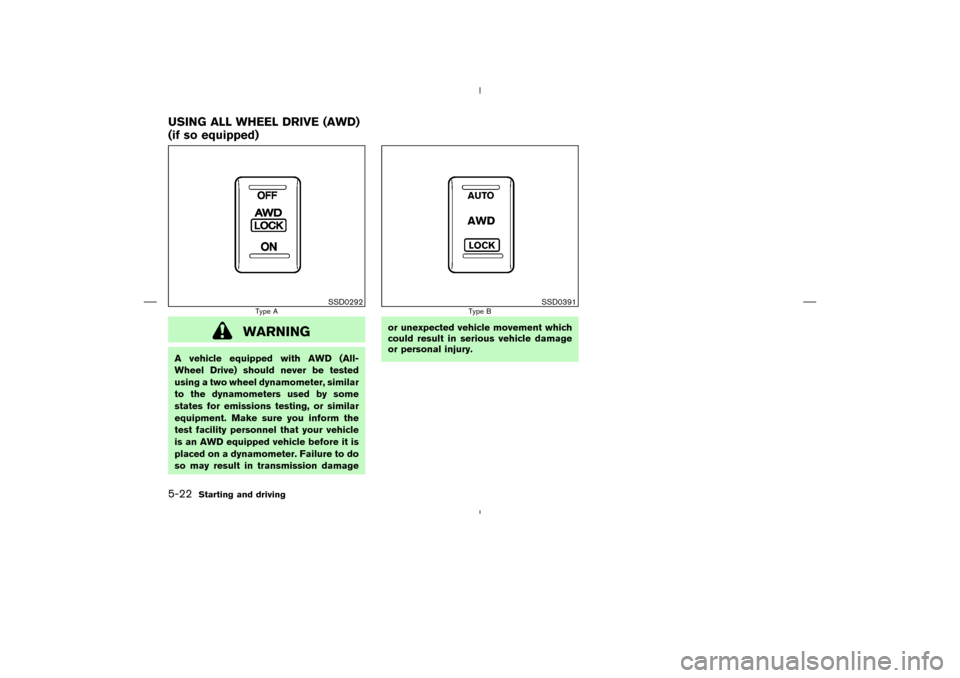

WARNING
A vehicle equipped with AWD (All-
Wheel Drive) should never be tested
using a two wheel dynamometer, similar
to the dynamometers used by some
states for emissions testing, or similar
equipment. Make sure you inform the
test facility personnel that your vehicle
is an AWD equipped vehicle before it is
placed on a dynamometer. Failure to do
so may result in transmission damageor unexpected vehicle movement which
could result in serious vehicle damage
or personal injury.
SSD0292
Type A
SSD0391
Type B
USING ALL WHEEL DRIVE (AWD)
(if so equipped)5-22
Starting and driving


04.4.5/Z50-D/V5.0

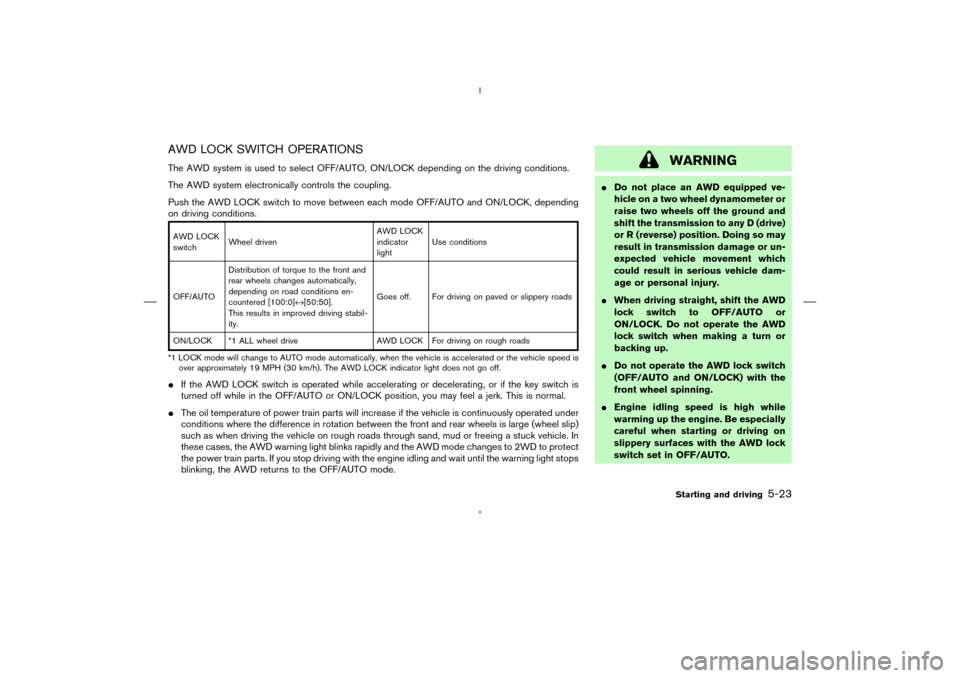

AWD LOCK SWITCH OPERATIONSThe AWD system is used to select OFF/AUTO, ON/LOCK depending on the driving conditions.
The AWD system electronically controls the coupling.
Push the AWD LOCK switch to move between each mode OFF/AUTO and ON/LOCK, depending
on driving conditions.AWD LOCK
switchWheel drivenAWD LOCK
indicator
lightUse conditions
OFF/AUTODistribution of torque to the front and
rear wheels changes automatically,
depending on road conditions en-
countered [100:0]↔[50:50].
This results in improved driving stabil-
ity.Goes off. For driving on paved or slippery roads
ON/LOCK *1 ALL wheel drive AWD LOCK For driving on rough roads
*1 LOCK mode will change to AUTO mode automatically, when the vehicle is accelerated or the vehicle speed is
over approximately 19 MPH (30 km/h). The AWD LOCK indicator light does not go off.
If the AWD LOCK switch is operated while accelerating or decelerating, or if the key switch is
turned off while in the OFF/AUTO or ON/LOCK position, you may feel a jerk. This is normal.

The oil temperature of power train parts will increase if the vehicle is continuously operated under
conditions where the difference in rotation between the front and rear wheels is large (wheel slip)
such as when driving the vehicle on rough roads through sand, mud or freeing a stuck vehicle. In
these cases, the AWD warning light blinks rapidly and the AWD mode changes to 2WD to protect
the power train parts. If you stop driving with the engine idling and wait until the warning light stops
blinking, the AWD returns to the OFF/AUTO mode.
WARNING

Do not place an AWD equipped ve-
hicle on a two wheel dynamometer or
raise two wheels off the ground and
shift the transmission to any D (drive)
or R (reverse) position. Doing so may
result in transmission damage or un-
expected vehicle movement which
could result in serious vehicle dam-
age or personal injury.

When driving straight, shift the AWD
lock switch to OFF/AUTO or
ON/LOCK. Do not operate the AWD
lock switch when making a turn or
backing up.

Do not operate the AWD lock switch
(OFF/AUTO and ON/LOCK) with the
front wheel spinning.

Engine idling speed is high while
warming up the engine. Be especially
careful when starting or driving on
slippery surfaces with the AWD lock
switch set in OFF/AUTO.
Starting and driving
5-23


04.4.5/Z50-D/V5.0

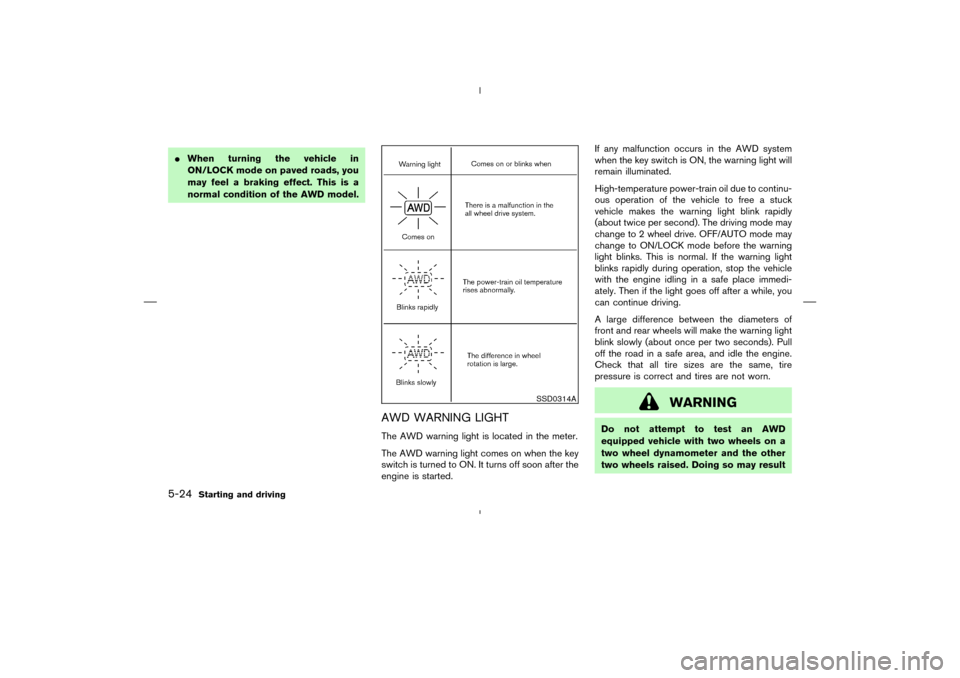

When turning the vehicle in
ON/LOCK mode on paved roads, you
may feel a braking effect. This is a
normal condition of the AWD model.
AWD WARNING LIGHTThe AWD warning light is located in the meter.
The AWD warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.If any malfunction occurs in the AWD system
when the key switch is ON, the warning light will
remain illuminated.
High-temperature power-train oil due to continu-
ous operation of the vehicle to free a stuck
vehicle makes the warning light blink rapidly
(about twice per second). The driving mode may
change to 2 wheel drive. OFF/AUTO mode may
change to ON/LOCK mode before the warning
light blinks. This is normal. If the warning light
blinks rapidly during operation, stop the vehicle
with the engine idling in a safe place immedi-
ately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds). Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
WARNING
Do not attempt to test an AWD
equipped vehicle with two wheels on a
two wheel dynamometer and the other
two wheels raised. Doing so may result
SSD0314A
5-24
Starting and driving


04.4.5/Z50-D/V5.0

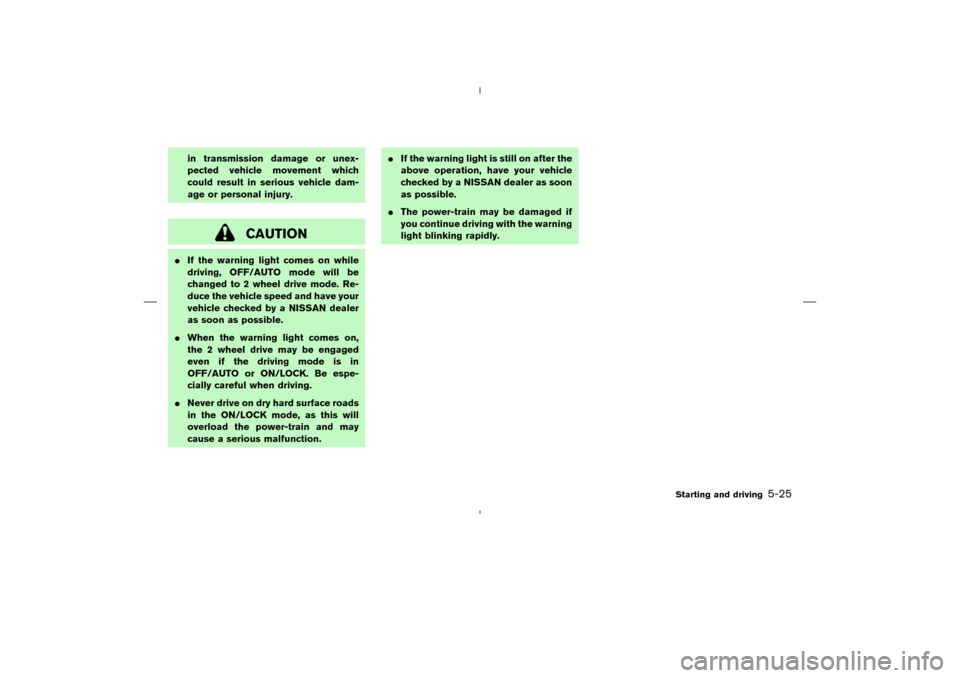

in transmission damage or unex-
pected vehicle movement which
could result in serious vehicle dam-
age or personal injury.
CAUTION

If the warning light comes on while
driving, OFF/AUTO mode will be
changed to 2 wheel drive mode. Re-
duce the vehicle speed and have your
vehicle checked by a NISSAN dealer
as soon as possible.

When the warning light comes on,
the 2 wheel drive may be engaged
even if the driving mode is in
OFF/AUTO or ON/LOCK. Be espe-
cially careful when driving.

Never drive on dry hard surface roads
in the ON/LOCK mode, as this will
overload the power-train and may
cause a serious malfunction.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon
as possible.

The power-train may be damaged if
you continue driving with the warning
light blinking rapidly.
Starting and driving
5-25


04.4.5/Z50-D/V5.0


WARNING

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.

Never leave the engine running while
the vehicle is unattended.

Never leave children unattended in
the vehicle.1. Firmly apply the parking brake.
2. Move the selector lever to the P (Park) posi-
tion.
WARNING

Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park).
Failure to do so could cause the ve-
hicle to move unexpectedly or roll
away and result in an accident.

Make sure the selector lever has
been pushed as far forward as it can
go and cannot be moved without de-
pressing the button at the end of the
lever.
3. To help prevent the vehicle from rolling into
the street when parked on a sloping drive
way, it is a good practice to turn the wheels
as illustrated.

HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.
MSD0002
PARKING/PARKING ON HILLS5-26
Starting and driving


04.4.5/Z50-D/V5.0


HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.

HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
4. Turn the ignition key to the LOCK position
and remove the key.The power assisted steering is designed to use
a hydraulic pump, driven by the engine, to assist
steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.
BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brake
The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
Using the brakes
Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the brakes,
increases wear on the brake linings and pads,
and reduces gas mileage.
POWER STEERING BRAKE SYSTEM
Starting and driving
5-27


04.4.5/Z50-D/V5.0
