2004 NISSAN MURANO Owners Manual

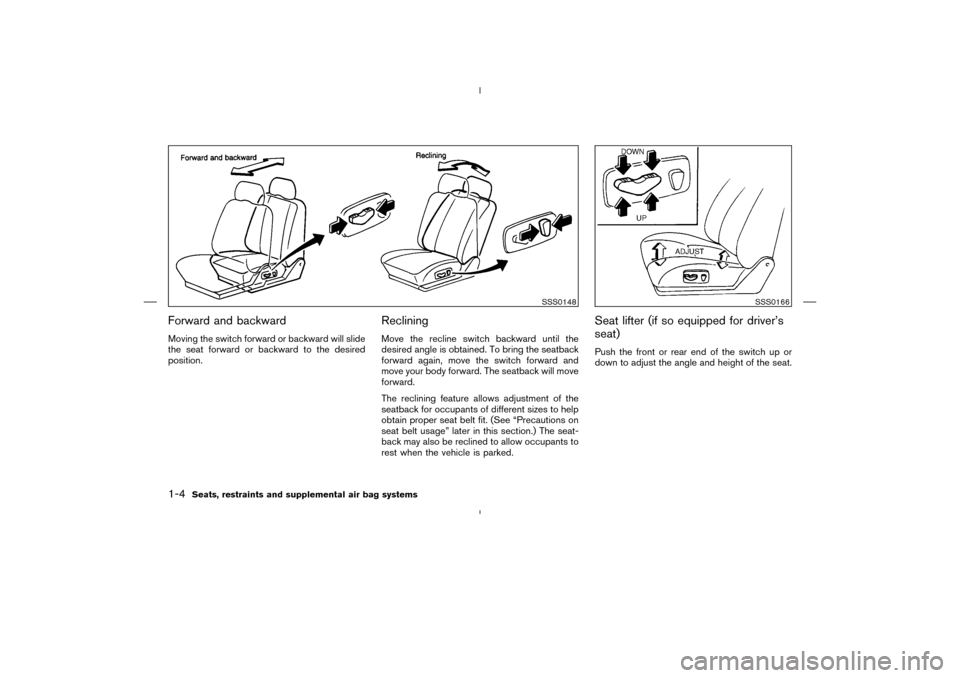

Forward and backwardMoving the switch forward or backward will slide
the seat forward or backward to the desired
position.
RecliningMove the recline switch backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
Seat lifter (if so equipped for driver’s
seat)Push the front or rear end of the switch up or
down to adjust the angle and height of the seat.
SSS0148
SSS0166
1-4
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0

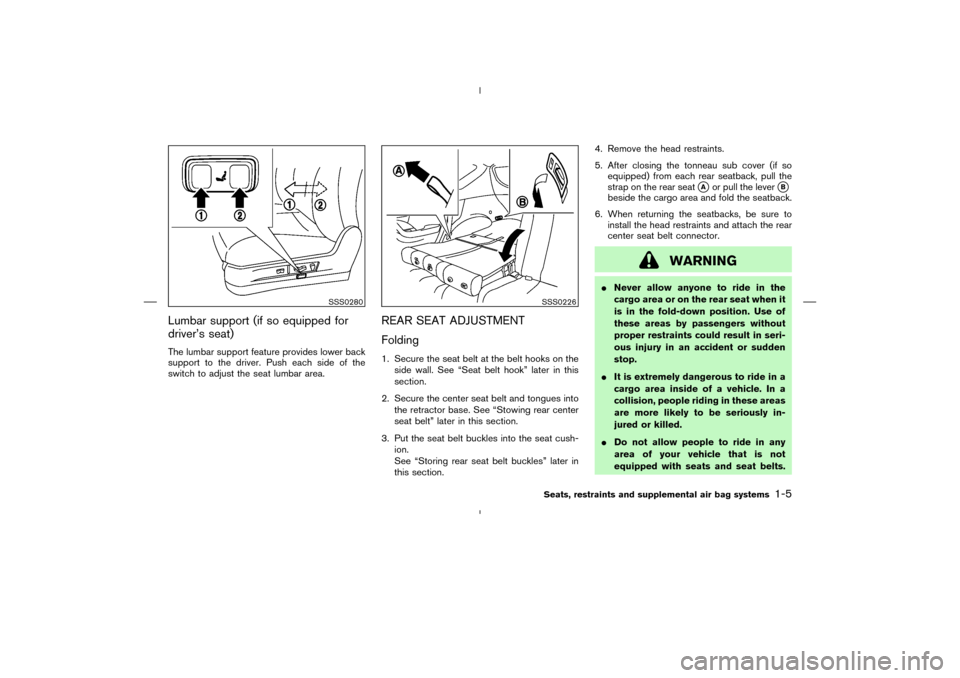

Lumbar support (if so equipped for
driver’s seat)The lumbar support feature provides lower back
support to the driver. Push each side of the
switch to adjust the seat lumbar area.
REAR SEAT ADJUSTMENT
Folding1. Secure the seat belt at the belt hooks on the
side wall. See “Seat belt hook” later in this
section.
2. Secure the center seat belt and tongues into
the retractor base. See “Stowing rear center
seat belt” later in this section.
3. Put the seat belt buckles into the seat cush-
ion.
See “Storing rear seat belt buckles” later in
this section.4. Remove the head restraints.
5. After closing the tonneau subcover (if so
equipped) from each rear seatback, pull the
strap on the rear seat
Aor pull the lever
B
beside the cargo area and fold the seatback.
6. When returning the seatbacks, be sure to
install the head restraints and attach the rear
center seat belt connector.
WARNING

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop.

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
SSS0280
SSS0226Seats, restraints and supplemental air bag systems
1-5


04.4.5/Z50-D/V5.0


Be sure everyone in your vehicle is in
a seat and using a seat belt properly.

Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seat.

Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been re-
moved for any reason.

If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to
the vehicle in case of sudden braking
or an accident.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

When returning the seatbacks to theupright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

When returning the seatbacks, be
sure to attach the rear center seat
belt connector.

Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.

When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.

If the center seat belt connector and
the seatbacks are not secured in the
correct position, serious personal in-
jury may result in an accident or sud-
den stop.

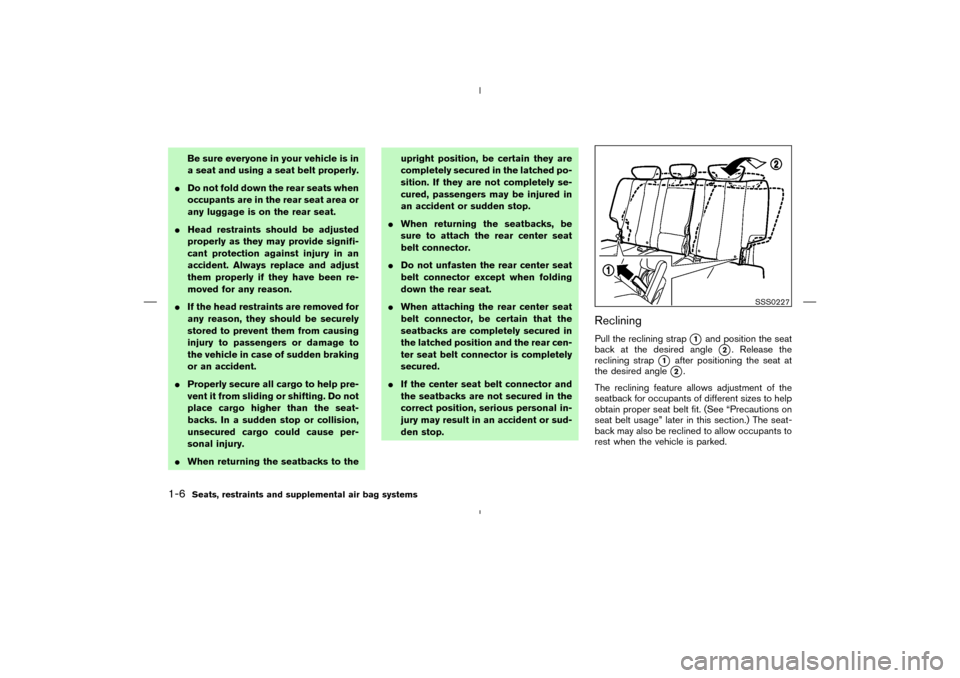

RecliningPull the reclining strap
1
and position the seat
back at the desired angle
2. Release the
reclining strap
1
after positioning the seat at
the desired angle2.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
SSS0227
1-6
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0


WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.

For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Seat belts” later
in this section for precautions on
seat belt usage.

After adjustment, check to be sure
the seat is securely locked.

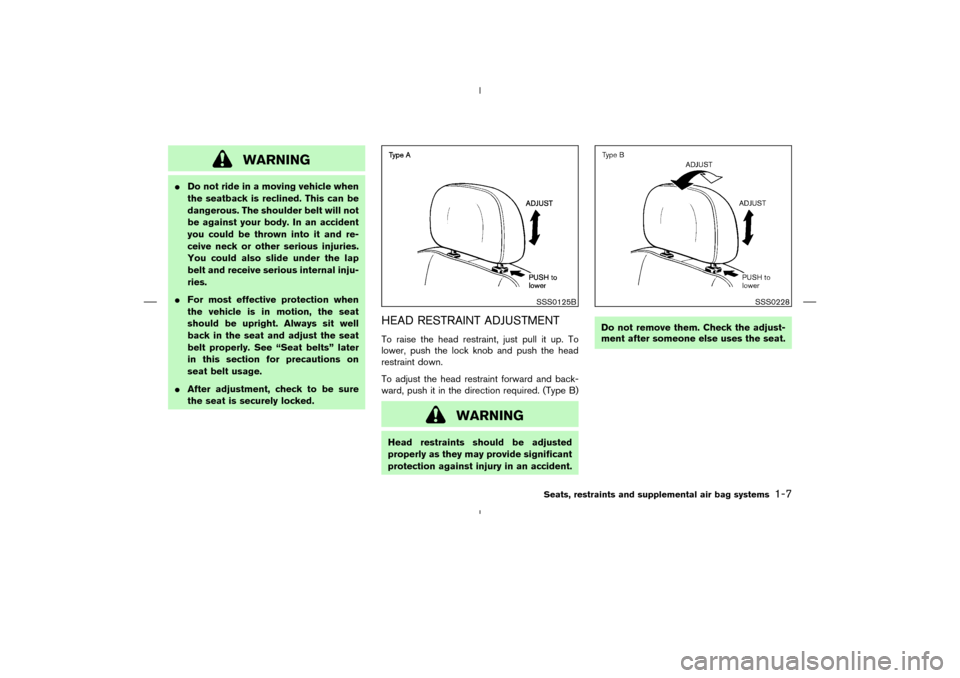

HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up. To
lower, push the lock knoband push the head
restraint down.
To adjust the head restraint forward and back-
ward, push it in the direction required. (Type B)
WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.Do not remove them. Check the adjust-
ment after someone else uses the seat.
SSS0125B
SSS0228
Seats, restraints and supplemental air bag systems
1-7


04.4.5/Z50-D/V5.0

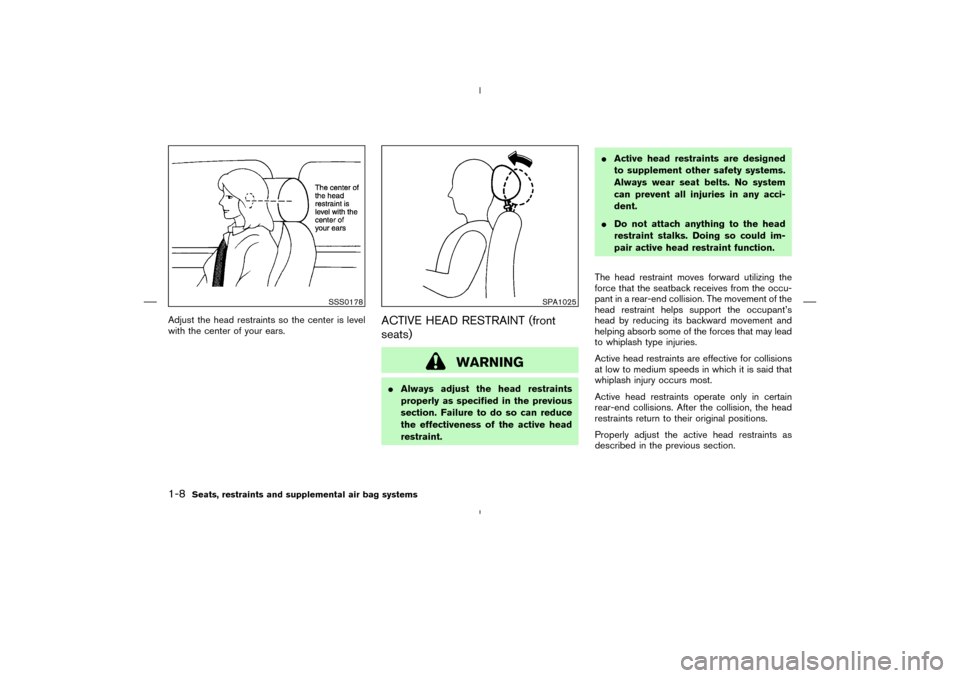

Adjust the head restraints so the center is level
with the center of your ears.
ACTIVE HEAD RESTRAINT (front
seats)
WARNING

Always adjust the head restraints
properly as specified in the previous
section. Failure to do so can reduce
the effectiveness of the active head
restraint.
Active head restraints are designed
to supplement other safety systems.
Always wear seat belts. No system
can prevent all injuries in any acci-
dent.

Do not attach anything to the head
restraint stalks. Doing so could im-
pair active head restraint function.
The head restraint moves forward utilizing the
force that the seatback receives from the occu-
pant in a rear-end collision. The movement of the
head restraint helps support the occupant’s
head by reducing its backward movement and
helping absorb some of the forces that may lead
to whiplash type injuries.
Active head restraints are effective for collisions
at low to medium speeds in which it is said that
whiplash injury occurs most.
Active head restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.
Properly adjust the active head restraints as
described in the previous section.
SSS0178
SPA1025
1-8
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0

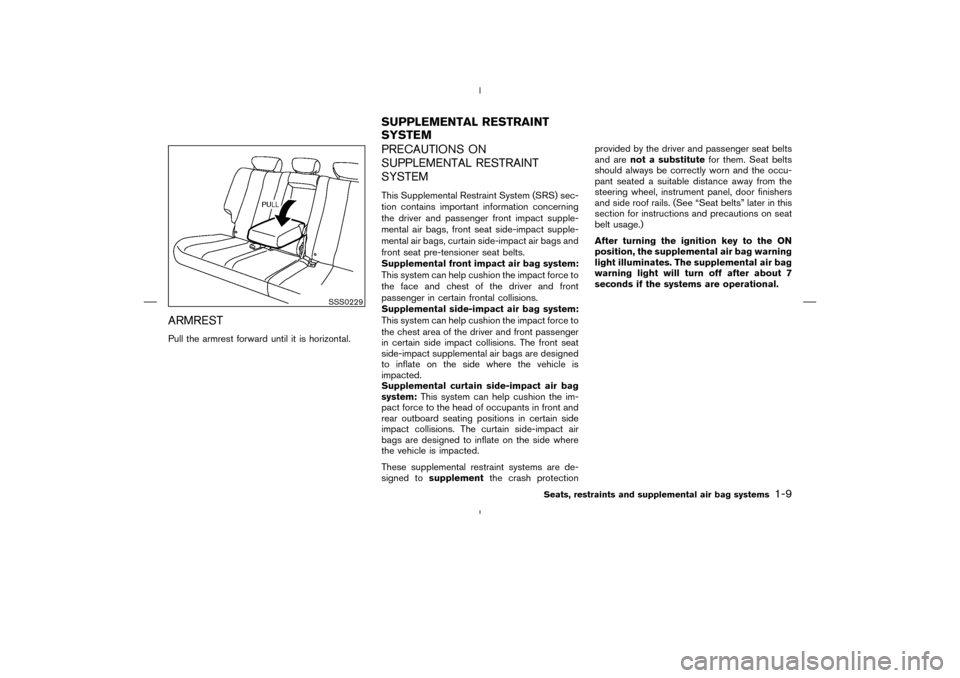

ARMRESTPull the armrest forward until it is horizontal.
PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEMThis Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the driver and passenger front impact supple-
mental air bags, front seat side-impact supple-
mental air bags, curtain side-impact air bags and
front seat pre-tensioner seat belts.
Supplemental front impact air bag system:
This system can help cushion the impact force to
the face and chest of the driver and front
passenger in certain frontal collisions.
Supplemental side-impact air bag system:
This system can help cushion the impact force to
the chest area of the driver and front passenger
in certain side impact collisions. The front seat
side-impact supplemental air bags are designed
to inflate on the side where the vehicle is
impacted.
Supplemental curtain side-impact air bag
system:This system can help cushion the im-
pact force to the head of occupants in front and
rear outboard seating positions in certain side
impact collisions. The curtain side-impact air
bags are designed to inflate on the side where
the vehicle is impacted.
These supplemental restraint systems are de-
signed tosupplementthe crash protectionprovided by the driver and passenger seat belts
and arenot a substitutefor them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel, door finishers
and side roof rails. (See “Seat belts” later in this
section for instructions and precautions on seat
belt usage.)
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
SSS0229
SUPPLEMENTAL RESTRAINT
SYSTEM
Seats, restraints and supplemental air bag systems
1-9


04.4.5/Z50-D/V5.0

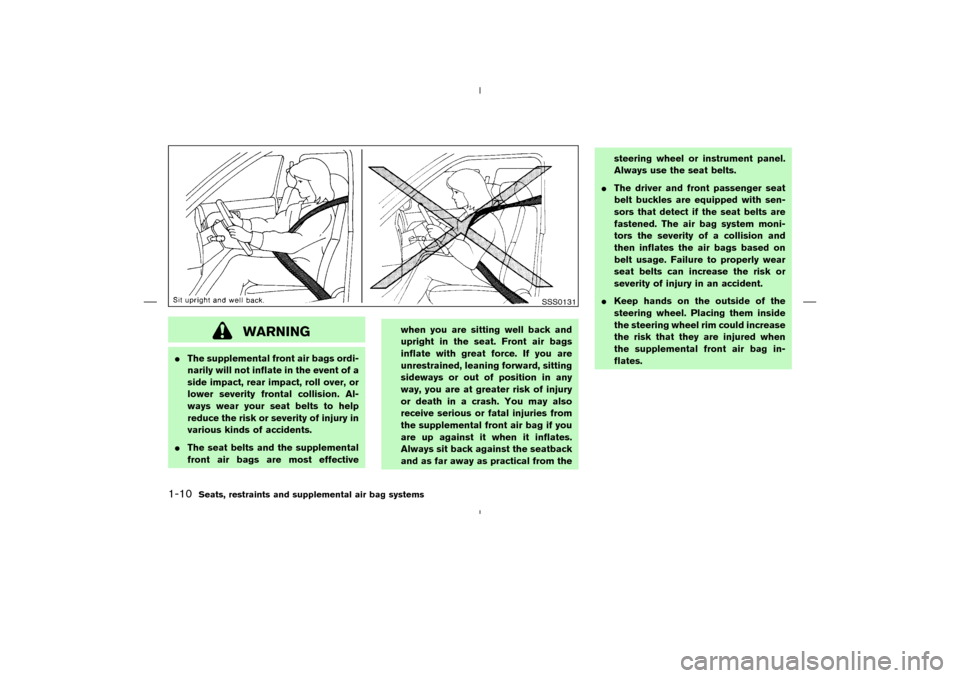

WARNING

The supplemental front air bags ordi-
narily will not inflate in the event of a
side impact, rear impact, roll over, or
lower severity frontal collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

The seat belts and the supplemental
front air bags are most effectivewhen you are sitting well back and
upright in the seat. Front air bags
inflate with great force. If you are
unrestrained, leaning forward, sitting
sideways or out of position in any
way, you are at greater risk of injury
or death in a crash. You may also
receive serious or fatal injuries from
the supplemental front air bag if you
are up against it when it inflates.

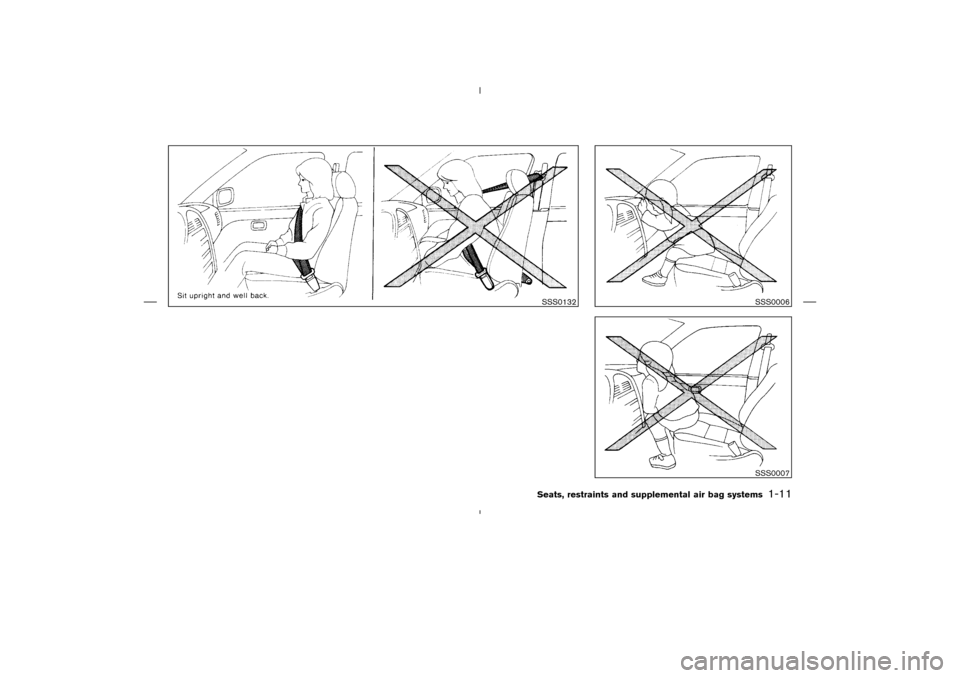

Always sit back against the seatback
and as far away as practical from thesteering wheel or instrument panel.
Always use the seat belts.

The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The air bag system moni-
tors the severity of a collision and
then inflates the air bags based on
belt usage. Failure to properly wear
seat belts can increase the risk or
severity of injury in an accident.

Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the supplemental front air bag in-
flates.
SSS0131
1-10
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0


SSS0132
SSS0006SSS0007
Seats, restraints and supplemental air bag systems
1-11


04.4.5/Z50-D/V5.0
