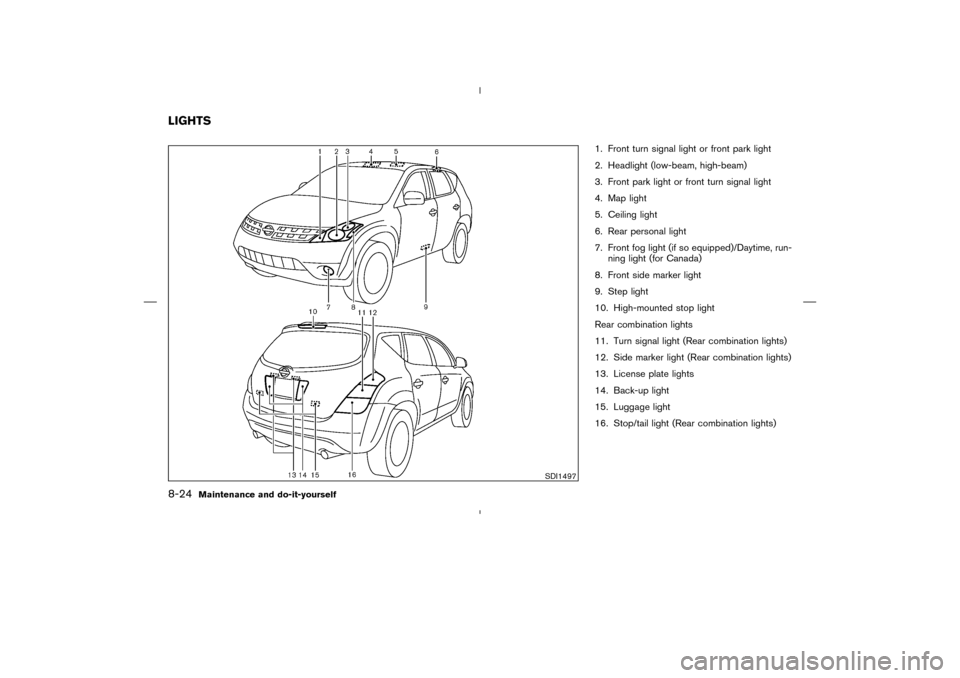

2004 NISSAN MURANO Owners Manual

1. Front turn signal light or front park light
2. Headlight (low-beam, high-beam)
3. Front park light or front turn signal light
4. Map light
5. Ceiling light
6. Rear personal light
7. Front fog light (if so equipped)/Daytime, run-
ning light (for Canada)
8. Front side marker light
9. Step light
10. High-mounted stop light
Rear combination lights
11. Turn signal light (Rear combination lights)
12. Side marker light (Rear combination lights)
13. License plate lights
14. Back-up light
15. Luggage light
16. Stop/tail light (Rear combination lights)
SDI1497
LIGHTS8-24
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

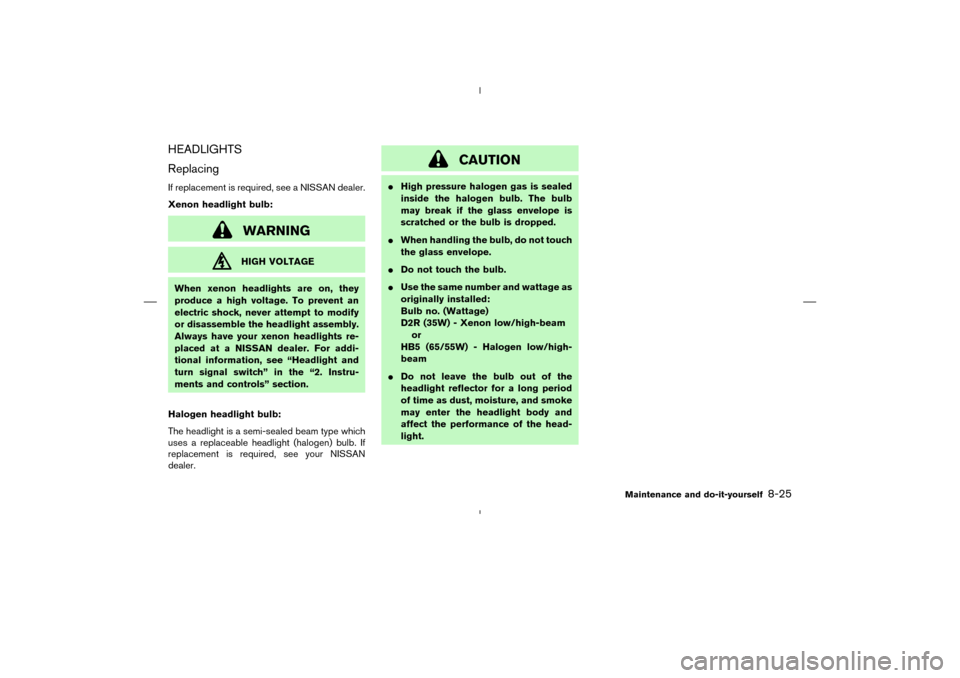

HEADLIGHTS
ReplacingIf replacement is required, see a NISSAN dealer.
Xenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble the headlight assembly.
Always have your xenon headlights re-
placed at a NISSAN dealer. For addi-
tional information, see “Headlight and
turn signal switch” in the “2. Instru-
ments and controls” section.
Halogen headlight bulb:
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. If
replacement is required, see your NISSAN
dealer.
CAUTION

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

When handling the bulb, do not touch
the glass envelope.

Do not touch the bulb.

Use the same number and wattage as
originally installed:
Bulb no. (Wattage)
D2R (35W) - Xenon low/high-beam
or
HB5 (65/55W) - Halogen low/high-
beam

Do not leave the bulb out of the
headlight reflector for a long period
of time as dust, moisture, and smoke
may enter the headlight body and
affect the performance of the head-
light.
Maintenance and do-it-yourself
8-25


04.4.5/Z50-D/V5.0

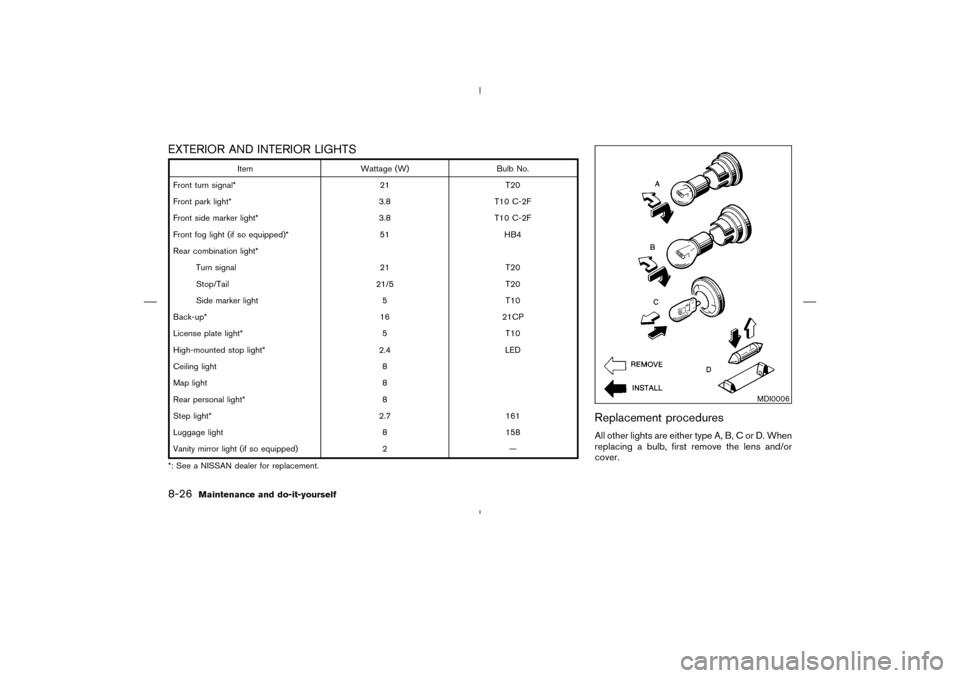

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) BulbNo.
Front turn signal* 21 T20
Front park light* 3.8 T10 C-2F
Front side marker light* 3.8 T10 C-2F
Front fog light (if so equipped)* 51 HB4
Rear combination light*
Turn signal 21 T20
Stop/Tail 21/5 T20
Side marker light 5 T10
Back-up* 16 21CP
License plate light* 5 T10
High-mounted stop light* 2.4 LED
Ceiling light 8
Map light 8
Rear personal light* 8
Step light* 2.7 161
Luggage light 8 158
Vanity mirror light (if so equipped) 2 —
*: See a NISSAN dealer for replacement.
Replacement proceduresAll other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover.
MDI0006
8-26
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

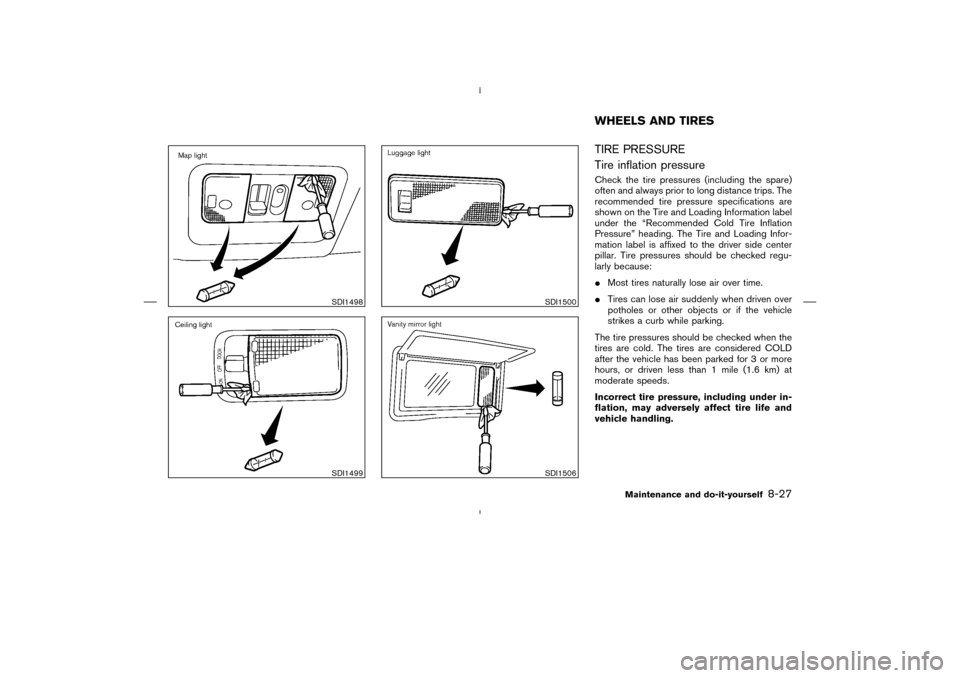

TIRE PRESSURE
Tire inflation pressureCheck the tire pressures (including the spare)
often and always prior to long distance trips. The
recommended tire pressure specifications are
shown on the Tire and Loading Information label
under the “Recommended Cold Tire Inflation
Pressure” heading. The Tire and Loading Infor-
mation label is affixed to the driver side center
pillar. Tire pressures should be checked regu-
larly because:

Most tires naturally lose air over time.

Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle
strikes a curbwhile parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
SDI1498SDI1499
SDI1500SDI1506
WHEELS AND TIRES
Maintenance and do-it-yourself
8-27


04.4.5/Z50-D/V5.0

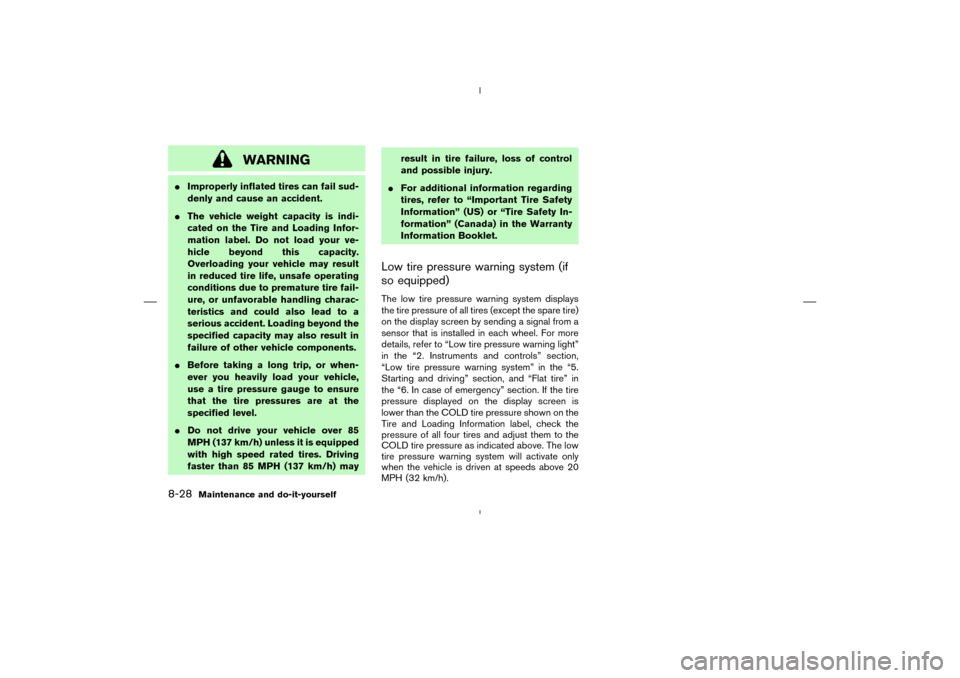

WARNING

Improperly inflated tires can fail sud-
denly and cause an accident.

The vehicle weight capacity is indi-
cated on the Tire and Loading Infor-
mation label. Do not load your ve-
hicle beyond this capacity.
Overloading your vehicle may result
in reduced tire life, unsafe operating
conditions due to premature tire fail-
ure, or unfavorable handling charac-
teristics and could also lead to a
serious accident. Loading beyond the
specified capacity may also result in
failure of other vehicle components.

Before taking a long trip, or when-
ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.

Do not drive your vehicle over 85
MPH (137 km/h) unless it is equipped
with high speed rated tires. Driving
faster than 85 MPH (137 km/h) mayresult in tire failure, loss of control
and possible injury.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Low tire pressure warning system (if
so equipped)The low tire pressure warning system displays
the tire pressure of all tires (except the spare tire)
on the display screen by sending a signal from a
sensor that is installed in each wheel. For more
details, refer to “Low tire pressure warning light”
in the “2. Instruments and controls” section,
“Low tire pressure warning system” in the “5.
Starting and driving” section, and “Flat tire” in
the “6. In case of emergency” section. If the tire
pressure displayed on the display screen is
lower than the COLD tire pressure shown on the
Tire and Loading Information label, check the
pressure of all four tires and adjust them to the
COLD tire pressure as indicated above. The low
tire pressure warning system will activate only
when the vehicle is driven at speeds above 20
MPH (32 km/h).
8-28
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0


Tire and loading information label
1Seating capacity: The maximum number of
occupants that can be seated in the vehicle.
2Vehicle load limit: See loading information in
the Technical and consumer information sec-
tion.
3Original tire size: The size of the tires origi-
nally installed on the vehicle at the factory.
4Recommended cold tire inflation pressure:
Inflate the tires to this pressure when the tires
are cold. Tires are considered COLD after
the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds. The recommended cold
tire inflation is set by the manufacturer to
provide the best tire wear and vehicle han-
dling characteristics based on the vehicles
GVWR.
5Tire size — refer to “Tire labeling” later in this
section.
6and
7
Spare tire size or compact spare tire
size (if so equipped)
Checking the tire pressure1. Remove the valve stem cap from the tire.
2. Press the pressure gauge squarely onto the
valve stem. Do not press too hard or force the
valve stem sideways, or air will escape. If the
hissing sound of air escaping from the tire is
heard while checking the pressure, reposition
the gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem
and compare it to the specification shown on
the Tire and Loading Information label.
5. Add air to the tire as needed. If too much air
SDI1574
Maintenance and do-it-yourself
8-29


04.4.5/Z50-D/V5.0


is added, press the core of the valve stem
briefly with the tip of the gauge stem to
release pressure. Recheck the pressure and
add or release air as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, includ-
ing the spare. (Refer to the “Wheels and
tires” section)

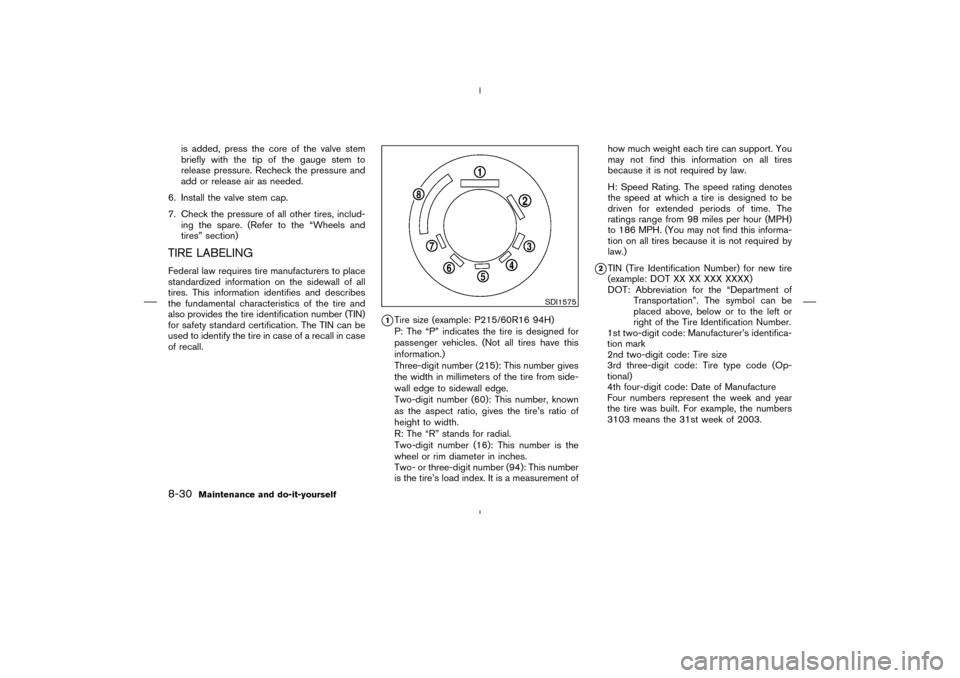

TIRE LABELINGFederal law requires tire manufacturers to place
standardized information on the sidewall of all
tires. This information identifies and describes
the fundamental characteristics of the tire and
also provides the tire identification number (TIN)
for safety standard certification. The TIN can be
used to identify the tire in case of a recall in case
of recall.
1Tire size (example: P215/60R16 94H)
P: The “P” indicates the tire is designed for
passenger vehicles. (Not all tires have this
information.)
Three-digit number (215): This number gives
the width in millimeters of the tire from side-
wall edge to sidewall edge.
Two-digit number (60): This number, known
as the aspect ratio, gives the tire’s ratio of
height to width.
R: The “R” stands for radial.
Two-digit number (16): This number is the
wheel or rim diameter in inches.
Two- or three-digit number (94): This number
is the tire’s load index. It is a measurement ofhow much weight each tire can support. You
may not find this information on all tires
because it is not required by law.
H: Speed Rating. The speed rating denotes
the speed at which a tire is designed to be
driven for extended periods of time. The
ratings range from 98 miles per hour (MPH)
to 186 MPH. (You may not find this informa-
tion on all tires because it is not required by
law.)
2TIN (Tire Identification Number) for new tire
(example: DOT XX XX XXX XXXX)
DOT: Abbreviation for the “Department of
Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.
1st two-digit code: Manufacturer’s identifica-
tion mark
2nd two-digit code: Tire size
3rd three-digit code: Tire type code (Op-
tional)
4th four-digit code: Date of Manufacture
Four numbers represent the week and year
the tire was built. For example, the numbers
3103 means the 31st week of 2003.
SDI1575
8-30
Maintenance and do-it-yourself


04.4.5/Z50-D/V5.0

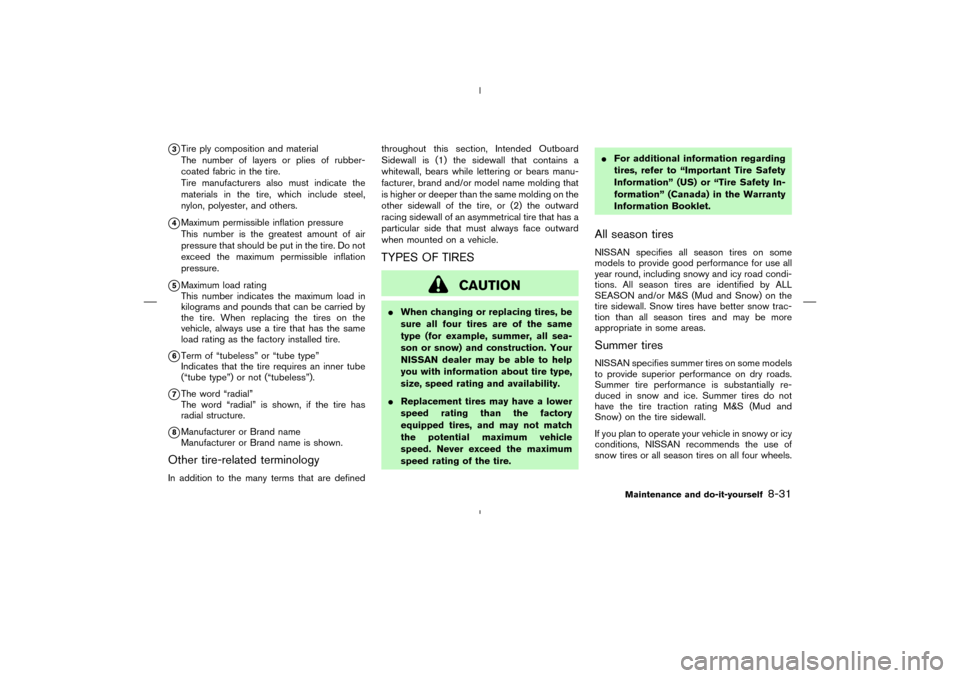

3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire.
Tire manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others.
4Maximum permissible inflation pressure
This number is the greatest amount of air
pressure that should be put in the tire. Do not
exceed the maximum permissible inflation
pressure.
5Maximum load rating
This number indicates the maximum load in
kilograms and pounds that can be carried by
the tire. When replacing the tires on the
vehicle, always use a tire that has the same
load rating as the factory installed tire.
6Term of “tubeless” or “tube type”
Indicates that the tire requires an inner tube
(“tube type”) or not (“tubeless”).
7The word “radial”
The word “radial” is shown, if the tire has
radial structure.
8Manufacturer or Brand name
Manufacturer or Brand name is shown.
Other tire-related terminologyIn addition to the many terms that are definedthroughout this section, Intended Outboard
Sidewall is (1) the sidewall that contains a
whitewall, bears while lettering or bears manu-
facturer, brand and/or model name molding that
is higher or deeper than the same molding on the
other sidewall of the tire, or (2) the outward
racing sidewall of an asymmetrical tire that has a
particular side that must always face outward
when mounted on a vehicle.
TYPES OF TIRES
CAUTION

When changing or replacing tires, be
sure all four tires are of the same
type (for example, summer, all sea-
son or snow) and construction. Your
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.

Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
All season tiresNISSAN specifies all season tires on some
models to provide good performance for use all
year round, including snowy and icy road condi-
tions. All season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on the
tire sidewall. Snow tires have better snow trac-
tion than all season tires and may be more
appropriate in some areas.Summer tiresNISSAN specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S (Mud and
Snow) on the tire sidewall.
If you plan to operate your vehicle in snowy or icy
conditions, NISSAN recommends the use of
snow tires or all season tires on all four wheels.
Maintenance and do-it-yourself
8-31


04.4.5/Z50-D/V5.0
