2004 NISSAN MURANO Owners Manual

When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)The number is stamped under the passenger’s
seat as shown.
STI0334
STI0374
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-10
Technical and consumer information


04.4.5/Z50-D/V5.0


ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal Motor Vehicle Safety Standards
(F.M.V.S.S.) certification label is affixed as
shown. This label contains valuable vehicle in-
formation, such as: Gross Vehicle Weight Rat-
ings (GVWR), Gross Axle Weight Rating
(GAWR), month and year of manufacture, Ve-
hicle Identification Number, (VIN), etc. Review it
carefully.
EMISSION CONTROL
INFORMATION LABELThe emission control information label is at-
tached as shown.
STI0047
STI0336
STI0337
Technical and consumer information
9-11


04.4.5/Z50-D/V5.0

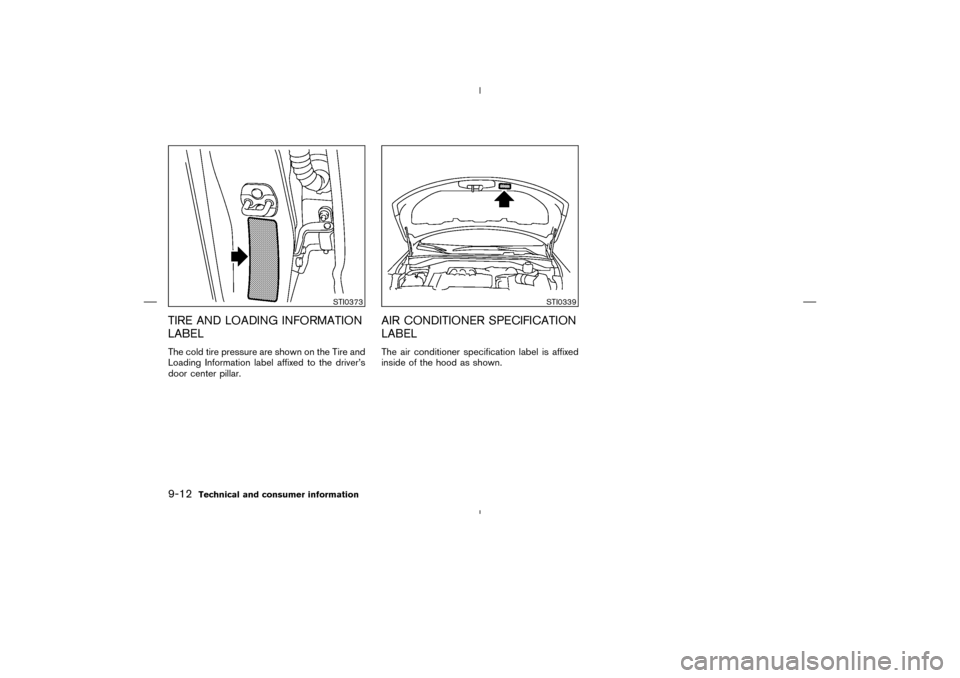

TIRE AND LOADING INFORMATION
LABELThe cold tire pressure are shown on the Tire and
Loading Information label affixed to the driver’s
door center pillar.
AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is affixed
inside of the hood as shown.
STI0373
STI0339
9-12
Technical and consumer information


04.4.5/Z50-D/V5.0

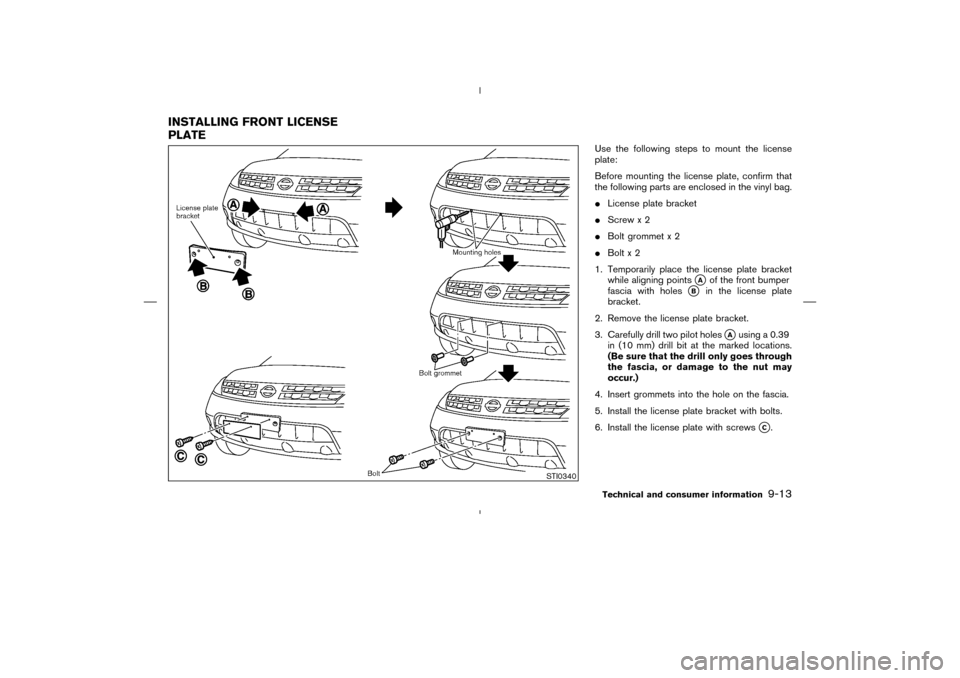

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.

License plate bracket

Screw x 2

Bolt grommet x 2

Bolt x 2
1. Temporarily place the license plate bracket
while aligning points
A
of the front bumper
fascia with holes
B
in the license plate
bracket.
2. Remove the license plate bracket.
3. Carefully drill two pilot holes
Ausing a 0.39
in (10 mm) drill bit at the marked locations.
(Be sure that the drill only goes through
the fascia, or damage to the nut may
occur.)
4. Insert grommets into the hole on the fascia.
5. Install the license plate bracket with bolts.
6. Install the license plate with screws
C.
STI0340
INSTALLING FRONT LICENSE
PLATE
Technical and consumer information
9-13


04.4.5/Z50-D/V5.0

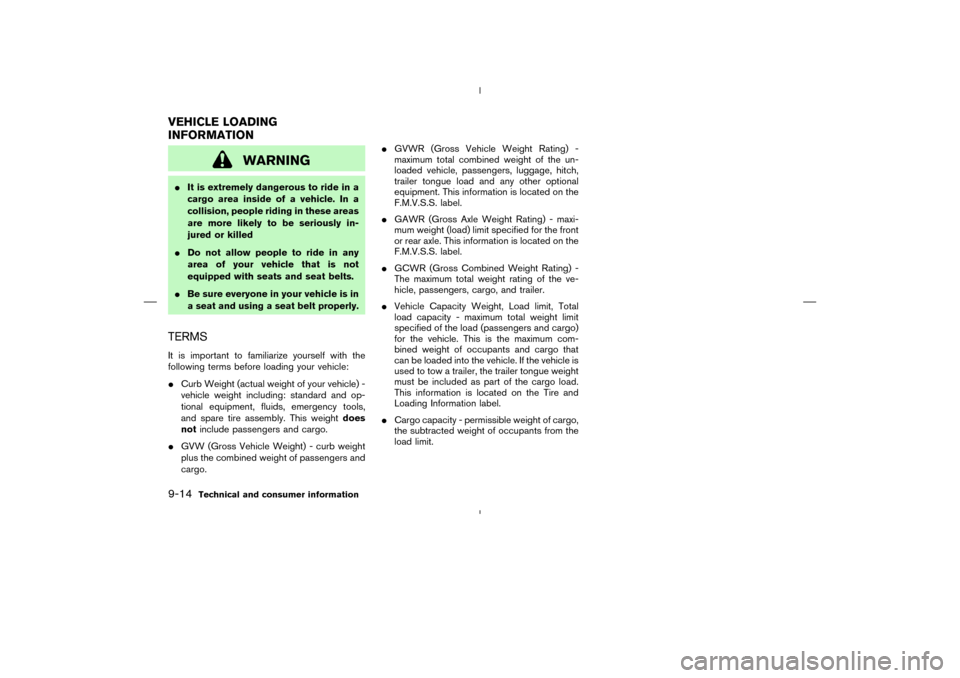

WARNING

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.

Be sure everyone in your vehicle is in
a seat and using a seat belt properly.TERMSIt is important to familiarize yourself with the
following terms before loading your vehicle:

CurbWeight (actual weight of your vehicle) -
vehicle weight including: standard and op-
tional equipment, fluids, emergency tools,
and spare tire assembly. This weightdoes
notinclude passengers and cargo.

GVW (Gross Vehicle Weight) - curbweight
plus the combined weight of passengers and
cargo.
GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of the un-
loaded vehicle, passengers, luggage, hitch,
trailer tongue load and any other optional
equipment. This information is located on the
F.M.V.S.S. label.

GAWR (Gross Axle Weight Rating) - maxi-
mum weight (load) limit specified for the front
or rear axle. This information is located on the
F.M.V.S.S. label.

GCWR (Gross Combined Weight Rating) -
The maximum total weight rating of the ve-
hicle, passengers, cargo, and trailer.

Vehicle Capacity Weight, Load limit, Total
load capacity - maximum total weight limit
specified of the load (passengers and cargo)
for the vehicle. This is the maximum com-
bined weight of occupants and cargo that
can be loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue weight
must be included as part of the cargo load.
This information is located on the Tire and
Loading Information label.

Cargo capacity - permissible weight of cargo,
the subtracted weight of occupants from the
load limit.VEHICLE LOADING
INFORMATION9-14
Technical and consumer information


04.4.5/Z50-D/V5.0


VEHICLE LOAD CAPACITYDo not exceed the load limit of your vehicle
shown as “The combined weight of occupants
and cargo” on the Tire and Loading Information
label. Do not exceed the number of occupants
shown as “Seating Capacity” on the Tire and
Loading Information label.
To get “the combined weight of occupants and
cargo”, add the weight of all occupants, then
add the total luggage weight. Examples are
shown in the illustration.
Steps for determining correct load
limit(1) Locate the statement “The combined weight
of occupants and cargo should never exceed
XXX pounds or XXX kilograms” on your
vehicle’s placard.
(2) Determine the combined weight of the driver
and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver
and passengers from XXX pounds or XXX
kilograms.(4) The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals
1,400 lbs. and there will be five 150 lb.
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs. [1,400 − 750 (5 x 150) = 650 lbs.]
(5) Determine the combined weight of luggage
and cargo being loaded on the vehicle. For
safety, that weight must not exceed the avail-
able cargo and luggage load capacity calcu-
lated in Step 4.
(6) If your vehicle will be towing a trailer, load
from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and
luggage load capacity of your vehicle.
STI0365
Technical and consumer information
9-15


04.4.5/Z50-D/V5.0

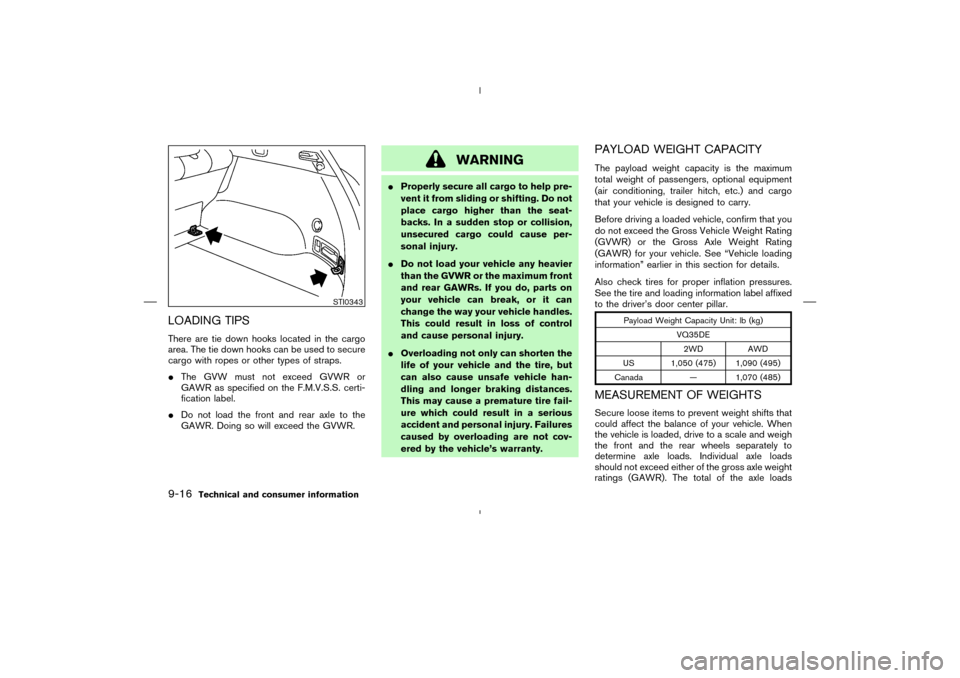

LOADING TIPSThere are tie down hooks located in the cargo
area. The tie down hooks can be used to secure
cargo with ropes or other types of straps.

The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S. certi-
fication label.

Do not load the front and rear axle to the
GAWR. Doing so will exceed the GVWR.
WARNING

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts on
your vehicle can break, or it can
change the way your vehicle handles.
This could result in loss of control
and cause personal injury.

Overloading not only can shorten the
life of your vehicle and the tire, but
can also cause unsafe vehicle han-
dling and longer braking distances.
This may cause a premature tire fail-
ure which could result in a serious
accident and personal injury. Failures
caused by overloading are not cov-
ered by the vehicle’s warranty.
PAYLOAD WEIGHT CAPACITYThe payload weight capacity is the maximum
total weight of passengers, optional equipment
(air conditioning, trailer hitch, etc.) and cargo
that your vehicle is designed to carry.
Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. See “Vehicle loading
information” earlier in this section for details.
Also check tires for proper inflation pressures.
See the tire and loading information label affixed
to the driver’s door center pillar.
Payload Weight Capacity Unit: lb(kg)
VQ35DE
2WD AWD
US 1,050 (475) 1,090 (495)
Canada — 1,070 (485)
MEASUREMENT OF WEIGHTSSecure loose items to prevent weight shifts that
could affect the balance of your vehicle. When
the vehicle is loaded, drive to a scale and weigh
the front and the rear wheels separately to
determine axle loads. Individual axle loads
should not exceed either of the gross axle weight
ratings (GAWR). The total of the axle loads
STI0343
9-16
Technical and consumer information


04.4.5/Z50-D/V5.0


should not exceed the gross vehicle weight
rating (GVWR). These ratings are given on the
vehicle certification label that is located on the
driver’s door lock pillar. If weight ratings are
exceeded, move or remove items to bring all
weights below the ratings.
CAUTION
Overloading can shorten the life of your
vehicle. Failures caused by overloading
are not covered by your warranty.

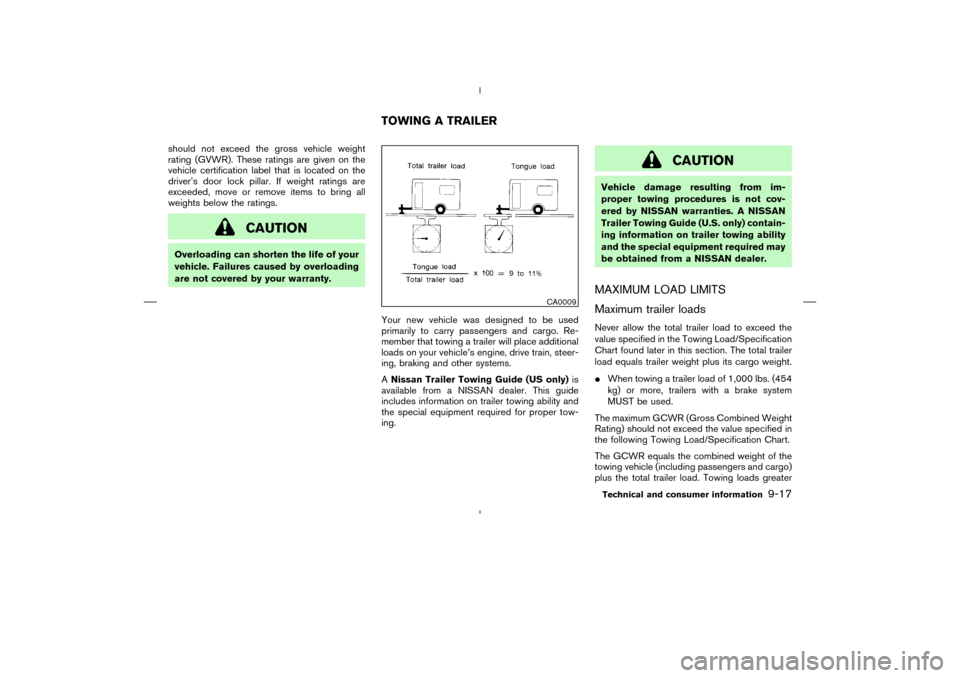

Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer will place additional
loads on your vehicle’s engine, drive train, steer-
ing, braking and other systems.
ANissan Trailer Towing Guide (US only)is
available from a NISSAN dealer. This guide
includes information on trailer towing ability and
the special equipment required for proper tow-
ing.
CAUTION
Vehicle damage resulting from im-
proper towing procedures is not cov-
ered by NISSAN warranties. A NISSAN
Trailer Towing Guide (U.S. only) contain-
ing information on trailer towing ability
and the special equipment required may
be obtained from a NISSAN dealer.MAXIMUM LOAD LIMITS
Maximum trailer loadsNever allow the total trailer load to exceed the
value specified in the Towing Load/Specification
Chart found later in this section. The total trailer
load equals trailer weight plus its cargo weight.

When towing a trailer load of 1,000 lbs. (454
kg) or more, trailers with a brake system
MUST be used.
The maximum GCWR (Gross Combined Weight
Rating) should not exceed the value specified in
the following Towing Load/Specification Chart.
The GCWR equals the combined weight of the
towing vehicle (including passengers and cargo)
plus the total trailer load. Towing loads greater
CA0009
TOWING A TRAILER
Technical and consumer information
9-17


04.4.5/Z50-D/V5.0
