2004 NISSAN MURANO Owners Manual

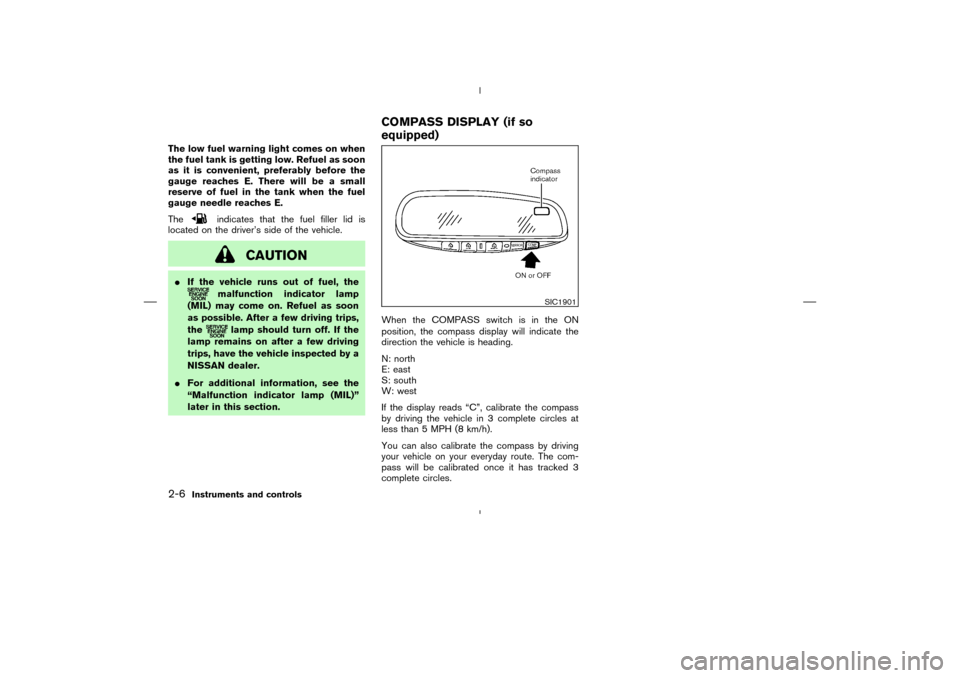

The low fuel warning light comes on when
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
gauge reaches E. There will be a small
reserve of fuel in the tank when the fuel
gauge needle reaches E.
The
indicates that the fuel filler lid is
located on the driver’s side of the vehicle.
CAUTION

If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)”
later in this section.When the COMPASS switch is in the ON
position, the compass display will indicate the
direction the vehicle is heading.
N: north
E: east
S: south
W: west
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h).
You can also calibrate the compass by driving
your vehicle on your everyday route. The com-
pass will be calibrated once it has tracked 3
complete circles.
SIC1901
COMPASS DISPLAY (if so
equipped)
2-6
Instruments and controls


04.4.5/Z50-D/V5.0

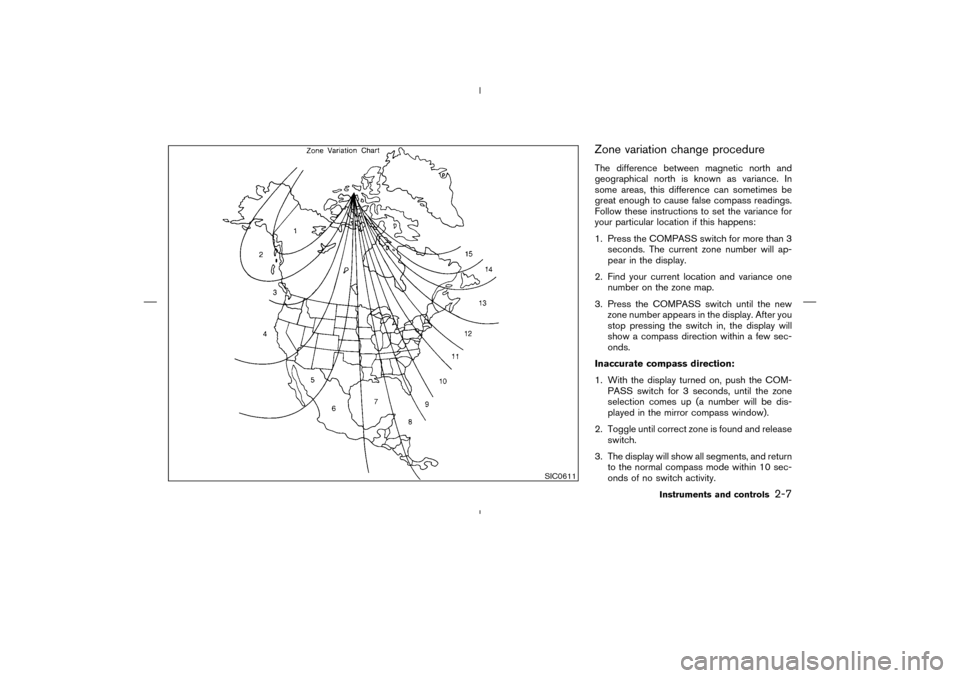

Zone variation change procedureThe difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1. Press the COMPASS switch for more than 3
seconds. The current zone number will ap-
pear in the display.
2. Find your current location and variance one
number on the zone map.
3. Press the COMPASS switch until the new
zone number appears in the display. After you
stop pressing the switch in, the display will
show a compass direction within a few sec-
onds.
Inaccurate compass direction:
1. With the display turned on, push the COM-
PASS switch for 3 seconds, until the zone
selection comes up (a number will be dis-
played in the mirror compass window).
2. Toggle until correct zone is found and release
switch.
3. The display will show all segments, and return
to the normal compass mode within 10 sec-
onds of no switch activity.
SIC0611
Instruments and controls
2-7


04.4.5/Z50-D/V5.0


4. If the vehicle changes zone, repeat steps 1
thru 3. See map.

If the compass deviates from the correct
indication soon after repeated adjustment,
have the compass checked at an authorized
dealer.

The compass may not indicate the correct
compass point in tunnels or while driving up
or down a steep hill.
(The compass returns to the correct com-
pass point when the vehicle moves to an area
where the geomagnetism is stabilized.)
CAUTION

Do not install a ski rack, antenna, etc.
which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.

When cleaning the mirror, use a pa-
per towel or similar material damp-
ened with glass cleaner. Do not spray
glass cleaner directly on the mirror as
it may cause the liquid cleaner to
enter the mirror housing.2-8
Instruments and controls


04.4.5/Z50-D/V5.0

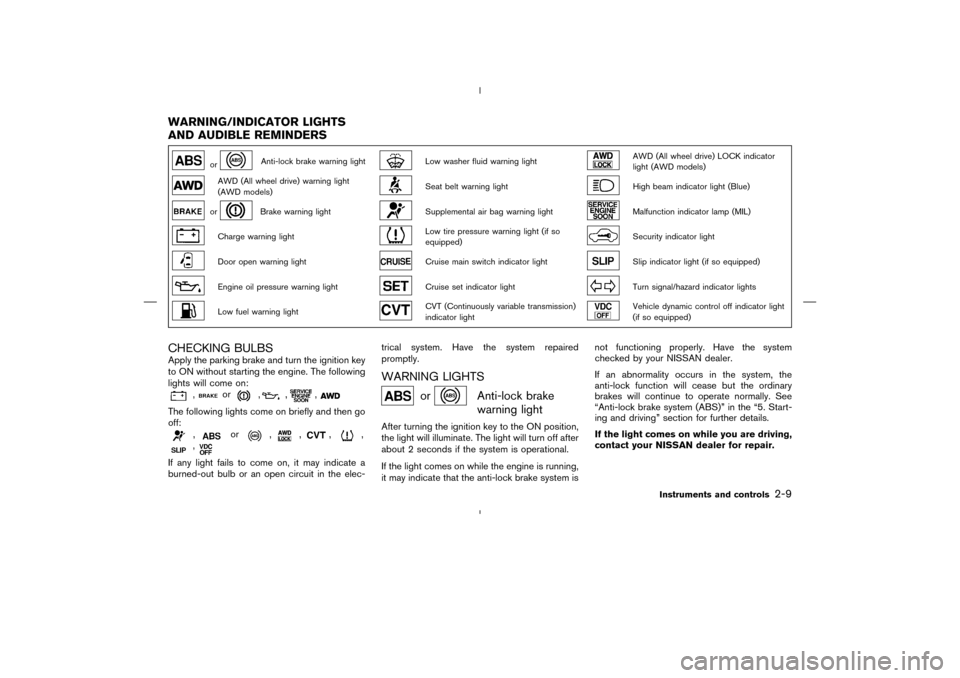

or
Anti-lock brake warning light
Low washer fluid warning light
AWD (All wheel drive) LOCK indicator
light (AWD models)
AWD (All wheel drive) warning light
(AWD models)
Seat belt warning light
High beam indicator light (Blue)
or
Brake warning light
Supplemental air bag warning light
Malfunction indicator lamp (MIL)
Charge warning light
Low tire pressure warning light (if so
equipped)
Security indicator light
Door open warning light
Cruise main switch indicator light
Slip indicator light (if so equipped)
Engine oil pressure warning light
Cruise set indicator light
Turn signal/hazard indicator lights
Low fuel warning light
CVT (Continuously variable transmission)
indicator light
Vehicle dynamic control off indicator light
(if so equipped)
CHECKING BULBSApply the parking brake and turn the ignition key
to ON without starting the engine. The following
lights will come on:
,
or
,
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
or
Anti-lock brake
warning light
After turning the ignition key to the ON position,
the light will illuminate. The light will turn off after
about 2 seconds if the system is operational.
If the light comes on while the engine is running,
it may indicate that the anti-lock brake system isnot functioning properly. Have the system
checked by your NISSAN dealer.
If an abnormality occurs in the system, the
anti-lock function will cease but the ordinary
brakes will continue to operate normally. See
“Anti-lock brake system (ABS)” in the “5. Start-
ing and driving” section for further details.
If the light comes on while you are driving,
contact your NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-9


04.4.5/Z50-D/V5.0


AWD (All wheel drive) warning
light (AWD models)
The
warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
differs, the warning light will either remain illumi-
nated or blink. See “Using all wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, andidle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition key is in the ON position, the
light comes on when the parking brake is ap-
plied.Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
greater pedal travel.
2-10
Instruments and controls


04.4.5/Z50-D/V5.0

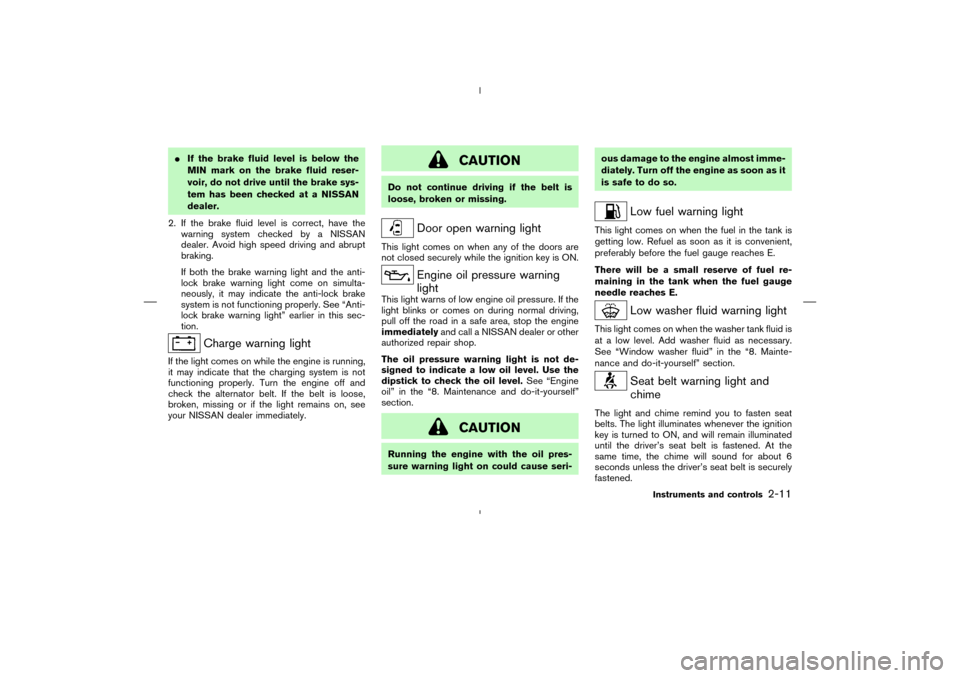

If the brake fluid level is below the
MINmark on the brake fluid reser-
voir, do not drive until the brake sys-
tem has been checked at a NISSAN
dealer.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer. Avoid high speed driving and abrupt
braking.
If both the brake warning light and the anti-
lock brake warning light come on simulta-
neously, it may indicate the anti-lock brake
system is not functioning properly. See “Anti-
lock brake warning light” earlier in this sec-
tion.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
your NISSAN dealer immediately.
CAUTION
Do not continue driving if the belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition key is ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the oil pres-
sure warning light on could cause seri-ous damage to the engine almost imme-
diately. Turn off the engine as soon as it
is safe to do so.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
key is turned to ON, and will remain illuminated
until the driver’s seat belt is fastened. At the
same time, the chime will sound for about 6
seconds unless the driver’s seat belt is securely
fastened.
Instruments and controls
2-11


04.4.5/Z50-D/V5.0


See “Seat belts” in the “1. Seats, restraints and
supplemental air bag systems” section for pre-
cautions on seat belt usage.
Supplemental air bag warning
light
After turning the ignition key to the ON position,
the supplemental air bag warning light will illu-
minate. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt needs servicing and
your vehicle must be taken to your nearest
NISSAN dealer.

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”in the “1. Seats, restraints and supplemental air
bag systems” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
Low tire pressure warning light
(if so equipped)
After the ignition switch is turned ON, this light
comes on for about 1 second and then turns off.
This light warns of low tire pressure.
NISSAN’s low tire pressure warning system is a
tire pressure monitoring system. It monitors tire
pressure of all tires except the spare. When the
tire pressure monitoring system warning light is
lit, one or more of your tires is significantly
under-inflated. You should stop and check your
tires as soon as possible, and inflate them to theproper pressure as indicated on the vehicle’s tire
information placard. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure.
Under-inflation also reduces fuel efficiency and
tire tread life, and may affect the vehicle’s han-
dling and stopping ability. Each tire, including
the spare, should be checked monthly when
cold and set to the recommended inflation pres-
sure as specified in the vehicle placard and
Owner’s Manual. The recommended inflation
pressure may also be found on the Tire and
Loading Information label.
Low tire pressure warning:
If the vehicle is being driven with a low tire
pressure (lower than 27 psi, 190 kPa), the light
will illuminate and the chime will sound for about
10 seconds. If you select the tire pressure in the
display (if so equipped), the FLAT TIRE warning
message will be displayed.
For additional information, see “Low tire pres-
sure warning system” in the “5. Starting and
driving” section and “Low tire pressure warning
system” in the “6. In case of emergency” section.
Also, you can check the pressure of all 4 tires on
the display screen. See “Tire pressure informa-
tion” in the “4. Display screen, heater, air condi-
tioner and audio systems” section.
2-12
Instruments and controls


04.4.5/Z50-D/V5.0


WARNING

If the light does not come on with the
key switch turned ON, have the ve-
hicle checked by a NISSAN dealer as
soon as possible.

If the light comes on while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat. If you have a flat tire, replace
it with a spare tire as soon as
possible.
When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated and the
low tire pressure warning system will
not function. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.
CAUTION

The low tire pressure warning system
is not a substitute for the regular tire
pressure check. Be sure to check the
tire pressure regularly.

If the vehicle is being driven at
speeds of less than 20 MPH (32
km/h), the low tire pressure warning
system may not operate correctly.

Be sure to install the specified size of
tires to the four wheels correctly.
INDICATOR LIGHTS
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by
your NISSAN dealer.
CVT (Continuously variable
transmission) indicator light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
AWD (All wheel drive) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using all
Instruments and controls
2-13


04.4.5/Z50-D/V5.0
