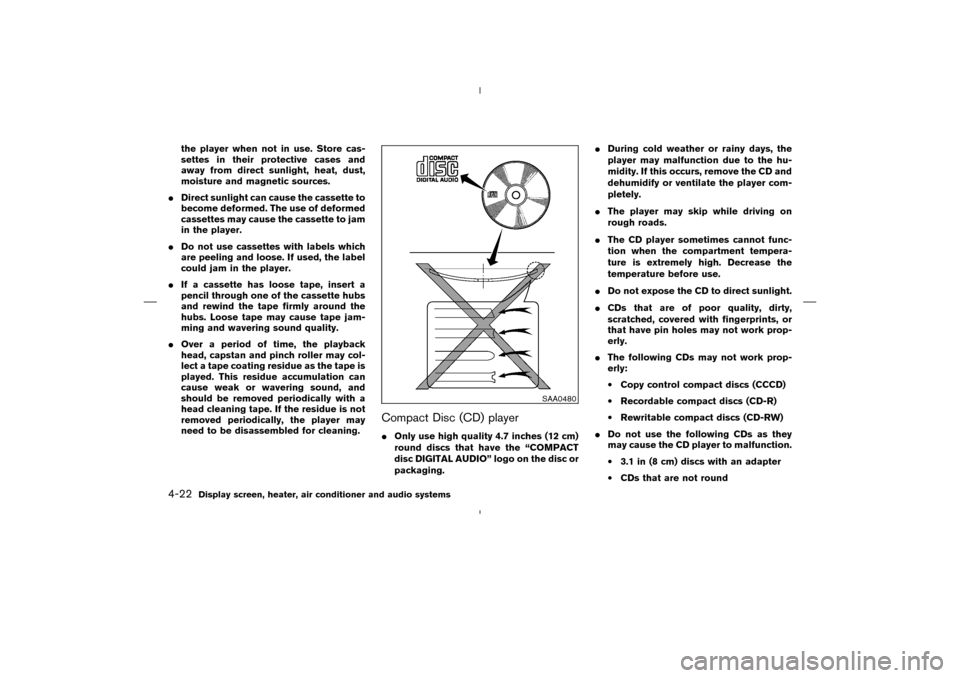

the player when not in use. Store cas-
settes in their protective cases and
away from direct sunlight, heat, dust,
moisture and magnetic sources.

Direct sunlight can cause the cassette to
become deformed. The use of deformed
cassettes may cause the cassette to jam
in the player.

Do not use cassettes with labels which
are peeling and loose. If used, the label
could jam in the player.

If a cassette has loose tape, insert a
pencil through one of the cassette hubs
and rewind the tape firmly around the
hubs. Loose tape may cause tape jam-
ming and wavering sound quality.

Over a period of time, the playback
head, capstan and pinch roller may col-
lect a tape coating residue as the tape is
played. This residue accumulation can
cause weak or wavering sound, and
should be removed periodically with a
head cleaning tape. If the residue is not
removed periodically, the player may
need to be disassembled for cleaning.
Compact Disc (CD) player
Only use high quality 4.7 inches (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc or
packaging.
During cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD and
dehumidify or ventilate the player com-
pletely.

The player may skip while driving on
rough roads.

The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high. Decrease the
temperature before use.

Do not expose the CD to direct sunlight.

CDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pin holes may not work prop-
erly.

The following CDs may not work prop-
erly:
•Copy control compact discs (CCCD)
•Recordable compact discs (CD-R)
•Rewritable compact discs (CD-RW)

Do not use the following CDs as they
may cause the CD player to malfunction.
•3.1 in (8 cm) discs with an adapter
•CDs that are not round
SAA0480
4-22
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

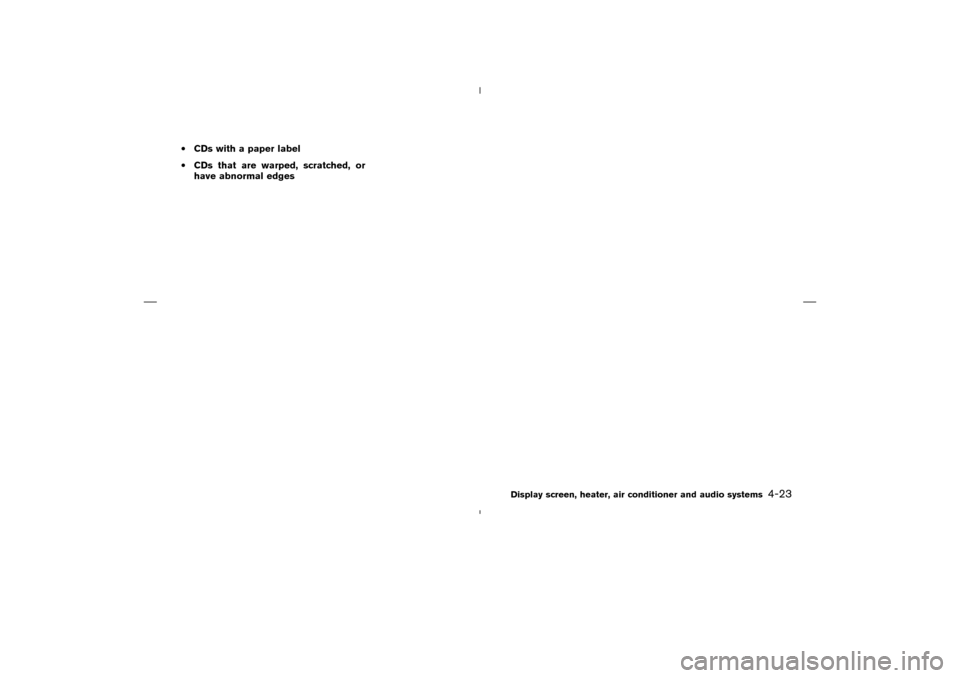

•CDs with a paper label
•CDs that are warped, scratched, or
have abnormal edges
Display screen, heater, air conditioner and audio systems
4-23


04.4.5/Z50-D/V5.0

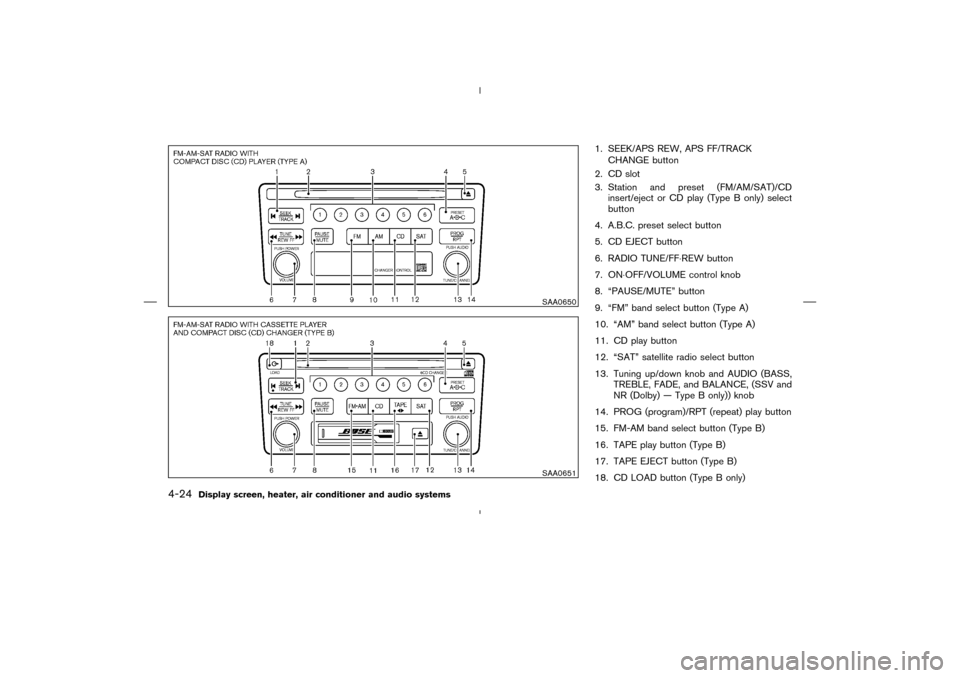

1. SEEK/APS REW, APS FF/TRACK
CHANGE button
2. CD slot
3. Station and preset (FM/AM/SAT)/CD
insert/eject or CD play (Type B only) select
button
4. A.B.C. preset select button
5. CD EJECT button
6. RADIO TUNE/FF⋅REW button
7. ON⋅OFF/VOLUME control knob
8. “PAUSE/MUTE” button
9. “FM” band select button (Type A)
10. “AM” band select button (Type A)
11. CD play button
12. “SAT” satellite radio select button
13. Tuning up/down knoband AUDIO (BASS,
TREBLE, FADE, and BALANCE, (SSV and
NR (Dolby) — Type B only)) knob
14. PROG (program)/RPT (repeat) play button
15. FM-AM band select button (Type B)
16. TAPE play button (Type B)
17. TAPE EJECT button (Type B)
18. CD LOAD button (Type B only)
SAA0650SAA0651
4-24
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

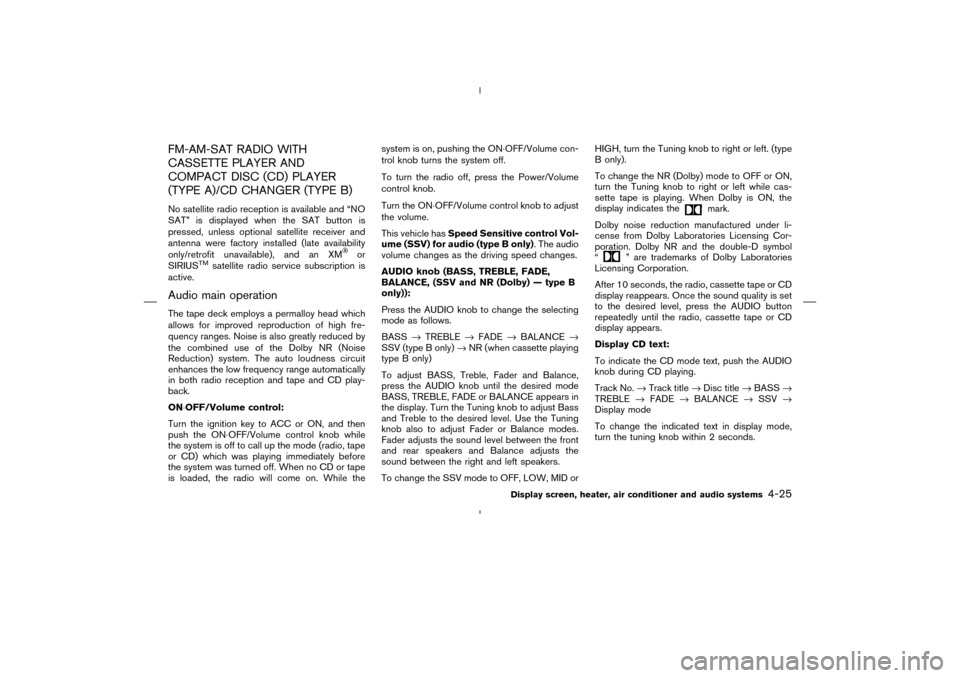

FM-AM-SAT RADIO WITH
CASSETTE PLAYER AND
COMPACT DISC (CD) PLAYER
(TYPE A)/CD CHANGER (TYPE B)No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed, unless optional satellite receiver and
antenna were factory installed (late availability
only/retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
Audio main operationThe tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the combined use of the Dolby NR (Noise
Reduction) system. The auto loudness circuit
enhances the low frequency range automatically
in both radio reception and tape and CD play-
back.
ON⋅OFF/Volume control:
Turn the ignition key to ACC or ON, and then
push the ON⋅OFF/Volume control knobwhile
the system is off to call up the mode (radio, tape
or CD) which was playing immediately before
the system was turned off. When no CD or tape
is loaded, the radio will come on. While thesystem is on, pushing the ON⋅OFF/Volume con-
trol knobturns the system off.
To turn the radio off, press the Power/Volume
control knob.
Turn the ON⋅OFF/Volume control knobto adjust
the volume.
This vehicle hasSpeed Sensitive control Vol-
ume (SSV) for audio (type B only). The audio
volume changes as the driving speed changes.
AUDIO knob (BASS, TREBLE, FADE,
BALANCE, (SSV and NR (Dolby) — type B
only)):
Press the AUDIO knobto change the selecting
mode as follows.
BASS→TREBLE→FADE→BALANCE→
SSV (type B only)→NR (when cassette playing
type B only)
To adjust BASS, Treble, Fader and Balance,
press the AUDIO knobuntil the desired mode
BASS, TREBLE, FADE or BALANCE appears in
the display. Turn the Tuning knobto adjust Bass
and Treble to the desired level. Use the Tuning
knobalso to adjust Fader or Balance modes.
Fader adjusts the sound level between the front
and rear speakers and Balance adjusts the
sound between the right and left speakers.
To change the SSV mode to OFF, LOW, MID orHIGH, turn the Tuning knobto right or left. (type
B only).
To change the NR (Dolby) mode to OFF or ON,
turn the Tuning knobto right or left while cas-
sette tape is playing. When Dolby is ON, the
display indicates the
mark.
Dolby noise reduction manufactured under li-
cense from Dolby Laboratories Licensing Cor-
poration. Dolby NR and the double-D symbol
“
” are trademarks of Dolby Laboratories
Licensing Corporation.
After 10 seconds, the radio, cassette tape or CD
display reappears. Once the sound quality is set
to the desired level, press the AUDIO button
repeatedly until the radio, cassette tape or CD
display appears.
Display CD text:
To indicate the CD mode text, push the AUDIO
knobduring CD playing.
Track No.→Track title→Disc title→BASS→
TREBLE→FADE→BALANCE→SSV→
Display mode
To change the indicated text in display mode,
turn the tuning knobwithin 2 seconds.
Display screen, heater, air conditioner and audio systems
4-25


04.4.5/Z50-D/V5.0

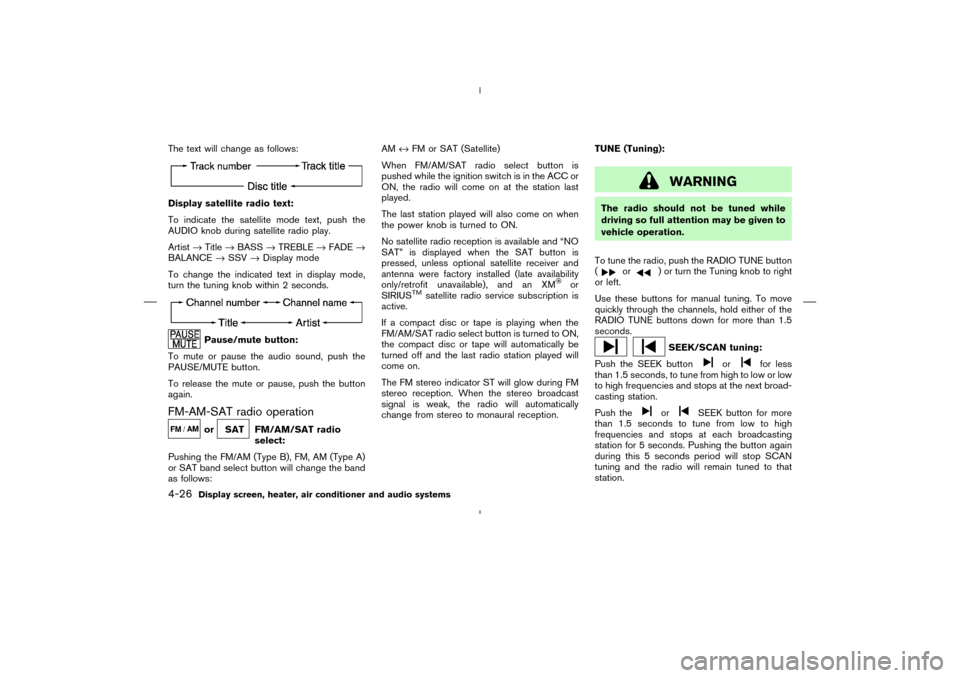

The text will change as follows:Display satellite radio text:
To indicate the satellite mode text, push the
AUDIO knobduring satellite radio play.
Artist→Title→BASS→TREBLE→FADE→
BALANCE→SSV→Display mode
To change the indicated text in display mode,
turn the tuning knobwithin 2 seconds.
Pause/mute button:
To mute or pause the audio sound, push the
PAUSE/MUTE button.
To release the mute or pause, push the button
again.
FM-AM-SAT radio operation
or
SAT FM/AM/SAT radio
select:
Pushing the FM/AM (Type B), FM, AM (Type A)
or SAT band select button will change the band
as follows:AM↔FM or SAT (Satellite)
When FM/AM/SAT radio select button is
pushed while the ignition switch is in the ACC or
ON, the radio will come on at the station last
played.
The last station played will also come on when
the power knobis turned to ON.
No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed, unless optional satellite receiver and
antenna were factory installed (late availability
only/retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
If a compact disc or tape is playing when the
FM/AM/SAT radio select button is turned to ON,
the compact disc or tape will automatically be
turned off and the last radio station played will
come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.TUNE (Tuning):
WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
To tune the radio, push the RADIO TUNE button
(
or
) or turn the Tuning knobto right
or left.
Use these buttons for manual tuning. To move
quickly through the channels, hold either of the
RADIO TUNE buttons down for more than 1.5
seconds.SEEK/SCANtuning:
Push the SEEK button
or
for less
than 1.5 seconds, to tune from high to low or low
to high frequencies and stops at the next broad-
casting station.
Push the
or
SEEK button for more
than 1.5 seconds to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the button again
during this 5 seconds period will stop SCAN
tuning and the radio will remain tuned to that
station.
4-26
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

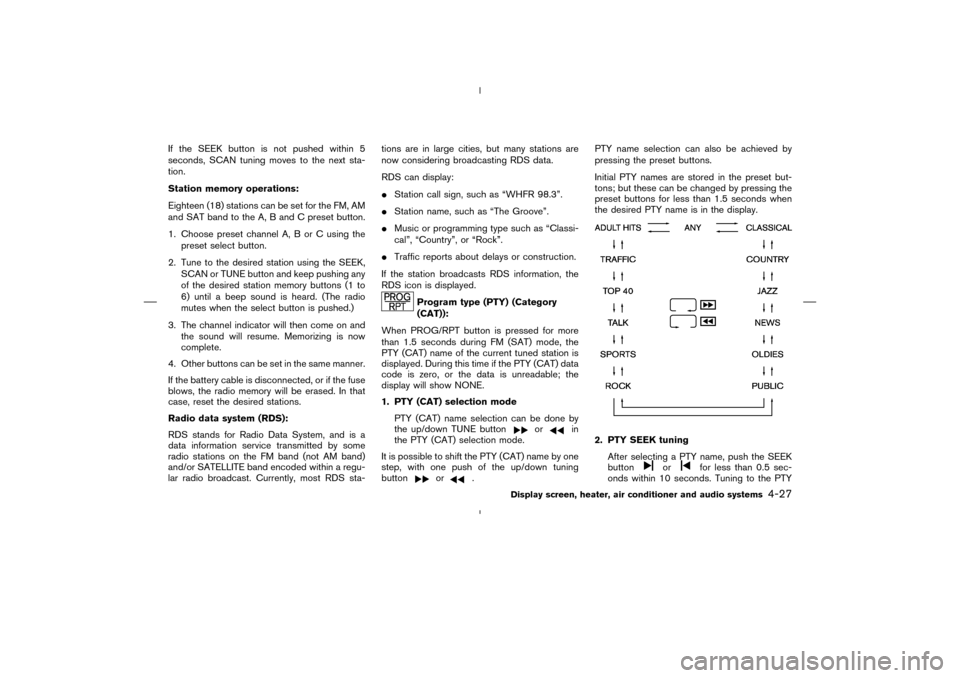

If the SEEK button is not pushed within 5
seconds, SCAN tuning moves to the next sta-
tion.
Station memory operations:
Eighteen (18) stations can be set for the FM, AM
and SAT band to the A, B and C preset button.
1. Choose preset channel A, B or C using the
preset select button.
2. Tune to the desired station using the SEEK,
SCAN or TUNE button and keep pushing any
of the desired station memory buttons (1 to
6) until a beep sound is heard. (The radio
mutes when the select button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
blows, the radio memory will be erased. In that
case, reset the desired stations.
Radio data system (RDS):
RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
and/or SATELLITE band encoded within a regu-
lar radio broadcast. Currently, most RDS sta-tions are in large cities, but many stations are
now considering broadcasting RDS data.
RDS can display:

Station call sign, such as “WHFR 98.3”.

Station name, such as “The Groove”.

Music or programming type such as “Classi-
cal”, “Country”, or “Rock”.

Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
Program type (PTY) (Category
(CAT)):
When PROG/RPT button is pressed for more
than 1.5 seconds during FM (SAT) mode, the
PTY (CAT) name of the current tuned station is
displayed. During this time if the PTY (CAT) data
code is zero, or the data is unreadable; the
display will show NONE.
1. PTY (CAT) selection mode
PTY (CAT) name selection can be done by
the up/down TUNE button
or
in
the PTY (CAT) selection mode.
It is possible to shift the PTY (CAT) name by one
step, with one push of the up/down tuning
button
or
.PTY name selection can also be achieved by
pressing the preset buttons.
Initial PTY names are stored in the preset but-
tons; but these can be changed by pressing the
preset buttons for less than 1.5 seconds when
the desired PTY name is in the display.
2. PTY SEEK tuning
After selecting a PTY name, push the SEEK
button
or
for less than 0.5 sec-
onds within 10 seconds. Tuning to the PTY
Display screen, heater, air conditioner and audio systems
4-27


04.4.5/Z50-D/V5.0

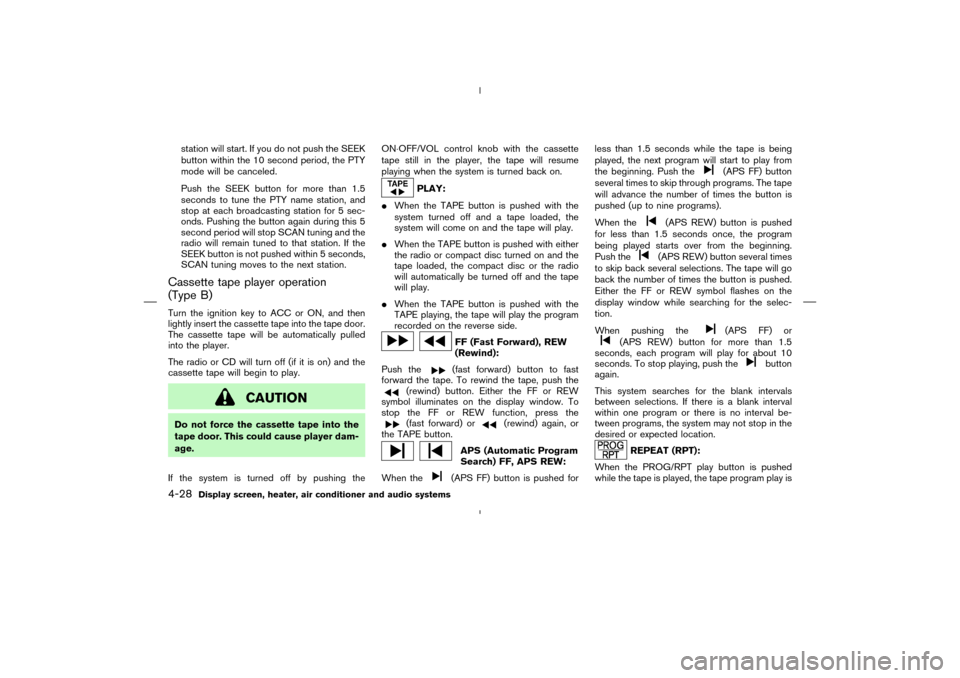

station will start. If you do not push the SEEK
button within the 10 second period, the PTY
mode will be canceled.
Push the SEEK button for more than 1.5
seconds to tune the PTY name station, and
stop at each broadcasting station for 5 sec-
onds. Pushing the button again during this 5
second period will stop SCAN tuning and the
radio will remain tuned to that station. If the
SEEK button is not pushed within 5 seconds,
SCAN tuning moves to the next station.
Cassette tape player operation
(Type B)Turn the ignition key to ACC or ON, and then
lightly insert the cassette tape into the tape door.
The cassette tape will be automatically pulled
into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
CAUTION
Do not force the cassette tape into the
tape door. This could cause player dam-
age.
If the system is turned off by pushing theON⋅OFF/VOL control knobwith the cassette
tape still in the player, the tape will resume
playing when the system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed with the
TAPE playing, the tape will play the program
recorded on the reverse side.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the display window. To
stop the FF or REW function, press the(fast forward) or
(rewind) again, or
the TAPE button.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed forless than 1.5 seconds while the tape is being
played, the next program will start to play from
the beginning. Push the
(APS FF) button
several times to skip through programs. The tape
will advance the number of times the button is
pushed (up to nine programs).
When the
(APS REW) button is pushed
for less than 1.5 seconds once, the program
being played starts over from the beginning.
Push the(APS REW) button several times
to skip back several selections. The tape will go
back the number of times the button is pushed.
Either the FF or REW symbol flashes on the
display window while searching for the selec-
tion.
When pushing the
(APS FF) or
(APS REW) button for more than 1.5
seconds, each program will play for about 10
seconds. To stop playing, push the
button
again.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.
REPEAT (RPT):
When the PROG/RPT play button is pushed
while the tape is played, the tape program play is
4-28
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

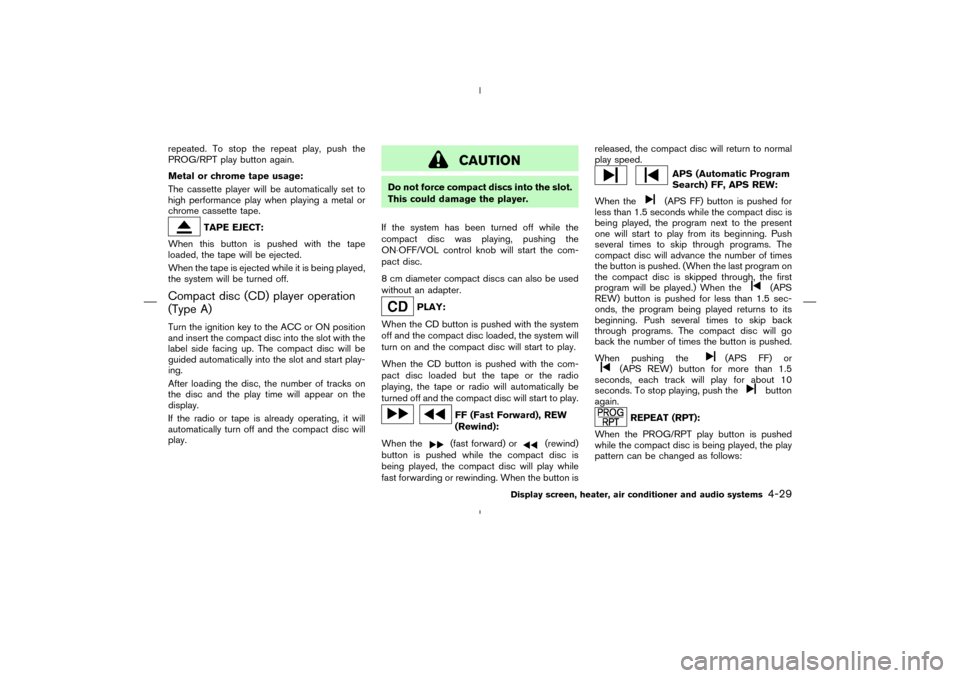

repeated. To stop the repeat play, push the
PROG/RPT play button again.
Metal or chrome tape usage:
The cassette player will be automatically set to
high performance play when playing a metal or
chrome cassette tape.
TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) player operation
(Type A)Turn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
CAUTION
Do not force compact discs into the slot.
This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
8 cm diameter compact discs can also be used
without an adapter.
PLAY:
When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button isreleased, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed for
less than 1.5 seconds while the compact disc is
being played, the program next to the present
one will start to play from its beginning. Push
several times to skip through programs. The
compact disc will advance the number of times
the button is pushed. (When the last program on
the compact disc is skipped through, the first
program will be played.) When the
(APS
REW) button is pushed for less than 1.5 sec-
onds, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
When pushing the
(APS FF) or
(APS REW) button for more than 1.5
seconds, each track will play for about 10
seconds. To stop playing, push the
button
again.
REPEAT (RPT):
When the PROG/RPT play button is pushed
while the compact disc is being played, the play
pattern can be changed as follows:
Display screen, heater, air conditioner and audio systems
4-29


04.4.5/Z50-D/V5.0
