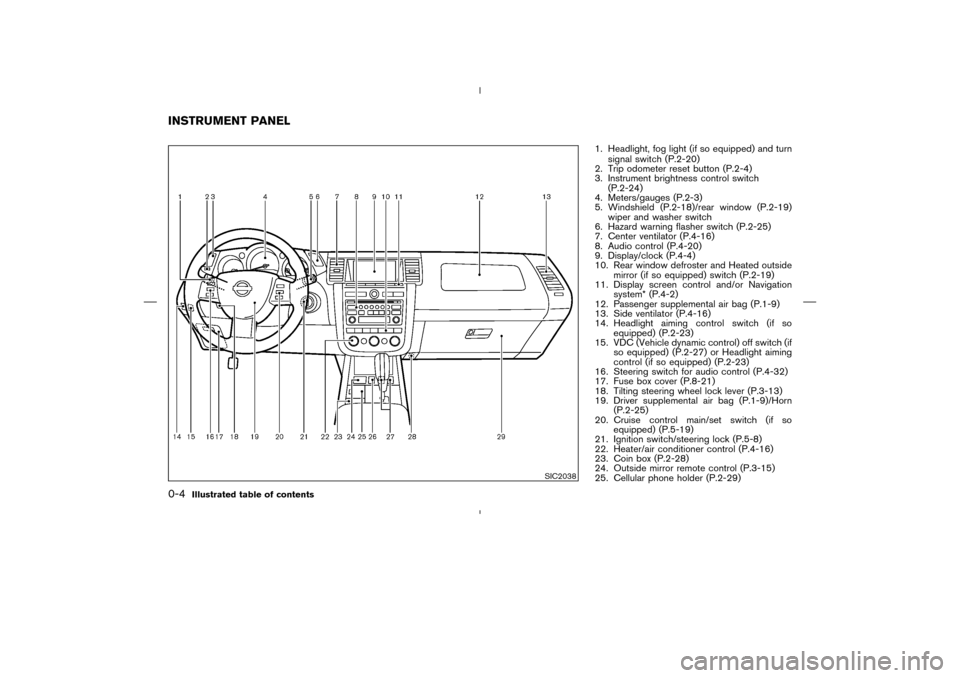

2004 NISSAN MURANO Owners Manual

1. Headlight, fog light (if so equipped) and turn
signal switch (P.2-20)
2. Trip odometer reset button (P.2-4)
3. Instrument brightness control switch
(P.2-24)
4. Meters/gauges (P.2-3)
5. Windshield (P.2-18)/rear window (P.2-19)
wiper and washer switch
6. Hazard warning flasher switch (P.2-25)
7. Center ventilator (P.4-16)
8. Audio control (P.4-20)
9. Display/clock (P.4-4)
10. Rear window defroster and Heated outside
mirror (if so equipped) switch (P.2-19)
11. Display screen control and/or Navigation
system* (P.4-2)
12. Passenger supplemental air bag (P.1-9)
13. Side ventilator (P.4-16)
14. Headlight aiming control switch (if so
equipped) (P.2-23)
15. VDC (Vehicle dynamic control) off switch (if
so equipped) (P.2-27) or Headlight aiming
control (if so equipped) (P.2-23)
16. Steering switch for audio control (P.4-32)
17. Fuse box cover (P.8-21)
18. Tilting steering wheel lock lever (P.3-13)
19. Driver supplemental air bag (P.1-9)/Horn
(P.2-25)
20. Cruise control main/set switch (if so
equipped) (P.5-19)
21. Ignition switch/steering lock (P.5-8)
22. Heater/air conditioner control (P.4-16)
23. Coin box (P.2-28)
24. Outside mirror remote control (P.3-15)
25. Cellular phone holder (P.2-29)
SIC2038
INSTRUMENT PANEL0-4
Illustrated table of contents


04.4.5/Z50-D/V5.0

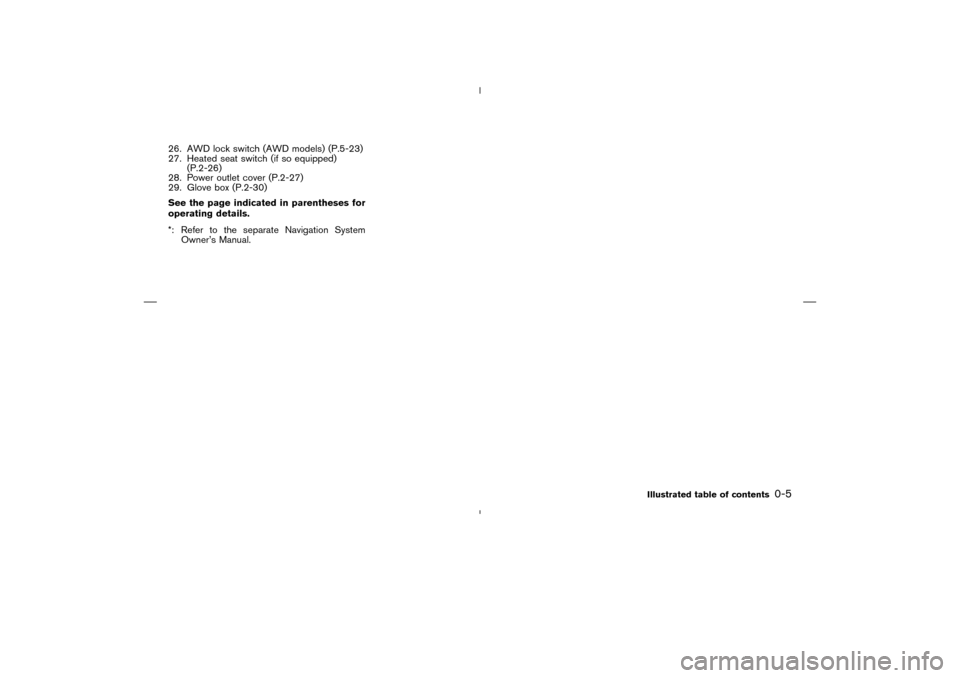

26. AWD lock switch (AWD models) (P.5-23)
27. Heated seat switch (if so equipped)
(P.2-26)
28. Power outlet cover (P.2-27)
29. Glove box (P.2-30)
See the page indicated in parentheses for
operating details.
*: Refer to the separate Navigation System
Owner’s Manual.
Illustrated table of contents
0-5


04.4.5/Z50-D/V5.0

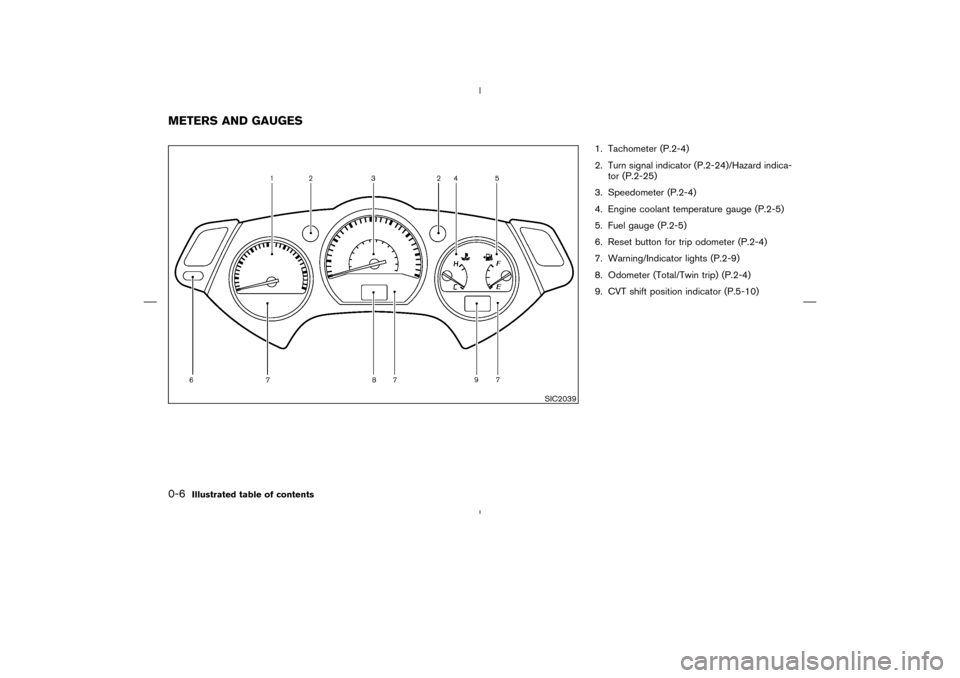

1. Tachometer (P.2-4)
2. Turn signal indicator (P.2-24)/Hazard indica-
tor (P.2-25)
3. Speedometer (P.2-4)
4. Engine coolant temperature gauge (P.2-5)
5. Fuel gauge (P.2-5)
6. Reset button for trip odometer (P.2-4)
7. Warning/Indicator lights (P.2-9)
8. Odometer (Total/Twin trip) (P.2-4)
9. CVT shift position indicator (P.5-10)
SIC2039
METERS AND GAUGES0-6
Illustrated table of contents


04.4.5/Z50-D/V5.0

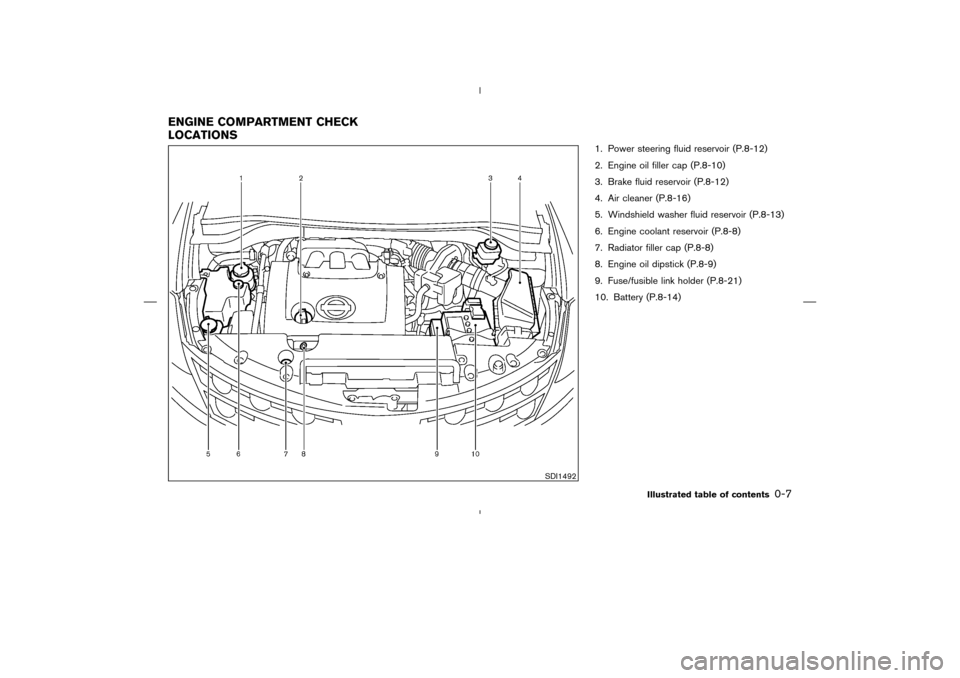

1. Power steering fluid reservoir (P.8-12)
2. Engine oil filler cap (P.8-10)
3. Brake fluid reservoir (P.8-12)
4. Air cleaner (P.8-16)
5. Windshield washer fluid reservoir (P.8-13)
6. Engine coolant reservoir (P.8-8)
7. Radiator filler cap (P.8-8)
8. Engine oil dipstick (P.8-9)
9. Fuse/fusible link holder (P.8-21)
10. Battery (P.8-14)
SDI1492
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents
0-7


04.4.5/Z50-D/V5.0

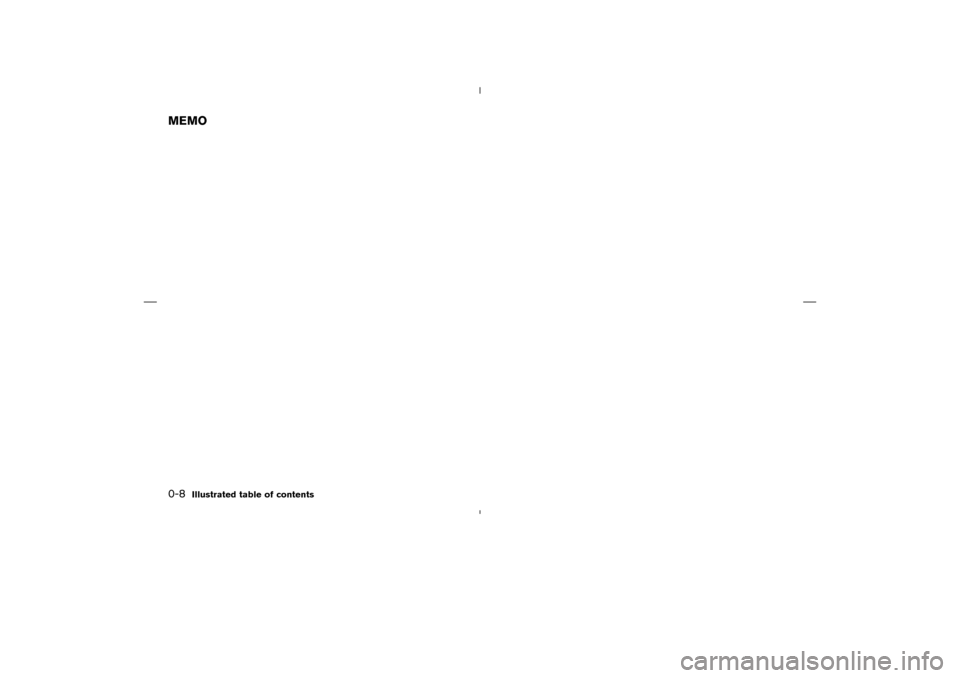

MEMO0-8
Illustrated table of contents


04.4.5/Z50-D/V5.0

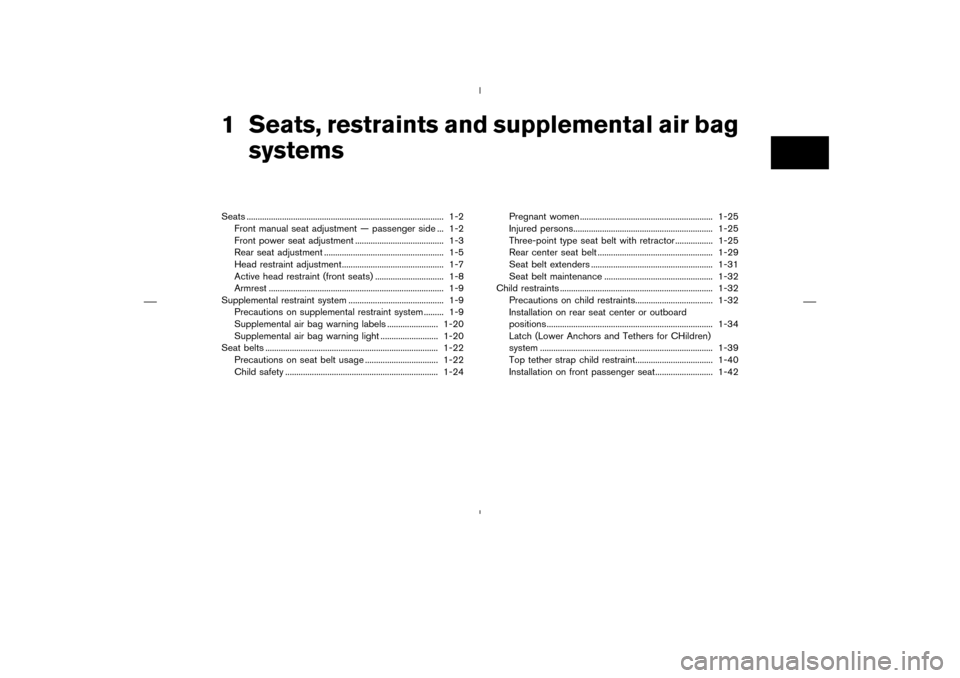

1 Seats, restraints and supplemental air bag
systemsSeats ......................................................................................... 1-2
Front manual seat adjustment — passenger side ... 1-2
Front power seat adjustment ........................................ 1-3
Rear seat adjustment ...................................................... 1-5
Head restraint adjustment.............................................. 1-7
Active head restraint (front seats) ............................... 1-8
Armrest ............................................................................... 1-9
Supplemental restraint system ........................................... 1-9
Precautions on supplemental restraint system ......... 1-9
Supplemental air bag warning labels ....................... 1-20
Supplemental air bag warning light .......................... 1-20
Seat belts .............................................................................. 1-22
Precautions on seat belt usage ................................. 1-22
Child safety ..................................................................... 1-24Pregnant women ............................................................ 1-25
Injured persons............................................................... 1-25
Three-point type seat belt with retractor ................. 1-25
Rear center seat belt .................................................... 1-29
Seat belt extenders ....................................................... 1-31
Seat belt maintenance ................................................. 1-32
Child restraints ..................................................................... 1-32
Precautions on child restraints................................... 1-32
Installation on rear seat center or outboard
positions ........................................................................... 1-34
Latch (Lower Anchors and Tethers for CHildren)
system .............................................................................. 1-39
Top tether strap child restraint................................... 1-40
Installation on front passenger seat.......................... 1-42


04.4.5/Z50-D/V5.0

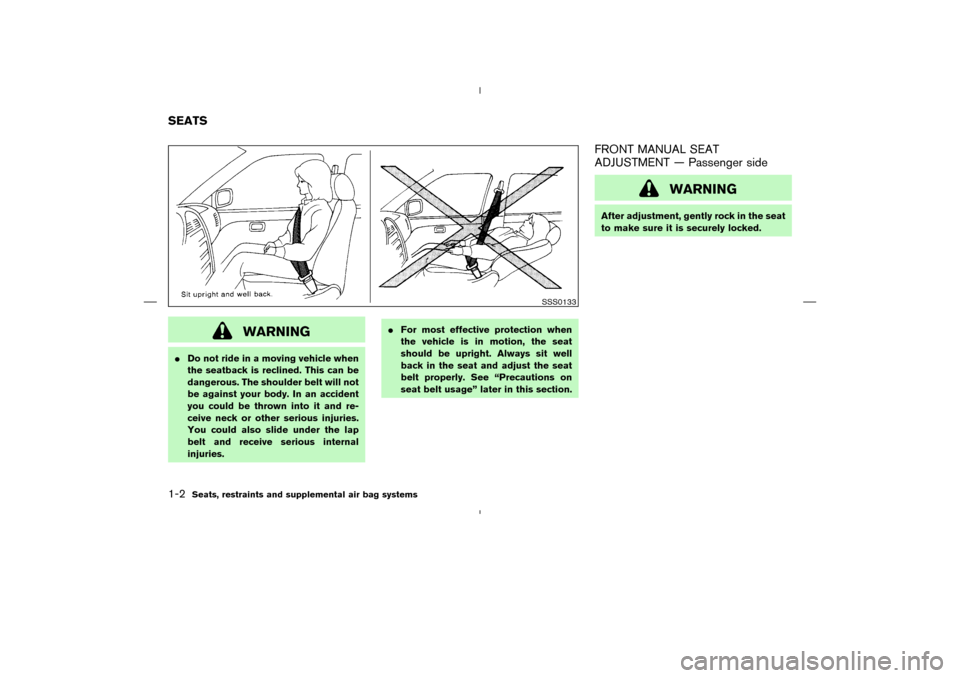

WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Precautions on
seat belt usage” later in this section.
FRONT MANUAL SEAT
ADJUSTMENT — Passenger side
WARNING
After adjustment, gently rock in the seat
to make sure it is securely locked.
SSS0133
SEATS1-2
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0

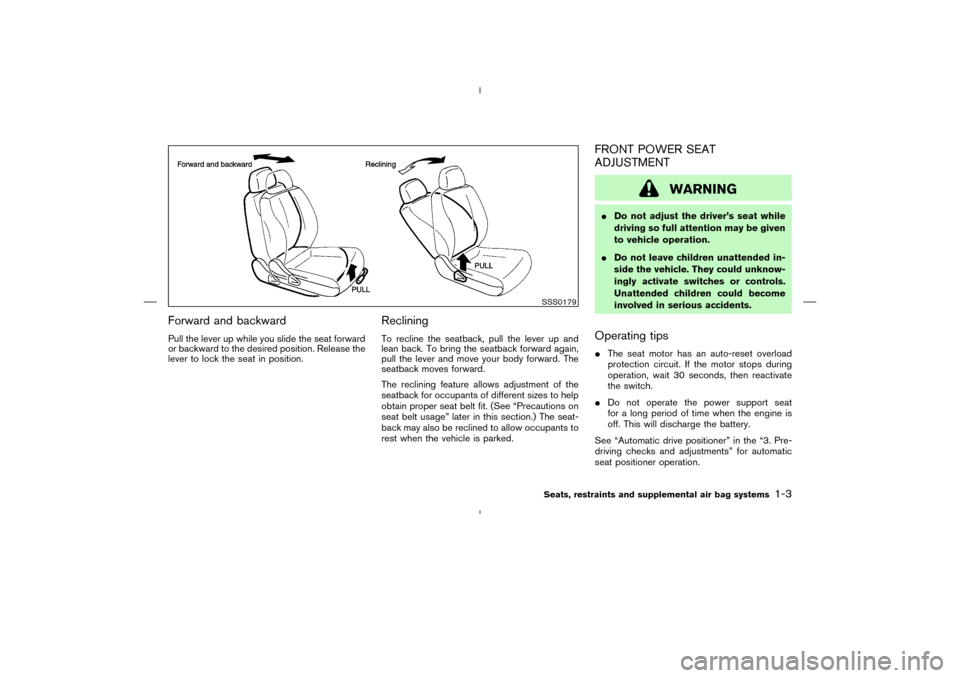

Forward and backwardPull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
RecliningTo recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback moves forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “Precautions on
seat belt usage” later in this section.) The seat-
back may also be reclined to allow occupants to
rest when the vehicle is parked.
FRONT POWER SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
See “Automatic drive positioner” in the “3. Pre-
driving checks and adjustments” for automatic
seat positioner operation.
SSS0179Seats, restraints and supplemental air bag systems
1-3


04.4.5/Z50-D/V5.0
