2004 NISSAN MURANO Owners Manual

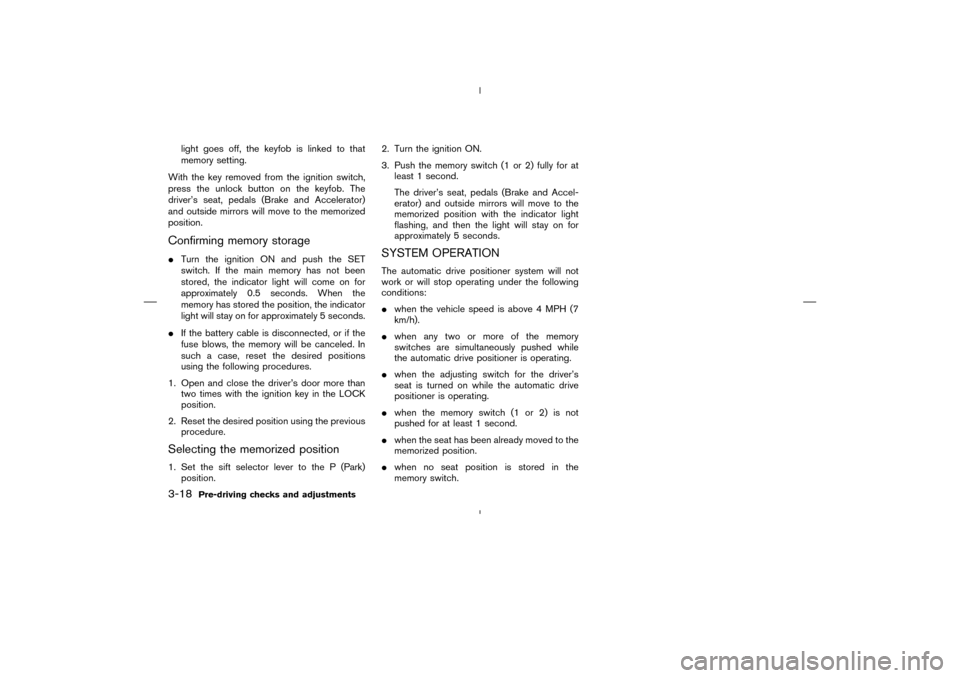

light goes off, the keyfobis linked to that
memory setting.
With the key removed from the ignition switch,
press the unlock button on the keyfob. The
driver’s seat, pedals (Brake and Accelerator)
and outside mirrors will move to the memorized
position.
Confirming memory storage
Turn the ignition ON and push the SET
switch. If the main memory has not been
stored, the indicator light will come on for
approximately 0.5 seconds. When the
memory has stored the position, the indicator
light will stay on for approximately 5 seconds.

If the battery cable is disconnected, or if the
fuse blows, the memory will be canceled. In
such a case, reset the desired positions
using the following procedures.
1. Open and close the driver’s door more than
two times with the ignition key in the LOCK
position.
2. Reset the desired position using the previous
procedure.Selecting the memorized position1. Set the sift selector lever to the P (Park)
position.2. Turn the ignition ON.
3. Push the memory switch (1 or 2) fully for at
least 1 second.
The driver’s seat, pedals (Brake and Accel-
erator) and outside mirrors will move to the
memorized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
SYSTEM OPERATIONThe automatic drive positioner system will not
work or will stop operating under the following
conditions:

when the vehicle speed is above 4 MPH (7
km/h).

when any two or more of the memory
switches are simultaneously pushed while
the automatic drive positioner is operating.

when the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.

when the memory switch (1 or 2) is not
pushed for at least 1 second.

when the seat has been already moved to the
memorized position.

when no seat position is stored in the
memory switch.
3-18
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

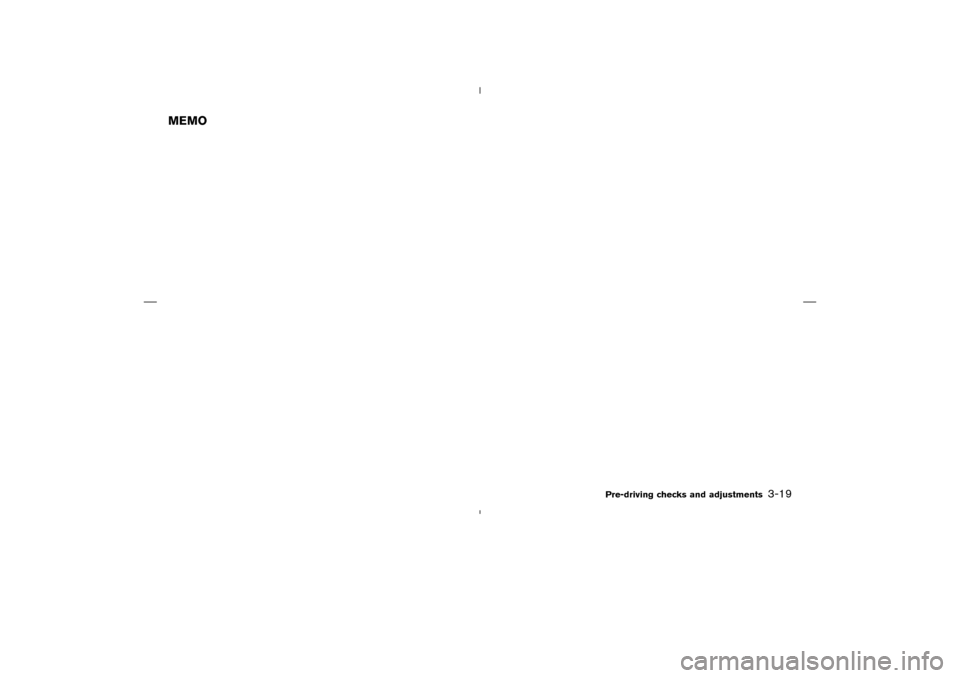

MEMO
Pre-driving checks and adjustments
3-19


04.4.5/Z50-D/V5.0

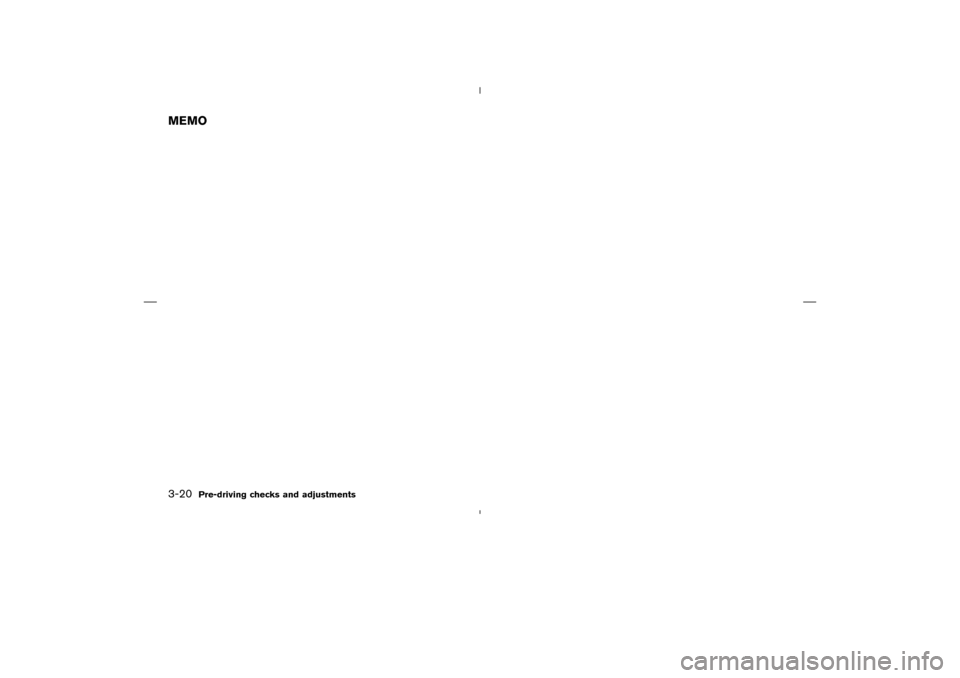

MEMO3-20
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

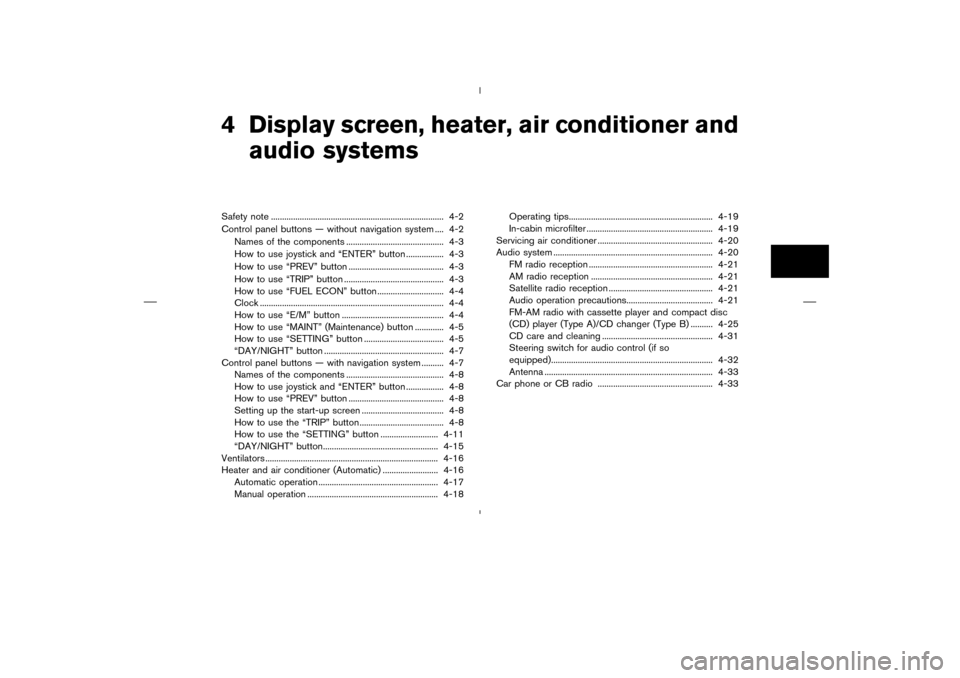

4 Display screen, heater, air conditioner and
audio systemsSafety note .............................................................................. 4-2
Control panel buttons — without navigation system .... 4-2
Names of the components ............................................ 4-3
How to use joystick and “ENTER” button ................. 4-3
How to use “PREV” button ........................................... 4-3
How to use “TRIP” button ............................................. 4-3
How to use “FUEL ECON” button .............................. 4-4
Clock ................................................................................... 4-4
How to use “E/M” button .............................................. 4-4
How to use “MAINT” (Maintenance) button ............. 4-5
How to use “SETTING” button .................................... 4-5
“DAY/NIGHT” button ...................................................... 4-7
Control panel buttons — with navigation system .......... 4-7
Names of the components ............................................ 4-8
How to use joystick and “ENTER” button ................. 4-8
How to use “PREV” button ........................................... 4-8
Setting up the start-up screen ..................................... 4-8
How to use the “TRIP” button ...................................... 4-8
How to use the “SETTING” button .......................... 4-11
“DAY/NIGHT” button.................................................... 4-15
Ventilators .............................................................................. 4-16
Heater and air conditioner (Automatic) ......................... 4-16
Automatic operation ...................................................... 4-17
Manual operation ........................................................... 4-18Operating tips................................................................. 4-19
In-cabin microfilter ......................................................... 4-19
Servicing air conditioner .................................................... 4-20
Audio system ........................................................................ 4-20
FM radio reception ........................................................ 4-21
AM radio reception ....................................................... 4-21
Satellite radio reception ............................................... 4-21
Audio operation precautions....................................... 4-21
FM-AM radio with cassette player and compact disc
(CD) player (Type A)/CD changer (Type B) .......... 4-25
CD care and cleaning .................................................. 4-31
Steering switch for audio control (if so
equipped)......................................................................... 4-32
Antenna ............................................................................ 4-33
Car phone or CB radio .................................................... 4-33


04.4.5/Z50-D/V5.0

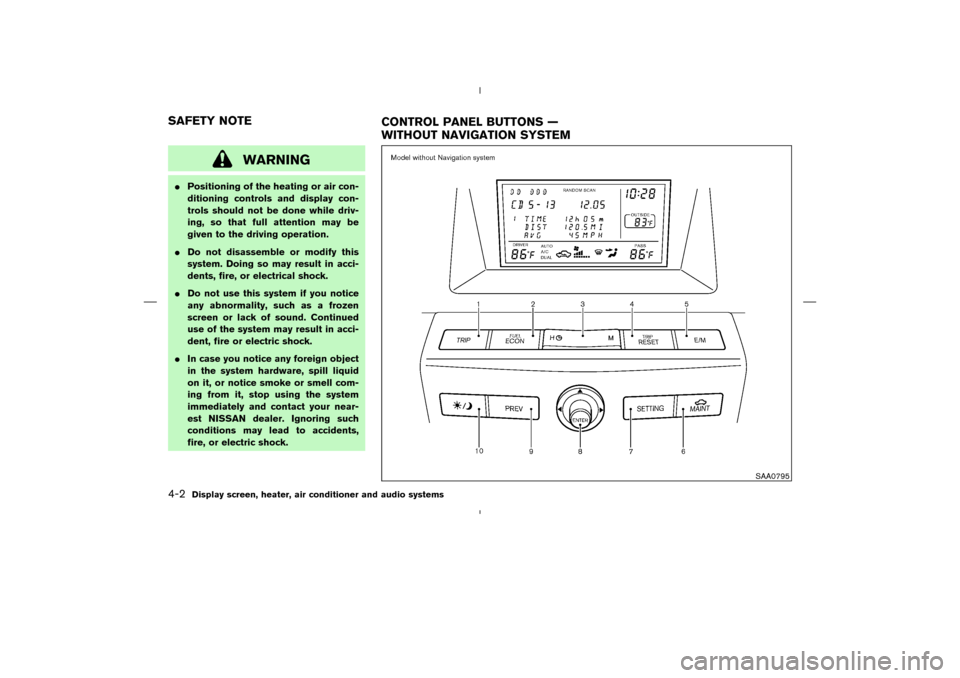

WARNING

Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, so that full attention may be
given to the driving operation.

Do not disassemble or modify this
system. Doing so may result in acci-
dents, fire, or electrical shock.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact your near-
est NISSAN dealer. Ignoring such
conditions may lead to accidents,
fire, or electric shock.
SAA0795
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITHOUT NAVIGATION SYSTEM4-2
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0


Make sure the engine is running before using
this system.
Using the system with the engine off (igni-
tion ONor ACC) for extended periods will
drain the battery power, and the engine
may not start.

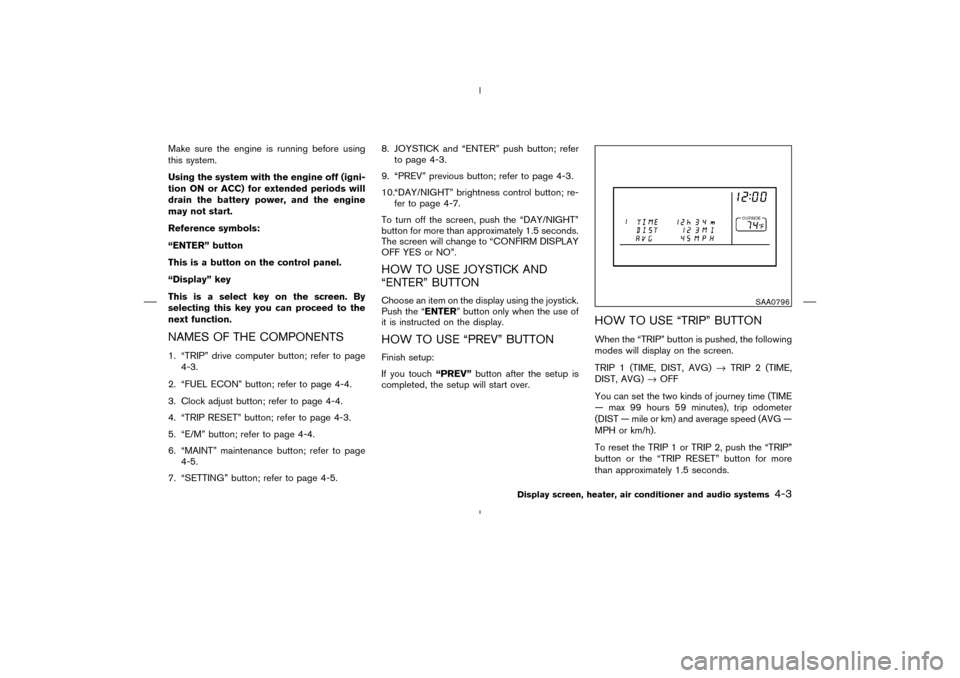

Reference symbols:
“ENTER” button
This is a button on the control panel.
“Display” key
This is a select key on the screen. By
selecting this key you can proceed to the
next function.NAMES OF THE COMPONENTS1. “TRIP” drive computer button; refer to page
4-3.
2. “FUEL ECON” button; refer to page 4-4.
3. Clock adjust button; refer to page 4-4.
4. “TRIP RESET” button; refer to page 4-3.
5. “E/M” button; refer to page 4-4.
6. “MAINT” maintenance button; refer to page
4-5.
7. “SETTING” button; refer to page 4-5.8. JOYSTICK and “ENTER” push button; refer
to page 4-3.
9. “PREV” previous button; refer to page 4-3.
10.“DAY/NIGHT” brightness control button; re-
fer to page 4-7.
To turn off the screen, push the “DAY/NIGHT”
button for more than approximately 1.5 seconds.
The screen will change to “CONFIRM DISPLAY
OFF YES or NO”.
HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick.
Push the “ENTER” button only when the use of
it is instructed on the display.HOW TO USE “PREV” BUTTONFinish setup:
If you touch“PREV”button after the setup is
completed, the setup will start over.
HOW TO USE “TRIP” BUTTONWhen the “TRIP” button is pushed, the following
modes will display on the screen.
TRIP 1 (TIME, DIST, AVG)→TRIP 2 (TIME,
DIST, AVG)→OFF
You can set the two kinds of journey time (TIME
— max 99 hours 59 minutes), trip odometer
(DIST — mile or km) and average speed (AVG —
MPH or km/h).
To reset the TRIP 1 or TRIP 2, push the “TRIP”
button or the “TRIP RESET” button for more
than approximately 1.5 seconds.
SAA0796
Display screen, heater, air conditioner and audio systems
4-3


04.4.5/Z50-D/V5.0

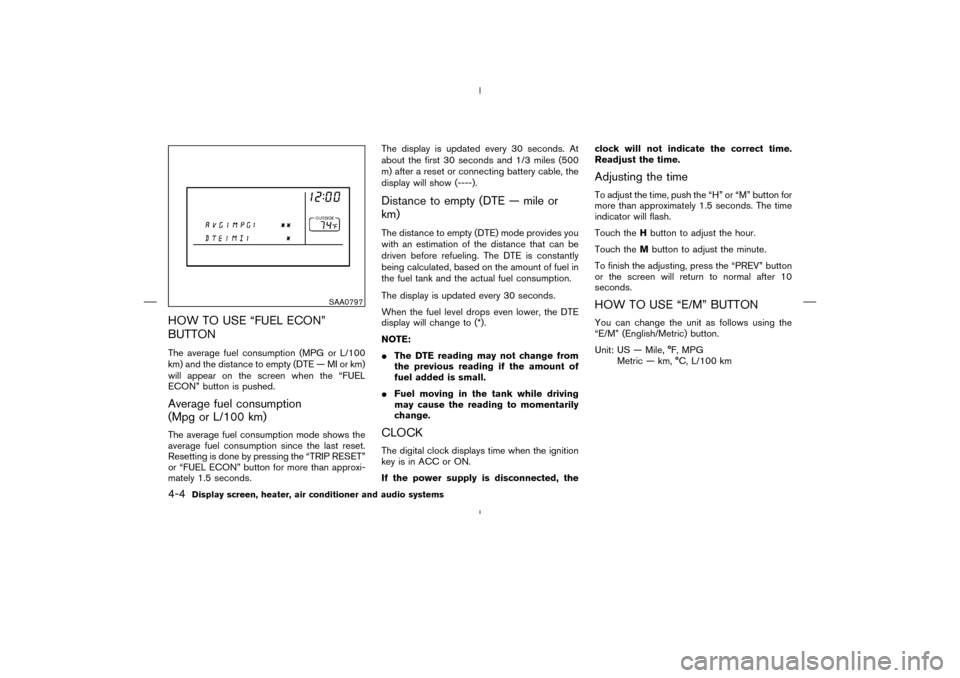

HOW TO USE “FUEL ECON”
BUTTONThe average fuel consumption (MPG or L/100
km) and the distance to empty (DTE — MI or km)
will appear on the screen when the “FUEL
ECON” button is pushed.Average fuel consumption
(Mpg or L/100 km)The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the “TRIP RESET”
or “FUEL ECON” button for more than approxi-
mately 1.5 seconds.The display is updated every 30 seconds. At
about the first 30 seconds and 1/3 miles (500
m) after a reset or connecting battery cable, the
display will show (----).
Distance to empty (DTE — mile or
km)The distance to empty (DTE) mode provides you
with an estimation of the distance that can be
driven before refueling. The DTE is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
When the fuel level drops even lower, the DTE
display will change to (*).
NOTE:

The DTE reading may not change from
the previous reading if the amount of
fuel added is small.

Fuel moving in the tank while driving
may cause the reading to momentarily
change.CLOCKThe digital clock displays time when the ignition
key is in ACC or ON.
If the power supply is disconnected, theclock will not indicate the correct time.
Readjust the time.
Adjusting the timeTo adjust the time, push the “H” or “M” button for
more than approximately 1.5 seconds. The time
indicator will flash.
Touch theHbutton to adjust the hour.
Touch theMbutton to adjust the minute.
To finish the adjusting, press the “PREV” button
or the screen will return to normal after 10
seconds.HOW TO USE “E/M” BUTTONYou can change the unit as follows using the
“E/M” (English/Metric) button.
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
SAA0797
4-4
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0


HOW TO USE “MAINT”
(Maintenance) BUTTONPushing the “MAINT” button will change the
maintenance menu as follows:
ENGINE OIL→TIRE ROTATION→TIRE
PRESSURE (if so equipped)
To reset the driving distance, push the “MAINT”
button or “TRIP RESET” button for more than
approximately 1.5 seconds.
To set the distance, push the joystick to left or
right.
Tire pressure information (if so
equipped)Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
In case of flat tire, a message (FLAT TIRE orCHECK ALL TIRE) is displayed on the screen:
FLAT TIRE — very low tire air pressure.
WARNING
When a spare tire is mounted or a wheel
is replaced, the pressure of that tire will
not be indicated and not be monitored
by the low tire pressure warning system.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.HOW TO USE “SETTING” BUTTONPushing the “SETTING” button will change the
settings menu as follows:1DISPLAY ON/OFF
2LANGUAGE
3BEEP SET
4SERVICE ALERT
5PERSONALIZED SETTINGS MENU
SAA0646
SAA0798
Display screen, heater, air conditioner and audio systems
4-5


04.4.5/Z50-D/V5.0
