2004 NISSAN MURANO Owners Manual

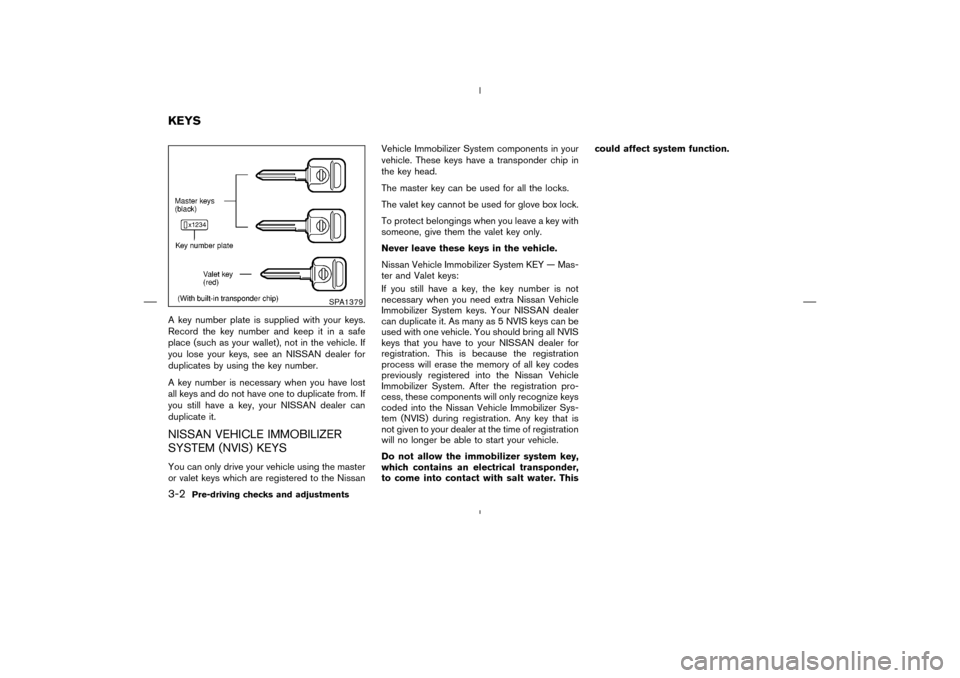

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see an NISSAN dealer for
duplicates by using the key number.
A key number is necessary when you have lost
all keys and do not have one to duplicate from. If
you still have a key, your NISSAN dealer can
duplicate it.NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS) KEYSYou can only drive your vehicle using the master
or valet keys which are registered to the NissanVehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
The master key can be used for all the locks.
The valet key cannot be used for glove box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
Never leave these keys in the vehicle.
Nissan Vehicle Immobilizer System KEY — Mas-
ter and Valet keys:
If you still have a key, the key number is not
necessary when you need extra Nissan Vehicle
Immobilizer System keys. Your NISSAN dealer
can duplicate it. As many as 5 NVIS keys can be
used with one vehicle. You should bring all NVIS
keys that you have to your NISSAN dealer for
registration. This is because the registration
process will erase the memory of all key codes
previously registered into the Nissan Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the Nissan Vehicle Immobilizer Sys-
tem (NVIS) during registration. Any key that is
not given to your dealer at the time of registration
will no longer be able to start your vehicle.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. Thiscould affect system function.
SPA1379
KEYS3-2
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0


WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.

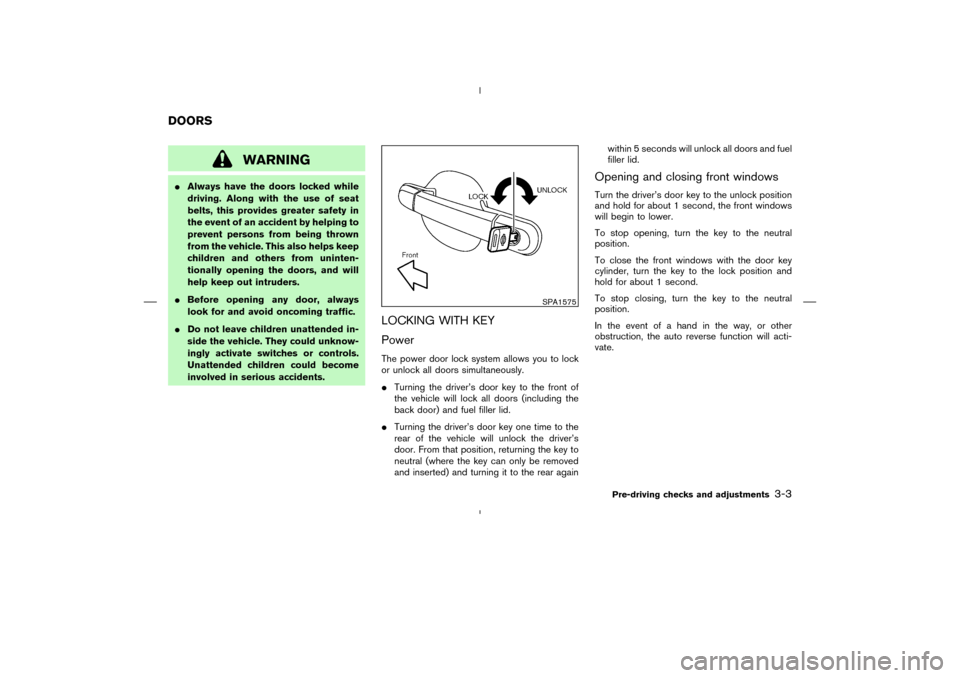

LOCKING WITH KEY
PowerThe power door lock system allows you to lock
or unlock all doors simultaneously.

Turning the driver’s door key to the front of
the vehicle will lock all doors (including the
back door) and fuel filler lid.

Turning the driver’s door key one time to the
rear of the vehicle will unlock the driver’s
door. From that position, returning the key to
neutral (where the key can only be removed
and inserted) and turning it to the rear againwithin 5 seconds will unlock all doors and fuel
filler lid.
Opening and closing front windowsTurn the driver’s door key to the unlock position
and hold for about 1 second, the front windows
will begin to lower.
To stop opening, turn the key to the neutral
position.
To close the front windows with the door key
cylinder, turn the key to the lock position and
hold for about 1 second.
To stop closing, turn the key to the neutral
position.
In the event of a hand in the way, or other
obstruction, the auto reverse function will acti-
vate.
SPA1575
DOORS
Pre-driving checks and adjustments
3-3


04.4.5/Z50-D/V5.0

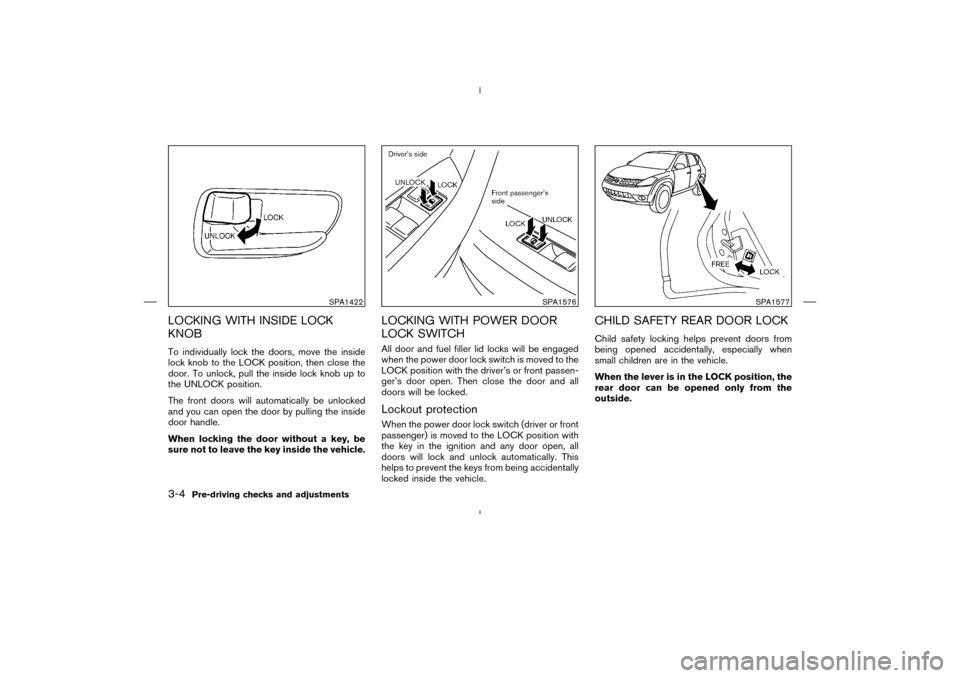

LOCKING WITH INSIDE LOCK
KNOBTo individually lock the doors, move the inside
lock knobto the LOCK position, then close the
door. To unlock, pull the inside lock knobup to
the UNLOCK position.
The front doors will automatically be unlocked
and you can open the door by pulling the inside
door handle.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
LOCKING WITH POWER DOOR
LOCK SWITCHAll door and fuel filler lid locks will be engaged
when the power door lock switch is moved to the
LOCK position with the driver’s or front passen-
ger’s door open. Then close the door and all
doors will be locked.Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position with
the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
CHILD SAFETY REAR DOOR LOCKChild safety locking helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the lever is in the LOCK position, the
rear door can be opened only from the
outside.
SPA1422
SPA1576
SPA1577
3-4
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

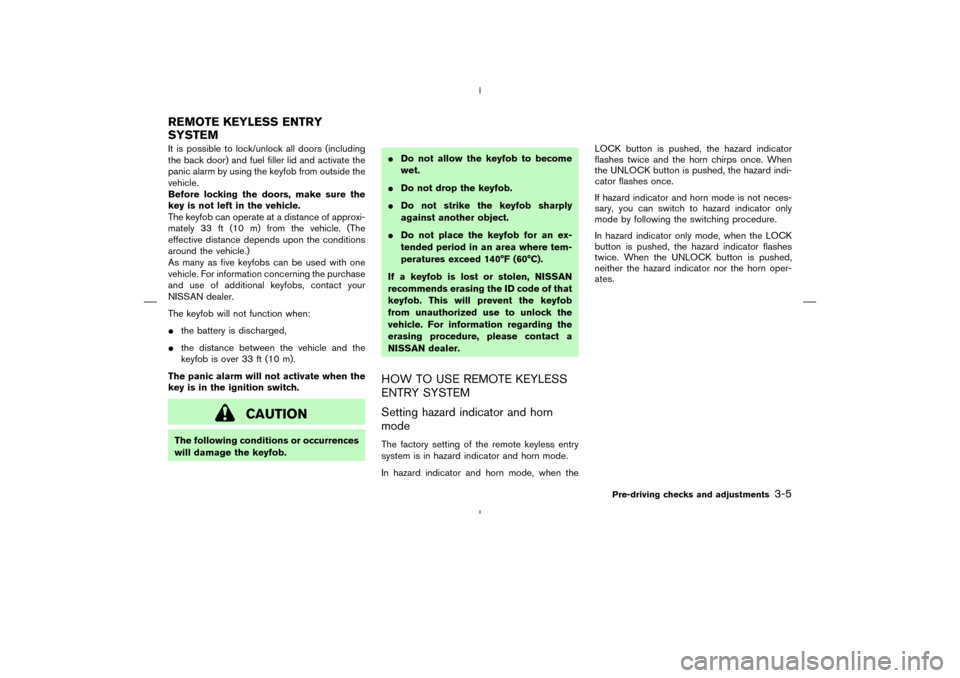

It is possible to lock/unlock all doors (including
the back door) and fuel filler lid and activate the
panic alarm by using the keyfob from outside the
vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as five keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact your
NISSAN dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.
Do not allow the keyfob to become
wet.

Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is in hazard indicator and horn mode.
In hazard indicator and horn mode, when theLOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


04.4.5/Z50-D/V5.0

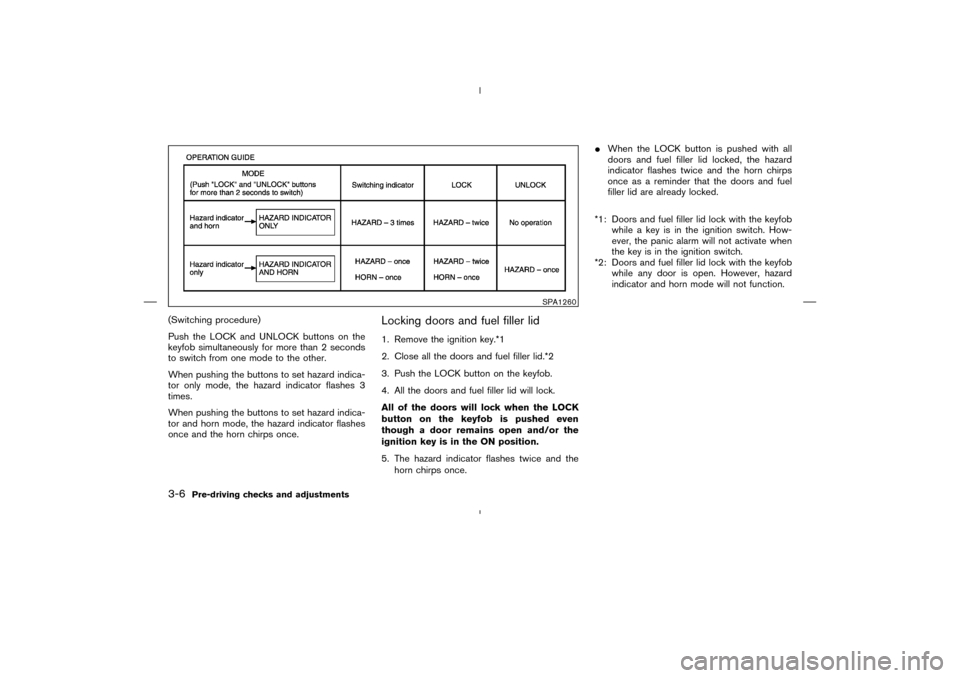

(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
Locking doors and fuel filler lid1. Remove the ignition key.*1
2. Close all the doors and fuel filler lid.*2
3. Push the LOCK button on the keyfob.
4. All the doors and fuel filler lid will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition key is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
When the LOCK button is pushed with all
doors and fuel filler lid locked, the hazard
indicator flashes twice and the horn chirps
once as a reminder that the doors and fuel
filler lid are already locked.
*1: Doors and fuel filler lid lock with the keyfob
while a key is in the ignition switch. How-
ever, the panic alarm will not activate when
the key is in the ignition switch.
*2: Doors and fuel filler lid lock with the keyfob
while any door is open. However, hazard
indicator and horn mode will not function.
SPA1260
3-6
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

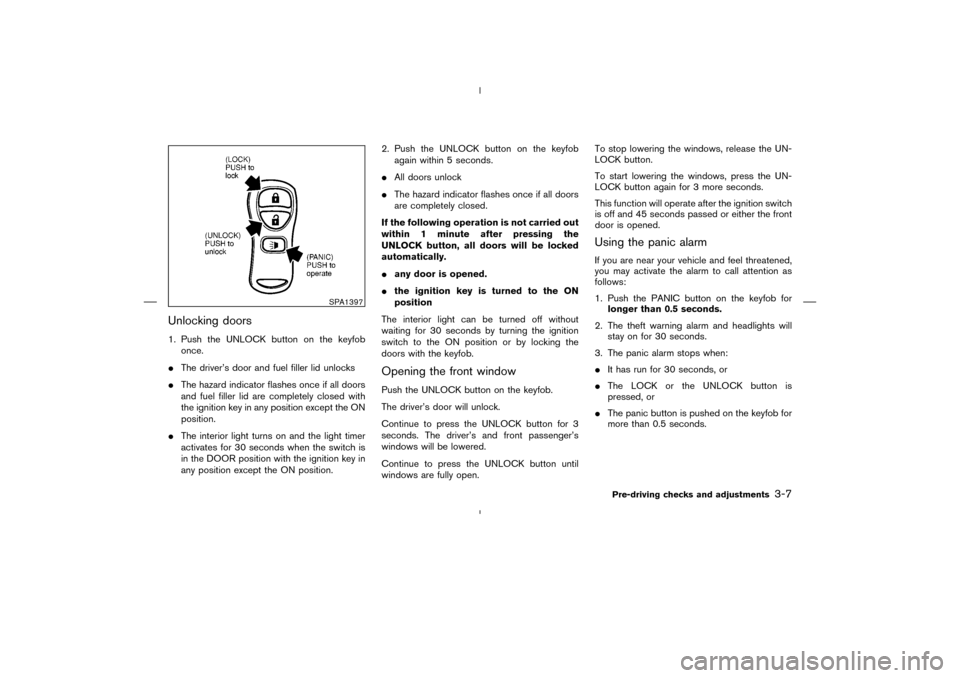

Unlocking doors1. Push the UNLOCK button on the keyfob
once.

The driver’s door and fuel filler lid unlocks

The hazard indicator flashes once if all doors
and fuel filler lid are completely closed with
the ignition key in any position except the ON
position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition key in
any position except the ON position.2. Push the UNLOCK button on the keyfob
again within 5 seconds.

All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 1 minute after pressing the
UNLOCK button, all doors will be locked
automatically.

any door is opened.

the ignition key is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button on the keyfob.
The driver’s door will unlock.
Continue to press the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to press the UNLOCK button until
windows are fully open.To stop lowering the windows, release the UN-
LOCK button.
To start lowering the windows, press the UN-
LOCK button again for 3 more seconds.
This function will operate after the ignition switch
is off and 45 seconds passed or either the front
door is opened.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button on the keyfob for
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or

The LOCK or the UNLOCK button is
pressed, or

The panic button is pushed on the keyfob for
more than 0.5 seconds.
SPA1397
Pre-driving checks and adjustments
3-7


04.4.5/Z50-D/V5.0

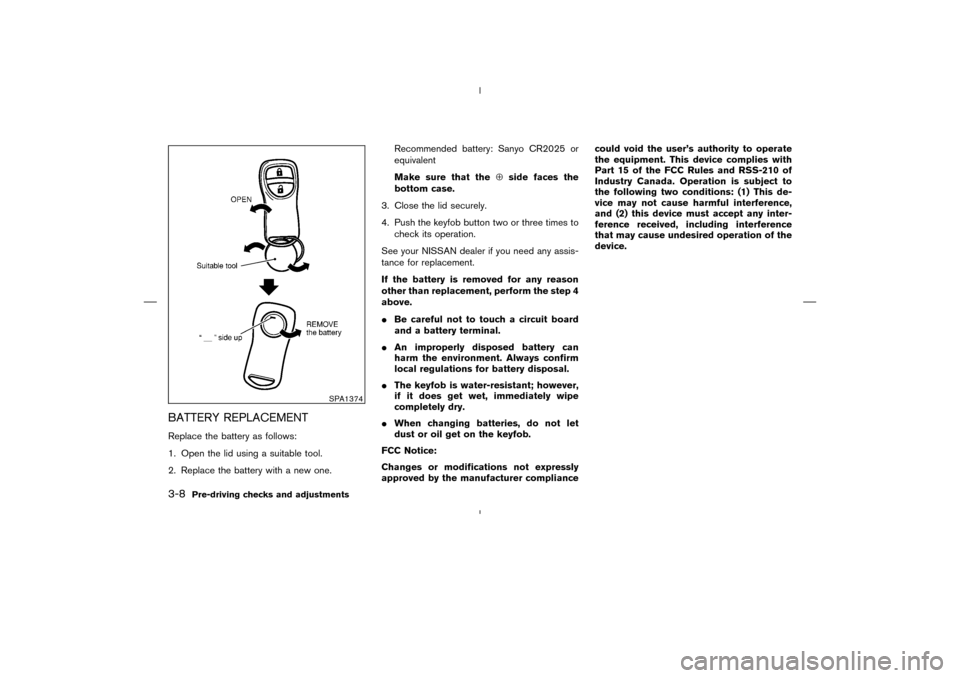

BATTERY REPLACEMENTReplace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.Recommended battery: Sanyo CR2025 or
equivalent
Make sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform the step 4
above.

Be careful not to touch a circuit board
and a battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it does get wet, immediately wipe
completely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliancecould void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
SPA1374
3-8
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

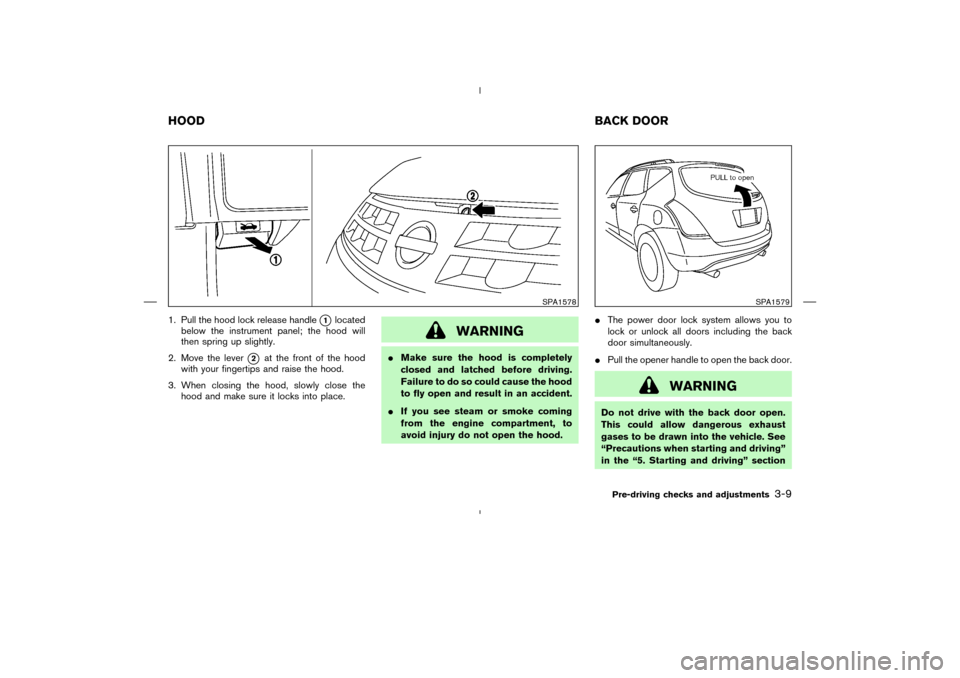

1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Move the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. When closing the hood, slowly close the
hood and make sure it locks into place.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
The power door lock system allows you to
lock or unlock all doors including the back
door simultaneously.

Pull the opener handle to open the back door.
WARNING
Do not drive with the back door open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
SPA1578
SPA1579
HOODBACK DOOR
Pre-driving checks and adjustments
3-9


04.4.5/Z50-D/V5.0
