2004 NISSAN MURANO Owners Manual

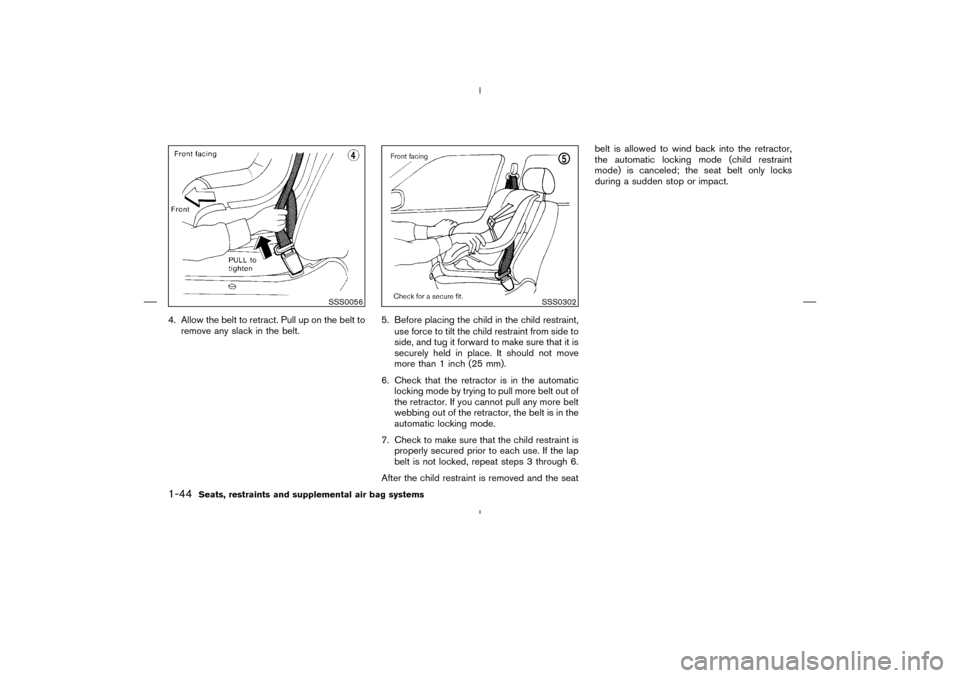

4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.5. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place. It should not move
more than 1 inch (25 mm).
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seatbelt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
SSS0056
SSS0302
1-44
Seats, restraints and supplemental air bag systems


04.4.5/Z50-D/V5.0

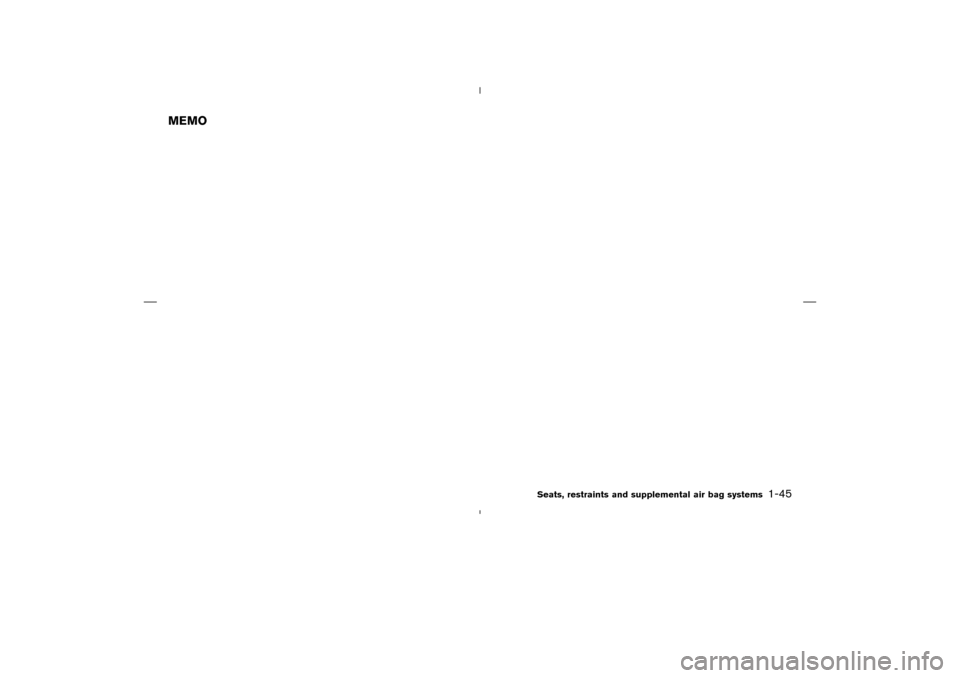

MEMO
Seats, restraints and supplemental air bag systems
1-45


04.4.5/Z50-D/V5.0

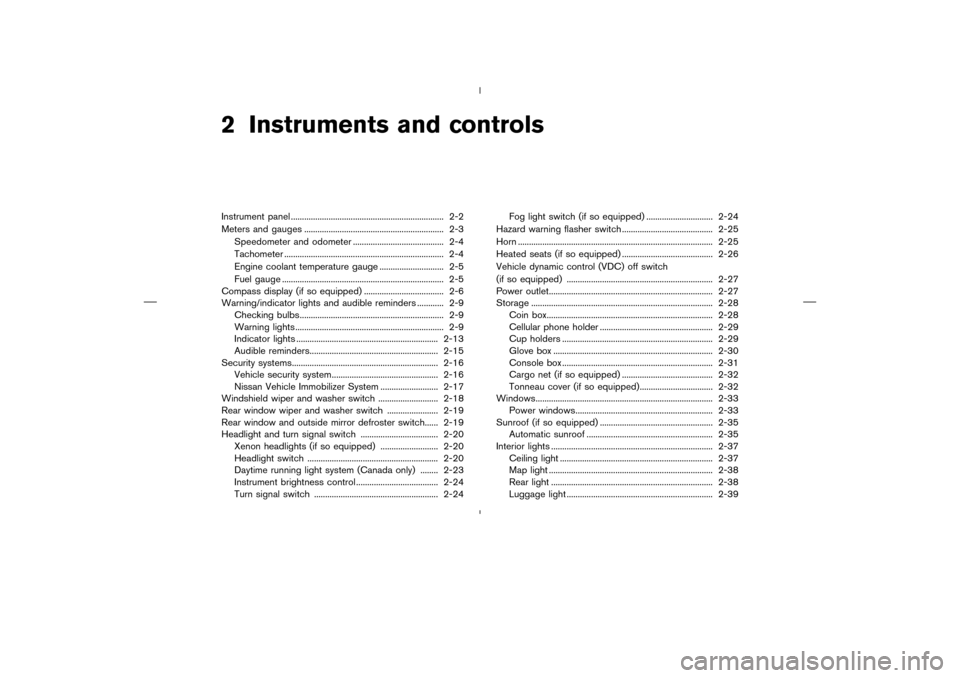

2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-5
Compass display (if so equipped) .................................... 2-6
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-13
Audible reminders.......................................................... 2-15
Security systems.................................................................. 2-16
Vehicle security system................................................ 2-16
Nissan Vehicle Immobilizer System .......................... 2-17
Windshield wiper and washer switch ........................... 2-18
Rear window wiper and washer switch ....................... 2-19
Rear window and outside mirror defroster switch...... 2-19
Headlight and turn signal switch ................................... 2-20
Xenon headlights (if so equipped) .......................... 2-20
Headlight switch ........................................................... 2-20
Daytime running light system (Canada only) ........ 2-23
Instrument brightness control ..................................... 2-24
Turn signal switch ........................................................ 2-24Fog light switch (if so equipped) .............................. 2-24
Hazard warning flasher switch ......................................... 2-25
Horn ........................................................................................ 2-25
Heated seats (if so equipped) ......................................... 2-26
Vehicle dynamic control (VDC) off switch
(if so equipped) .................................................................. 2-27
Power outlet.......................................................................... 2-27
Storage .................................................................................. 2-28
Coin box........................................................................... 2-28
Cellular phone holder ................................................... 2-29
Cup holders .................................................................... 2-29
Glove box ........................................................................ 2-30
Console box .................................................................... 2-31
Cargo net (if so equipped) ......................................... 2-32
Tonneau cover (if so equipped)................................. 2-32
Windows................................................................................ 2-33
Power windows.............................................................. 2-33
Sunroof (if so equipped) ................................................... 2-35
Automatic sunroof ......................................................... 2-35
Interior lights ......................................................................... 2-37
Ceiling light ..................................................................... 2-37
Map light .......................................................................... 2-38
Rear light ......................................................................... 2-38
Luggage light .................................................................. 2-39


04.4.5/Z50-D/V5.0

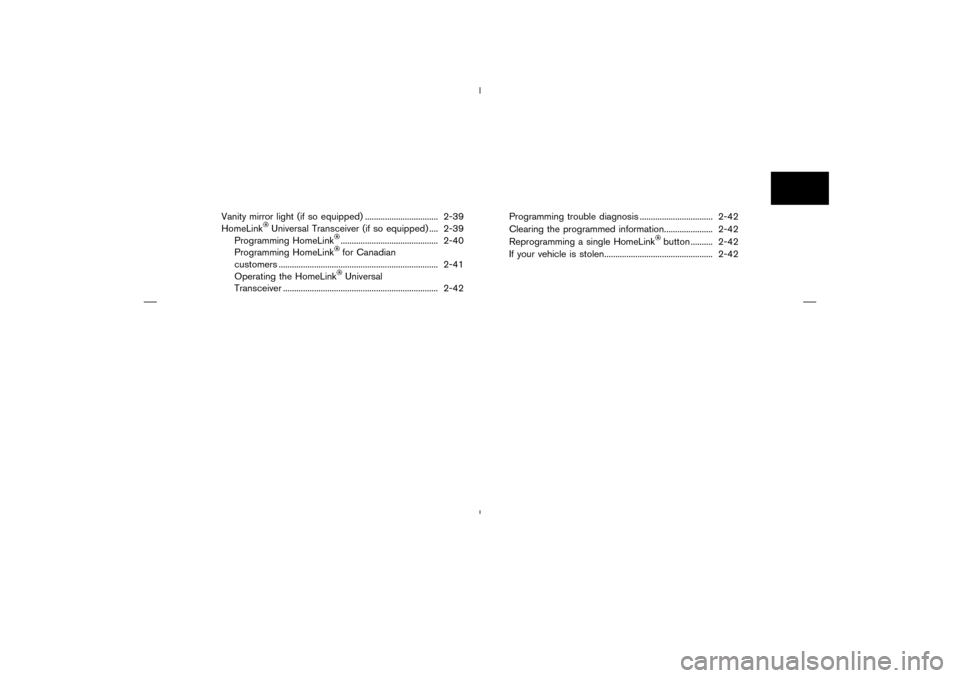

Vanity mirror light (if so equipped) ................................. 2-39
HomeLink
Universal Transceiver (if so equipped) .... 2-39
Programming HomeLink
............................................ 2-40
Programming HomeLinkfor Canadian
customers ........................................................................ 2-41
Operating the HomeLinkUniversal
Transceiver ...................................................................... 2-42Programming trouble diagnosis ................................. 2-42
Clearing the programmed information...................... 2-42
Reprogramming a single HomeLink
button .......... 2-42
If your vehicle is stolen................................................. 2-42


04.4.5/Z50-D/V5.0

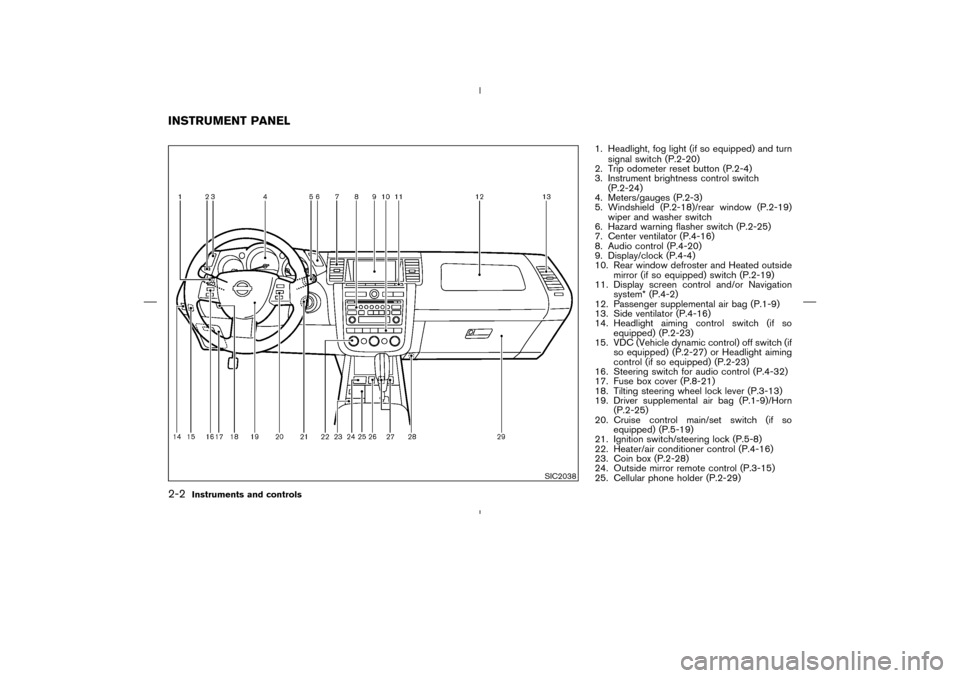

1. Headlight, fog light (if so equipped) and turn
signal switch (P.2-20)
2. Trip odometer reset button (P.2-4)
3. Instrument brightness control switch
(P.2-24)
4. Meters/gauges (P.2-3)
5. Windshield (P.2-18)/rear window (P.2-19)
wiper and washer switch
6. Hazard warning flasher switch (P.2-25)
7. Center ventilator (P.4-16)
8. Audio control (P.4-20)
9. Display/clock (P.4-4)
10. Rear window defroster and Heated outside
mirror (if so equipped) switch (P.2-19)
11. Display screen control and/or Navigation
system* (P.4-2)
12. Passenger supplemental air bag (P.1-9)
13. Side ventilator (P.4-16)
14. Headlight aiming control switch (if so
equipped) (P.2-23)
15. VDC (Vehicle dynamic control) off switch (if
so equipped) (P.2-27) or Headlight aiming
control (if so equipped) (P.2-23)
16. Steering switch for audio control (P.4-32)
17. Fuse box cover (P.8-21)
18. Tilting steering wheel lock lever (P.3-13)
19. Driver supplemental air bag (P.1-9)/Horn
(P.2-25)
20. Cruise control main/set switch (if so
equipped) (P.5-19)
21. Ignition switch/steering lock (P.5-8)
22. Heater/air conditioner control (P.4-16)
23. Coin box (P.2-28)
24. Outside mirror remote control (P.3-15)
25. Cellular phone holder (P.2-29)
SIC2038
INSTRUMENT PANEL2-2
Instruments and controls


04.4.5/Z50-D/V5.0


26. AWD lock switch (AWD models) (P.5-22)
27. Heated seat switch (if so equipped)
(P.2-26)
28. Power outlet cover (P.2-27)
29. Glove box (P.2-30)
See the page indicated in parentheses for
operating details.
*: Refer to the separate Navigation System
Owner’s Manual.

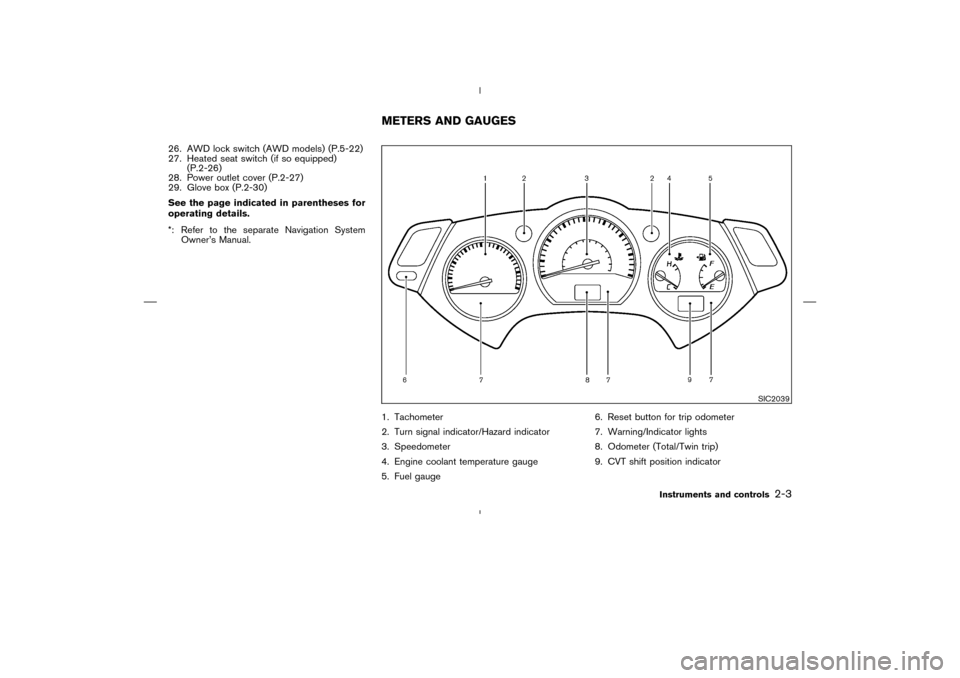

1. Tachometer
2. Turn signal indicator/Hazard indicator
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge6. Reset button for trip odometer
7. Warning/Indicator lights
8. Odometer (Total/Twin trip)
9. CVT shift position indicator
SIC2039
METERS AND GAUGES
Instruments and controls
2-3


04.4.5/Z50-D/V5.0

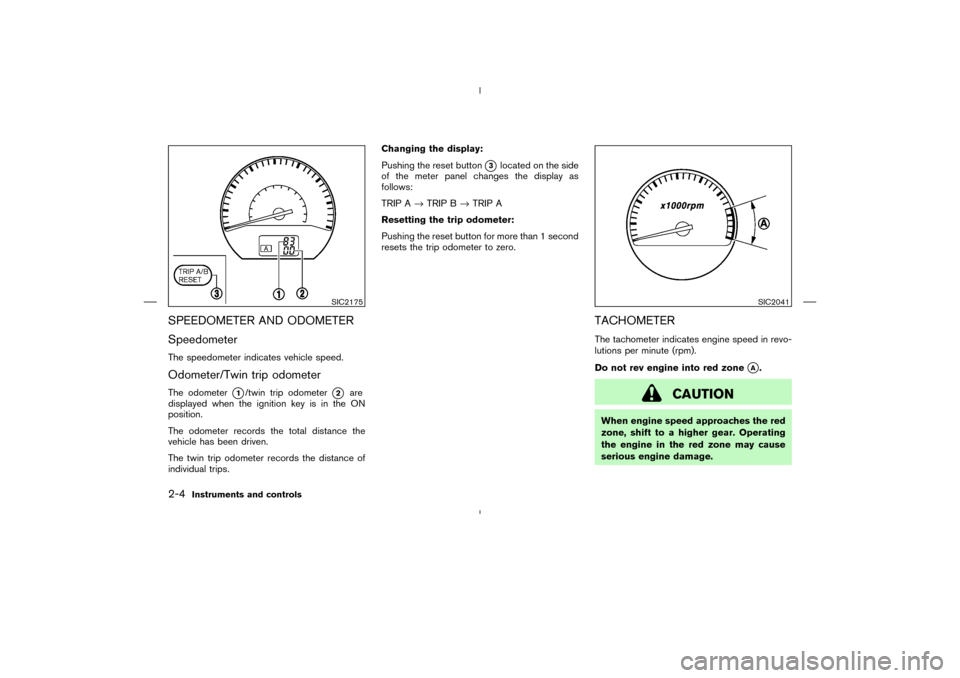

SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/Twin trip odometerThe odometer
1/twin trip odometer
2
are
displayed when the ignition key is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Pushing the reset button
3
located on the side
of the meter panel changes the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Pushing the reset button for more than 1 second
resets the trip odometer to zero.
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
Do not rev engine into red zone
A.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
SIC2175
SIC2041
2-4
Instruments and controls


04.4.5/Z50-D/V5.0

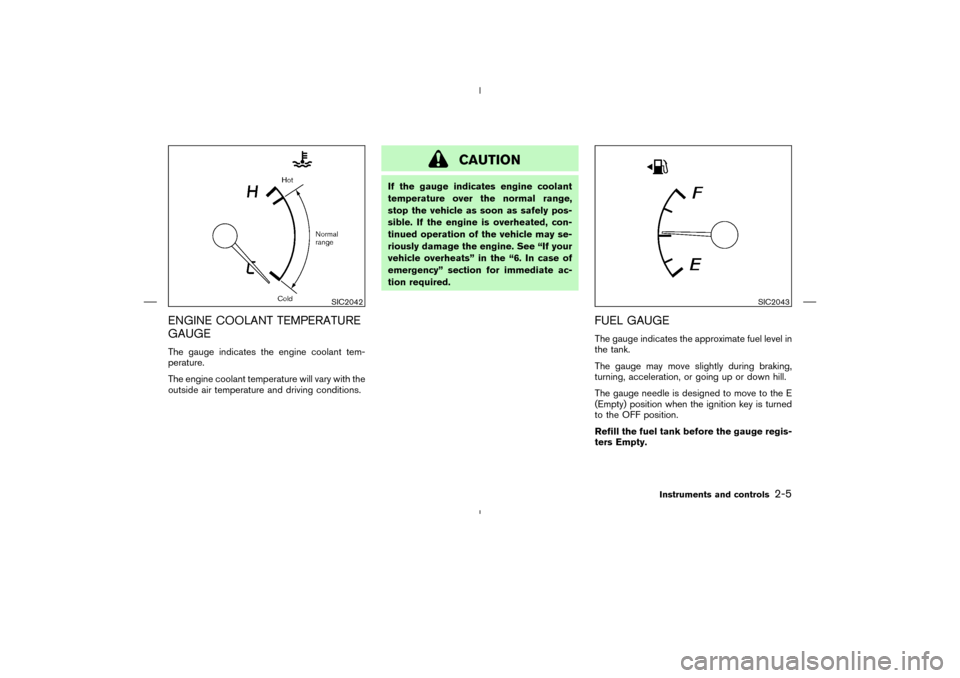

ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range,
stop the vehicle as soon as safely pos-
sible. If the engine is overheated, con-
tinued operation of the vehicle may se-
riously damage the engine. See “If your
vehicle overheats” in the “6. In case of
emergency” section for immediate ac-
tion required.
FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition key is turned
to the OFF position.
Refill the fuel tank before the gauge regis-
ters Empty.
SIC2042
SIC2043
Instruments and controls
2-5


04.4.5/Z50-D/V5.0
