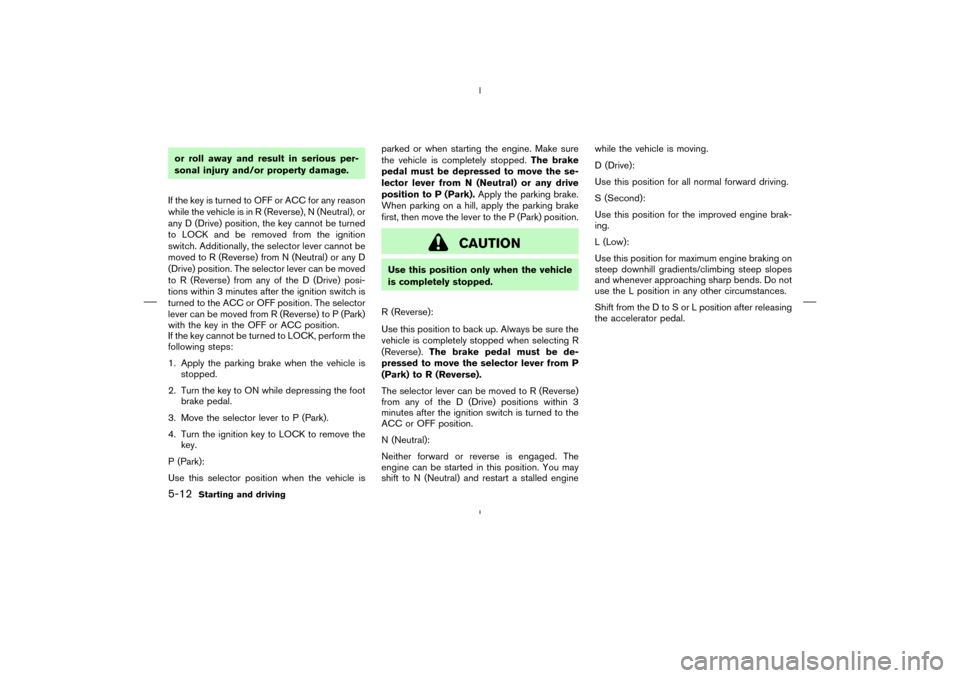

2004 NISSAN MURANO Owners Manual

or roll away and result in serious per-
sonal injury and/or property damage.
If the key is turned to OFF or ACC for any reason
while the vehicle is in R (Reverse), N (Neutral), or
any D (Drive) position, the key cannot be turned
to LOCK and be removed from the ignition
switch. Additionally, the selector lever cannot be
moved to R (Reverse) from N (Neutral) or any D
(Drive) position. The selector lever can be moved
to R (Reverse) from any of the D (Drive) posi-
tions within 3 minutes after the ignition switch is
turned to the ACC or OFF position. The selector
lever can be moved from R (Reverse) to P (Park)
with the key in the OFF or ACC position.
If the key cannot be turned to LOCK, perform the
following steps:
1. Apply the parking brake when the vehicle is
stopped.
2. Turn the key to ON while depressing the foot
brake pedal.
3. Move the selector lever to P (Park).
4. Turn the ignition key to LOCK to remove the
key.
P (Park):
Use this selector position when the vehicle isparked or when starting the engine. Make sure
the vehicle is completely stopped.The brake
pedal must be depressed to move the se-
lector lever from N(Neutral) or any drive
position to P (Park).Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the lever to the P (Park) position.
CAUTION
Use this position only when the vehicle
is completely stopped.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped when selecting R
(Reverse).The brake pedal must be de-
pressed to move the selector lever from P
(Park) to R (Reverse).
The selector lever can be moved to R (Reverse)
from any of the D (Drive) positions within 3
minutes after the ignition switch is turned to the
ACC or OFF position.
N (Neutral):
Neither forward or reverse is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled enginewhile the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.
S (Second):
Use this position for the improved engine brak-
ing.
L (Low):
Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
Shift from the D to S or L position after releasing
the accelerator pedal.
5-12
Starting and driving


04.4.5/Z50-D/V5.0

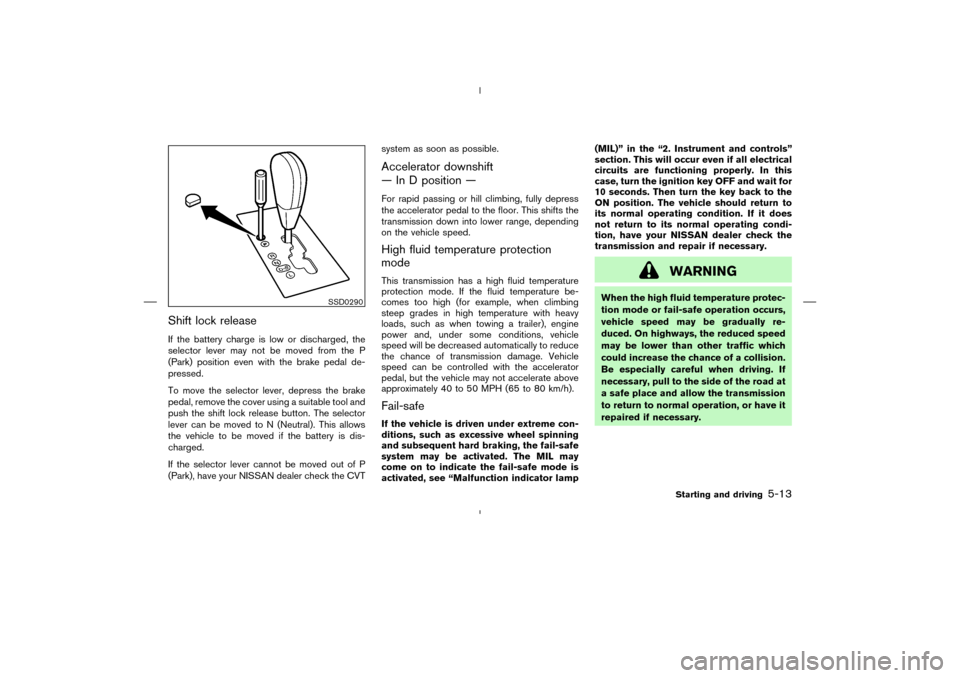

Shift lock releaseIf the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed.
To move the selector lever, depress the brake
pedal, remove the cover using a suitable tool and
push the shift lock release button. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged.
If the selector lever cannot be moved out of P
(Park), have your NISSAN dealer check the CVTsystem as soon as possible.
Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into lower range, depending
on the vehicle speed.High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator lamp(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition key OFF and wait for
10 seconds. Then turn the key back to the
ONposition. The vehicle should return to
its normal operating condition. If it does
not return to its normal operating condi-
tion, have your NISSAN dealer check the
transmission and repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. On highways, the reduced speed
may be lower than other traffic which
could increase the chance of a collision.
Be especially careful when driving. If
necessary, pull to the side of the road at
a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
SSD0290
Starting and driving
5-13


04.4.5/Z50-D/V5.0

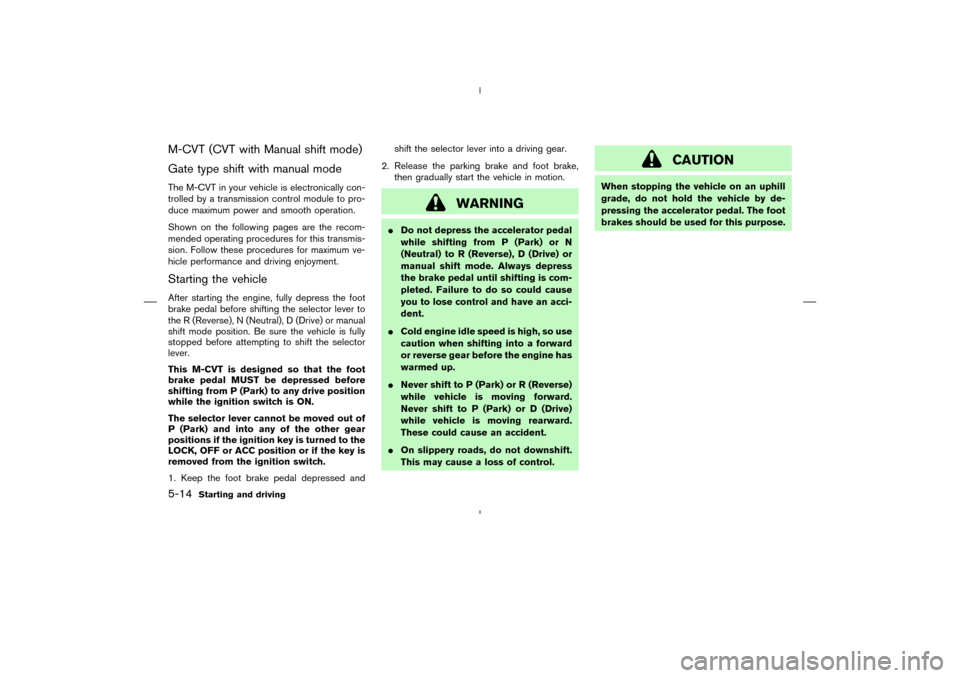

M-CVT (CVT with Manual shift mode)
Gate type shift with manual modeThe M-CVT in your vehicle is electronically con-
trolled by a transmission control module to pro-
duce maximum power and smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal before shifting the selector lever to
the R (Reverse), N (Neutral), D (Drive) or manual
shift mode position. Be sure the vehicle is fully
stopped before attempting to shift the selector
lever.
This M-CVT is designed so that the foot
brake pedal MUST be depressed before
shifting from P (Park) to any drive position
while the ignition switch is ON.
The selector lever cannot be moved out of
P (Park) and into any of the other gear
positions if the ignition key is turned to the
LOCK, OFF or ACC position or if the key is
removed from the ignition switch.
1. Keep the foot brake pedal depressed andshift the selector lever into a driving gear.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.
WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse), D (Drive) or
manual shift mode. Always depress
the brake pedal until shifting is com-
pleted. Failure to do so could cause
you to lose control and have an acci-
dent.

Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.

Never shift to P (Park) or R (Reverse)
while vehicle is moving forward.
Never shift to P (Park) or D (Drive)
while vehicle is moving rearward.
These could cause an accident.

On slippery roads, do not downshift.
This may cause a loss of control.
CAUTION
When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brakes should be used for this purpose.
5-14
Starting and driving


04.4.5/Z50-D/V5.0

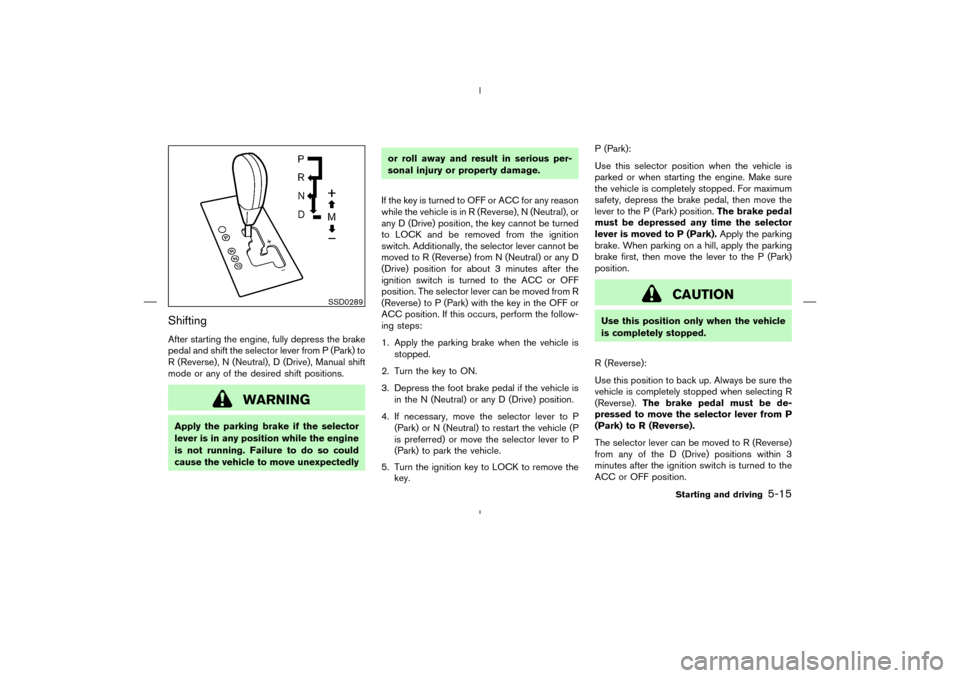

ShiftingAfter starting the engine, fully depress the brake
pedal and shift the selector lever from P (Park) to
R (Reverse), N (Neutral), D (Drive), Manual shift
mode or any of the desired shift positions.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedlyor roll away and result in serious per-
sonal injury or property damage.
If the key is turned to OFF or ACC for any reason
while the vehicle is in R (Reverse), N (Neutral), or
any D (Drive) position, the key cannot be turned
to LOCK and be removed from the ignition
switch. Additionally, the selector lever cannot be
moved to R (Reverse) from N (Neutral) or any D
(Drive) position for about 3 minutes after the
ignition switch is turned to the ACC or OFF
position. The selector lever can be moved from R
(Reverse) to P (Park) with the key in the OFF or
ACC position. If this occurs, perform the follow-
ing steps:
1. Apply the parking brake when the vehicle is
stopped.
2. Turn the key to ON.
3. Depress the foot brake pedal if the vehicle is
in the N (Neutral) or any D (Drive) position.
4. If necessary, move the selector lever to P
(Park) or N (Neutral) to restart the vehicle (P
is preferred) or move the selector lever to P
(Park) to park the vehicle.
5. Turn the ignition key to LOCK to remove the
key.P (Park):
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. For maximum
safety, depress the brake pedal, then move the
lever to the P (Park) position.The brake pedal
must be depressed any time the selector
lever is moved to P (Park).Apply the parking
brake. When parking on a hill, apply the parking
brake first, then move the lever to the P (Park)
position.
CAUTION
Use this position only when the vehicle
is completely stopped.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped when selecting R
(Reverse).The brake pedal must be de-
pressed to move the selector lever from P
(Park) to R (Reverse).
The selector lever can be moved to R (Reverse)
from any of the D (Drive) positions within 3
minutes after the ignition switch is turned to the
ACC or OFF position.
SSD0289
Starting and driving
5-15


04.4.5/Z50-D/V5.0


N (Neutral):
Neither forward or reverse gear is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.Manual shift modeWhen the selector lever is shifted from D to the
manual shift gate with the vehicle stopped or
while driving, the transmission enters the manual
shift mode. Shift ranges can be selected manu-
ally.
In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
Shift ranges up or down one by one as follows:M1→
←M2→
←M3→
←M4→
←M5→
←M6M6 (Sixth):
Use this position for all normal forward driving.
M5 (Fifth):
For driving up or down long slopes where engine
braking would be advantageous.M4 (Fourth), M3 (Third) and M2 (Second):
Use for hill climbing or engine braking on down-
hill grades.
M1 (First):
Use this position when climbing steep hills
slowly or driving slowly through deep snow,
sand or mud, or for maximum engine braking on
steep downhill grades.

Remember not to drive at high speeds for
extended periods of time in lower than M6
range. This reduces fuel economy.

When shifting up, move the selector lever to
the + (up) side. (Shifts to higher range.)

When shifting down, move the selector lever
to the − (down) side. (Shifts to lower range.)

Moving the selector lever to the same side
twice will shift the ranges in succession.
However, if this motion is rapidly done, the
second shifting may not be completed prop-
erly.

In the manual shift mode, the transmis-
sion automatically shifts down to M1
(First) before the vehicle comes to a
stop. When accelerating again, it is nec-
essary to shift up to the desired range.

When canceling the manual shift mode, re-
turn the selector lever to the D position. Thetransmission returns to the normal driving
mode.

In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving performance
and reduces the chance of vehicle dam-
age or loss of control.

When the CVT fluid temperature is extremely
low, the manual shift mode may not work and
automatically shift as a drive mode. This is not
a malfunction. In this case, return the selector
lever to D range and drive for a while and then
shift to the manual shift mode.

When the CVT fluid temperature is high, the
shift range may upshift in lower rpm than
usual. This is not a malfunction.5-16
Starting and driving


04.4.5/Z50-D/V5.0

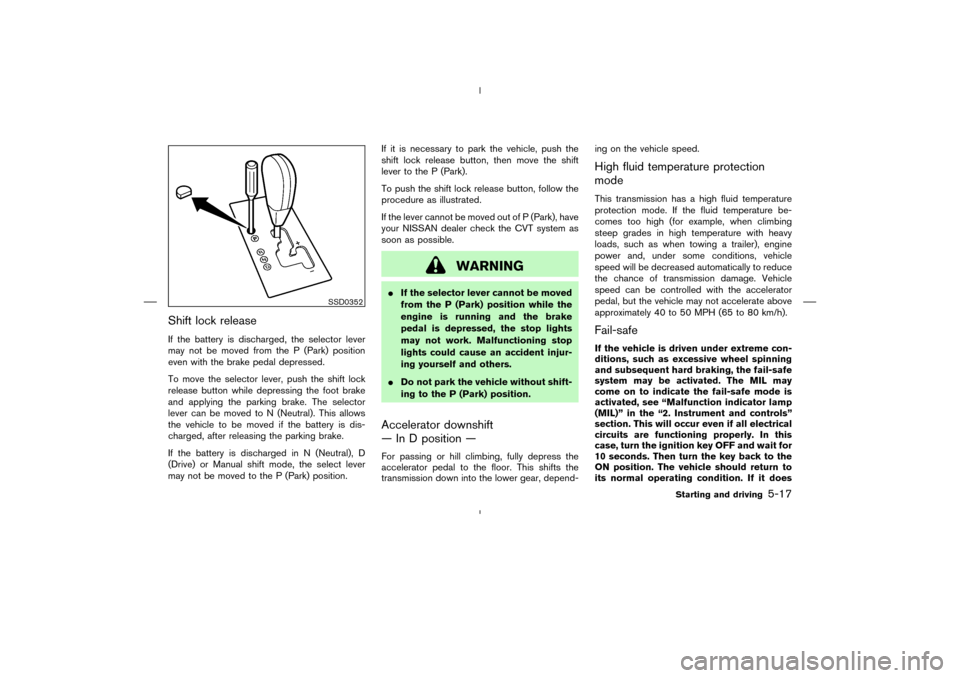

Shift lock releaseIf the battery is discharged, the selector lever
may not be moved from the P (Park) position
even with the brake pedal depressed.
To move the selector lever, push the shift lock
release button while depressing the foot brake
and applying the parking brake. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged, after releasing the parking brake.
If the battery is discharged in N (Neutral), D
(Drive) or Manual shift mode, the select lever
may not be moved to the P (Park) position.If it is necessary to park the vehicle, push the
shift lock release button, then move the shift
lever to the P (Park).
To push the shift lock release button, follow the
procedure as illustrated.
If the lever cannot be moved out of P (Park), have
your NISSAN dealer check the CVT system as
soon as possible.
WARNING

If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake
pedal is depressed, the stop lights
may not work. Malfunctioning stop
lights could cause an accident injur-
ing yourself and others.

Do not park the vehicle without shift-
ing to the P (Park) position.Accelerator downshift
— In D position —For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-ing on the vehicle speed.
High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator lamp
(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition key OFF and wait for
10 seconds. Then turn the key back to the
ONposition. The vehicle should return to
its normal operating condition. If it does
SSD0352
Starting and driving
5-17


04.4.5/Z50-D/V5.0

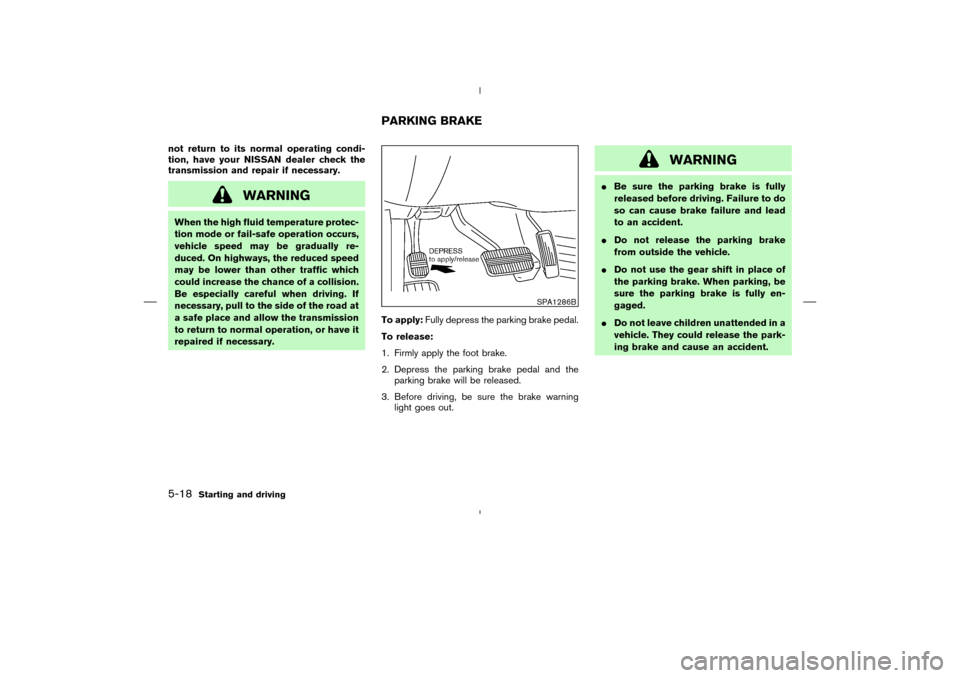

not return to its normal operating condi-
tion, have your NISSAN dealer check the
transmission and repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. On highways, the reduced speed
may be lower than other traffic which
could increase the chance of a collision.
Be especially careful when driving. If
necessary, pull to the side of the road at
a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.To apply:Fully depress the parking brake pedal.
To release:
1. Firmly apply the foot brake.
2. Depress the parking brake pedal and the
parking brake will be released.
3. Before driving, be sure the brake warning
light goes out.
WARNING

Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead
to an accident.

Do not release the parking brake
from outside the vehicle.

Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.

Do not leave children unattended in a
vehicle. They could release the park-
ing brake and cause an accident.
SPA1286B
PARKING BRAKE
5-18
Starting and driving


04.4.5/Z50-D/V5.0


WARNING

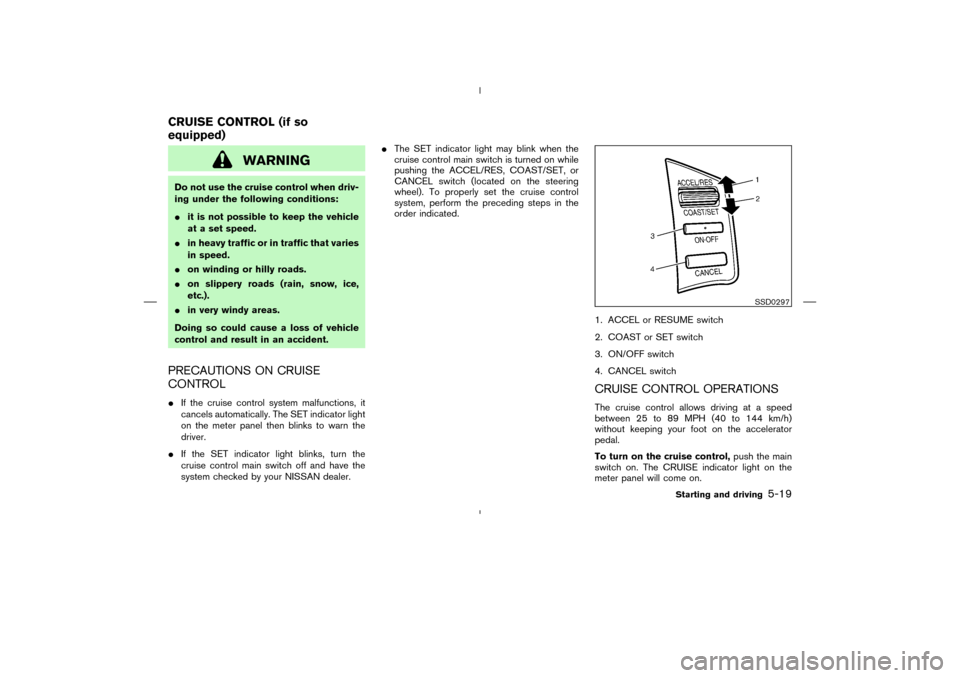

Do not use the cruise control when driv-
ing under the following conditions:

it is not possible to keep the vehicle
at a set speed.

in heavy traffic or in traffic that varies
in speed.

on winding or hilly roads.

on slippery roads (rain, snow, ice,
etc.).

in very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.PRECAUTIONS ON CRUISE
CONTROL
If the cruise control system malfunctions, it
cancels automatically. The SET indicator light
on the meter panel then blinks to warn the
driver.

If the SET indicator light blinks, turn the
cruise control main switch off and have the
system checked by your NISSAN dealer.
The SET indicator light may blink when the
cruise control main switch is turned on while
pushing the ACCEL/RES, COAST/SET, or
CANCEL switch (located on the steering
wheel). To properly set the cruise control
system, perform the preceding steps in the
order indicated.
1. ACCEL or RESUME switch
2. COAST or SET switch
3. ON/OFF switch
4. CANCEL switch
CRUISE CONTROL OPERATIONSThe cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the main
switch on. The CRUISE indicator light on the
meter panel will come on.
SSD0297
CRUISE CONTROL (if so
equipped)
Starting and driving
5-19


04.4.5/Z50-D/V5.0
