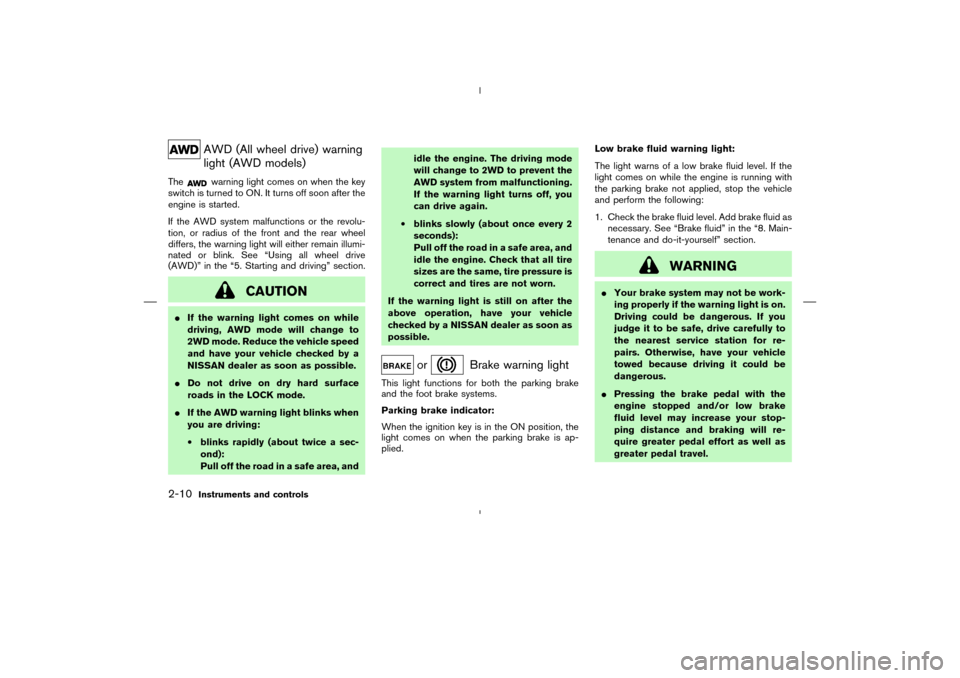

AWD (All wheel drive) warning
light (AWD models)
The
warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
differs, the warning light will either remain illumi-
nated or blink. See “Using all wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, andidle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition key is in the ON position, the
light comes on when the parking brake is ap-
plied.Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
greater pedal travel.
2-10
Instruments and controls


04.4.5/Z50-D/V5.0

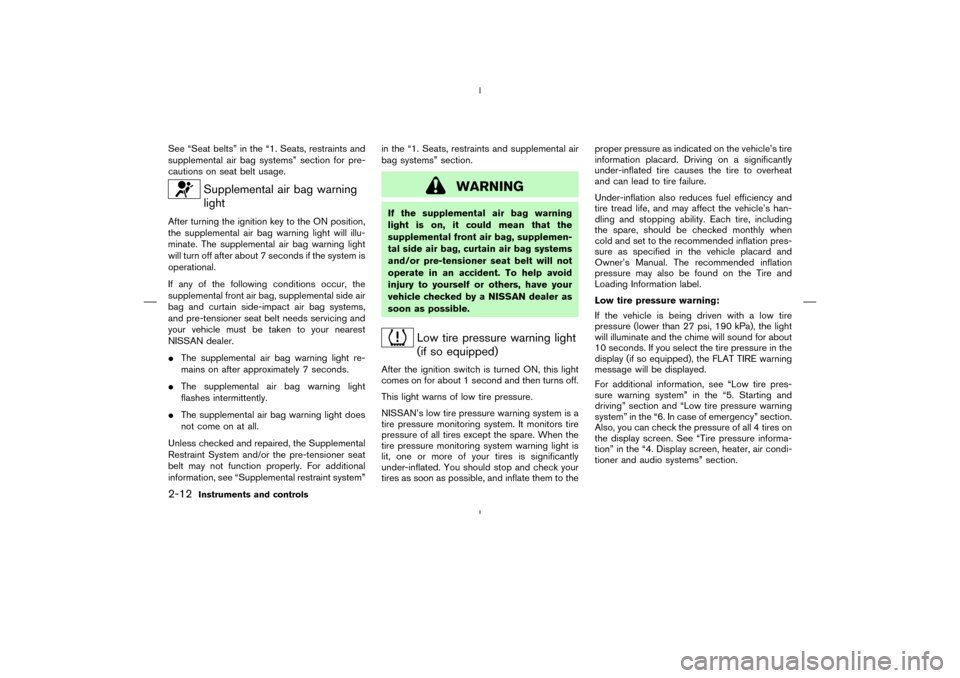

See “Seat belts” in the “1. Seats, restraints and
supplemental air bag systems” section for pre-
cautions on seat belt usage.
Supplemental air bag warning
light
After turning the ignition key to the ON position,
the supplemental air bag warning light will illu-
minate. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt needs servicing and
your vehicle must be taken to your nearest
NISSAN dealer.

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”in the “1. Seats, restraints and supplemental air
bag systems” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
Low tire pressure warning light
(if so equipped)
After the ignition switch is turned ON, this light
comes on for about 1 second and then turns off.
This light warns of low tire pressure.
NISSAN’s low tire pressure warning system is a
tire pressure monitoring system. It monitors tire
pressure of all tires except the spare. When the
tire pressure monitoring system warning light is
lit, one or more of your tires is significantly
under-inflated. You should stop and check your
tires as soon as possible, and inflate them to theproper pressure as indicated on the vehicle’s tire
information placard. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure.
Under-inflation also reduces fuel efficiency and
tire tread life, and may affect the vehicle’s han-
dling and stopping ability. Each tire, including
the spare, should be checked monthly when
cold and set to the recommended inflation pres-
sure as specified in the vehicle placard and
Owner’s Manual. The recommended inflation
pressure may also be found on the Tire and
Loading Information label.
Low tire pressure warning:
If the vehicle is being driven with a low tire
pressure (lower than 27 psi, 190 kPa), the light
will illuminate and the chime will sound for about
10 seconds. If you select the tire pressure in the
display (if so equipped), the FLAT TIRE warning
message will be displayed.
For additional information, see “Low tire pres-
sure warning system” in the “5. Starting and
driving” section and “Low tire pressure warning
system” in the “6. In case of emergency” section.
Also, you can check the pressure of all 4 tires on
the display screen. See “Tire pressure informa-
tion” in the “4. Display screen, heater, air condi-
tioner and audio systems” section.
2-12
Instruments and controls


04.4.5/Z50-D/V5.0

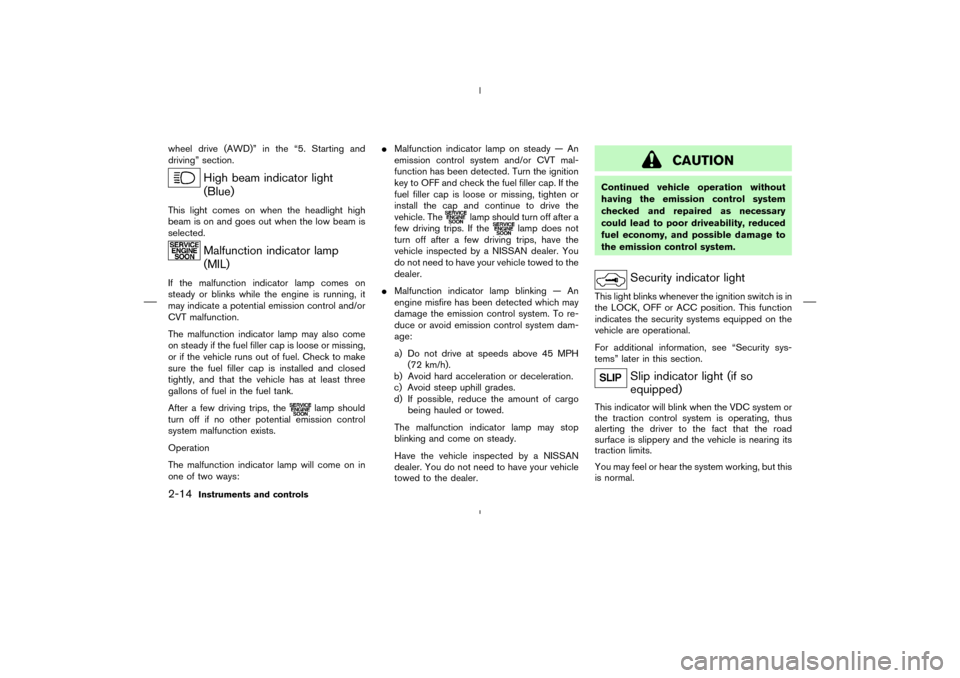

wheel drive (AWD)” in the “5. Starting and
driving” section.
High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
CVT malfunction.
The malfunction indicator lamp may also come
on steady if the fuel filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel filler cap is installed and closed
tightly, and that the vehicle has at least three
gallons of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
Operation
The malfunction indicator lamp will come on in
one of two ways:
Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
key to OFF and check the fuel filler cap. If the
fuel filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security systems equipped on the
vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.
2-14
Instruments and controls


04.4.5/Z50-D/V5.0

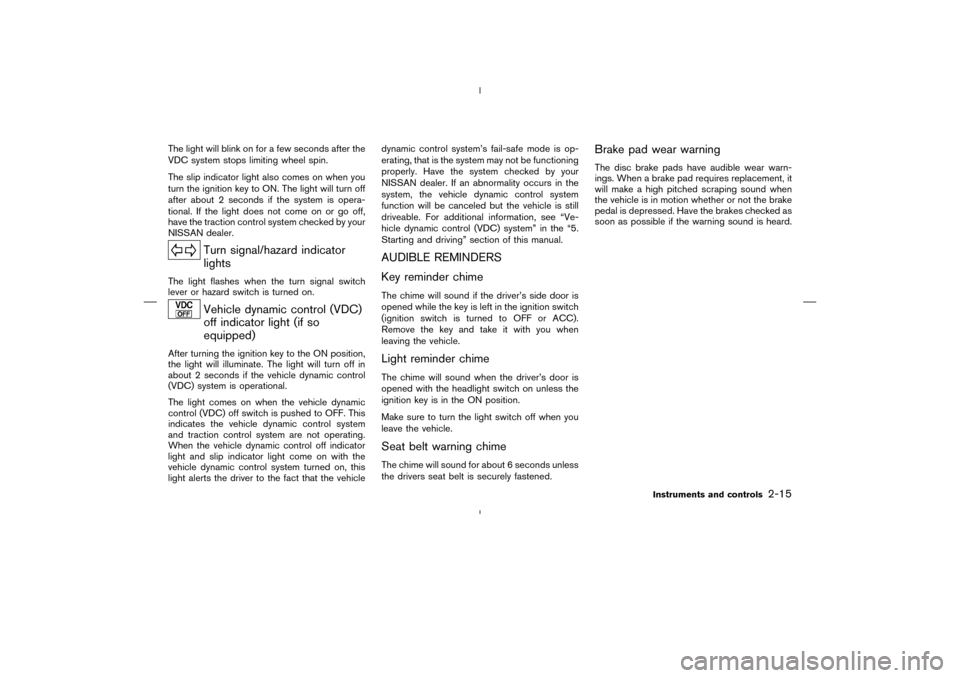

The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition key to ON. The light will turn off
after about 2 seconds if the system is opera-
tional. If the light does not come on or go off,
have the traction control system checked by your
NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
After turning the ignition key to the ON position,
the light will illuminate. The light will turn off in
about 2 seconds if the vehicle dynamic control
(VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicledynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by your
NISSAN dealer. If an abnormality occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.
AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned to OFF or ACC).
Remove the key and take it with you when
leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
ignition key is in the ON position.
Make sure to turn the light switch off when you
leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the drivers seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Instruments and controls
2-15


04.4.5/Z50-D/V5.0

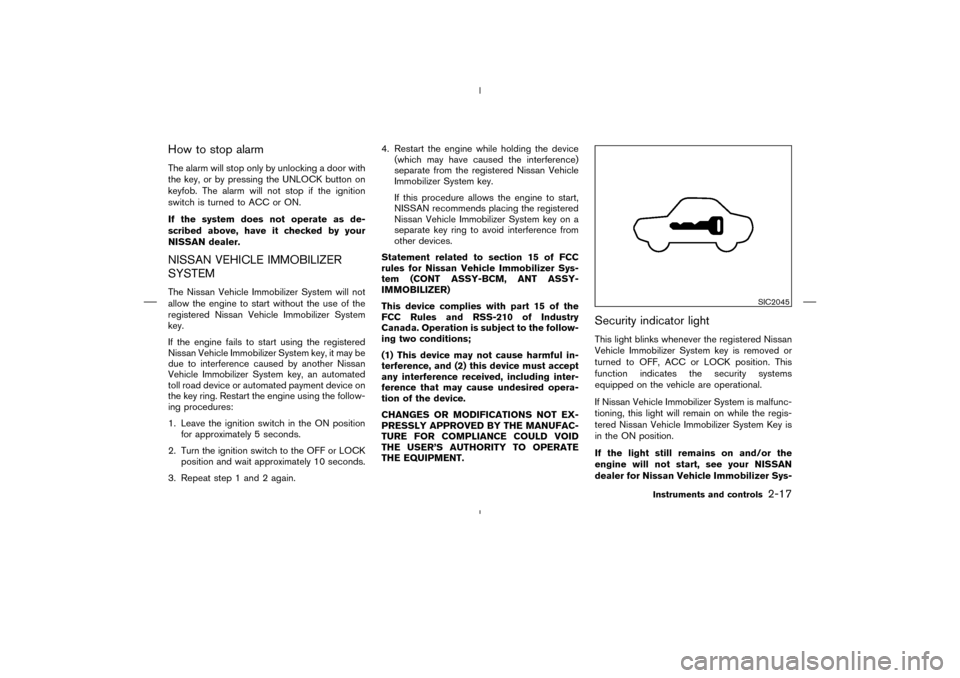

How to stop alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key, it may be
due to interference caused by another Nissan
Vehicle Immobilizer System key, an automated
toll road device or automated payment device on
the key ring. Restart the engine using the follow-
ing procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
Nissan Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered Nissan
Vehicle Immobilizer System key is removed or
turned to OFF, ACC or LOCK position. This
function indicates the security systems
equipped on the vehicle are operational.
If Nissan Vehicle Immobilizer System is malfunc-
tioning, this light will remain on while the regis-
tered Nissan Vehicle Immobilizer System Key is
in the ON position.
If the light still remains on and/or the
engine will not start, see your NISSAN
dealer for Nissan Vehicle Immobilizer Sys-
SIC2045
Instruments and controls
2-17


04.4.5/Z50-D/V5.0


The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
CAUTION

If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if reser-
voir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window glass with the defroster
before you wash.To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on
1. The indicator light
A
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
SIC1959
SIC2046
REAR WINDOW WIPER AND
WASHER SWITCHREAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Instruments and controls
2-19


04.4.5/Z50-D/V5.0

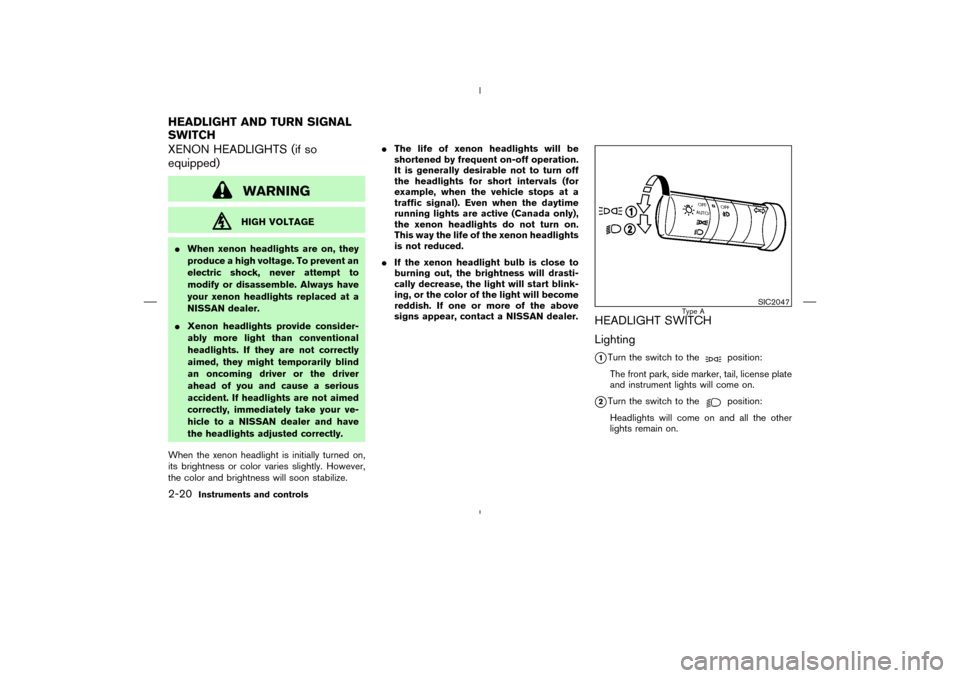

XENON HEADLIGHTS (if so
equipped)
WARNINGHIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.

Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.

If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.
SIC2047
Type A
HEADLIGHT AND TURN SIGNAL
SWITCH2-20
Instruments and controls


04.4.5/Z50-D/V5.0

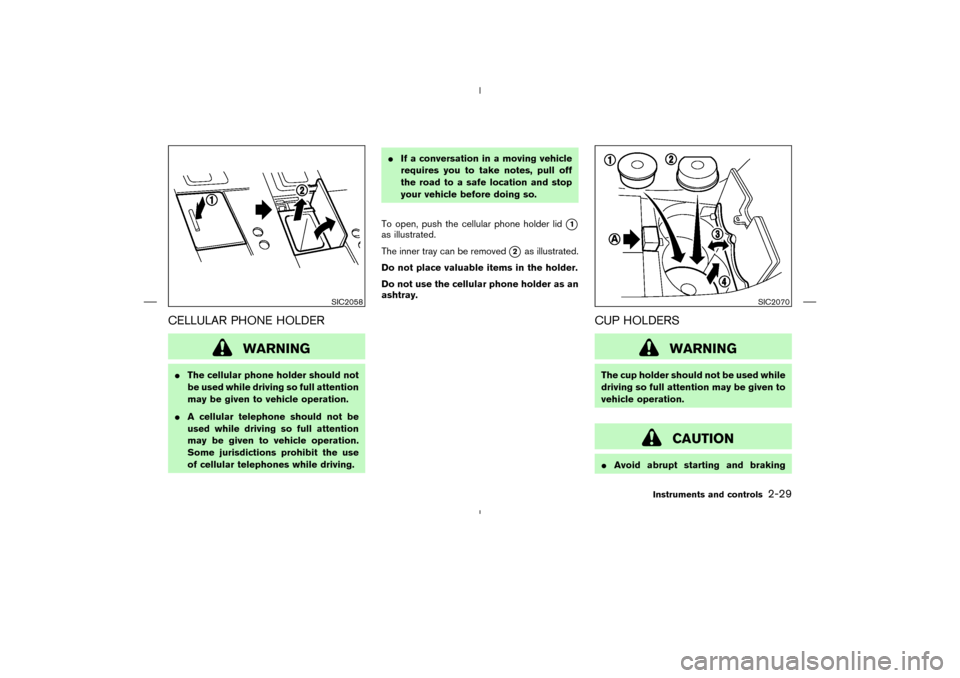

CELLULAR PHONE HOLDER
WARNING

The cellular phone holder should not
be used while driving so full attention
may be given to vehicle operation.

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.
If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
To open, push the cellular phone holder lid
1
as illustrated.
The inner tray can be removed
2
as illustrated.
Do not place valuable items in the holder.
Do not use the cellular phone holder as an
ashtray.
CUP HOLDERS
WARNING
The cup holder should not be used while
driving so full attention may be given to
vehicle operation.
CAUTION

Avoid abrupt starting and braking
SIC2058
SIC2070
Instruments and controls
2-29


04.4.5/Z50-D/V5.0
