a. Using a gas leak detector, check for leakage of refrigerant.
<002c004900030057004b0048005500480003004c0056000300440051005c0003004f00480044004e0044004a0048000f0003005500480053004f00440046004800030057004b00480003004600520050005300550048005600560052005500030044005600
56004800500045004f005c00110003[
4.INSPECT W/PULLEY COMPRESSOR ASSY
a. Check operation of w/pulley compressor assy.
1. Start the engine.
2. Inspect the compressor pulley.
Standard: The compressor shaft rotates along with the pulley

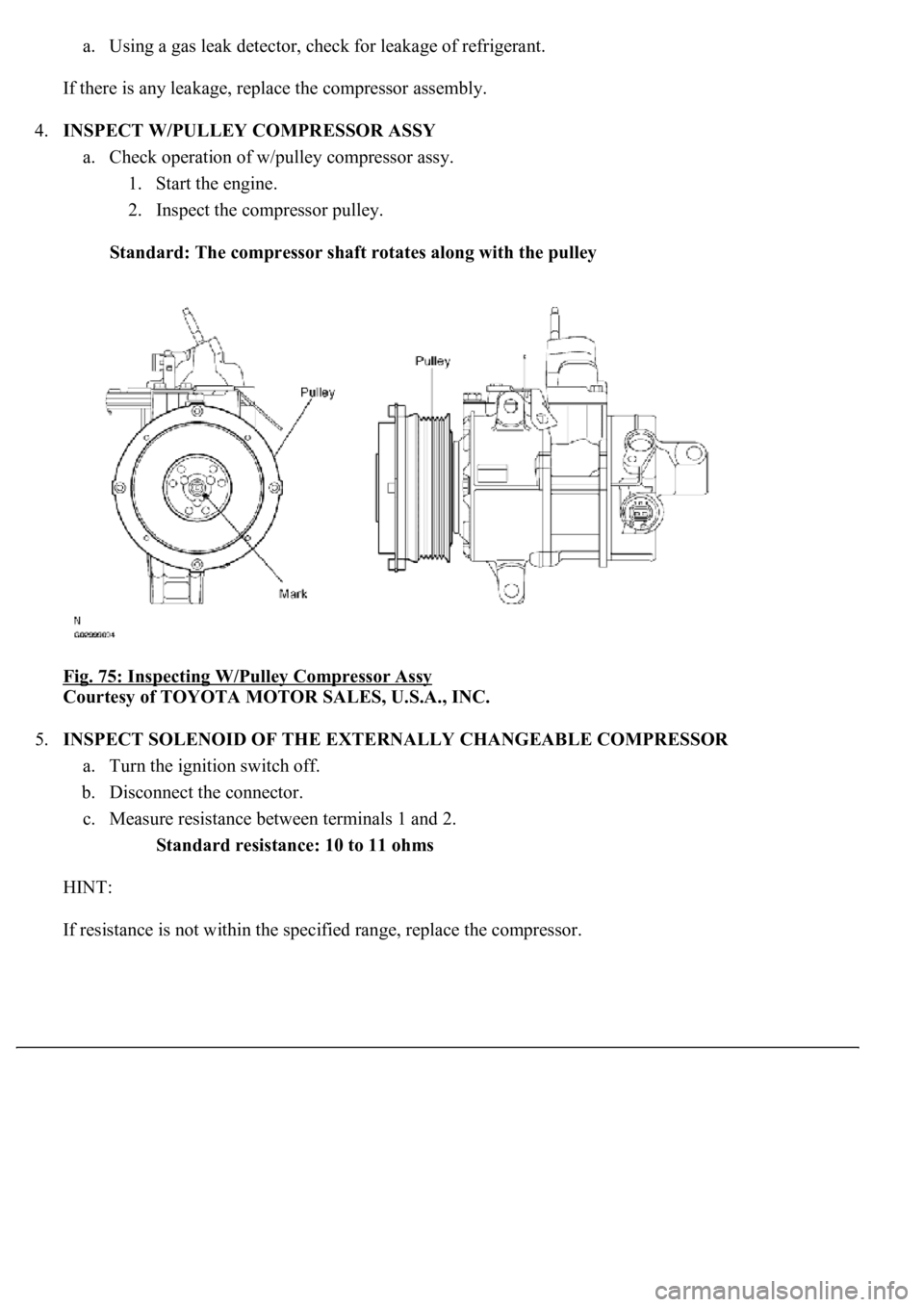

Fig. 75: Inspecting W/Pulley Compressor Assy

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.INSPECT SOLENOID OF THE EXTERNALLY CHANGEABLE COMPRESSOR
a. Turn the ignition switch off.
b. Disconnect the connector.
c. Measure resistance between terminals 1 and 2.
Standard resistance: 10 to 11 ohms
HINT:
If resistance is not within the specified ran
ge, replace the compressor.

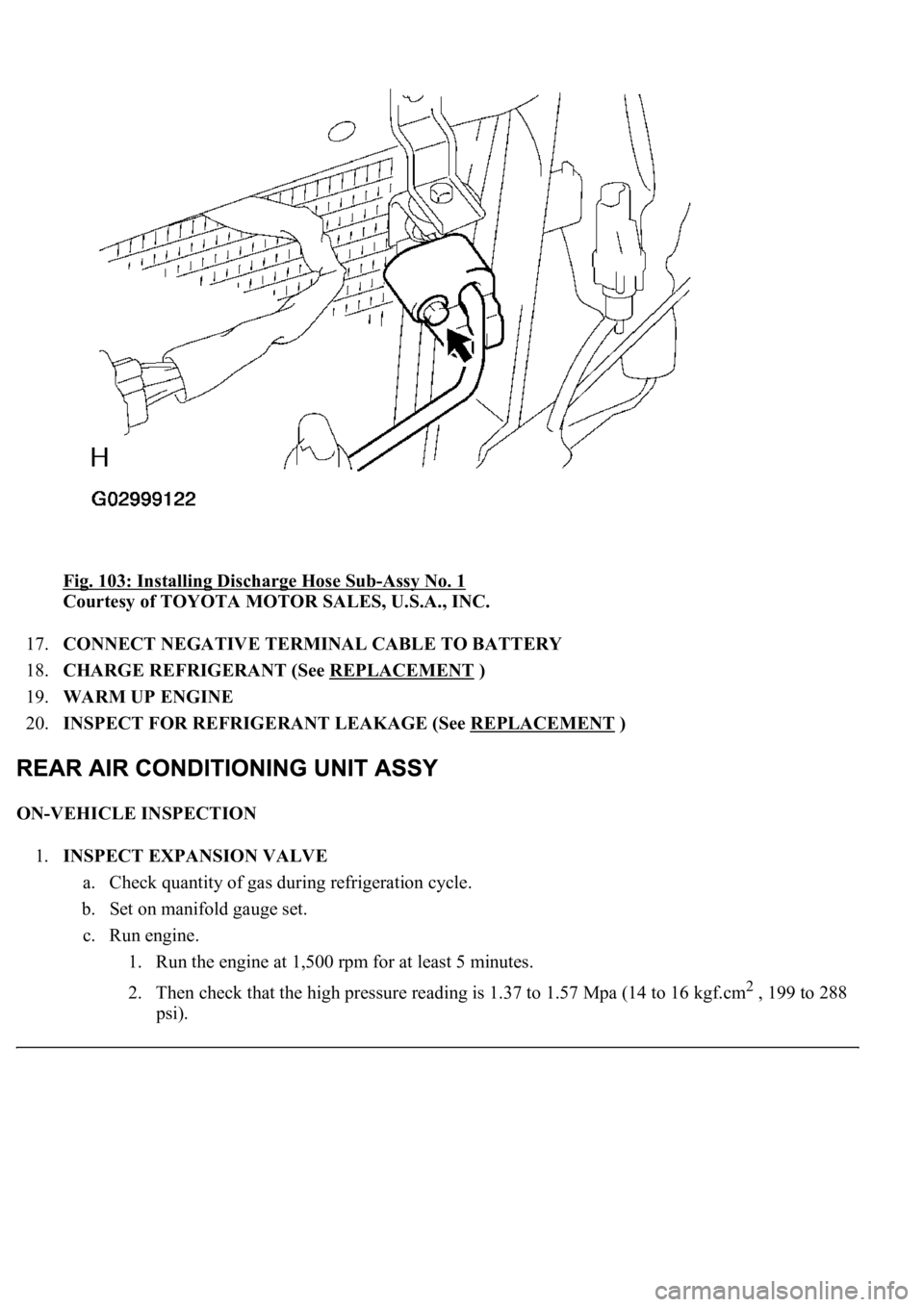

Fig. 103: Installing Discharge Hose Sub-Assy No. 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.CONNECT NEGATIVE TERMINAL CABLE TO BATTERY
18.CHARGE REFRIGERANT (See REPLACEMENT
)
19.WARM UP ENGINE
20.INSPECT FOR REFRIGERANT LEAKAGE (See REPLACEMENT
)
ON-VEHICLE INSPECTION
1.INSPECT EXPANSION VALVE
a. Check quantity of gas during refrigeration cycle.
b. Set on manifold gauge set.
c. Run engine.
1. Run the engine at 1,500 rpm for at least 5 minutes.
2. Then check that the high pressure reading is 1.37 to 1.57 Mpa (14 to 16 kgf.cm
2 , 199 to 288
psi).

6. Visually check if spark occurs while the engine is being cranked.
If a spark does not occur, perform the test as follows:
Fig. 4: Spark Test Flow Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7. Using a 16 mm (0.63 in.) plug wrench, install the spark plugs.
Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
8. Install the ignition coils (see REPLACEMENT
).

If the resistance is less than the specified value, proceed to step (d).
HINT:

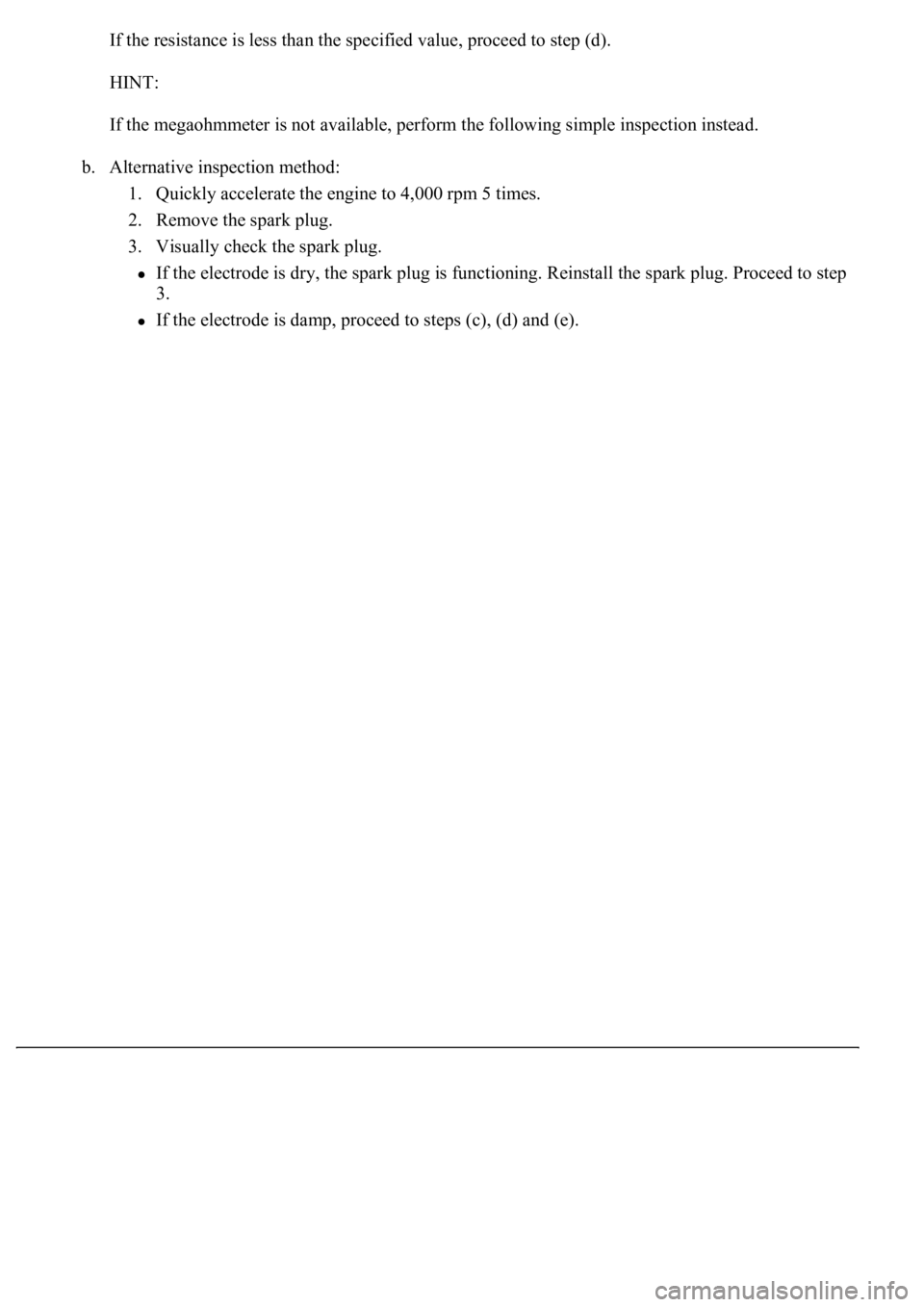

If the megaohmmeter is not available, perform the following simple inspection instead.
b. Alternative inspection method:
1. Quickly accelerate the engine to 4,000 rpm 5 times.
2. Remove the spark plug.
3. Visually check the spark plug.
If the electrode is dry, the spark plug is functioning. Reinstall the spark plug. Proceed to step
3.
If the electrode is damp, proceed to steps (c), (d) and (e).

14.REFILL ENGINE COOLANT (See REPLACEMENT )
15.WARM UP ENGINE
16.CHECK FOR ENGINE COOLANT LEAKS
COMPONENTS

Fig. 3: Inspecting Intake Air Control Function
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Remove the V-bank cover.
b. Connect the hand-held tester (with CAN VIM) to the DLC3.
c. Perform the ACTIVE TEST, and then check that the actuator rod operates.
d. Start the engine.
e. Check that the VSV for IAC valve in ON (seal) under these conditions.
Depressing the accelerator pedal to a throttle valve opening angle of 60 degrees.
Racing the engine above 4,700 rpm.
f. Check that the VSV for IAC valve is OFF (vent) under these conditions.
The engine is idling.
Releasing the accelerator pedal while under the 2 conditions in step (e).
If the result is not as specified, inspect the IAC valve, vacuum tank and VSV for normal operation.
Replace malfunctioning parts as necessary.
INSPECTION
1.INSPECT INTAKE AIR CONTROL VALVE ACTUATOR
a. Connect the MITYVAC (han
d-held vacuum pump) to the actuator.

If the result is not as specified, replace the VSV assy.
Fig. 8: Checking Air Flows From Port E To Port F

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.DRAIN ENGINE COOLANT
2.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT
3.REMOVE V-BANK COVER
a. Remove the 2 nuts and V-bank cover.
4.REMOVE AIR CLEANER INLET NO. 1
5.REMOVE INTAKE AIR CONNECTOR PIPE
a. Disconnect the air hose and ventilation hose No. 1.
b. Remove the bolt, hose clamp and intake air connector pipe.

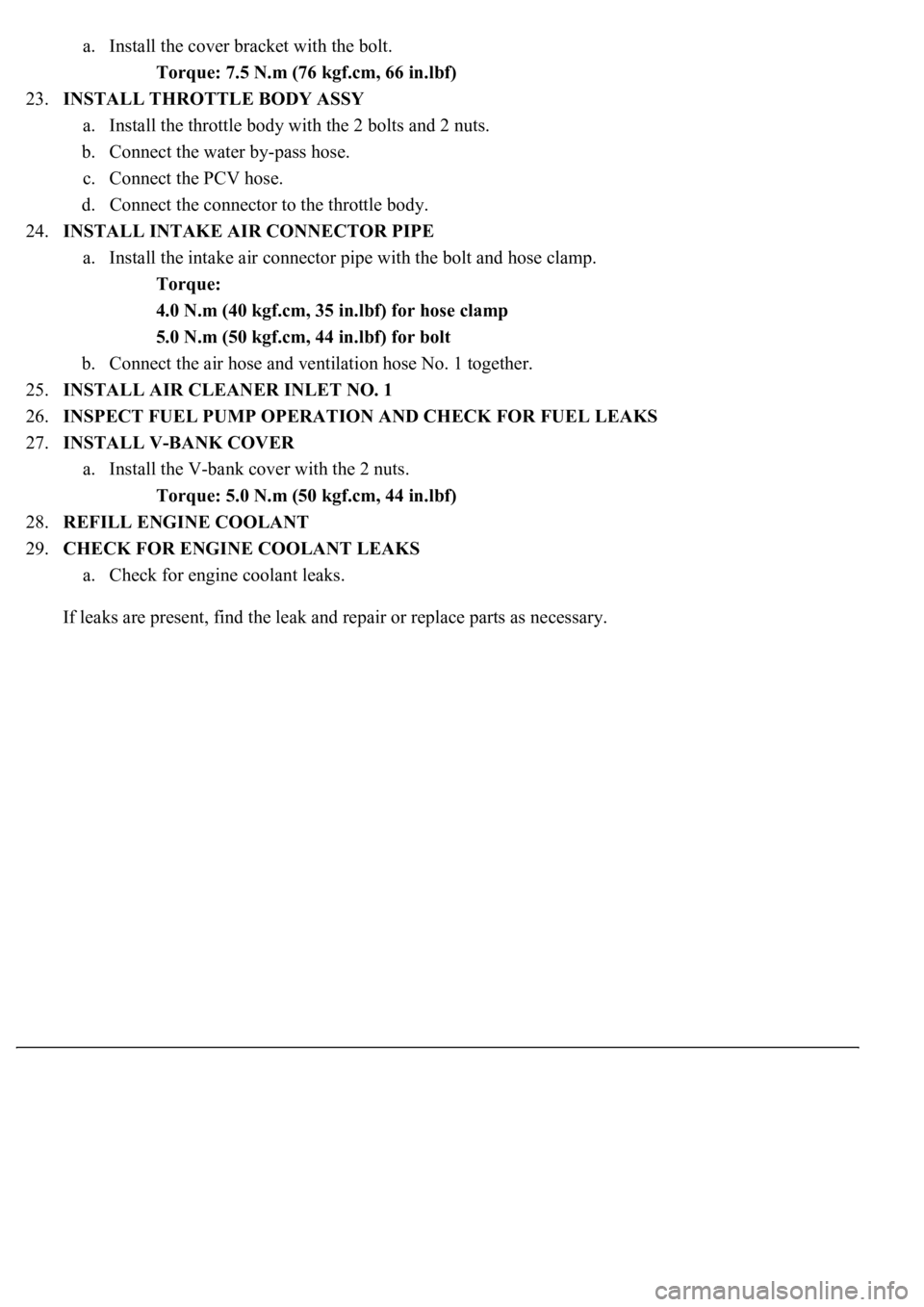

a. Install the cover bracket with the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
23.INSTALL THROTTLE BODY ASSY
a. Install the throttle body with the 2 bolts and 2 nuts.
b. Connect the water by-pass hose.
c. Connect the PCV hose.
d. Connect the connector to the throttle body.
24.INSTALL INTAKE AIR CONNECTOR PIPE
a. Install the intake air connector pipe with the bolt and hose clamp.
Torque:
4.0 N.m (40 kgf.cm, 35 in.lbf) for hose clamp
5.0 N.m (50 kgf.cm, 44 in.lbf) for bolt
b. Connect the air hose and ventilation hose No. 1 together.
25.INSTALL AIR CLEANER INLET NO. 1
26.INSPECT FUEL PUMP OPERATION AND CHECK FOR FUEL LEAKS
27.INSTALL V-BANK COVER
a. Install the V-bank cover with the 2 nuts.
Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)
28.REFILL ENGINE COOLANT
29.CHECK FOR ENGINE COOLANT LEAKS
a. Check for engine coolant leaks.
If leaks are present, find the leak and repair or replace parts as necessar
y.
