SAFETY RRST---------------------------------------------------

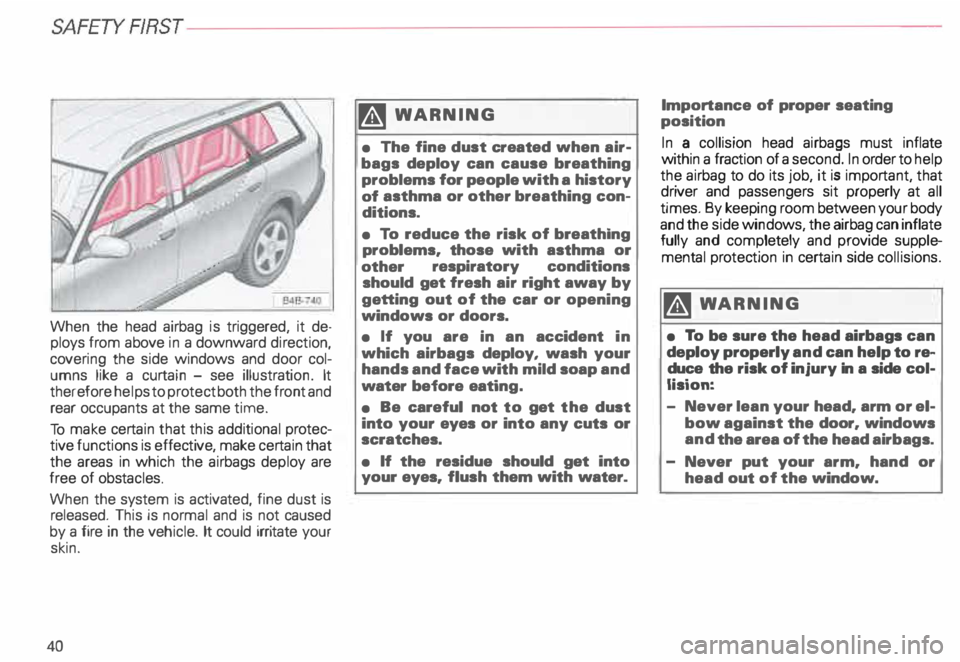

When the head airbag is triggered, it de­
ploys from above in a downward direction,
covering the side windows and door col­
umns like a curtain -see illustration. It
therefore helps to protect both the front and
rear occupants at the same time.
To make certain that this additional protec­
tive functions is effective, make certain that
the areas in which the airbags deploy are
free of obstacles.
When the system is activated, fine dust is
released. This is normal and is not caused
by a fire in the vehicle. It could irritate your
skin.
40 �W
ARNING
• The fine dust created when air­
bags deploy can cause breathing
problems for people with a history
of asthma or other breathing con­
ditions.
• To reduce the risk of breathing
problems. those with asthma or
other respiratory
conditions
should get fresh air right away by
getting out of the car or opening
windows or doors.
• If you are in an accident in
which airbags deploy. wash your
hands and face with mild soap and
water before eating.
• Be careful not to get the dust
into your eyes or into any cuts or
scratches.
• If the residue should get into
your eyes. flush them with water. Importance
of proper seating
position
In a collision head airbags must inflate
within a fraction of a second. In order to help
the airbag to do its job, it is important, that
driver and passengers sit properly at all
times. By keeping room between your body
and the side windows, the airbag can inflate
fully and completely and provide supple­
mental protection in certain side collisions.
�W ARNING
• To be sure the head airbags can
deploy properly and can help to re­
duce the risk of injury In a side col­
lision:
- Never lean your head. arm or el­
bow against the door. windows
and the area of the head airbags.
Never put your arm. hand or
head out of the window.

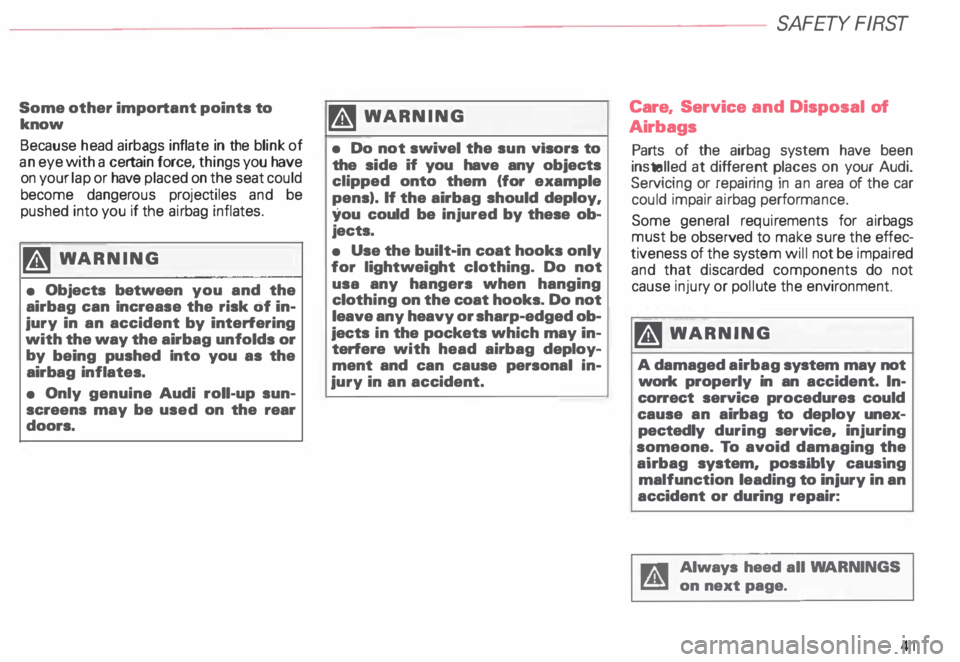

Some other important points
to
know
Because head airbags inflate in the blink of
an eye with a certain force, things you have
on your lap or have placed on the seat could
become dangerous projectiles and be
pushed into you if the airbag inflates.
�W ARNING
• Objects between you and the
airbag can Increase the risk of in­
jury in an accident by interfering
with the way the airbag unfolds or
by being pushed Into you as the
airbag inflates.
• Only genuine Audi roll-up sun­
screens may be used on the rear
doors. �W
ARNING
• Do not swivel the sun visors to
the side if you have any objects
clipped onto them (for example
pens). If the airbag should deploy,
you could be injured by these ob­
jects.
• Use the built-in coat hooks only
for lightweight clothing. Do not
usa any hangers when hanging
clo thing on the coat hooks. Do not
leave any heavy or sharp-edged ob­
jects in the pockets which may in­
terfere with head airbag deploy­
ment and can cause personal in­
jury in an accident. SA
FETY FIRST
Care, Service and Disposal of
Airbags
Parts of the airbag system have been
installed at different places on your Audi.
Servicing or repairing in an area of the car
could impair airbag performance.
Some general requirements for airbags
must be observed to make sure the effec­
tiveness of the system will not be impaired
and that discarded components do not
cause injury or pollute the environment.
�W ARNING
A damaged airbag system may not
work properly in an accident. In­
correct service procedures could
cause an airbag to deploy unex­
pectedly during service, injuring
someone. To avoid damaging the
airbag system, possibly causing
malfunction leading to injury in an
accident or during repair:
Always heed all WA RNINGS
on next page.
41

SA
FETY RRST-----------------------------------------------------
�WARNING continued
• Do not cover, obstruct, or
change the steering wheel horn
pad or airbag cover or the instru­
ment panel, particularly in the area
of the passenger side airbag mod­
ule.
• For cleaning the horn pad or in­
strument panel, use only a soft,
dry cloth or one moistened with
plain water. Solvents or cleaners
could damage the airbag cover. Do
not make any repairs, adjust­
ments, or modifications to any
parts of the airbag system.
• Do not modify the front bumper
or vehicle body structure.
42 ftl
WARNING continued
• Never place protective seat cov­
ers or replacement upholstery
over the front and rear seatbacks
that have not been specifically ap­
proved by Audi. Since the side air­
bags deploy out of the side of the
seatback, it would not be able to
deploy and protect properly.
• Do not use additional seat cush­
ions that cover or interfere with
the areas where the side airbags
inflate.
• Damage to the original seat cov­
ers or to the seam in the area of the
side airbag module must be re­
paired immediately by an autho­
rized Audi Dealer.
• The airbag system must be re­
placed by your authorized Audi
Dealer no later than 14 years after
the manu facture date of your ve­
hicle. �,
WARNING continued
• The manufacture date can be
found on the Safety Compliance
Sticker located on the left door
jamb as well as on the Vehicle
Identification Label in your
Maintenance booklet. It is abso­
lutely essential to observe this
date in order to assure that the sy­
stem is in good working order.
• If components of the airbag sys­
tem must be discarded, or ifthe ve­
hicle must be scrapped, certain
safety precautions must be ob­
served. Your authorized Audi
Dealer knows these precautions
and can give you the necessary in­
forma tion. Failure to follow these
precautions and procedures could
increase the risk of personal in­
jury.

-------------------------------------------------SAFETY RRST
'4 WARNING continued
• Any work on the airbag system.
such as removing/insta lling, re­
pairing . or any work on the steer­
ing wheel. instrument panel. front
seats or electrical system (Includ­
ing the installation of audio equip­
ment. mobile telephones and CB
radios. etc.) must be performed by
a qualified technician who has the
. training and special equipment
necessary. Improper handling may
result in injury.
• For any work on the airbag sys­
tem. we strongly recommend that
you see your Audi Dealer.
• The alrbag system can be acti­
vated only once. After an alrbag
has inflated. it must be replaced. Please
be sure that this manual al­
ways remains with your Audi when­
ever you lend your vehicle to
another person or if you sell it so
that this and other important infor­
mation will always be available to
the driver and passengers.
43

SAFET YRRST---------------------------------------
Child safety
The physical principles of what happens
when your car is in an accident, illustrated
on pages 14-17 , apply also to children. But
unlike adults and teenagers. their muscles
and bones a.re not fully developed. In many
respects chrldren are at greater risk of seri­
ous injury in accidents than are adults.
Because children's bodies are not fully de­
veloped, they require restraint systems es­
pecially designed for their size. weight, and
body structure. Many countries and all
states of the United States and provinces of
Canada have laws requiring the use of ap­
proved child restraint systems for infants
and small children.
Child restraints, like adult safety belts, must
be used properly to be effective. Used im­
properly, they can increase the risk of seri­
ous injury in an accident.
44 �W
ARNING
• Accident statistics have shown
that children are generally safer in
the rear seat area than in the front
seating position. Always restrain
any child age 12 and under in the
rear.
• . All ve�icle occupants and espe­
Cially children must be restra ined
properly whenever riding in a ve­
hicle. An unrestrained or improp­
erly restra ined child could be in­
jur
_ed b
y stri king the interior or by
bemg eJected from the vehicle dur­
ing a sudden maneuver or impact. J'A1
WARNING
continued
An unrestrained or improperly re­
strained child is also at greater
risk of injury or death through con­
ta c:t with �n inflating airbag. A
su1table child restraint properly
installed and used at one of the
rear seating positions provides the
highest degree of protec tion for
infants and small children in most
accidents.
Consult the child seat manufacturer's in­
structions to be sure the seat is right for
your child's size.

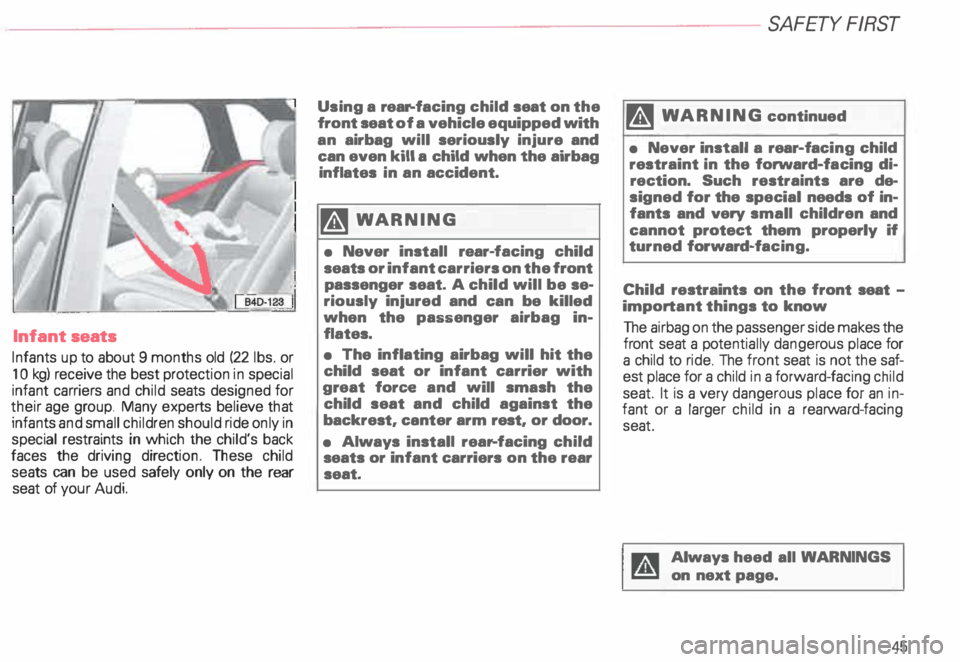

Infant
seats
Infants up to about 9 months old (22 lbs. or
1 0 kg) receive the best protection in special
infant carriers and child seats designed for
their age group. Many experts believe that
infants and small children should ride only in
special restraints in which the child's back
faces the driving direction. These child
seats can be used safely only on the rear
seat of your Audi. Using
a rear-fa cing child seat on the
front seat of a vehicle equipped with
an airbag will seriously injure and
can even kill a child when the airbag
inflates in an accident.
� WARNING
• Never install rear-facing child
seats or infant carriers on the front
passenger seat. A child will be se­
riously iniured and can be killed
when the passenger airbag in­
flates.
• The inflating airbag will hit the
child seat or infant carrier with
great force and will smash the
child seat and child against the
backrest, canter arm rest, or door.
• Always install rear--facing child
seats or infant carriers on the rear
seat. SA
FETY FIRST
ftl WARNING continued
• Never install a rear-fac ing child
restraint in the forward-fa cing di­
rection. Such restraints are de­
signed for the special needs of in­
fants and very small children and
cannot protect them properly if
turned forward-fa cing.
Child restraints on the front seat -
important things to know
The airbag on the passenger side makes the
front seat a potentially dangerous place for
a child to ride. The front seat is not the saf­
est place for a child in a forward-facing child
seat. It is a very dangerous place for an in­
fant or a larger child in a rearward-facing
seat.
Always heed all WARNINGS
on next page.
45

SA
FETY FI
RST------------------------
�W ARNING
If, in exceptio nal circumstances
you have no alternative but to
install a rear facing child seat or in­
fant canier an the front passenger
seat, deactivate the front passen­
ger airbag prior to installing the
child restra int.
Please note, that the side airbag
for the front passenger seat will
remain functional even if the front
passenger alrbag is switched off.
Make sure the child restraint has
been designed and certified by its
manufacturer for use on a front
seat with a side airbag.
Always move the passenger seat
into its raarmost position, as far
away from the airbag as possible
before installing the child re­
straint. The backrest must be ad­
justed to an upright position.
46
Babies and older children must
never ride in a vehicle sitting on
the lap of an adult. Holding a child
in your arms is never a substitute
for a child restraint system. The
strongest adult could not hold
onto the child under the forces ex­
erted in an accident. 1ft
WARNING continued
The child would strike the interior
of the vehicle and could also be
struck by the adult's body moving
forwa rd. The child and the adult
could injure each another.
In a frontal accident at a speed of 20-35 mph
(30-56 km/h) the forces acting on a
13 -pound (6 kg) infant would be more than
20timestheweightofthe child. This means
the weight of the child would suddenly be
more than 260 pounds (120 kg). Under
these conditions, only an appropriate child
restr aint properly used can reduce the risk
of serious injury.

--------------------------SAFETY FIRST
Converti
ble seats
A child too large for an infant restraint up to
4 years old (40 lbs. or 18 kg) should be re­
stra ined in a child seat certified for their
weight.
The airbag on the passenger side makes the
front seat a potentially dangerous place for
a child to ride. The front seat is not the saf­
est place for a child in a forward-f acing child
seat. It is a very dangerous place for an in­
fant or a larger child in a rearward-facing
seat. m
WARNING
Forward-fa cing
child seats
installed on the front passenger's
seat may interfere with the deploy­
ment of the airbag and cause seri­
ous injury to the child. Install for­
ward·fac ing child seats on the rear
seat if the front passenger airbag
has not been deactivated.
If excep tional circumstances require the
use of a forward-fac ing child seat on the
front seat. the child's safety and well-b eing
require that the following special precau­
tions be taken: �W
ARNING
If, in exceptional circumstances,
you must install a forward-facing
child restraint on the front passen­
ger's seat:
make sure the forward-facing
seat has been designed and cer­
tified by its manufacturer for
use on a front seat with a pas­
senger front and side airbag.
Always follow the manuf actur­
er's instructions provided with
the child seat or carrier.
Always move the passenger
seat into its rearmost position,
as far away from the airbag as
possible before installing the
child restraint. The backrest
must be adjusted to an upright
position.
47
