2000 AUDI ALLROAD Owners Manual

CONTROLS AND
EQUIPMENT--------------------
Maintenance
• For maximum efficiency of the air condi­
tioner the dust and pollen filter elements
must 'be replaced at the intervals indicated
in the Maintenance Schedule.
• The condenser must be checked regu­
larly to make sure it is clean. If it becomes
obstructed by dirt or insects, spray 1t clear
with water.
• Repairs to the Audi air condition­
ing system require specialized
knowledge and special tools.
If the system is not functioning
properly, contact your Audi Dealer.
16 8 Power roof*
The roof will slide open or tilt up at the rear
as required. When the ignition is on it can be
opened and closed by turning the rota�
control next to the interior light. The roof 1s
tilted open or closed by pressing or pulling
the control -see illustration.
When turning the ignition off, however, the
sunr oof can still be operated as long as the
driver's and front passenger's door are
closed. When either door is opened, sliding
roof operation will be deactivated .
Always close the roof completely if you are
going to park your vehicle and leave. �W
ARNING
Be careful when closing the power
roof 1 tilt roof. Not paying atten­
tion could cause you or others to
be caught and injured as the roof
closes. To help avoid injuries
caused by closing the roof, always
take your key whenever you leave
your vehicle.

;
\ I
\. ,. _
---________.)
---------� =::�1

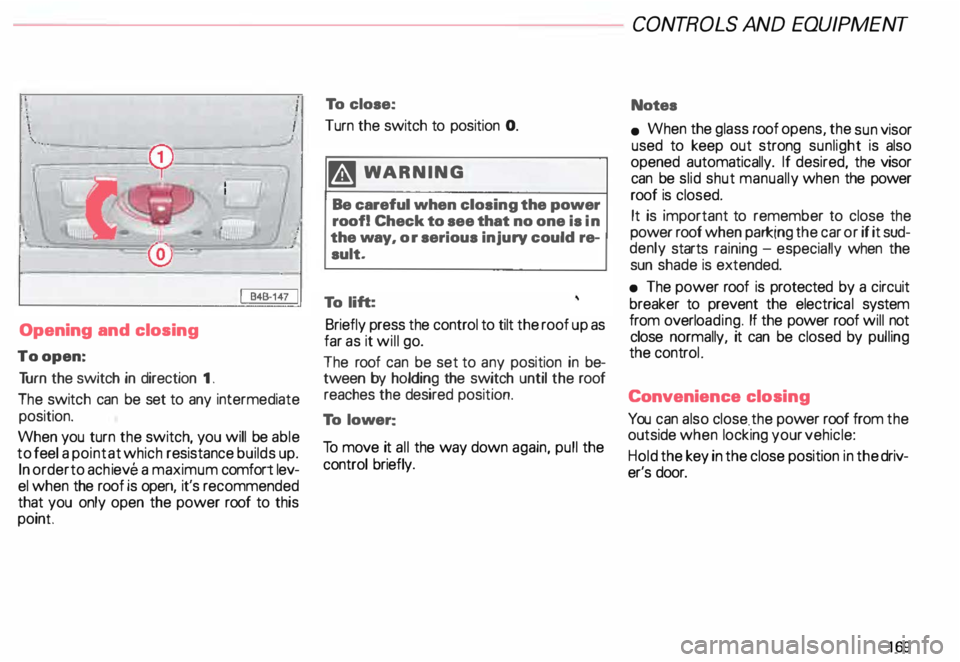

Opening and closing
To open: Tu rn the switch in direction 1.
The switch can be set to any intermediate
position.
When you turn the switch, you will be able
to feel a point at which resistance builds up.
In order to achieve a maximum comfort lev­
el when the roof is operi, it's recommended
that you only open the power roof to this
point To
close:
Turn the switch to position 0.
�W ARNING
Be careful when closing the power
roof! Check to see that no one is in
the way, or serious injury could re­
sult.
To lift:
Briefly press the control to tilt the roof up as
far as it will go.
The roof can be set to any position in be­
tween by holding the switch until the roof
reaches the desired position.
To lower:
To move it all the way down again, pull the
control briefly. CONT
ROLS AND EQUIPMENT
Notes
• When the glass roof opens, the sun visor
used to keep out strong sunlight is also
opened automatically. If desired, the visor
can be slid shut manually when the power
roof is closed.
It is important to remember to close the
power roof when parking the car or if it sud­
denly starts raining -especially when the
sun shade is extended.
• The power roof is protected by a circuit
breaker to prevent the electrica l system
from overlo ading. If the power roof will not
close normally, it can be closed by pulling
the controL
Conv enience closing
You can also close . the power roof from the
outside when locking your vehicle:
Hold the key in the close position in the driv­
er's door.
169

CONT
ROLS AND
EQUIPMENT---------------------
.·

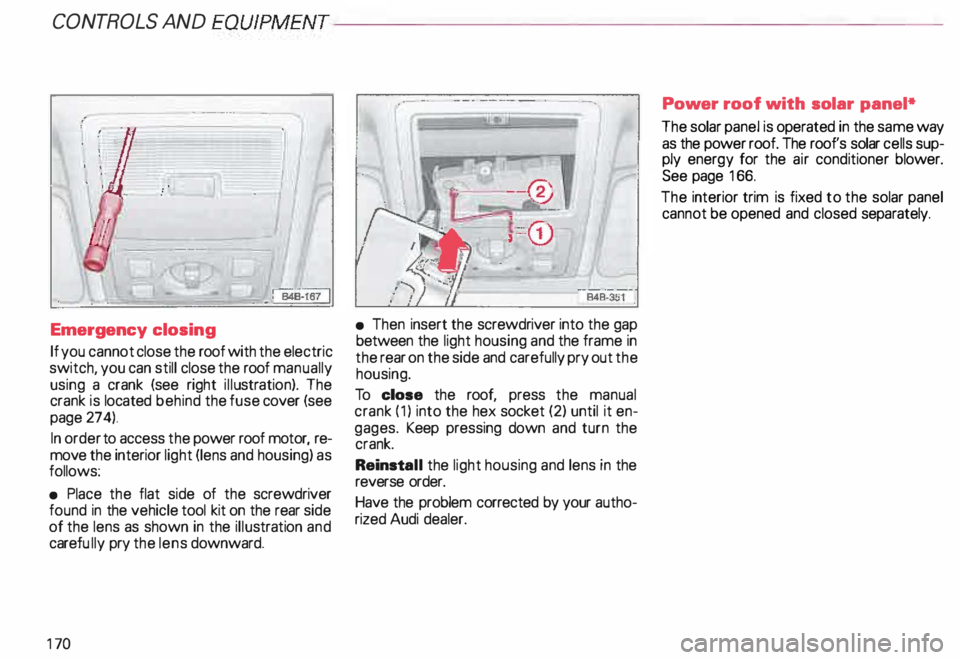

Emergency closing
If you cannot close the roof with the electric
switch, you can still close the roof manually
using a crank (see right illustr ation). The
crank is located behind the fuse cover (see
page 274).
In order to access the power roof motor, re­
move the interior light (lens and housing) as
follows:
• Place the flat side of the screwdriver
found in the vehicle tool kit on the rear side
of the lens as shown in the illustration and
carefu lly pry the lens downward.
17 0 •
Then insert the screwdriver into the gap
between the light housing and the frame in
the rear on the side and carefully pry out the
housing.
To close the roof, press the manual
crank (1) into the hex socket (2) until it en­
gages. Keep pressing down and turn the
crank.
Reinst all the light housing and lens in the
reverse order.
Have the problem corrected by your autho­
rized Audi dealer. Power
roof with solar panel*
The solar panel is operated in the same way
as the power roof. The roof's solar cells sup­
ply energy for the air conditioner blower.
See page 166.
The interior trim is fixed to the solar panel
cannot be opened and closed separately.

---------------------CONTROLS
AND EQUIPMENT

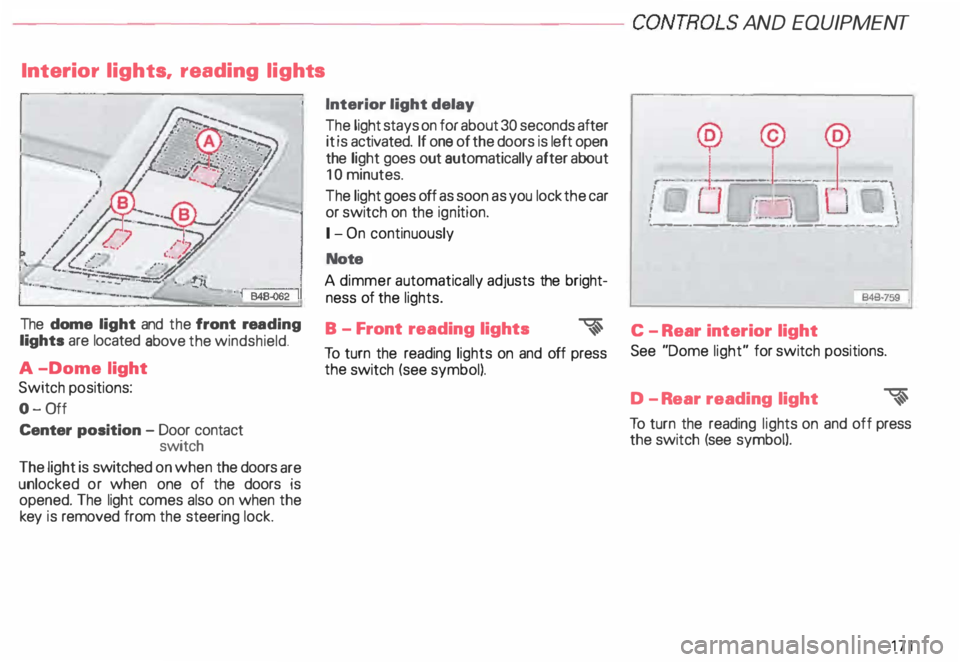

Interior lights, reading lights
The dome light and the front rea ding
lights are located above the windshield.
A -Dome light
Switch positions:
0- 0ff
Center position -Door contact
switch
The light is switched on when the doors are
unlocked or when one of the doors is
opened. The light comes also on when the
key is removed from the steering lock. Interior light
delay
The light stays on for about 30 seconds after
it is activated. If one of the doors is left open
the light goes out automatically after about
10 minutes.
The light goes off as soon as you lock the car
or switch on the ignition.
1- On continuously
Note
A dimmer automatically adjusts the bright­
ness of the lights.
B - Front reading lights
�
To turn the reading lights on and off press
the switch (see symbol). --
--� J: ___ ! __
\
I
Ot.:-= � :UJ,-.
i ·��-_:]
: \
·- ------- -···----·--- --·
846·759
'
C - Rear interior light
See "Dome light" for switch positions.
D -R ear reading light
�
To turn the reading lights on and off press
the switch (see symbol).
171

CONT
ROLS AND EQUIPMENT---------------------

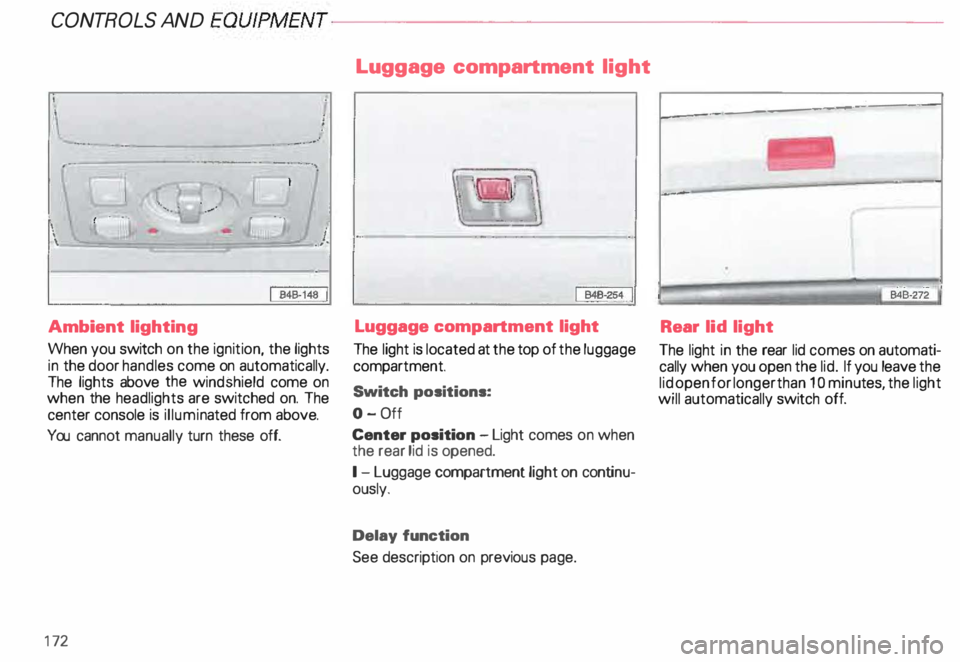

Ambient lighting
When you switch on the ignition, the lights
in the door handles come on automatically.
The lights above the windshield come on
when the headlights are switched on. The
center console is illumi nated from above.
You cannot manually turn these off.
17 2 Luggage
compartment light
Luggage compartment light
The light is located at the top of the luggage
compartment.
Switch positions:
0- Off
Center position -Light comes on when
the rear lid is opened.
I - Luggage compartment light on cont inu­
ously.
Delay function
See description on previous page. ---- -------------
-
Rear lid light
The light in the rear lid comes on automati­
cally when you open the lid. If you leave the
lid open for longer than 1 0 minutes, the I ight
will automatically switch off.

-------------�-------CONTROLS AND
EQUIPMEN T

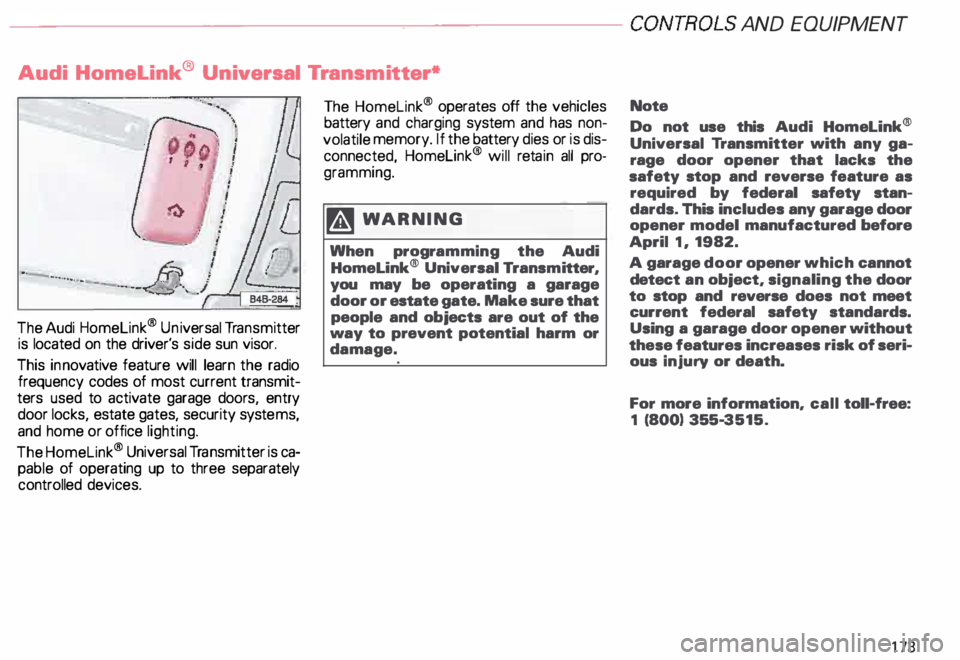

Audi Homelink ® Uni versal Transm itter*
-� ....... ..
The Audi Homelink ® Un iversal Transm itter
is located on the driver's side sun visor.
This innovative feature will learn the radio
frequency codes of most current transmit­
ters used to activate garage doors, entry
door locks, estate gates, security systems,
and home or office lighting.
The Homelink ® Universal Transmitter is ca­
pable of operating up to three separately
controlled devices. The
Homelink ® operates off the vehicles
battery and charging system and has non­
volatile memory. If the battery dies or is dis­
connected, Homelink® will retain all pro­
gramming.
�W ARNING
When programming the Audi
Homelink® Universal Transm itter,
you may be operating a garage
door or estate gate. Make sure that
people and objects are out of the
way to prevent potential harm or
damage. Note
Do not
use this Audi Homelink®
Universal Transmitter with any ga­
rage door opener that lacks the
safety stop and reverse feature as
required by federal safety stan­
dards. This includes any garage door
opener model manufactured before
April 1, 1982.
A garage door opener which cannot
detect an object, signaling the door
to stop and reverse does not meet
current federal safety standards.
Using a garage door opener without
these features increases risk of seri­
ous injury or death.
For more information, call toll-free:
1 (800) 355-3515.
173

CONT
ROLS AND EQUIPMENT---------------------
I
I
I
;
f
'
.
,
· ·- --- -.. ... �-//

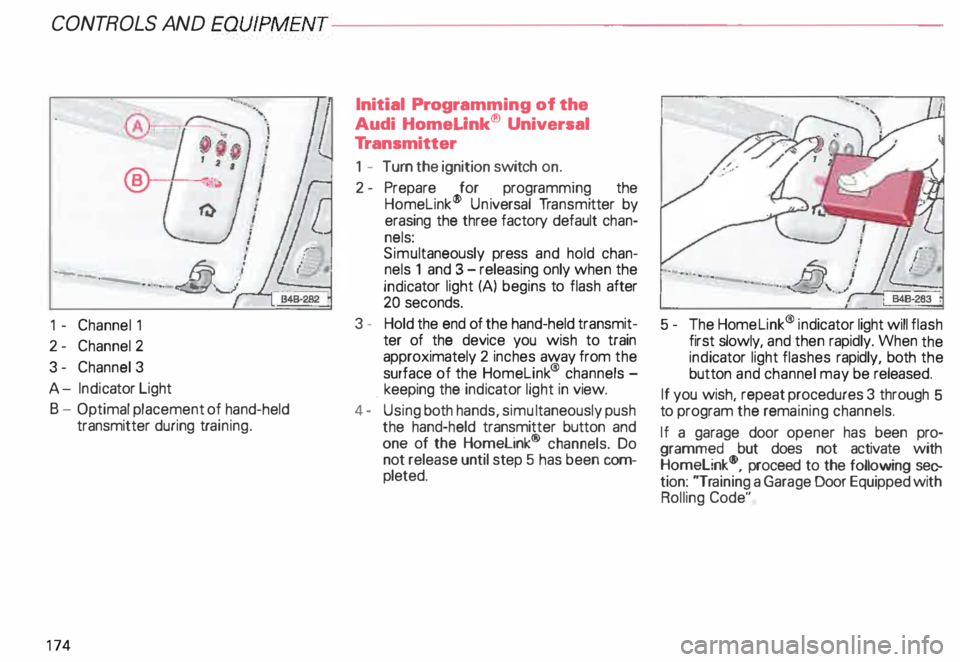

1 - Channel 1
2- Channel 2
3- Channel 3
A- Indicator Light
B - Optimal placement of hand-held
transmitter during training.
17 4 Initial
Programming of the
Audi HomeUnk ® Universal
Tr ansmitter
1 - Turn the ignition switch on.
2- Prepare for programming the
Homelink ® Un iversal Transm itter by
erasing the three factory default chan­
nels:
Simu ltaneously press and hold chan­
nels 1 and 3 -releasing only when the
indic ator light (A) begins to flash after
20 seconds.
3 - Hold the end of the hand-held transmit­
ter of the device you wish to train
approximately 2 inches away from the
surface of the Homelink ® channels -
. keeping the indicator light in view.
4- Using both hands, simultaneously push
the hand-held transmitter button and
one of the Homelink ® channels. Do
not release until step 5 has been com­
pleted. .
.... . ..
--�,
j � 1,)1B4B-283 .
5 - The Home link® indicator light will flash
first slowly, and then rapidly. When the
ind icator light flashes rapidly, both the
button and channel may be released .
If you wish, repeat procedures 3 through 5
to program the rema ining channels.
If a garage door opener has been pro­
grammed but does not activate with
Homelink ®, proceed to the following sec­
tion: "Training a Garage Door Equipped with
Rolling Code"

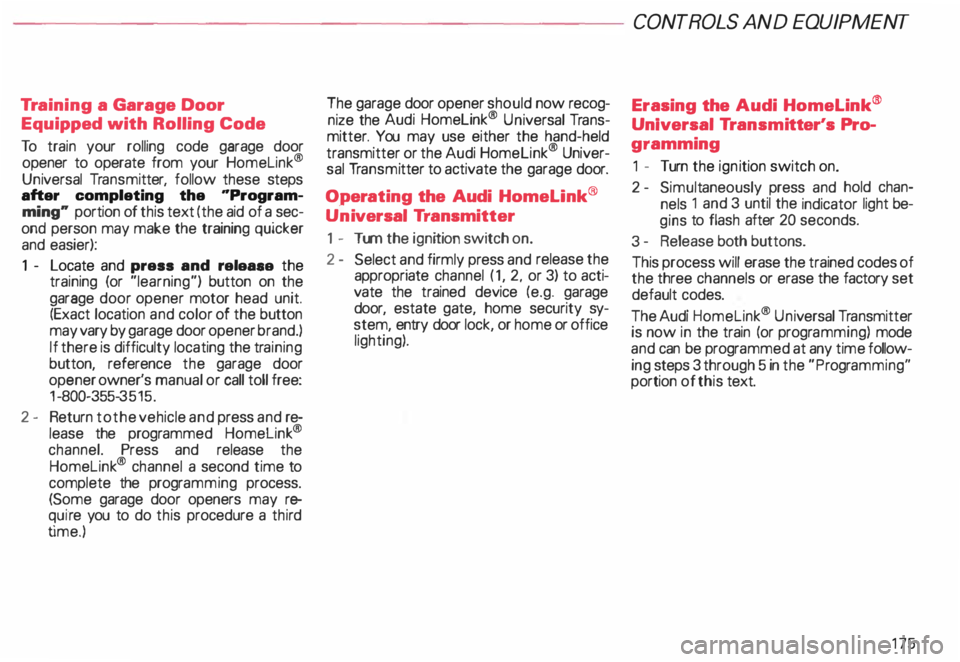

Training a Garage Door
Equip ped with Rolling Code
To train your rolling code garage door
opener to operate from your Homelink®
Universal Transmi tter, follow these steps
after completing the "Program­
ming" portion of this text (the aid of a sec­
ond person may make the training quicker
and easier):
1 - Locate and press and relaaaa the
training (or "learning") button on the
garage door opener motor head unit.
(Exact location and color of the button
may vary by garage door opener brand.)
If there is difficulty locating the training
button, reference the garage door
opener owner's manual or call toll free:
1- 800-355- 3515.
2 - Return to the vehicle and press and re­
lease the progr ammed Homelink ®
channel. Press and release the
Homelink ® channel a second time to
complete the progra mming process.
(Some garage door openers may re­
qu i· re you to do this procedure a thir d
ti me.) The
garage door opener should now recog­
nize the Audi Homelink ® Un iversal Trans­
mitter. You may use either the hand-held
transmitter or the Audi Home link® Univer­
sal Transmi tter to activate the garage door.
Oper ating the Audi HomeLink ®
Uni versal Transmitter
1 - Tum the ignition switch on.
2 - Select and firmly press and release the
appropriate channel (1, 2, or 3) to acti­
vate the trained device (e.g. garage
door, estate gate, home security sy­
stem, entry door lock, or home or office
lighting). CONTROLS
AND EQUIPMENT
Erasing the Audi HomeLink ®
Universal Transm itter's Pro­
gramming
1 - Turn the ignition switch on.
2 - Simult aneously press and hold chan­
nels 1 and 3 until the indicator light be­
gins to flash after 20 seconds.
3 - Release both buttons.
This process will erase the trained codes of
the three channels or erase the factory set
default codes.
The Audi Homelink ® Un iversal Transmitter
is now in the train (or progra mming) mode
and can be progra mmed at any time follow­
ing steps 3 through 5 in the "Progr amming"
portion of this text.
175
