2000 AUDI ALLROAD Owners Manual

CONTROLS
AND EQUIPMENT---------------------

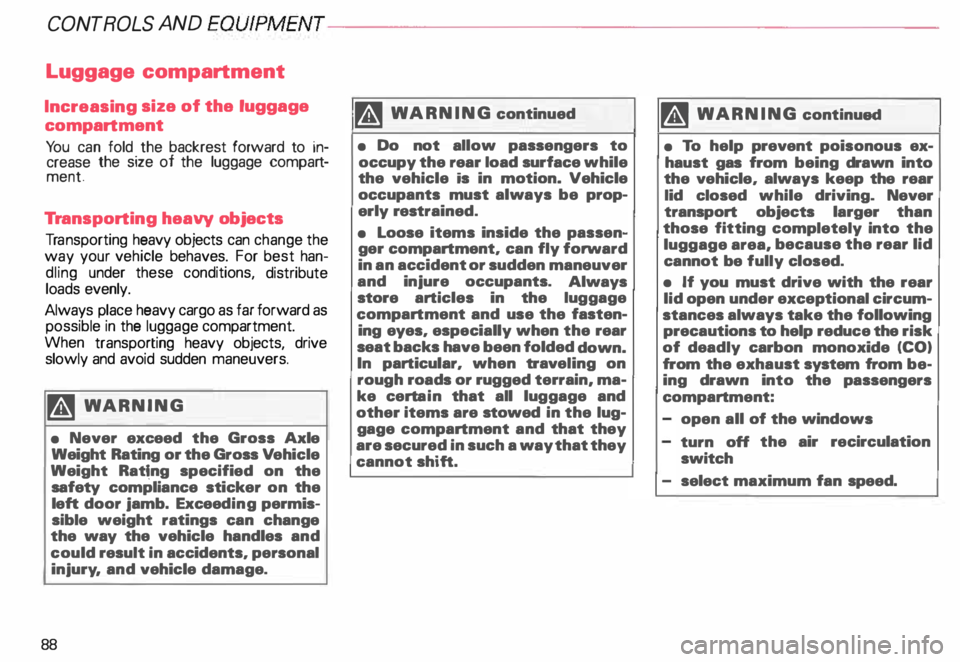

Luggage
compartment
Increasing size of the luggage
compartment
Yo u can fold the backrest forward to in­
crease the size of the luggage compart­
ment.
Tr ansporting heavy objects
Tra nsporting heavy objects can change the
way your vehicle behaves. For best han­
dling under these conditions, distribute
loads evenly.
Always place heavy cargo as far forward as
possible in the luggage compartment.
When transporting heavy objects, drive
slowly and avoid sudden maneuvers.
�W ARNING
• Never exceed the Gross Axle
Weight Rating or the Gross Vehicle
Weight Rat�ng specified on the
safety compliance sticker on the
left door jamb. Exceed ing permis­
sible weight ratings can change
the way the vehicle handles and
could result in accidents, personal
injur y, and vehicle damage.
88 M
WARNING continued
• Do not allow passengers to
occupy the rear load surface while
the vehicle Is in motion. Vehicle
occupants must always be prop­
erly restrained.
• Loose items inside the passen­
ger compartment, can fly forward
in an accident or sudden maneuver
and injure occupants. Always
store articles in the luggage
compartment and use the fasten­
ing eyes, especially when the rear
seat backs have been folded down.
In particular, when traveling on
rough roads or rugged terrain, ma­
ke cert ain that all luggage and
other items are stowed in the lug­
gage compartment and that they
are secured in such a way that they
cannot shift. M
WARNING continued
• To help prevent poisonous ex­
haust gas from being drawn into
the vehicle, always keep the rear
lid closed while driving. Never
transport objects larger than
those fitting completely into the
luggage area, because the rear lid
cannot be fully closed.
• If you must drive with the rear
lid open under exceptional circum­
stances always take the following
precautions to help reduce the risk
of deadly carbon monoxide (CO)
from the exhaust system from be­
ing drawn into the passengers
compartment:
open all of the windows
turn off the air recirculation
switch
- select maximum fan speed.

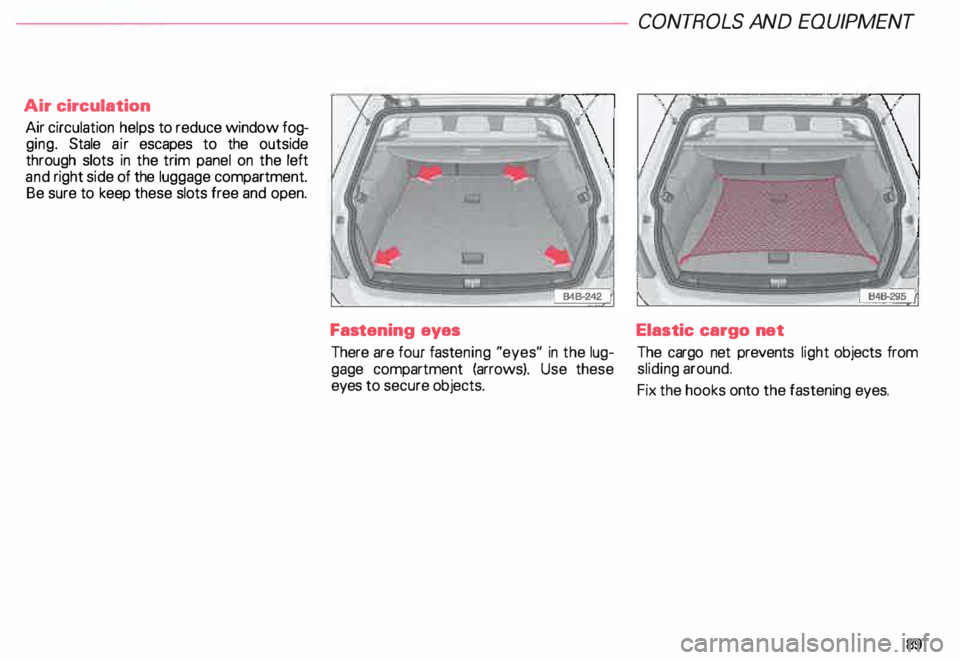

Air
circulation
Air circulation helps to reduce window fog­
ging. Stale air escapes to the outside
through slots in the trim panel on the left
and right side of the luggage compartment.
Be sure to keep these slots free and open.
Fastening eyes
There are four fastening "eyes" in the lug­
gage compartment (arrows). Use these
eyes to secure objects. CONT
ROLS AND EQUIPMEN T
Elastic cargo net
The cargo net prevents light objects from
sliding around.
Fix the hooks onto the fastening eyes.
89

CONTROLS AND EQUIPMENT---------------------

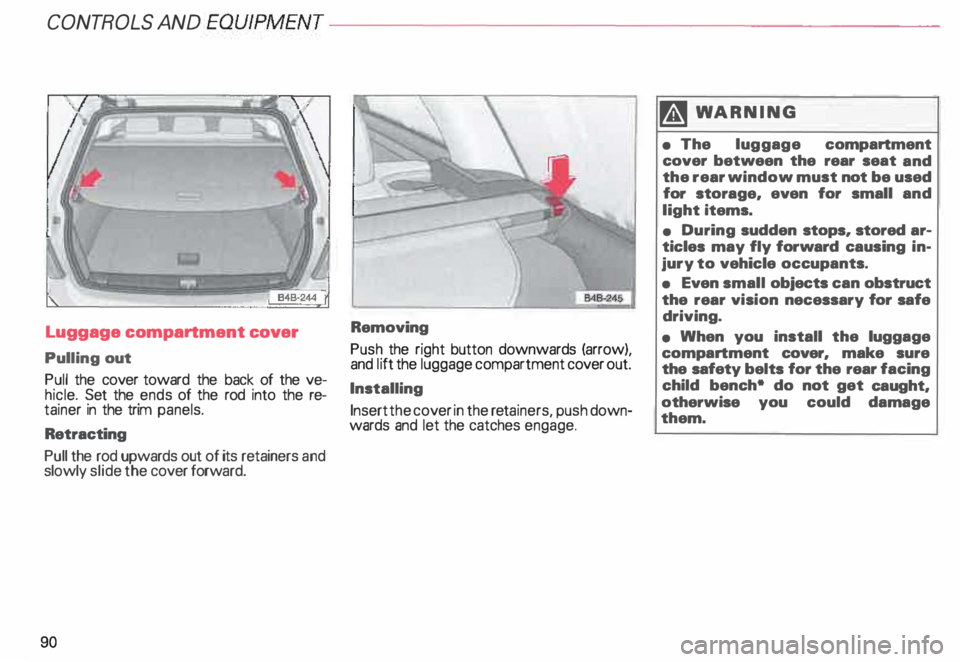

Luggage compartment
cover
Pulling out
Pull the cover toward the back of the ve­
hicle. Set the ends of the rod into the re­
tainer in the trim panels.
Retracting
Pull the rod upwards out of its retainers and
slowly slide the cover forward.
90 Removing
Push
the right button downwards (arrow),
and I itt the luggage compartment cover out.
Installing Insert the cover in the reta iners, push down­
wards and let the catches engage. �W
ARNING
• The luggage compartment
cover between the rear seat and
the rear window must not be used
for storage, even for small and
light items.
• During sudden stops, stored ar­
ticles may fly forward causing in­
jury to vehicle occupants.
• Even small objects can obstruct
the rear vision necessary for safe
driving.
• When you install the luggage
compartment cover, make sure
the safety belts for the rear facing
child bench• do not get caught,
otherwise you could damage
them.

--------------------CONTROLS AND
EQUIPMENT

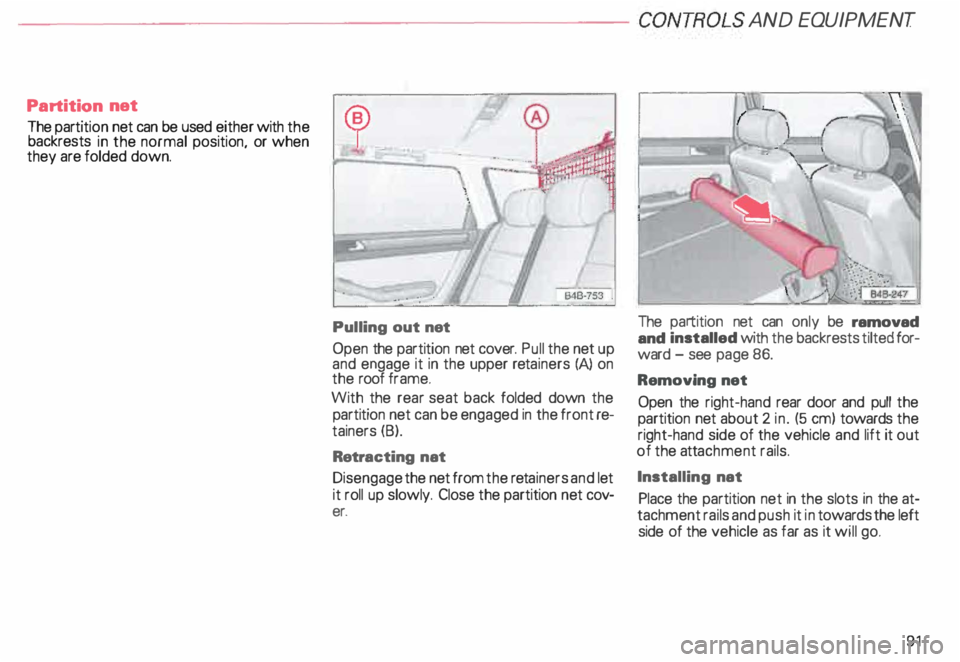

Partition net
The partit ion net can be used either with the
backrests in the normal position, or when
they are folded down.
Pulling out net
Open the partition net cover. Pull the net up
and engage it in the upper retainers (A) on
the roof frame.
With the rear seat back folded down the
partition net can be engaged in the front re­
tainers (B).
Retra cting nat
Disengage the netfromthe retainers and let
it roll up slowly. Close the partition net cov­
er. The
partition net can only be ramovad
and installed with the backrests tilted for­
ward -see page 86.
Removing net
Open the right-hand rear door and pull the
partition net about 2 in. (5 em) towards the
right-hand side of the vehicle and lift it out
of the attachment rails.
Installing nat
Place the partition net in the slots in the at­
tachment rails and push it in towards the left
side of the vehicle as far as it will go.
91

CONTROLS AND
EQUIPMEN T---------------------

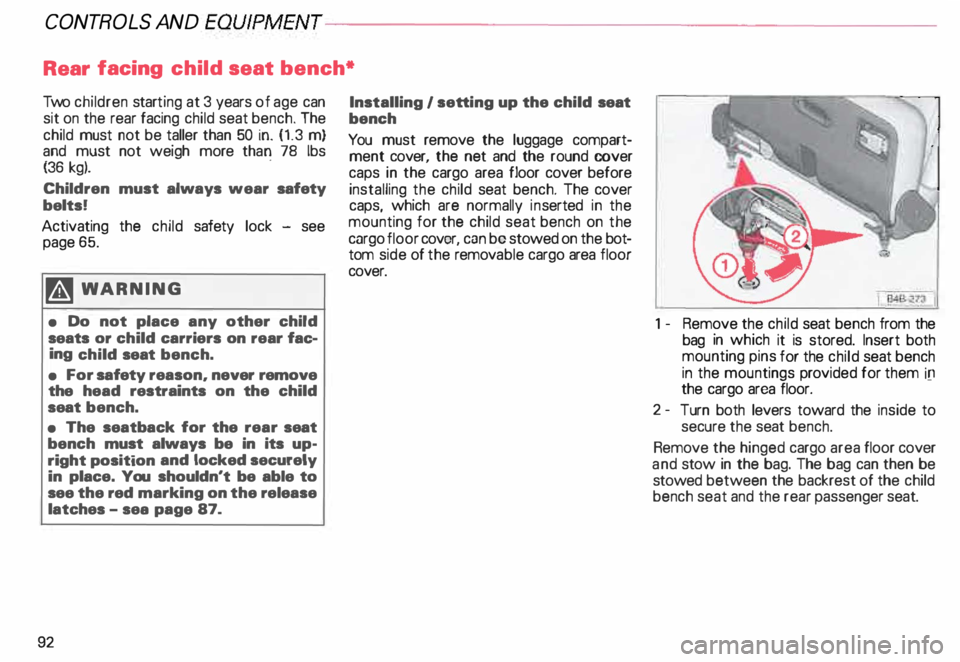

Rear facing child seat bench*
Two children starting at 3 years of age can
sit on the rear facing child seat bench. The
child must not be taller than 50 in. (1.3 m)
and must not weigh more th an 78 lbs
(36 kg). .
Children must always wear safety
belts f
Activating the child safety lock -see
page 65.
�W ARNING
• Do not place any other child
seats or child carriers on rear fac­
ing child seat bench.
• For safety reason, never remove
the head restraints on the child
seat bench.
• The seatback for the rear seat
bench must always be in its up­
right position and locked securely
in place. You shouldn't be able to
see the red marking on the release
latches -sea page 87.
92 Installing
1 setting up the child seat
bench
Yo u must remove the luggage compart­
ment cover, the net and the round cover
caps in the cargo area floor cover before
installing the child seat bench. The cover
caps, which are normally inserted in the
mounting for the child seat bench on the
cargo floor cover, con be stowed on the bot­
tom side of the remova ble cargo area floor
cover.
1 -Remove the child seat bench from the
bag in which it is stored. Insert both
mounting pins for the child seat bench
in the mountings provided for them ill
the cargo area floor.
2- Turn both levers toward the inside to
secure the seat bench.
Remove the hinged cargo area floor cover
and stow in the bag. The bag can then be
stowed between the backrest of the child
bench seat and the rear passenger seat.

-------------------CONTROLS AND
EQUIPMENT

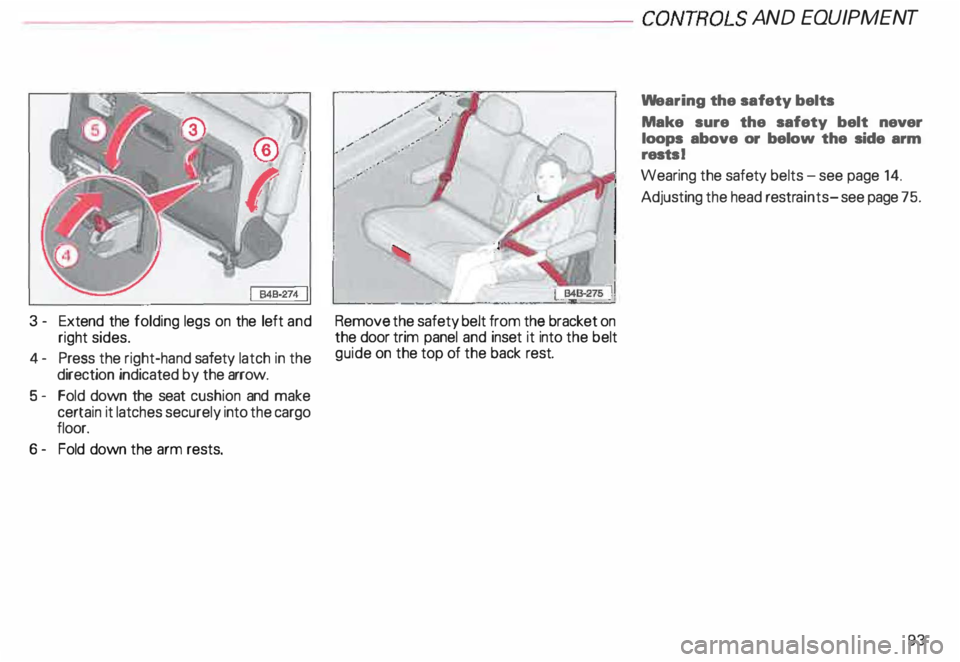

3 - Extend the folding legs on the left and
right sides.
4- Press the right-hand safety latch in the
direction indicated by the arrow.
5- Fold down the seat cushion and make
certain it latches securely into the cargo
floor.
6 - Fold down the arm rests. Remove
the safety belt from the bracket on
the door trim panel and inset it into the belt
guide on the top of the back rest. We
aring the safety belts
Make sure the safety belt never
loops above or below the side arm
rests I
Wearing the safety belts-see page 14.
Adjusting the head restraints- see page 75.
93

CONTROLS ANDEO�PMENT-----------------------------------------
I 948-277
I
Folding up the child seat bench
Remove the safety belts from the belt
guides on the back rest and hand them from
the brackets on the door trim panel.
Fold up the arm rests.
7 - Push both locking levers forward.
8- Fold the seat cushion up and pivot the
folding legs back into the stowed posi­
tion.
94 Hook
the tensioning belt in the tie-down,
turn, and pull taut from the free end.
Pivot ing the child seat bench off
to the side
If necessary, remove tray* for bever age I
food from the left side trim panel. Once
the seat cushion has been folded up
and the folding legs have been swung back
into their stowed position, the entire seat
bench can be pivoted off to the side.
Press down on the safety belt latches and
install the hinged cargo floor cover.
9 - Release the bench seat by rotating both
levers in the direction indicated by the
arrows.
1 0- Push up on the right -hand locking lever.
11 -Remove the right-hand seat bench
mounting pin from the mounting pro­
vided for it in the cargo floor.

------------------------------------------CONTROLSAND EOWPMEN T

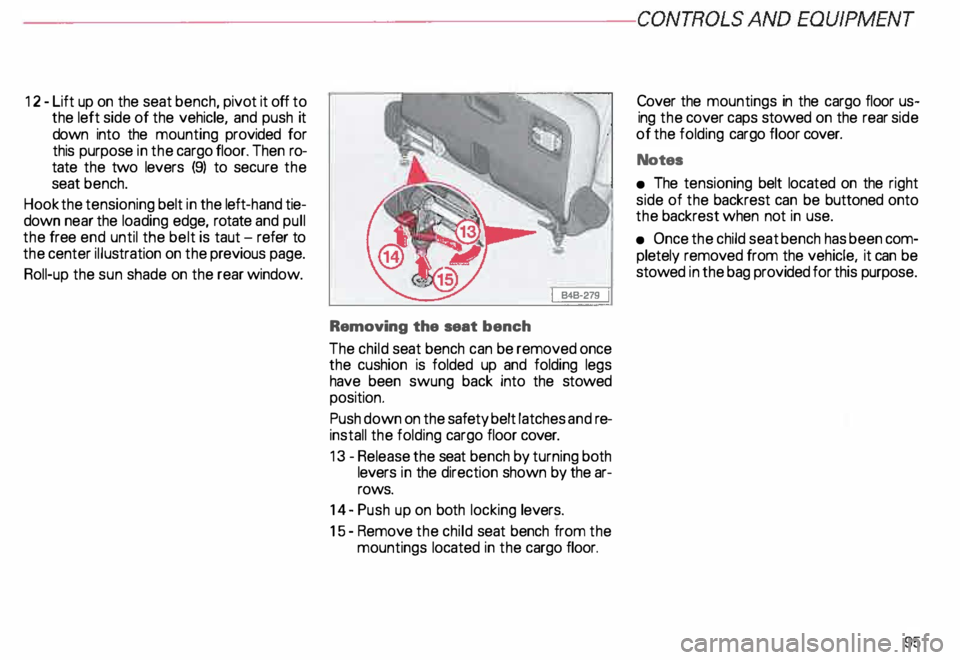

12- Lift up on the seat bench, pivot it off to
the left side of the vehicle, and push it
down into the mounting provided for
this purpose in the cargo floor. Then ro­
tate the two levers (9) to secure the
seat bench.
Hook the tensioning belt in the left-hand tie­
down near the loading edge, rotate and pull
the free end until the belt is taut - refer to
the center illustration on the previous page.
Roll-up the sun shade on the rear window.
B4B-279 j
Removing the seat bench
The child seat bench can be removed once
the cushion is folded up and folding legs
have been swung back into the stowed
position.
Push down on the safety belt latches andre­
install the folding cargo floor cover.
13 -Release the seat bench by turning both
levers in the direction shown by the ar­
rows.
14- Push up on both locking levers.
15- Remove the child seat bench from the
mountings located in the cargo floor. Cover
the mountings in the cargo floor us­
ing the cover caps stowed on the rear side
of the folding cargo floor cover.
Notes
• The tensioning belt located on the right
side of the backrest can be buttoned onto
the backrest when not in use.
• Once the child seat bench has been com­
pletely removed from the vehicle, it can be
stowed in the bag provided for this purpose.
