2000 AUDI ALLROAD Owners Manual

TECHNICAL DAT
A-------------------------
Dimensions
Dimensions (approx.) 1 I
Length
Width across mirrors
Height unloaded
- Low level
- Hig hest level
Ground clearance loaded
- Low level
- Highest level
Tu rning circle diameter
1J The specifications refer to the basic model.
Differences may occur depending on the
model type and options ordered, for example,
tire sizes.
288 18
9.4 in 4810 mm
76.1 in 1932 mm
60.1 in 15
26 mm
62.7 in 15
92 mm
5.6 in 142 mm
8.2 in 208
mm
38.3 ft 11
.70 m
Note
When driving up steep ramps, on rough
roads, over curbs, etc. it is important to re­
member that some parts of your vehicle,
such as spoilers or exhaust system compo­
nents, may be close to the ground.
Be careful not to damage them.

Weights
The Gross Vehicle Weight Rating (GVWR),
and the Gross Axle Weight Rating (GAWR)
for front and rear are listed on a sticker on
the left door jamb.
The Gross Vehicle Weight Rating in­
cludes the weight of the basic vehicle plus
full fuel tank, oil and coolant, plus maximum
load, which combines passenger weight
(150 lbs/68 kg per designated seating posi­
tion) and luggage weight.
Luggage weight is not increased by the use
of a roof rack, unless the passenger capac­
ity is reduced accordingly.
The Gross Axle Weight Rating is the
maximum load that can be applied at each
axle of the vehicle. �W
ARNIN G
• The actual Gross Axle Weight
Rating at the front and rear axles
should not exceed the permissible
weights, and their combination
must nbt exceed the Gross Vehicle
Weight Rating.
• Exceeding permissible weight
ratings can result in vehicle dam­
age, accidents and personal injury.
The vehicle capacity weight (max.
load) is listed inside the fuel filler flap. TECHNICAL
DATA
Notes
• The vehicle capacity weight fig­
ures apply when the load is distrib­
uted evenly in the vehicle (passengers
and luggage). When transporting a
heavy load in the luggage compart·
ment, carry the load as near to the
rear axle as possible so that the ve­
hicle's handling is not impaired.
• Do not exceed the maximum per­
missible axle loads or the maximum
Gross Vehicle Weight.
Always remember that the vehicle's
handling will be affected by the ex­
tra load. Therefore, adjust your
speed accordingly.
• Always observe local regulations.
289

TECHNICA L
DAT A-------------------------

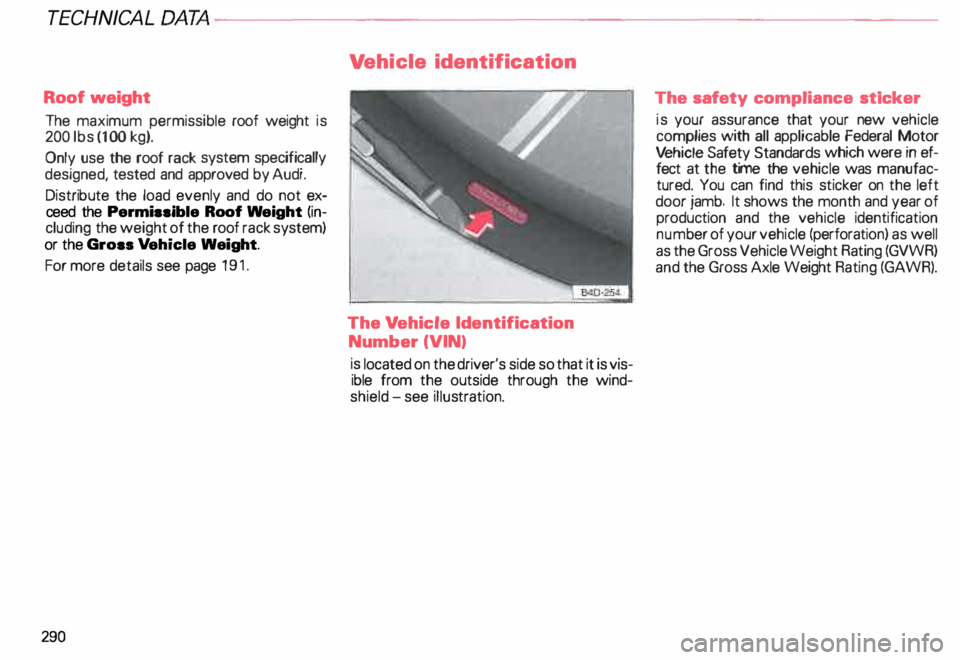

Roof weight
The maximum permissible roof weight is
200 lbs (1 00 kg).
Only use the roof rack system specifically
designed, tested and approved by Audi.
Distribute the load evenly and do not ex­
ceed the Permissible Roof Weight (in­
cluding the weight of the roof rack system)
or the Gross Vehicle Weight.
For more details see page 191.
290 Ve
hicle identification
The Vehicle Identification
Number (YIN)
is located on the driver's side so that it is vis­
ible from the outside through the wind­
shield -see illustration. The
safety compliance sticker
is your assurance that your new vehicle
complies with all applicable Federal Motor
Ve hicle Safety Standards which were in ef­
fect at the time the vehicle was manufac­
tured. You can find this sticker on the left
door jamb. It shows the month and year of
production and the vehicle identification
numb er of your vehicle (perforat ion) as well
as the Gross Vehicle Weight Rating (GVWR)
and the Gross Axle Weight Rating (GAWR).

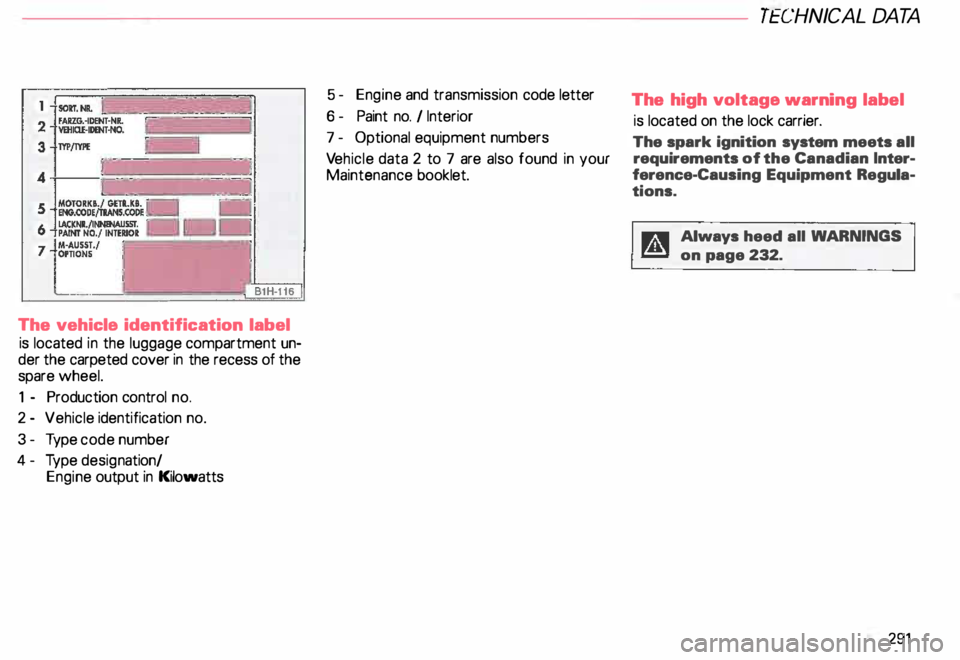

The
vehicle identification label
is located in the luggage compartment un­
der the carpeted cover in the recess of the
spare wheel.
1 - Production control no.
2 - Vehicle identification no.
3- Type code number
4- Type desig nation/
Engine output in Kilowatts 5 -
Engine and transmission code letter
6- Paint no. I Interior
7 - Optional equipment numbers
Ve hicle data 2 to 7 are also found in your
Maintenance booklet. TECHNICA
L DA TA
The high voltage warning label
is located on the lock carrier.
The spark ignition system meets all
requirements of the Canadian Inter­
ference- Causing Equipment Regula­
tions. D Always heed all WARNlNGS
f!!l on page 232.
291

CONSUMER
INFORMAnON-------------------------------------------

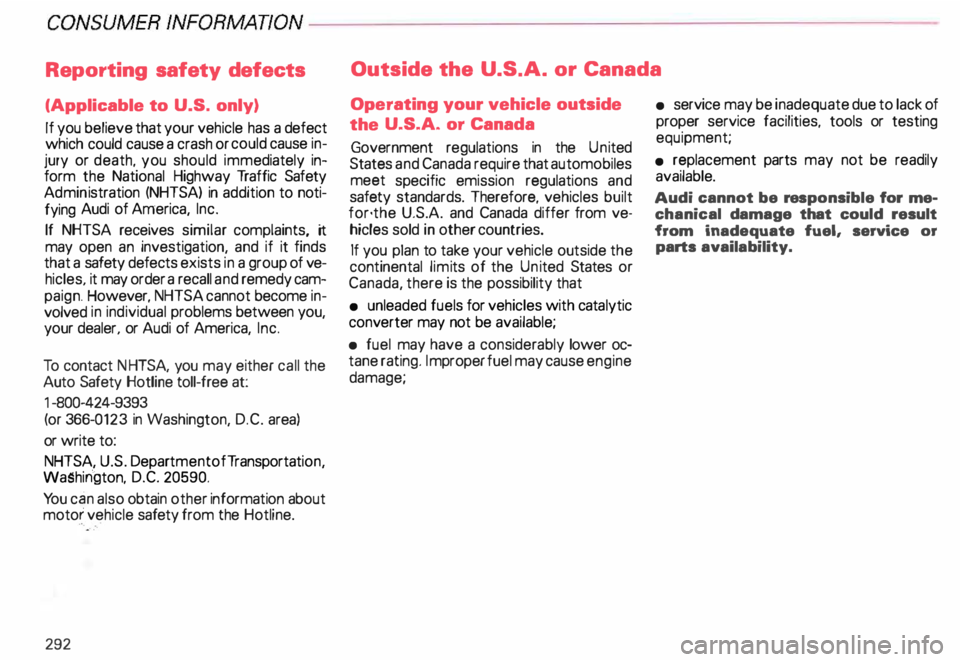

Reporting safety defects
(Applicable to U.S. only)
If you believe that your vehicle has a defect
which could cause a crash or could cause in­
jury or death, you should immediately in­
form the National Highway Traffic Safety
Admin istration (NHTSA) in addition to noti­
fying Audi of America, Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defects exists in a group of ve­
hicles, it may order a recall and remedy cam­
paign. However, NHTSA cannot become in­
volved in individual problems between you,
your dealer, or Audi of America, Inc.
To contact NHTSA. you may either call the
Auto Safety Hotline toll-free at:
1- 800-424-9393
(or 366- 0123 in Washington, D.C. area)
or write to:
NHTSA, U.S. Depar tmentofT ransportat ion,
washin gton, D.C. 20590.
Yo u can also obtain other information about
motor vehicle safety from the Hotline.
292 Outside the
U.S.A. or Canada
Operating your vehicle outside
the U.S.A. or Canada
Government regulations in the United
States and Canada require that automobiles
meet specific emission regulations and
safety standards. Therefore, vehicles built
for·the U.S.A. and Canada differ from ve­
hicles sold in other countries.
If you plan to take your vehicle outside the
continental limits of the United States or
Canada, there is the possibility that
• unleaded fuels for vehicles with catalytic
converter may not be available;
• fuel may have a considerably lower oc­
tane rating. Improper fuel may cause engine
damage; •
service may be inadequate due to lack of
proper service facilities, tools or testing
equipment;
• replacement parts may not be readily
available.
Audi cannot be responsible for me­
chanical damage that could result
from inadequate fuel, service or
parts availability.

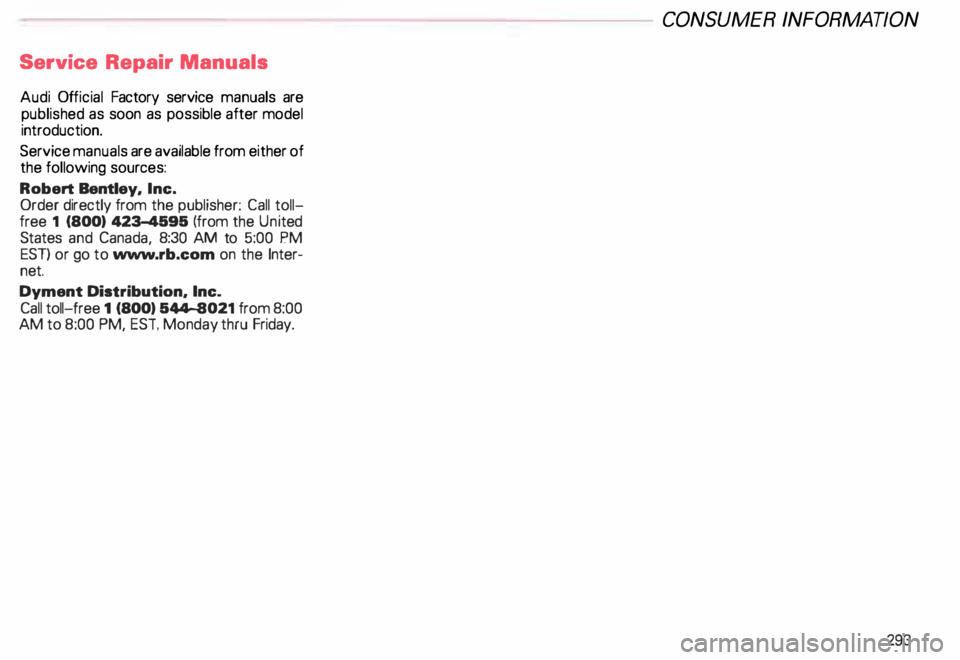

Service
Repair Manuals
Audi Official Factory service manuals are
published as soon as possible after model
introduction.
Service manuals are available from either of
the following sources:
Robert Bentley, Inc.
Order directly from the publisher: Call toll­
free 1 (800) 423-4595 (from the United
States and Canada, 8:30 AM to 5:00 PM
EST) or go to www .rb.com on the Inter­
net.
Dyment Distribution, Inc.
Call toll-free 1 (800) 544-8021 from 8:00
AM to 8:00 PM, EST. Monday thru Friday. CONSUMER
INFORMATION
293
