2000 AUDI ALLROAD Owners Manual

CONT
ROLS AND
EQUIPMENT---------------------
Keys
@ !
848-371
Yo ur Audi comes with tour keys and a plas­
tic tag.
�W ARNING
Do not leave your vehicle unat­
tended with the key in the ignition
lock. Entry by unauthorized per-­
sons could endanger you or harm
the vehicle. Always lock all doors
and take the key.
All keys can be inserted into locks either
way.
56 B48-374
A -F olding master keys with
remote control
To fold the key out, press the release button
(arrow).
To told the key back in, press the release
button again.
The master key fits all the locks on your ve­
hicle.
The function of the remote control is de­
scribed on page 59.
To replace batteries see page 57. B-V
alet key
The valet key has a workshop symbol on it
and fits only the driver's door and ignition
lock.
If you have to leave a key with somebody
else, it may be advisable to give them this
key only.
C -E mergency key
This key fits all locks on the vehicle.
The emergency key is only for temporary
use if the vehicle key should be lost or mis­
placed.
�W ARNING
Do not leave children unattended
in the vehicle, especially with ac­
cess to vehicle keys. Unsupervised
use of the keys can result in start­
ing of the engine or use of vehicle
systems such as the power win­
dows, etc. which could result in
serious injury.

D-
Tag
This tag gives the key num ber.
For your protection against theft:
• Record the key number and keep it in a
safe place, such as your wallet. Do not
keep it in the vehicle.
• If you �houlo IOSfl A key, rrovilie your AU­
thorized Audi Dealer with the key number to
obtain a duplicate key.
Note If you open the driver's door with the key left
in the ignition lock, a chime will sound.
This is your reminder to remove the key and
lock the door. Electronic
immobilizer
Yo ur vehicle is equipped with an electronic
immobili zer.
With the help of an electronic component in
the key head, the imm obilizer prevents your
vehicle from being started by una uthorized
persons. See page 124.
Therefore, the engine can only be started
using the factory -equipped key.
If you lose a key, contact your authorized
Audi dealer immediately to have the lost key
disabled.
Note
In some cases, you may not be able to start
your vehicle if an ignition key of a different
vehicle make is also located on your set of
keys. CONT
ROLS AND EQUIPMEN T
Changing batteries master key
Both batte ries are located in the cover of the
key base (8).
We recommend that you have the batteries
changed by your authorized Audi Dealer.
However, if you choose to change the bat­
teries yourself, follow these steps:
Unfold the key.
Using a screwdriv er, carefully pry the key
stem (A) from the key base (B).
57

CONT
ROLS AND EQUIPMEN T---------------------
848-376
Remove the cover from the key base (ar­
row).
Remove the dead batteri es.
58 \
j
I 840-333
t
• Install the new batteries.
When installing the batteries, make sure
the side of the battery with the "+" symbol
on it is facing down. See illustration. A pic­
ture on the inside of the lid shows you the
correct battery position.
• Take the lid with the installed batteries,
place it over the key base and press the two
parts together.
• Place the key base on the key stem and
press both parts together. Notes
• The replacement batteries must be iden­
tical in size and specification to the original
batteries provided.
• Spare batteries are available at your au­
thorized Audi Dealer.
&.. Dispose of dead batteries prop­� erly so as not to pollute the envi­
ronment. Many stores that sell bat­
teries will accept dead batteries for
recycling or proper disposal.
• If you cannot Jock or unlock your vehicle
after you have changed the batteries, then
the system must be re-synchronized. See
page 60.

Power locks
The power locking system in your vehicle in­
corporates:
• Central locking function
• Remote control feature
• Anti-theft alarm system
for detail see page 67.
You can either lock your vehicle using the
remote control in your folding master
key or by using the mechanical key.
Activat ing the power locking system locks
or unlocks all doors, the rear lid and fuel filler
flap simu ltaneously.
The anti-theft alarm system switches on or
off whenever you lock or unlock the vehicle
with the remote control or key.
When locking the vehicle the horn of the
anti-theft alarm system will sound briefly if
all doors, hood and rear lid are closed prop­
erly.
The selective unlock feature makes it
possible to open just the driver's door in­
cluding the fuel filler flap. Operating
locks using remote
control
Unlocking and locking
(buttons A and C)
• To unlock just the driver's door
press button A one time for approxi­
mately 1 second.
To unlock all the doors and the rear
lid press button A two times.
All four turn signal lights will flash twice
when the car is unlocked. CONT
ROLS AND EQUIPMENT
After unlocking the vehicle, you have 60
seconds to open a door or the rear lid. If you
wait longer than 60 seconds, the vehicle will
automatically lock itself once again. The
alarm system will be reactiv ated.
• To lock the vehicle press button C for
approximately 1 second.
To confirm that the car is locked all four turn
signal lights will flash one time.
Remote rear lid release
(button B)
To unlock rear lid only, press button B
for at least 1 second. Then open lid within
60 seconds.
How to unlock rear lid using the key see
page 63.
PA NIC switch (button D)
Bypushingthe red button Dyou will engage
the "panic functio n." The horn sounds and
the turn signals will flash.
Press button D again to switch off the "pan­
ic function ."
59

CONTROLS AND
EQUIPMENT--------------------
Remember- the panic function can be seen
and heard by other motorists and I or per­
sons near you.
Use the panic function only if you
are In an emergency situation.
�W ARNING
Do not leave children unattended
in the vehicle especially with ac­
cess to the remote control. There­
mote control could be used to lock
the doors delaying access to the
children in an emergency.
Resetting the remote control
If your vehicle will not lock using the remote
control . it could be that the code for the con­
trol unit and key needs to be reset. This can
occur if you frequently use the remote c �m­
trol while standing outside of the effective
range.
60 Resetting
procedure
1 - To synchronize, press button A or but­
ton Con the remote control one time.
2 - Then, within one minute, lock or un­
lock the driver's door with the master
key.
The system is now functional.
Operating locks using the key
• To lock and unlock the vehicle from
the outside, turn the key in the lock of the
driver's door or the rear lid.
Yo u can also lock and unlock the vehicle by
turning the key in the re ar lid lock. See
page 63.
• Turn the key one time only to unlock
(A) either the driver's door or respectively
the rear lid.
• Turn the key two times to unlock all ve­
hicle doors and the rear lid. Convenience
close I open feature
You can also close any open windows and
1 or the power roof* when you lock your car
with the key.
Insert the key into the lock of the driver's
door, turn it to the lock position (B) and hold
until the wind ows and sunroof are com­
pletely closed. The automatic close function
will stop immediately if the key is released.
Always make sure the windows are
not obstructed.
To open all window s: insert your key into the
lock of the dr iver's door, turn it to the open
position (A) and then hold it in this position.

Unlocking the
vehicle and
opening doors
To unlock and open door from
outside
• Press unlock button on your remote con­
trol twice or turn the key in the lock of the
driver's door or the rear lid two times to the
unlock position.
• Open doors by pulling the outside door
handle.
When you unlock your vehicle:
- the locking knobs in all doors will rise,
- the anti-theft alarm system is turned off,
- the anti-theft alarm system readiness
lights in the front doors goes out,
- the .vehicle interior lights come on for
about 30 seconds. See page 171.
- the seat and mirror memory is activated
and the driver's seat, exterior mirror and
steering wheel positions are retrieved.
See pages 74 and 83 for more details. To
unlock and open door from
inside
Each door can be unlocked independently
of the power locking system from the inside
by pulling the inside door handle:
Pulling the handle one time raises the
locking knob only.
Pulling the handle two times opens the
door.
Locking the vehicle
To lock vehicle from outside
• Close all windows and doors properly.
• Press lock button on your remote control
or turn the key in the lock of the driver's door
or the rear lid to the lock position.
When you lock the vehicle:
- all doors and the rear lid are locked, (the
locking knobs in all doors will lower),
- the anti-t .heft alarm system is turned on,
the vehicle interior lights turn off, and
the anti-theft alarm system readiness
lights near the locking knobs in the front
doors will start to blink. CONT
ROLS AND EQUIPMENT
To lock vehicle from Inside
Yo u can lock the vehicle from inside by
- depressing the locking knobs in the
doors or by
- pressing the lower part of power locking
switch. See next column.
Please note:
The anti-theft alarm system will not be
turned on when you lock the vehicle from in­
side.
If the driver's door is open, or not
closed properly, you will not be able to
lock this door.
61

CONT
ROLS AND EQUIPMENT---------------------

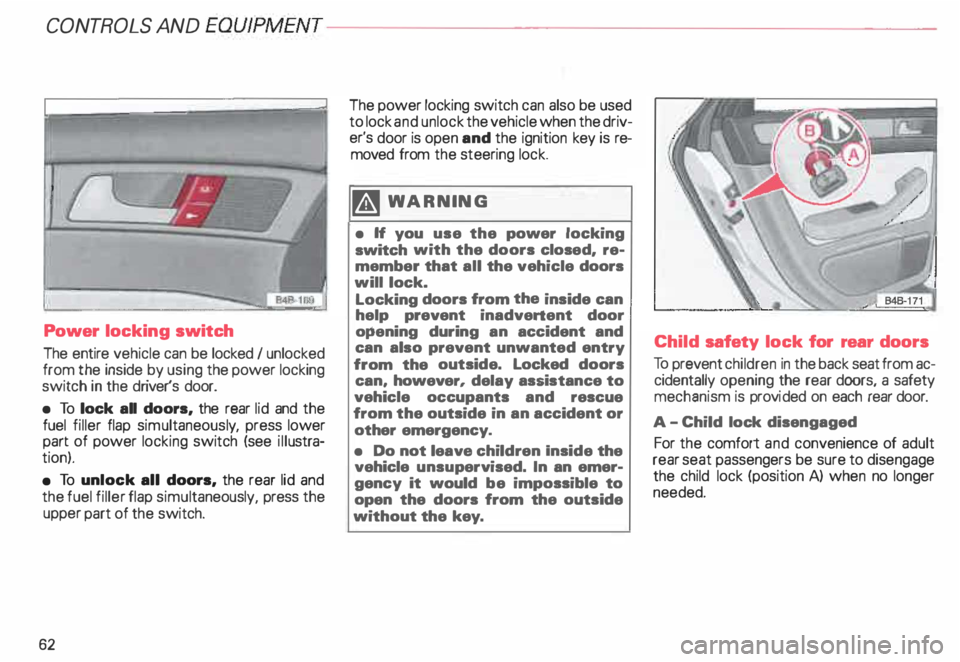

Power locking switch
The entire vehicle can be locked I unlocked
from the inside by using the power locking
switch in the driver's door.
• To lock all doors, the rear lid and the
fuel filler flap simultaneous ly, press lower
part of power locking switch (see illustra­
tion).
• To unlock all doors, the rear lid and
the fuel filler flap simul taneously, press the
upper part of the switch.
62 The
power locking switch can also be used
to lock and unlock the vehicle when the driv­
er's door is open and the ignition key is re­
moved from the steering lock.
�W ARNING
• H you use the power locking
switch with the doors closed, re­
member that all the vehicle doors
will lock.
Locking doors from the inside can
help prevent inadvertent door
opening during an accident and
can also prevent unwanted entry
from the outside. Locked doors
can, however, delay assistance to
vehicle occupants and rescue
from the outside in an accident or
other emergency.
• Do not leave children Inside the
vehicle unsupervised. In an emer­
gency it would be impossible to
open the doors from the outside
without the key. Child
safety lock for rear doors
To prevent children in the back seat from ac­
cidentally opening the rear doors, a safety
mechanism is provi ded on each rear door.
A -C hild lock disengaged
For the comfort and convenience of adult
rear seat passengers be sure to disengage
the child lock (position A) when no longer
needed.

B
-Child lock engaged
When the child lock is engaged (position 8),
the inside door handle is now locked and
you can only open the door from the out­
side. The locking knob must be raised in or­
der to open the door.

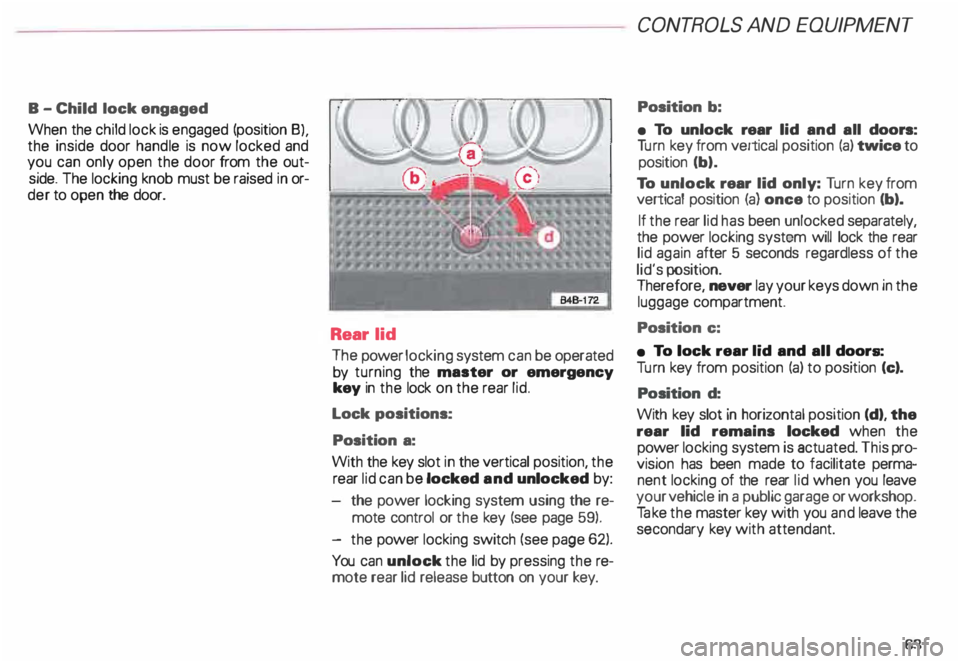

Rear lid
The power locking system can be operated
by turning the master or emergency
key in the lock on the rear lid.
Lock positions:
Position a:
With the key slot in the vertical position, the
rear lid can be locked and unlocked by:
the power locking system using the re­
mote control or the key (see page 59).
- the power locking switch (see page 62).
You can unlock the lid by pressing the re­
mote rear lid release button on your key. CONT
ROLS AND EQUIPMEN T
Position b:
• To unlock rear lid and all doors:
Tu rn key from vertical position (a) twice to
position (b).
To unlock rear lid only: Turn key from
vertical position (a) once to position (b).
If the rear lid has been unlocked separately,
the power locking system will lock the rear
lid again after 5 seconds regardless of the
lid's position.
Therefore, never lay your keys down in the
luggage compartment.
Position c:
• To lock rear lid and all doors:
Tu rn key from position (a) to position (c).
Position d:
With key slot in horizontal position (d), the
rear lid remains locked when the
power locking system is actuated. This pro­
vision has been made to facilitate perma­
nent locking of the rear lid when you leave
your vehicle in a public garage or workshop.
Ta ke the master key with you and leave the
secondary key with attendant.
63
