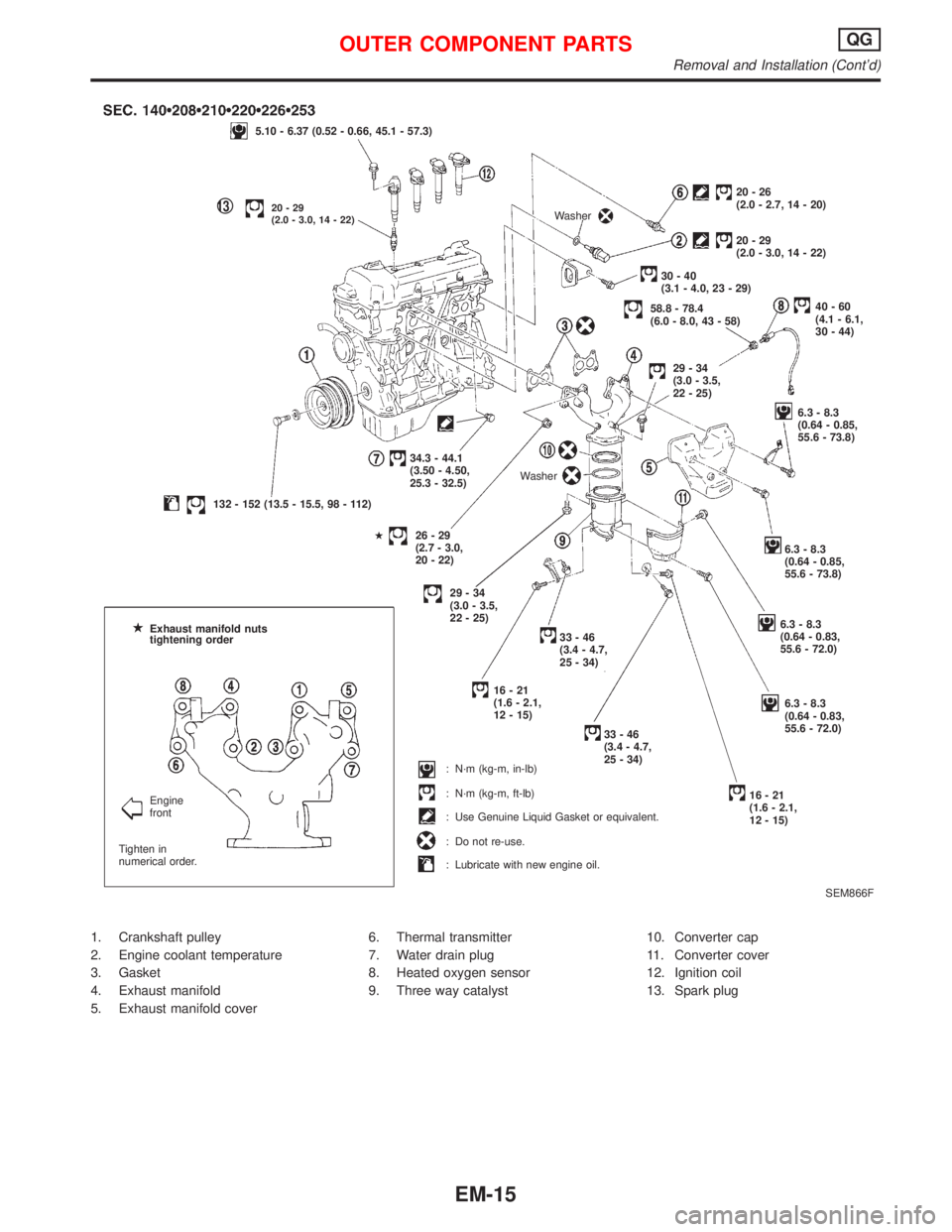

1999 NISSAN PRIMERA engine coolant

1. Crankshaft pulley
2. Engine coolant temperature
3. Gasket
4. Exhaust manifold
5. Exhaust manifold cover6. Thermal transmitter
7. Water drain plug
8. Heated oxygen sensor
9. Three way catalyst10. Converter cap
11. Converter cover
12. Ignition coil
13. Spark plug
SEM866F
5.10 - 6.37 (0.52 - 0.66, 45.1 - 57.3)
p1320-29
(2.0 - 3.0, 14 - 22)
132 - 152 (13.5 - 15.5, 98 - 112)34.3 - 44.1
(3.50 - 4.50,
25.3 - 32.5)
H
26-29
(2.7 - 3.0,
20 - 22)6.3 - 8.3
(0.64 - 0.85,
55.6 - 73.8)
6.3 - 8.3
(0.64 - 0.85,
55.6 - 73.8)
6.3 - 8.3
(0.64 - 0.83,
55.6 - 72.0)
6.3 - 8.3
(0.64 - 0.83,
55.6 - 72.0) WasherWasher
20-26
(2.0 - 2.7, 14 - 20)
20-29
(2.0 - 3.0, 14 - 22)
30-40
(3.1 - 4.0, 23 - 29)
58.8 - 78.4
(6.0 - 8.0, 43 - 58)40-60
(4.1 - 6.1,
30 - 44)
29-34
(3.0 - 3.5,
22 - 25)
29-34
(3.0 - 3.5,
22 - 25)
33-46
(3.4 - 4.7,
25 - 34)
16-21
(1.6 - 2.1,
12 - 15)
33-46
(3.4 - 4.7,
25 - 34)
16-21
(1.6 - 2.1,
12 - 15) Exhaust manifold nuts
tightening order
Engine
front
Tighten in
numerical order.: N´m (kg-m, in-lb)
: N´m (kg-m, ft-lb)
: Use Genuine Liquid Gasket or equivalent.
: Do not re-use.
: Lubricate with new engine oil.
OUTER COMPONENT PARTSQG
Removal and Installation (Cont'd)
EM-15

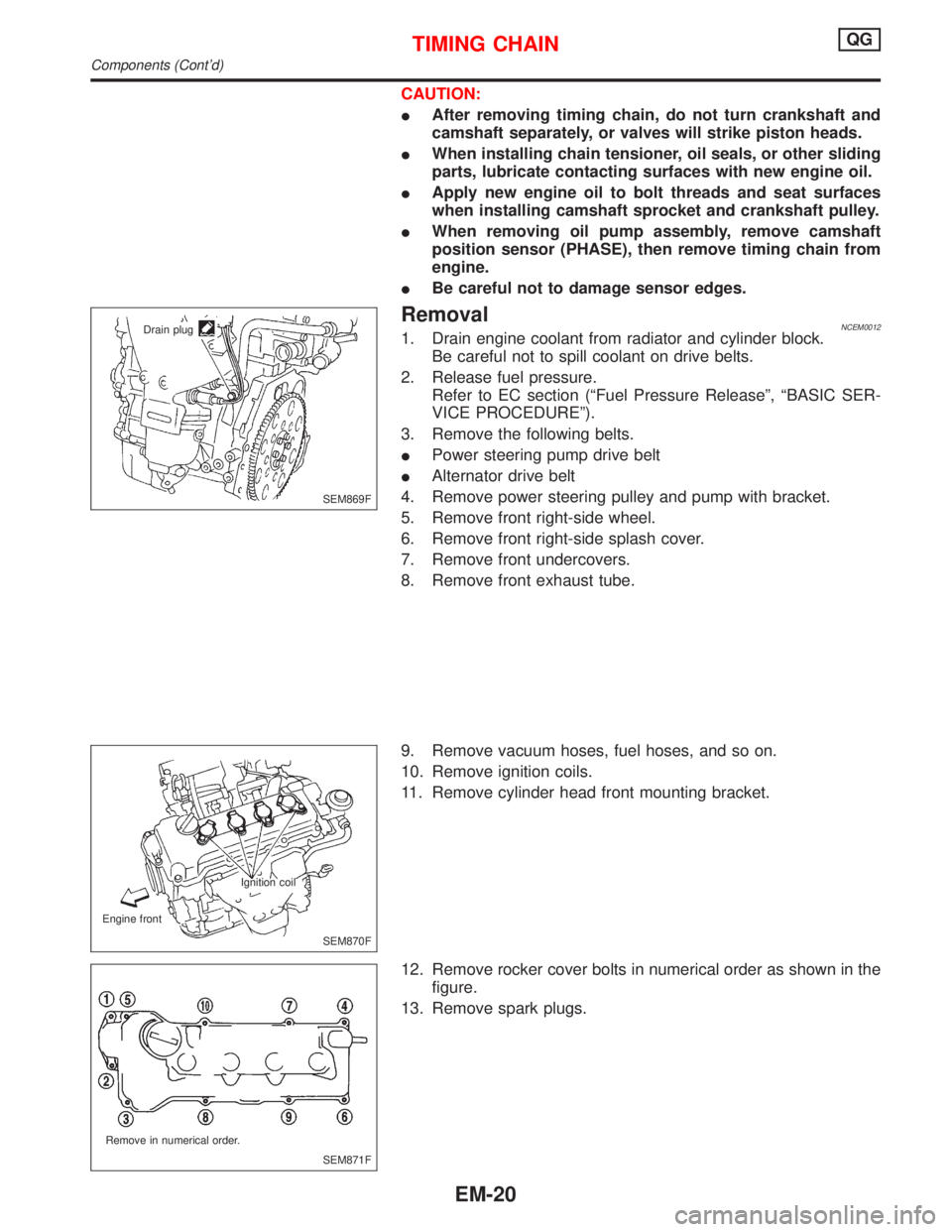

CAUTION:
IAfter removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike piston heads.
IWhen installing chain tensioner, oil seals, or other sliding
parts, lubricate contacting surfaces with new engine oil.
IApply new engine oil to bolt threads and seat surfaces
when installing camshaft sprocket and crankshaft pulley.
IWhen removing oil pump assembly, remove camshaft
position sensor (PHASE), then remove timing chain from
engine.
IBe careful not to damage sensor edges.
RemovalNCEM00121. Drain engine coolant from radiator and cylinder block.
Be careful not to spill coolant on drive belts.
2. Release fuel pressure.
Refer to EC section (ªFuel Pressure Releaseº, ªBASIC SER-
VICE PROCEDUREº).
3. Remove the following belts.
IPower steering pump drive belt
IAlternator drive belt
4. Remove power steering pulley and pump with bracket.
5. Remove front right-side wheel.
6. Remove front right-side splash cover.
7. Remove front undercovers.
8. Remove front exhaust tube.
9. Remove vacuum hoses, fuel hoses, and so on.
10. Remove ignition coils.
11. Remove cylinder head front mounting bracket.
12. Remove rocker cover bolts in numerical order as shown in the
figure.
13. Remove spark plugs.
SEM869F Drain plug
SEM870F Ignition coil
Engine front
SEM871F Remove in numerical order.
TIMING CHAINQG
Components (Cont'd)
EM-20

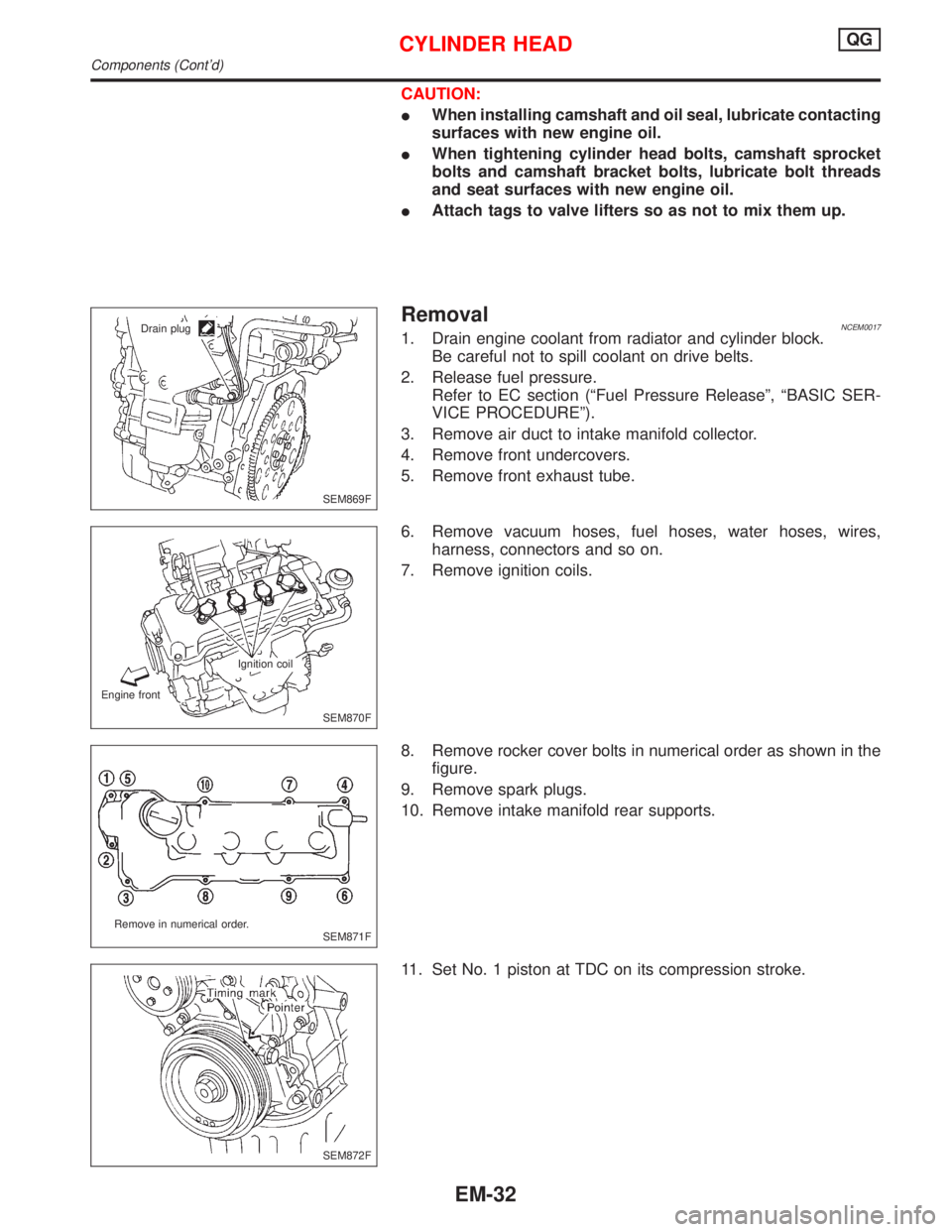

CAUTION:
IWhen installing camshaft and oil seal, lubricate contacting
surfaces with new engine oil.
IWhen tightening cylinder head bolts, camshaft sprocket
bolts and camshaft bracket bolts, lubricate bolt threads
and seat surfaces with new engine oil.
IAttach tags to valve lifters so as not to mix them up.
RemovalNCEM00171. Drain engine coolant from radiator and cylinder block.
Be careful not to spill coolant on drive belts.
2. Release fuel pressure.
Refer to EC section (ªFuel Pressure Releaseº, ªBASIC SER-
VICE PROCEDUREº).
3. Remove air duct to intake manifold collector.
4. Remove front undercovers.
5. Remove front exhaust tube.
6. Remove vacuum hoses, fuel hoses, water hoses, wires,
harness, connectors and so on.
7. Remove ignition coils.
8. Remove rocker cover bolts in numerical order as shown in the
figure.
9. Remove spark plugs.
10. Remove intake manifold rear supports.
11. Set No. 1 piston at TDC on its compression stroke.
SEM869F Drain plug
SEM870F Ignition coil
Engine front
SEM871F Remove in numerical order.
SEM872F
CYLINDER HEADQG
Components (Cont'd)
EM-32

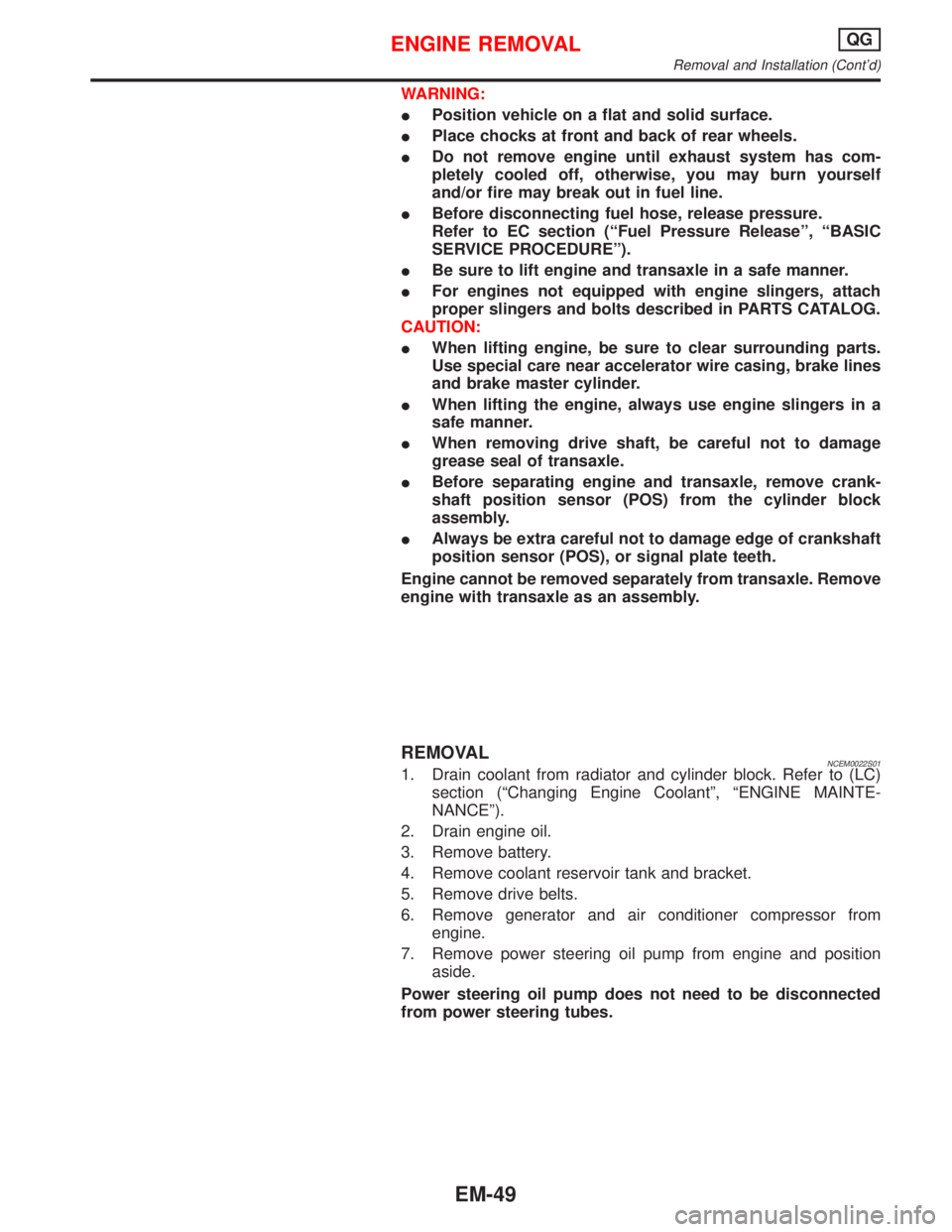

WARNING:
IPosition vehicle on a flat and solid surface.
IPlace chocks at front and back of rear wheels.
IDo not remove engine until exhaust system has com-
pletely cooled off, otherwise, you may burn yourself
and/or fire may break out in fuel line.
IBefore disconnecting fuel hose, release pressure.
Refer to EC section (ªFuel Pressure Releaseº, ªBASIC
SERVICE PROCEDUREº).
IBe sure to lift engine and transaxle in a safe manner.
IFor engines not equipped with engine slingers, attach
proper slingers and bolts described in PARTS CATALOG.
CAUTION:
IWhen lifting engine, be sure to clear surrounding parts.
Use special care near accelerator wire casing, brake lines
and brake master cylinder.
IWhen lifting the engine, always use engine slingers in a
safe manner.
IWhen removing drive shaft, be careful not to damage
grease seal of transaxle.
IBefore separating engine and transaxle, remove crank-
shaft position sensor (POS) from the cylinder block
assembly.
IAlways be extra careful not to damage edge of crankshaft
position sensor (POS), or signal plate teeth.
Engine cannot be removed separately from transaxle. Remove
engine with transaxle as an assembly.
REMOVALNCEM0022S011. Drain coolant from radiator and cylinder block. Refer to (LC)
section (ªChanging Engine Coolantº, ªENGINE MAINTE-
NANCEº).
2. Drain engine oil.
3. Remove battery.
4. Remove coolant reservoir tank and bracket.
5. Remove drive belts.
6. Remove generator and air conditioner compressor from
engine.
7. Remove power steering oil pump from engine and position
aside.
Power steering oil pump does not need to be disconnected
from power steering tubes.
ENGINE REMOVALQG
Removal and Installation (Cont'd)
EM-49

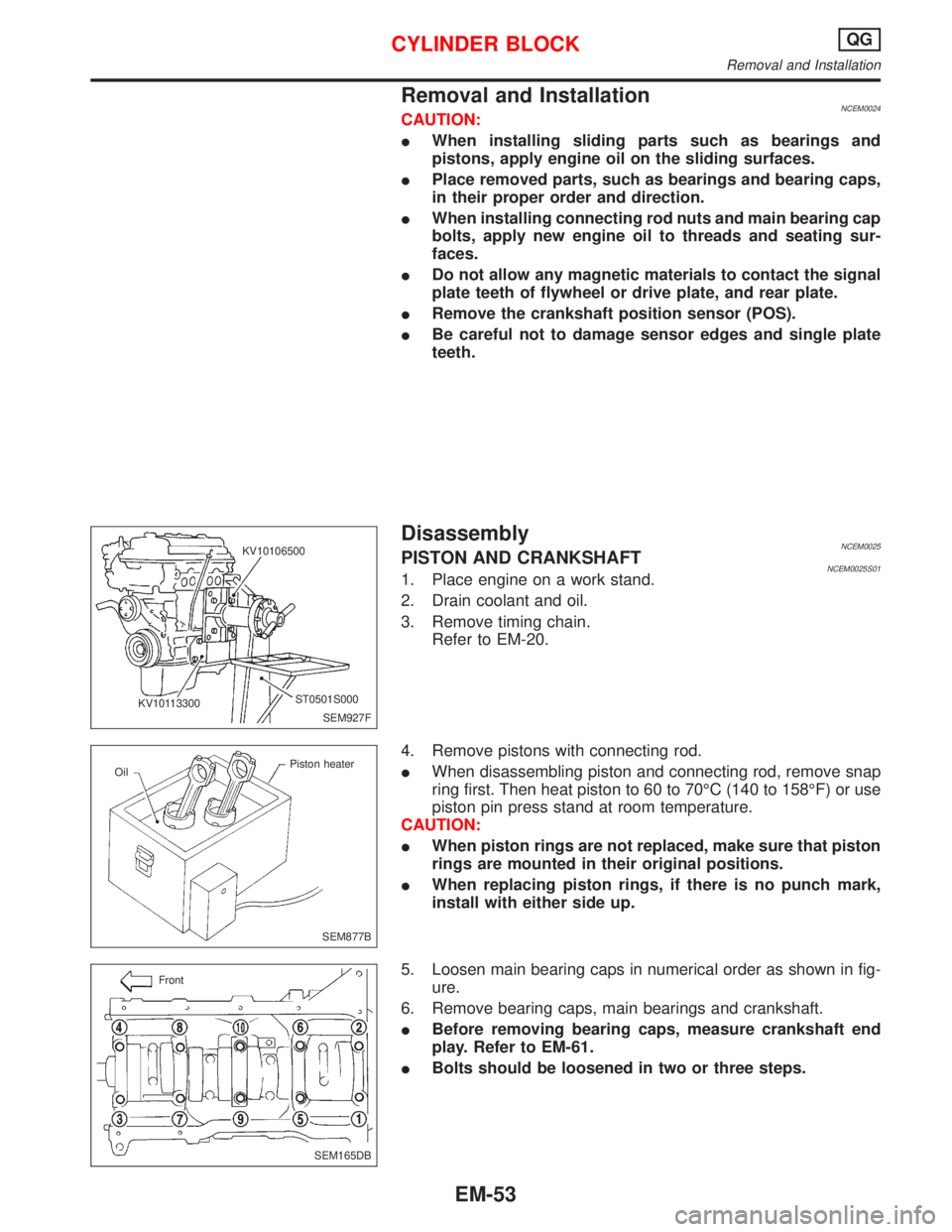

Removal and InstallationNCEM0024CAUTION:
IWhen installing sliding parts such as bearings and
pistons, apply engine oil on the sliding surfaces.
IPlace removed parts, such as bearings and bearing caps,
in their proper order and direction.
IWhen installing connecting rod nuts and main bearing cap
bolts, apply new engine oil to threads and seating sur-
faces.
IDo not allow any magnetic materials to contact the signal
plate teeth of flywheel or drive plate, and rear plate.
IRemove the crankshaft position sensor (POS).
IBe careful not to damage sensor edges and single plate
teeth.
DisassemblyNCEM0025PISTON AND CRANKSHAFTNCEM0025S011. Place engine on a work stand.
2. Drain coolant and oil.
3. Remove timing chain.
Refer to EM-20.
4. Remove pistons with connecting rod.
IWhen disassembling piston and connecting rod, remove snap
ring first. Then heat piston to 60 to 70ÉC (140 to 158ÉF) or use
piston pin press stand at room temperature.
CAUTION:
IWhen piston rings are not replaced, make sure that piston
rings are mounted in their original positions.
IWhen replacing piston rings, if there is no punch mark,
install with either side up.
5. Loosen main bearing caps in numerical order as shown in fig-
ure.
6. Remove bearing caps, main bearings and crankshaft.
IBefore removing bearing caps, measure crankshaft end
play. Refer to EM-61.
IBolts should be loosened in two or three steps.
SEM927F KV10106500
ST0501S000
KV10113300
SEM877B OilPiston heater
SEM165DB Front
CYLINDER BLOCKQG
Removal and Installation
EM-53

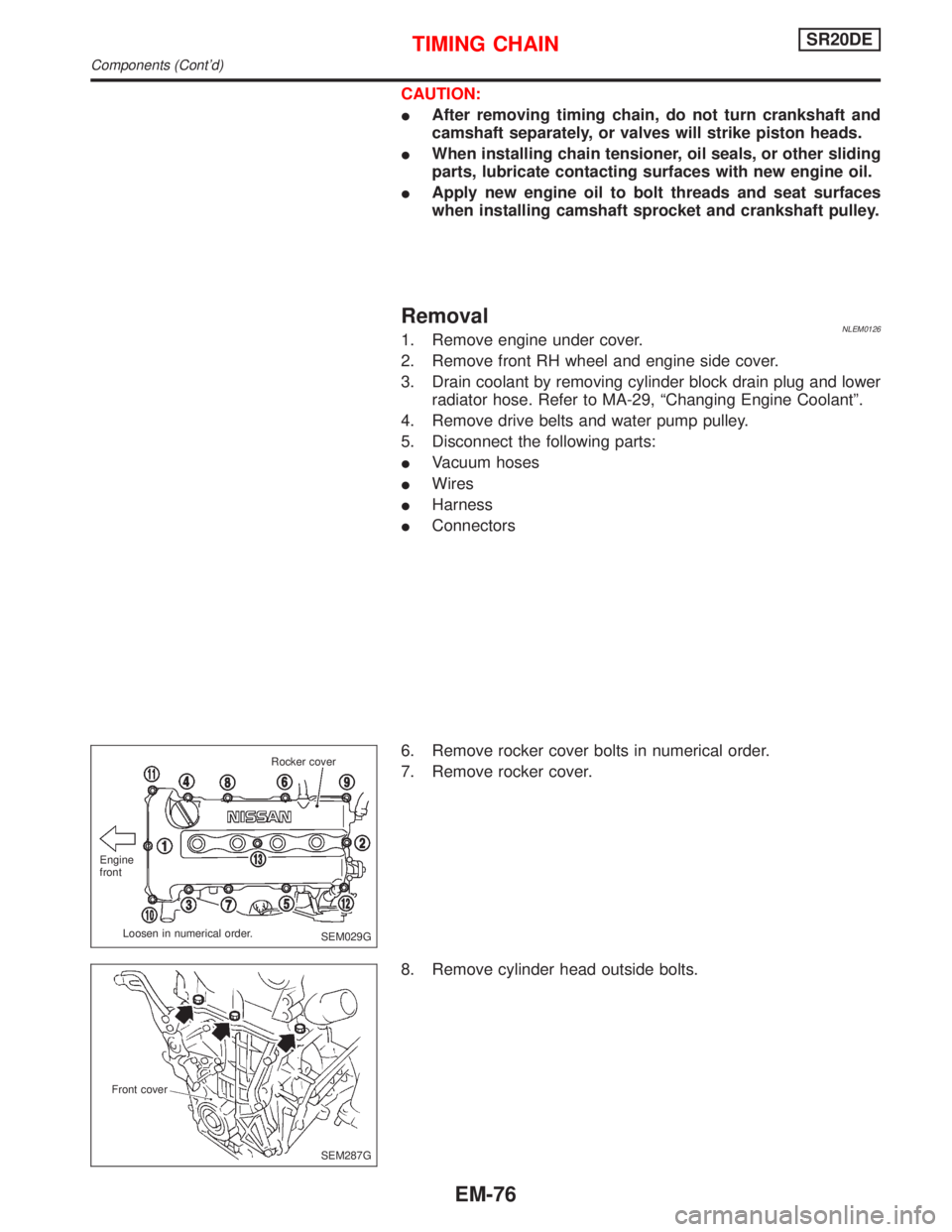

CAUTION:
IAfter removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike piston heads.
IWhen installing chain tensioner, oil seals, or other sliding
parts, lubricate contacting surfaces with new engine oil.
IApply new engine oil to bolt threads and seat surfaces
when installing camshaft sprocket and crankshaft pulley.
RemovalNLEM01261. Remove engine under cover.
2. Remove front RH wheel and engine side cover.
3. Drain coolant by removing cylinder block drain plug and lower
radiator hose. Refer to MA-29, ªChanging Engine Coolantº.
4. Remove drive belts and water pump pulley.
5. Disconnect the following parts:
IVacuum hoses
IWires
IHarness
IConnectors
6. Remove rocker cover bolts in numerical order.
7. Remove rocker cover.
8. Remove cylinder head outside bolts.
SEM029G Engine
front
Loosen in numerical order.Rocker cover
SEM287G Front cover
TIMING CHAINSR20DE
Components (Cont'd)
EM-76

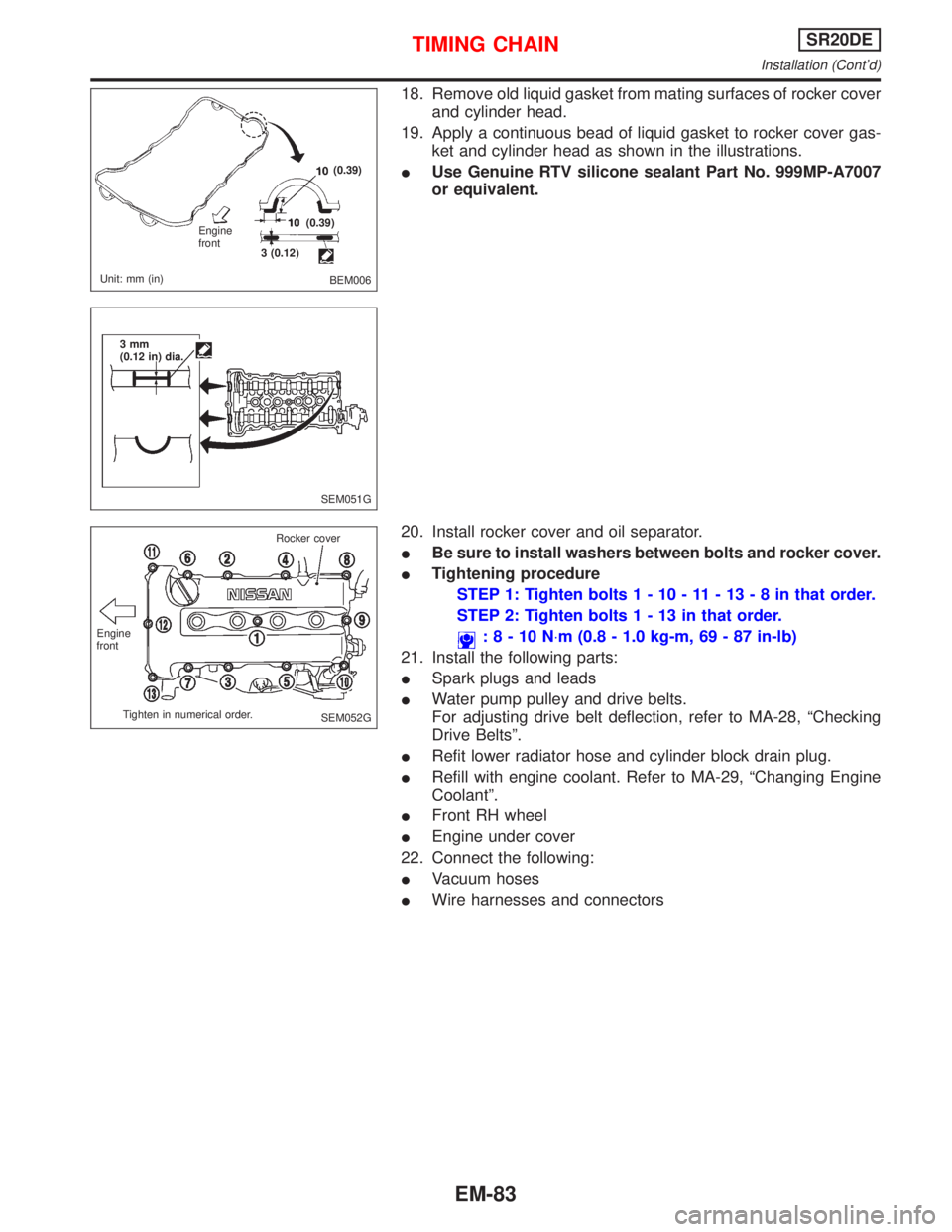

18. Remove old liquid gasket from mating surfaces of rocker cover
and cylinder head.
19. Apply a continuous bead of liquid gasket to rocker cover gas-
ket and cylinder head as shown in the illustrations.
IUse Genuine RTV silicone sealant Part No. 999MP-A7007
or equivalent.
20. Install rocker cover and oil separator.
IBe sure to install washers between bolts and rocker cover.
ITightening procedure
STEP 1: Tighten bolts1-10-11-13-8inthat order.
STEP 2: Tighten bolts1-13inthat order.
:8-10N×m (0.8 - 1.0 kg-m, 69 - 87 in-lb)
21. Install the following parts:
ISpark plugs and leads
IWater pump pulley and drive belts.
For adjusting drive belt deflection, refer to MA-28, ªChecking
Drive Beltsº.
IRefit lower radiator hose and cylinder block drain plug.
IRefill with engine coolant. Refer to MA-29, ªChanging Engine
Coolantº.
IFront RH wheel
IEngine under cover
22. Connect the following:
IVacuum hoses
IWire harnesses and connectors
BEM006 Engine
front
Unit: mm (in)3 (0.12)(0.39)
(0.39)
SEM051G 3mm
(0.12 in) dia.
SEM052G Engine
front
Tighten in numerical order.Rocker cover
TIMING CHAINSR20DE
Installation (Cont'd)
EM-83

RemovalNLEM01311. Release fuel pressure.
Refer to EC-SR-31, ªFuel Pressure Releaseº.
2. Remove engine under covers.
3. Remove front RH wheel and engine side cover.
4. Drain coolant by removing cylinder block drain plug and radia-
tor drain cock. Refer to MA-29, ªChanging Engine Coolantº.
5. Remove radiator.
6. Remove air duct to intake manifold.
7. Disconnect the following parts:
IVacuum hoses
IFuel hoses
IWires
IHarness
IConnectors
IFront exhaust tube
8. Remove all spark plugs.
9. Remove rocker cover bolts in numerical order.
10. Remove rocker cover.
11. Remove intake manifold supports.
12. Remove water pipe assembly.
SEM029G Engine
front
Loosen in numerical order.Rocker cover
SEM030G Intake manifold
supports
SEM065GIntake
manifold
CYLINDER HEADSR20DE
Removal
EM-87
