1997 FORD RANGER Owners Manual

Seating and Safety Restraints
103
[SS00280(R)01/96]
13-1/2 pica
art:0021273-A
Adjusting the bucket seat
*
[SS00290(R)05/96]
RWARNING
Never adjust the driver's seat or seatback when the
vehicle is moving.
*
[SS00300(R)05/96]
RWARNING
Cargo should always be secured to prevent it from
shifting and causing damage to the vehicle or harm to
passengers.
*
[SS00310(R)02/96]
RWARNING
Always drive and ride with your seatback upright and
the lap belt snug and low across the hips.
*
[SS00320(R)02/96]
RWARNING
Children should always ride with the seatback in the
fully upright position.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

104
[SS00330(R)01/96]
Reclining Bucket Seats (If equipped)
[SS00332(R)01/96]
If your vehicle is equipped with the optional reclining bucket
seat, you can tilt the seatback up to 30 degrees rearward.
*
[SS00334(R)01/96]1.
On the side of the seat, find the handle for the recliner.
*
[SS00336(R)01/96]2.
Lift the handle up and hold it in place.
*
[SS00338(R)01/96]3.
Lean against the back of the seat and adjust it to the position
you want.
*
[SS00340(R)01/96]4.
Release the handle to lock the seatback in position.
*
[SS00342(R)01/96]5.
To return the seatback to upright position, lift the handle
and lean forward. Then release the handle.
[SS00354(R)01/96]
Lifting the recliner handle of an unoccupied seat will allow the
seat back to fold forward for access to the rear. Pushing the seat
back with the release handle raised returns the seat back to the
upright position.
[SS00356(R)01/96]
10-1/2 pica
art:0021165-A
Reclining bucket seat
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
105
*
[SS00549(R)01/96]

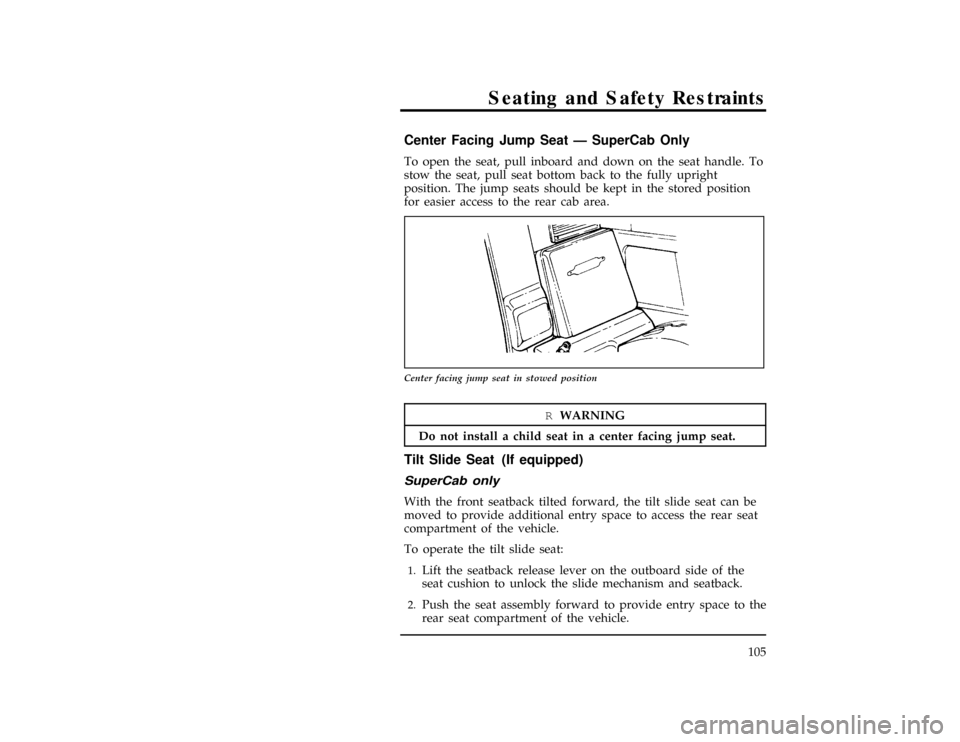

Center Facing Jump Seat Ð SuperCab Only
[SS00551(R)01/96]
To open the seat, pull inboard and down on the seat handle. To
stow the seat, pull seat bottom back to the fully upright
position. The jump seats should be kept in the stored position
for easier access to the rear cab area.
[SS00560(R)01/96]
10-1/2 pica
art:0020232-B
Center facing jump seat in stowed position
*
[SS00570(R)01/96]
RWARNING
Do not install a child seat in a center facing jump seat.
[SS00580(R)01/96]
Tilt Slide Seat (If equipped)
[SS00590(R)01/96]
SuperCab only
[SS00610(R)01/96]
With the front seatback tilted forward, the tilt slide seat can be
moved to provide additional entry space to access the rear seat
compartment of the vehicle.
*
[SS00620(R)01/96]
To operate the tilt slide seat:
[SS00622(R)01/96]1.
Lift the seatback release lever on the outboard side of the
seat cushion to unlock the slide mechanism and seatback.
*
[SS00624(R)01/96]2.
Push the seat assembly forward to provide entry space to the
rear seat compartment of the vehicle.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

106
*
[SS00630(R)02/96]
RWARNING
Check to see that the seat and seatback are latched
securely in position. Keep floor area free of objects that
would prevent proper seat engagement. Never attempt to
adjust the seat while the vehicle is in motion.
*
[SS00640(R)02/96]
RWARNING
Check to see that the seat and seatback are latched
securely in position. Keep floor area free of objects that
would prevent proper seat engagement. Never attempt to
adjust the seat while the vehicle is in motion.
[SS00650(R)01/96]3.
With the seatback still forward, using the seat cushion push
the seat rearward to the desired position and return the
seatback to its upright position. This will lock the seat track.
[SS00652(R)01/96]
NOTE: Whenever the seatback is returned to the upright
position, the seat will lock in that seat position.
*
[SS00654(R)01/96]
NOTE: The seat can no longer be moved rearward when in
its latched position.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
107
[SS00656(R)01/96]
10-1/2 pica
art:0021166-A

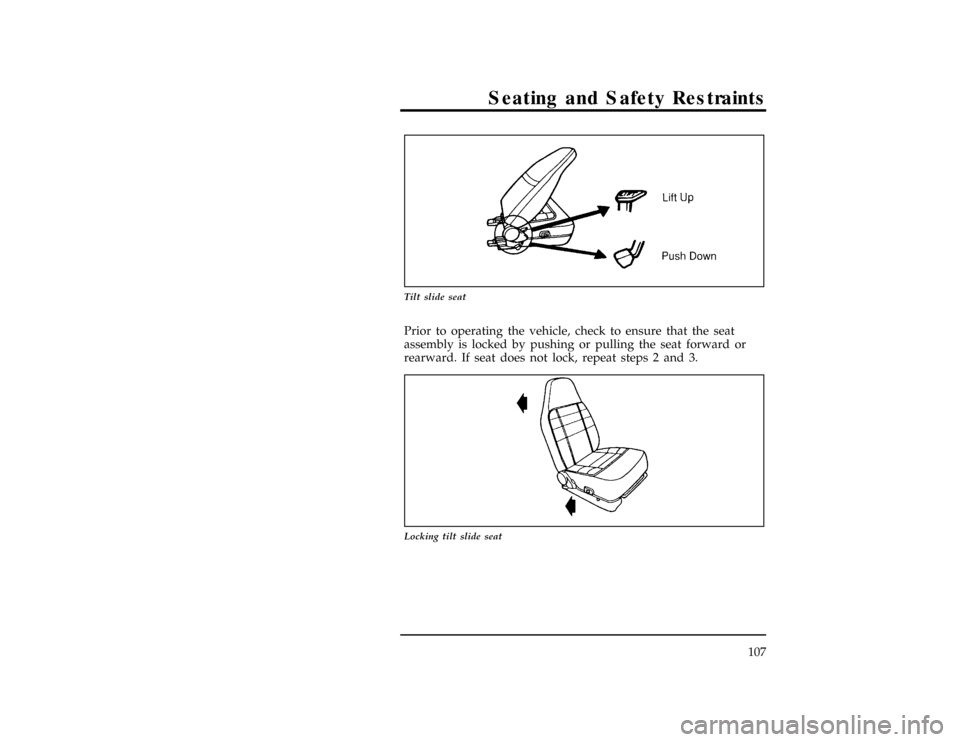

Tilt slide seat
*
[SS00670(R)01/96]
Prior to operating the vehicle, check to ensure that the seat
assembly is locked by pushing or pulling the seat forward or
rearward. If seat does not lock, repeat steps 2 and 3.
[SS00675(R)01/96]
10-1/2 pica
art:0021167-B
Locking tilt slide seat
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

108
*
[SS00680(R)01/96]

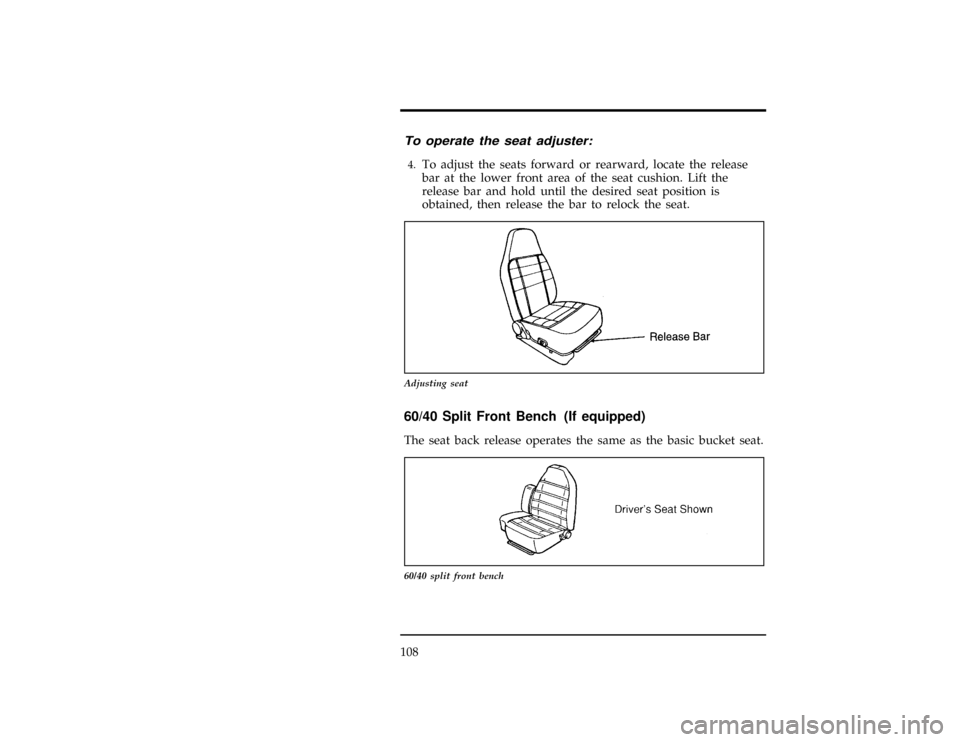

To operate the seat adjuster:
[SS00681(R)01/96]4.
To adjust the seats forward or rearward, locate the release
bar at the lower front area of the seat cushion. Lift the
release bar and hold until the desired seat position is
obtained, then release the bar to relock the seat.
[SS00690(R)01/96]
10-1/2 pica
art:0021168-B
Adjusting seat
[SS00700(R)01/96]
60/40 Split Front Bench (If equipped)
[SS00704(R)01/96]
The seat back release operates the same as the basic bucket seat.
[SS00720(R)01/96]
7-1/2 pica art:0020241-D
60/40 split front bench
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
109
%*
[SS00740(R)01/96]

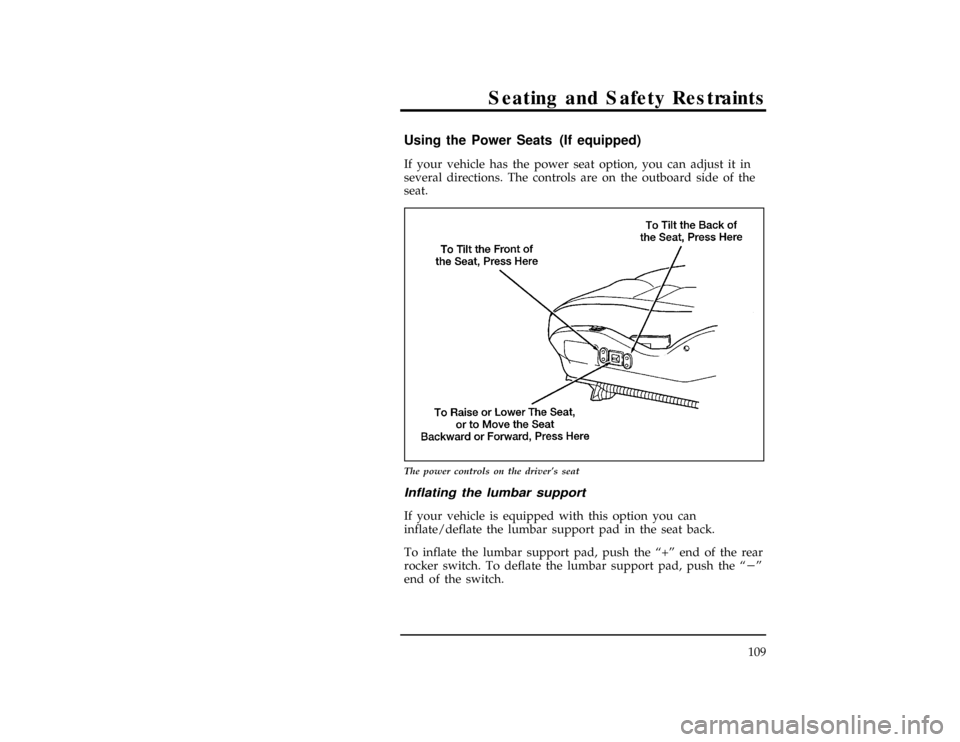

Using the Power Seats (If equipped)
*
[SS00742(R)01/96]
If your vehicle has the power seat option, you can adjust it in
several directions. The controls are on the outboard side of the
seat.
[SS00750(R)05/96]
17-1/2 pica
art:0020888-C
The power controls on the driver's seat
[SS00810(R)05/96]
Inflating the lumbar support
[SS00812(R)05/96]
If your vehicle is equipped with this option you can
inflate/deflate the lumbar support pad in the seat back.
[SS00816(R)01/96]

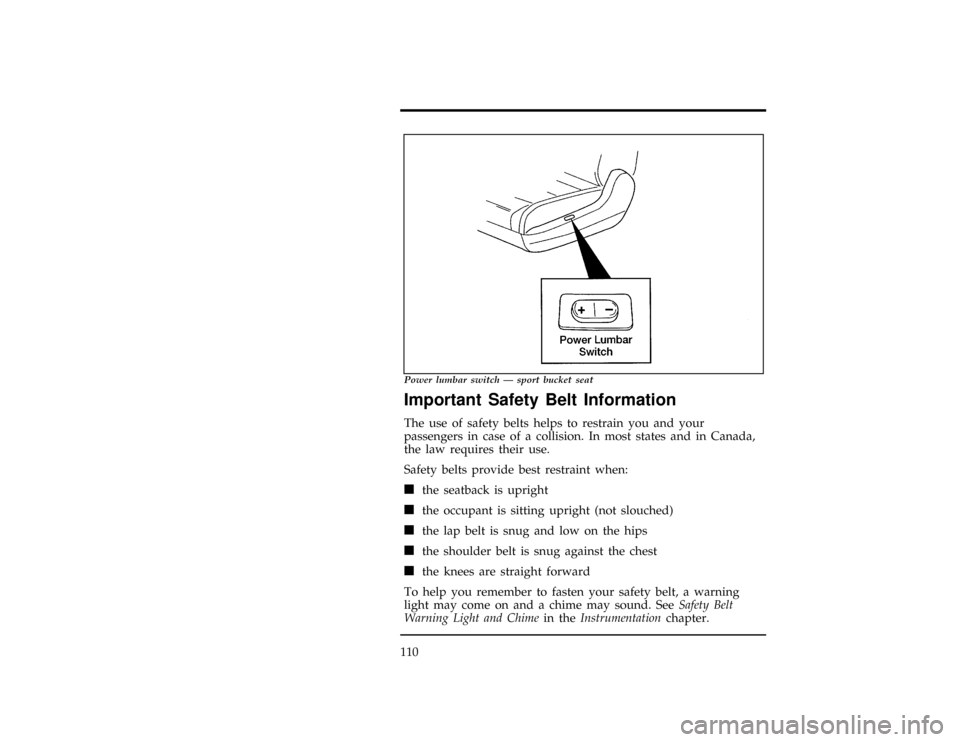

To inflate the lumbar support pad, push the ª+º end of the rear
rocker switch. To deflate the lumbar support pad, push the ªsº
end of the switch.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

110
[SS00830(R)05/96]
16 pica
art:0021169-D
Power lumbar switch Ð sport bucket seat
%*
[SS00900(R)02/96]
Important Safety Belt Information
*
[SS00910(R)05/96]
The use of safety belts helps to restrain you and your
passengers in case of a collision. In most states and in Canada,
the law requires their use.
*
[SS00920(R)02/96]
Safety belts provide best restraint when:
*
[SS00930(R)02/96]
n
the seatback is upright
*
[SS00950(R)02/96]
n
the occupant is sitting upright (not slouched)
*
[SS01000(R)02/96]
n
the lap belt is snug and low on the hips
*
[SS01100(R)02/96]
n
the shoulder belt is snug against the chest
*
[SS01200(R)02/96]
n
the knees are straight forward
*
[SS02050(R)02/96]
To help you remember to fasten your safety belt, a warning
light may come on and a chime may sound. SeeSafety Belt
Warning Light and Chimein theInstrumentationchapter.
