1997 FORD RANGER Owners Manual

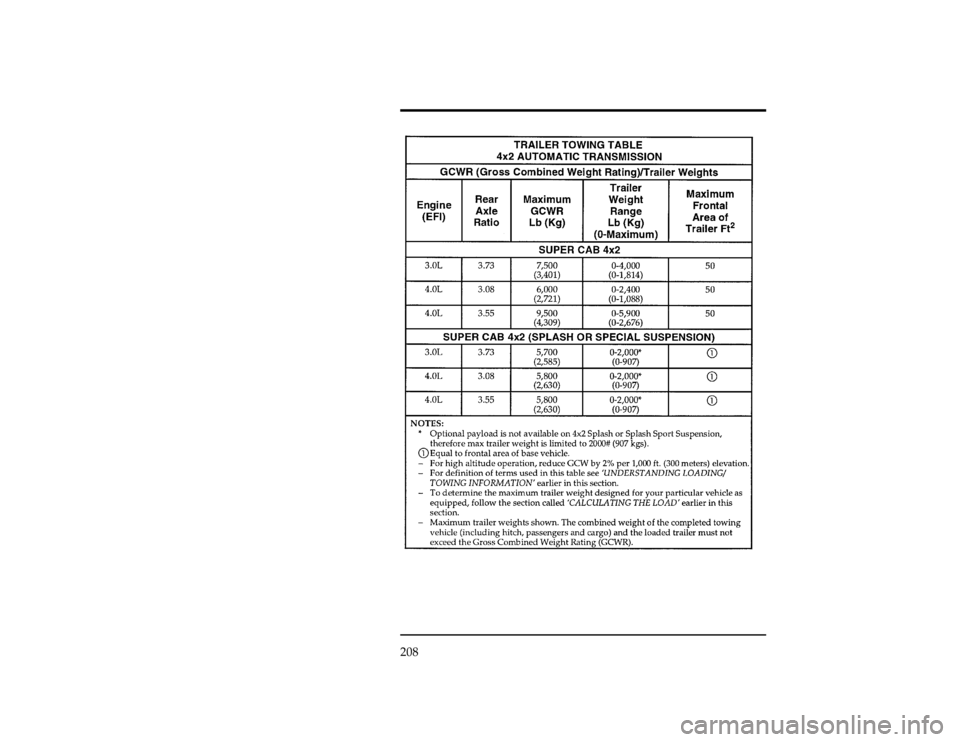

208
[GF35425(R)01/96]
thirty-four pica
chart:0020970-GFile:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
209
[GF35450(R)01/96]
twenty-six pica
chart:0020928-EFile:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

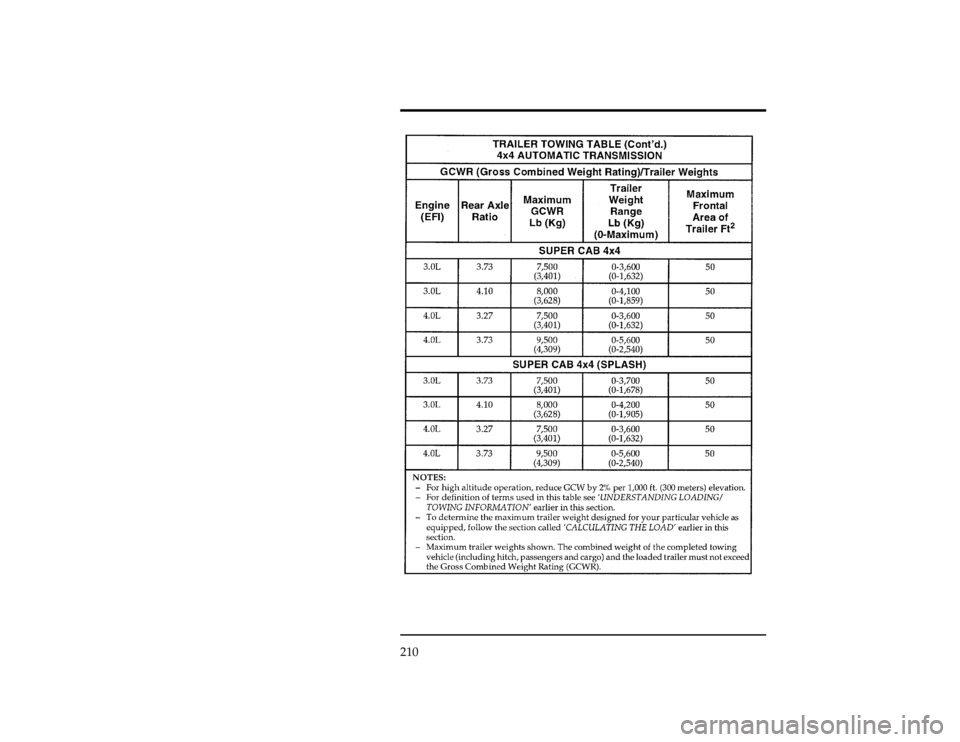

210
[GF35475(R)01/96]
thirty-two pica
chart:0020971-EFile:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
211
*
[GF36500(R)05/96]
Preparing to Tow
*
[GF36550(R)05/96]
For your safety and for the good of your vehicle, use the right
equipment for the type of trailer you tow. Also, make sure that
all towing equipment is properly attached to your vehicle. If
you are not certain that you are using the right equipment in
the proper manner, see your Ford or Lincoln-Mercury dealer.
%*
[GF36600(R)01/96]
Hitches
*
[GF36650(R)01/96]
For towing trailers up to 2,000 lb (907 kg), use a weight
carrying hitch and ball which uniformly distributes the trailer
tongue loads through the underbody structure. Use a
frame-mounted weight distributing hitch for trailers over 2,000
lb (907 kg).
*
[GF36800(R)01/96]
Do not install a single or multi-clamp type bumper hitch, or a
hitch which attaches to the axle. Underbody mounted hitches
are acceptable if installed properly. Follow towing instructions
of a reputable rental agency.
*
[GF37000(R)01/96]
Whenever a trailer hitch and hardware are removed, make sure
all mounting holes in the underbody are properly sealed to
prevent noxious gases or water from entering.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

212
WARNING
Do no tconnec ta trailer' shydrauli cbrak esyste mdirectly

Driving
213
WARNING
Alwaysreplac eafusewit hon etha tha sth especified

214
*
[GF38800(R)03/96]
When descending a steep grade with a trailer, operate in Drive
rather than Overdrive. If additional braking is needed, shift the
automatic transmission gearshift into the 2 (Second) or 1 (Low)
position.
[GF38925(R)05/96]
Servicing Your Vehicle If You Tow
*
[GF38950(R)05/96]
If you tow a trailer for a long distance, your vehicle will need
to be serviced more frequently than usual. Refer to the
Maintenance Schedulebooklet for additional information.
[GF39000(R)01/96]
Trailer towing tips
*
[GF39100(R)01/96]
Before starting on a trip, practice turning, stopping and backing
in an area away from heavy traffic. Get to know the ªfeelº of
the vehicle/trailer combination.
*
[GF39200(R)01/96]
Practice backing up. Back up very slowly, with someone outside
at the rear of your trailer to guide you. Place your hand at the
bottom of the steering wheel and move it in the direction you
want the rear of the trailer to swing. Slight movement of the
steering wheel results in a much larger movement of the rear of
the trailer.
*
[GF39300(R)01/96]
Allow more room for stopping with a trailer attached. Trailer
brakes should be applied first, whether manually or
automatically controlled, when approaching a stop.
*
[GF39400(R)01/96]
For a good handling truck-trailer combination, the trailer tongue
load should be approximately 10-15% of the loaded trailer
weight.
*
[GF39500(R)01/96]
Make a thorough check of your equipment before starting out
on the road. After you have traveled about 50 miles (80 km)
stop in a protected area and double-check your hitch and
electrical connections. Also check trailer wheel lug nuts for
tightness.
*
[GF39600(R)01/96]
When turning, drive slightly beyond the normal turning point
so the trailer wheels will clear curbs or other obstructions.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
215
WARNING
Do no tto w atraile rwhe nusin gatemporar yspar etire.
