1997 FORD RANGER Owners Manual

6
*
[II06750(R)03/96]
n
Wheel lug nuts must be retightened to proper torque
specifications at 500 miles/800 km of new vehicle operation.
Proper torque specifications are provided in this guide. Also
retighten to proper torque specifications at 500 miles/800 km
after any wheel change or any other time the wheel lug nuts
have been loosened.
%*
[II06800(R)03/96]
n
Use only the type of engine oil that Ford recommends.See
Engine oil recommendationsin the Index. Do not use special
ªbreak-inº oils.
*
[II07000(R)01/96]
Some vehicles are equipped with a Powertrain Control Module
that limits engine speeds with a cut-out mode to promote
durability.
File:02uniir.ex
Update:Thu Mar 20 08:48:31 1997

7
Instrumentation
%*
[IS00400(R)01/96]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. The illustrations on the following
pages show the major parts of the instrument panel that are
described in this chapter. Some items shown may not be on all
vehicles.
*
[IS00500(R)03/96]
Your vehicle has one of the following instrument clusters:
*
[IS00600(R)03/96]
n
A standard instrument cluster
*
[IS00700(R)03/96]
n
A optional instrument cluster with tachometer
*
[IS00900(R)03/96]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages of this section.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

8
[IS02500(R)05/96]
33-1/2 pica

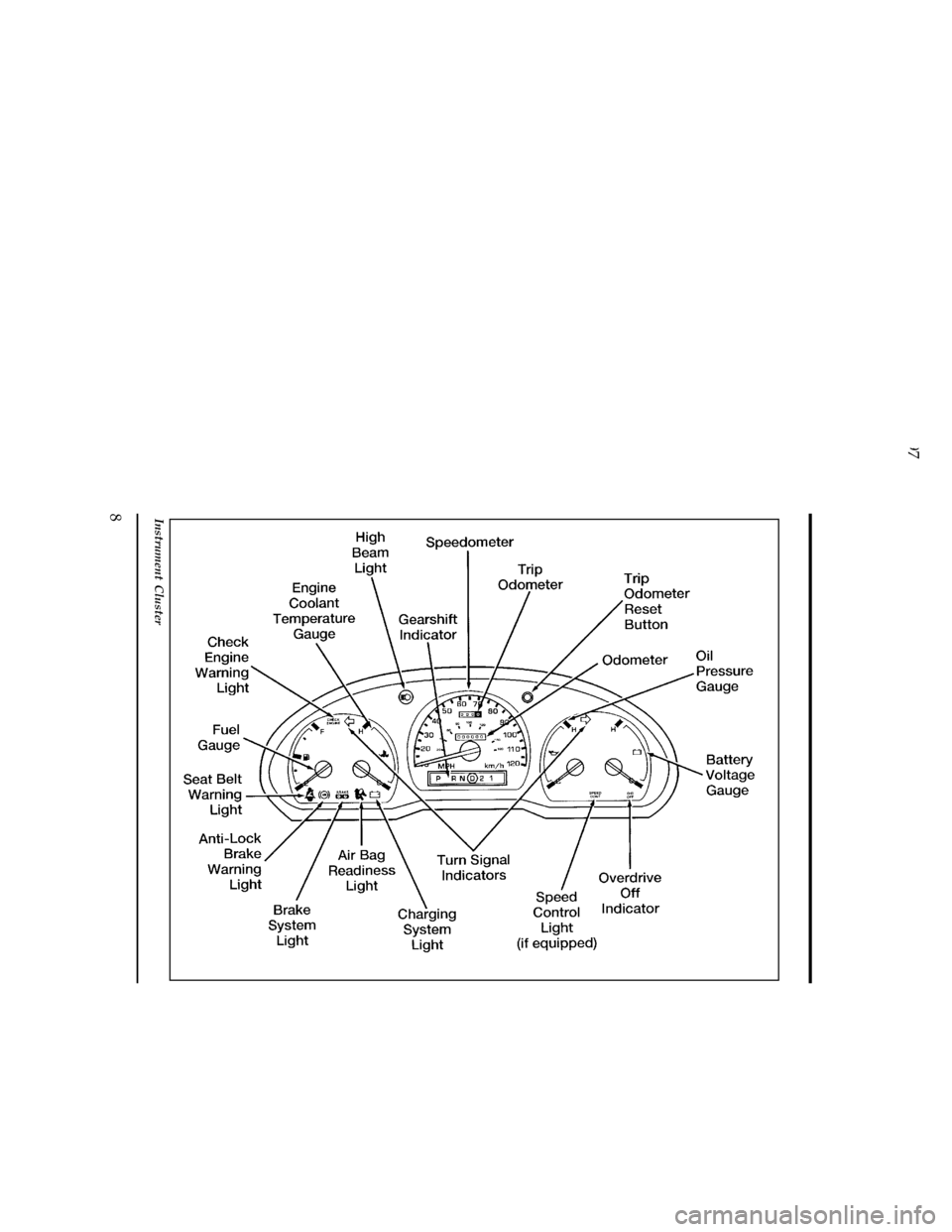

art:0090106-D
Instrument Cluster
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
9
[IS02600(R)05/96]

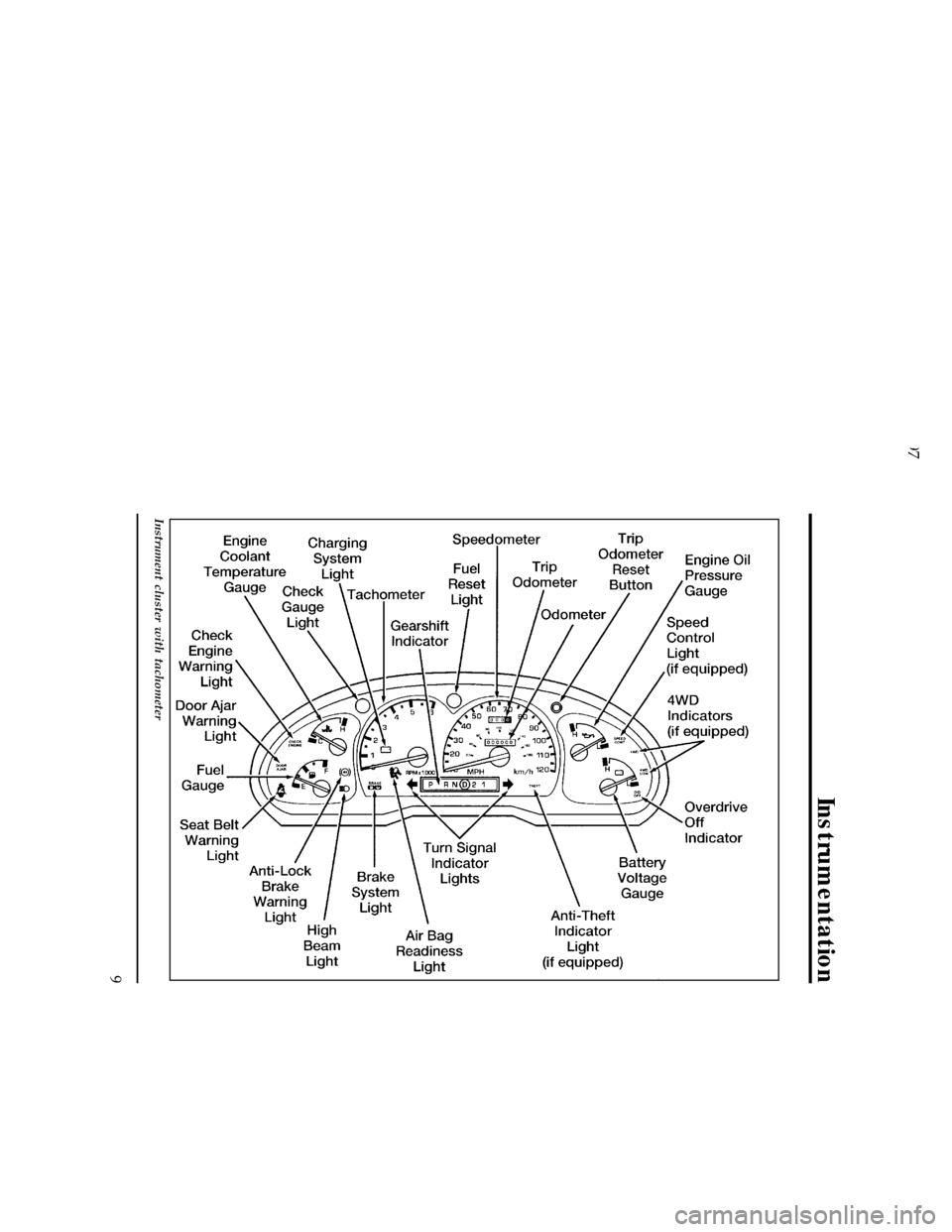

33-1/2 pica art:0090107-E
Instrument cluster with tachometer
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

10
%*
[IS03000(R)01/96]
The Mechanical Cluster
*
[IS03100(R)01/96]
The following warning lights and gauges are on the mechanical
cluster. All of the warning lights and gauges alert you to
possible problems with your vehicle. Some of the lights listed
are optional. The following sections detail what each of these
indicators means.
%*
[IS03200(R)01/96]
Brake System Warning Light
*
[IS03300(R)03/96]
The warning light for the brakes can show two things Ð that
the parking brake is not fully released, or that the brake fluid
level is low in the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by your dealer or a
qualified service technician.
*
[IS03400(R)03/96]
This light illuminates when you turn the ignition key to START
to verify that the indicator bulb is working. If the light stays on
or illuminates after you have released the parking brake fully,
have the hydraulic brake system serviced.
*
[IS03500(R)03/96]
RWARNING
The BRAKE light indicates that the brakes may not be
working properly. Have the brakes checked immediately.
[IS03600(R)01/96]
6 pica art:0021145-A
Brake warning light symbols
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
11
*
[IS03800(R)01/96]
Anti-lock Brake Warning Light
[IS03925(R)01/96]
To check the ABS brake warning light, turn the ignition key to
ON. The ABS brake warning light should glow momentarily.
[IS03985(R)01/96]
NOTE: If the ABS brake warning light does not glow
momentarily, have your vehicle's electrical system
checked immediately. If the light begins to flash in a
repeatable flash sequence, check the anti-lock system
continuous power fuse and brakelamps for proper
operation.
[IS04050(R)01/96]
6 pica art:0021146-A
Anti-lock warning light symbol
*
[IS04100(R)03/96]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
*
[IS04110(R)03/96]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
%*
[IS04150(R)03/96]
Safety Belt Warning Light and Chime
[IS04301(R)04/96]
The safety belt warning light/chime reminds you to fasten your
safety belt. One of the following will take place:
[IS04325(R)05/96]
n
If the safety belt is not buckled before the key is turned to
the ON position, the light comes on for one to two minutes
and the chime sounds for 4 to 8 seconds.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

12
*
[IS04351(R)03/96]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and chime turn off.
[IS04355(R)01/96]
n
If safety belt is buckled before the key is turned to the ON
position, both the light and the chime will not turn on.
[IS04400(R)01/96]
6 pica art:0021148-B
Safety belt warning light symbol
%*
[IS04420(R)03/96]
Air Bag Readiness Light
[IS04430(R)01/96]
This light illuminates for approximately six seconds when the
ignition key is turned to the ON position to verify that the
indicator bulb is working and the air bag system is operating
normally.
[IS04435(R)01/96]
RWARNING
A problem with the air bag system is indicated by one or
more of the following: the readiness light will either
flash or stay lit, or it will not light, or a group of five
beeps will be heard.
*
[IS04437(R)05/96]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
File:03unisr.ex
Update:Thu Mar 20 09:21:14 1997

Instrumentation
13
[IS04440(R)01/96]
7-1/2 pica art:0021268-A
Air bag readiness light symbol
[IS04443(R)05/96]
Passenger Air Bag OFF Light (If equipped)
[IS04444(R)01/96]
The passenger air bag OFF light is located in the lower center of
the instrument panel next to the passenger air bag defeat
switch. This yellow indicator light illuminates whenever the
passenger air bag is turned off and the ignition is on. The
passenger air bag should be turned off only when a rear-facing
infant seat is installed in the front passenger seat.
[IS04450(R)01/96]
Door Ajar Warning Light (If equipped)
*
[IS04460(R)01/96]
If the ignition switch is in the ON position and any door or the
liftgate is not completely closed, the light will illuminate.
[IS04480(R)01/96]
7-1/2 pica art:0021269-A
Door ajar warning light symbol
