SuperCab quarter windows (if equipped)
[CF48460(R)05/96]
To open the optional flip quarter windows on the Ranger
SuperCab models, follow the operating instructions shown in
the following illustration.
[CF48470(R)05/96]
10-1/2 pica
art:0020209-B

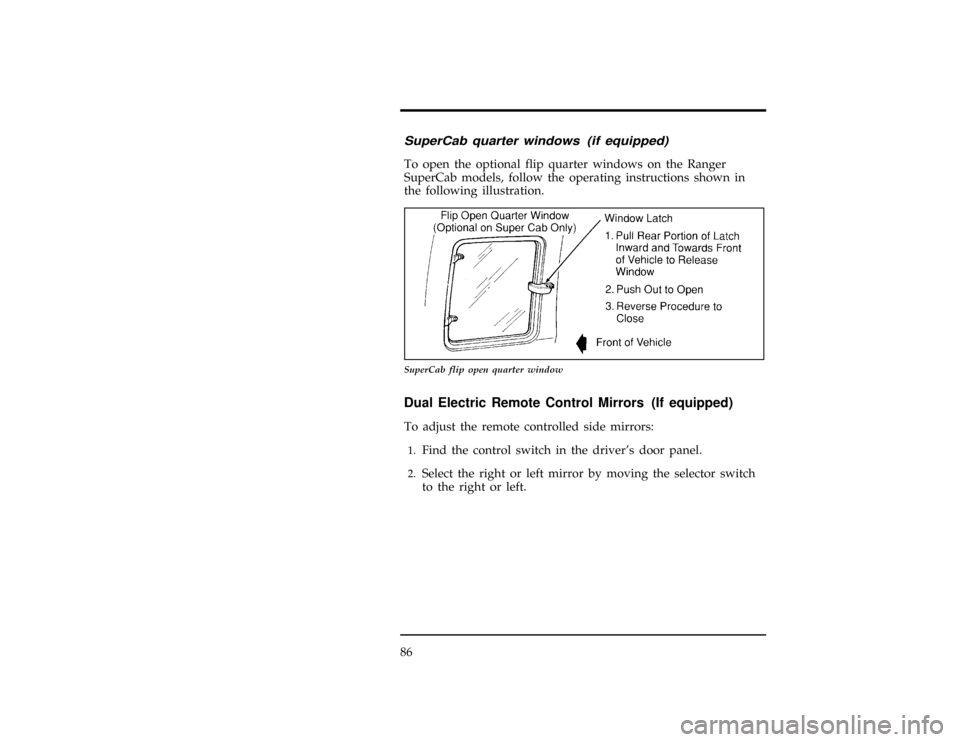

SuperCab flip open quarter window
%*
[CF48700(R)05/96]
Dual Electric Remote Control Mirrors (If equipped)
*
[CF48800(R)05/96]
To adjust the remote controlled side mirrors:
*
[CF48900(R)05/96]1.
Find the control switch in the driver's door panel.
[CF48910(R)01/96]2.
Select the right or left mirror by moving the selector switch
to the right or left.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
87
*
[CF48920(R)05/96]3.
Move the control knob in the direction you want to move
the mirror.
*
[CF48930(R)05/96]4.
Return the selector switch to the middle position to keep the
mirror in place.
[CF49000(R)01/96]
7-1/2 pica art:0090159-A

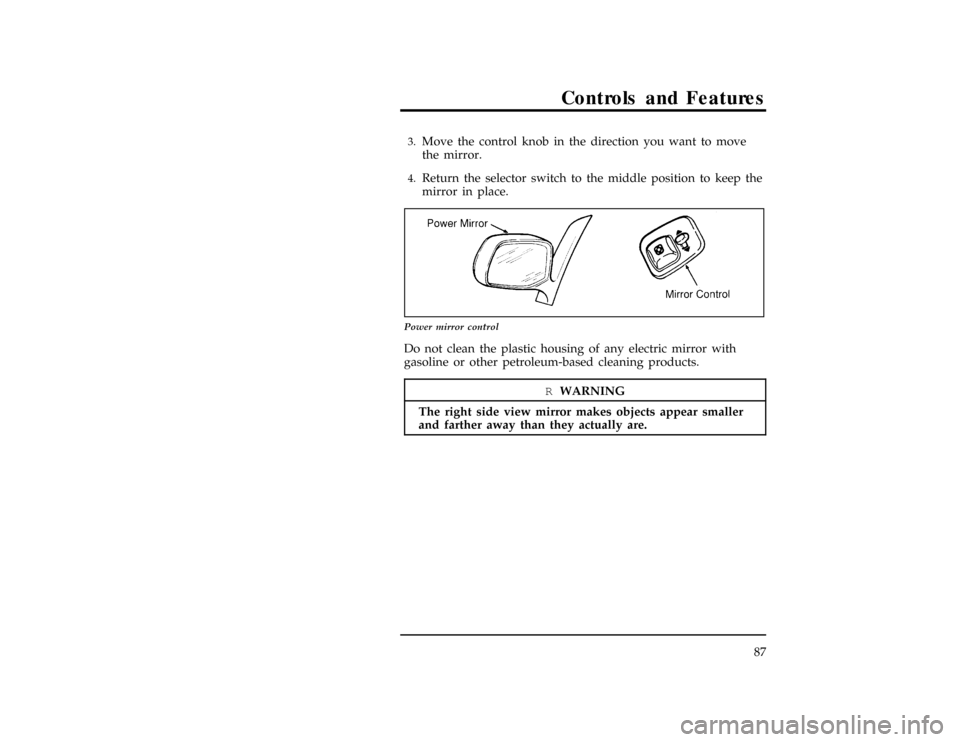

Power mirror control
*
[CF49100(R)05/96]
Do not clean the plastic housing of any electric mirror with
gasoline or other petroleum-based cleaning products.
*
[CF49200(R)05/96]
RWARNING
The right side view mirror makes objects appear smaller
and farther away than they actually are.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

88
[CF50000(R)01/96]
Console (If equipped)
*
[CF50100(R)01/96]
Your vehicle may have a full console. The full console has the
features shown in the illustration below.
[CF59700(R)01/96]
17-1/2 pica
art:0090211-A

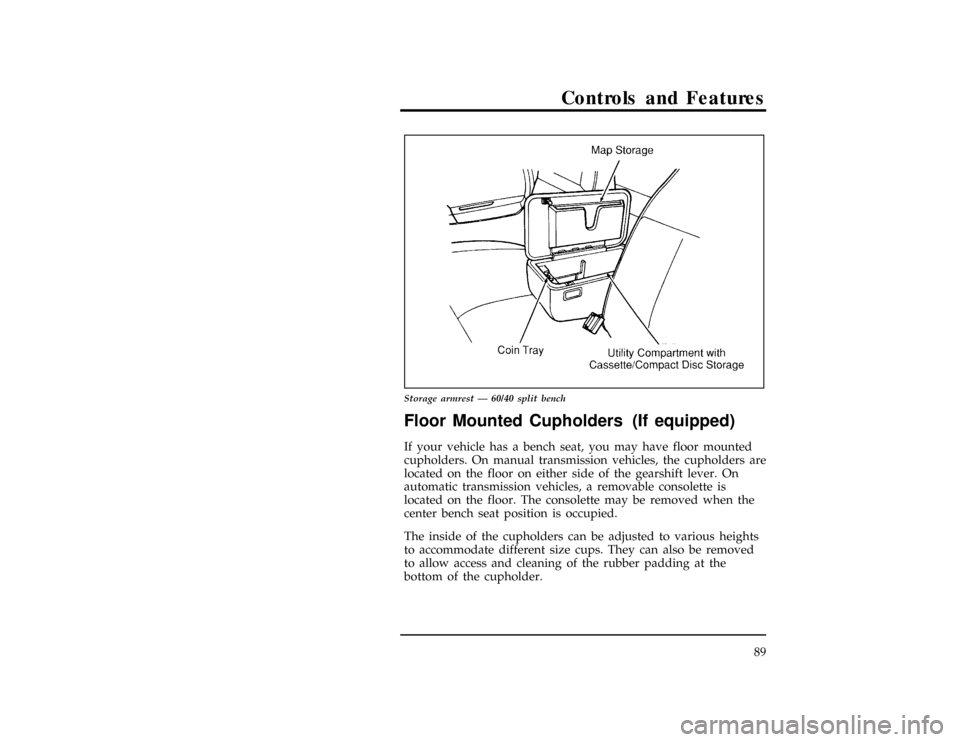

The features on the console Ð bucket seats
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
89
[CF59800(R)01/96]
17-1/2 pica
art:0020896-C

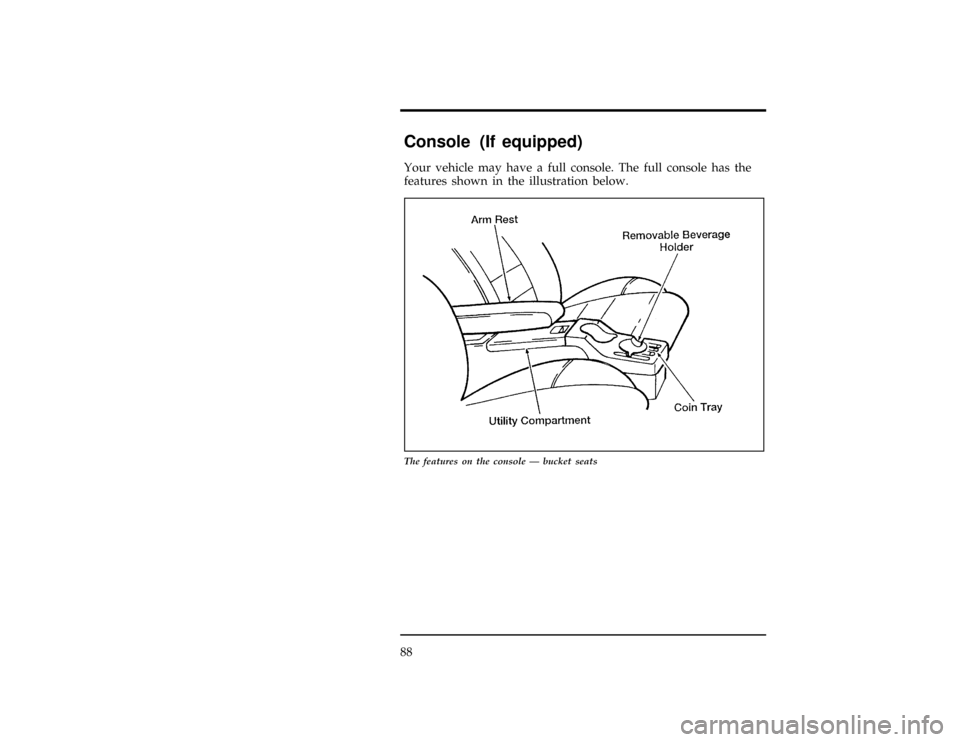

Storage armrest Ð 60/40 split bench
[CF66700(R)01/96]
Floor Mounted Cupholders (If equipped)
[CF66900(R)03/96]
If your vehicle has a bench seat, you may have floor mounted
cupholders. On manual transmission vehicles, the cupholders are
located on the floor on either side of the gearshift lever. On
automatic transmission vehicles, a removable consolette is
located on the floor. The consolette may be removed when the
center bench seat position is occupied.
[CF67000(R)01/96]
The inside of the cupholders can be adjusted to various heights
to accommodate different size cups. They can also be removed
to allow access and cleaning of the rubber padding at the
bottom of the cupholder.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

90
[CF67200(R)05/96]
10-1/2 pica art:0020897-E

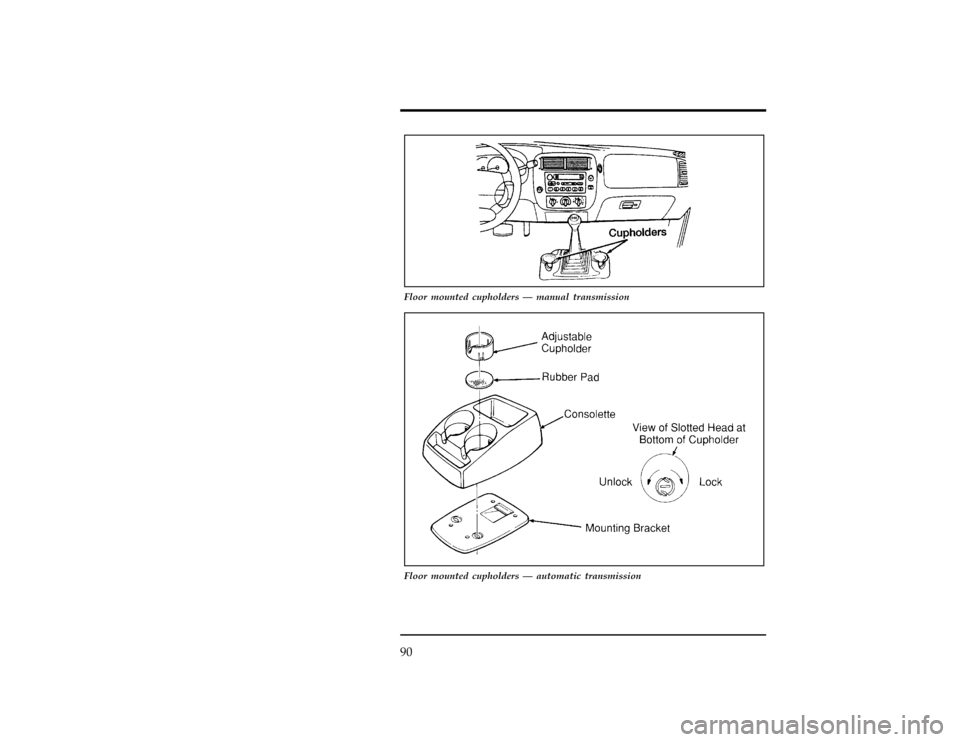

Floor mounted cupholders Ð manual transmission
[CF67300(R)01/96]
17-1/2 pica
art:0020962-B
Floor mounted cupholders Ð automatic transmission
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
91
[CF67400(R)01/96]
To remove the automatic transmission consolette:
[CF67500(R)01/96]1.
Pull the adjustable portion of each cupholder from the
consolette.
[CF67600(R)01/96]2.
Remove the rubber pad at the bottom of each cupholder.
[CF67700(R)01/96]3.
Using a quarter, turn the slotted head at the bottom of each
cupholder 90Ê (one quarter turn).
[CF67800(R)01/96]4.
Lift the consolette from the floor and secure it in a safe
place.
[CF67900(R)05/96]
Power Point Electrical Outlets
[CF67910(R)05/96]
The two power point outlets should be used in place of the
cigarette lighter for optional electrical accessories.
[CF67912(R)06/96]
The instrument panel power point is located to the right of the
radio.
[CF67915(R)05/96]
Vehicles equipped with the Passenger Air Bag Deactivate switch
do not come equipped with an auxiliary power point to the left
of the ashtray.
[CF67920(R)01/96]
NOTE: Do not plug optional electrical accessories into the
cigarette lighter. Use the power point.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

92
[CF67925(R)05/96]
13-1/2 pica
art:0090227-A

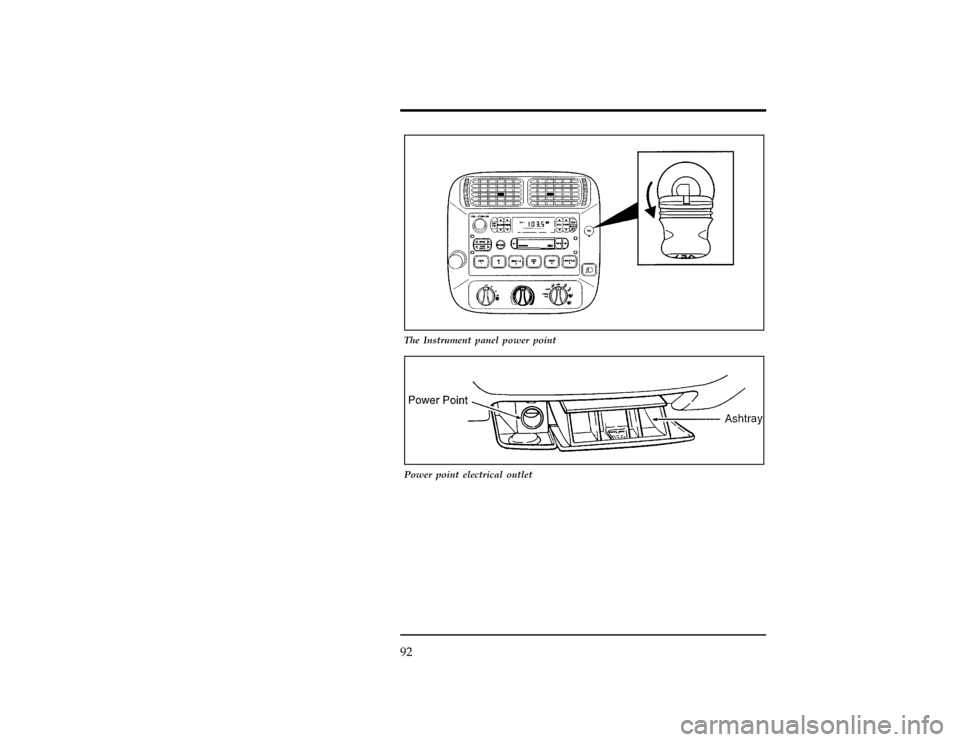

The Instrument panel power point
[CF67930(R)01/96]
7-1/2 pica art:0020260-E
Power point electrical outlet
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
93
*
[CF80000(R)05/96]
Remote Entry System (If equipped)
[CF80010(R)01/96]
If your vehicle has the remote entry system, you can lock or
unlock the vehicle doors without using a key. The remote also
has a personal alarm feature. The buttons for the system are
located on the hand held transmitter that came with your
vehicle.
[CF80016(R)01/96]
The system will work with up to four transmitters. Your vehicle
came with one transmitter. Additional transmitters can be
ordered from your dealer.
*
[CF80018(R)01/96]
The remote entry features only operate with the ignition in the
OFF position.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997
