Power distribution box
%*
[ER02700(R)01/96]
Checking and Replacing Fuses
*
[ER02720(R)01/96]
If you need to check a fuse, follow these steps:
[ER02730(R)01/96]1.
Find the fuse panel, which is located in the left end of the
instrument panel. The power distribution box (described
earlier in this section) is found in the engine compartment,
mounted on a bracket attached to the left fender apron.
[ER02740(R)01/96]
To access the fuse panel, remove the fuse panel cover by
inserting your finger in the divot and pulling on the cover.
The underside of the cover contains four spare fuses. A fuse
pulling tool is located in the lower right corner of the fuse
panel in case you need to replace a blown fuse.
*
[ER02750(R)01/96]
The spare fuses for your vehicle are color coded as follows:
10 amp Ð red, 15 amp Ð light blue, 20 amp Ð natural, 30
amp Ð light green.
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

RoadsideEmergencies
225
*
WARNING
Alway sreplac eafusewit hon etha tha sth especified

226
[ER03000(R)05/96]
33-1/2 pica
art:0021116-C
Relays and their locations on high-content vehicles
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

RoadsideEmergencies
227
WARNING
To avoi dinjury ,neve rru n theengin ewit hon ewhee loff

228
WARNING
If yo uus eth etemporar yspar etir econtinuousl yor do
WARNING
To avoi dinjury ,neve rru n theengin ewit hon ewhee loff

Roadside Emergencies
229
*
[ER05000(R)02/96]
n
drive through an automatic car wash with this tire. Because
the temporary spare tire is smaller than a conventional tire,
it reduces the ground clearance. Your vehicle may get caught
in the rails and it could be damaged.
%*
[ER05100(R)02/96]
Spare Tire Location
[ER05250(R)04/96]
The spare tire for your vehicle is stowed at the rear under the
frame.
[ER13850(R)01/96]
24 pica art:0020284-C
Spare tire stowage
File:10unerr.ex
Update:Thu Mar 20 08:56:46 1997

230
WARNING
Makesur eth espar etir ean djackin gequipmen tare

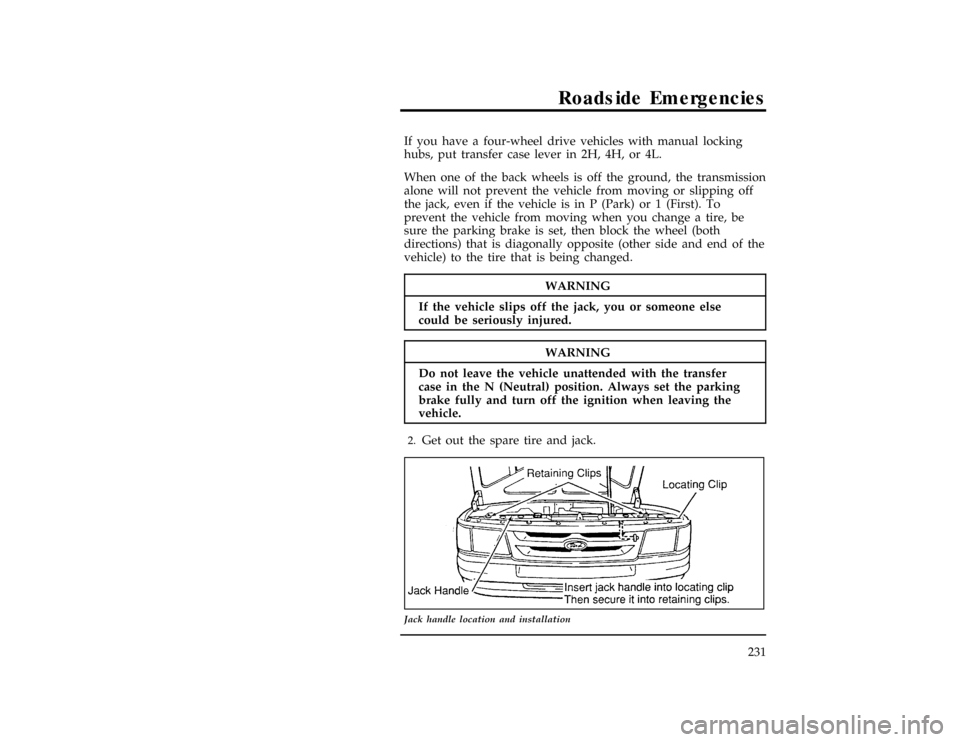

RoadsideEmergencies
231
WARNING
If th evehicl eslip sof fth ejack ,yo uor someon eelse
WARNING
Do no tleav eth evehicl eunattende dwit hthetransfer
File:10unerr.ex
