1997 FORD RANGER Owners Manual

176
[GF16190(R)05/96]
Four-wheel drive operation (4x4 HIGH or 4x4 LOW) on dry
pavement is not recommended. Operating the vehicle in
four-wheel drive on dry pavement will increase noise, vibration,
tire wear, decrease fuel economy, and make four-wheel drive
disengagement difficult for the transfer case.
[GF16200(R)05/96]
Electric shift system indicator lights
[GF16210(R)05/96]
A 4WD indicator light and a 4WD LOW indicator light are
located in the instrument cluster. If either light flashes, take
your vehicle in for service.
[GF16220(R)05/96]
n
Two-Wheel Drive mode Ð Neither the 4WD nor the 4WD
LOW lights are lit.
[GF16230(R)05/96]
n
4WD High Ð Only the 4WD light is lit.
[GF16240(R)05/96]
n
4WD LOW mode Ð Both the 4WD and 4WD LOW lights
are lit.
[GF16250(R)05/96]
To shift from Two-Wheel Drive to 4WD High:
[GF16260(R)05/96]
To shift into 4WD High rotate the 4WD switch located on the
instrument panel to 4x4 High. This shift can be done at a stop
or at speeds up to 55 miles per hour (88 km/h). When the
vehicle is driven, the automatic locking hubs will engage. If the
vehicle is stopped while in 4WD and the vehicle direction is
reversed from the previous direction, the automatic locking hubs
will momentarily disengage and re-engage. The automatic
locking hubs may click as they automatically engage in the new
direction.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
177
[GF16270(R)05/96]
10-1/2 pica
art:0020628-D

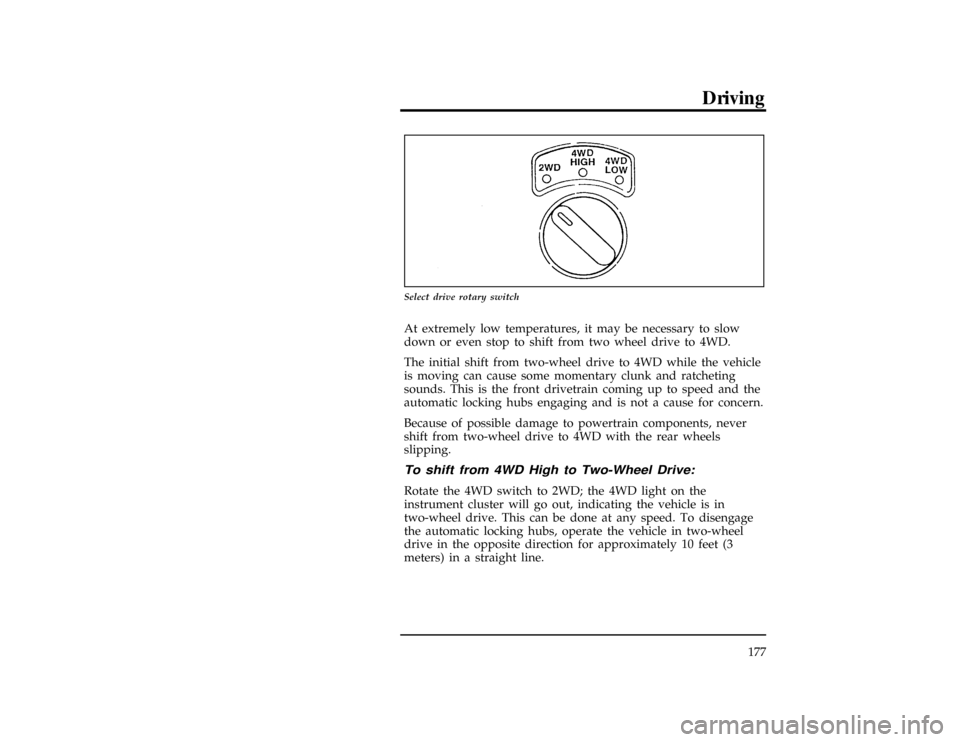

Select drive rotary switch
[GF16280(R)05/96]
At extremely low temperatures, it may be necessary to slow
down or even stop to shift from two wheel drive to 4WD.
[GF16290(R)05/96]
The initial shift from two-wheel drive to 4WD while the vehicle
is moving can cause some momentary clunk and ratcheting
sounds. This is the front drivetrain coming up to speed and the
automatic locking hubs engaging and is not a cause for concern.
[GF16300(R)05/96]
Because of possible damage to powertrain components, never
shift from two-wheel drive to 4WD with the rear wheels
slipping.
[GF16310(R)05/96]
To shift from 4WD High to Two-Wheel Drive:
[GF16320(R)05/96]
Rotate the 4WD switch to 2WD; the 4WD light on the
instrument cluster will go out, indicating the vehicle is in
two-wheel drive. This can be done at any speed. To disengage
the automatic locking hubs, operate the vehicle in two-wheel
drive in the opposite direction for approximately 10 feet (3
meters) in a straight line.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

178
*
[GF16330(R)05/96]
For example:
[GF16340(R)05/96]
If you were driving the vehicle forward in 4WD, the
automatic locking hubs will disengage the next time the
vehicle is driven in reverse in two-wheel drive for
approximately 10 feet (3 meters) in a straight line.
[GF16350(R)05/96]
If you were driving the vehicle in reverse in 4WD, the
automatic locking hubs will disengage the next time the
vehicle is driven forward in two-wheel drive for
approximately 10 feet (3 meters) in a straight line.
*
[GF16360(R)05/96]
Operating in two-wheel drive mode with the hubs locked
increases fuel consumption, noise, vibration, and wear. For
prolonged two-wheel drive operation on dry pavement,
disengagement of the automatic locking hubs, which is not
required for two-wheel drive operation, stops all movement of
front-wheel drive components while operating in two-wheel
drive.
[GF16370(R)05/96]
During axle break-in or operation in extremely cold
temperatures, the automatic locking hubs may not release
completely. It may be necessary to drive the vehicle for 10 to 15
minutes before repeating the release procedure.
[GF16380(R)05/96]
To shift from 4x4 HIGH or 2WD to 4x4 LOW:
[GF16390(R)05/96]
Stop the vehicle, depress the brake and place the automatic
transmission in N (Neutral) or depress the clutch on vehicles
with a manual transmission. Rotate the 4WD switch on the
instrument panel to 4x4 LOW. Both the 4WD and 4WD LOW
lights are now lit.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
179
[GF16400(R)05/96]
To shift from 4x4 LOW to 4x4 HIGH or 2WD:
[GF16410(R)05/96]
Stop the vehicle, depress the brake and place the automatic
transmission into N (Neutral) or depress the clutch on vehicles
with a manual transmission. Rotate the 4WD switch on the
instrument panel to 4x4 HIGH or 2WD.
[GF16420(R)05/96]
It is not recommended to operate the vehicle in the 4WD modes
with a temporary spare. If 4WD operation is necessary, do not
operate at speeds above 10 mph or for distances above 50 miles.
Extended operation in 4WD with a temporary spare may result
in damage to drivetrain components.
%*
[GF17000(R)05/96]
4x4 Systems Ð Lever Operated
*
[GF17010(R)05/96]
The lever operated transfer case can be placed into four
positions. The 2H position is the two-wheel drive position in
which power is delivered only to the rear axle. The 4H position
provides four-wheel drive with power delivered to the front
and rear axles for increased traction. The 4L position provides
four-wheel drive with power delivered to the front and rear
axles when the above average power is required at reduced
speeds. In the N (neutral) position, there is no power delivered
to either axle.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

180
[GF17020(R)05/96]
24 pica art:0090170-A

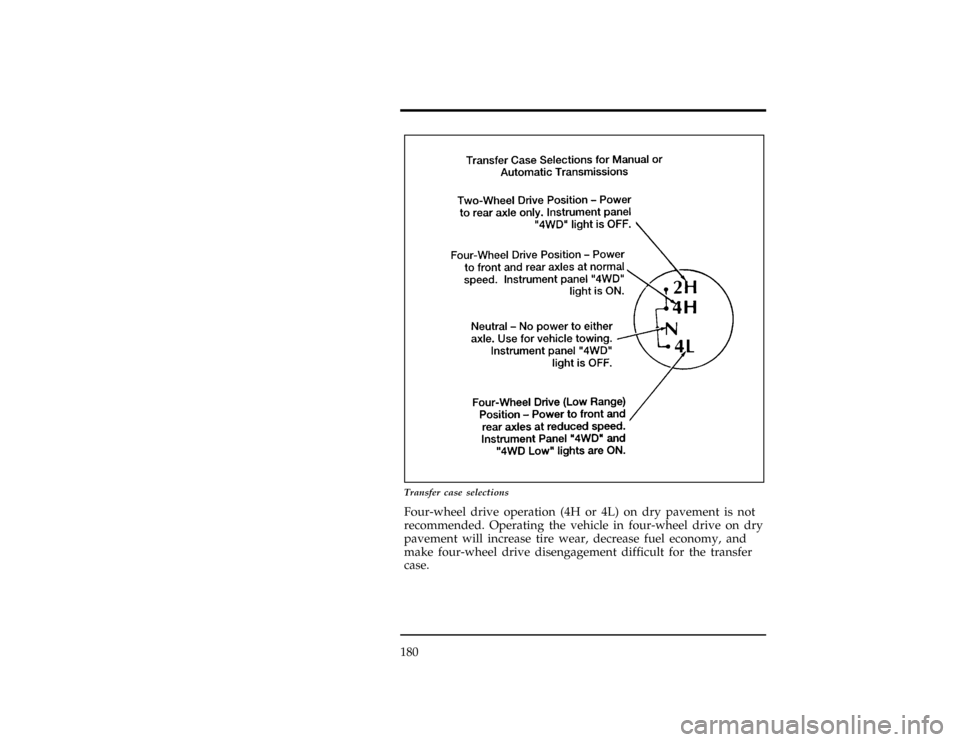

Transfer case selections
*
[GF17030(R)05/96]
Four-wheel drive operation (4H or 4L) on dry pavement is not
recommended. Operating the vehicle in four-wheel drive on dry
pavement will increase tire wear, decrease fuel economy, and
make four-wheel drive disengagement difficult for the transfer
case.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
181
[GF17040(R)05/96]
4WD system indicator lights
[GF17050(R)05/96]
A 4WD light and a 4WD LOW light are located in the
instrument cluster.
[GF17060(R)05/96]
n
2H position Ð Neither the 4WD or the 4WD LOW lights are
lit.
[GF17070(R)05/96]
n
4H position Ð Only the 4WD light is lit.
[GF17080(R)05/96]
n
N position Ð Neither the 4WD or 4WD LOW lights are lit.
[GF17090(R)05/96]
n
4L position Ð Both the 4WD and the 4WD LOW lights are
lit.
*
[GF17100(R)05/96]
To shift from 2H to 4H:
*
[GF17110(R)05/96]
Stop the vehicle and engage the manual locking hubs by
turning both hub lock selector knobs clockwise to the LOCK
position. Move the transfer case shift lever straight back to the
4H position. After both hubs have been turned to the LOCK
position, shifts between 2H and 4H (or 4H to 2H) may take
place at any speed.
[GF17120(R)05/96]
10-1/2 pica
art:0021182-A

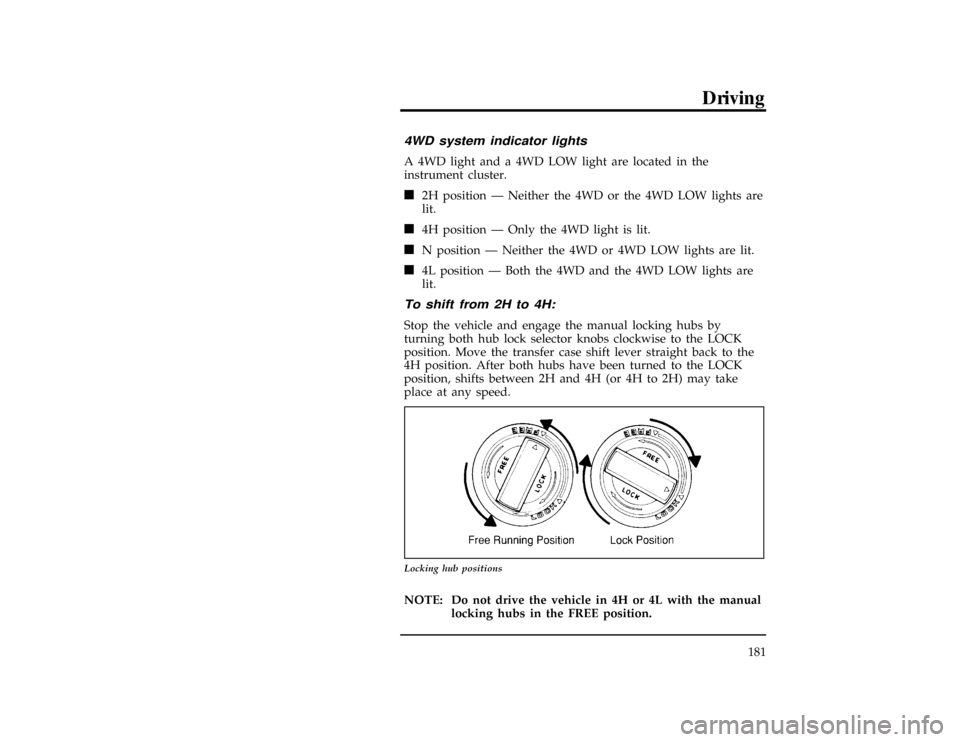

Locking hub positions
[GF17130(R)05/96]
NOTE: Do not drive the vehicle in 4H or 4L with the manual
locking hubs in the FREE position.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

182
[GF17140(R)05/96]
NOTE: Do not drive the vehicle with the left and right
manual locking hubs set to different positions.
*
[GF17150(R)05/96]
To shift from 4H to 2H:
*
[GF17160(R)05/96]
Move the transfer case shift lever forward to the 2H position.
This can be done at any speed. However, the front driveline
will remain engaged to the front wheels until the manual
locking hubs are disengaged. To disengage the manual locking
hubs, stop the vehicle and rotate both hub lock selector knobs
counterclockwise to the FREE position.
*
[GF17170(R)05/96]
Operating in 2H with the hubs in the LOCK position increases
fuel consumption, noise, vibration, and wear. For prolonged 2H
operation on dry pavement, set the manual locking hubs to the
FREE position.
*
[GF17180(R)05/96]
To shift between 4H and 4L:
[GF17190(R)05/96]
Stop the vehicle and place the automatic transmission into N
(Neutral) or depress the clutch on vehicles with a manual
transmission. Pull the transfer case shift lever to the left and
shift the transfer case to the desired 4H or 4L position. This
shift should be with one continuous motion without pausing in
the N position. Pausing in the neutral position can result in gear
clash and difficult shifting. If while shifting between 4H and 4L,
the transfer case gets stuck in the N position or is difficult to
shift into either 4H or 4L, it may be necessary to let the vehicle
roll slightly and/or turn off the engine (particularly on vehicles
equipped with automatic transmissions).
[GF17200(R)05/96]
To shift between N (Neutral) and either 4H or 4L
[GF17210(R)05/96]
To shift into N (Neutral), stop the vehicle and engage the
parking brake. Place the automatic transmission into N (Neutral)
or depress the clutch on manual transmission vehicles. From
either the 4H or 4L position, pull the transfer case shift lever to
the left and move the transfer case shift lever to the N (Neutral)
position. The N (Neutral) position should only be used for
vehicle towing.
File:09ungfr.ex
Update:Thu Mar 20 08:55:24 1997

Driving
183
