1997 CADILLAC ELDORADO Owners Manual

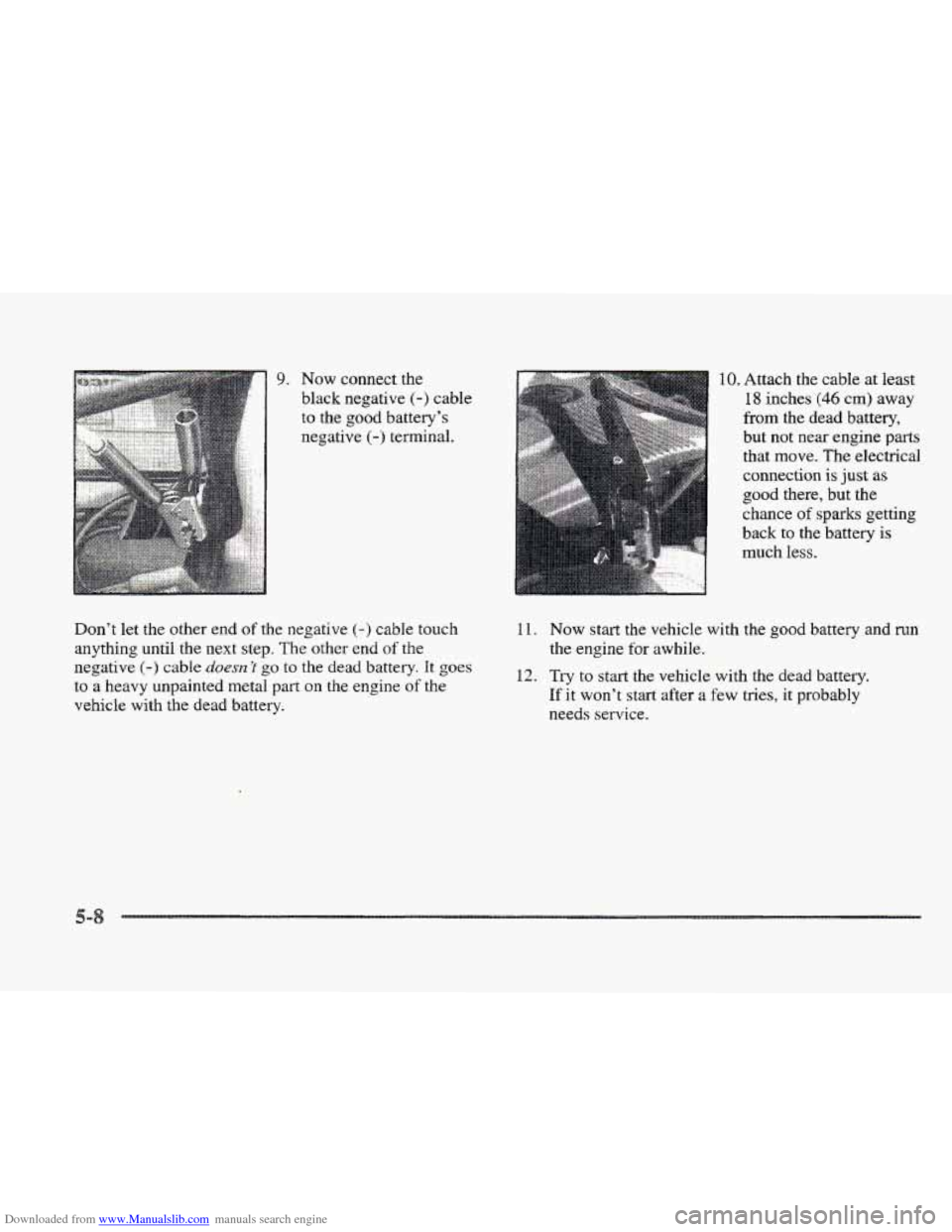

Downloaded from www.Manualslib.com manuals search engine 9. Now connect the
black negative
(-) cable
to the good battery’s
negative
(-) terminal.
Don’t let the other end
of the negative (-) cable touch
anything until the
next step. The other end of the
negative
(-) cable duesn ‘t go to the dead battery. It goes
to a heavy unpainted metal part on the engine of the
vehicle with
the dead battery.
10. Attach the cable at least
18 inches (46 crn) away
from the dead battery,
but not near engine
parts
that move. The electrical
connection
is just as
chance
of sparks getting
back to the battery is
much less.
b oood there, but the
11. Now start the vehicle with the good battery and run
the engine for awhile.
12. Try to start the vehicle with the dead battery.
If it won’t start after a few tries, it probably
needs service.

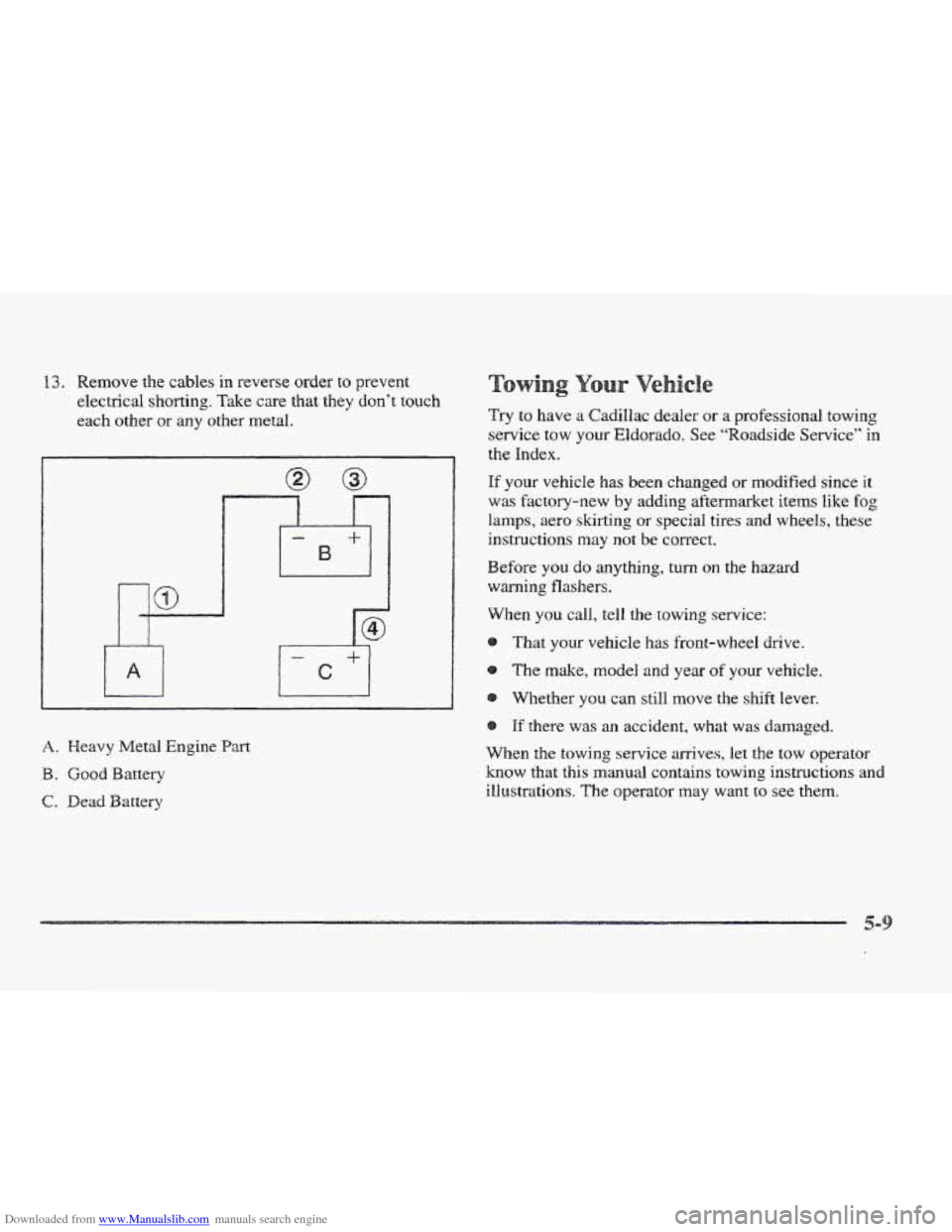

Downloaded from www.Manualslib.com manuals search engine 13. Remove the cables in reverse order to prevent
electrical
shorting. Take care that they don’t touch
each other or any other metal.
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
Try to have a Cadillac dealer or a professional towing
service tow
your Eldorado. See “Roadside Service” in
the Index.
If your vehicle has been changed or modified since it
was Factory-new by adding aftermarket items like fog
lamps, aero skirting or special tires and wheels, these
instructions
may not be correct.
Before
you do anything, turn on the hazard
warning flashers.
When you call, tell the towing service:
That
your vehicle has front-wheel drive.
The make, model and year of your vehicle.
Whethef you can still move the shift lever.
If there was an accident, what was damaged.
When the towhg service arrives, let the tow operator
know that this manual contains towing instructions and
illustrations. The operator may
want to see them.

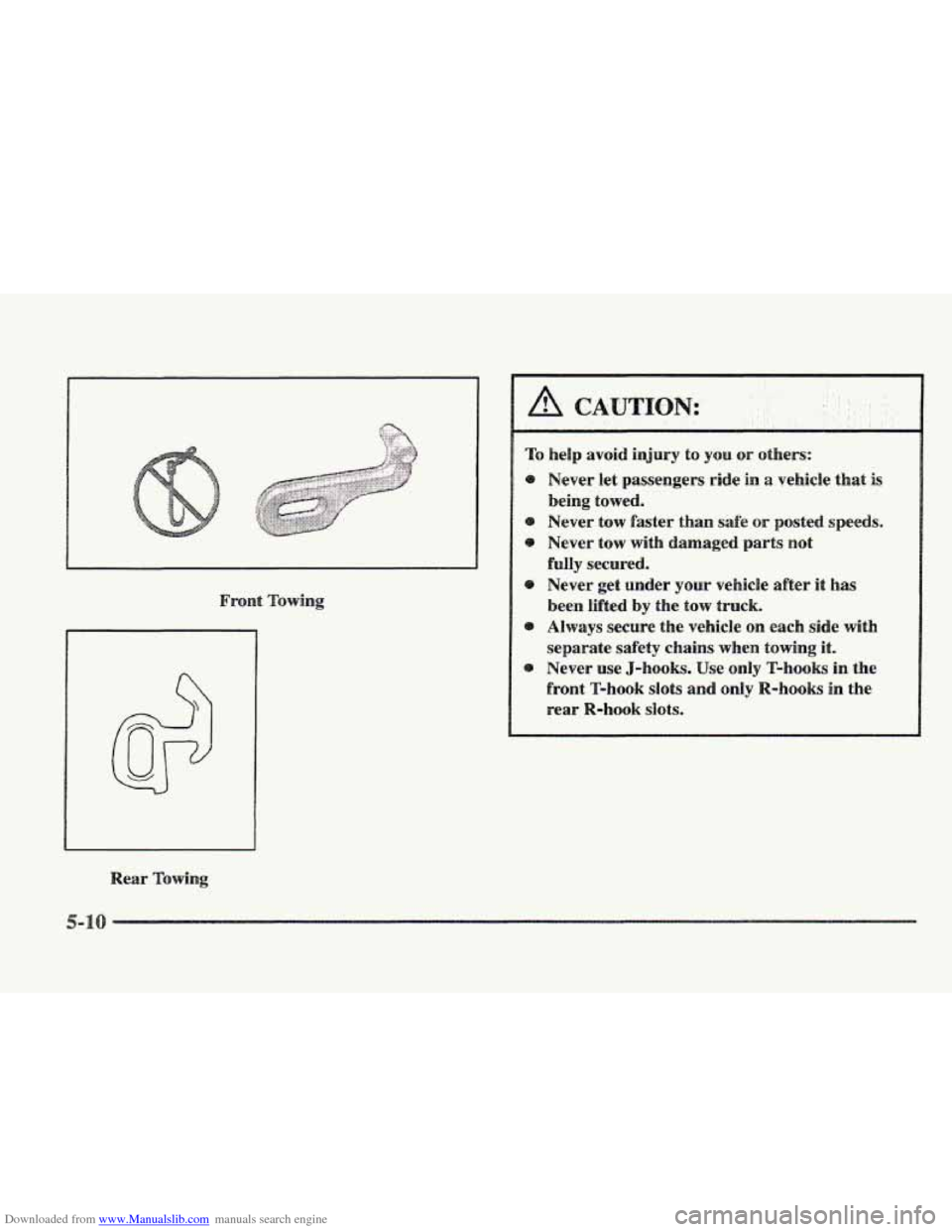

Downloaded from www.Manualslib.com manuals search engine Rear Towing
To help avoid injury to you or others:
Never
let passengers ride in a vehicle that is
being towed.
Never
tow faster than safe or posted speeds.
Never tow with damaged parts not
fully secured.
Never get under your vehicle after it has
been lifted
by the tow truck.
Always secure the vehicle
on each side with
separate safety chains when towing it.
Never use J-hooks. Use only T-hooks in the
front
T-hook slots and only R-hooks in the
rear R-hook slots.

Downloaded from www.Manualslib.com manuals search engine ..
CA,U
.. .. . ,

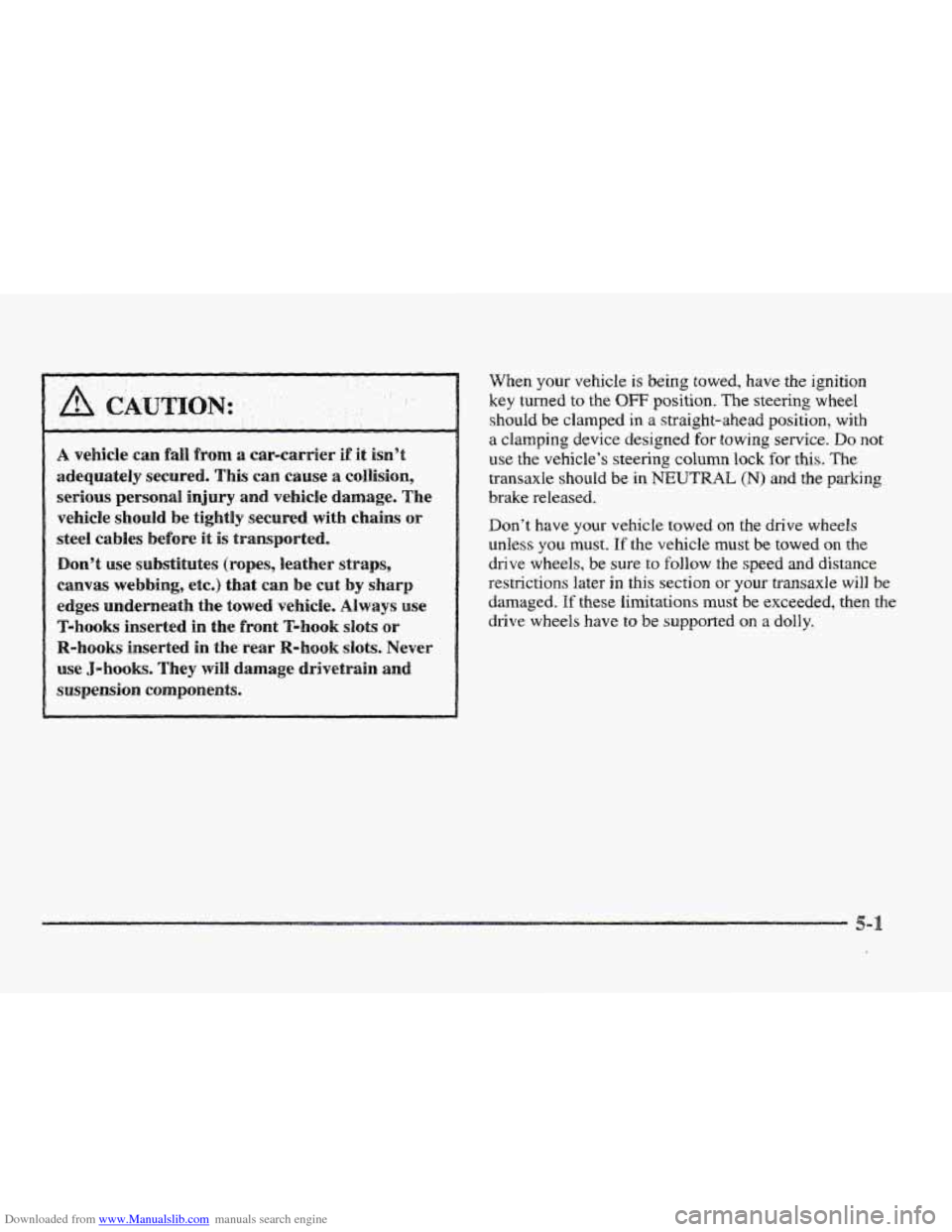

A vehicle ran fall from a car-carrier if it isn’t
adequately secured. This can cause a ccollisiora,
serious
personal injury and vehicle damage. The
vehicle should
be tightly secured with chains or
steel cabIes before it is transported.
Donst
use substitutes (ropes, leather straps,
canvas webbing, etc.) that can be cut by sharp
edges underneath the towed vehicle. Always use
2’-hooks inserted in the front T-h~ok slots or
Ha-hooks inserted in the rear R-hook slots. Never
use J-lho~ks~
They will damage drivetrain and
suspension components.
When your vehicle is being towed, have the ignition
key turned
to the OFF position. The steering wheel
should be clamped in a straight-ahead position, with
a clamping device designed for towing service. Do not
use the vehicle’s steering column lock for this. The
transaxle should be
in NEUTRAL (N) and the parking
brake released.
Don’t have your vehicle towed on the drive wheels
unless you must. If the vehicle must be towed on the
drive wheels,
be sure to follow the speed and distance
restrictions later
in this section or your transaxle will be
damaged. If these limitations must be exceeded, then the
drive wheels
have to be supported on a dolly.

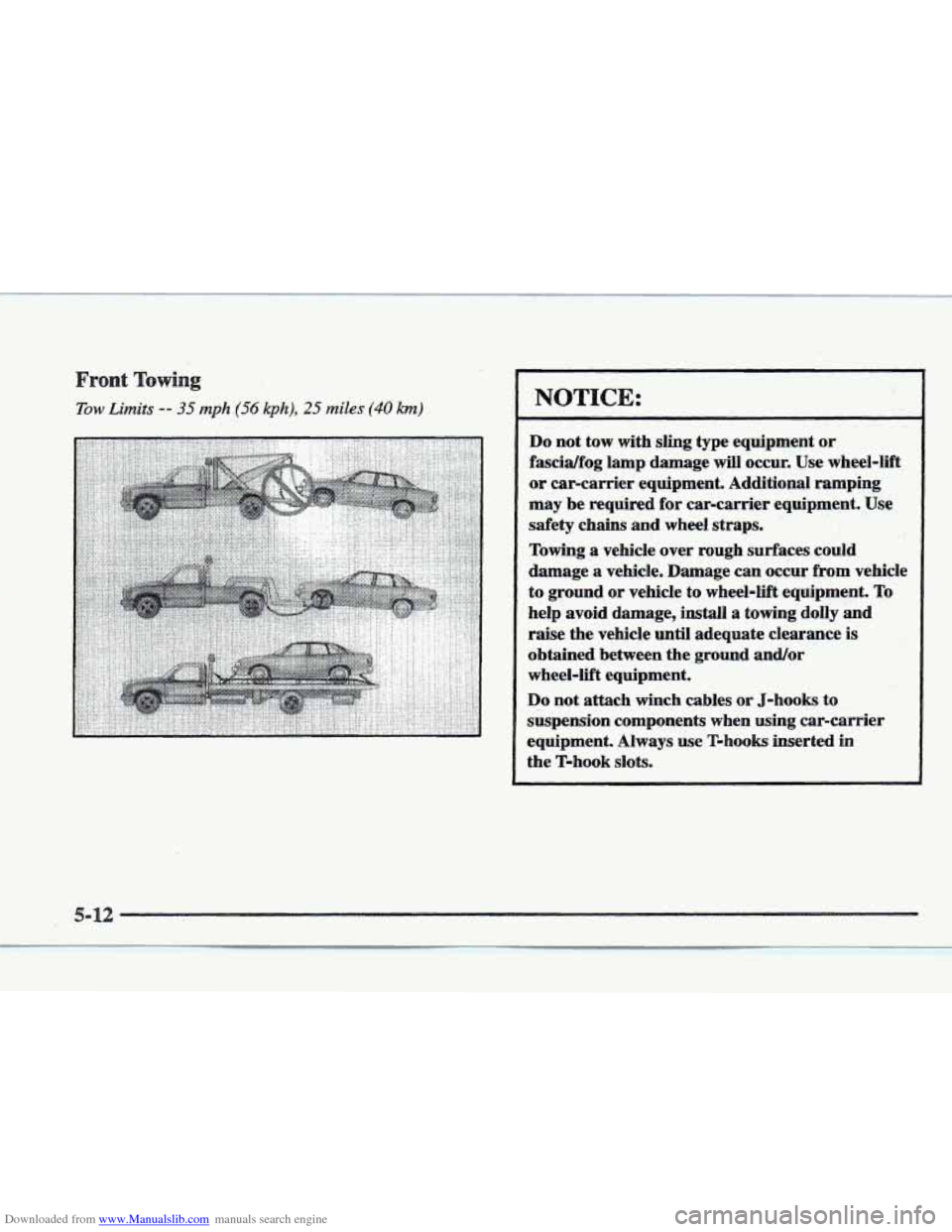

Downloaded from www.Manualslib.com manuals search engine FrOne TQ
Tow Limits -- 35 mph .(56 kph), 25 miles (40 km) NOTICE:
Do not tow with sling type equipment or
fascidfog lamp damage will occur. Use wheel-lift
or car-carrier equipment. Additional ramping
may
be required for car-carrier equipment. Use
safety chains and wheel straps.
Towing a vehicle over rough surfaces could
damage a vehicle. Damage can occur from vehicle
to ground or vehicle to wheel-lift equipment. To
help avoid damage, install a towing dolly and
raise the vehicle until adequate clearance is
obtained between the ground and/or
wheel-lift equipment.
Do not attach winch cables or J-hooks to
suspension components when using car-carrier
equipment. Always use T-hooks inserted
in
the T-kook slots.

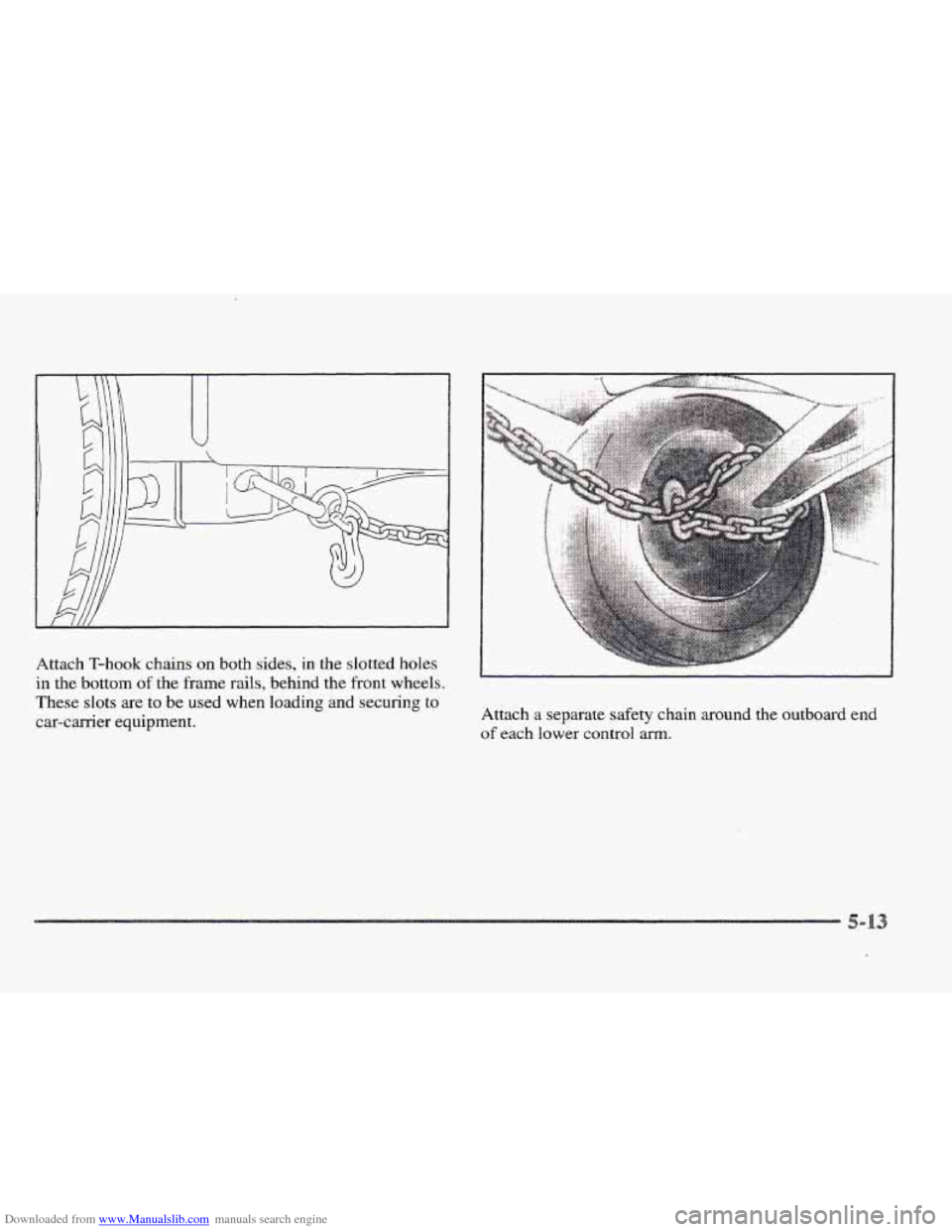

Downloaded from www.Manualslib.com manuals search engine Attach T-hook chains on both sides, in the slotted holes
in the bottom of the frame rails, behind the front wheels.
These slots are
to be used when loading and securing to
car-carrier equipment. Attach a separate safety chain around the outboard end
of each bwer control arm.

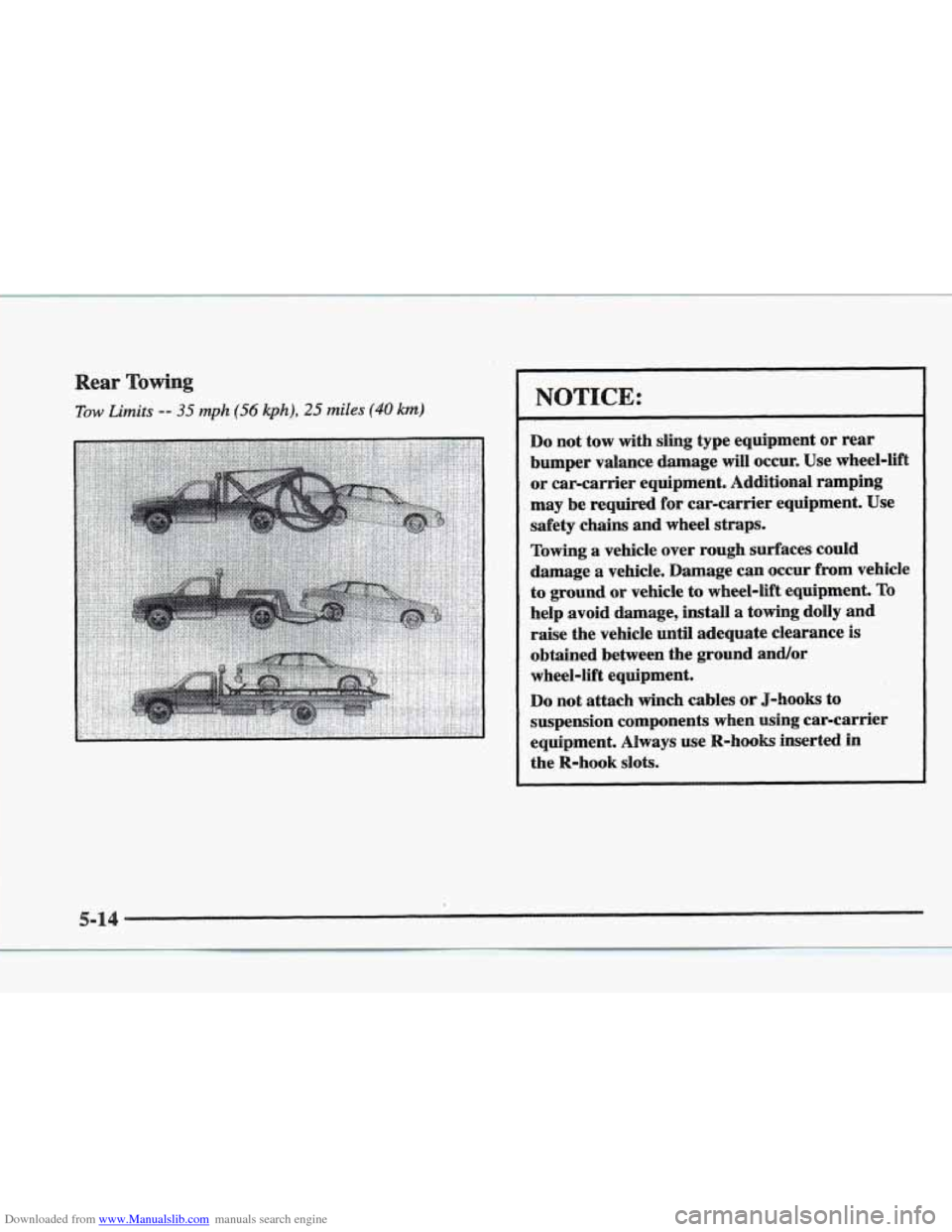

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Do not tow with sling type equipment or rear
bumper valance damage will occur. Use wheel-lift
or car-carrier equipment. Additional
ramping
~ may be required for car-carrier equipment. Use
safety chains and wheel straps.
Towing
a vehicle over rough surfaces could
damage a vehicle. Damage can occur
from vehicle
to ground
or vehicle to wheel-lift equipment. To
help avoid damage, install
a towing dolly and
raise the vehicle until adequate clearance is
obtained between the
ground and/or
wheel-lift equipment.
..ti P J y..;
Do not attach winch cables or J-hooks to
suspension components when using car-carrier
equipment. Always use
W-hooks inserted in
the R-hook slots.
j
~

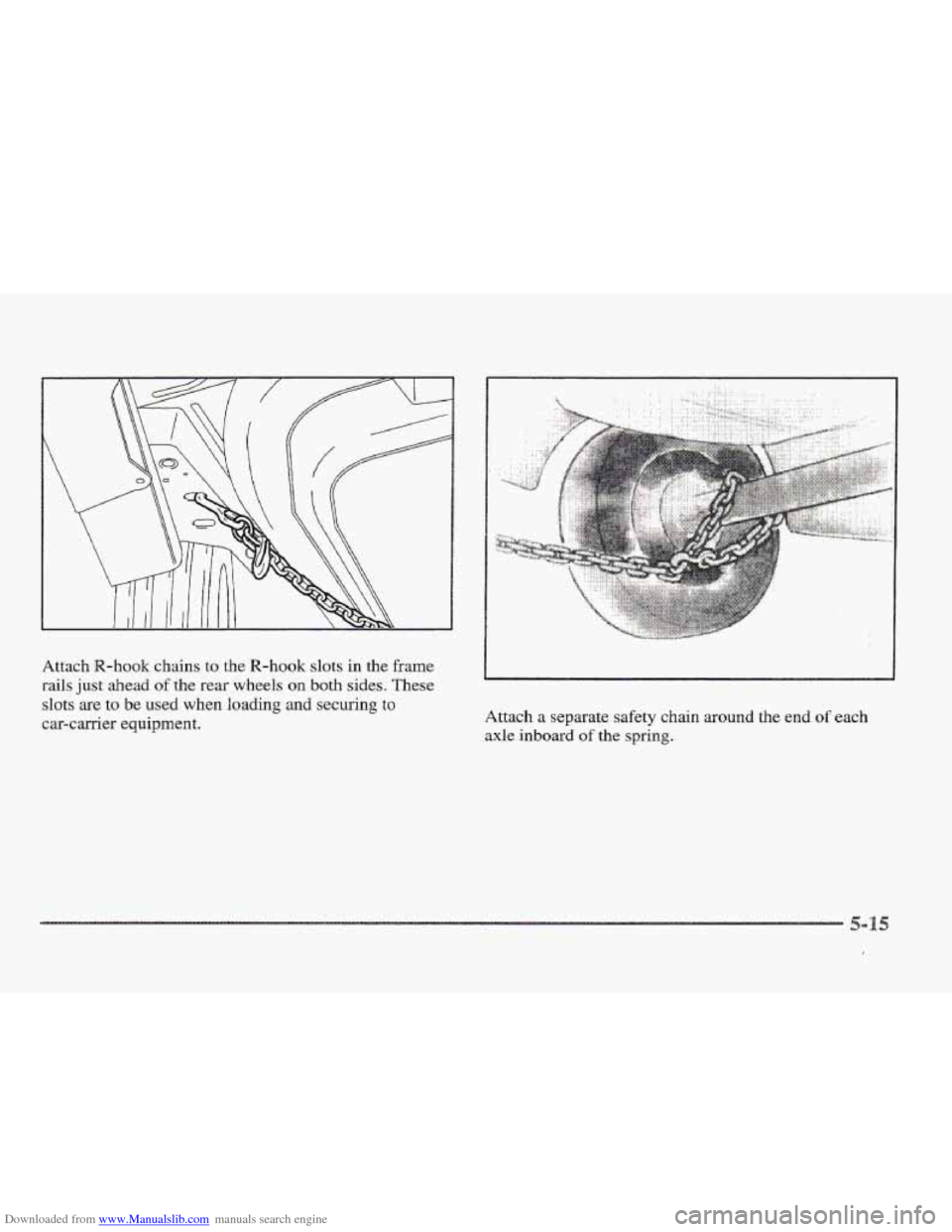

Downloaded from www.Manualslib.com manuals search engine Attach R-hook chains to the R-hook slots in the frame
rails just ahead of the rear wheels on both sides. These
slots are to be used when loading and securing to
car-carrier equipment. Attach a separate safety chain around the end of each
axle inboard of the spring.
