1997 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine e s

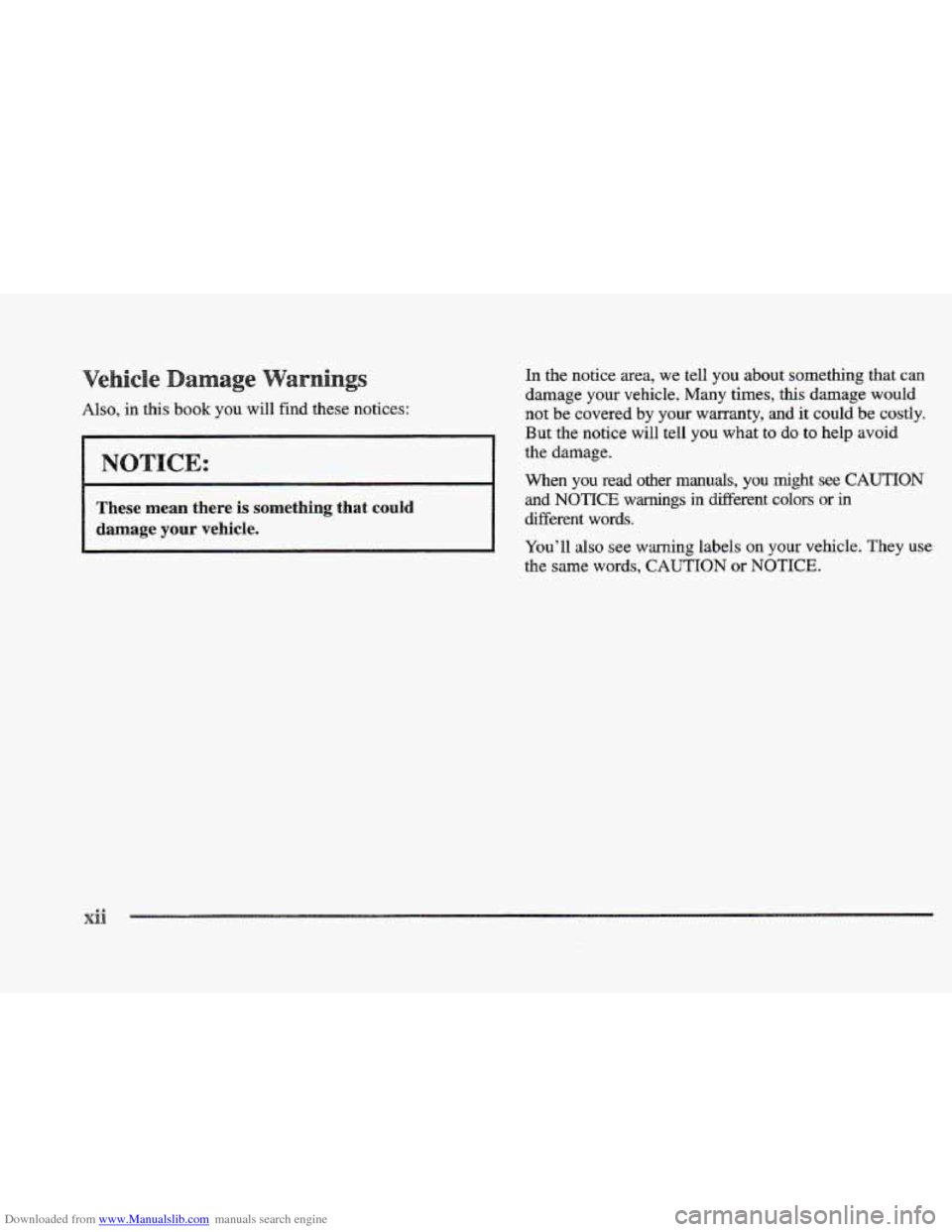

Also, in this book you will find these notices:
These mean there is something that could
damage your vehicle.
xii
In the notice area, we tell you about something that can
damage your vehicle. Many times, this damage would
not be covered by your warranty, and it could be costly.
But the notice will tell you what to do to help avoid
the damage.
When
you read other manuals, you might see CAUTION
and NOTICE warnings in different colors or in
different words.
You’ll also see warning labels on your vehicle. They use
the same words, CAUTION or NOTICE.

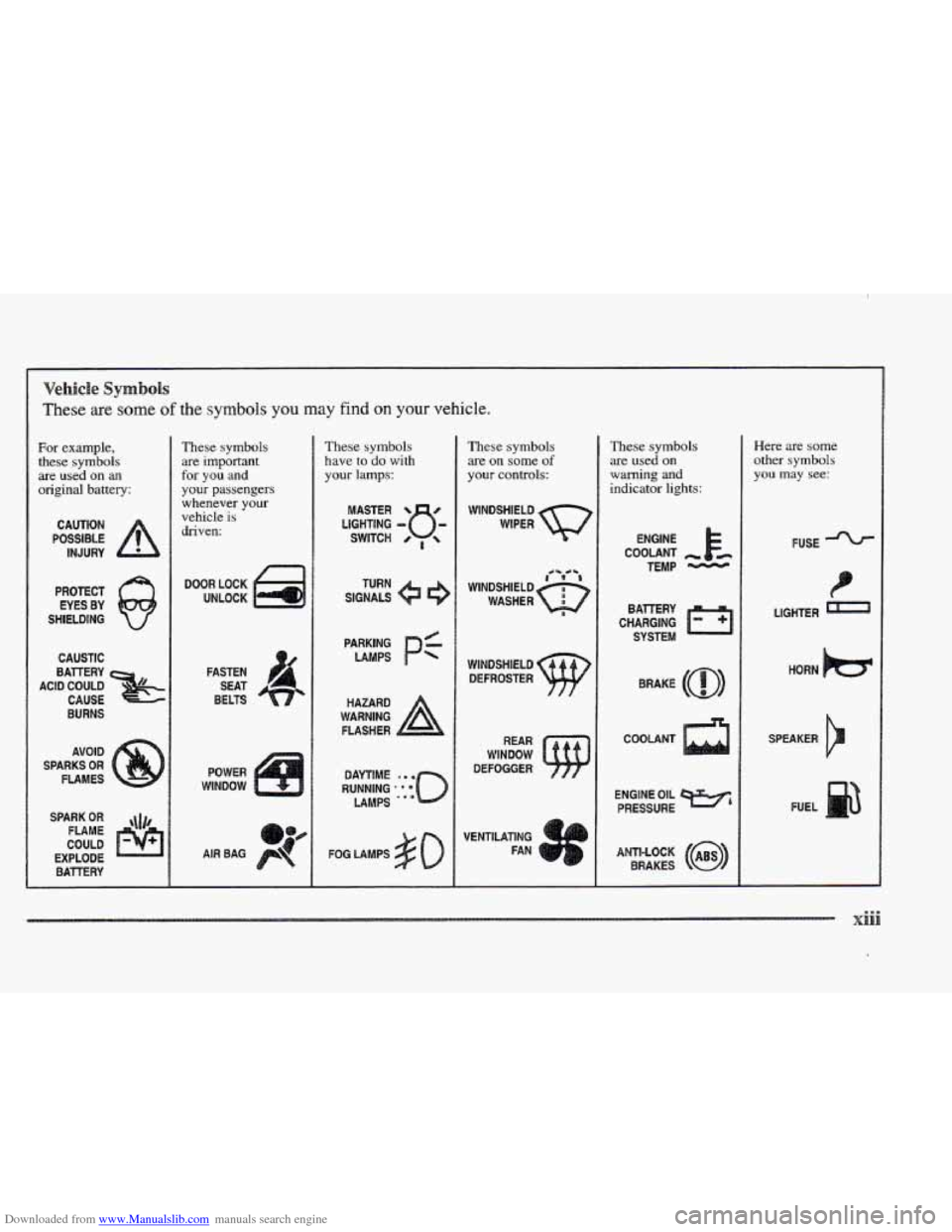

Downloaded from www.Manualslib.com manuals search engine Vehicle Symbo1s
These are some of the symbols you may find on your vehicle.
For example,
these symbols are used on
an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
BAllERY
ACID COULD CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK
OR
FLAME
COULD
EXPLODE BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
POWER
WINDOW
These symbols
have to do with
your
lamps:
TURN
SIGNALS
PARKING
/
LAMPS
-
HAZARD
WARNING
FLASHER
DAYTIME . .
RUNNING * *
LAMPS .OB
FOG LAMPS
These symbols
are
on some of
your controls:
WINDSHIELD
WIPER
45 c5
WINDSHIELD
WASHER tea
WINDSHIELD DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
I
FAN W
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
-
TEMP
BAlTERY
CHARGING SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK BRAKES
a
Here are some
other symbols
you may
see:
FUSE *
LIGHTER n
HORN
SPEAKER
FUEL
xiii

Downloaded from www.Manualslib.com manuals search engine

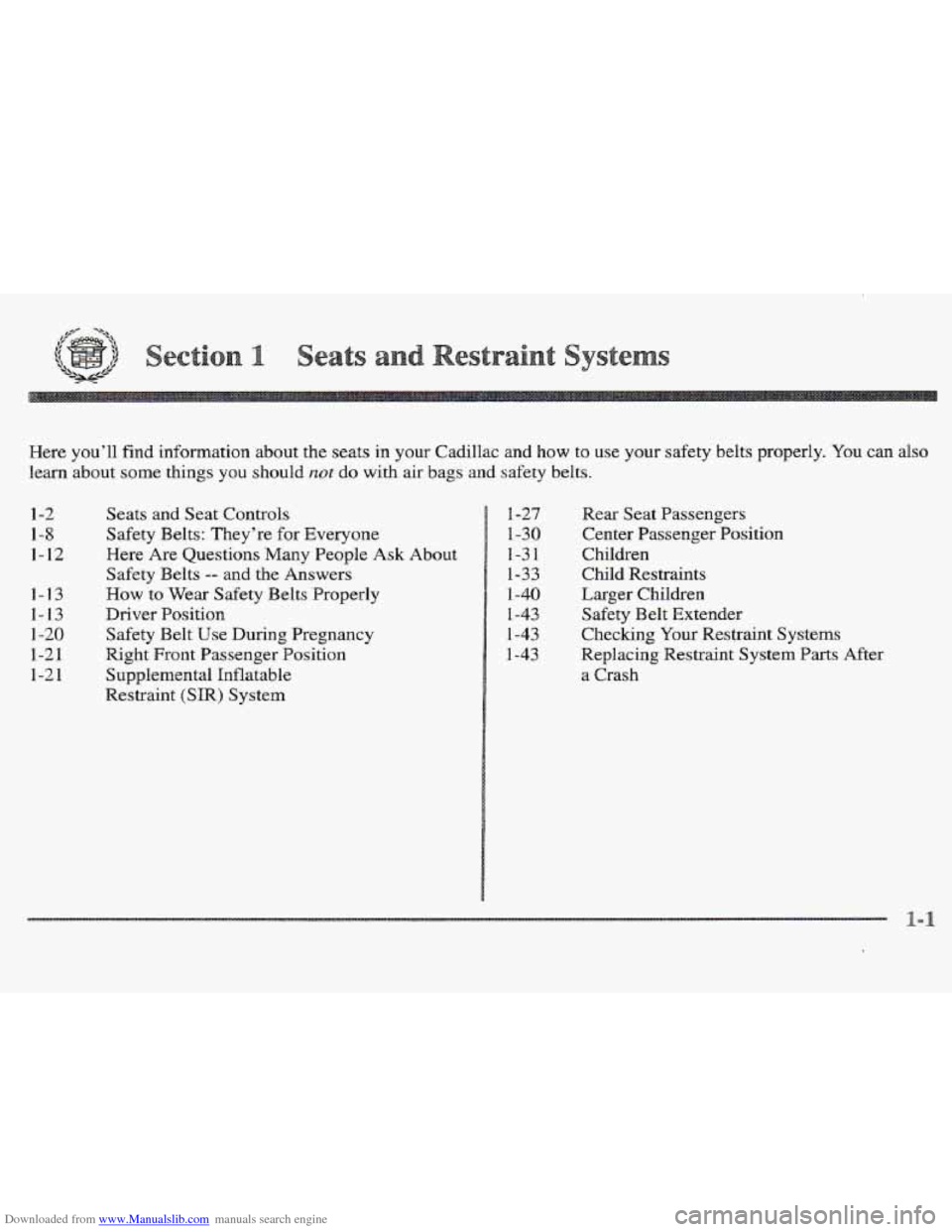

Downloaded from www.Manualslib.com manuals search engine Here you’ll find information about the seats in your Cadillac and how to use your safety belts properly. You can also
learn about some things you should 12ot do with air bags and safety belts.
1-2
1-8
1-12
1-13
1-13
1-20
1-21
1-21
Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions
Many People Ask About
Safety Belts
-- and the Answers
HOW to Wear Safety Belts Properly
Driver Position Safety Belt
Use During Pregnancy
Right Front Passenger Position Supplemental Inflatable
Restraint
(SN) System
1-27
1 -30
1-3 1
1-33
1-40
1-43
1-43
1-43 Rear Seat Passengers
Center Passenger Position
Children
Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System
Parts After
a Crash

Downloaded from www.Manualslib.com manuals search engine s s

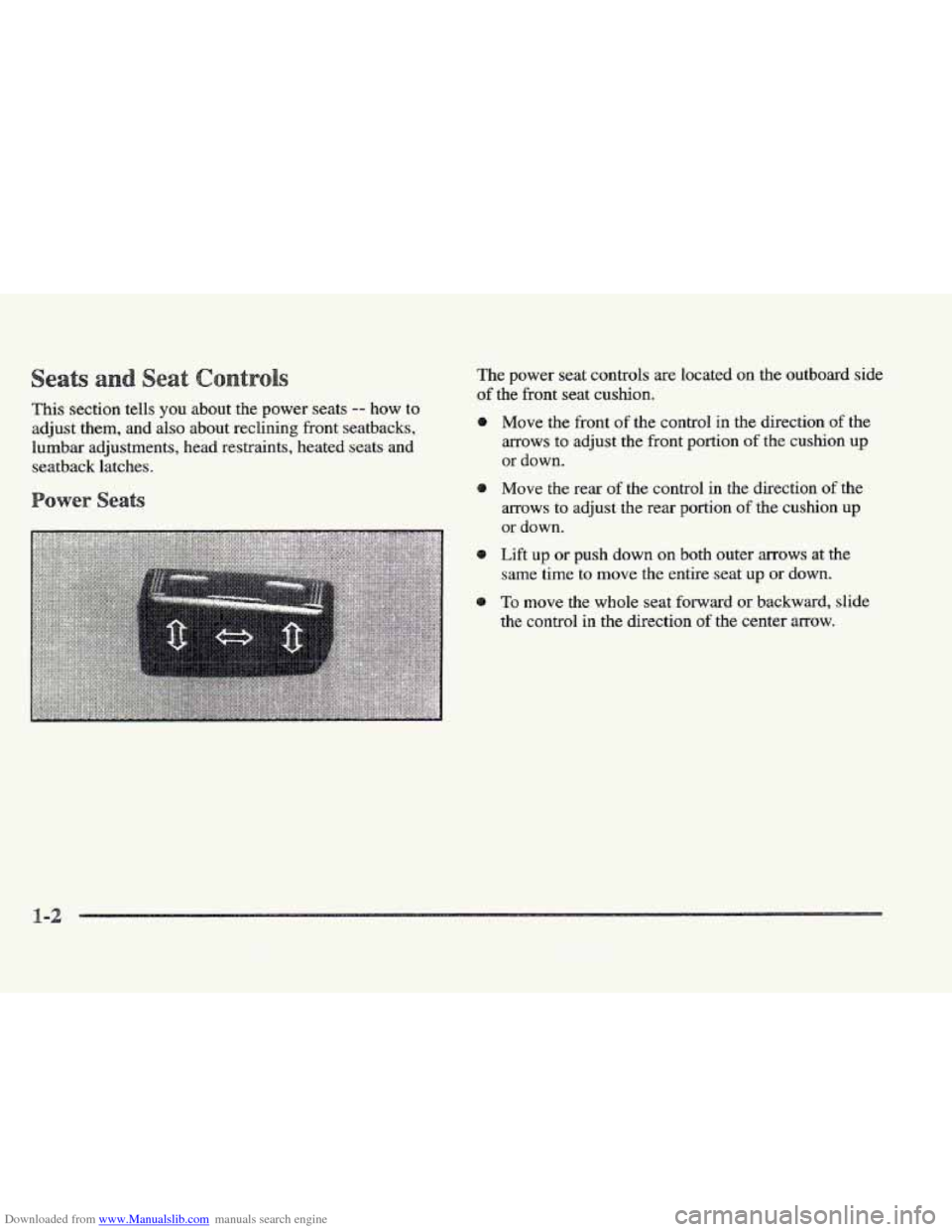

This section tells you about the power seats -- how to
adjust them, and also about reclining front seatbacks,
lumbar adjustments, head restraints, heated seats and
seatback latches. The
power seat controls are located on the outboard side
of the front seat cushion.
Q
(B
Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.
Move the rear of the control in the direction of the
arrows to adjust the rear portion
of the cushion up
or down.
Lift
up or push down on both outer arrows at the
same time
to move the entire seat up or down.
To move the whole seat forward or backward, slide
the control in the direction of the center arrow.

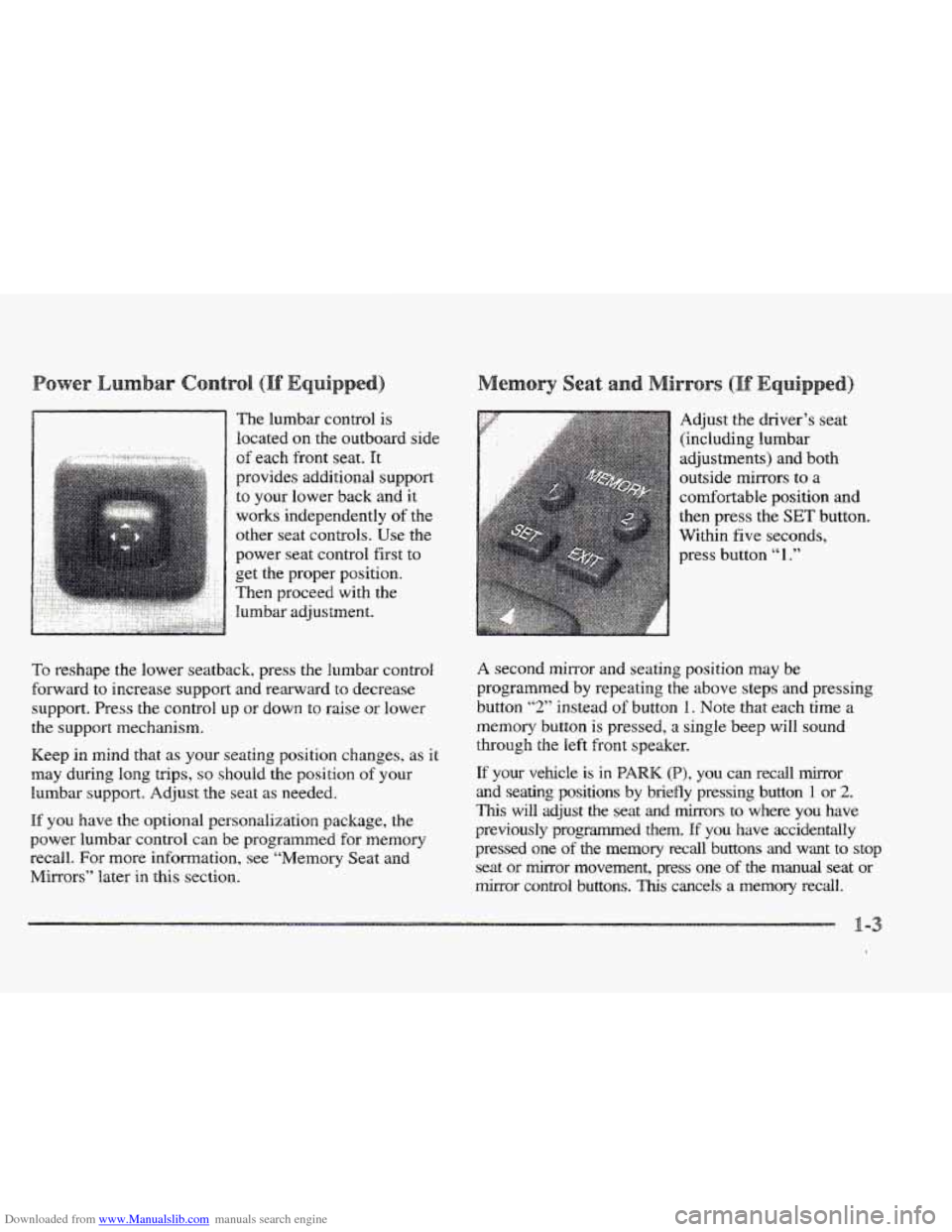

Downloaded from www.Manualslib.com manuals search engine The lumbar control is
located
on the outboard side
of each front seat. It
provides additional support
to your lower back and it
works independently of the
other seat controls.
Use the
power seat control first to
get
the proper position.
Then proceed with the Bumbar adjustment. Adjust
the driver’s seat
(including lumbar
adjustments) and both
outside mirrors to a
comfortable position
and
then press the SET button.
Within
five seconds,
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward
to decrease
support. Press the control
up or down to raise or lower
the support mechanism.
Keep in mind that as pur seating position changes,
as it
may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
If you have the optional personalization package, the
power lumbar control can be programmed for memory
recall.
FQ~ more information, see “Memory Seat and
Mirrors” later
in this section.
A second mirror and seating position may be
programmed by repeating
the above steps and pressing
button
“2,’ instead of button 1. Note that each time a
memory button is pressed, a single beep will sound
through the left front speaker.
If your vehcle is in PARK (B), you can redl &or
and seatirag positions by briefly pressing button 1 or 2.
This will adjust the seat and mirrors to where you have
previously programmed
them. If you have accidentally
pressed one
of the memory recall buttons and want to stop
seat or mirror movement, press one of the manual seat or
mirror control buttons. Th~s cancels a memory recall.

Downloaded from www.Manualslib.com manuals search engine You can also recall a seat and mirror position if your
vehicle is not in
PARK (I?). Press and hold either the
1 or 2 button until seat and mirror movement is
complete. Releasing the buttons will
stop adjustment.
The
EXIT button can be programmed to allow easy exit
for
up to two drivers. Adjust the seat to a comfortable
“exit” position and then press the
SET button followed
by the EXIT button. While your vehicle is in PARK (P),
briefly press the EXIT button to recall your programmed
exit position. Automatic seat,
mirror, comfort controls and radio
movement will occur if
the Remote Keyless Entry
(RW) transmitter is used to enter the vehicle. The
number on the back
of the transmitter corresponds to the
1 or 2 seat, mirror, comfort controls and radio positions.
After the unlock button
is pressed on the RKE
transmitter (the ignition must be in
LOCK) or when the
key
is placed in the ignition, the seat, mirrors, comfort
controls and radio will automatically adjust to the
appropriate position.
Automatic seat, mirror, comfort controk and radio
movement are programmed through
the Driver
Information Center
(DIC) so that the driver can select
whether
or not movement will occur using the RKE
transmitter or by placing the ignition key in the ignition.
For more information, see “Remote Recall Memory”
in the Index.

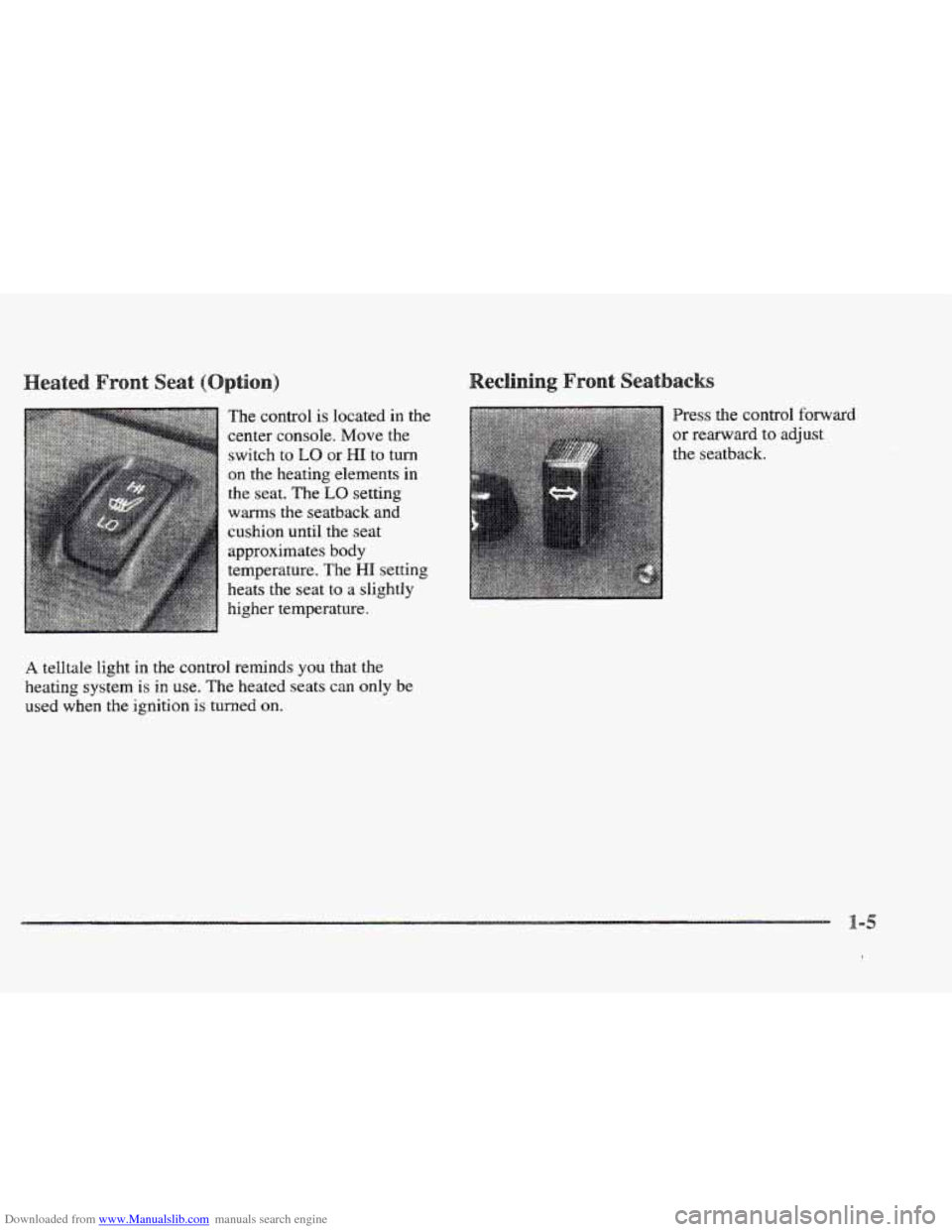

Downloaded from www.Manualslib.com manuals search engine The control is located in the
center console. Move the
switch to LO or HI to turn
the heating elements in
the seat. The
EO setting
warms the seatback and
cushion until the seat
approximates body
temperature. The
HI setting
heats the seat
to a slightly
higher temperature.
A telltale light in the control reminds you that the
heating system is
in use. The heated seats can only be
used when the ignition is turned on.
Press the control forward
or rearward to adjust
the seatback.
